Description
Description

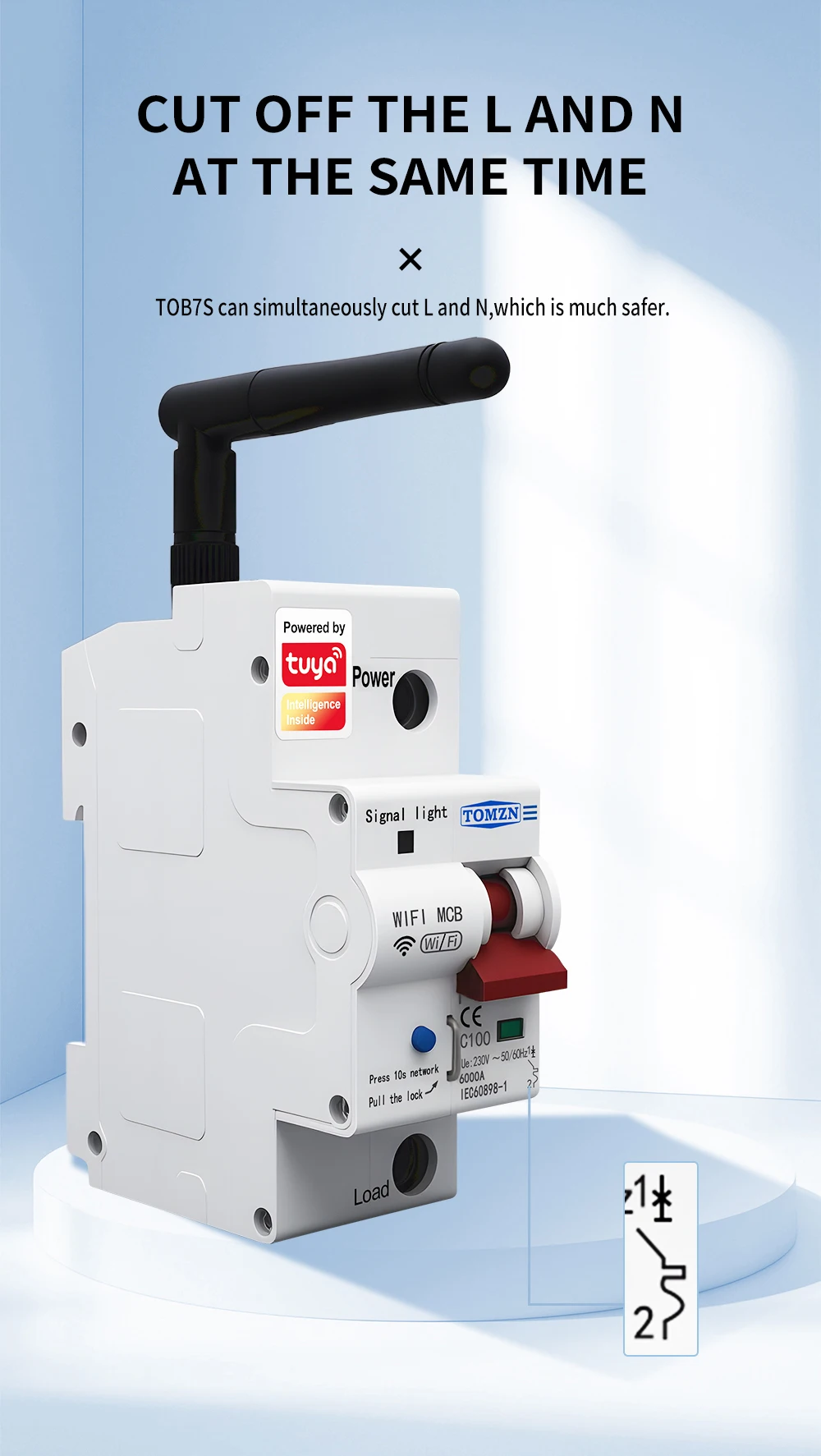

TOB9L-63WIFI 2P can cut off L and N both,
With leakage protection, NO temperature control.
TOB9-63WIFI 1P Can only cut off L,
NO leakage protection, With temperature control.
TOB7S-100 1P+N 230V
10A 16A 20A 25A 32A 40A 50A 63A 80A 100A

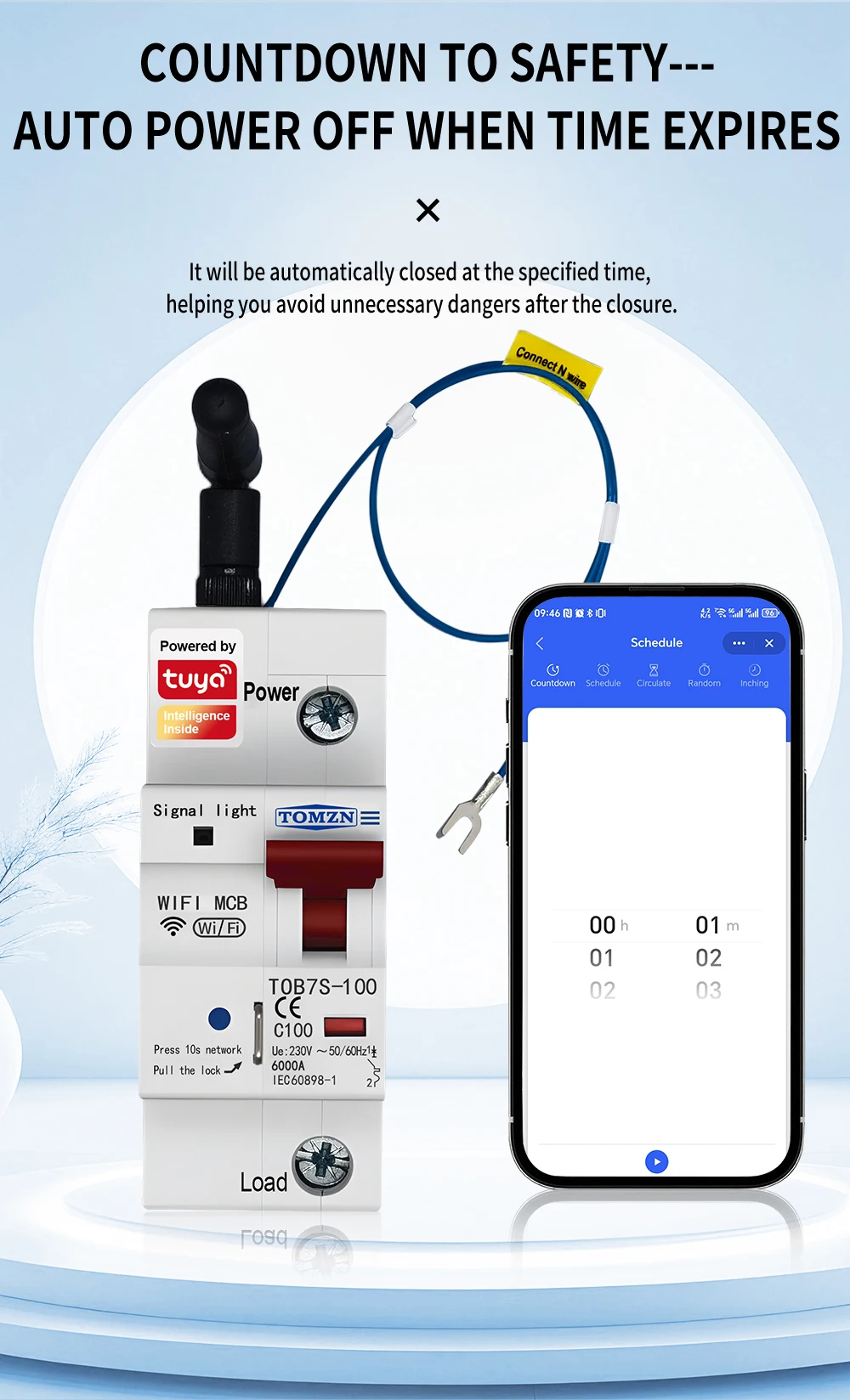

Remote on/off + Timer
General

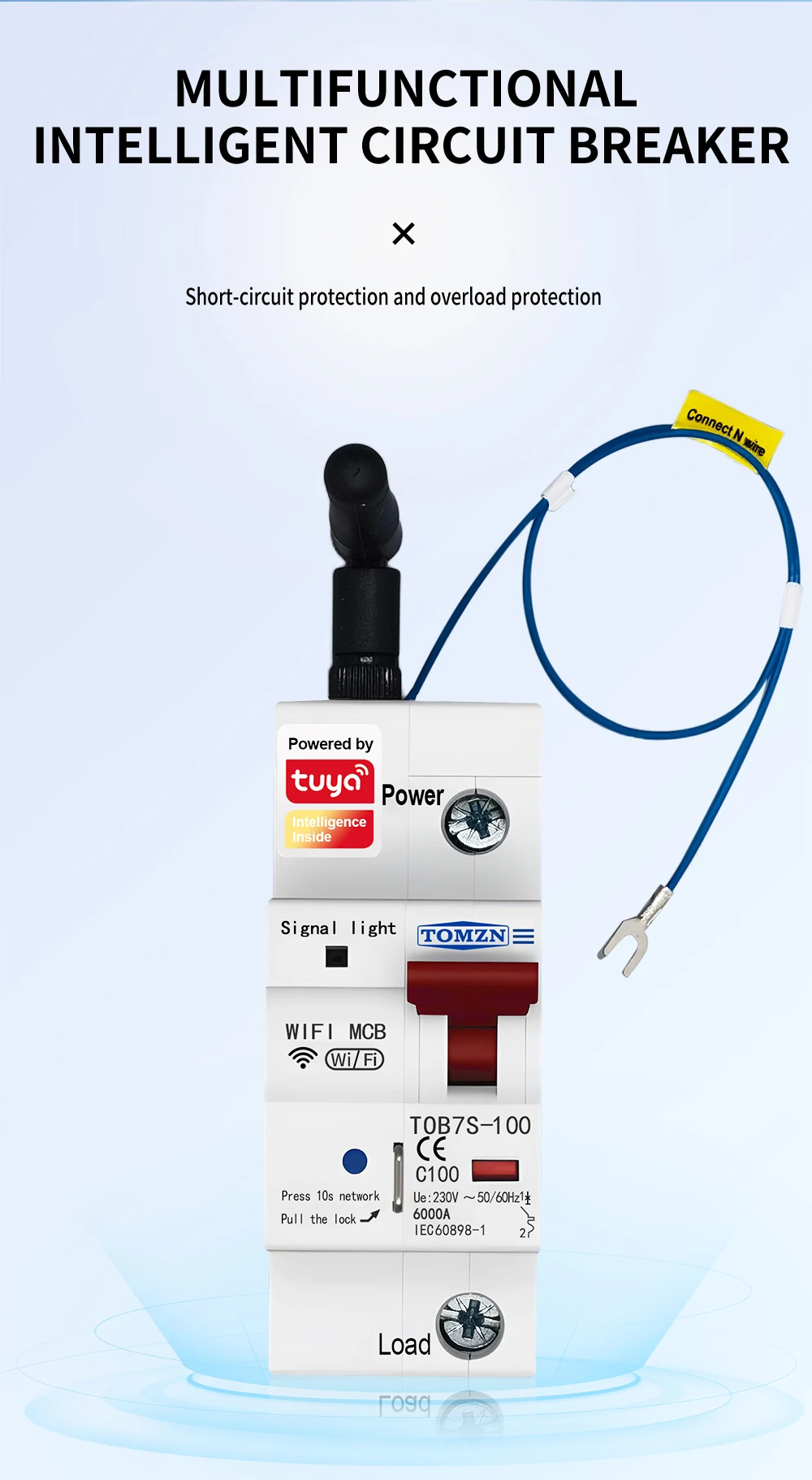

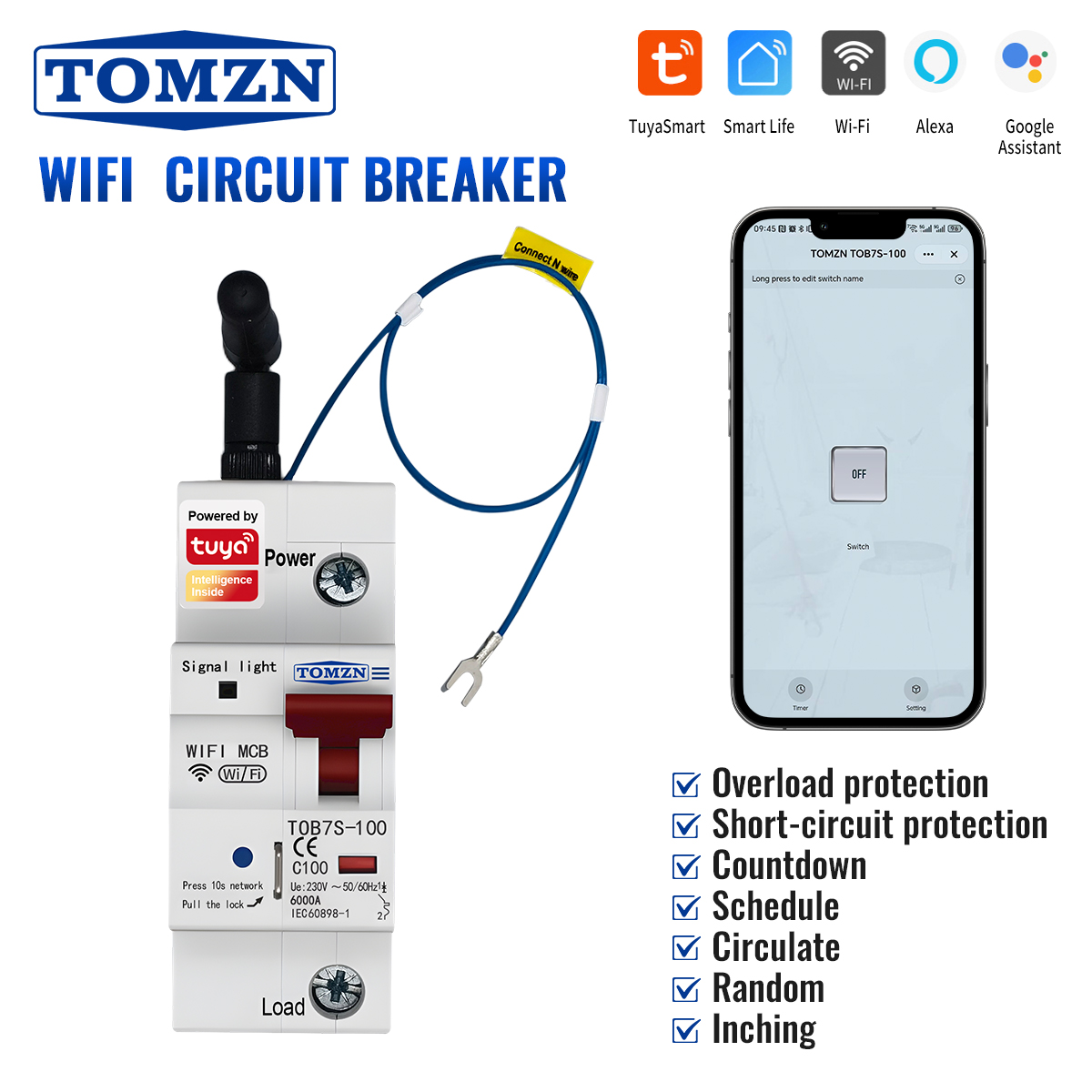

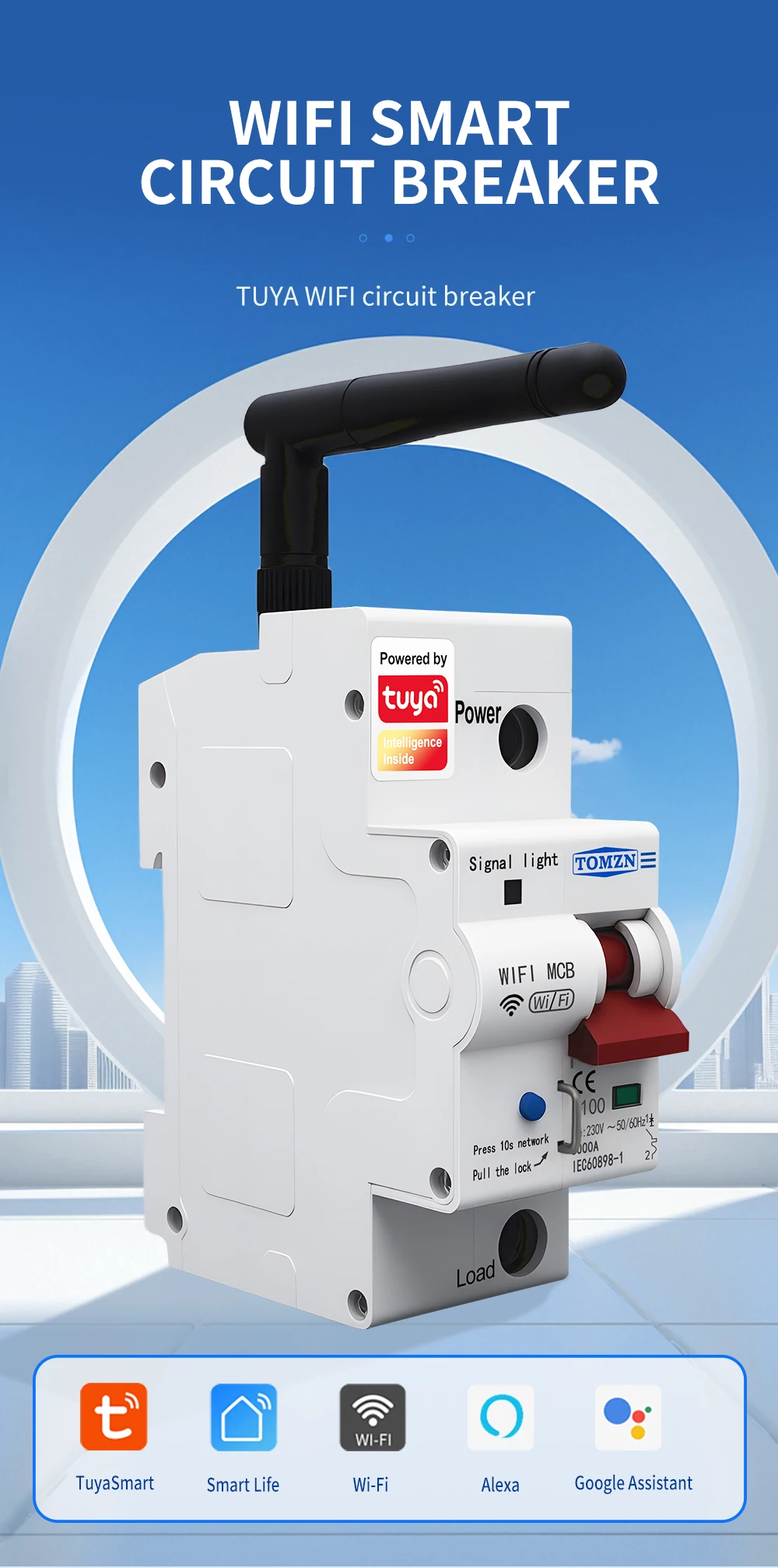

TOB7S-100 is an intelligent modular rail-type circuit breaker designed for AC 50/60Hz systems with a rated voltage of 230 and a rated current of 10-100A. It provides reliable overload and short-circuit protection for connected loads and circuits. The breaker features advanced mobile remote control functionality, allowing users to switch it on/off via a smartphone app, which also displays its real-time status. Additional smart capabilities include timing and delay control. With an attractive design, high reliability, strong breaking capacity, and fast trip mechanism, it is an ideal solution for modern electrical installations.
Product features

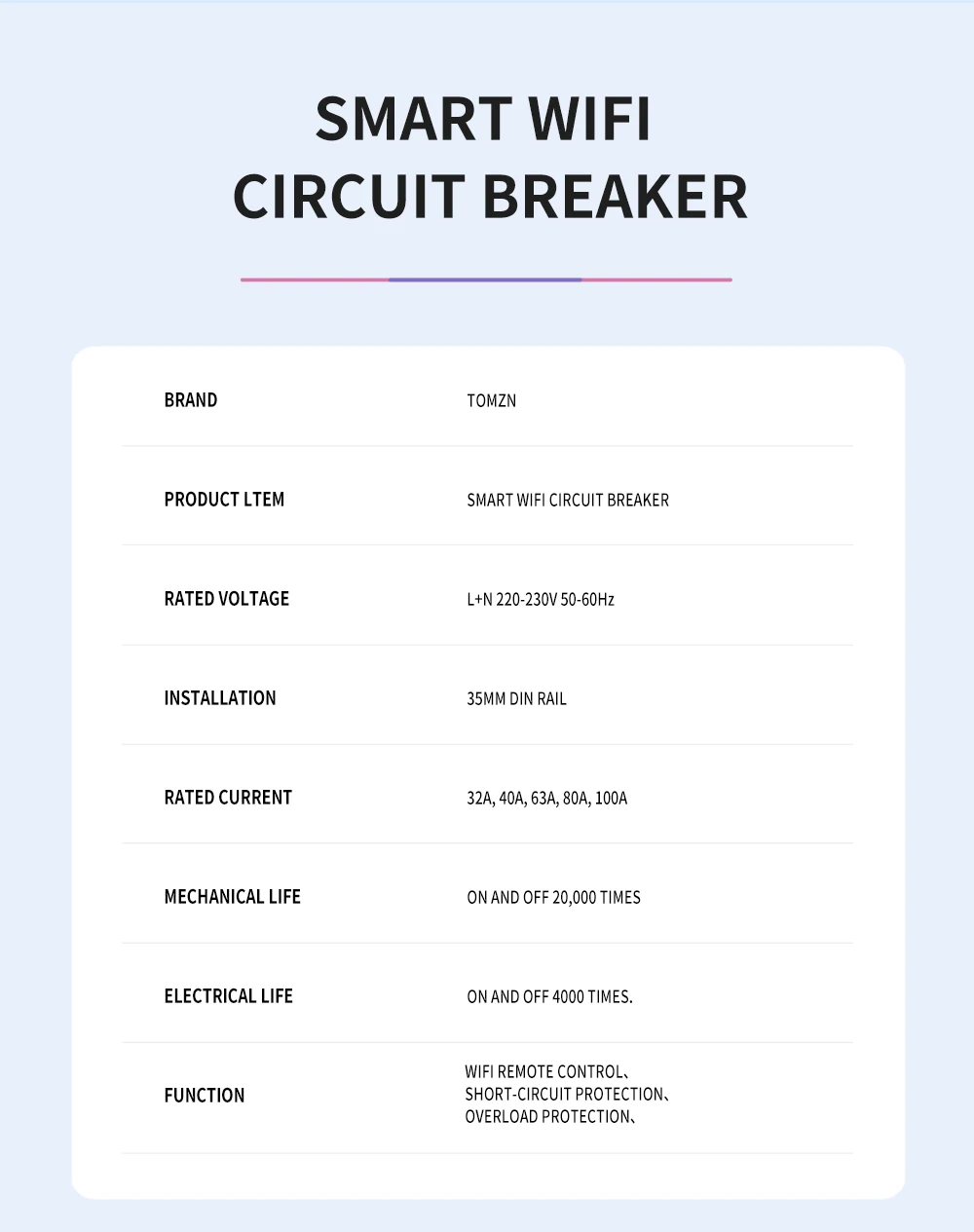

Product Type: WIFI smart Circuit Breaker
Rated Frequency: 50/60Hz
Rated Voltage: 230V AC
Rated Current: 10A 16A 20A 25A 32A 40A 50A 63A 80A 100A

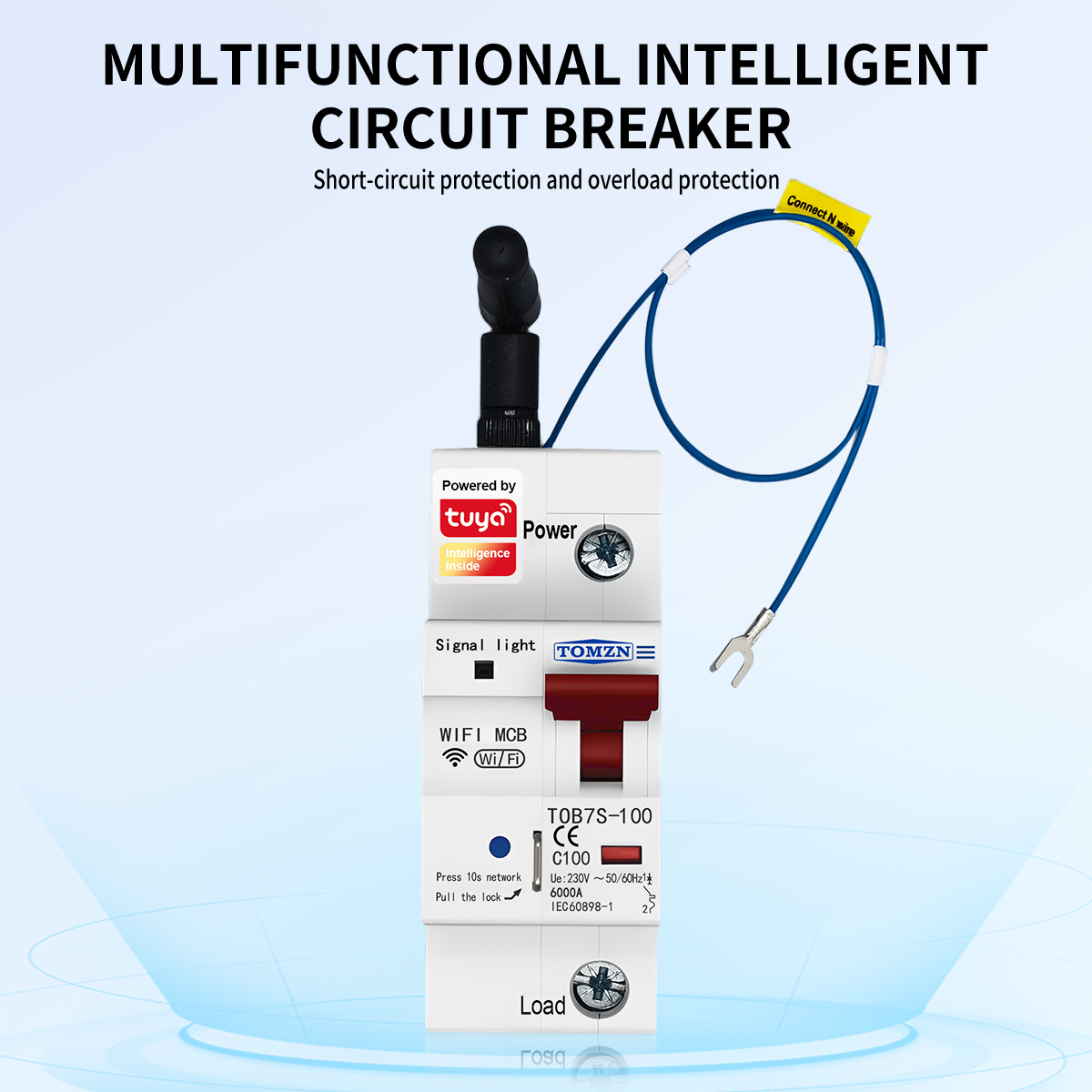

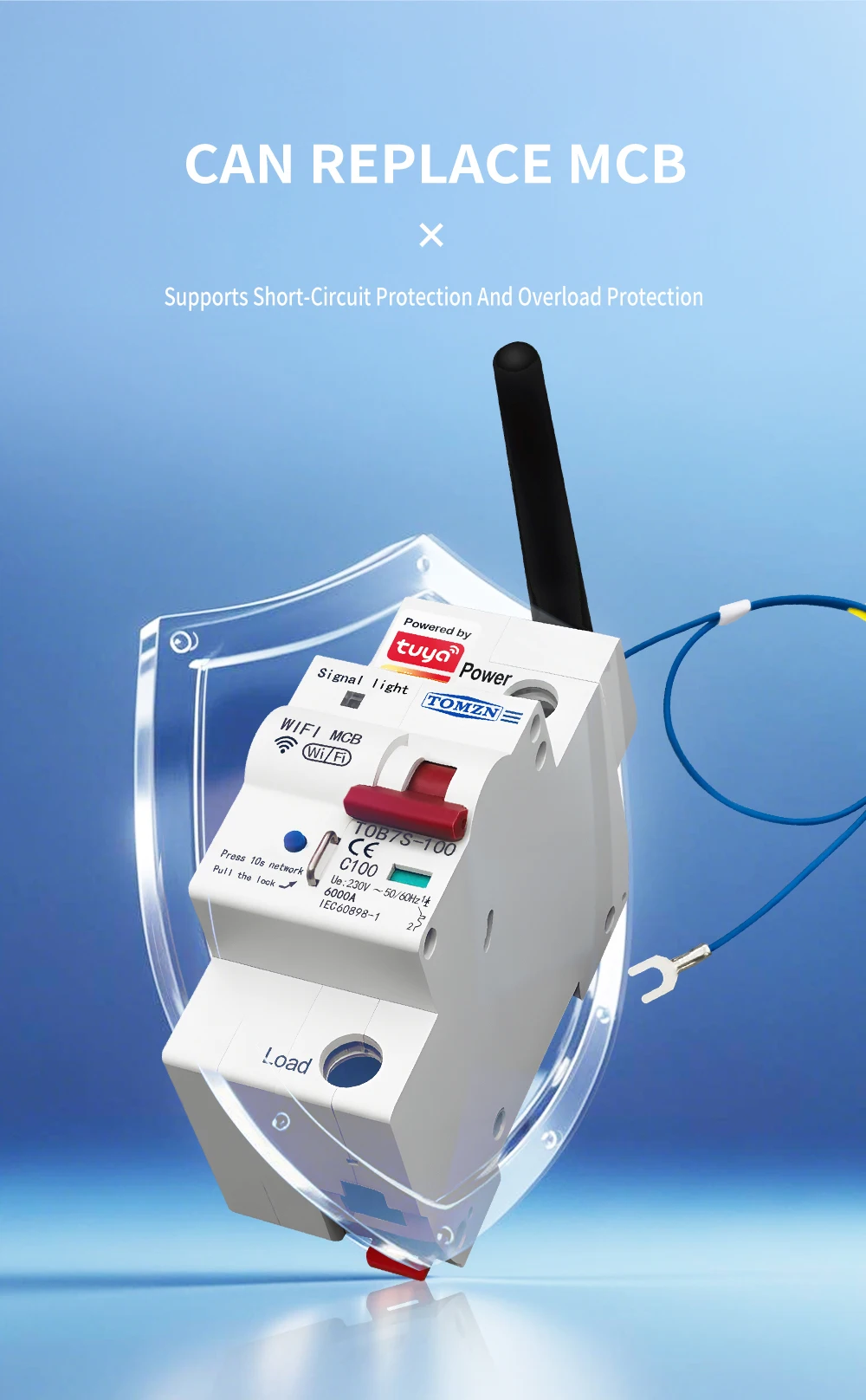

Protection Functions: Overload and Short-Circuit Protective
Control Method: Mobile Phone Remote Control
Installation Type: Din rail
Ambient Temperature: -5°C to +40°C (Service Temperature Limit: -25°C to +70°C)
Max. Altitude: 2000 meters
Pollution Level: Level 2
Installation Class: Class II, Class III
Product Type: WIFI smart Circuit Breaker
Rated Frequency: 50/60Hz
Rated Voltage: 230V AC
Rated Current: 10A to 100A
Control Method: Mobile Phone Remote Control
Installation Type: Din rail
Ambient Temperature: -5°C to +40°C (Service Temperature Limit: -25°C to +70°C)
Max. Altitude: 2000 meters
Pollution Level: Level 2
Installation Class: Class II, Class III
|Tuya Smart Device Protector Mcb|Tuya Smart Device Protector Wifi|
**Advanced Smart Protection**
The TOB7S-100 WIFI MCB Tuya Smart Device Protector is a cutting-edge solution for modern electrical installations. This smart circuit breaker is designed to provide reliable overload and short-circuit protection while offering a range of customizable features to suit your specific needs. With its compatibility with the Tuya Smart device, users can remotely control the breaker’s on/off status and schedule timed operations via a mobile app, ensuring convenience and security.
**Versatile and User-Friendly Design**
The TOB7S-100 is not only a smart device protector but also a versatile piece of equipment that supports a wide range of currents from 10A to 100A, making it suitable for various electrical applications. Its Din rail installation type makes it easy to integrate into existing electrical systems, while its compact size ensures it fits seamlessly into tight spaces. With a robust design and high breaking capacity, this circuit breaker is engineered to withstand the rigors of daily use, offering peace of mind in any setting.
**Safety and Performance**

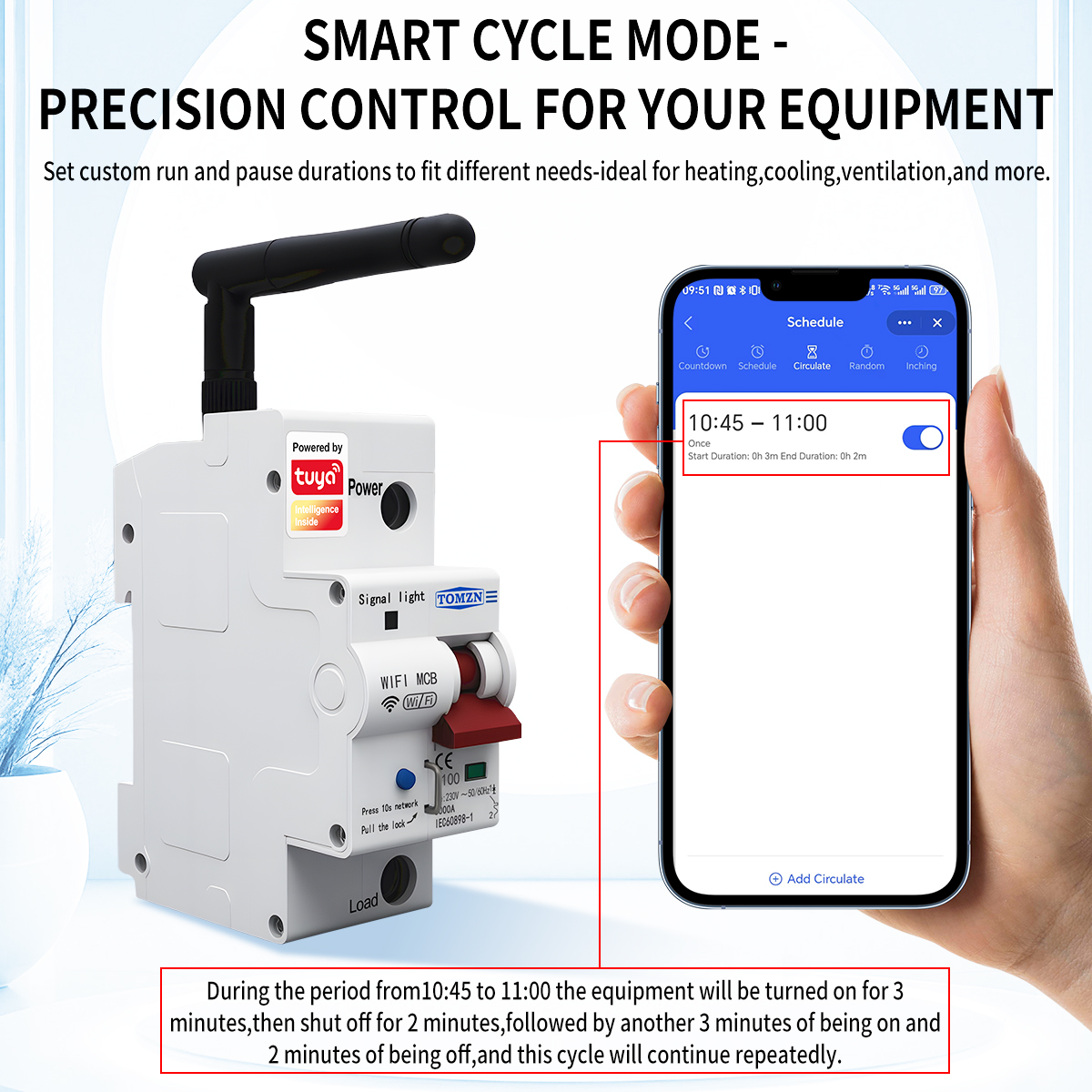

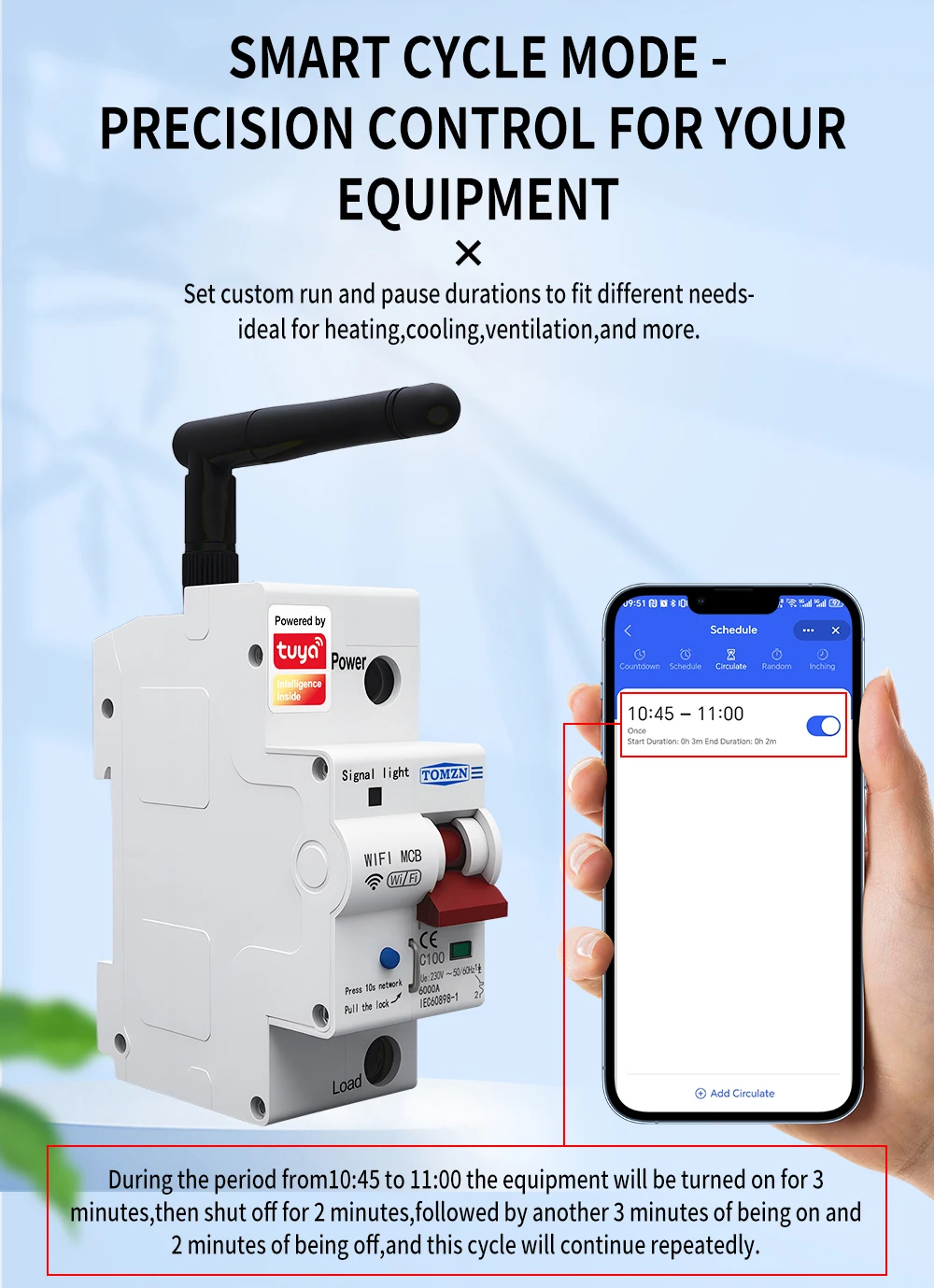

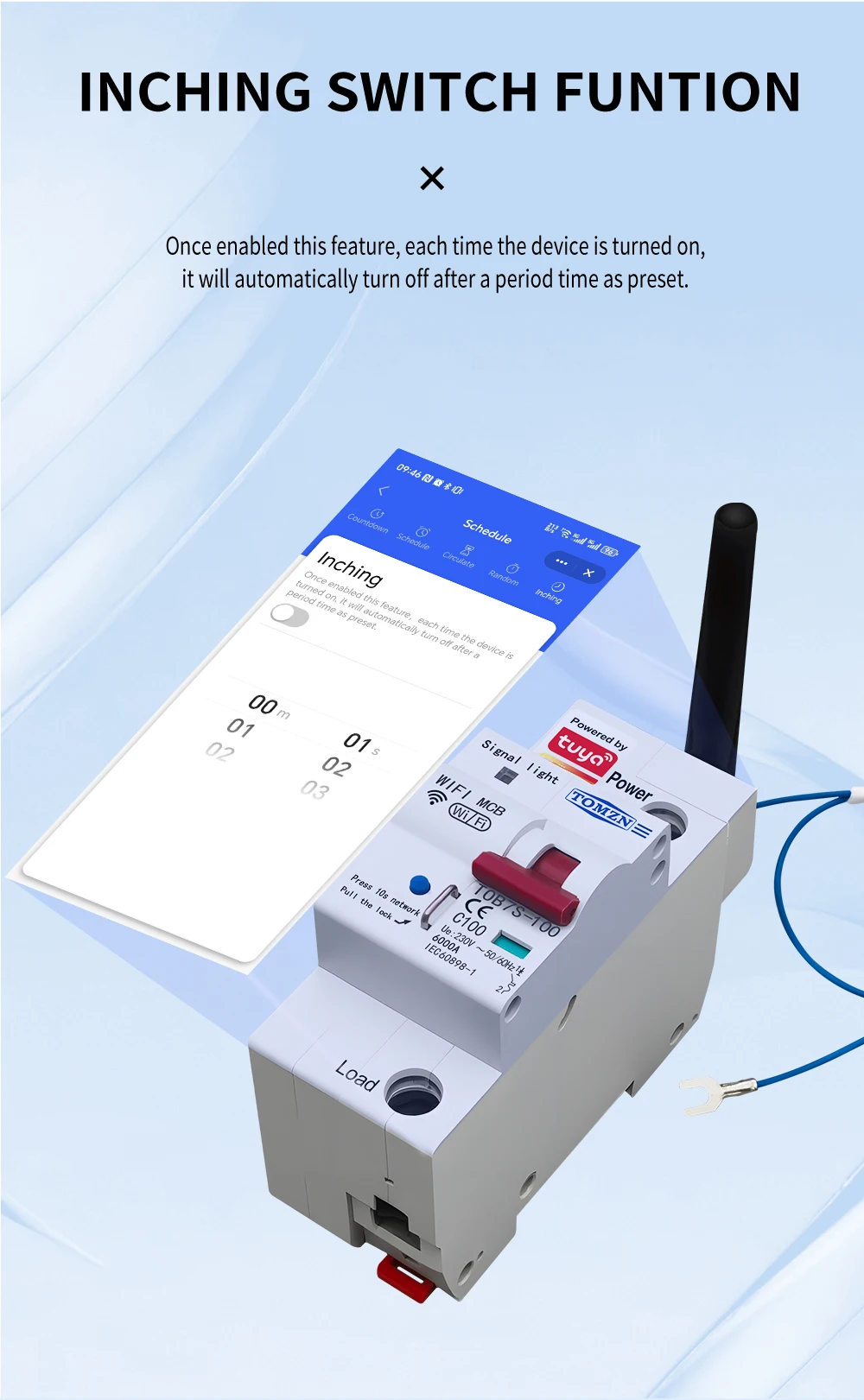

This smart device protector is not just about convenience; it’s designed with safety in mind. It supports a maximum altitude of 2000 meters, making it suitable for installations in various climates. The breaker’s performance is backed by its ability to operate in a pollution level of Level 2, ensuring reliable performance even in environments with moderate contamination. With its ability to circulate random inching and countdown schedules, the TOB7S-100 offers a level of customization that caters to the unique needs of each installation, ensuring optimal performance and safety.
