TOVS-16Z Single Display AC110V 230V 16A Universal+UK
Voltage measurement + Overvoltage and undervoltage protection
General

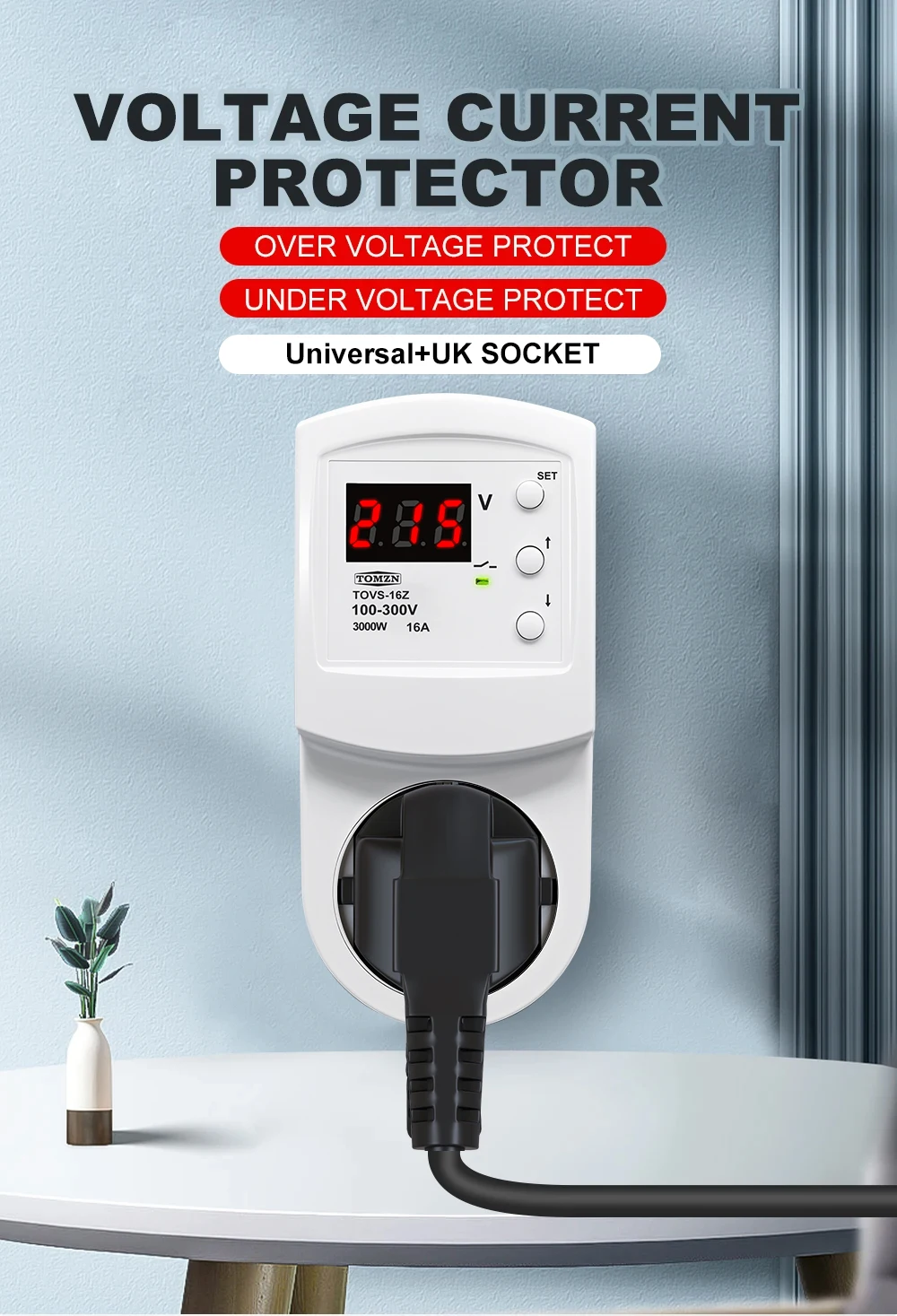

TOMZN TOVS-16Z is an economical voltage protector with a socket‑type design for easy installation. It features a UK input plug and a universal output socket, making it compatible with most UK home outlets. The device provides overvoltage and undervoltage protection with a response time as fast as 0.1 seconds. It also displays real‑time voltage and allows ±9.5% voltage calibration. Ideal for protecting household appliances, especially in older homes where electrical safety needs upgrading. Note: This device does not measure current or provide overcurrent protection.

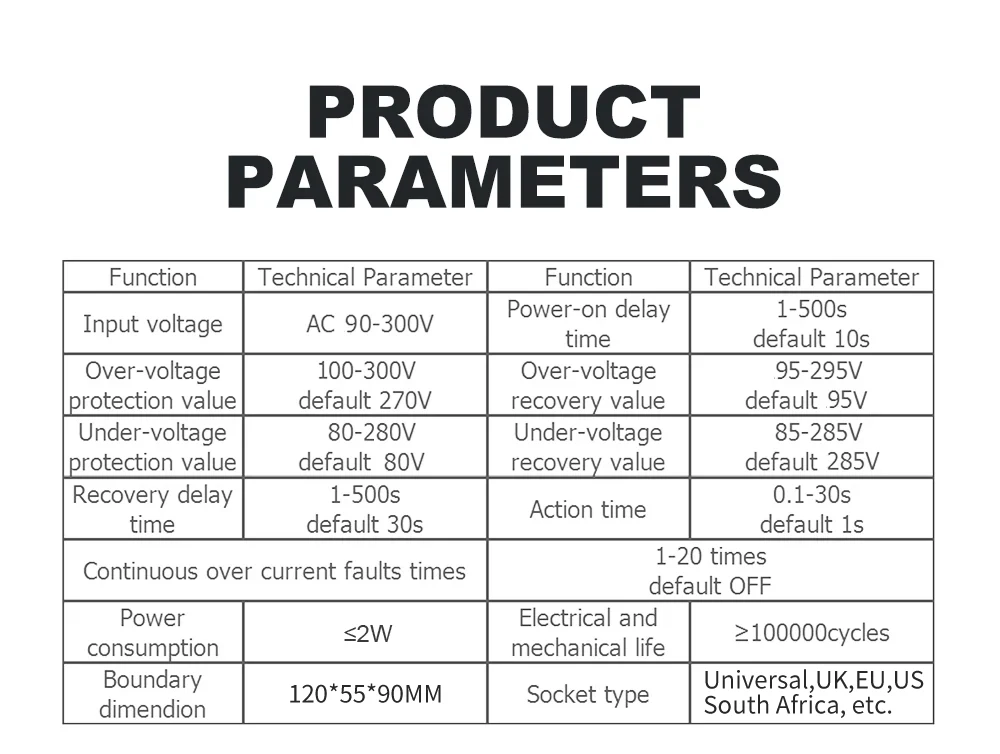

Product Parameters
Product Model: TOVS-16Z
Input Plug: UK Plug
Output Socket: Universal Socket
Rated Voltage: AC110V / 230V
Max Load Current: 16A (non‑adjustable)
Voltage Display: Real‑time measurement
Voltage Calibration: Adjustable ±9.5%

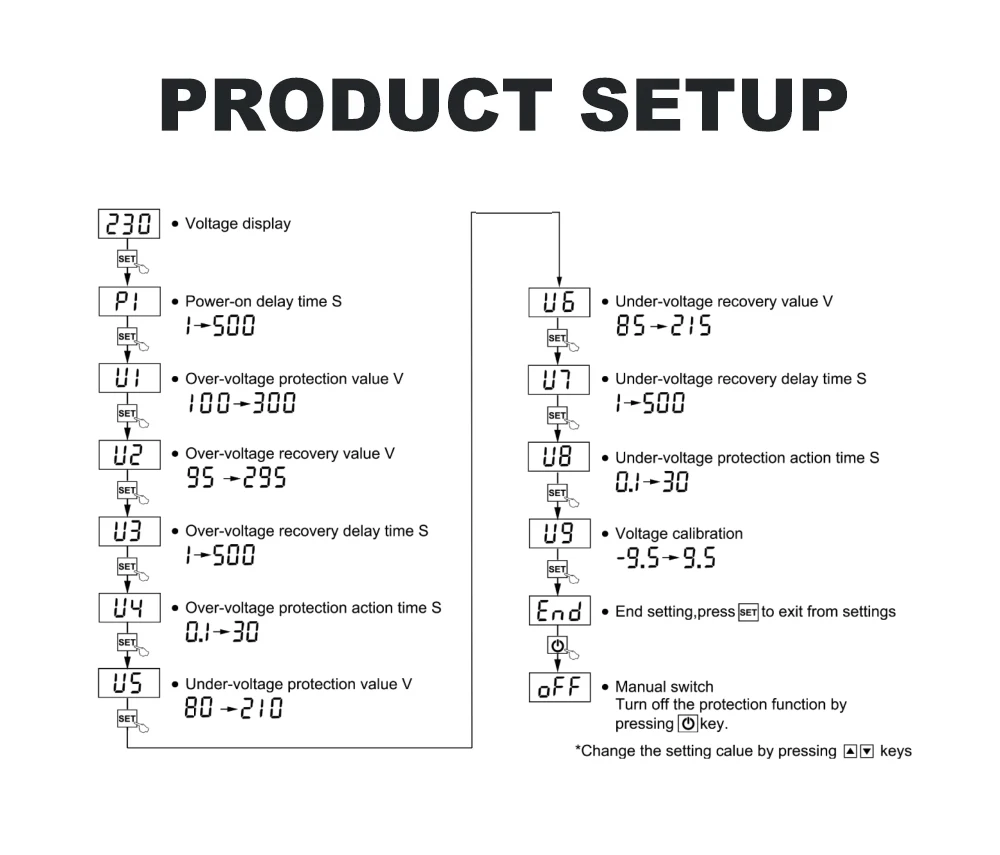

Overvoltage Protection Threshold: 100-300V (default 270V)
Overvoltage Recovery Threshold: 95-295V (default 265V)
Overvoltage Response Time: 0.1-30s (default 1s)
Overvoltage Recovery Delay: 1-500s (default 30s)
Undervoltage Protection Threshold: 80-280V (default 80V)
Undervoltage Recovery Threshold: 85-285V (default 285V)
Undervoltage Response Time: 0.1-30s (default 1s)
Undervoltage Recovery Delay: 1-500s (default 30s)
Power‑On Delay Time: 1-500s (default 10s)
Standby Power Consumption: <2W
Mechanical Life: 100,000 cycles
Not Supported: Current measurement, overcurrent protection adjustment
NOTED: This device does not support current measurement and adjustment of overcurrent protection.
