TOB9L-63WIFI 2P can cut off L and N both,
With leakage protection, NO temperature control.
TOB9-63WIFI 1P Can only cut off L,
NO leakage protection, With temperature control.

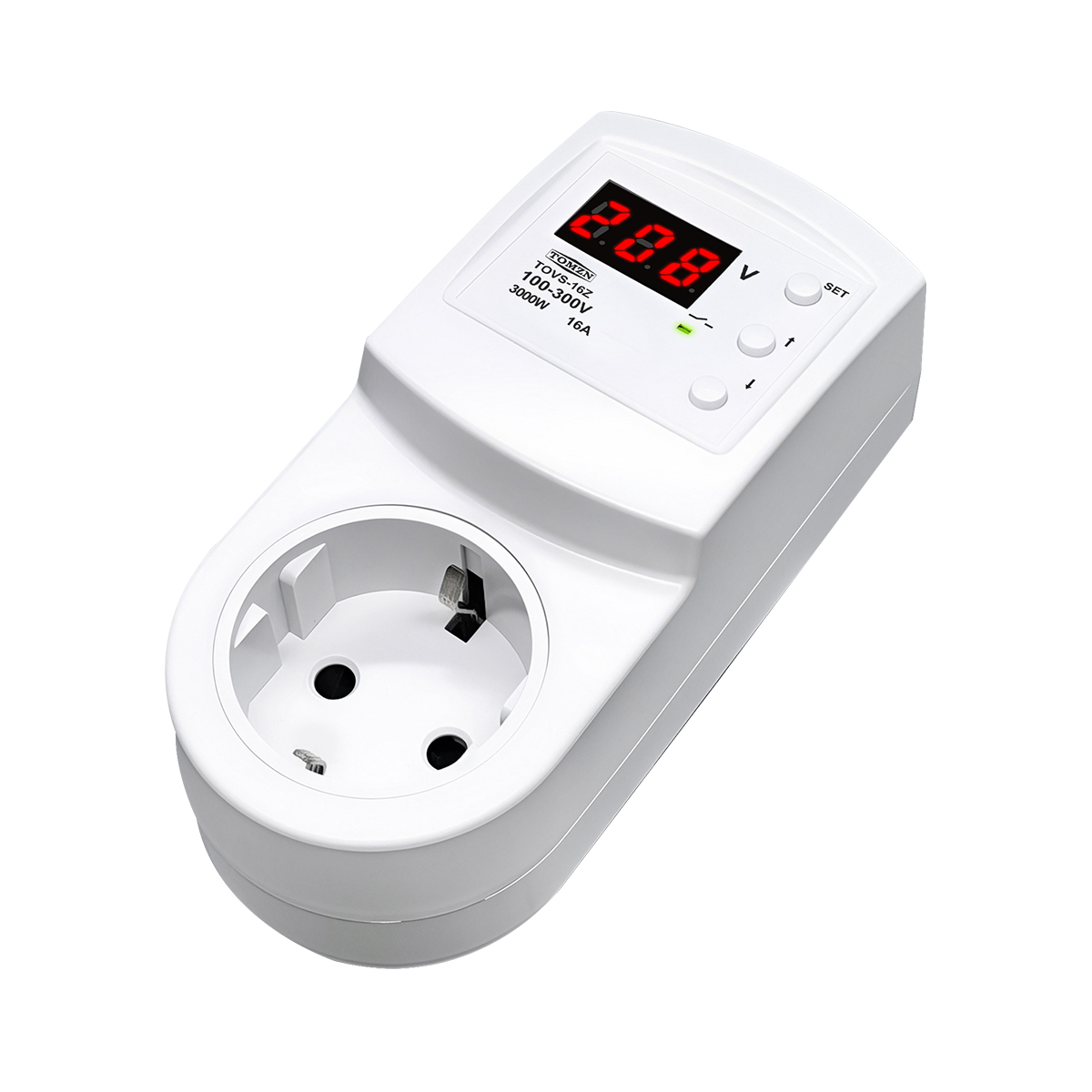

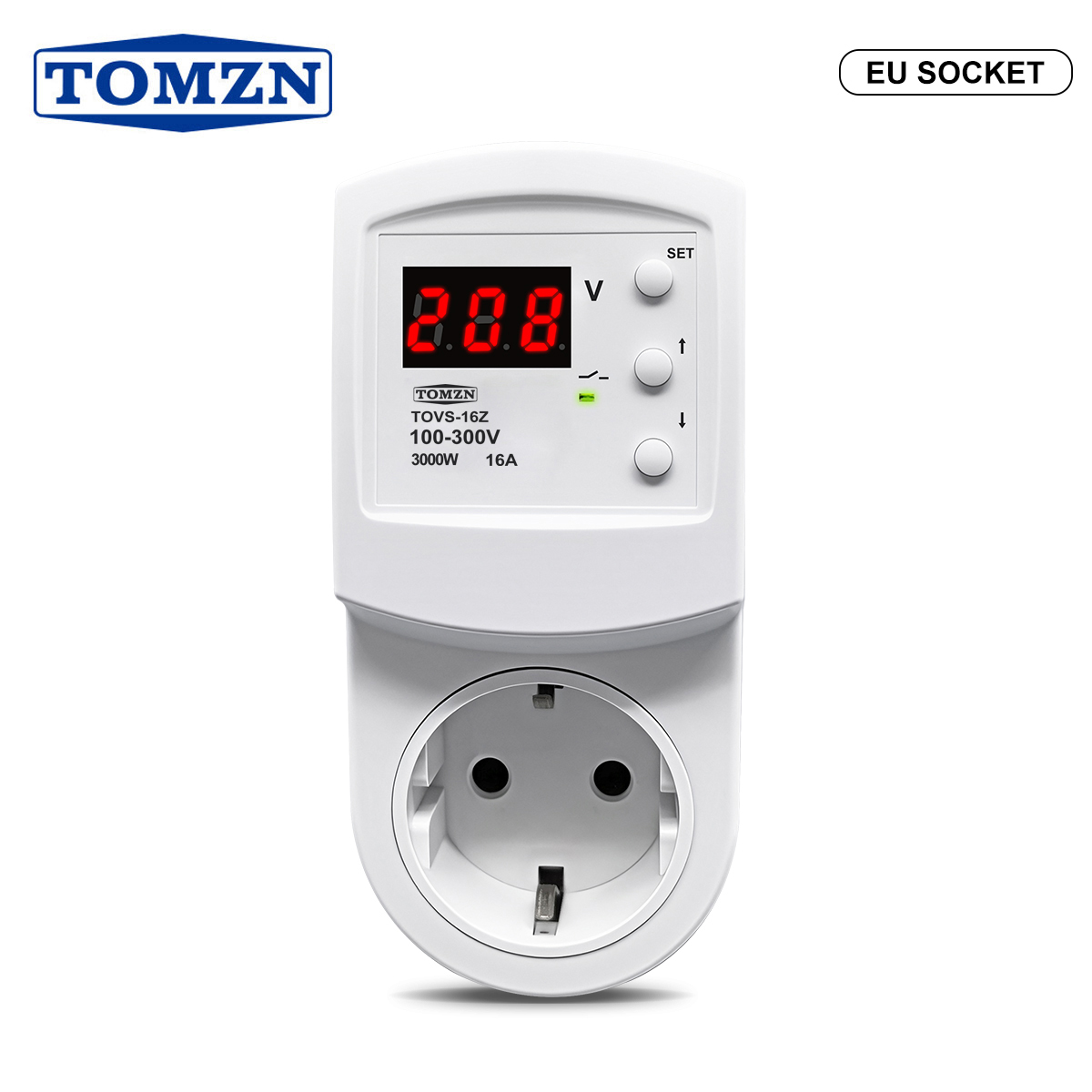

TOVS-16Z AC100-300V 16A
Voltage measurement + Overvoltage and undervoltage protection

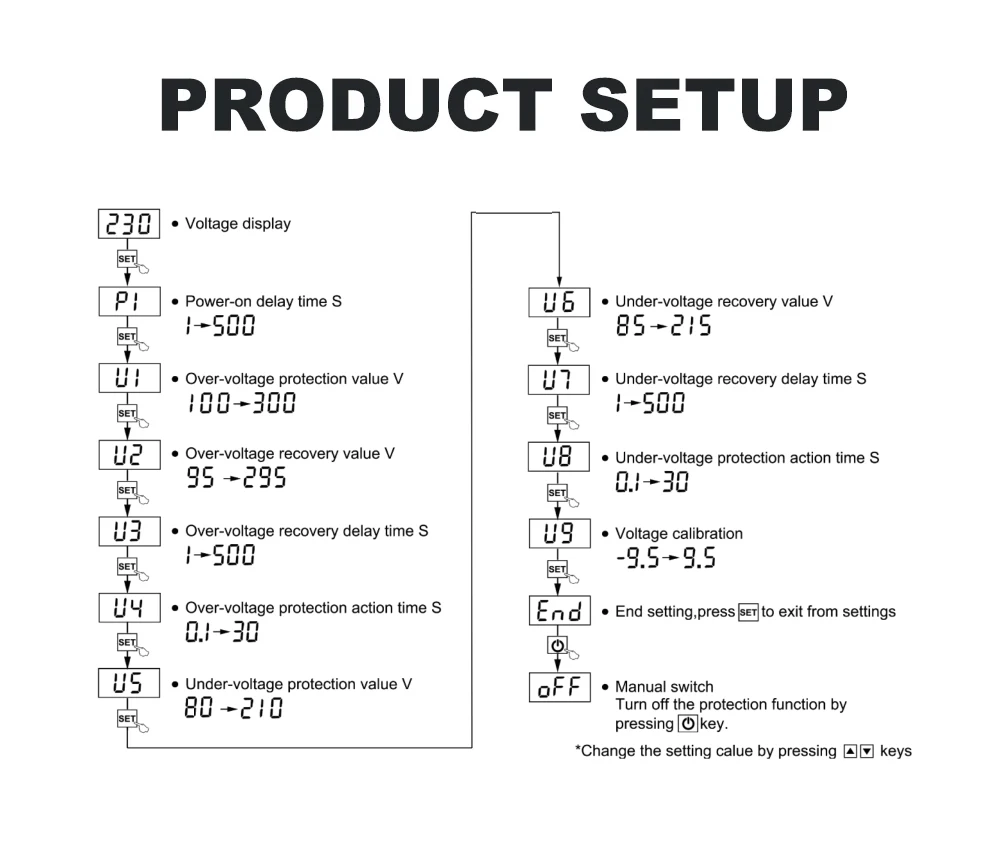

Functions
1.Over-voltage protection
2.Under-voltage protection
3.Automatic recovery
4.Voltage display(voltage measurement)
5. Voltage calibration: Voltage ±9.5% adjustable.

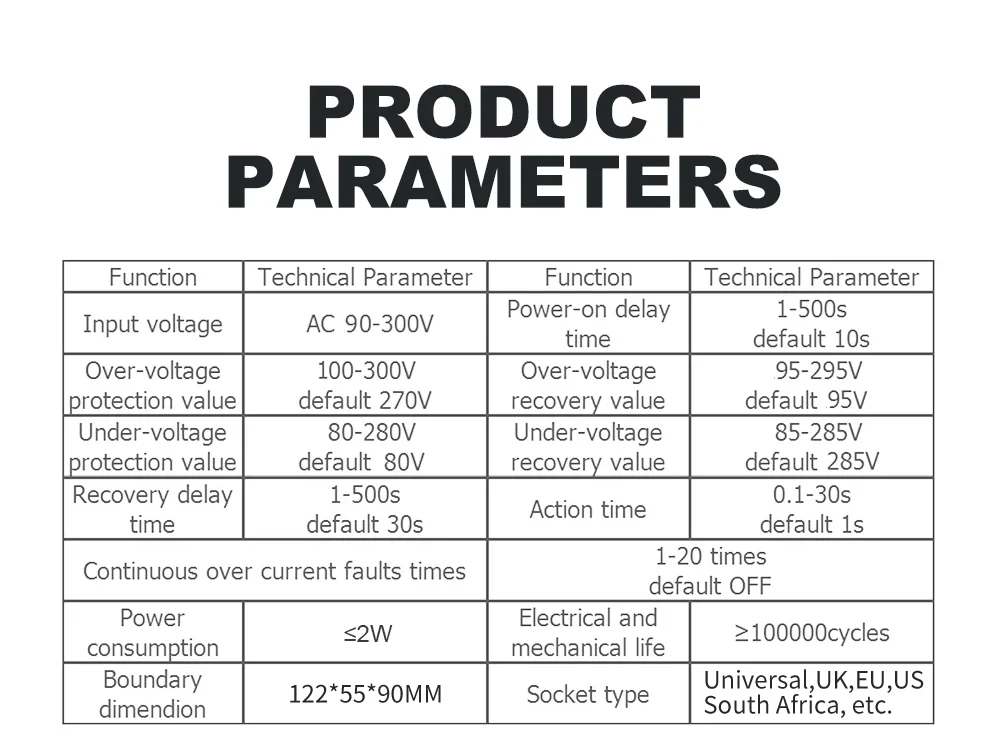

Product Parameters
1.Model number:TOVS-16Z
2.Power supply:100-300VAC
3.Max.Loading power: 16A
4.Over-voltage protection value range:100~300V(default:270V)
Over-voltage recovery voltage range: 95~295V(default:265V)
Over-voltage protection action time:0.1s~30s(default value:1s)
Over-voltage recovery delay time:1~500s(default:30s)
5.Under-voltage protection value range:80~280V(default:80V)
Under-voltage recovery voltage range:85~285V (default:285V)
Under-voltage protection action time:0.1s~30s(default:1s)
Under-voltage recovery delay time:1s~500s(default:30s)
7.Power-on delay time:1~500s(default:10s)
8.Power consumption : <2W
9.Electric machinery life : 100,000 times
Power Supply: 100-300VAC
Max. Loading Power: 16A
Voltage Measurement: Yes
Overvoltage Protection Value Range: 100~300V (default: 270V)
Undervoltage Protection Value Range: 80~280V (default: 80V)
|Tomzn Tovs 16z|Tovs 16z|Tomzn Tovs 16z Manual Pdf|
**Advanced Voltage Protection Technology**

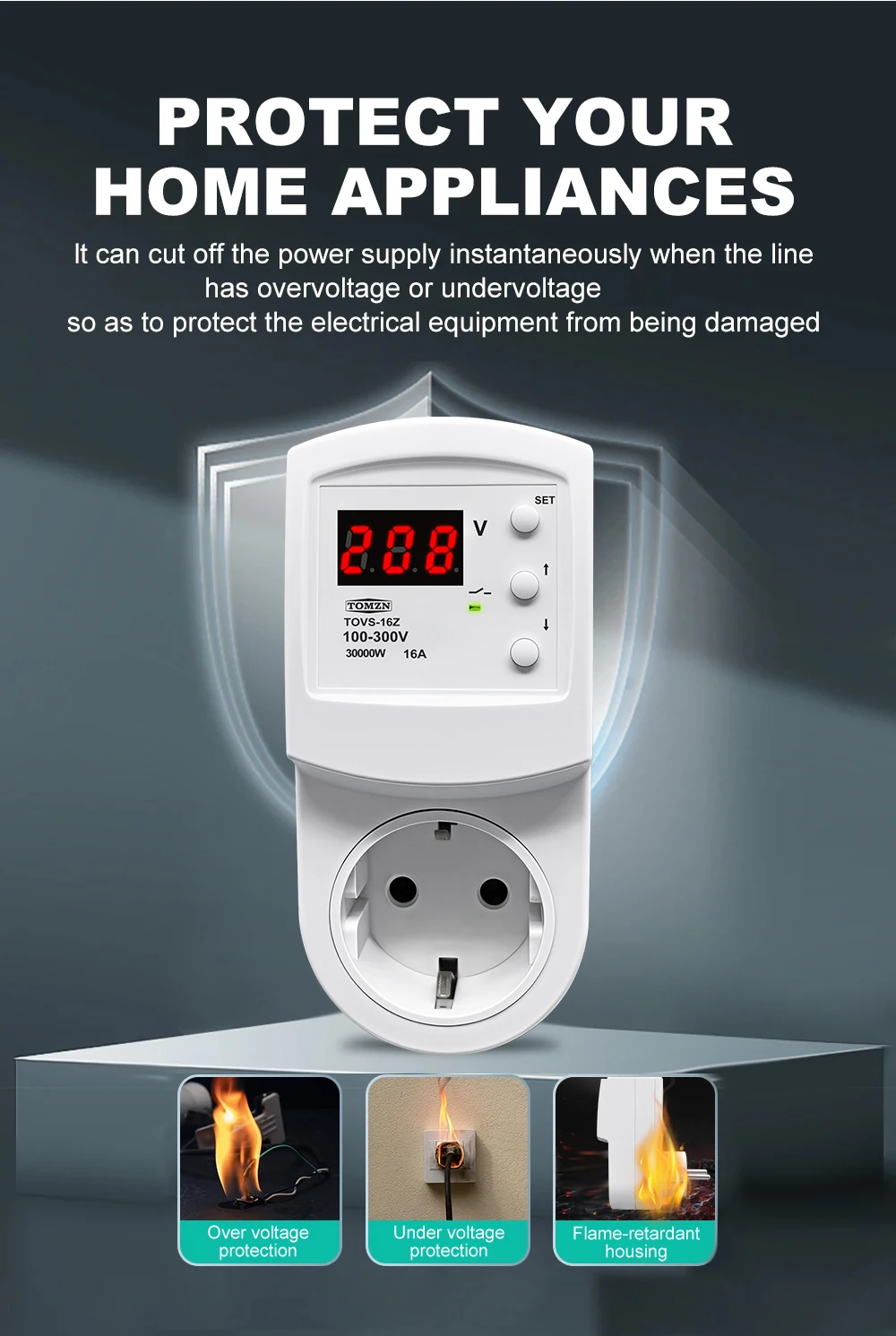

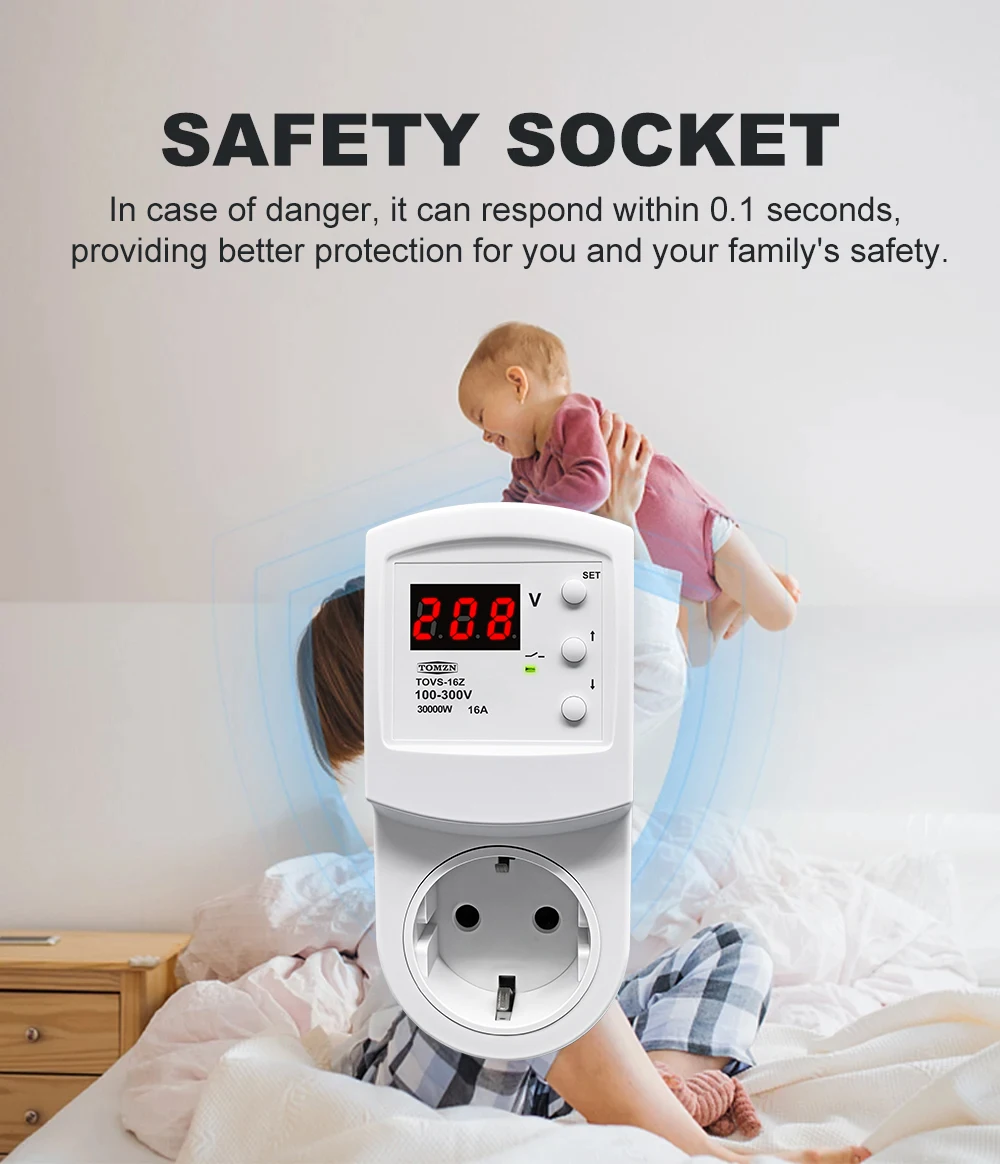

The TOMZN TOVS-16Z Automatic Voltage Protector Socket is a reliable solution for safeguarding your electrical appliances against overvoltage and undervoltage conditions. This smart device, although not a smart device, is designed to provide instantaneous protection when voltage levels deviate from the preset thresholds. With a power supply range of 100-300VAC, it is suitable for a variety of electrical systems, catering to both residential and commercial environments.
**User-Friendly Customization and Display**

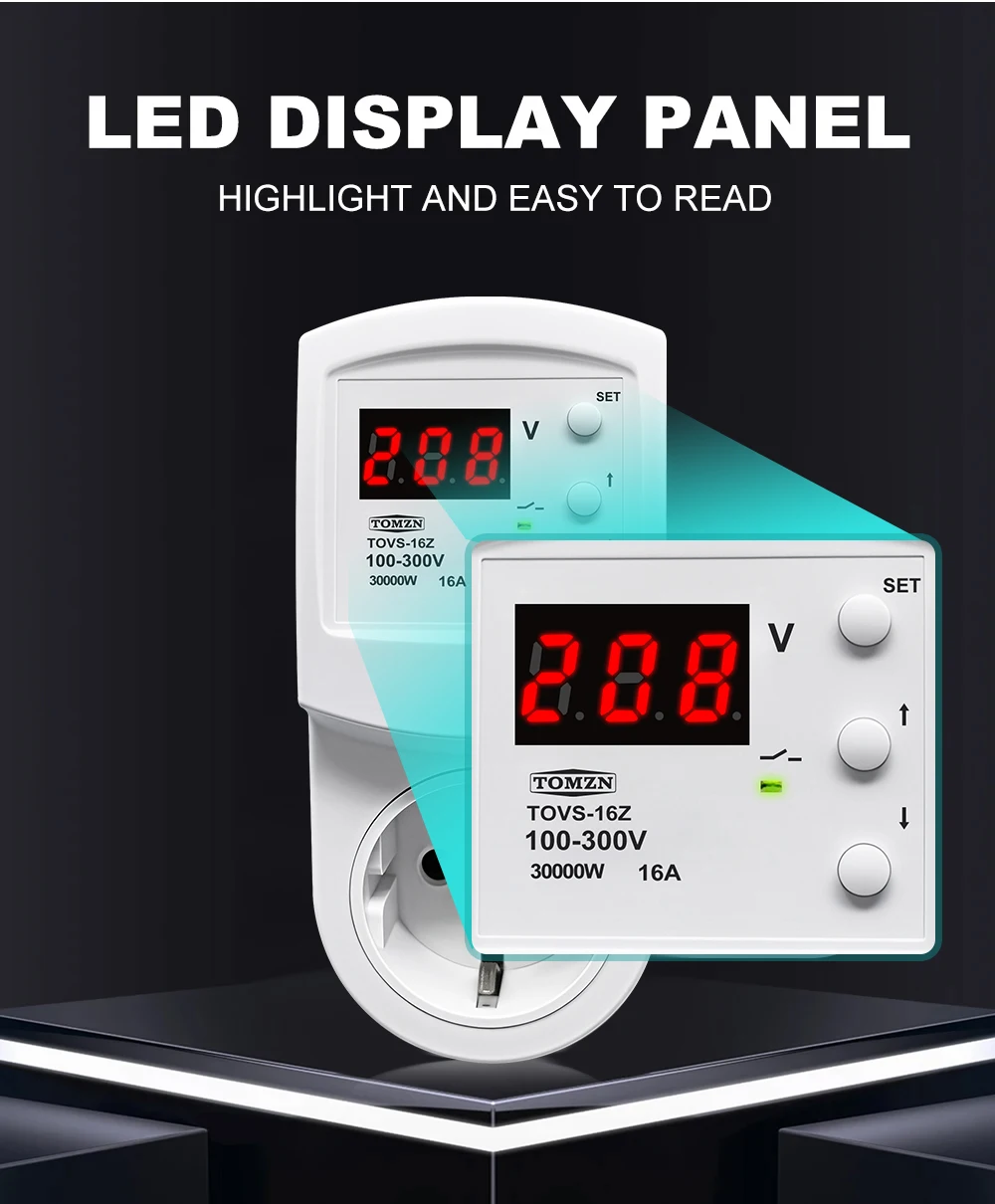

The TOMZN TOVS-16Z is engineered to be user-friendly, allowing for customization through voltage calibration settings that can be adjusted within a ±9.5% margin. Users can easily monitor and adjust voltage levels using the voltage display feature, ensuring that their electrical devices are functioning optimally. The clear display allows for easy readings, making it an ideal tool for preventing potential damage due to voltage fluctuations.
**Extended Protection and Durability**
The TOMZN TOVS-16Z is designed to withstand the rigors of daily use, featuring an electric machinery life of 100,000 times. This robust device is equipped with a power-on delay time of 1-500 seconds, which provides a smooth transition between power states. The overvoltage and undervoltage protection values can be adjusted to suit specific needs, offering unparalleled flexibility in safeguarding your electrical equipment. Whether you’re protecting valuable appliances or ensuring the safety of your home or office environment, the TOMZN TOVS-16Z is a reliable choice for automatic voltage protection.
