TOMZN TORT7-S1 Timer Relay Asymmetric Cycler Automatic loop delay T1-on time T2-off time AC230V 50/60Hz For Traffic Lights

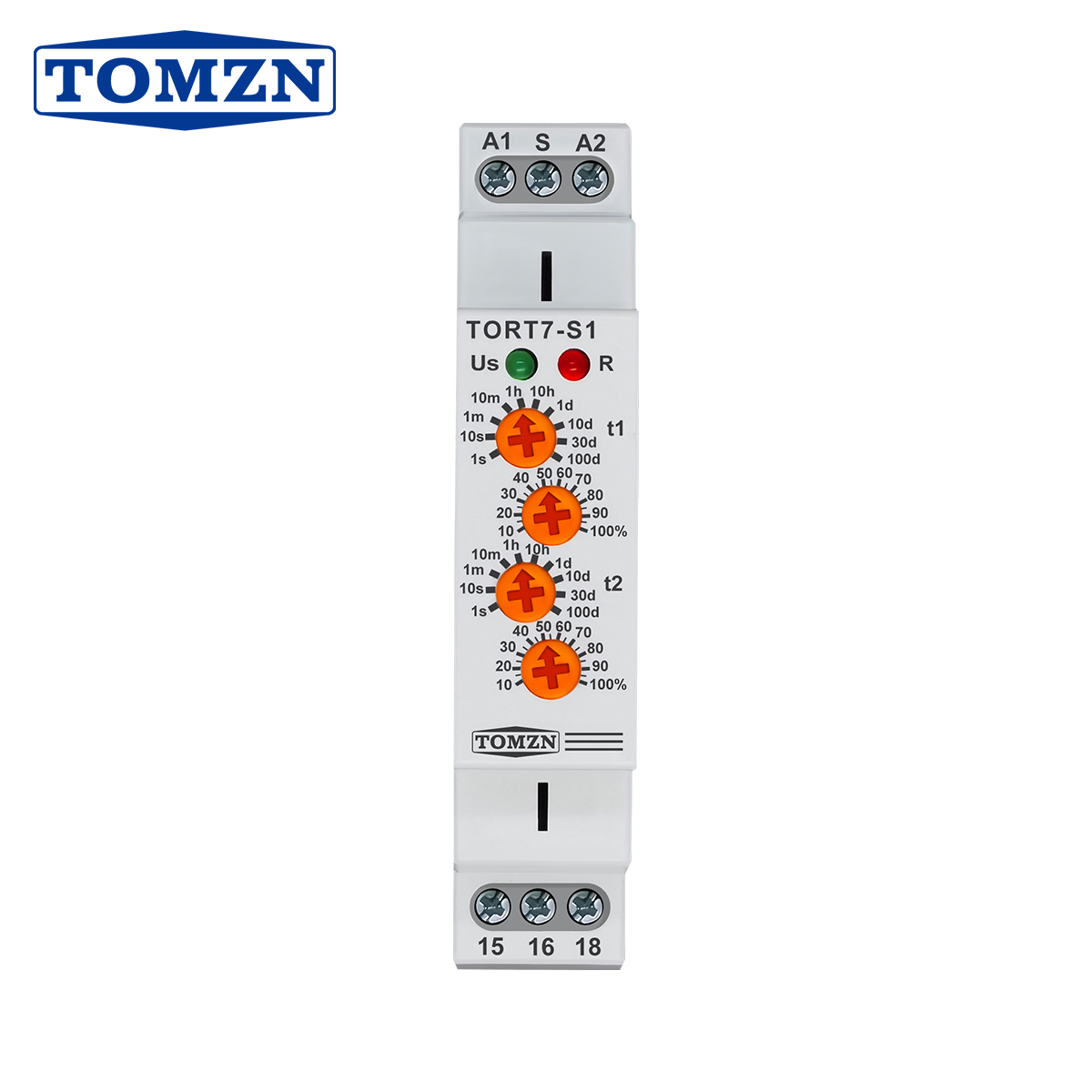

TORT7-S1 Asymmetric cycler time relay

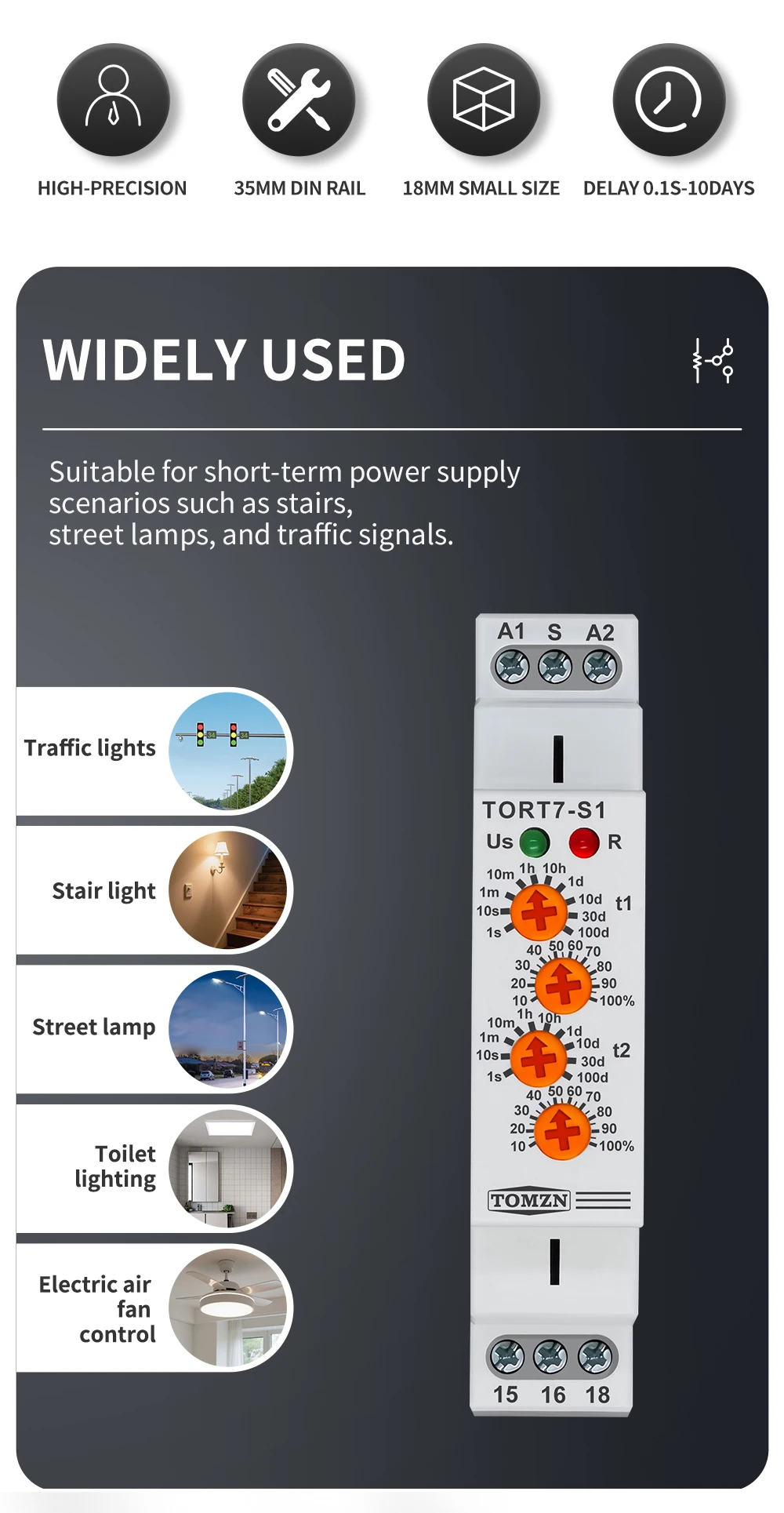

1.General

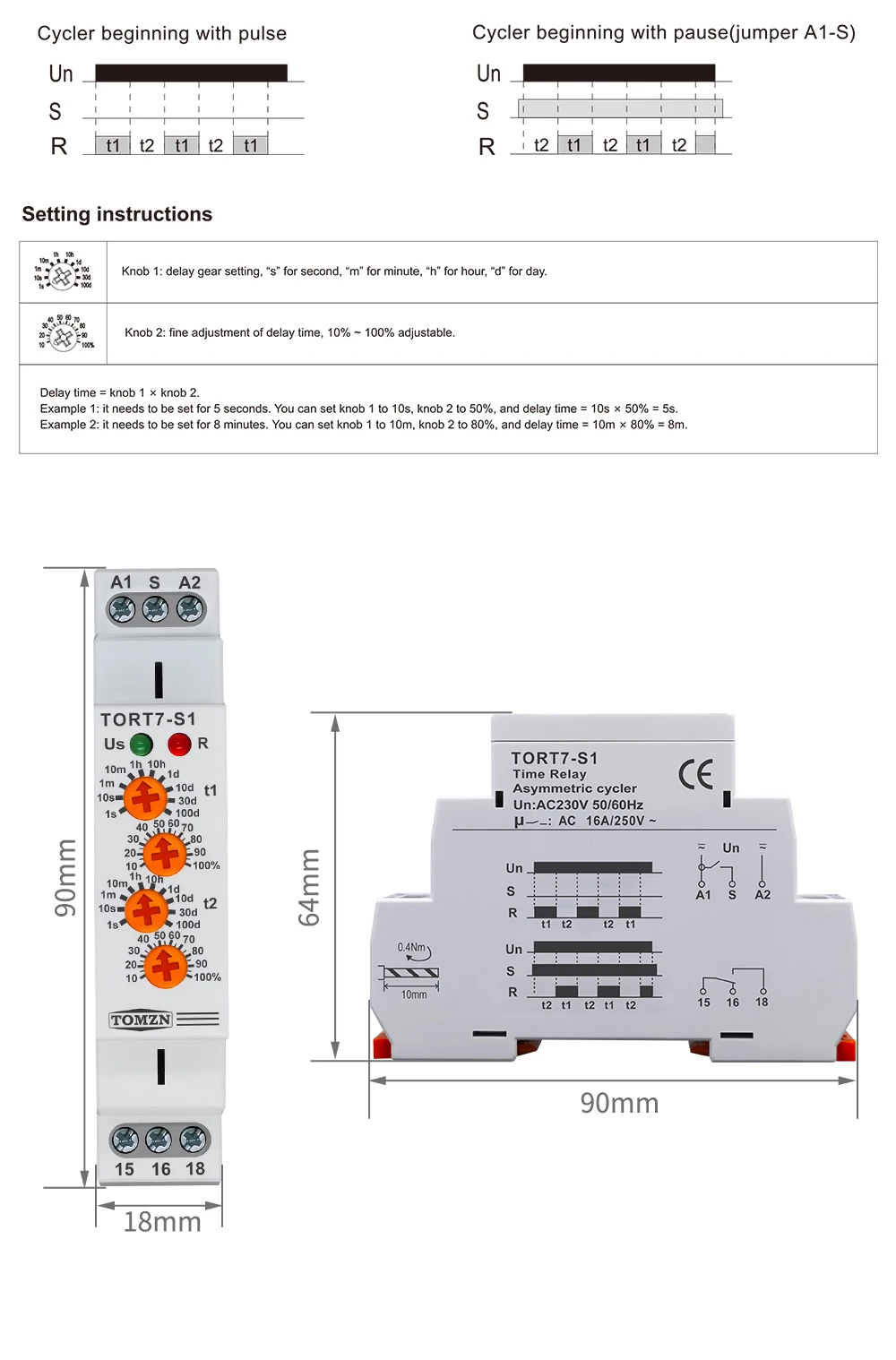

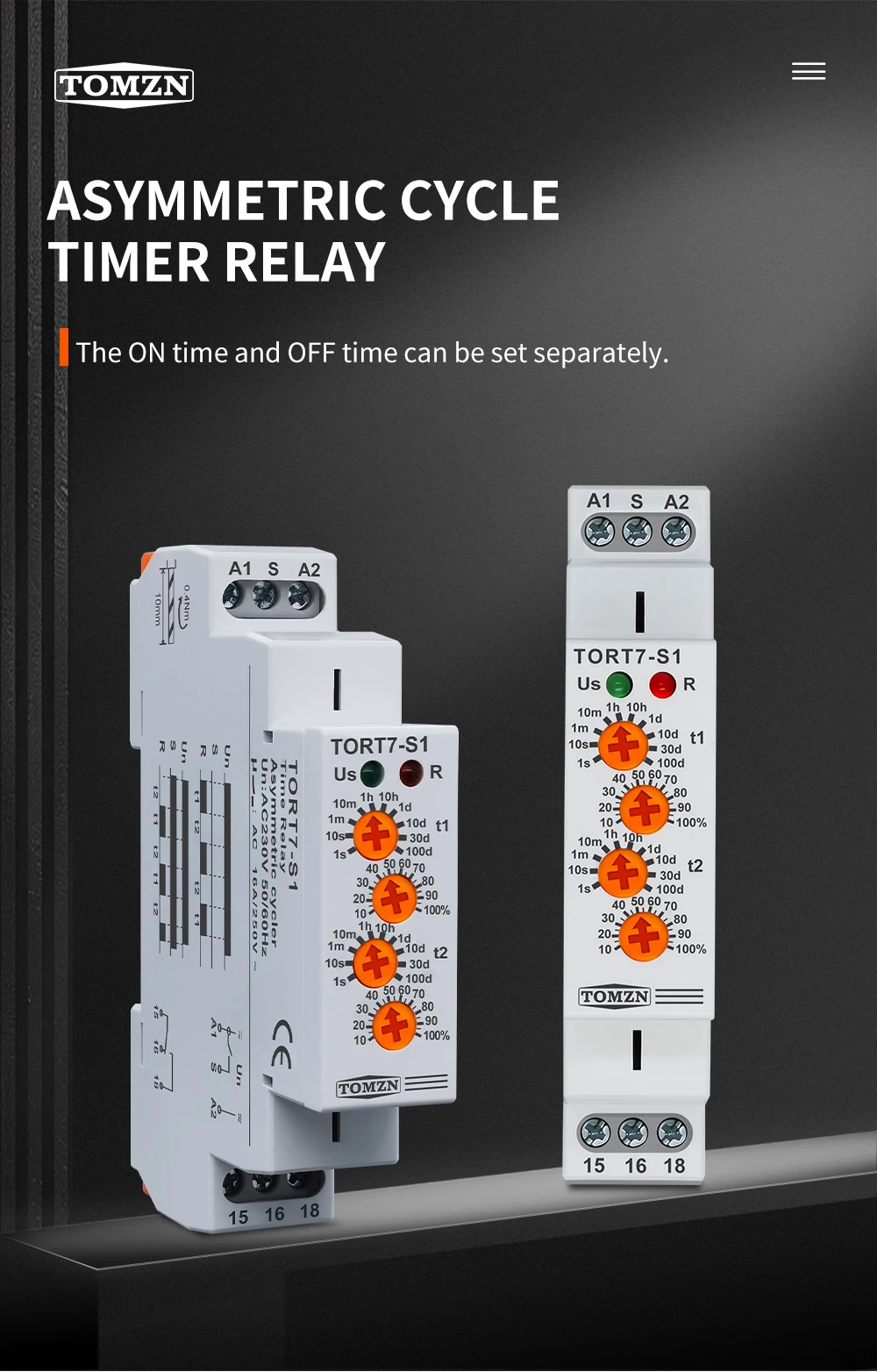

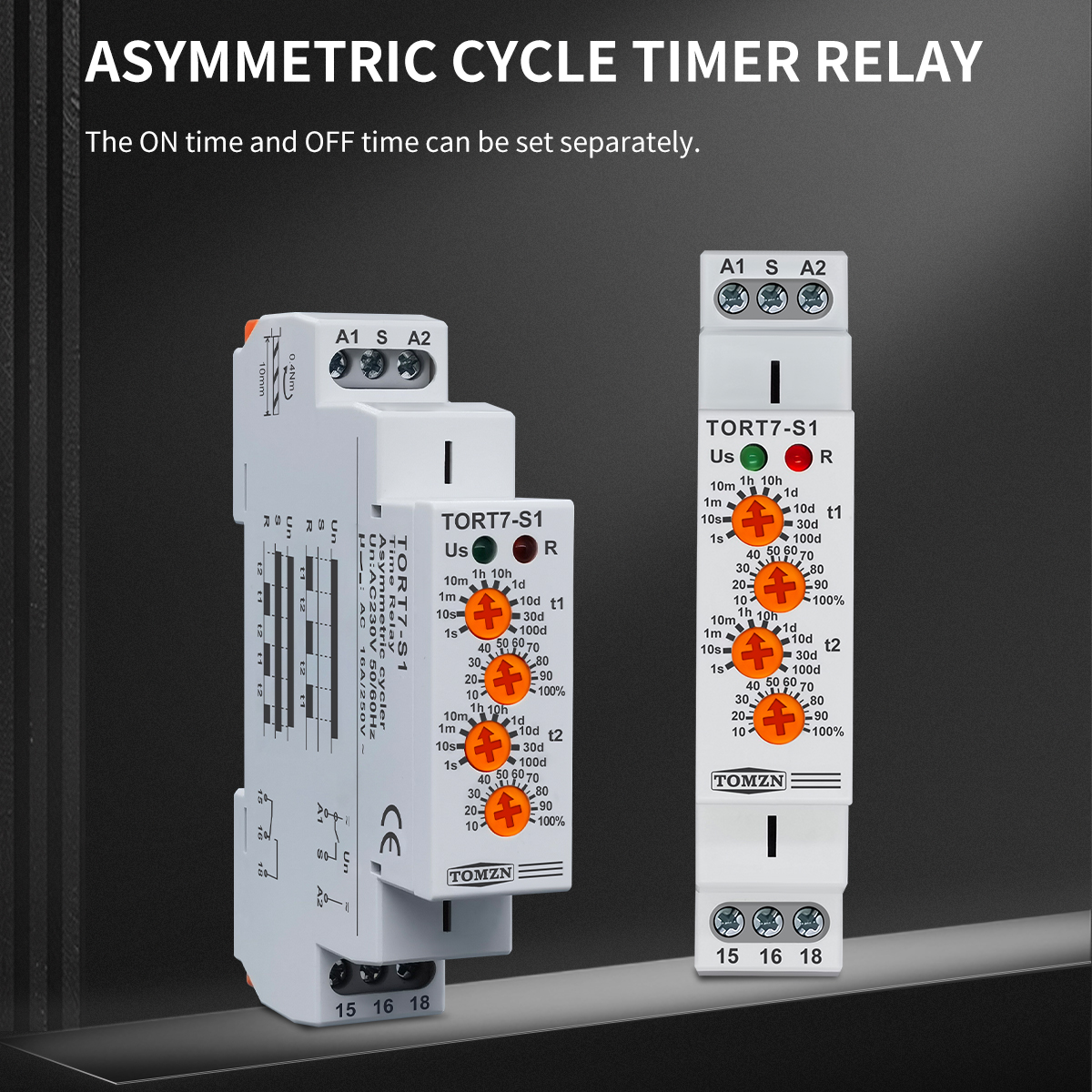

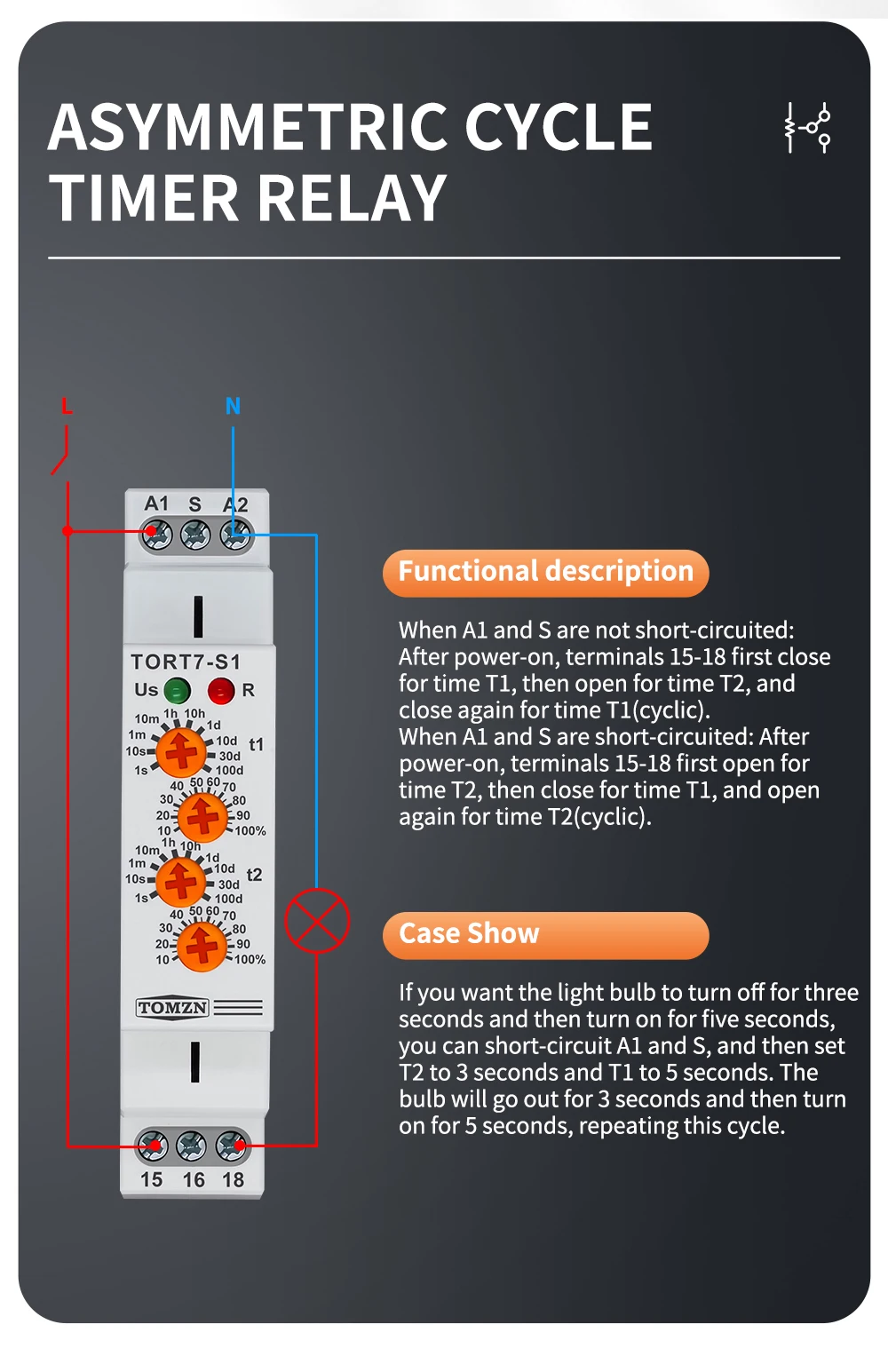

TORT7-S1 can be set with the duration of power-on (T1) and also with the duration of power-off (T2).

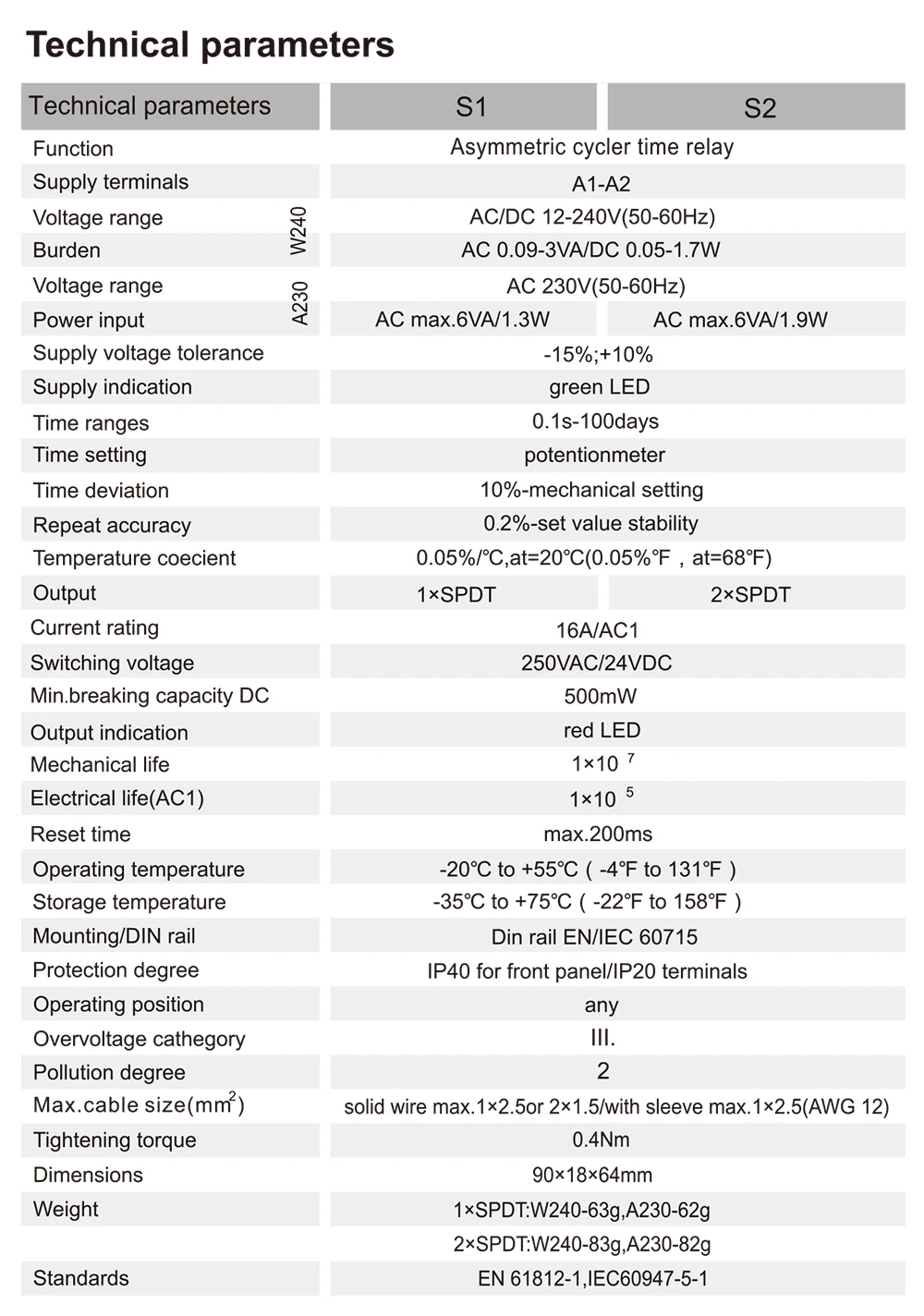

2.Technical Data

Model: TORT7-S1

Function: Asymmetric Cycler Timer Relay

Voltage range: AC230V (50/60Hz)

Power input: AC max.6VA/1.3W

Supply voltage tolerance: -15%;+10%

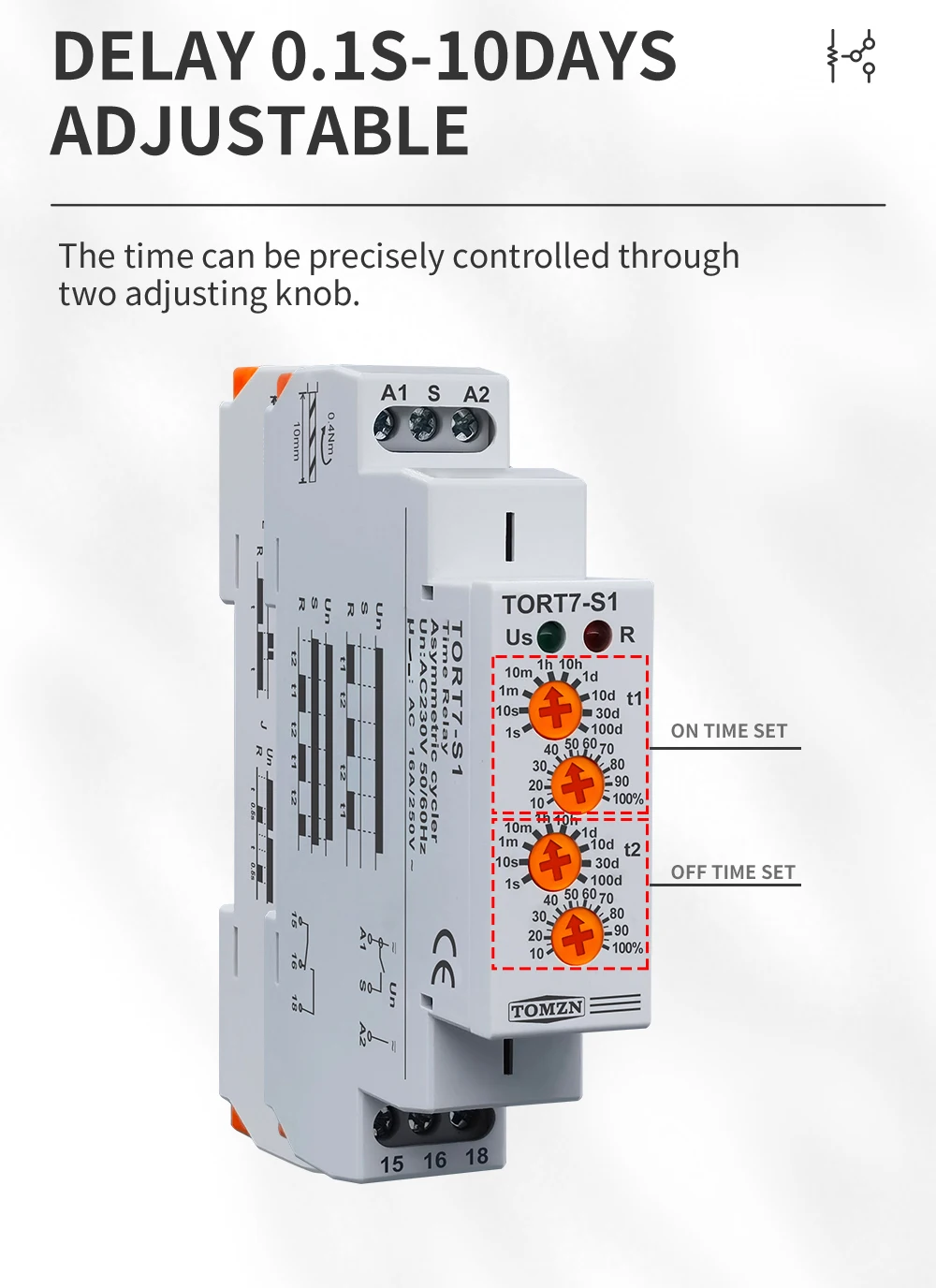

Time ranges: 0.1s-10days,ON,OFF

Time setting: Potentionmeter

Time deviation: 10%-mechanical setting

Repeat accuracy: 0.2%-set value stability

Temperature coecient: 0.05%/C,at=20°C(0.05%，at=68℉)

Output: 1xSPDT

Current rating: 16A/AC1

Switching voltage: 250VAC

Min.breaking capacity DC: 500mW

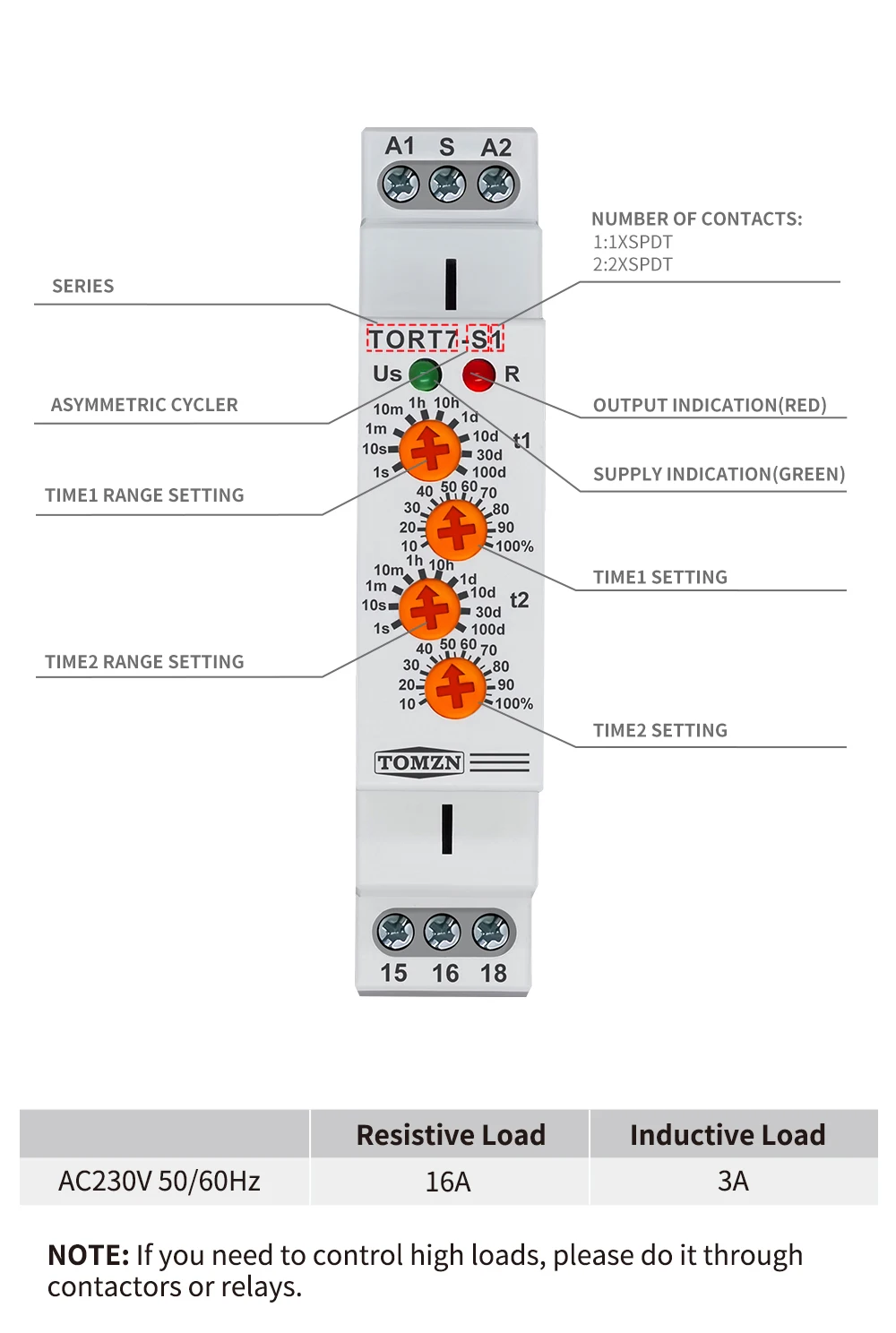

Supply indication: green LED

Output indication: red LED

Mechanical life: 1×107

Electrical life: 1×105

Reset time: max.200ms

Operating temperature: -20℃ to +55℃

Storage temperature: -35°C to +75°C

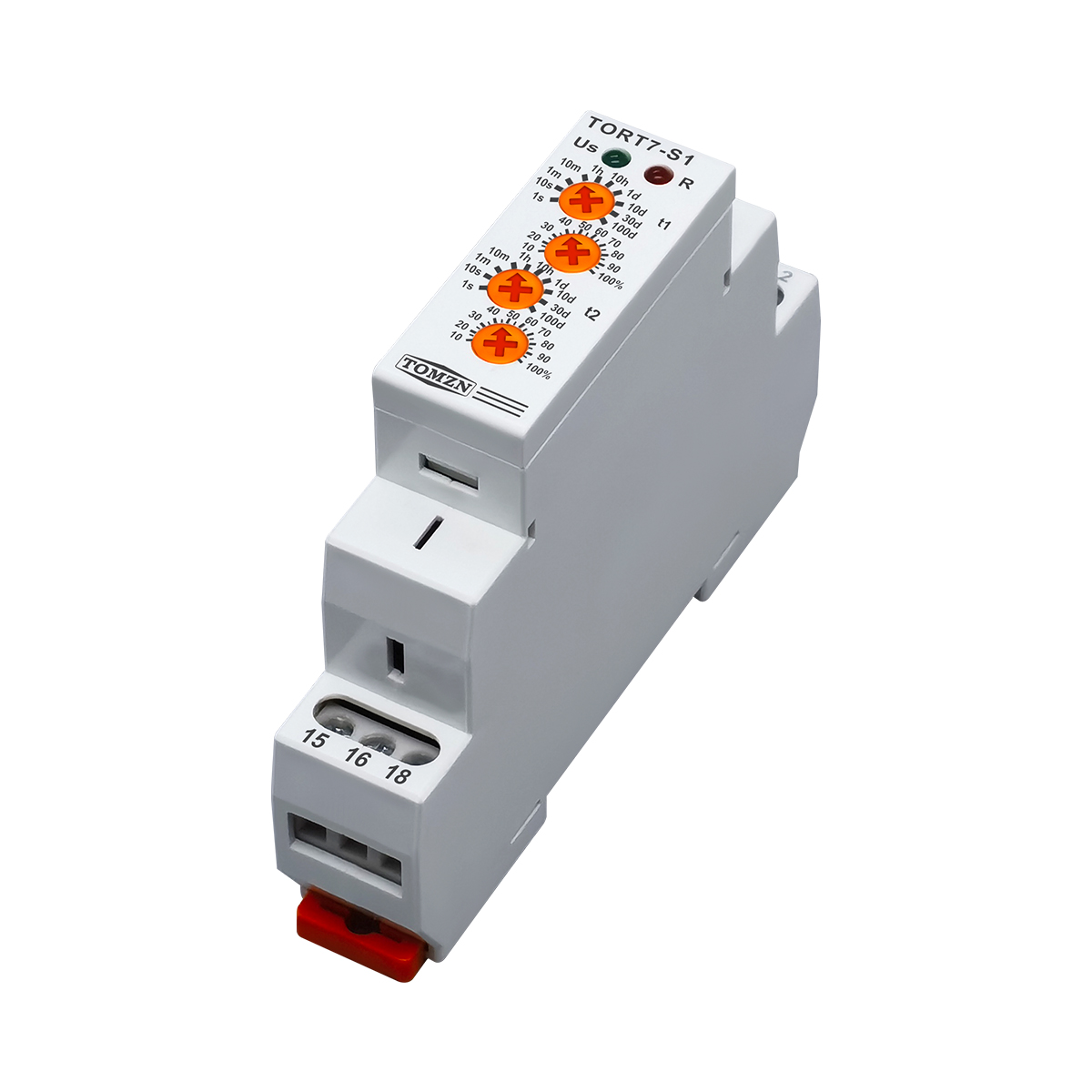

Mounting/DIN rail: Din rail EN/IEC 60715

Protection degree: IP40 for front panel/IP20 terminals

Operating position: any

Overvoltage cathegory: III.

Pollution degree: 2

Max.cable size(mm2): solid wire max.1×2.5 or 2×1.5/with sleeve max.1×2.5(AWG 12)

Tightening torque: 0.4Nm

Dimensions: 90x18x64mm

Standards: EN 61812-1,EC60947-5-1

Note: To ensure reliable operation, install this electrical device in a standard cabinet away from interference sources, using protective measures and verifying system compatibility.
