Description
Description
TOB9L-63WIFI 2P can cut off L and N both,
With leakage protection, NO temperature control.
TOB9-63WIFI 1P Can only cut off L,
NO leakage protection, With temperature control.

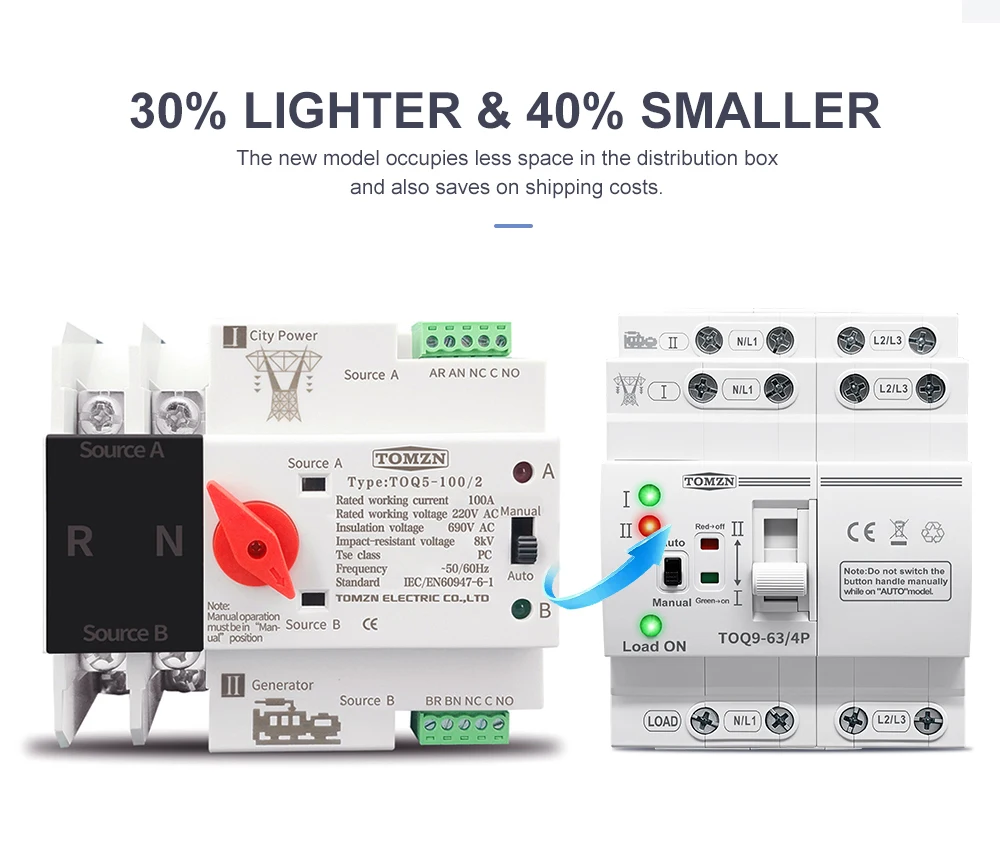

Slim Model

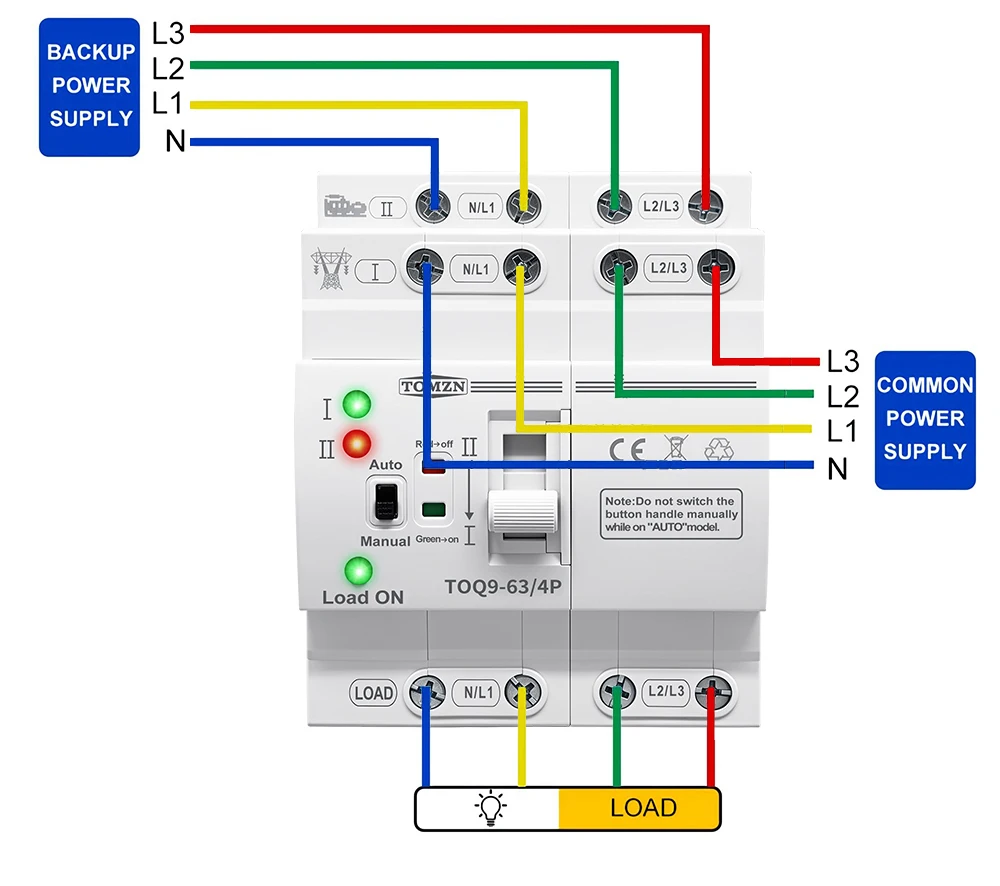

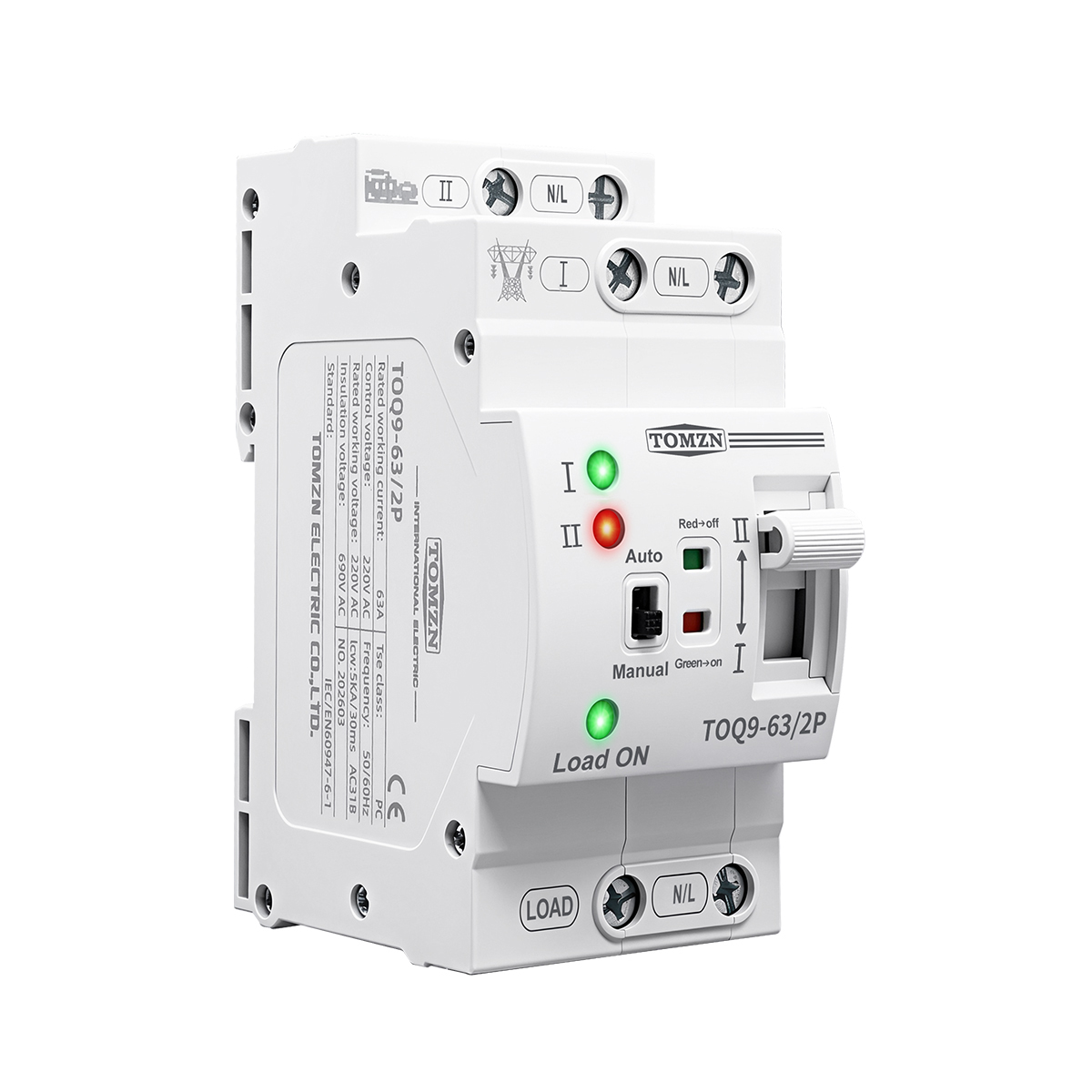

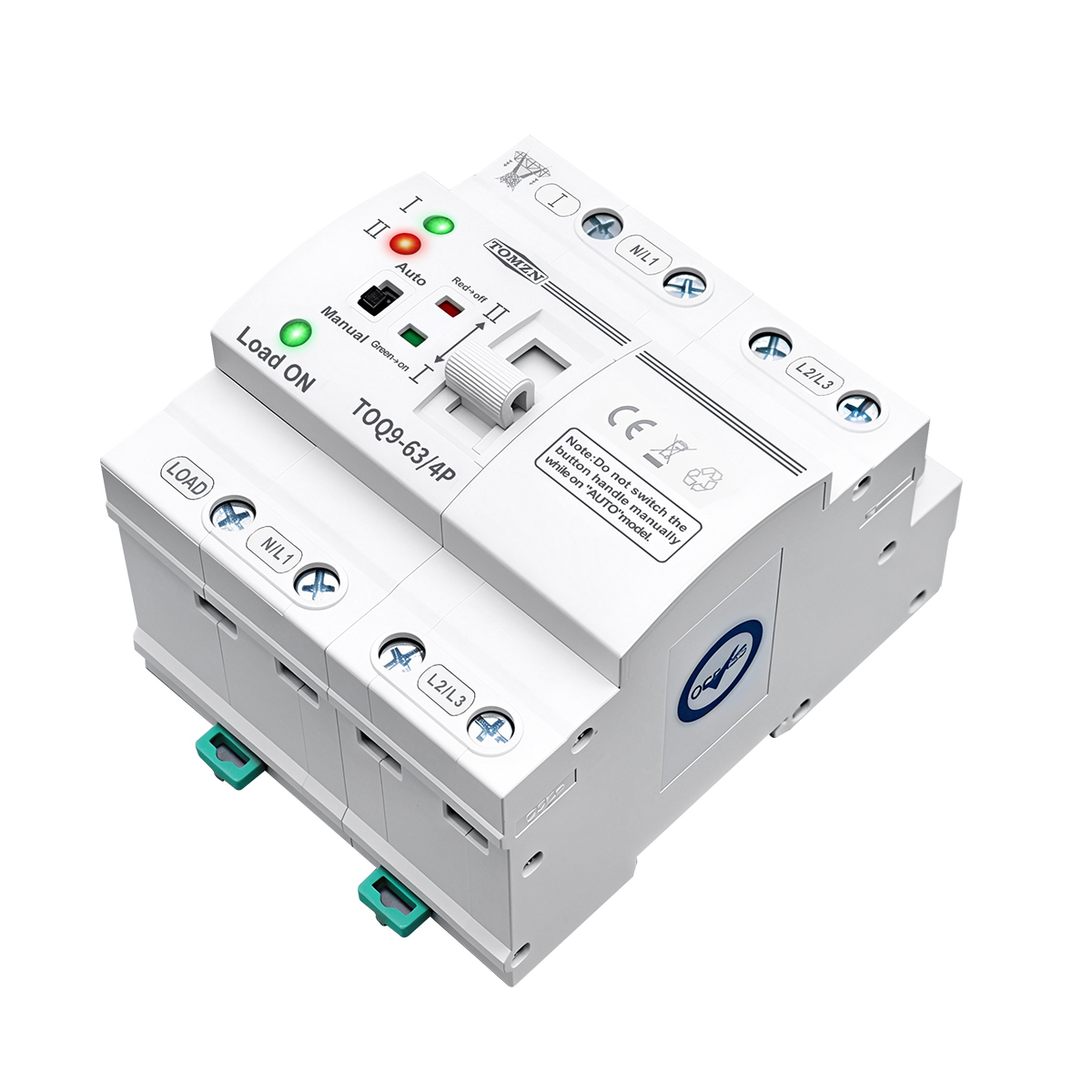

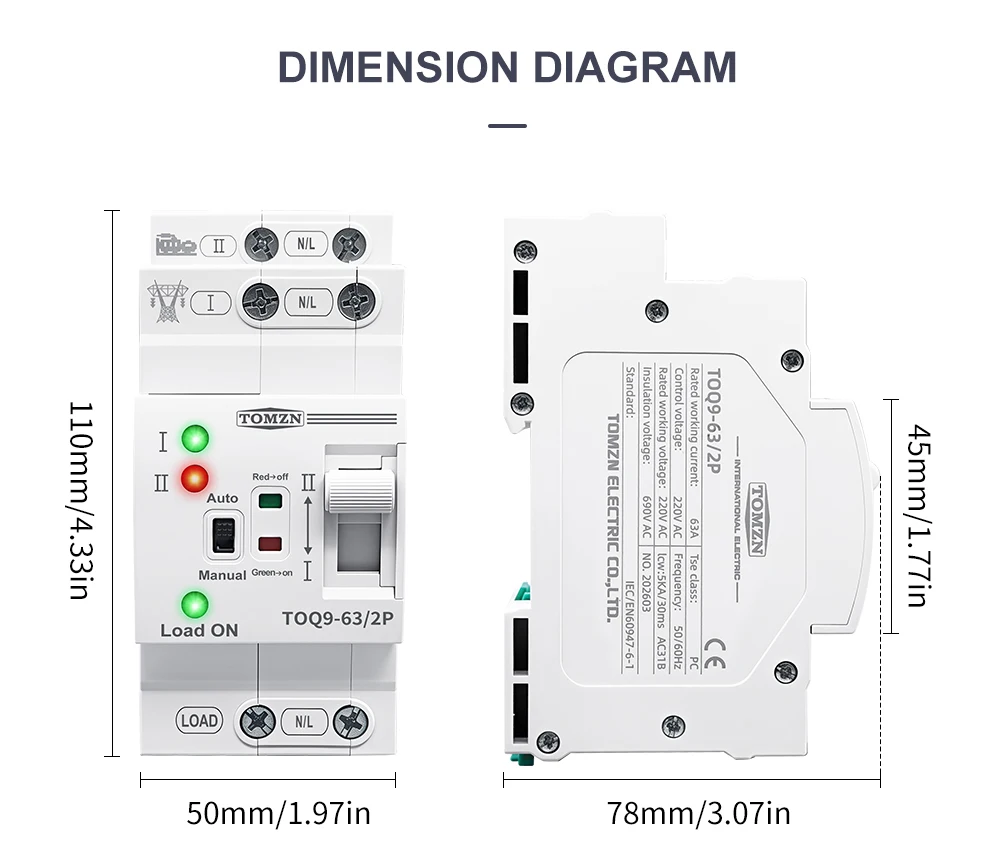

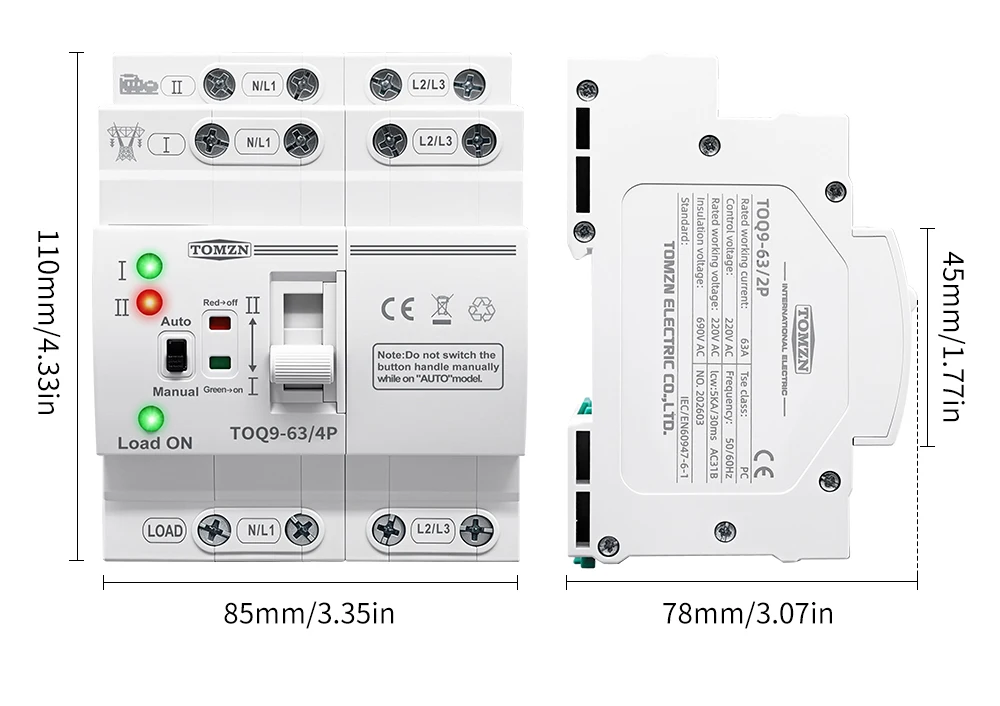

TOQ9-63/2P, TOQ9-63/4P

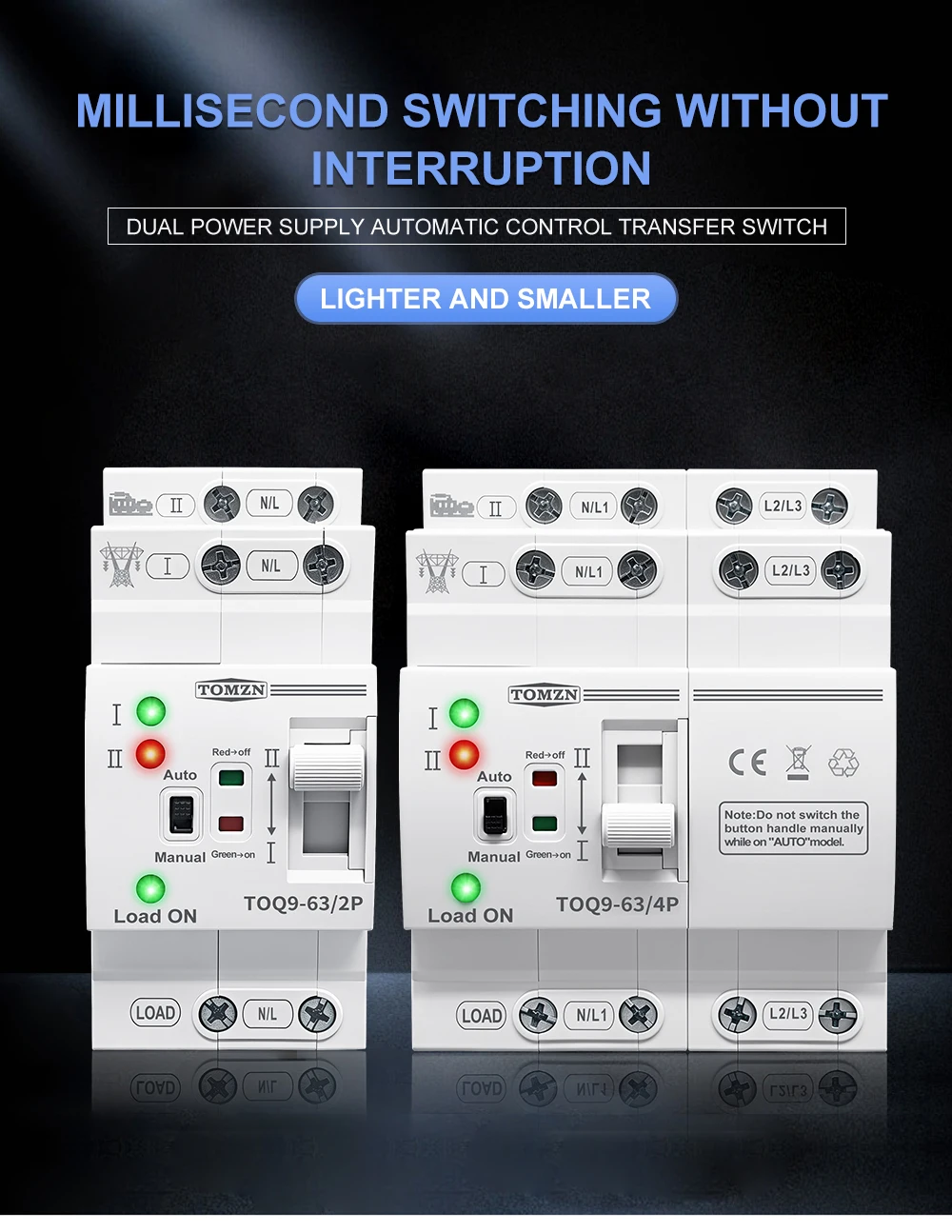

Dual power switch. PC level, Switch less than 50ms, no Interrupt.
General
This Series Household Automatic Transfer Switch (ATS) is the latest microhousehold power transfer switch independently developed and manufactured by ourcompany. As a PC-grade infrequent switching device with a two-stage structure, it issuitable for AC distribution systems rated at 50/60Hz and 10-80A.Primarily designed tomonitor the status of user power sources, it instantly transfers the load to thealternative power source upon detecting an abnormality in one circuit. The switchincorporates mechanical and electrical dual interlock mechanisms, preventing thesimultaneous closure of both power sources. This ensures continuous, reliable, andsafe power supply.
Product features
1.Case grade:80
2.Rated insulation voltage Ui:690V
3.Rated impulse withstand voltage:8kV
4.PC class:can be switched on an loaded without generating short-circuit current
5.Rated short-circuit current Iq:50kA
6.Short circuit protection device (fuse):RT 16-00-63A
7.Rated control voltage Us:AC220V 50Hz
8.Normal working conditions: 85%Us-110%Us
9.Auxiliary circuit:AC220V 50Hz le=5A

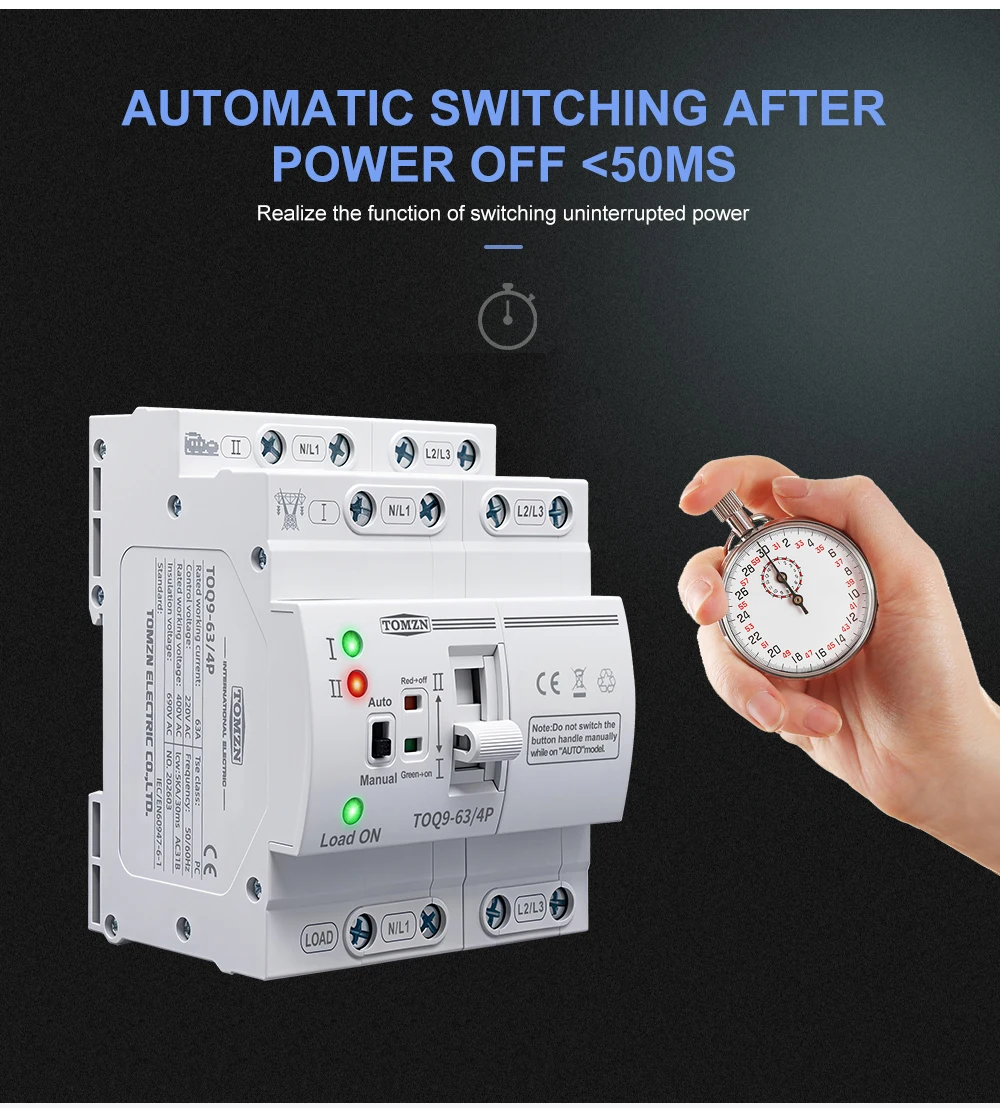

10.Contactor change-over time:<50ms
11.Operation change-over time:<50ms
12.Return change-over time:<50ms
13.Power off time:<50ms
14.Mechanical life:≥5000 Times
15.Electrical life:≥1500 Times
16.Usage category:AC-31B

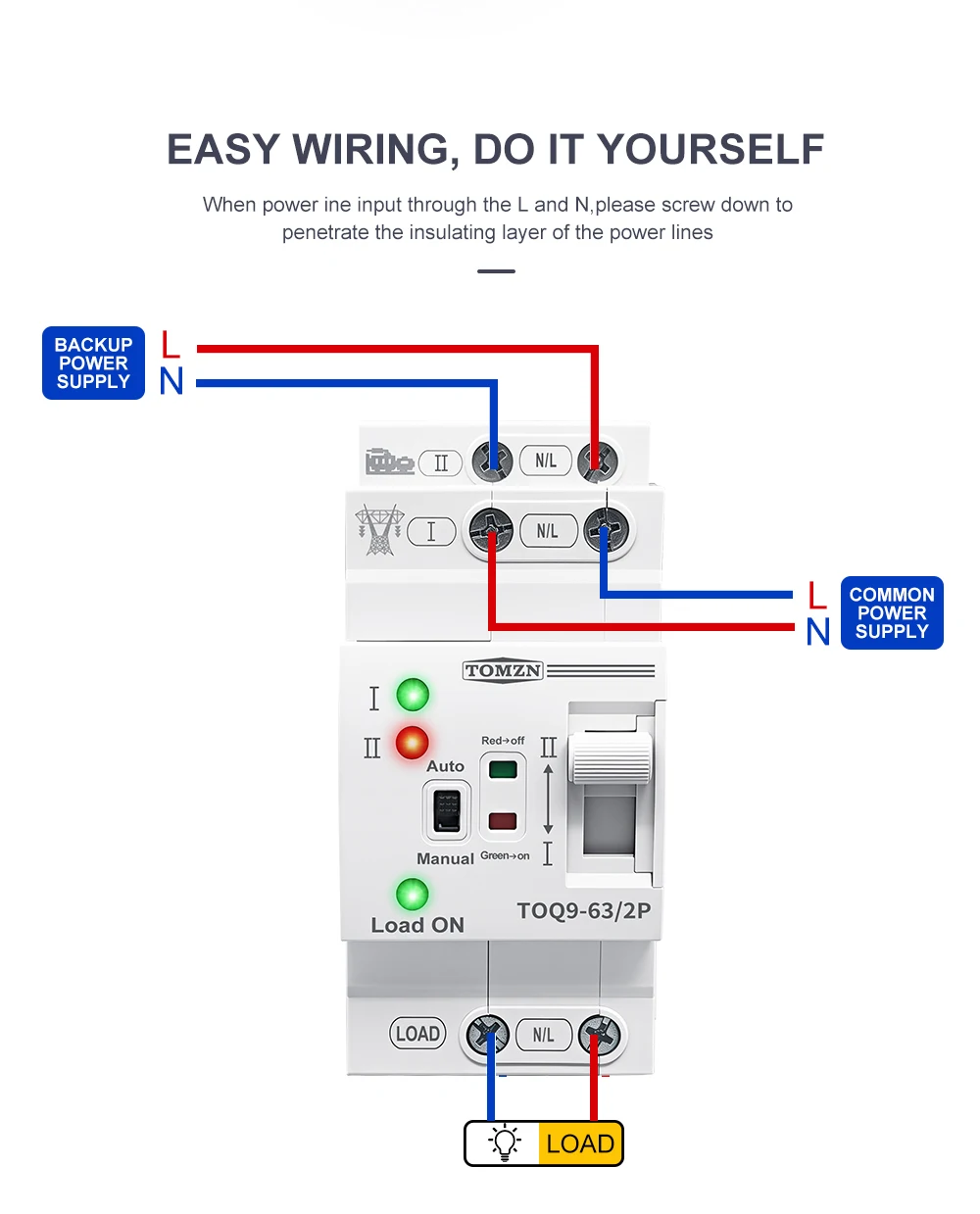

Noted: the product works with L+N 220-240V 50-60Hz
Case Grade: 80
Rated Insulation Voltage Ui: 690V
Rated Impulse Withstand Voltage: 8kV
PC Class: Can be switched on an loaded without generating short-circuit current
Rated Short-circuit Current Iq: 50kA
Short Circuit Protection Device (fuse): RT 16-00-63A
|Tomzn Ats|
**Ensuring Uninterrupted Power**
The TOMZN TOQ9 Slim Model Auto Transfer Dual Power Switch is a robust and reliable solution for maintaining uninterrupted power supply in various settings. Designed for residential and commercial applications, this dual power switch is ideal for ensuring that your critical equipment remains operational in case of a power outage or fluctuation. With a rated insulation voltage of 690V and an impulse withstand voltage of 8kV, it is engineered to withstand harsh environments and protect your electrical systems.
**Efficient and Safe Switching**
Equipped with a PC class rating, the TOMZN TOQ9 is capable of switching on and off without generating short-circuit currents, ensuring a safe and efficient transfer of power. The switch’s rated short-circuit current of 50kA and short circuit protection device (fuse) of RT 16-00-63A provide additional safety measures to prevent overloads and protect your electrical circuits. The switch’s mechanical life of ≥5000 times and electrical life of ≥1500 times guarantee long-lasting performance and reliability.
**Seamless Operation and Installation**
The TOMZN TOQ9 is designed for ease of use and installation. With a case grade of 80, it is built to withstand the rigors of daily use. The switch’s operation change-over time of <50ms and return change-over time of <50ms ensure that the switch seamlessly transfers power in the event of a power outage, minimizing downtime. The product’s compact size makes it an ideal choice for installation in tight spaces, while its robust construction ensures it can handle the demands of various environments.
