Slim Model

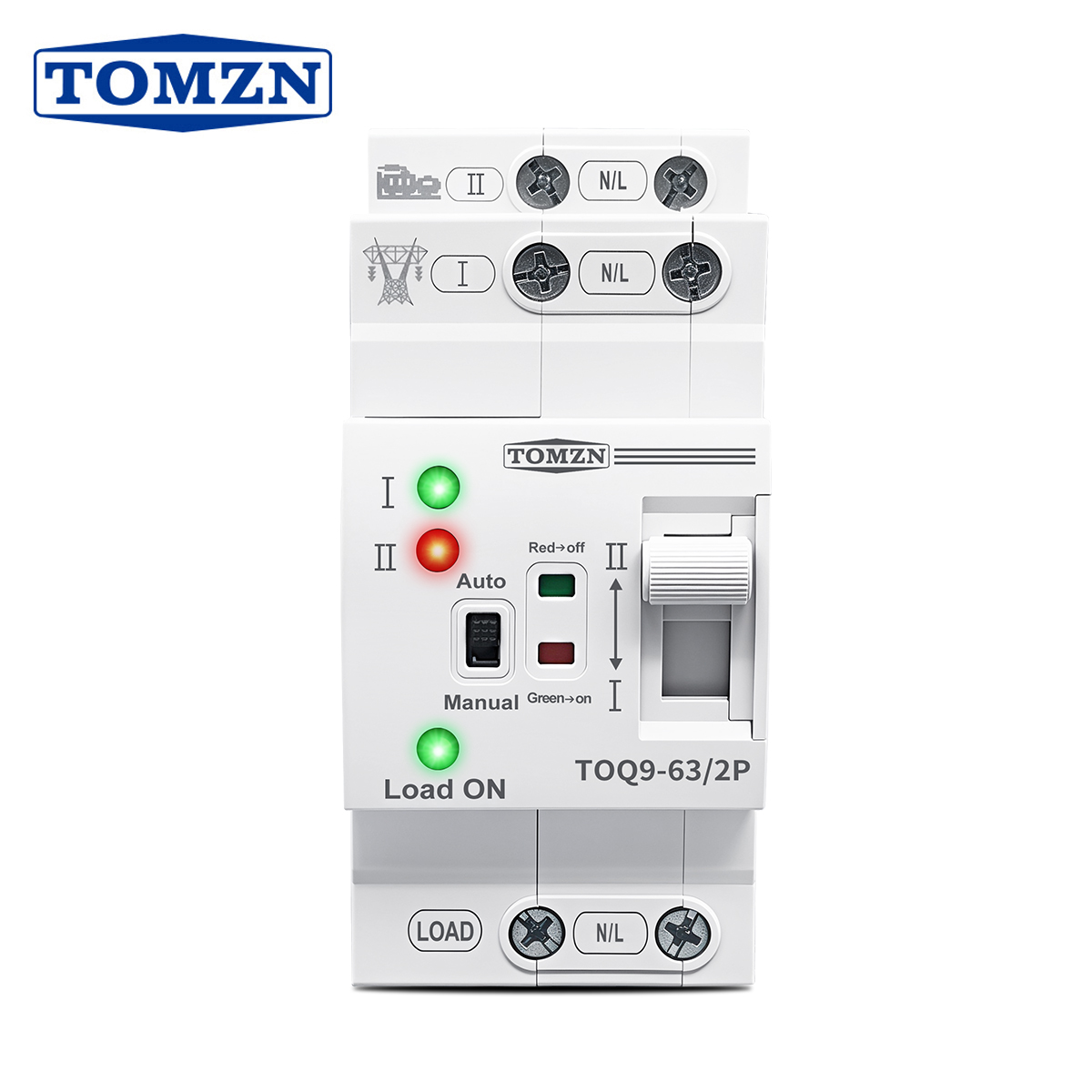

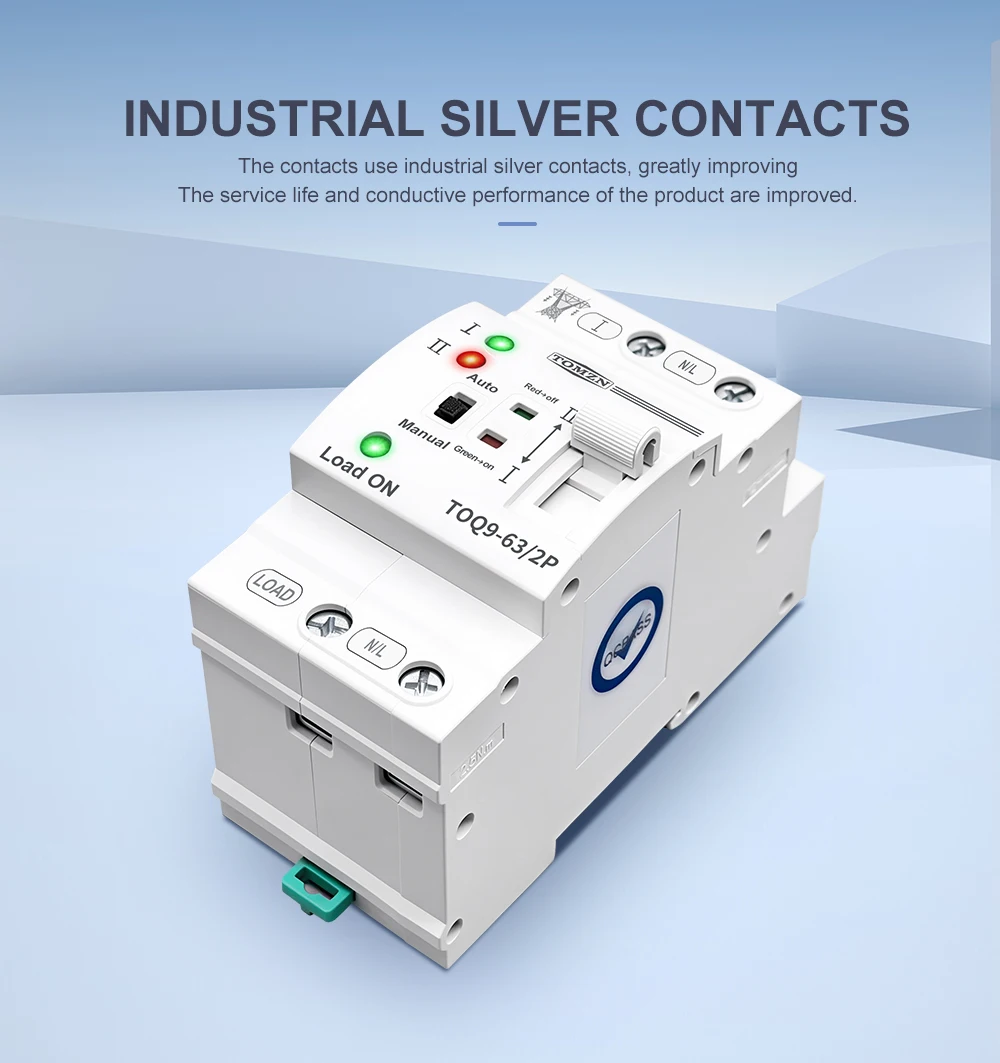

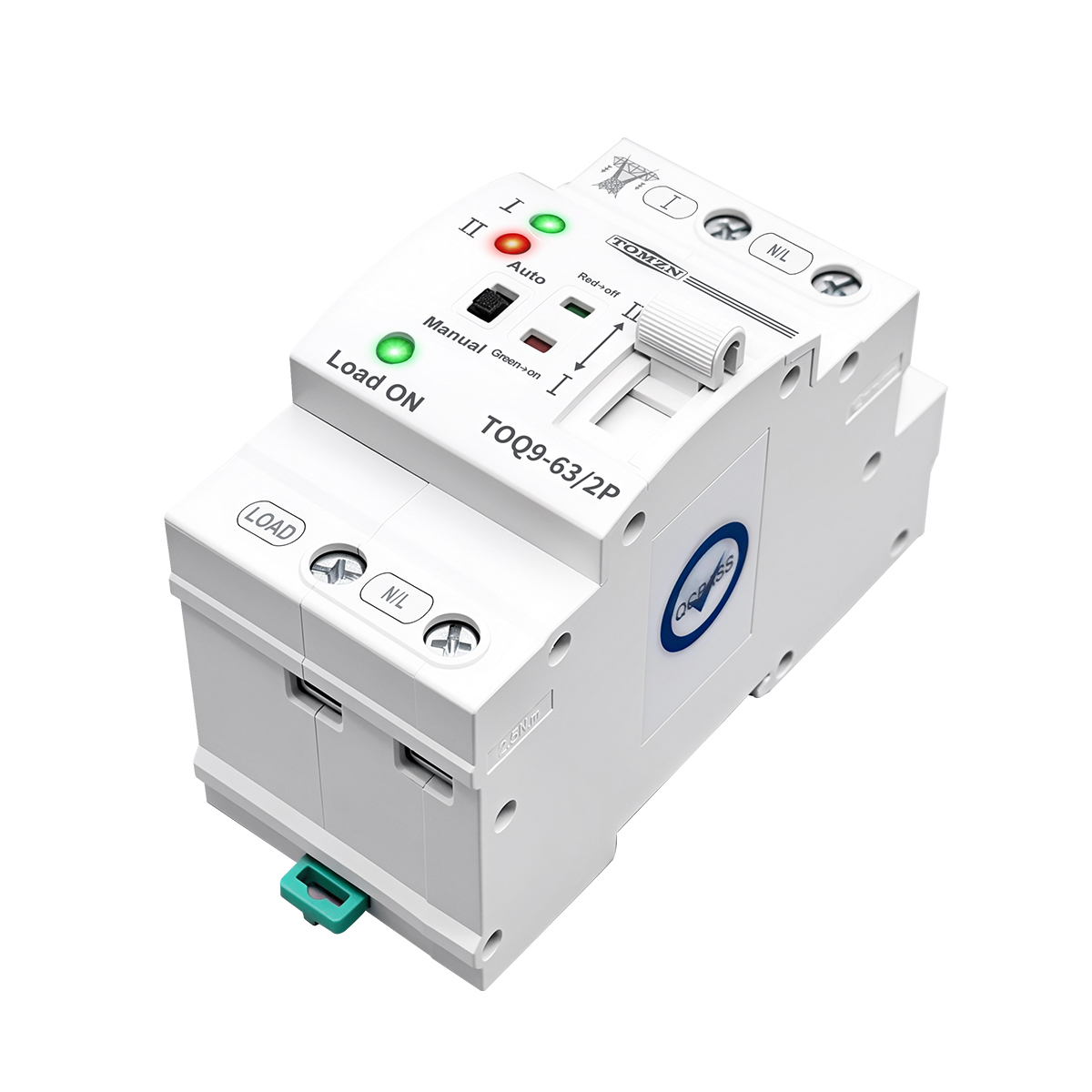

TOQ9-63/2P
Dual power switch. PC level, Switch less than 50ms, no Interrupt.
General

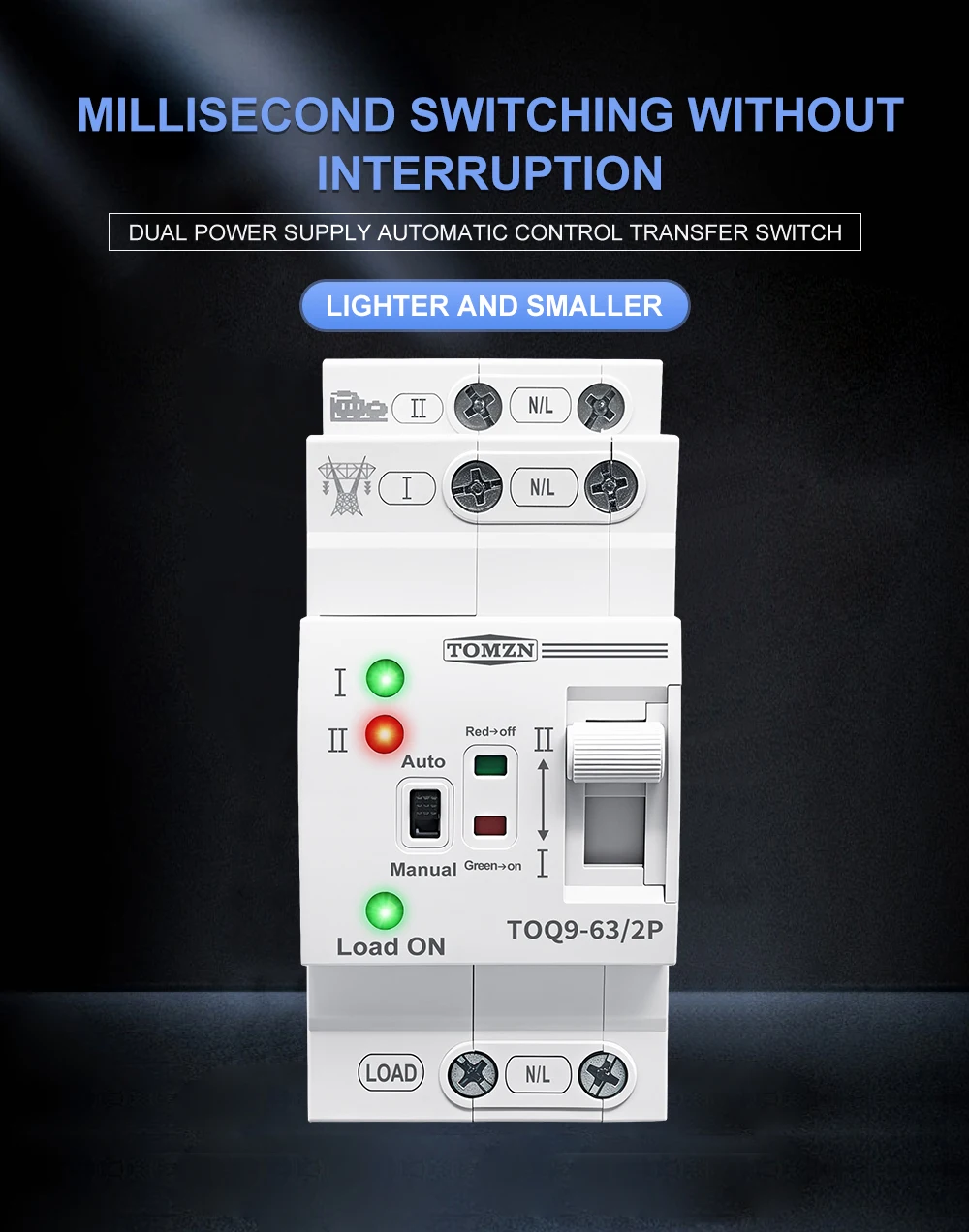

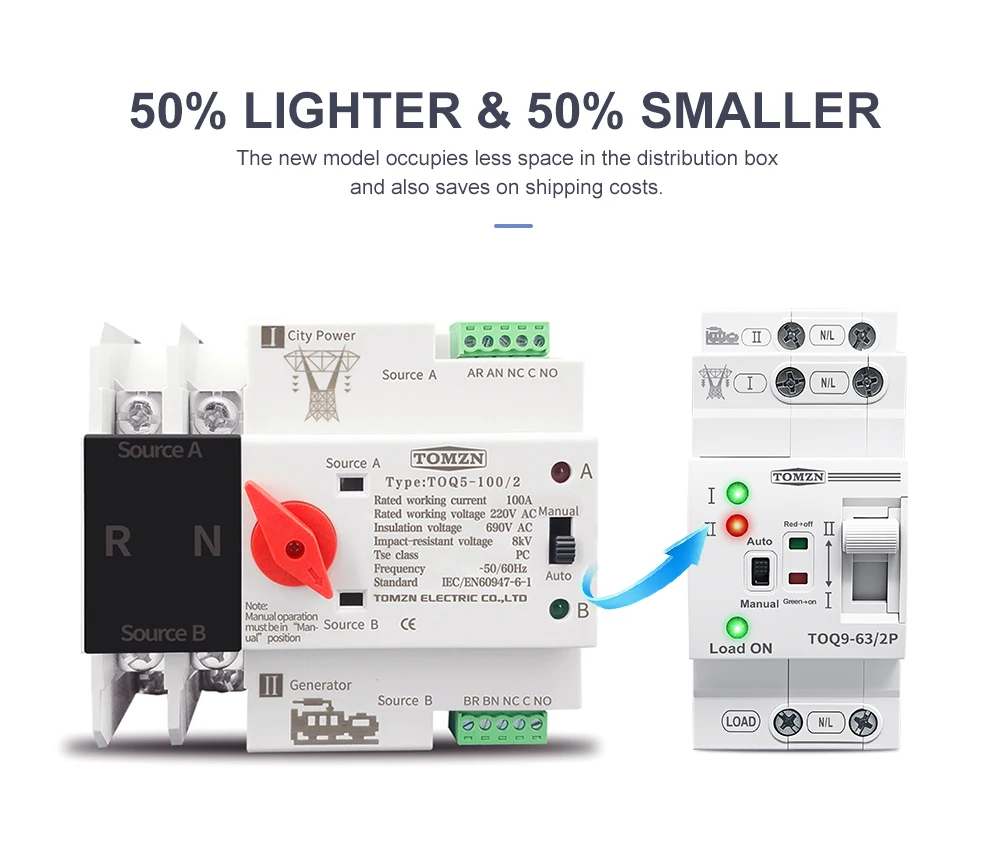

TOQ9 is a compact dual-power conversion switch. While maintaining the previous generation’s switching speed of 50ms, it significantly reduces the size and weight. In terms of logistics costs and space occupation, it is far superior to the previous generation.

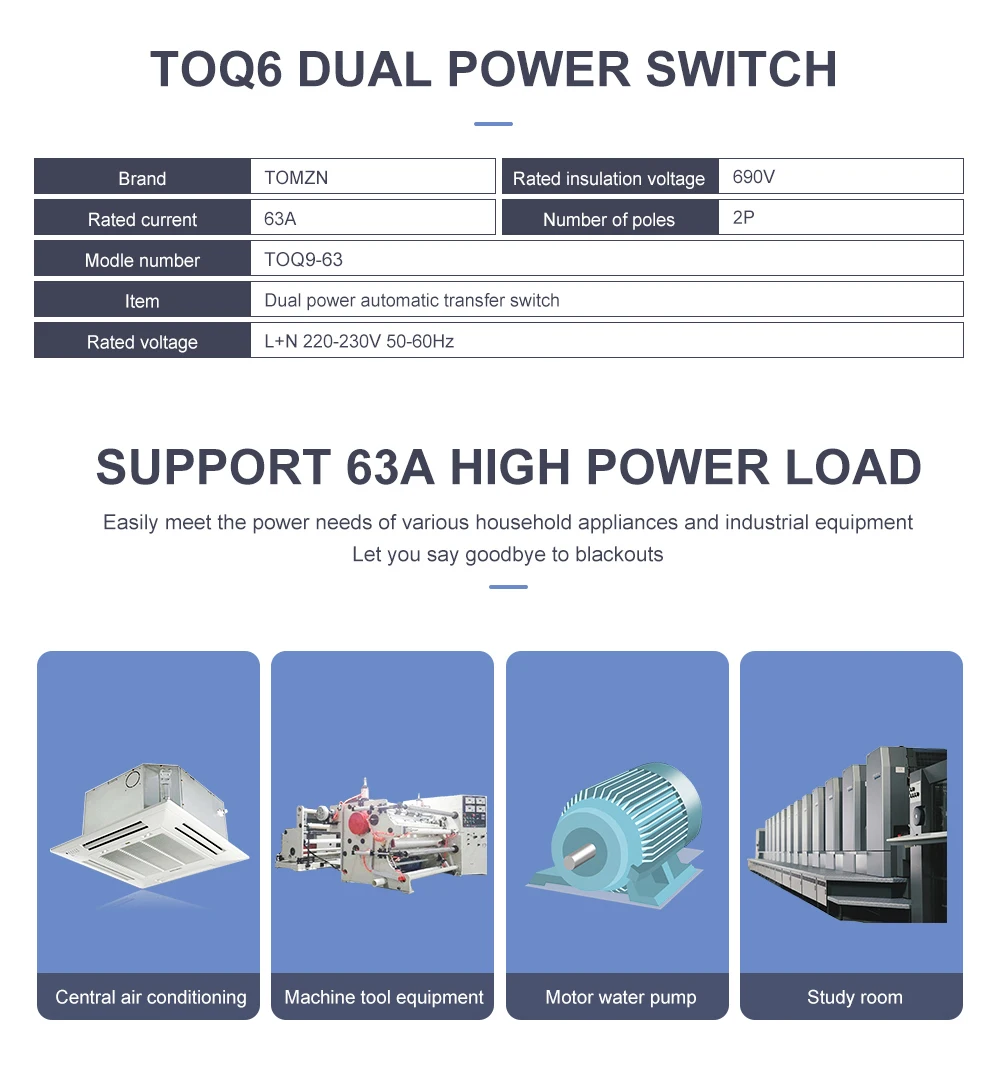

Product features
1.Case grade:80
2.Rated insulation voltage Ui:690V
3.Rated impulse withstand voltage:8kV
4.PC class:can be switched on an loaded without generating short-circuit current
5.Rated short-circuit current Iq:50kA
6.Short circuit protection device (fuse):RT 16-00-63A
7.Rated control voltage Us:AC220V 50Hz
8.Normal working conditions: 85%Us-110%Us
9.Auxiliary circuit:AC220V 50Hz le=5A

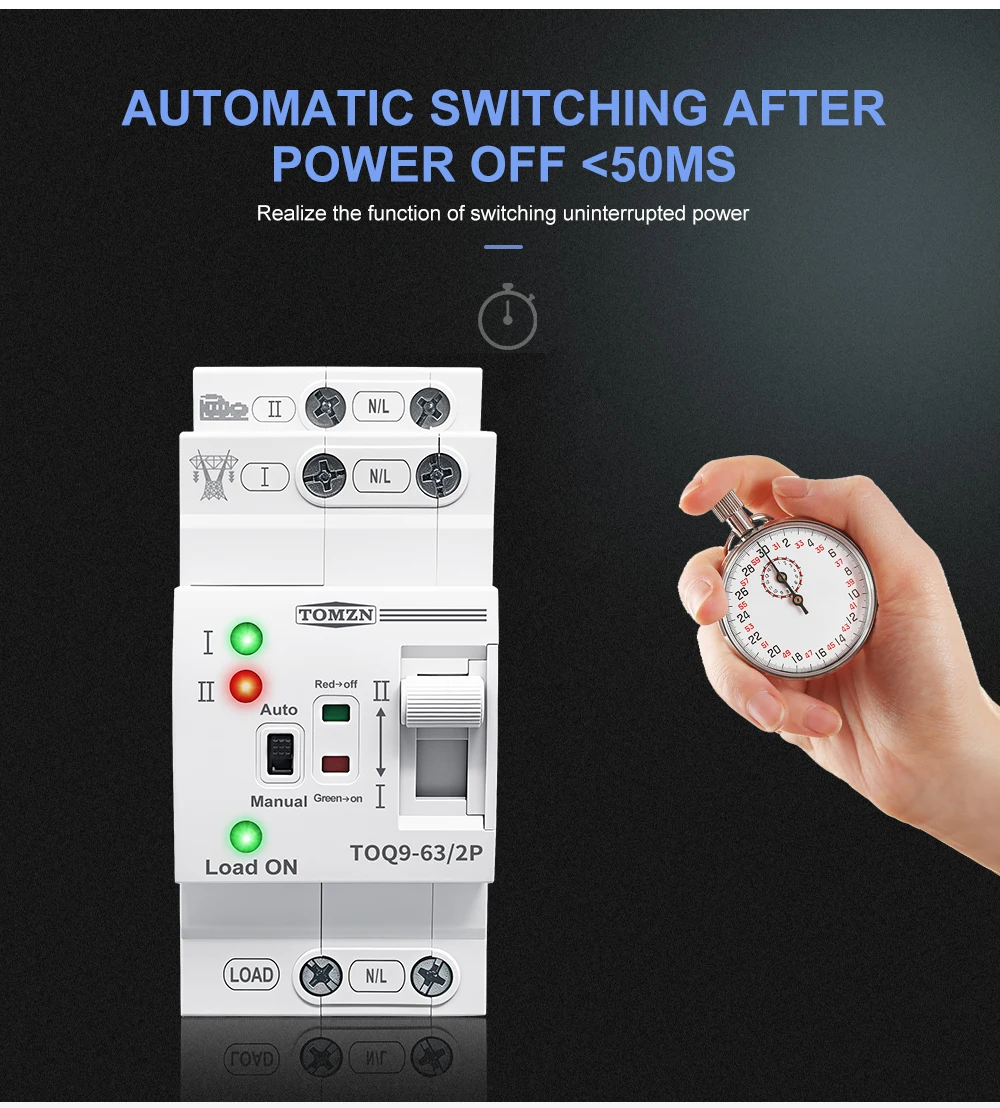

10.Contactor change-over time:<50ms
11.Operation change-over time:<50ms
12.Return change-over time:<50ms
13.Power off time:<50ms
14.Mechanical life:≥5000 Times
15.Electrical life:≥1500 Times
16.Usage category:AC-31B

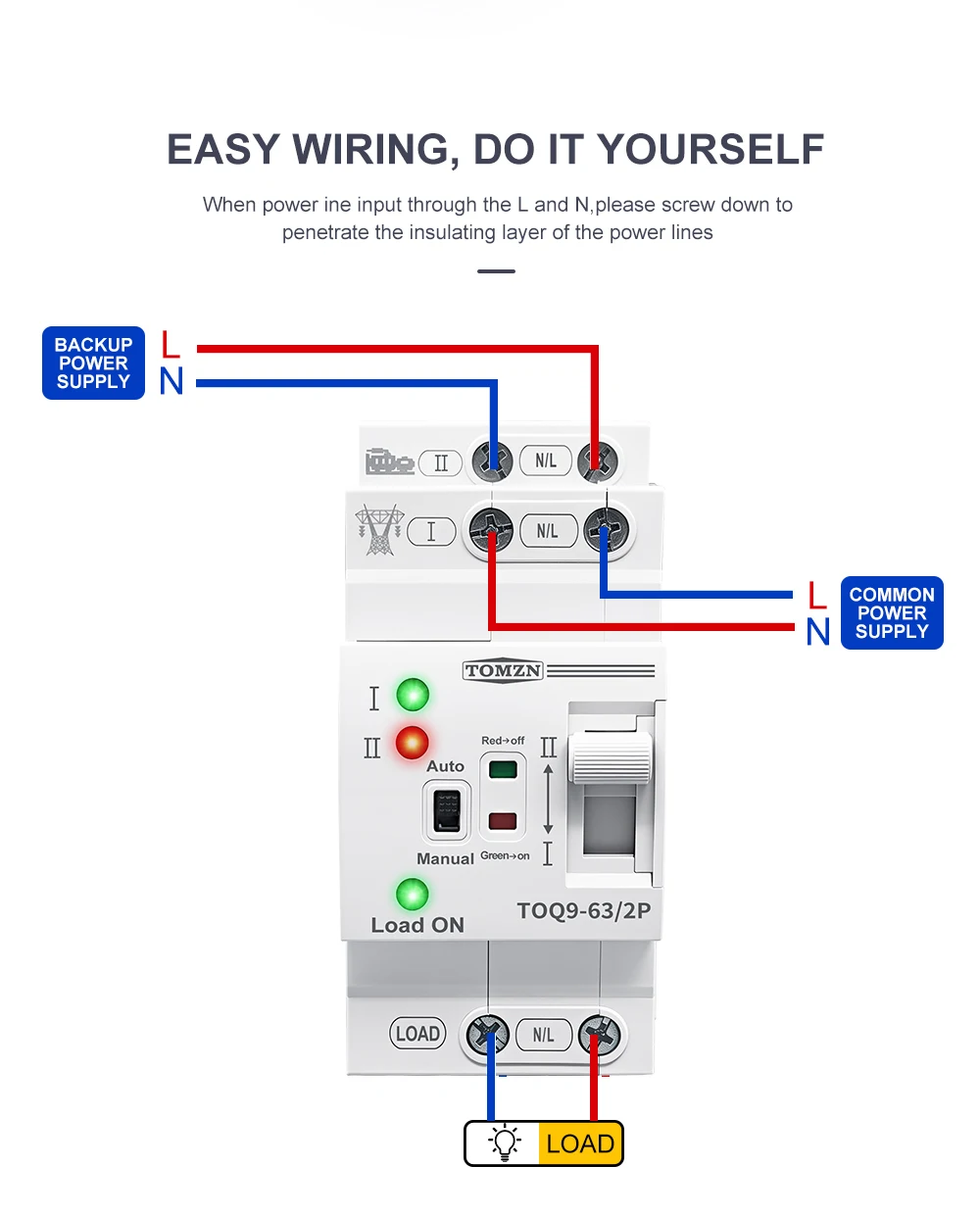

Noted: the product works with L+N 220-240V 50-60Hz.
