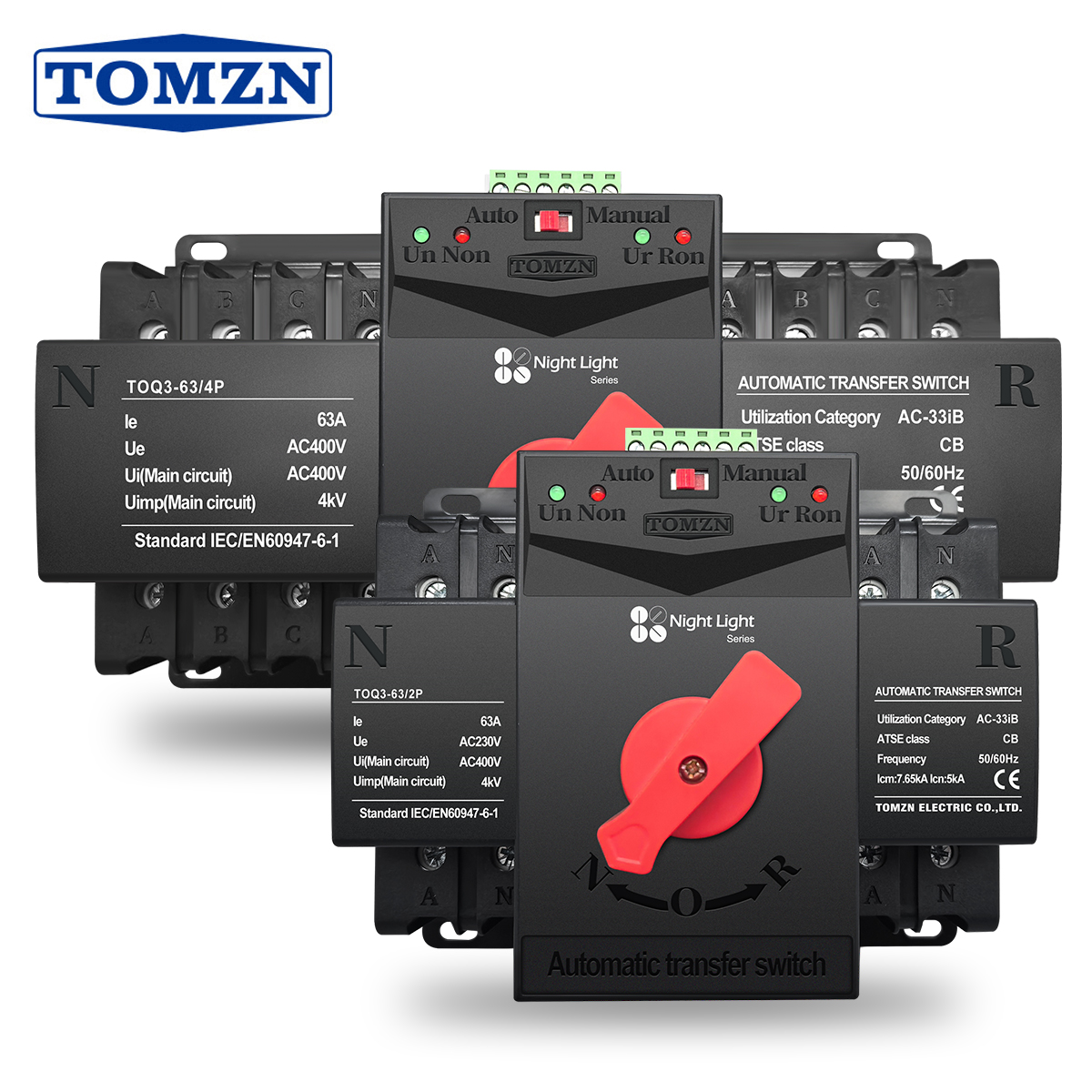

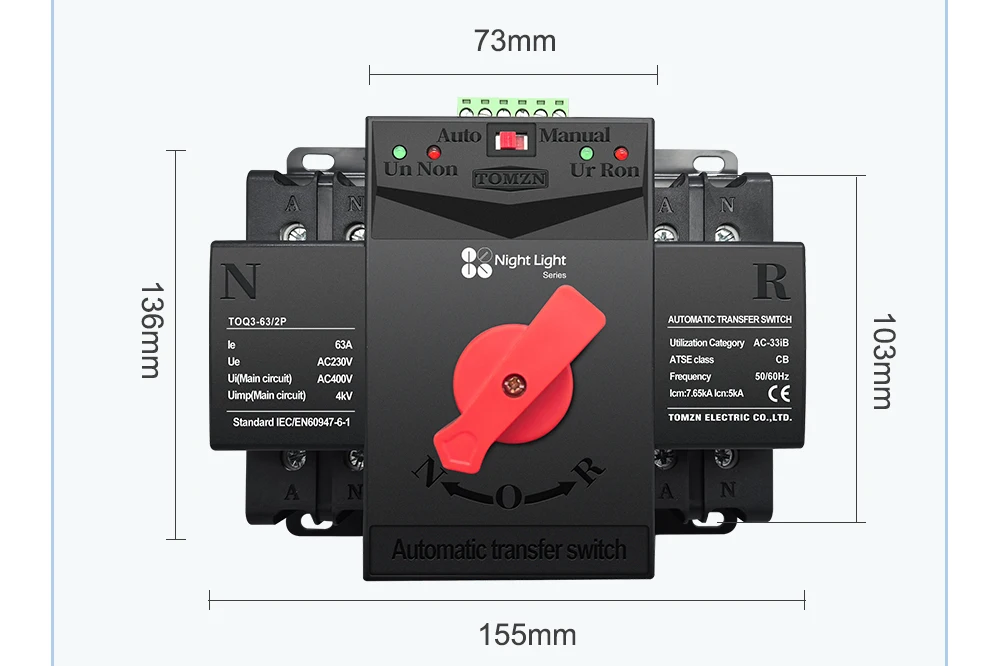

TOMZN TOQ3 Built-in Circuit Breaker Short-circuit Protection Overload Protection 2 Input 2/1 Output 2P 4P 63A 125A Night Light

General Description

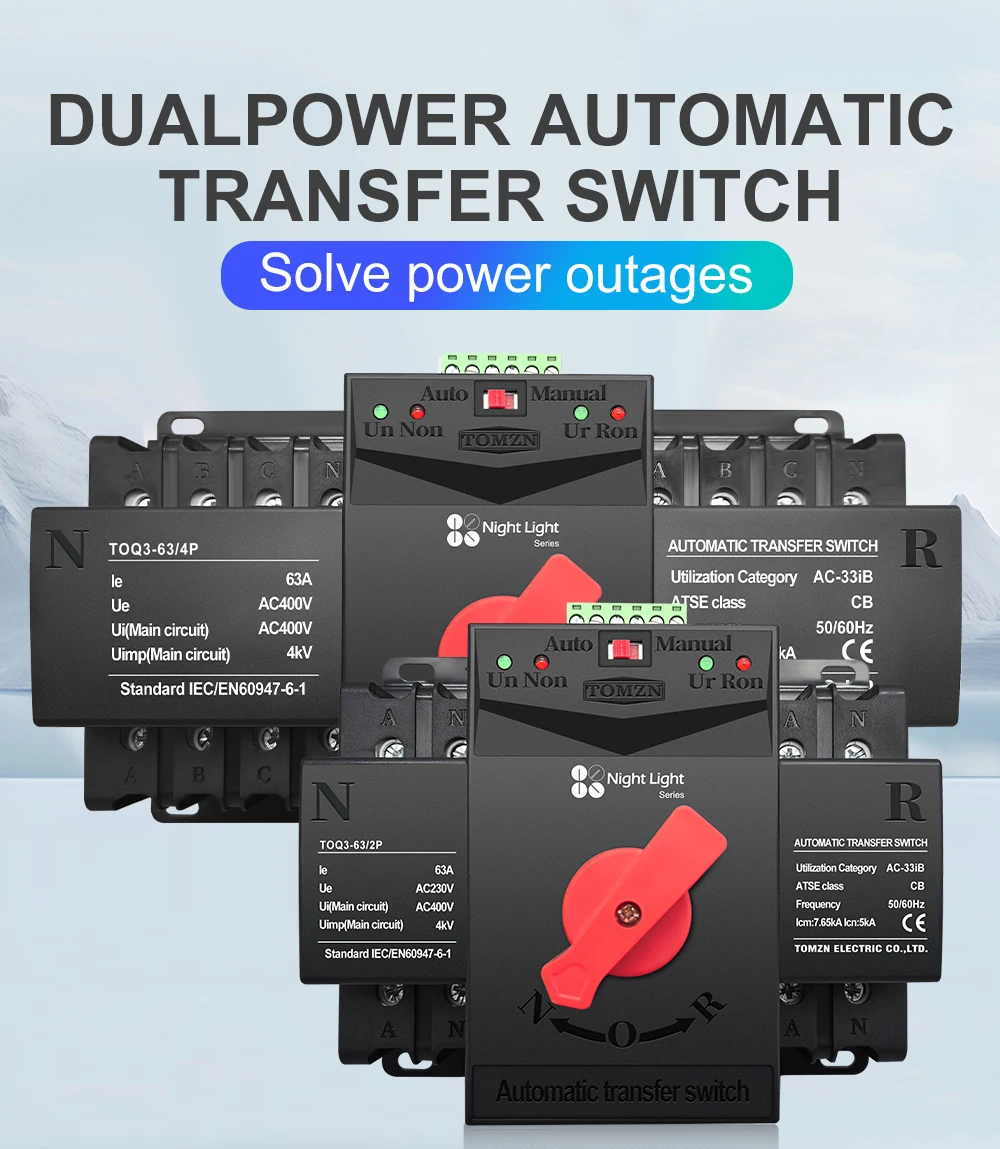

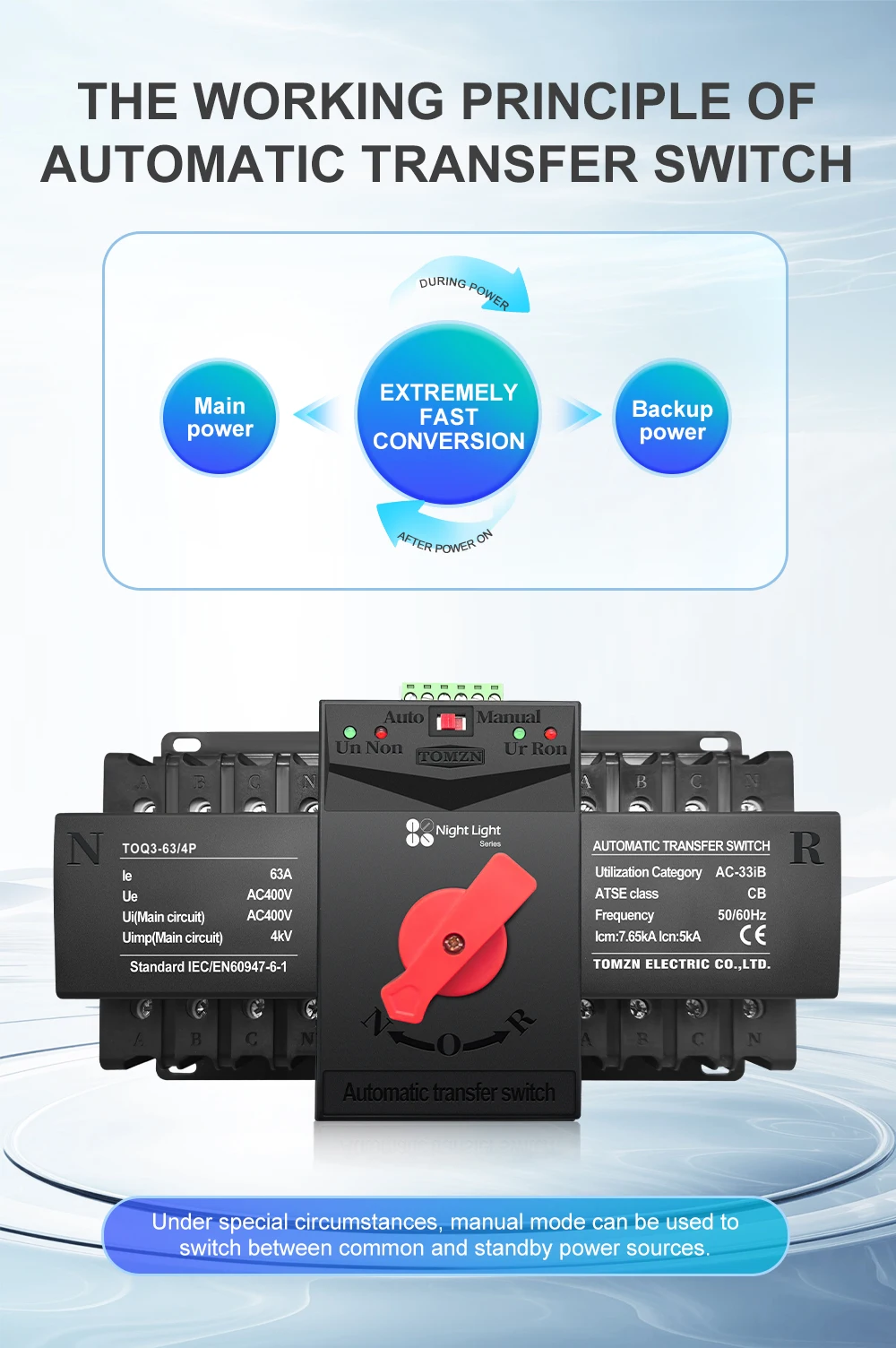

TOQ3 is a terminal-type Automatic Transfer Switch (ATS) with a built-in circuit breaker, designed for reliable dual power supply systems. It automatically switches electrical loads between a primary (Normal) power source and a secondary (Reserve) power source. This ensures continuous operation of critical equipment. In the event of a failure in the primary power source (such as a loss of voltage or phase), the switch seamlessly transfers the load to the backup source. Once the primary power is restored, it automatically switches back. The device also features manual control modes for operational flexibility and testing. Compliant with international standard IEC60947-6-1, the TOQ3 is a robust solution for ensuring power continuity in various applications.

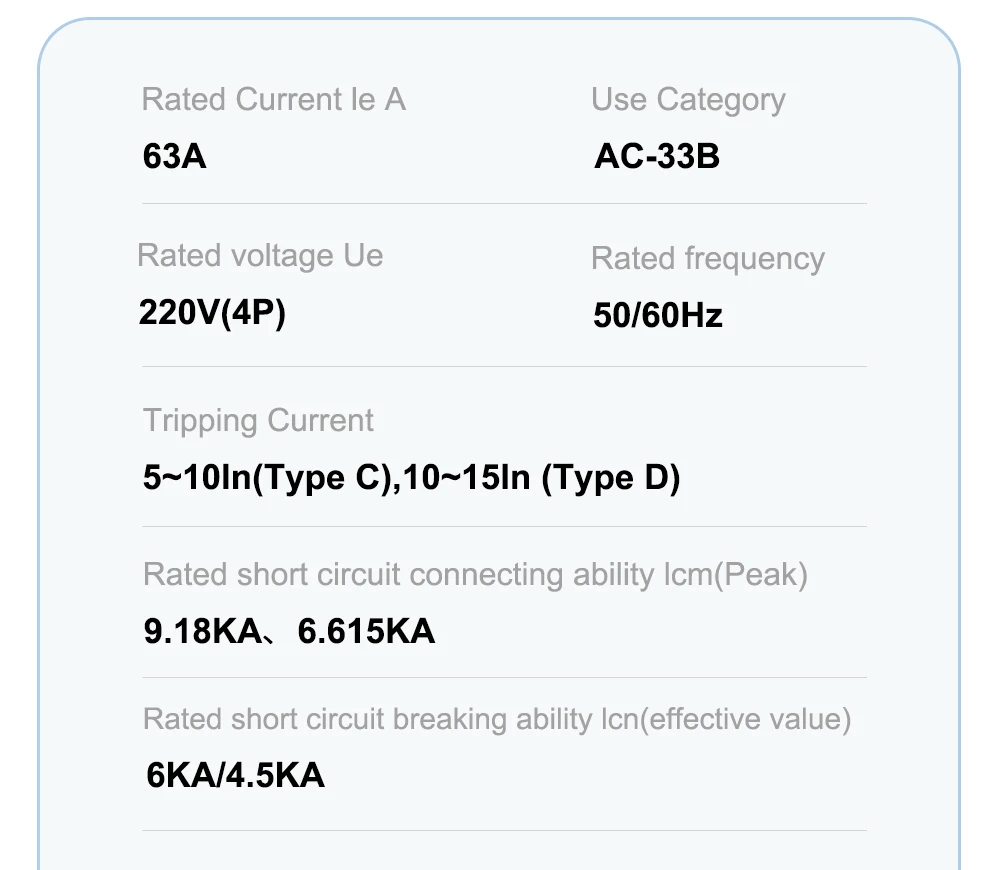

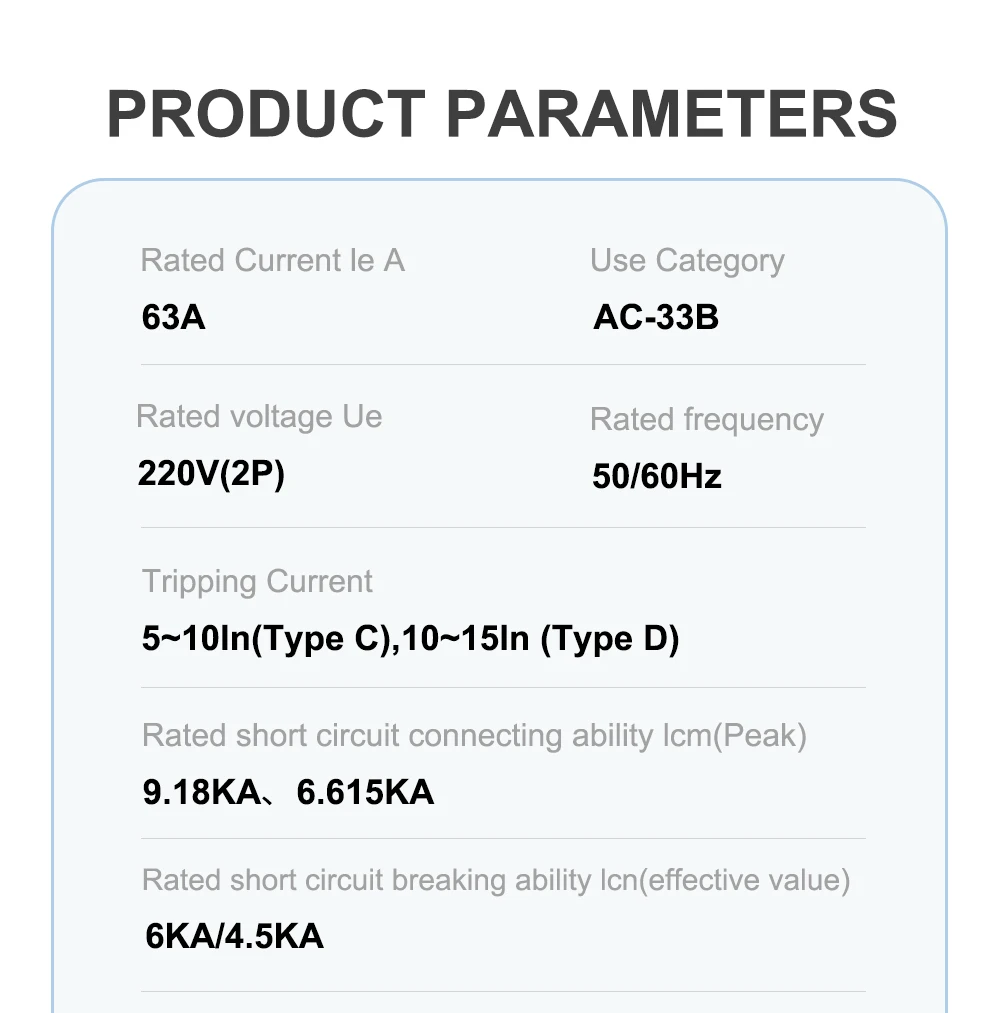

Specification
Product Model: TOQ3
Product Type: Terminal Type Automatic Transfer Switch (ATS) with Built-in Circuit Breaker
Rated Voltage (L-N): 220V
System Voltage: 400V/230V
Frequency: 50/60 Hz
Rated Current: 63A 100A 125A
Protection Features (63A Model): Yes
Protection Features (100A/125A Model): No
Over Current & Short Circuit Protection: Available on 63A model only
Switching Time: < 4 Seconds
Key Feature: Power is interrupted during switching
Control Modes: Automatic and Manual
Automatic Mode Function: Switches to available power source based on priority (Normal power first)
Manual Mode Function: Allows user to manually select the power source
Priority Logic: Normal power has priority. Switches to Reserve only if Normal is off.
Generator Control Note: This switch cannot start or stop a generator.
Voltage Monitoring: Monitors Phase A voltage of both sources for failure (loss of voltage or phase)
Compliance: IEC60947-6-1

Product Model: TOQ3
Product Type: Terminal Type Automatic Transfer Switch (ATS)
Rated Voltage (L-N): 220V
System Voltage: 400V/230V
Frequency: 50/60 Hz
Rated Current: 63A, 100A, 125A
Protection Features: Built-in Circuit Breaker (63A Model), Manual Control Modes
Switching Time: < 4 Seconds
Control Modes: Automatic and Manual
Priority Logic: Normal power has priority; switches to Reserve only if Normal is off
Generator Control Note: This switch cannot start or stop a generator
Voltage Monitoring: Monitors Phase A voltage of both sources for failure (loss of voltage or phase)
Compliance: IEC60947-6-1

|Tomzn Transfer Switch|
**Reliable Power Continuity**
The TOMZN TOQ3 Automatic Transfer Switch is an essential component for ensuring uninterrupted power supply in critical applications. Designed for dual power supply systems, it seamlessly transfers electrical loads between a primary and reserve power source, ensuring a smooth transition in the event of a power outage. With a rated voltage of 220V and a system voltage of 400V/230V, the TOQ3 is suitable for a wide range of power needs. Its robust design, with a switching time of < 4 seconds, ensures that power is restored swiftly, minimizing downtime and maintaining business continuity.
**Advanced Protection Features**

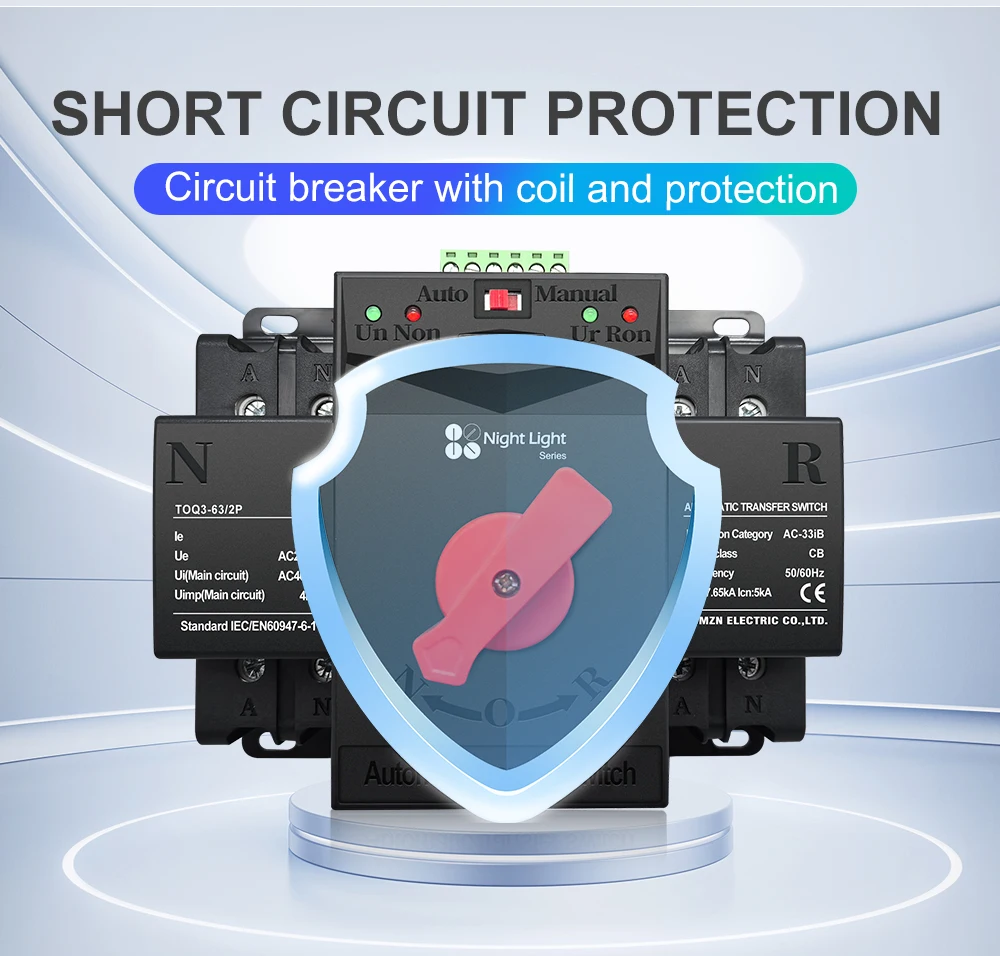

The TOQ3 boasts advanced protection features that safeguard your electrical equipment. With built-in circuit breakers on the 63A model, it offers overload and short-circuit protection, enhancing the safety of your electrical installations. The switch is also equipped with voltage monitoring, which keeps a watchful eye on the phase A voltage of both power sources, alerting you to any loss of voltage or phase. The TOQ3’s manual control modes allow for operational flexibility and testing, making it a versatile power management solution.
**Ease of Use and Compliance**
The TOMZN TOQ3 has been designed with ease of use in mind. Its terminal-type configuration and automatic/manual control modes make it user-friendly for various scenarios. While the switch does not have generator control capabilities, its compliance with IEC60947-6-1 ensures that it meets international standards for quality and reliability. Whether you’re looking to safeguard your critical equipment in a data center, maintain power to medical devices, or protect your home during power outages, the TOQ3 is a reliable choice, offering peace of mind and a secure power supply.
