TOMZN TOMPD-63L-BAT Timer Voltage Protector Time Period Over Current Rate Limiting Prepayment Memory Cut off L N 9IN1 Meter

TOMPD-63L-BAT Timer+Voltage protector

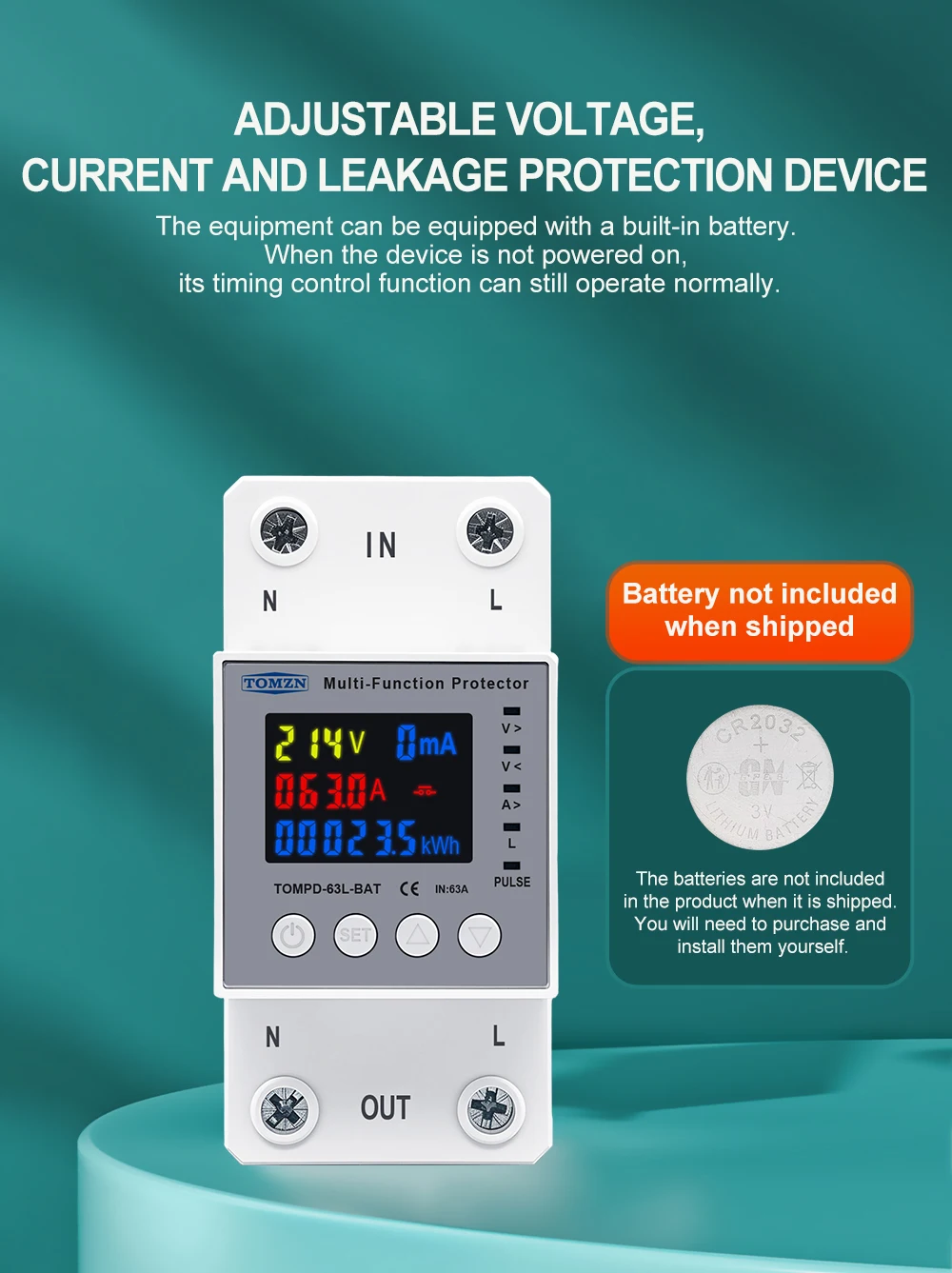

Note: This device can be equipped with a battery, but it is not included in the shipment. You will need to purchase CR2032 button batteries on your own.

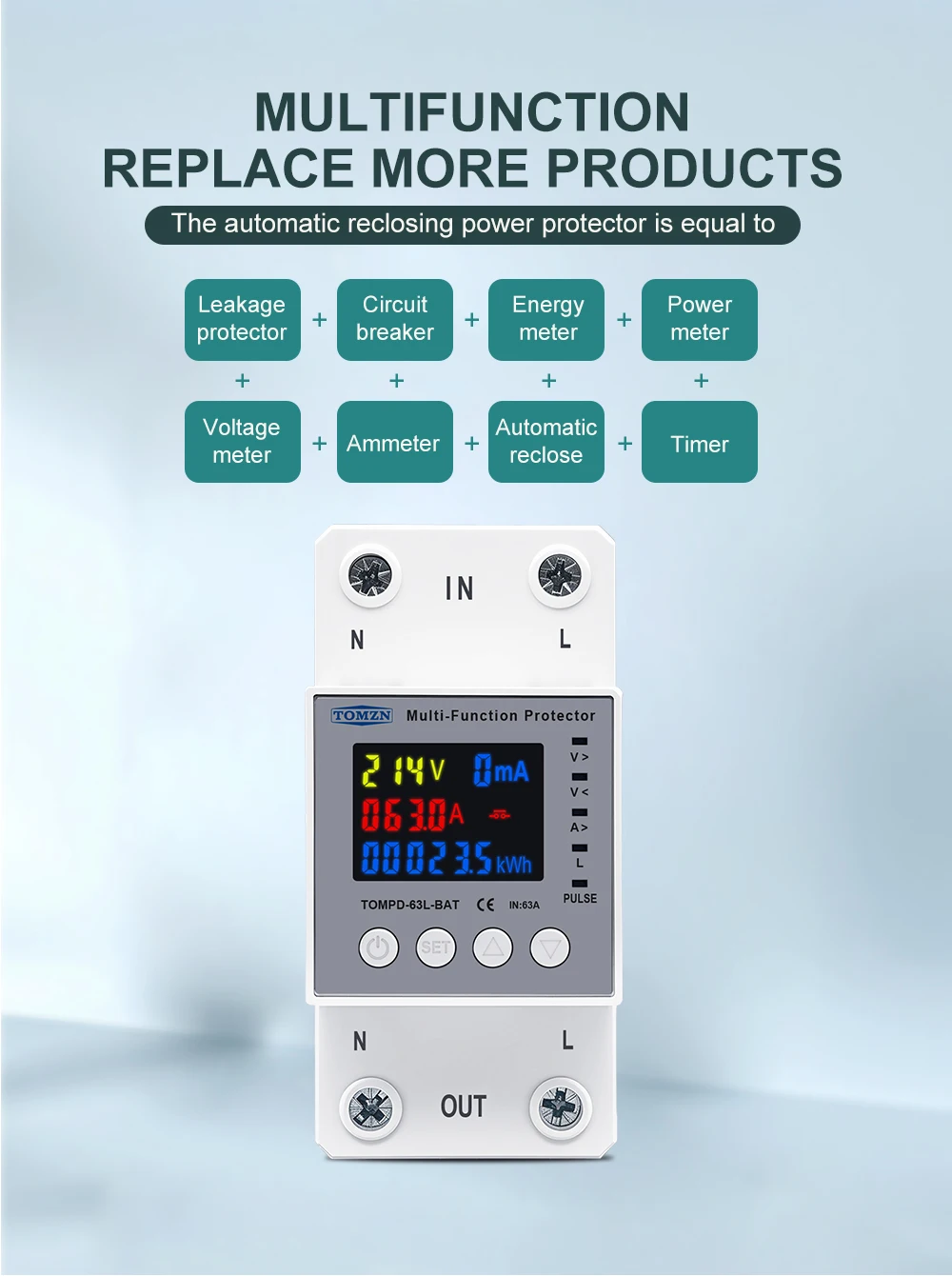

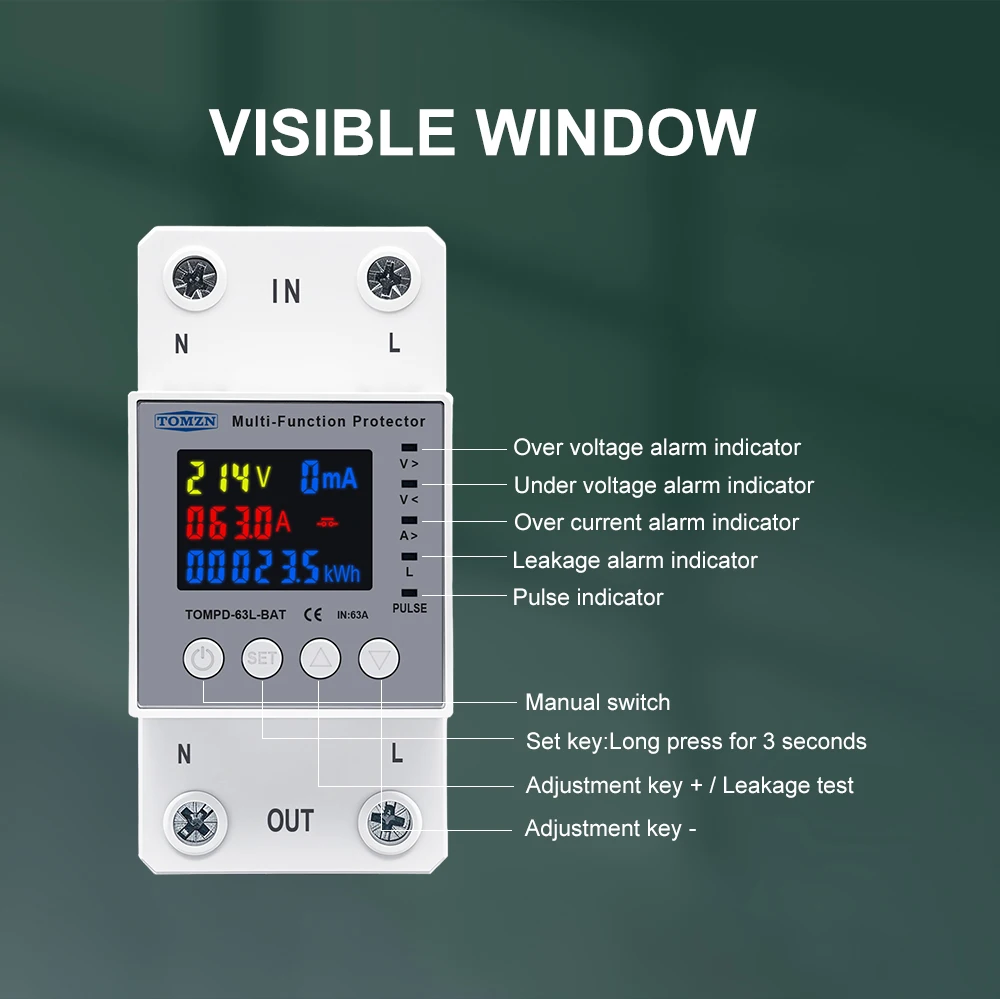

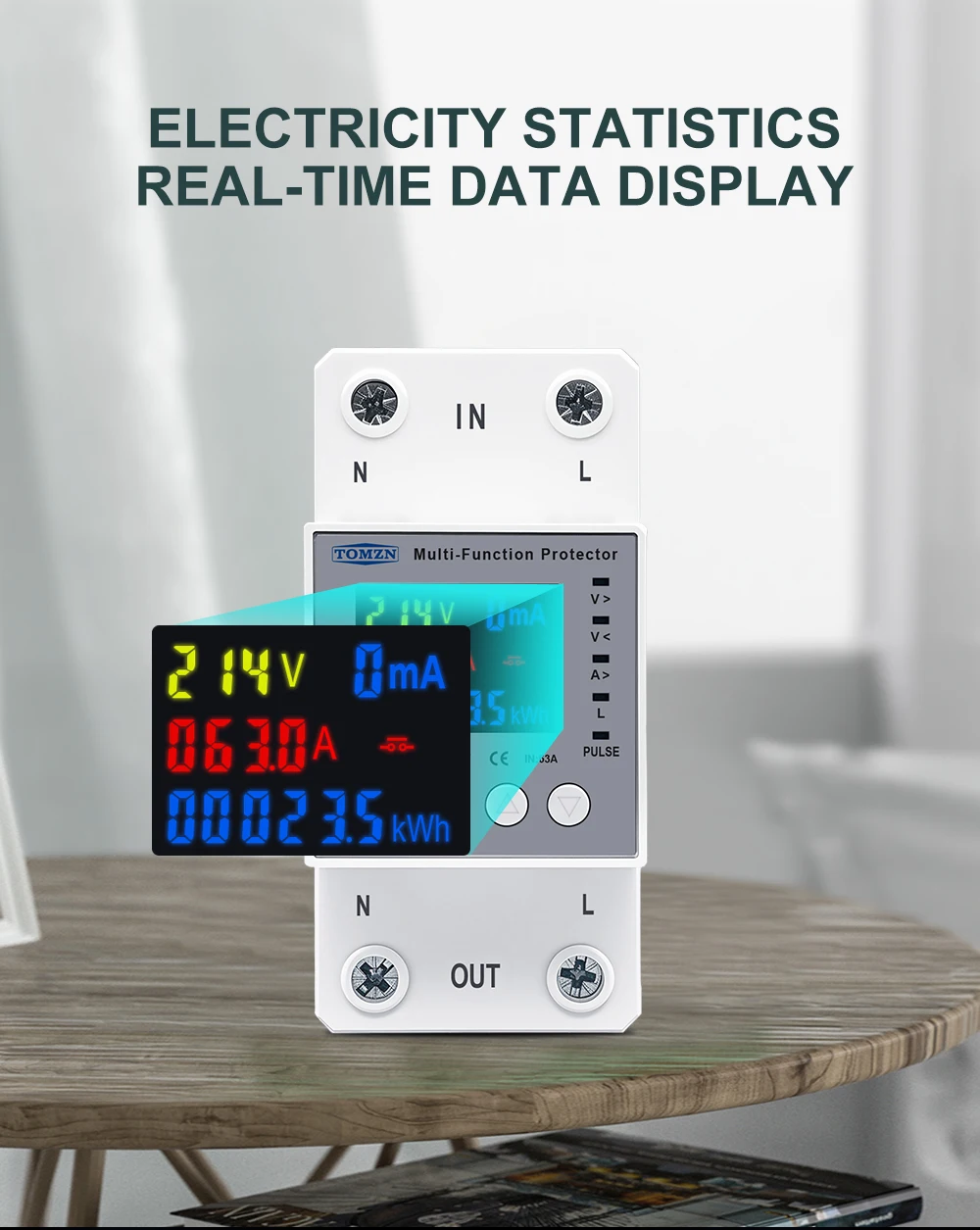

1. Voltage, current, power, energy, leakage, PF, frequency, 24-hour time, Date, Prepaid kWh display.

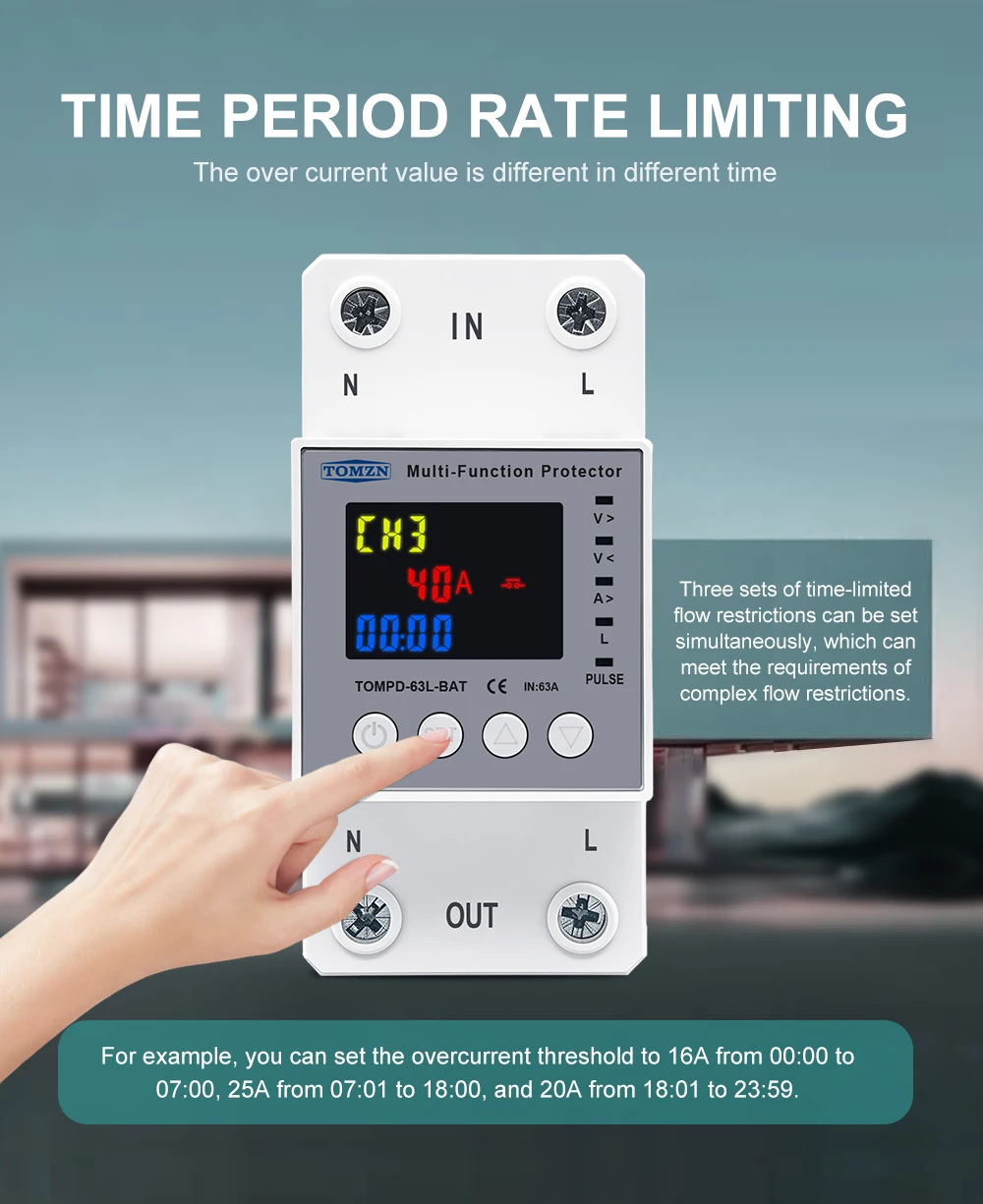

2. Three groups of time period over current rate limiting

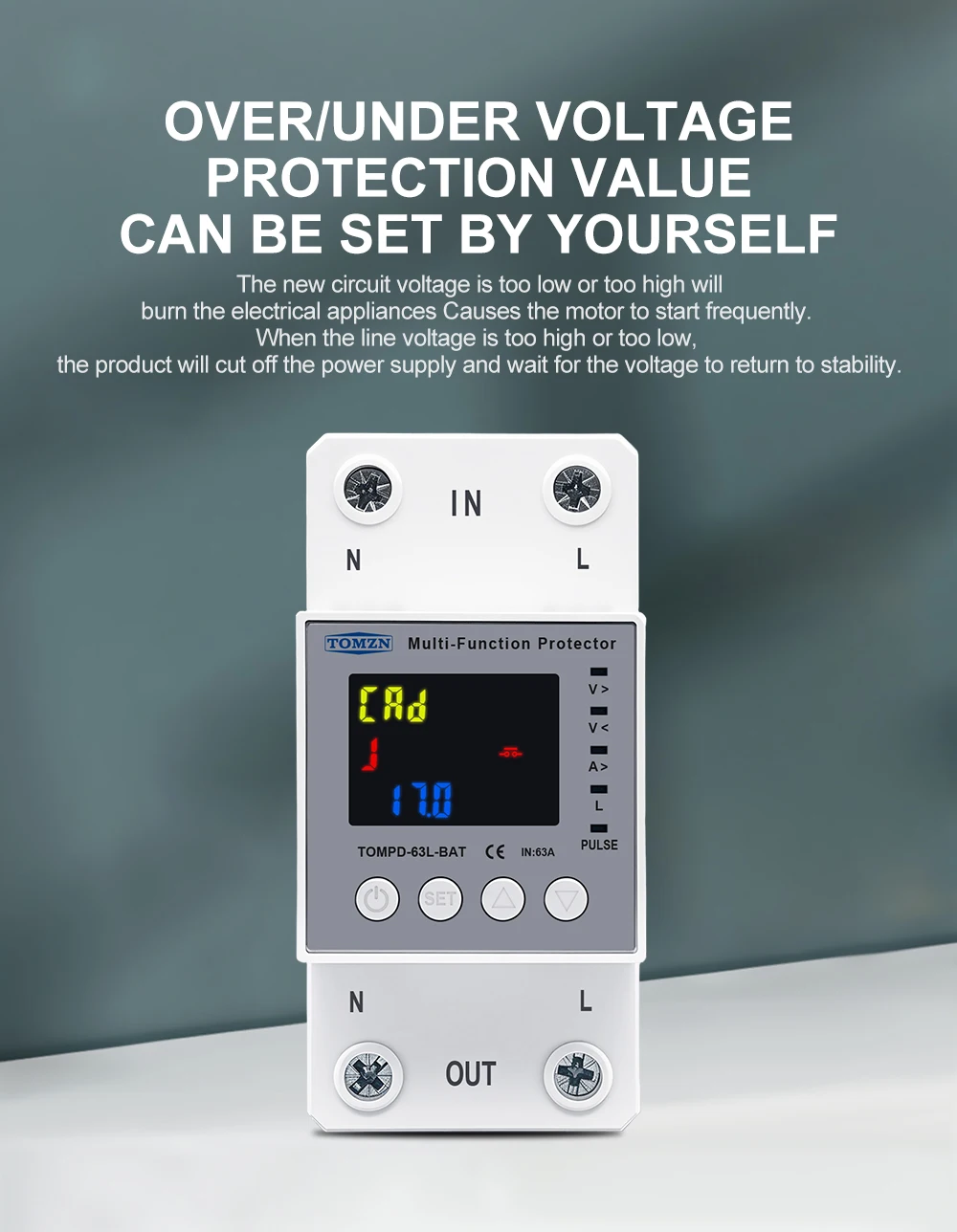

3. Over and under voltage protection

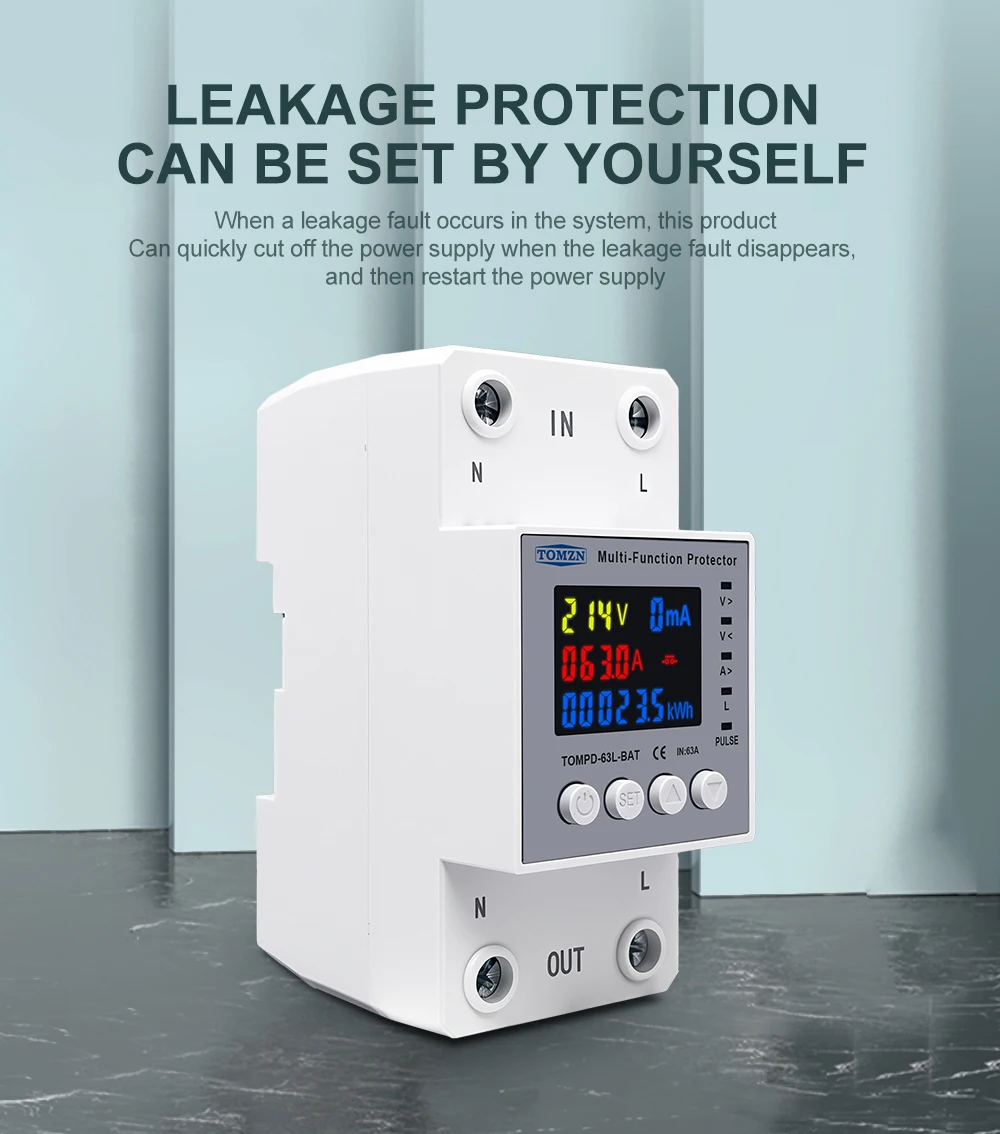

4. Leakage protection

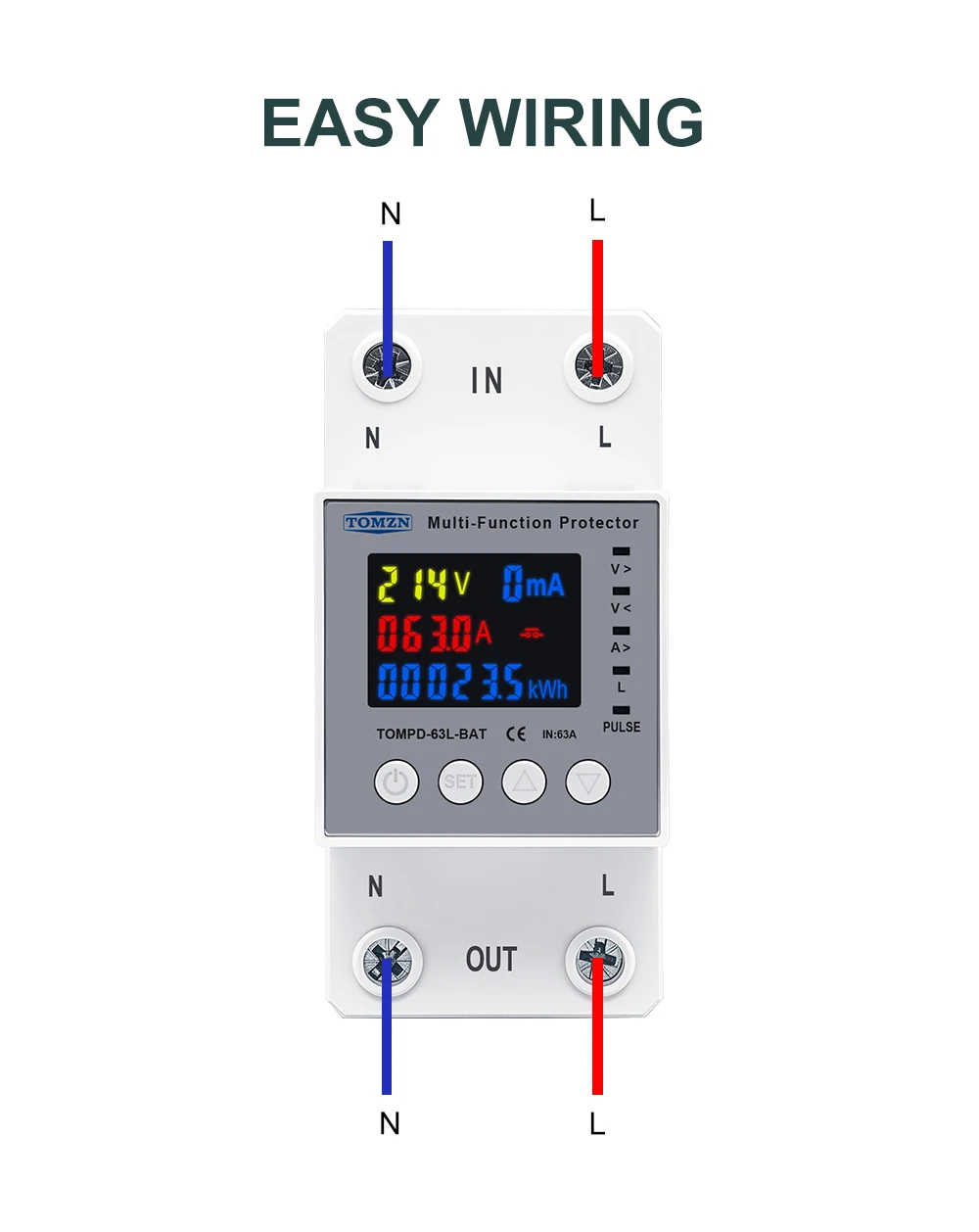

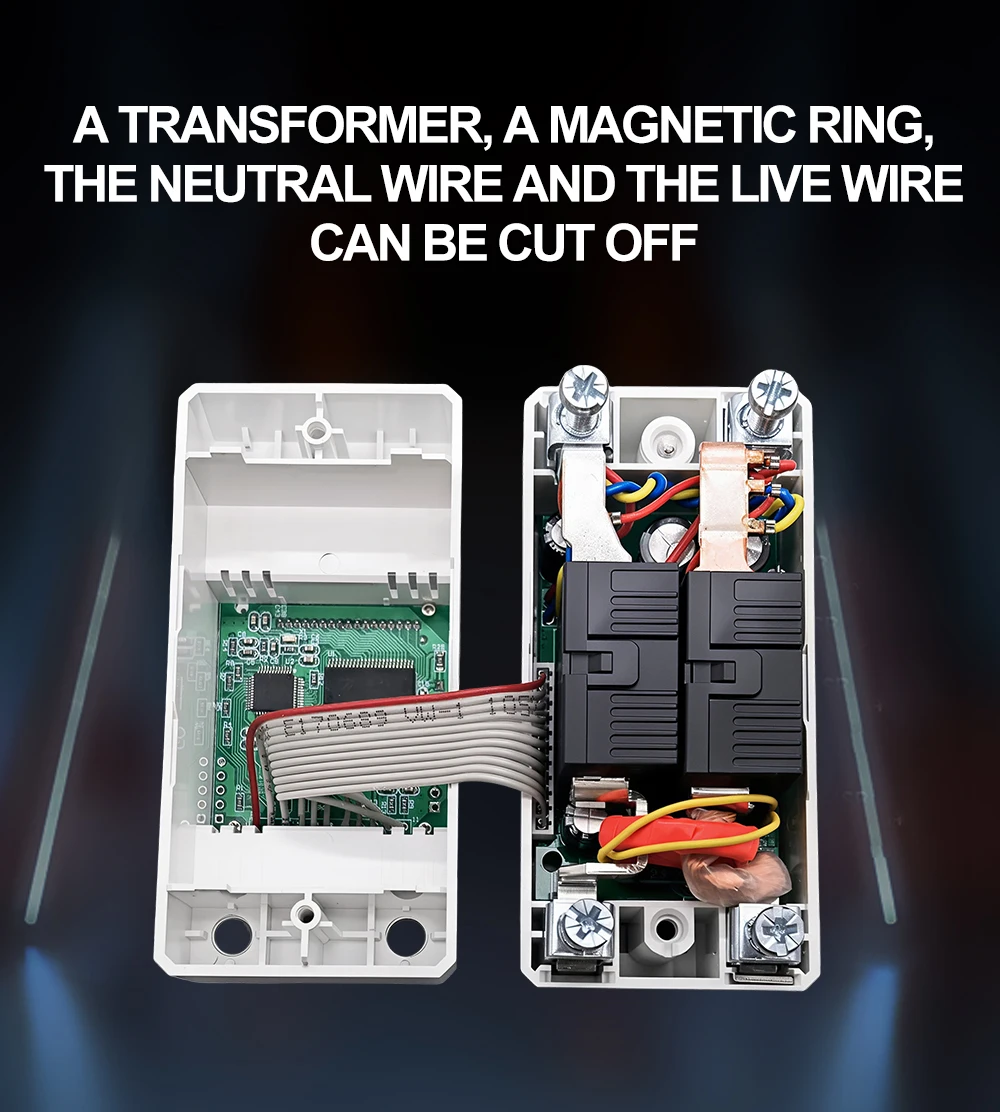

5. Cut off both L and N

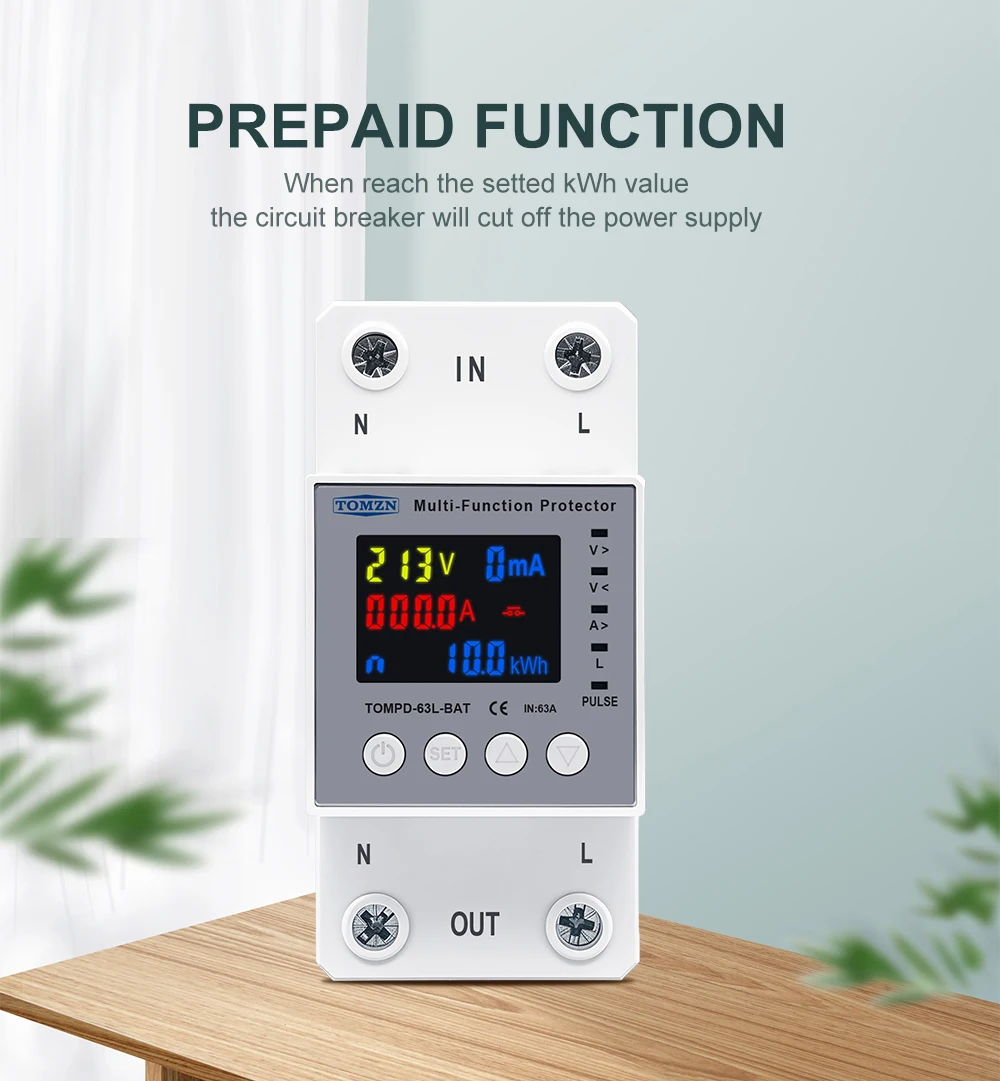

6. Prepaid function

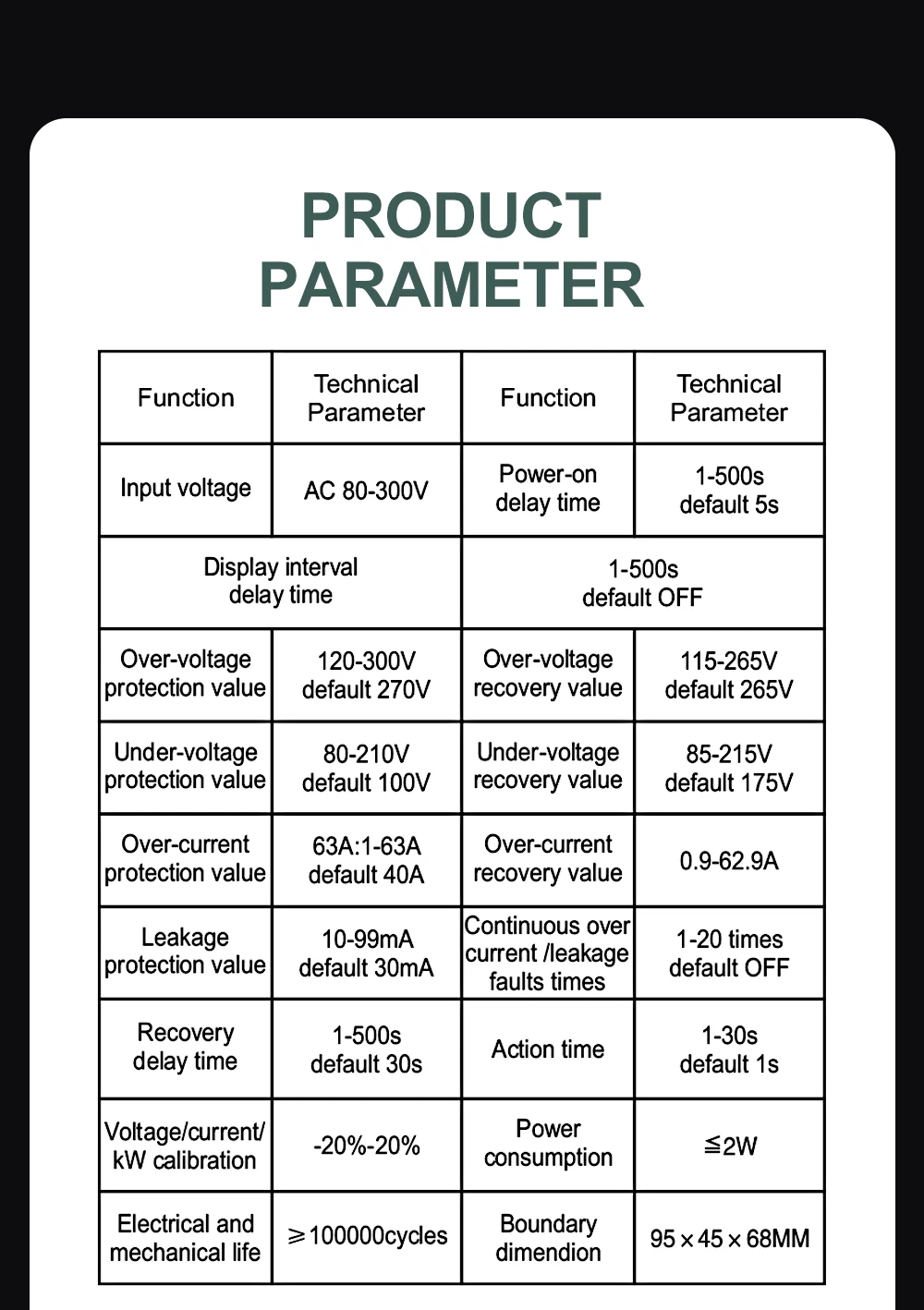

Product parameter

1. Rated voltage: 230V

2. Frequency: 50Hz/60Hz

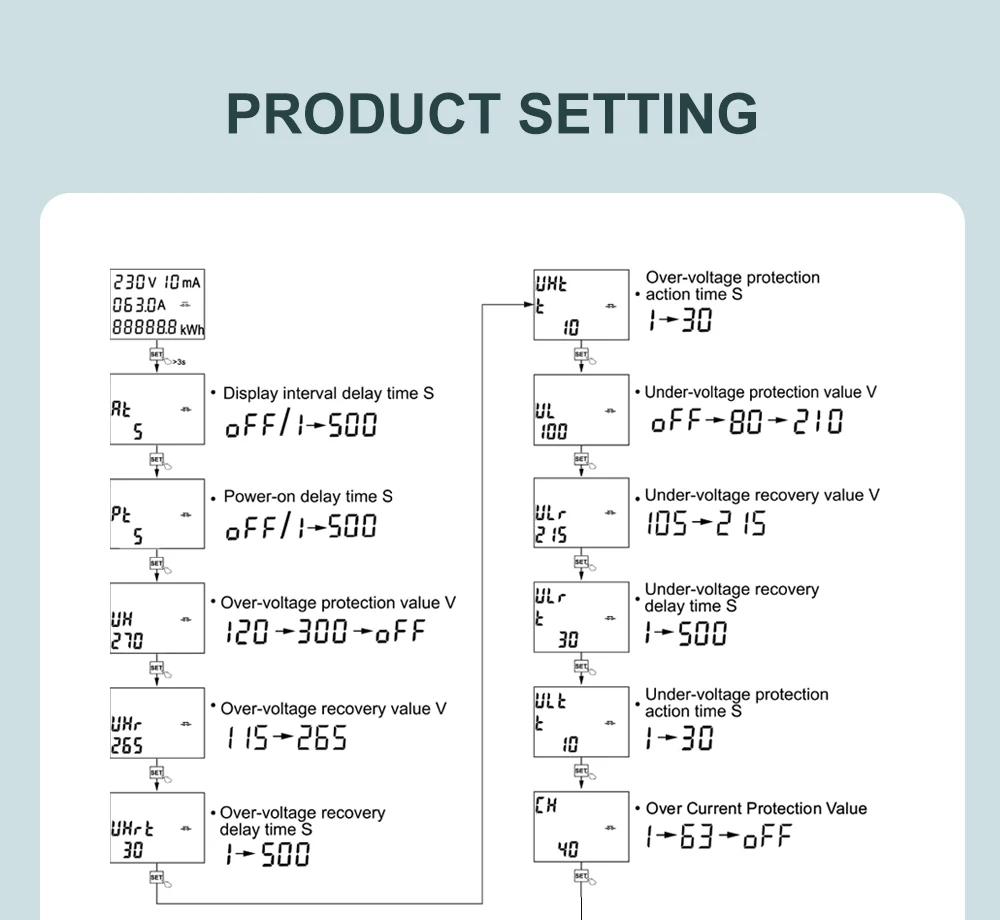

3. Over voltage proteciton 120V-300V-OFF (adjustable) (default: 270V)

4. Under voltage protection OFF-80V-210V (adjustable) (default: 170V)

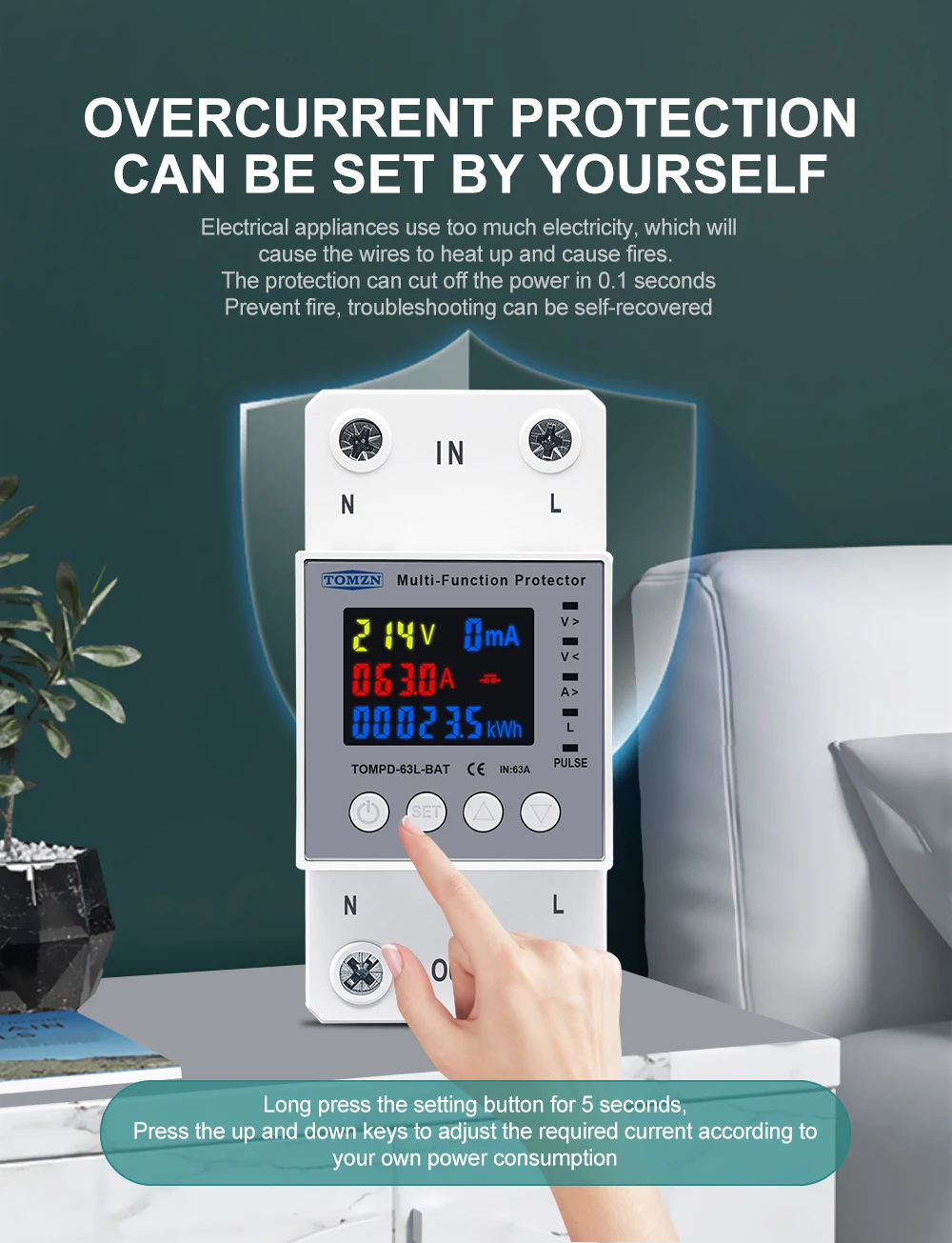

5. Three groups of time period over current rate limiting 1A-63A-OFF (adjustable) (default: 40A)

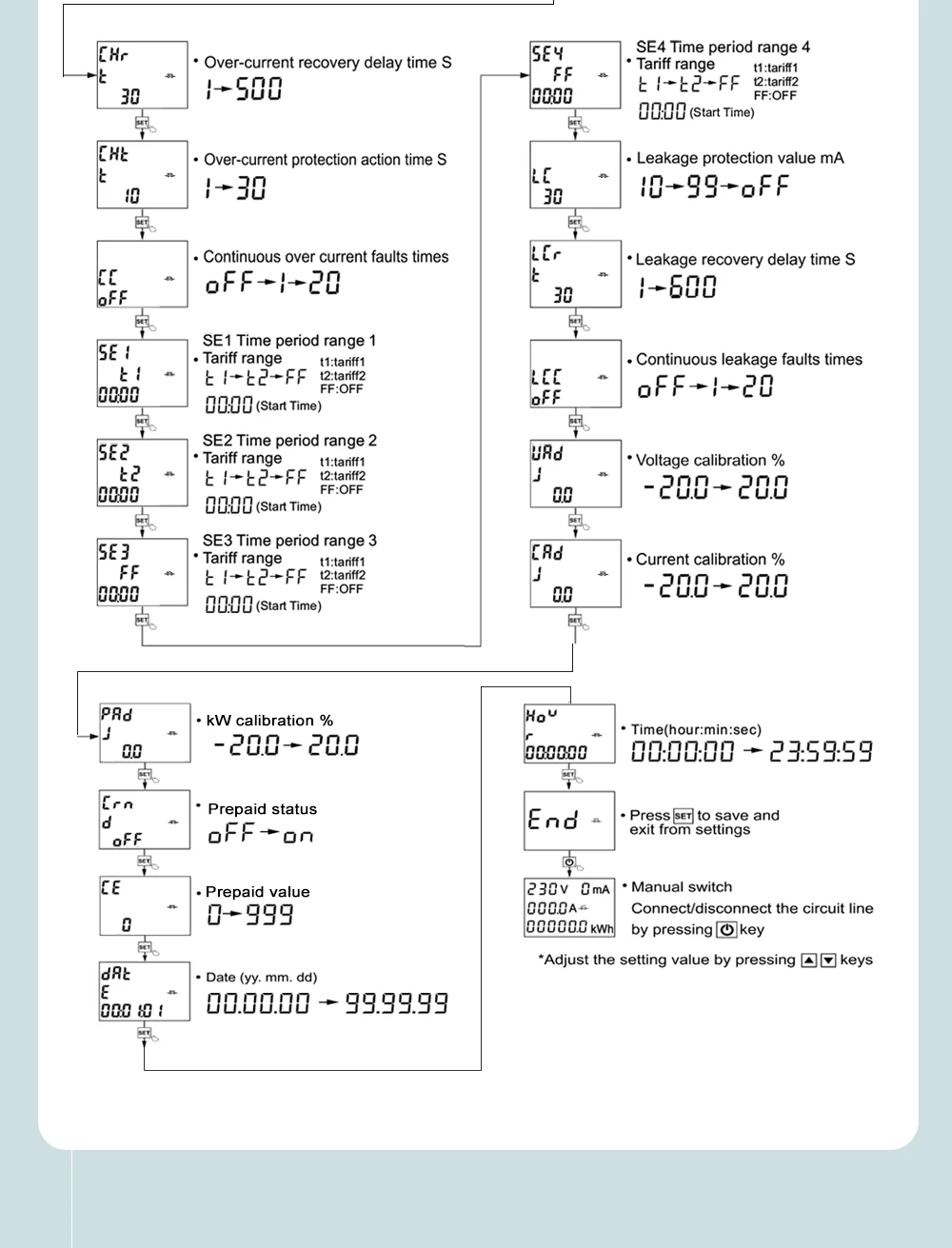

6.Reconnect time (delay on time): 1s-500s (default: 30s)

7.Voltage/current/kW calibration: -20%-20%

8. Action time: 1-30s (detault 1s)

9. Power consumption less than 2W
