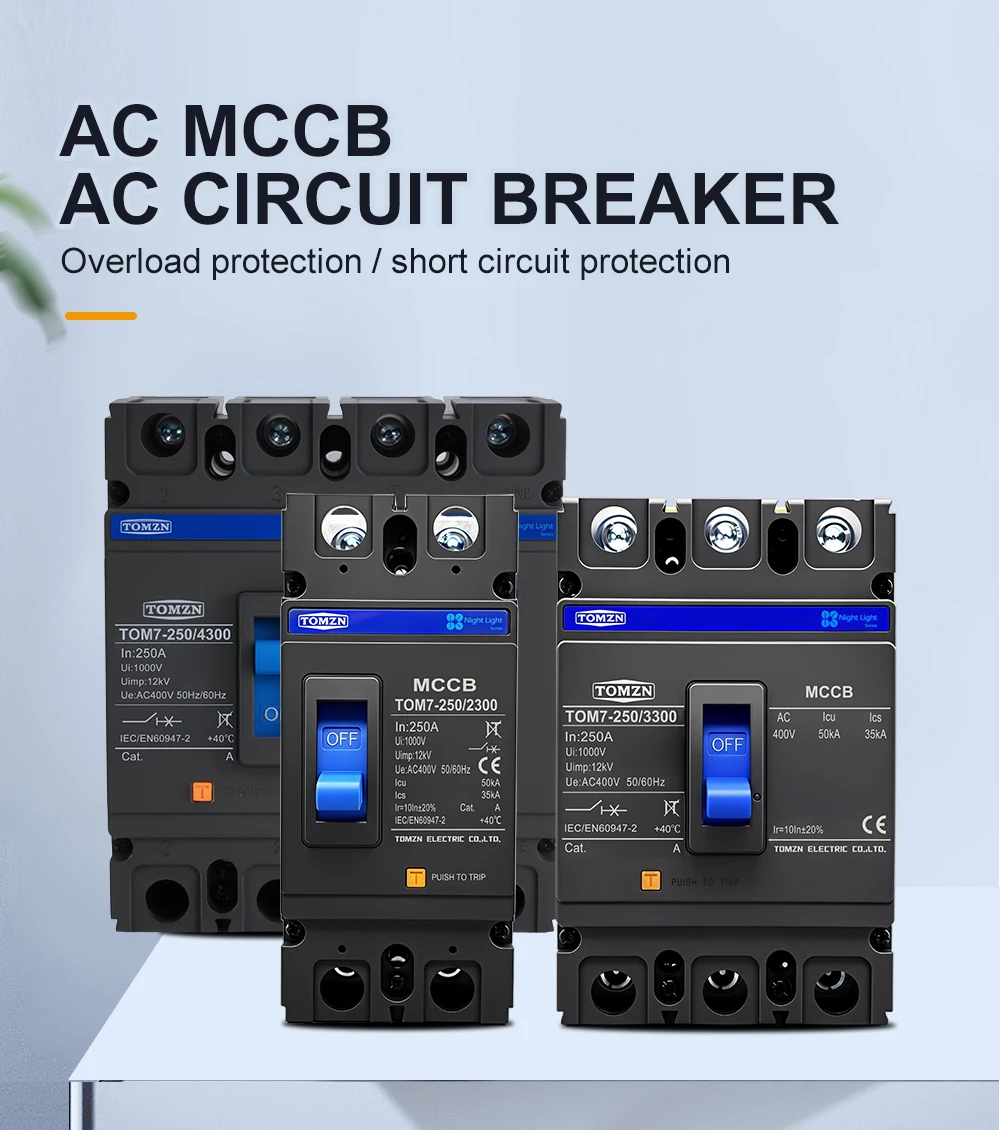

TOMZN TOM7 2P 3P 4P AC MCCB Single Phase 3 Phase Moulded Case Circuit Breaker AC400V 100A 125A 150A 160A 200A 250A For Elevator

MCCB 2P 3P 4P AC 400V 100-250A

General
The TOM7 Series is a robust AC Molded Case Circuit Breaker (MCCB) designed for reliable overcurrent, short‑circuit, and overload protection in AC power systems. Available in 2P, 3P, and 4P configurations, it operates at 400V with current ratings from 100A to 250A. With a high breaking capacity of up to 50kA and an impulse withstand voltage of 12kV, it ensures safety and stability in industrial, commercial, and distribution applications. Compact and easy to install.

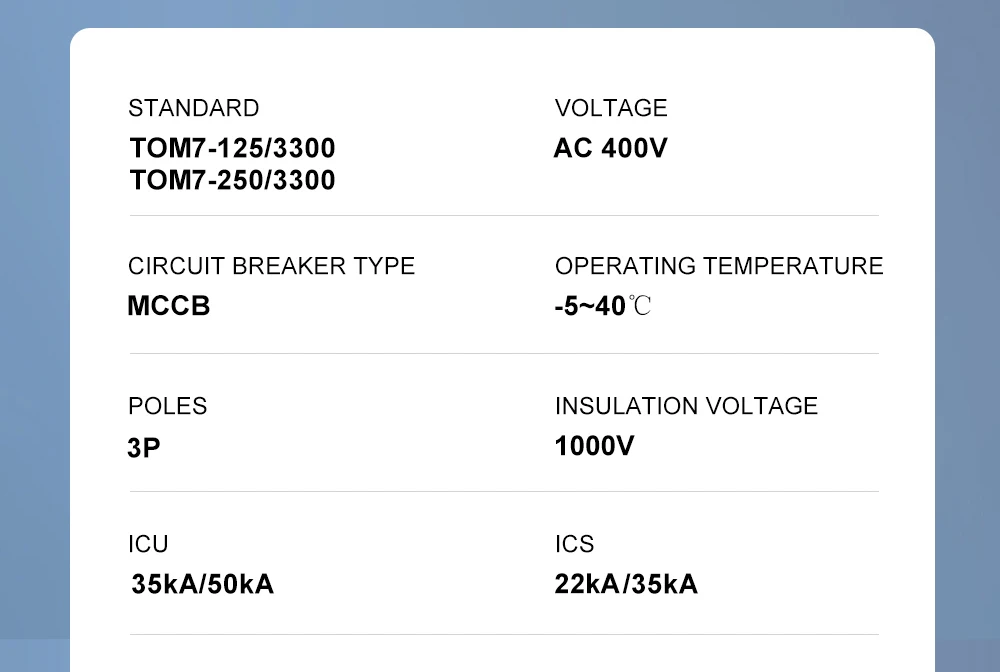

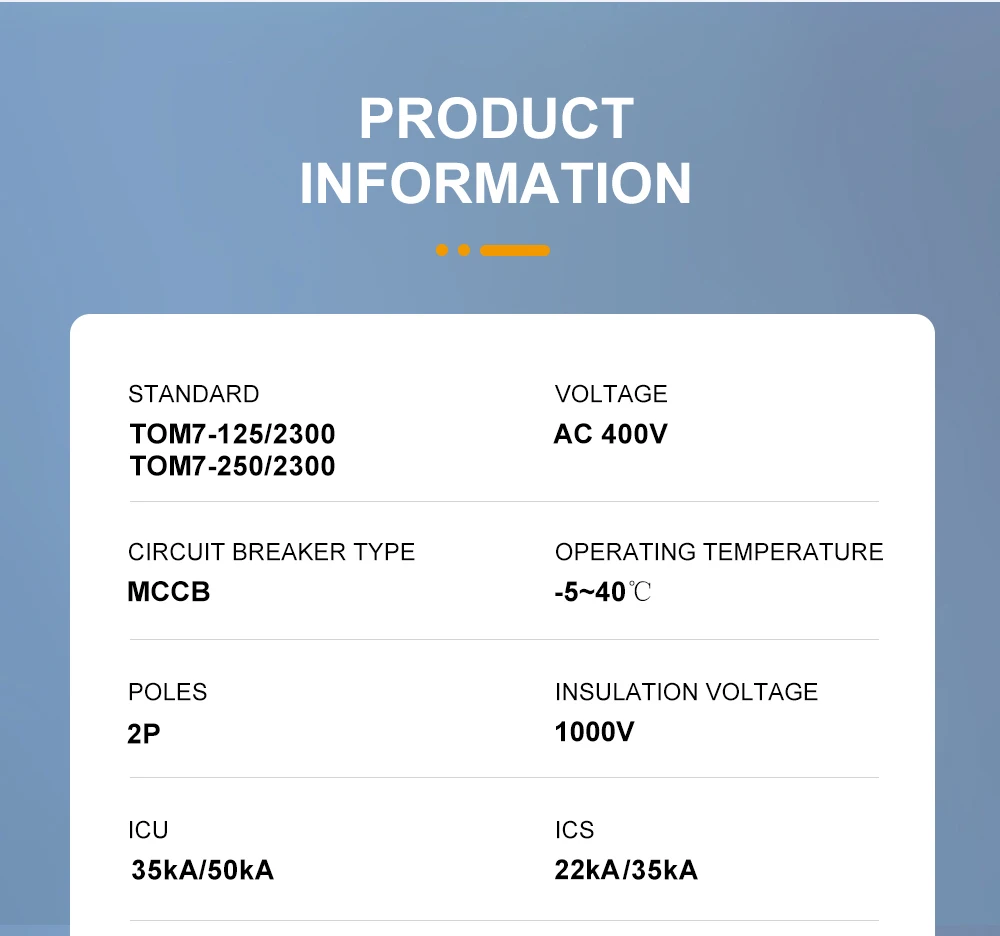

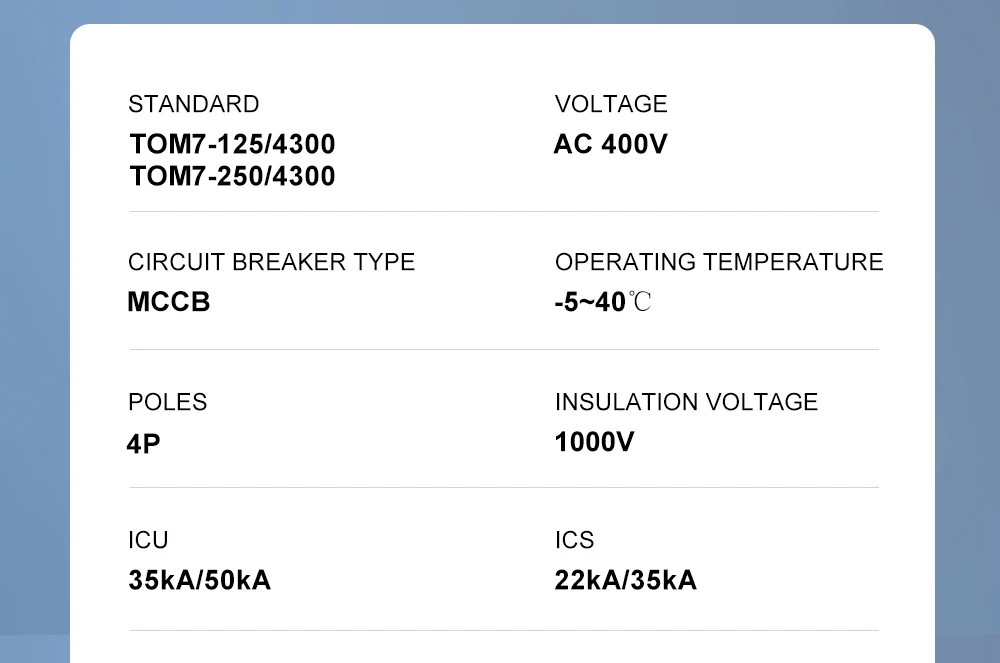

Product parameters
Model: TOM7

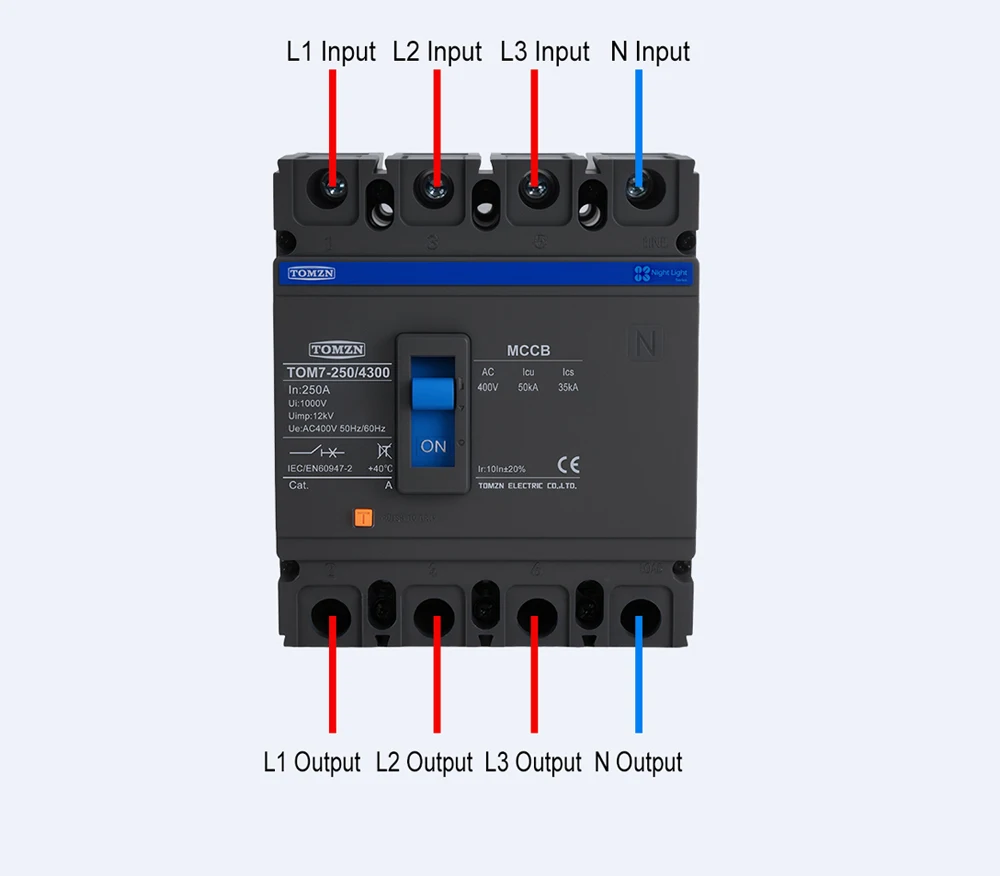

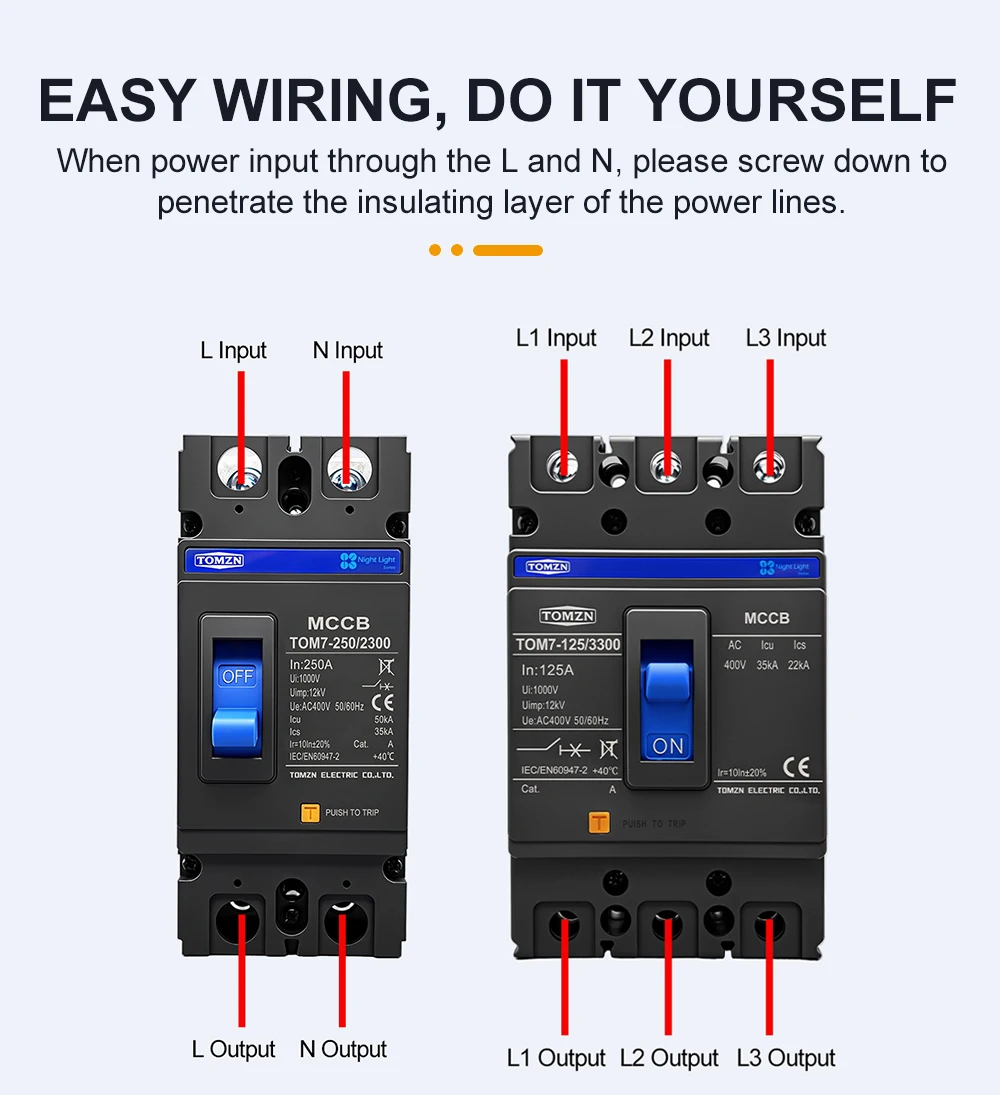

Number of Poles: 2P / 3P / 4P
Rated Voltage: AC400V (three‑phase four‑wire)
Rated Current: 100A, 125A, 150A, 160A, 200A, 250A
Rated Impulse Withstand Voltage (Uimp): 12kV
Ultimate Breaking Capacity (Icu): 35kA / 50kA
Service Breaking Capacity (Ics): 22kA / 35kA
Reference Ambient Temperature (Cat. A): 40°C

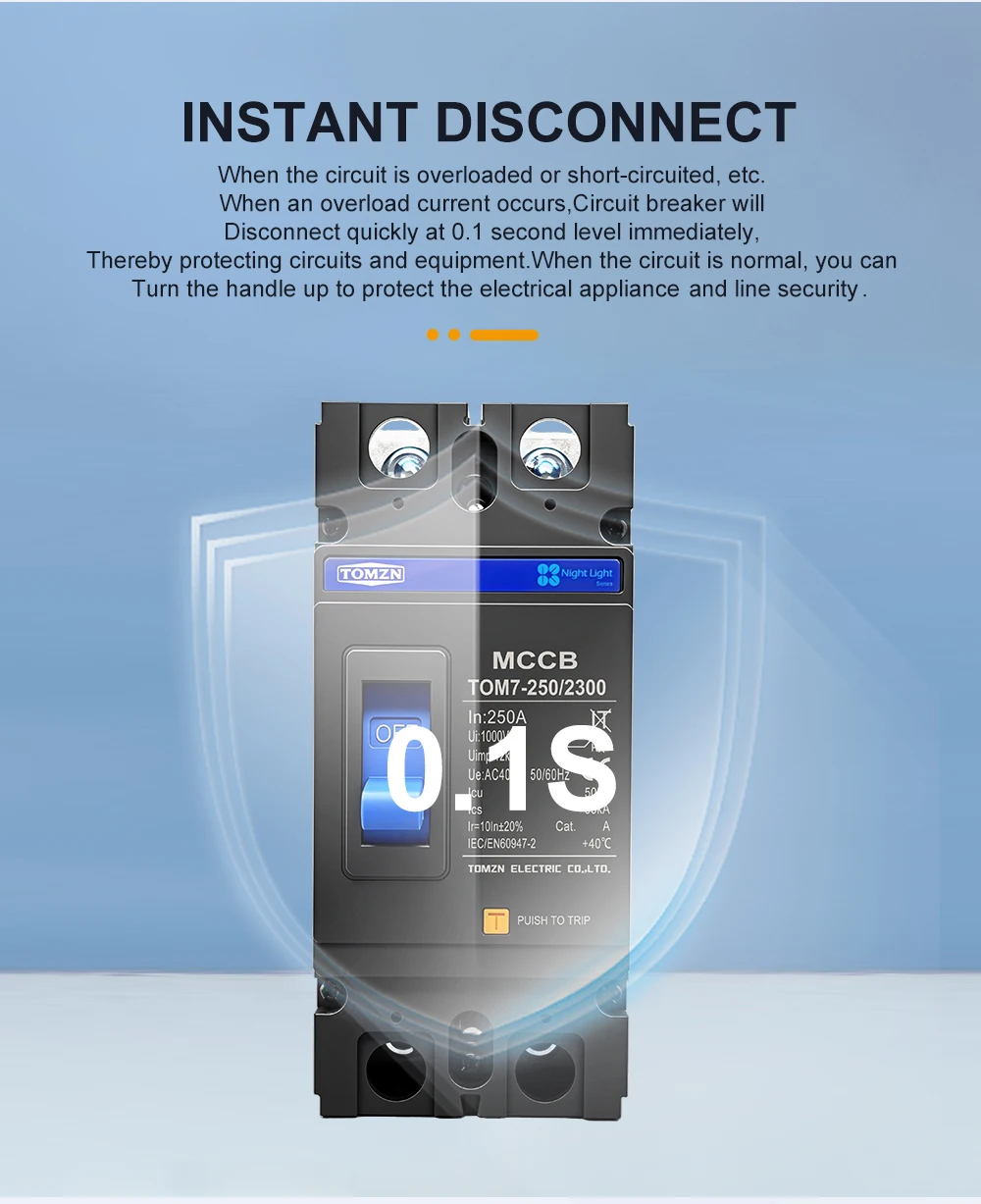

Protection Functions: Overcurrent protection, short‑circuit protection, overload protection
Application: Industrial and commercial power distribution
