Description

TOB9S-63NCWIFI can cut off both L and N

General

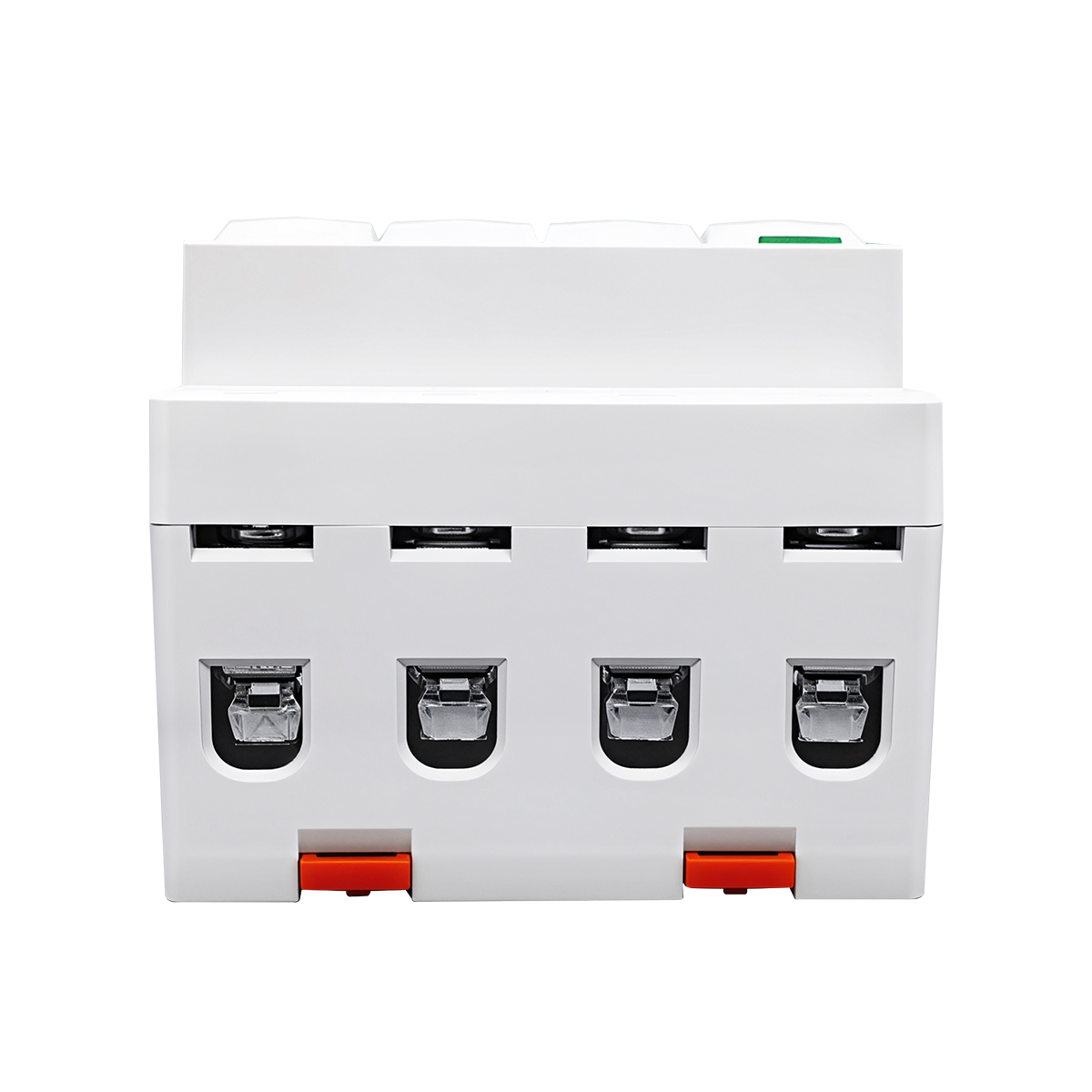

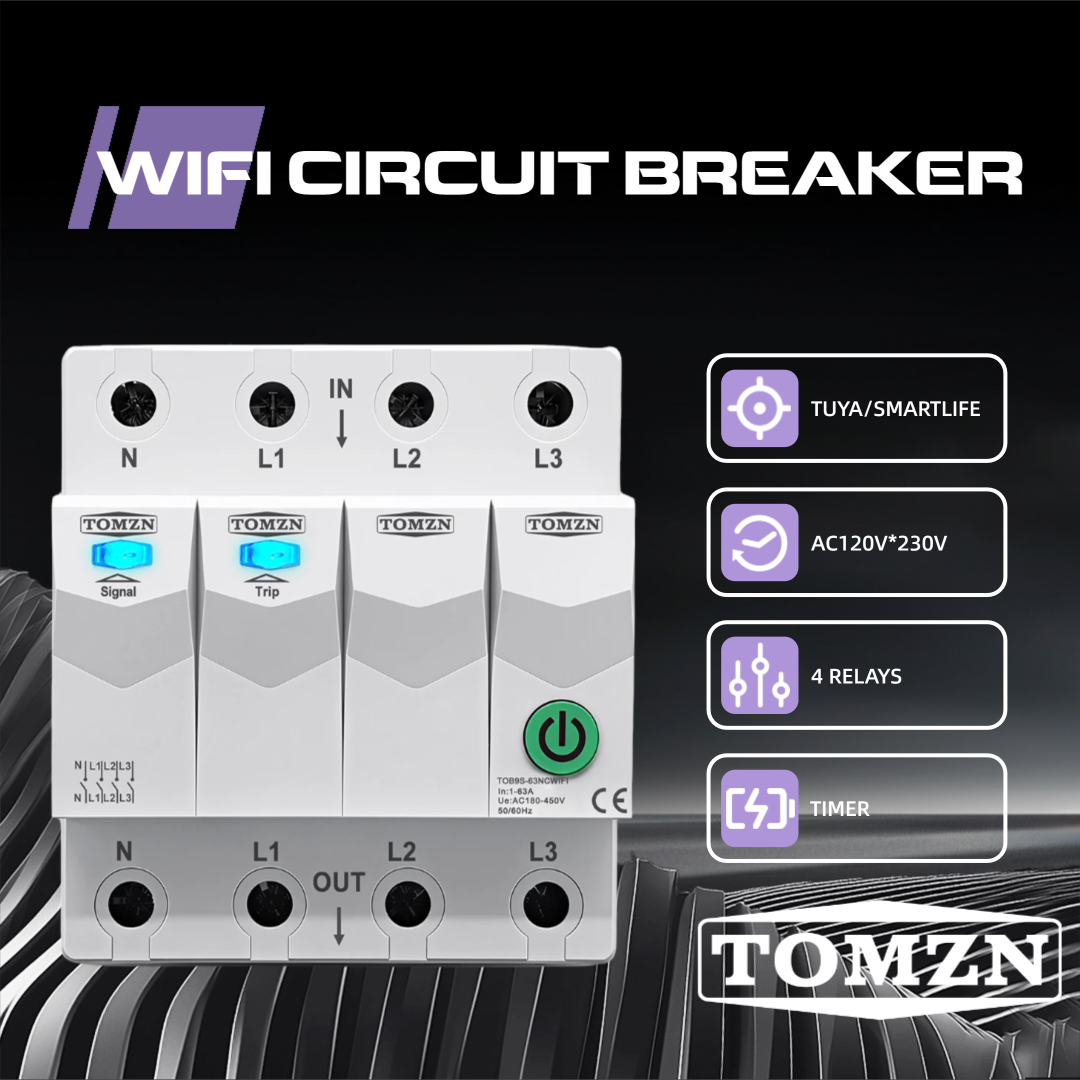

TOB9S-63NCWIFI is a WIFI Smart circuit breaker. It is equipped with four relays, which can simultaneously cut off three live wires and one neutral wire, making it safer and more reliable. The device supports AC 3*120V or 3*230V and can be used in most countries around the world. The device supports timer, countdown, relay status, mechanical locking and other functions. However, this device does not have protection and measurement functions. It is suitable for customers who only need to remotely switch the three-phase electricity.

Parameter
Product Model: TOB9S-63NCWIFI
Product Type: WIFI circuit breaker (3-phase 4-wire)
Remote Control App: TUYA / SmartLife
Control Mode: Simultaneous switching of L1, L2, L3, and N
Number of relays: 4PCS
Rated Voltage Range: AC180-450V (supports 3×120V or 3×230V)
Rated Current Range: 1-63A
Frequency: 50/60Hz
Functions: Timer, countdown, relay status, light mode, maintenance lock, alarm history
Installation: 35mm DIN rail
Application: Remote power switching for residential, commercial, and industrial systems

Noted: This meter Only supports 2.4G Wireless Network, NOT for 5G
