Description

report

TOB9L-63WIFI 2P can cut off L and N both,

With leakage protection, NO temperature control.

TOB9-63WIFI 1P Can only cut off L,

NO leakage protection, With temperature control.

TOB9-50LW 1P+N AC110V/230V 1-50A 1.5P 12IN1

General

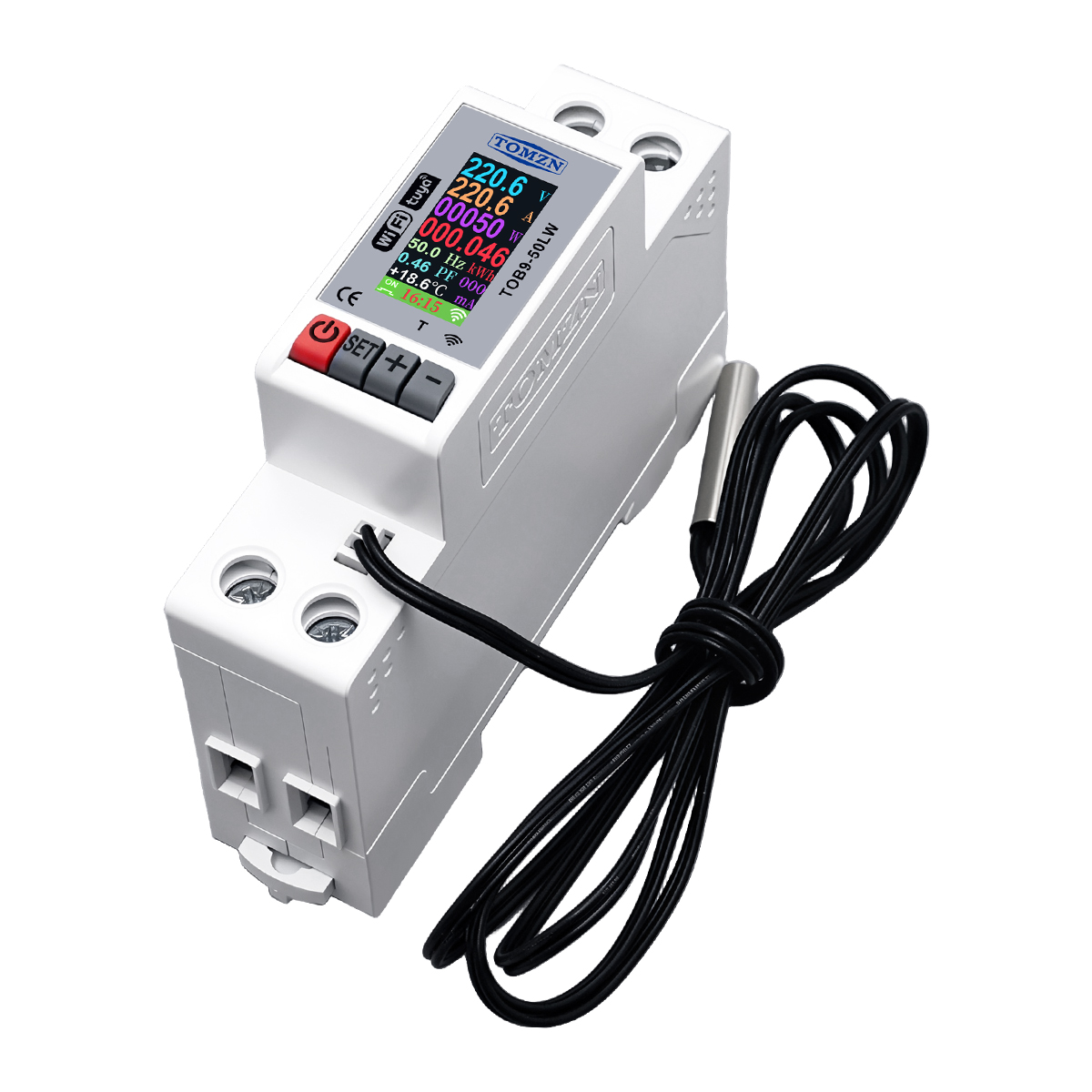

The TOB9-50LW is a compact, high-performance Wi-Fi smart circuit breaker designed for residential and light commercial applications. It measures key electrical parameters including voltage, current, power, energy, frequency, power factor, leakage current, and ambient temperature. The device supports multiple protection functions: overvoltage, undervoltage, overcurrent, overtemperature, leakage, and current limiting. All parameters can be viewed and adjusted locally on the device or remotely via the companion mobile app.

A unique feature is the external TNC interface for precise ambient temperature measurement, eliminating inaccuracies caused by the device’s own heat generation. The ultra-small form factor is 40% smaller than comparable products. Note: This device switches only the Line (L) conductor.

Feature

Model: TOB9-50LW

Type: Wi-Fi Smart Circuit Breaker (L only switching)

Rated Voltage: 80–300V AC

Frequency: 50/60 Hz

Operating Voltage: Works with L/N 110V and 220V systems

Rated Current: 50A

Width: 23 mm (1 module)

Power Consumption: < 2W

Wireless Standard: 2.4 GHz Wi-Fi (does not support 5G)

Undervoltage protection: 80–210V (adjustable, default: 180V)

Overvoltage protection: 120–300V (adjustable, default: 270V)
