Description

report

TOB9L-63WIFI 2P can cut off L and N both,

With leakage protection, NO temperature control.

TOB9-63WIFI 1P Can only cut off L,

NO leakage protection, With temperature control.

Function: AS-50W series can convert AC100-240V voltage to DC12V/24V/36V/48V/60V voltage.

General

AS-50W series is a compact and reliable AC-DC power supply converting 100–240V AC to stable DC outputs (12V, 24V, 36V, 48V, 60V). Designed for industrial and general-purpose applications, it features full-load burn-in testing, universal AC input, and comprehensive protections. With convection cooling and wide operating temperature range, it delivers high performance and cost-effectiveness.

Specifications

Series Name: AS-50W
Input Voltage: AC100-240V 50/60Hz
Output Options: 12VDC, 24VDC, 36VDC, 48VDC, 60VDC
Output Voltage Adjustment: ±10% via ADJ potentiometer

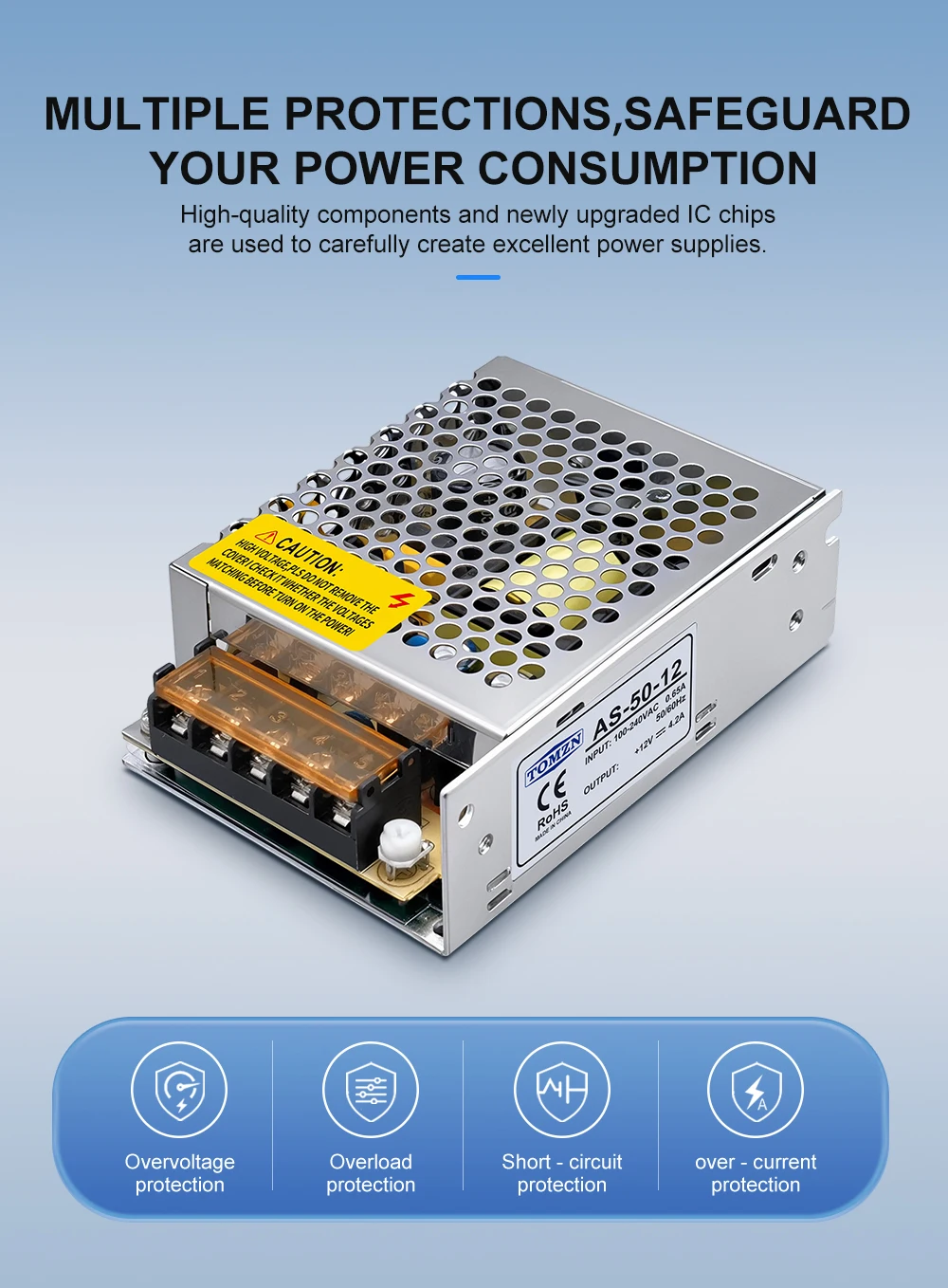

Protections: Overload / Over voltage / Short circuit

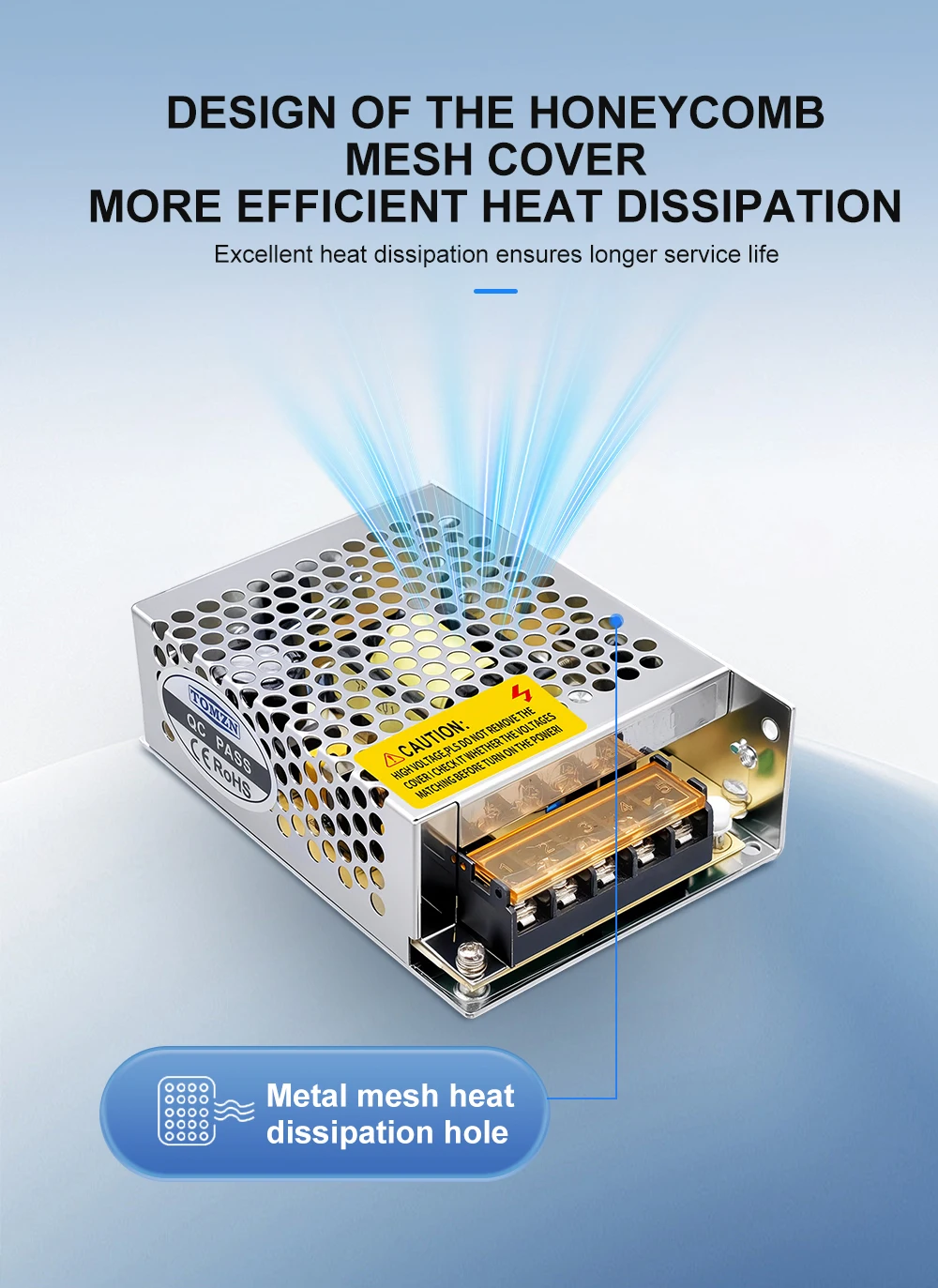

Cooling Method: Free air convection

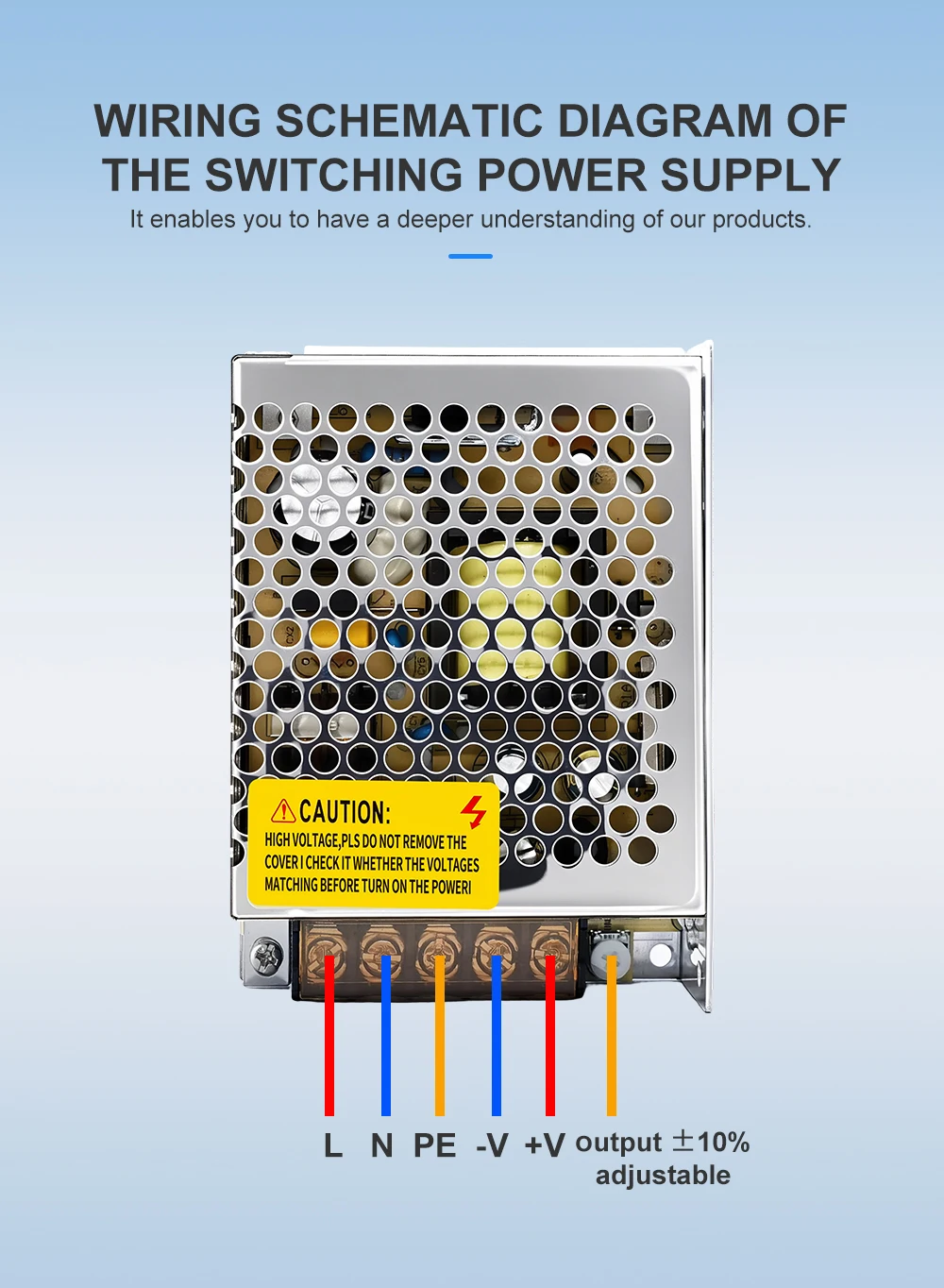

Terminals (AC input): L (Live), N (Neutral)
Terminals (DC output): +V (Positive), -V (Negative)
Safety Compliance: CE
Working Temperature: -20°C to +70°C
Storage Temperature: -40°C to +85°C
Ambient Humidity: 0–95% (Non-Condensing)
Burn-in Test: 100% full load
Not Recommended For: Bathroom use
Key Features: High price-effective, industry reliability, over voltage/current/short circuit protection
