Description

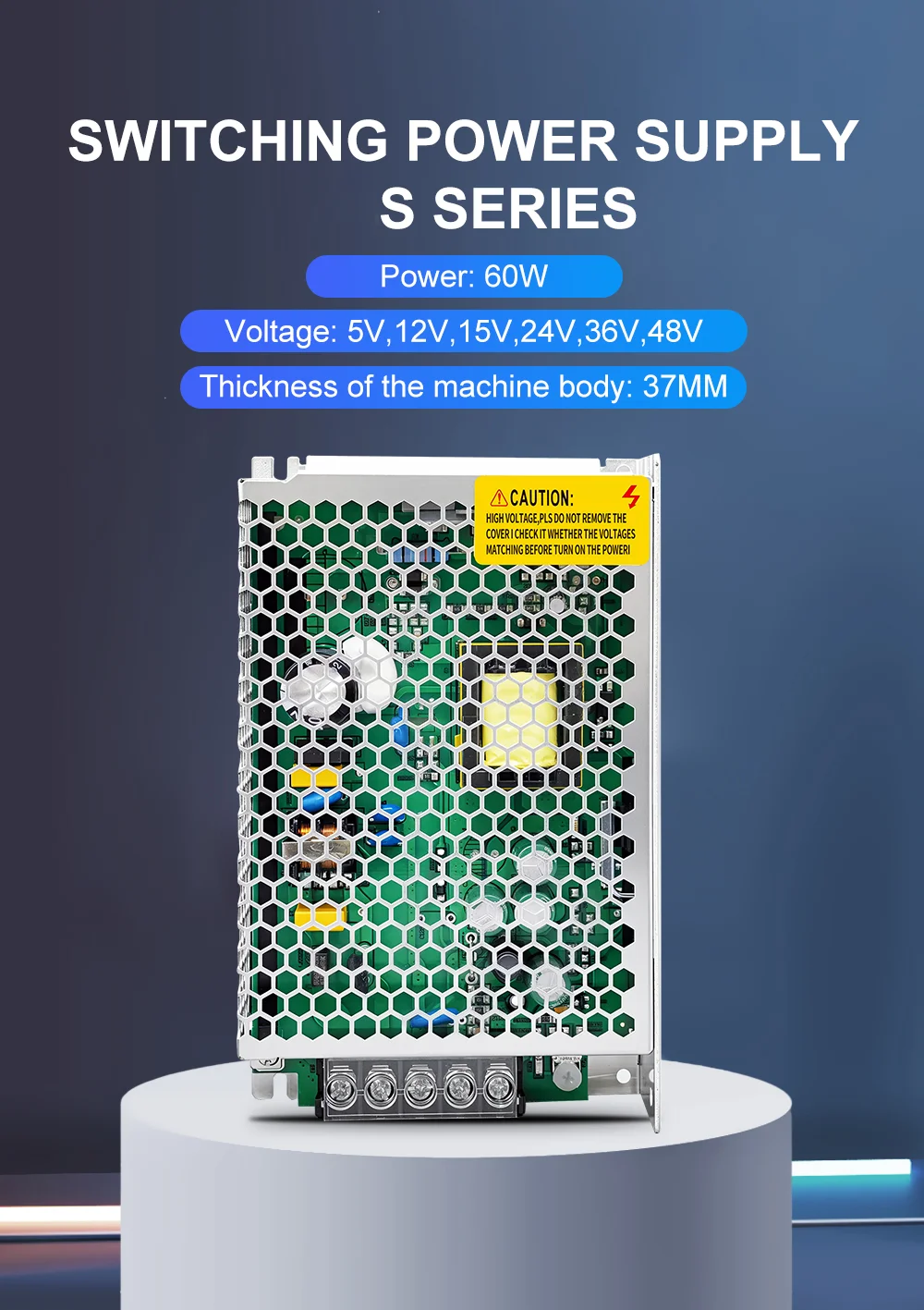

Switching Power Supply

S-60W can convert AC110V/220V voltage to DC5V/12V/15V/24V/36V/48V voltage.

General

S-60W is a single‑output switching power supply from the S Series, designed for industrial applications. It converts AC115V or AC230V (selectable via switch) into stable DC voltages of 5V, 12V, 15V, 24V, 36V, or 48V at 60W output power. With high efficiency (up to 89%), forced air cooling by a built‑in DC fan, and comprehensive protection (short circuit, overload, over voltage), it delivers reliable performance in demanding environments. The unit operates from -25°C to +70°C (derating above 50°C) and at altitudes up to 5000 meters. 100% full‑load burn‑in tested and IEC/UL 60950‑1 compliant, the S‑60W is ideal for industrial automation, control systems, machinery, and electronic equipment.

Parameters

Product Series: S Series
Model: S-60W
Output Power: 60W
Output Voltage Options: 5V, 12V, 15V, 24V, 36V, 48V DC
AC Input Voltage: 115VAC / 230VAC (selectable via switch)
Efficiency: Up to 89%
Cooling Method: Forced air cooling by built‑in DC fan

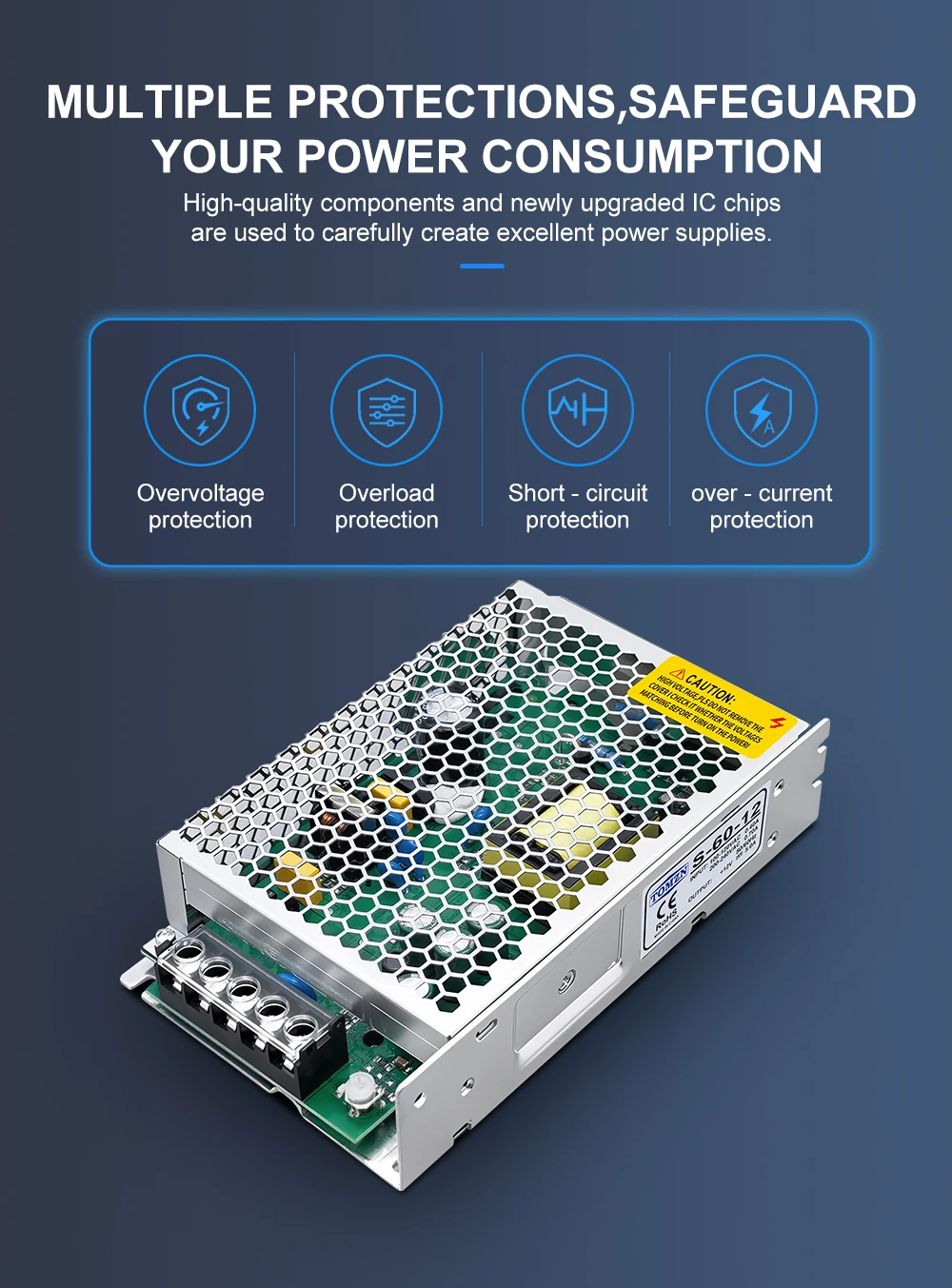

Protections: Short circuit, overload, over voltage
Operating Temperature: -25°C to +70°C (derating required above 50°C)
Operating Altitude: Up to 5000 meters
No‑Load Power Consumption: <0.75W
Safety Standards: IEC/UL 60950‑1 compliant
Burn‑In Test: 100% full‑load burn‑in
Application: Industrial automation machinery, industrial control systems, mechanical and electrical equipment, electronic instrument
