Description

General

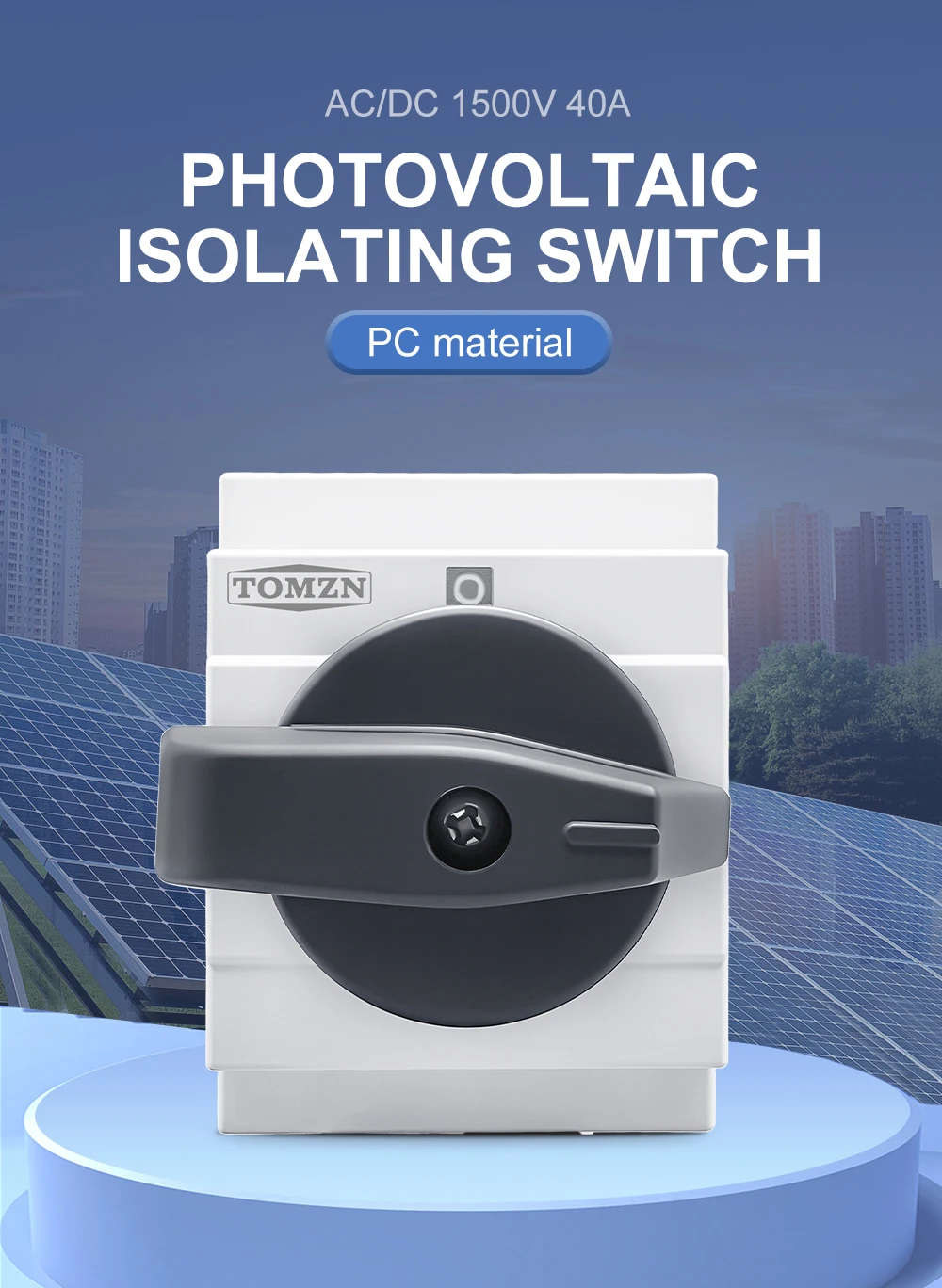

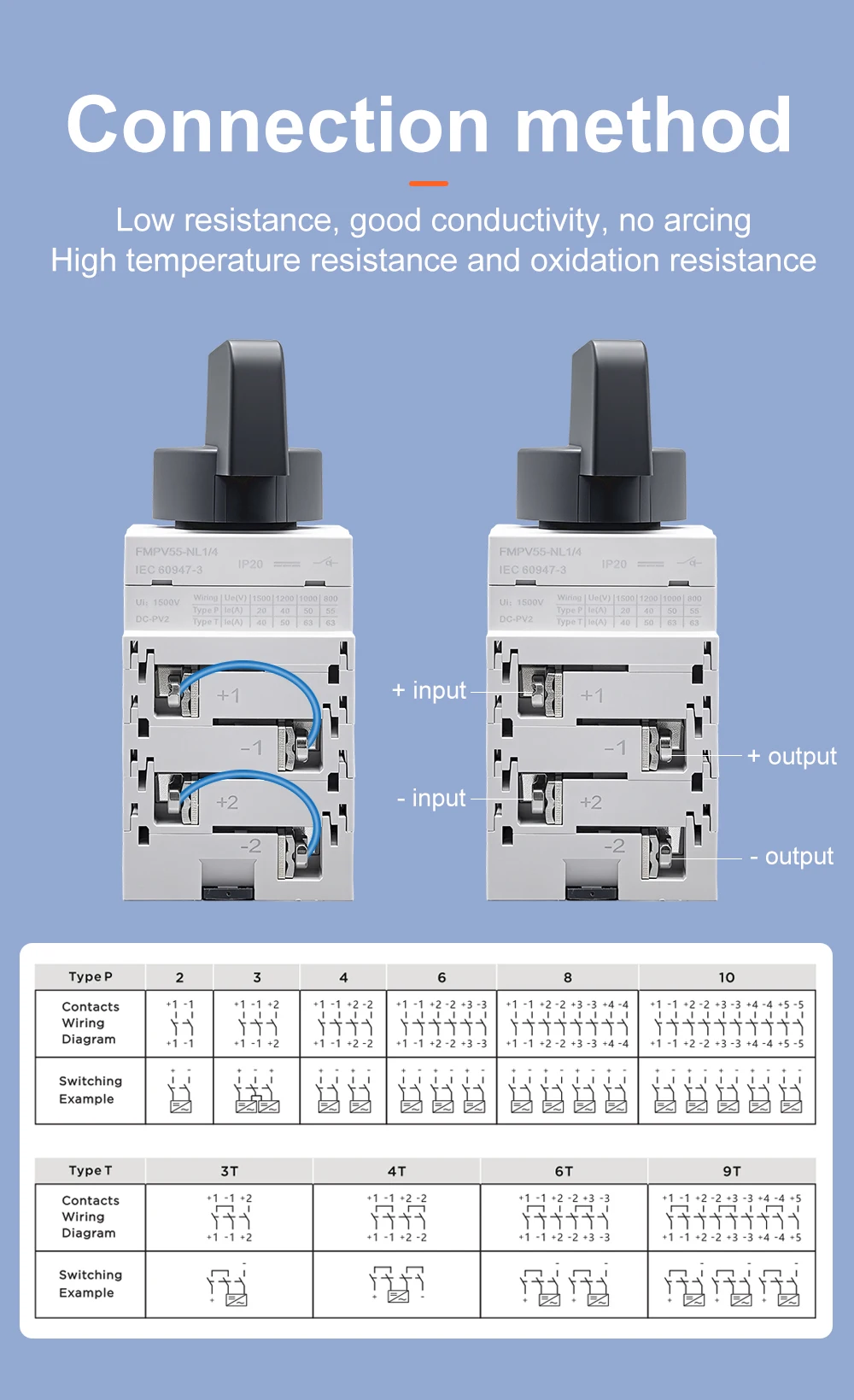

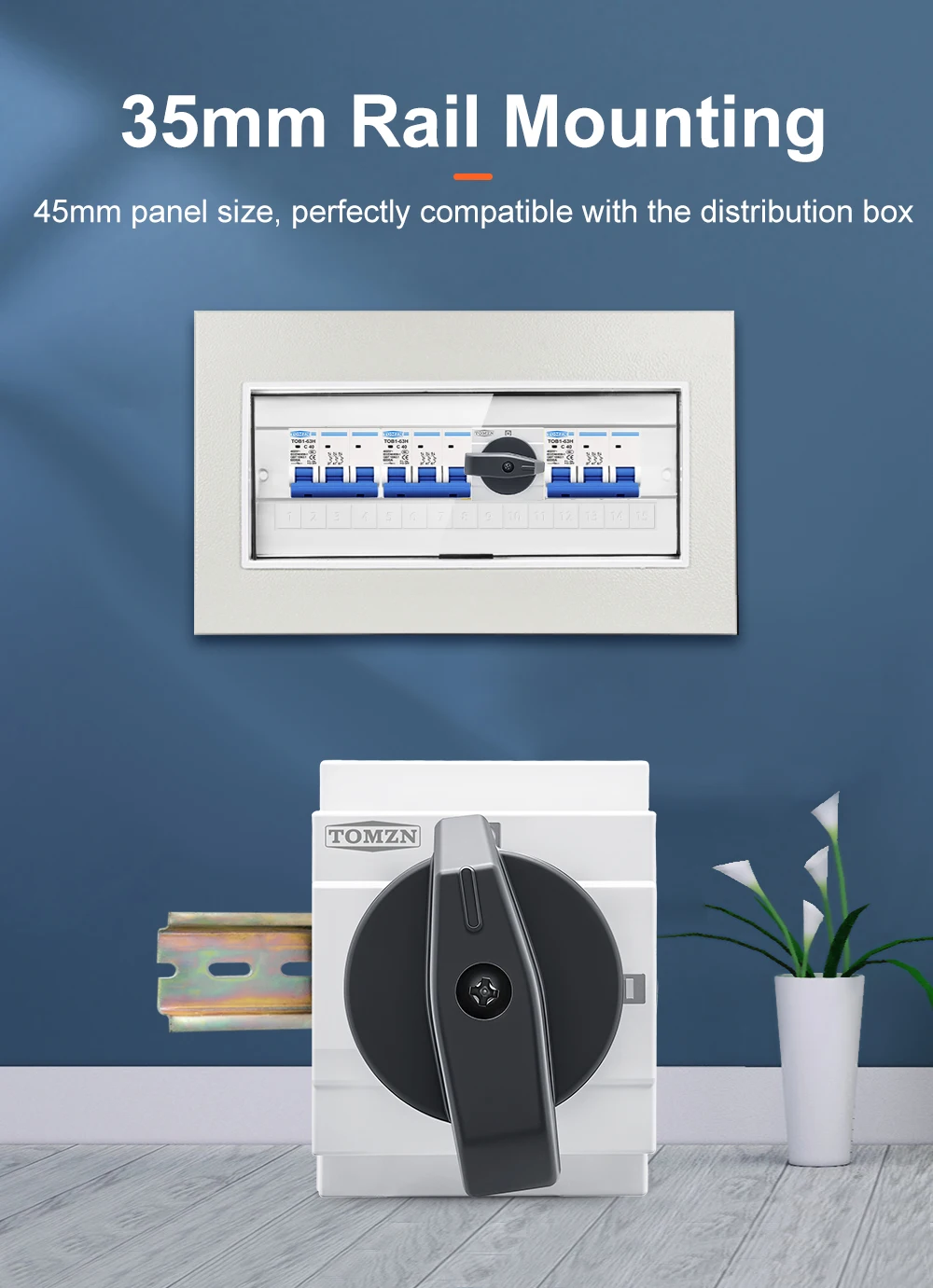

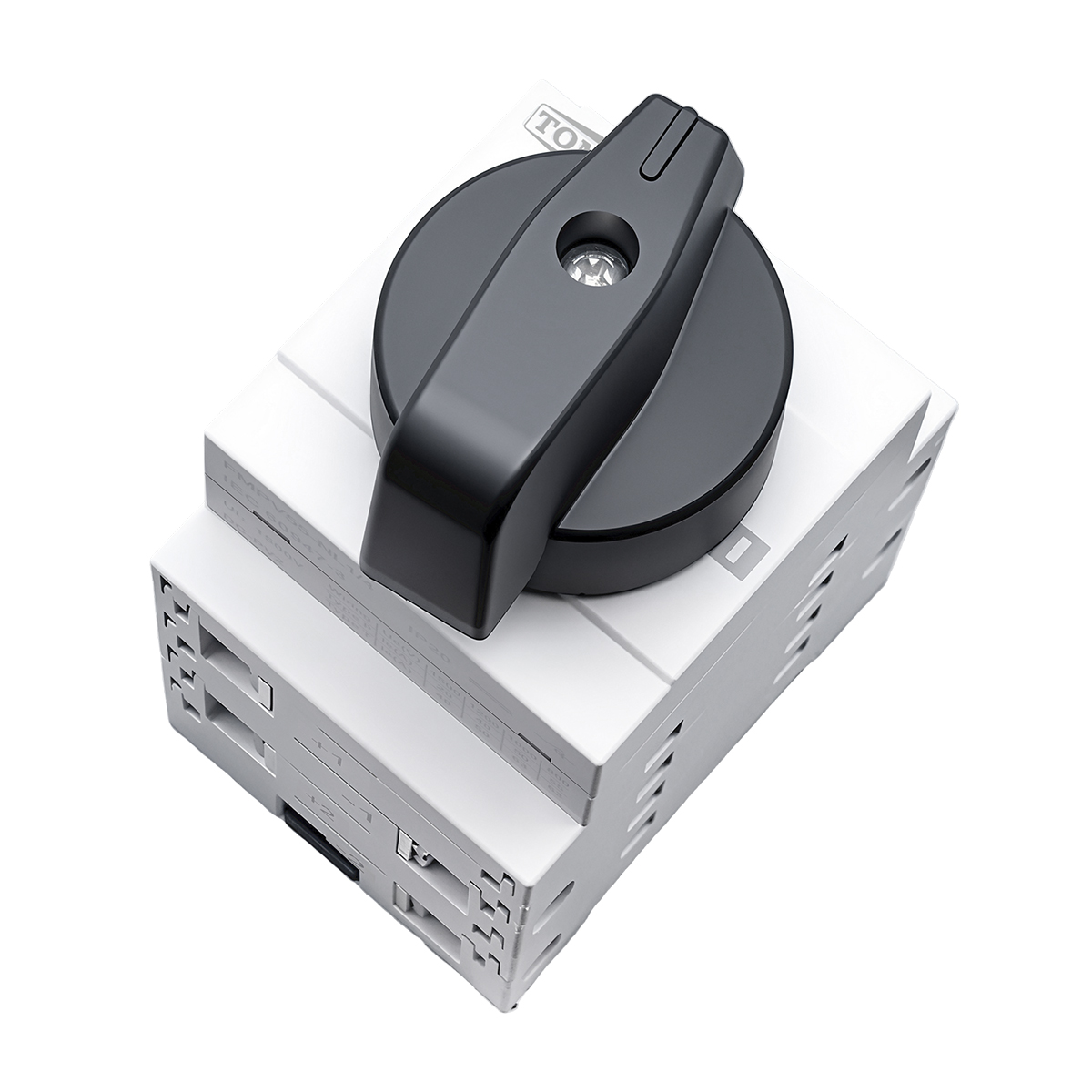

FMPV55-NL1/4 is a load isolating switch designed for high-voltage environments.This product adopts 4-Pole DC MCB in 2+2 Series Connection. This design enables the use of two sets of connected contacts to break higher DC voltages, significantly enhancing the safety of circuit breaking and closing. The small size design also enables you to install this device in the vast majority of photovoltaic distribution boxes.

Product data sheet

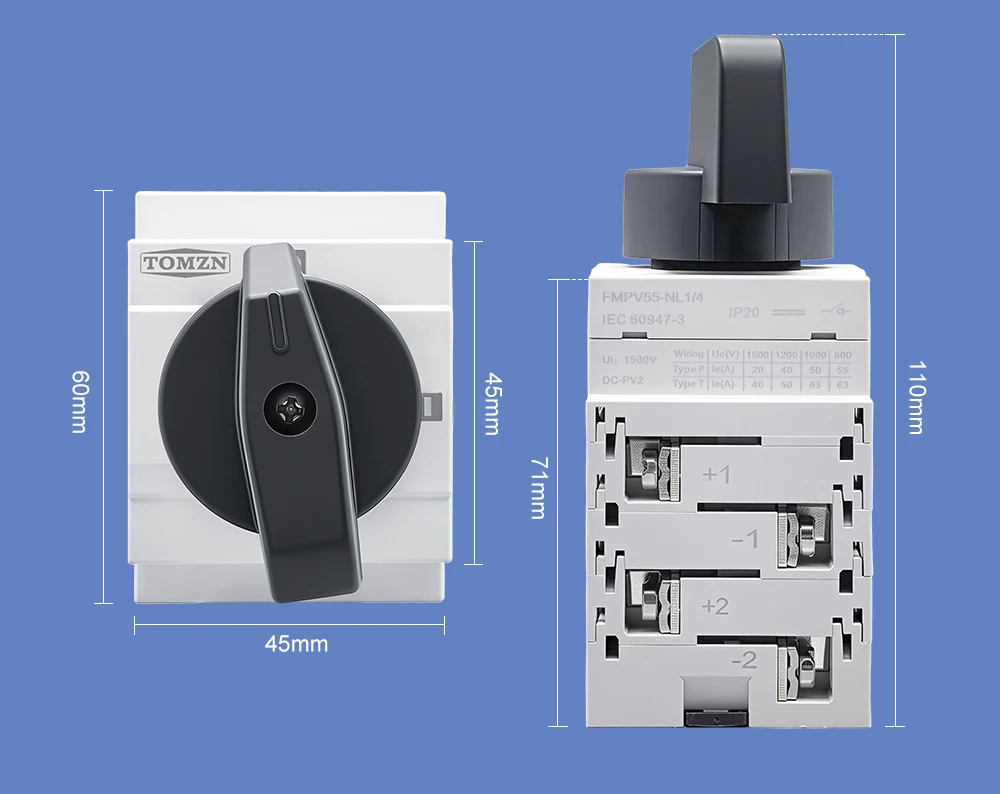

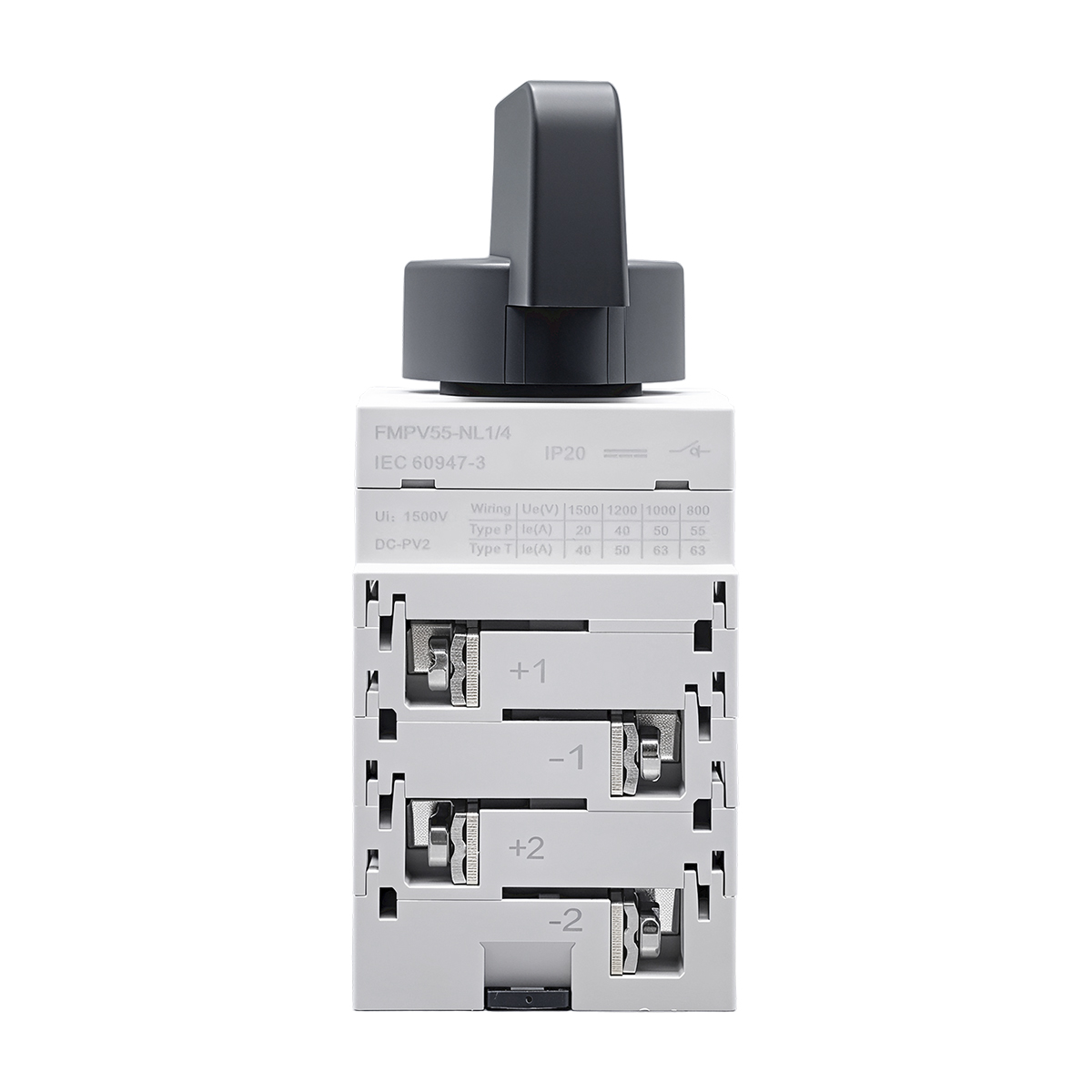

Model：FMPV55-NL1/4

Rated voltage：1500V

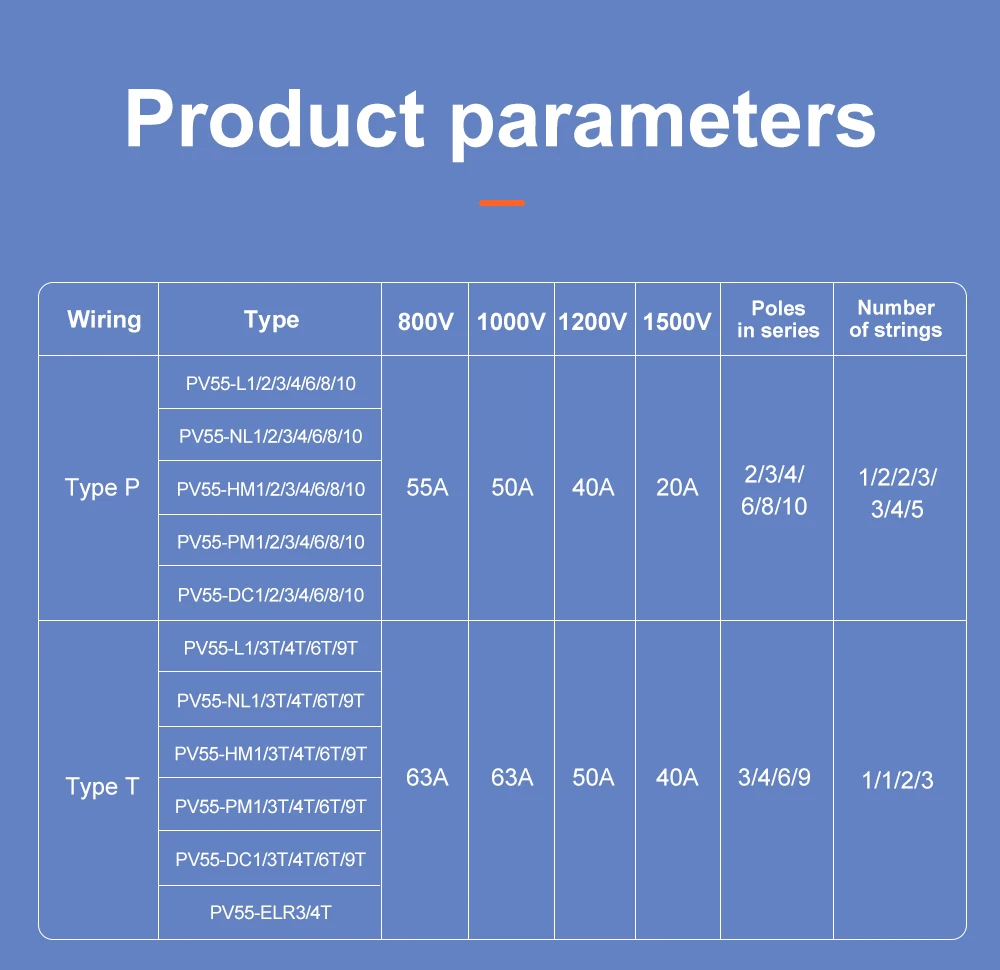

Rated current：

Type P—-20A

Type T—-40A

Cable cross section：4-16mm2

Terminal screw tightening：1.2-1.8Nm Torque
