Description

Function: NDR series can convert AC110V/220V voltage to DC12V/24V voltage.

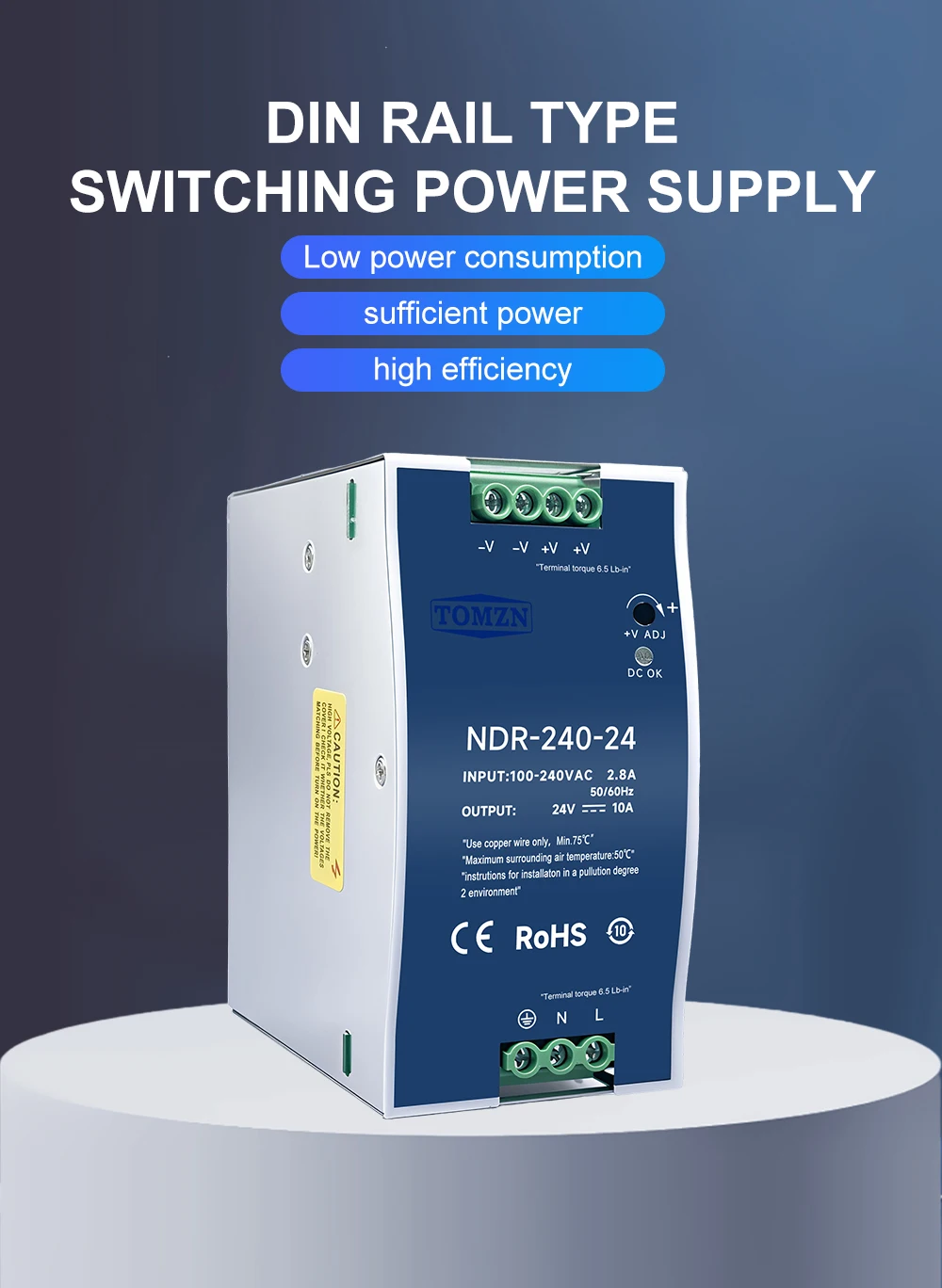

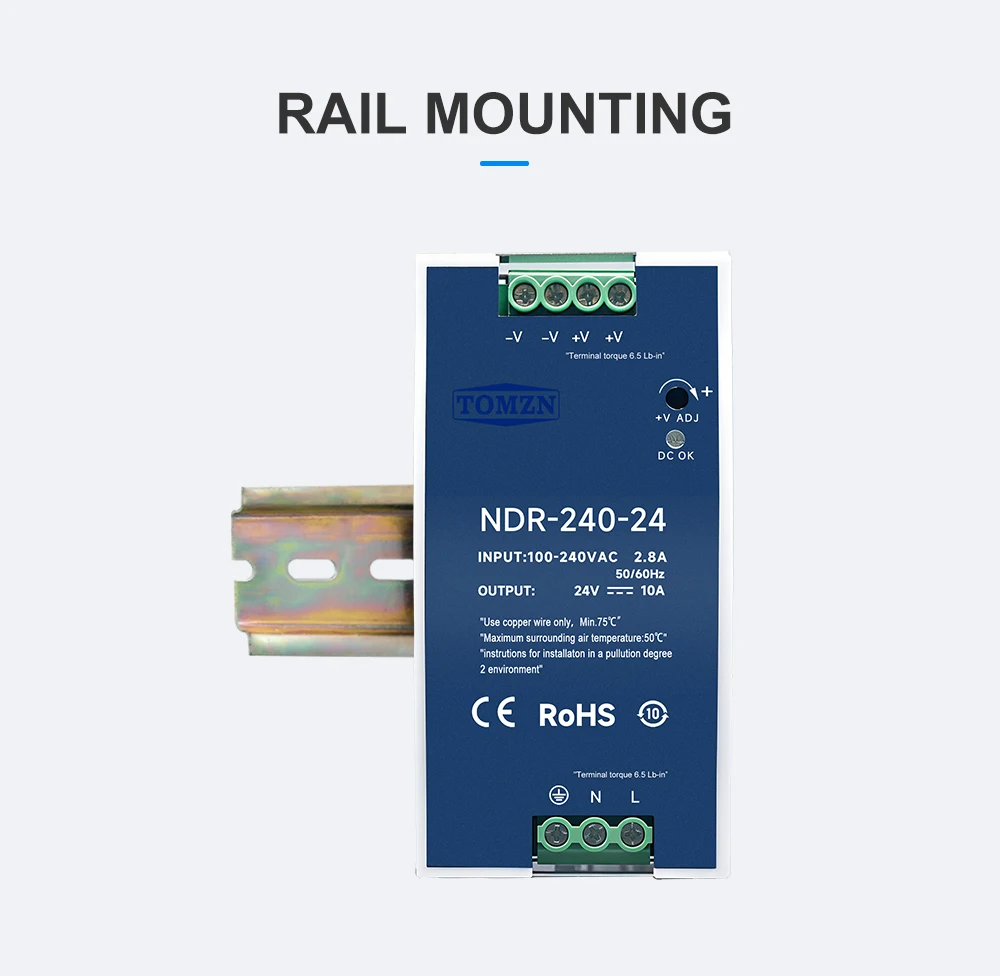

Rail type products, easy to install.

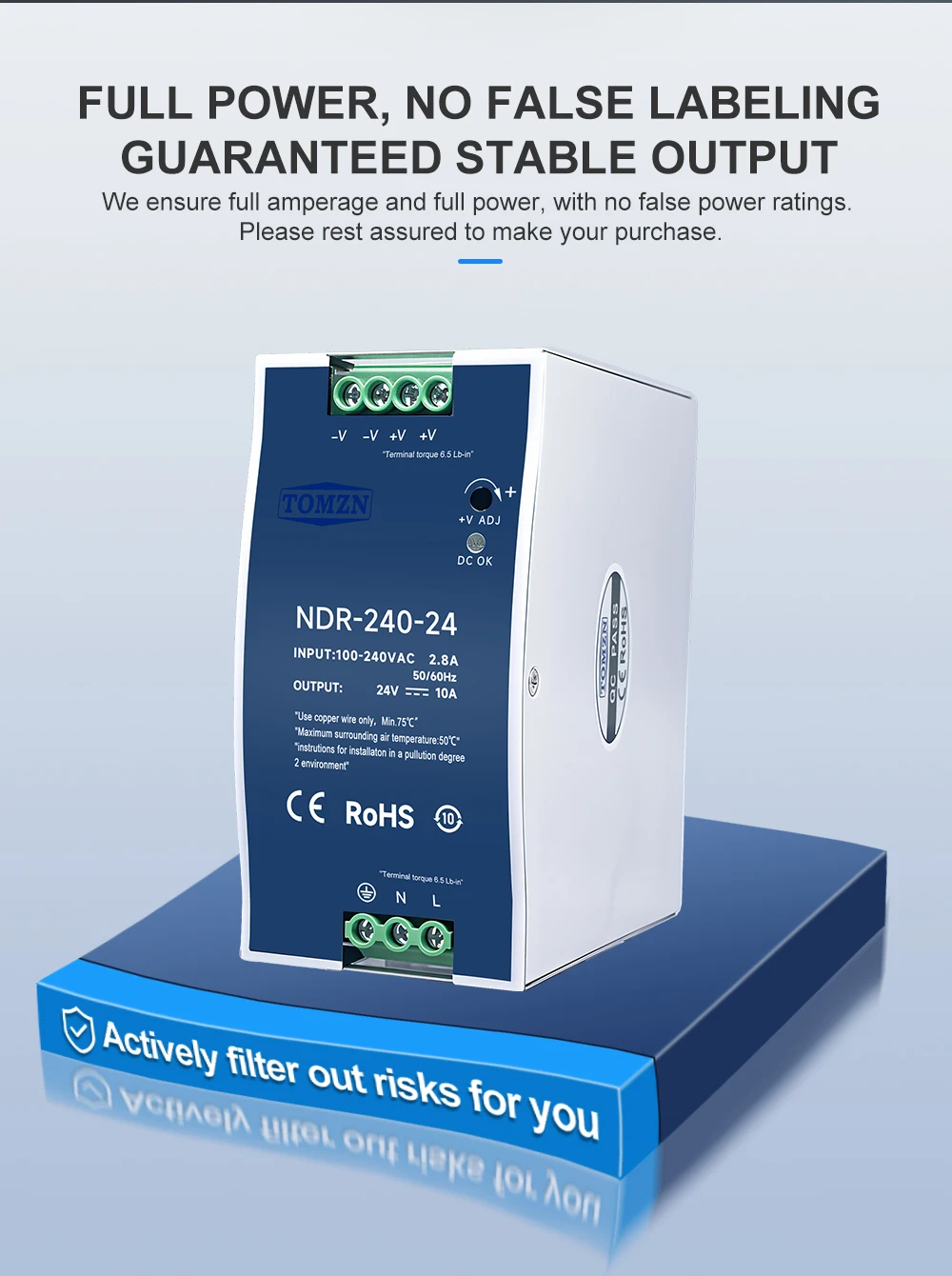

NDR-240W

Specifications:

100% full load burn-in test.
Universal AC input / full range.
It’s good quality & high performance.
Input: AC100-240V 50/60Hz.
Output: 12VDC,24VDC
Protections: overload/ over voltage/ short circuit.

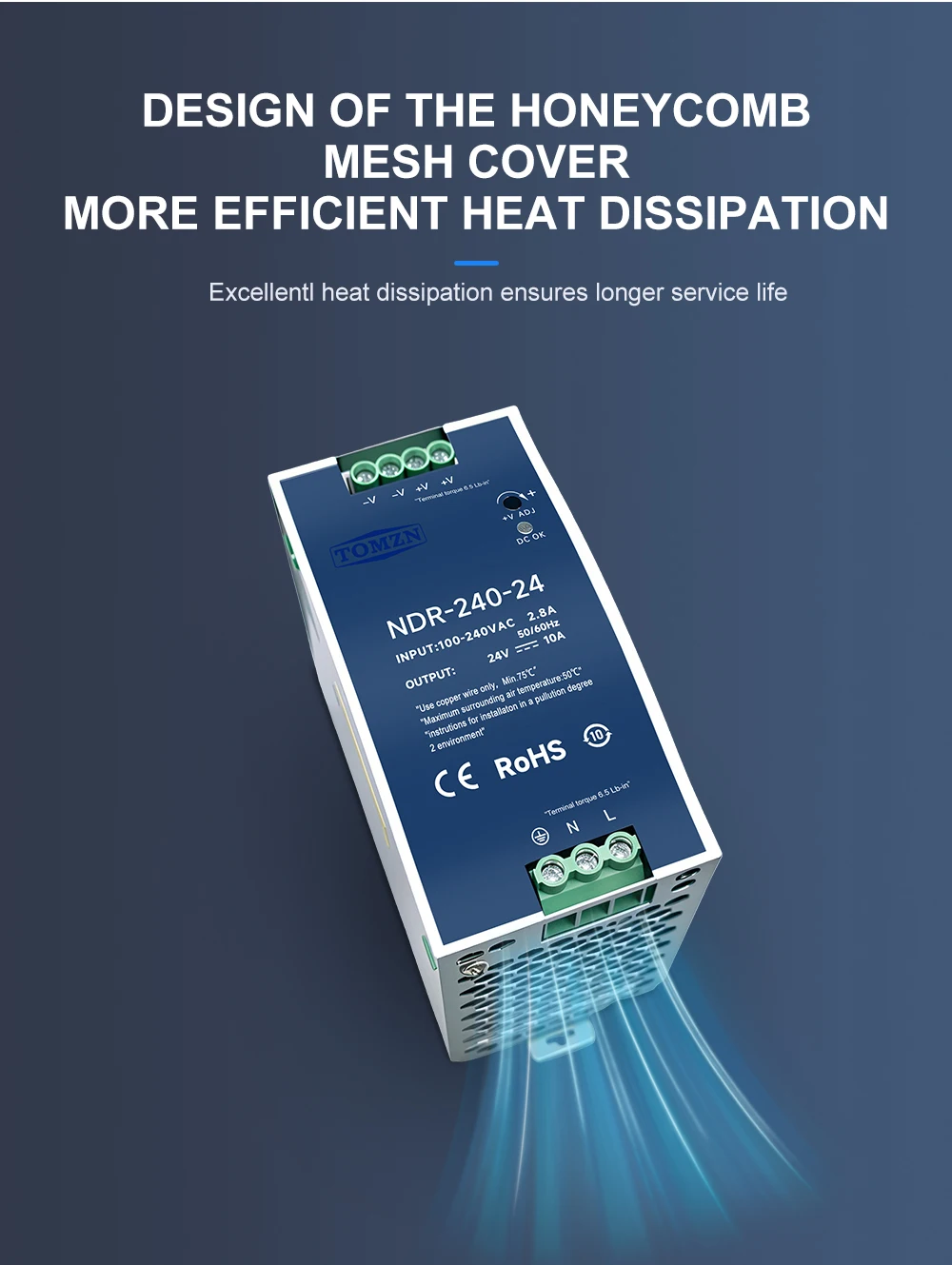

Cooling by free air convection.

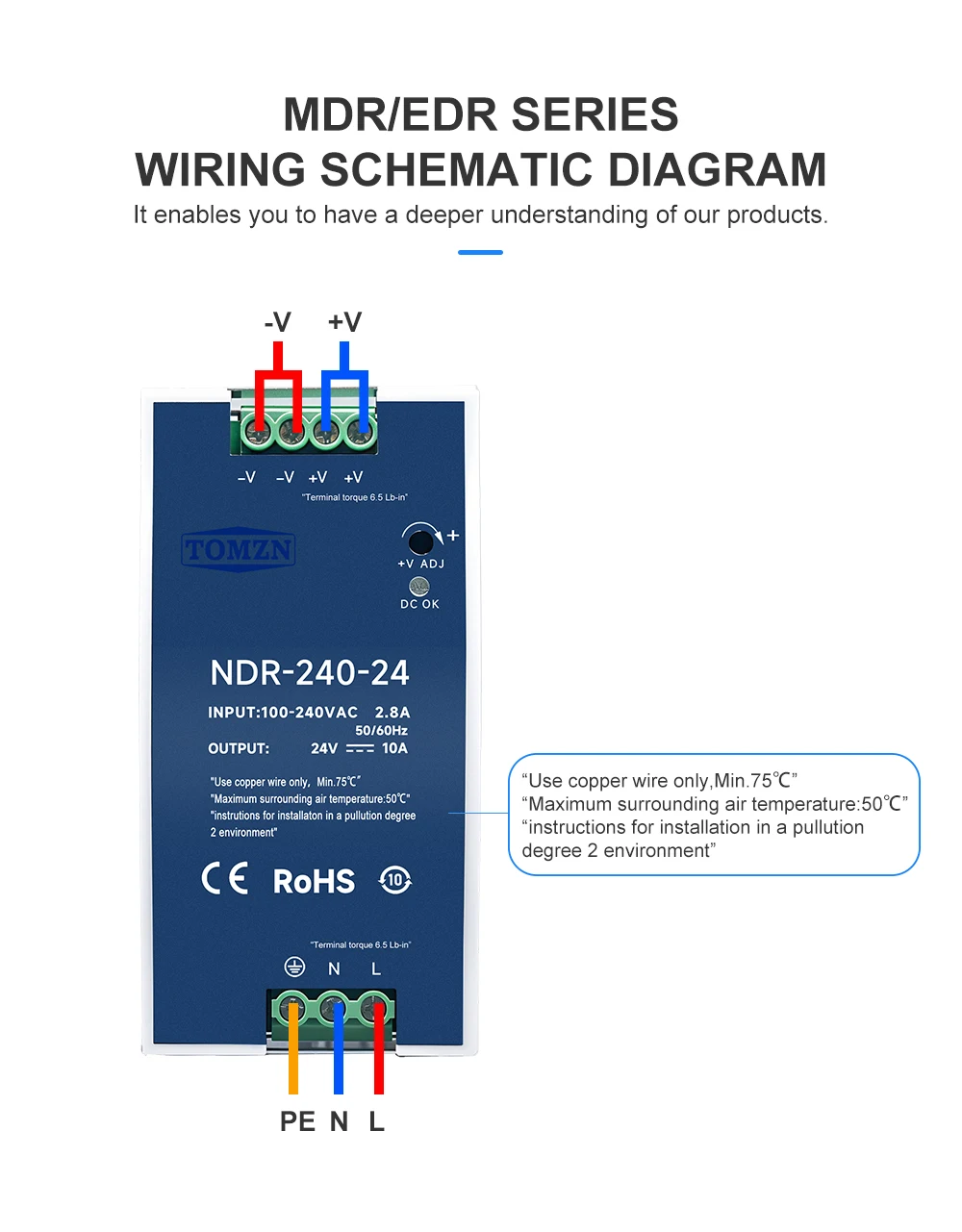

Connection:
L, N: AC power input
GND: Ground wire
-V: DC power output “-”
+V: DC power output “+”

ADJ: Adjust the output voltage ±10%
Safety Compliance: CE
Working Temperature: -20~70℃.
Temperature: -40~85℃.
Ambient Humidity: 0~95% Non-Condensation
High price-effective, reliability with industry standards

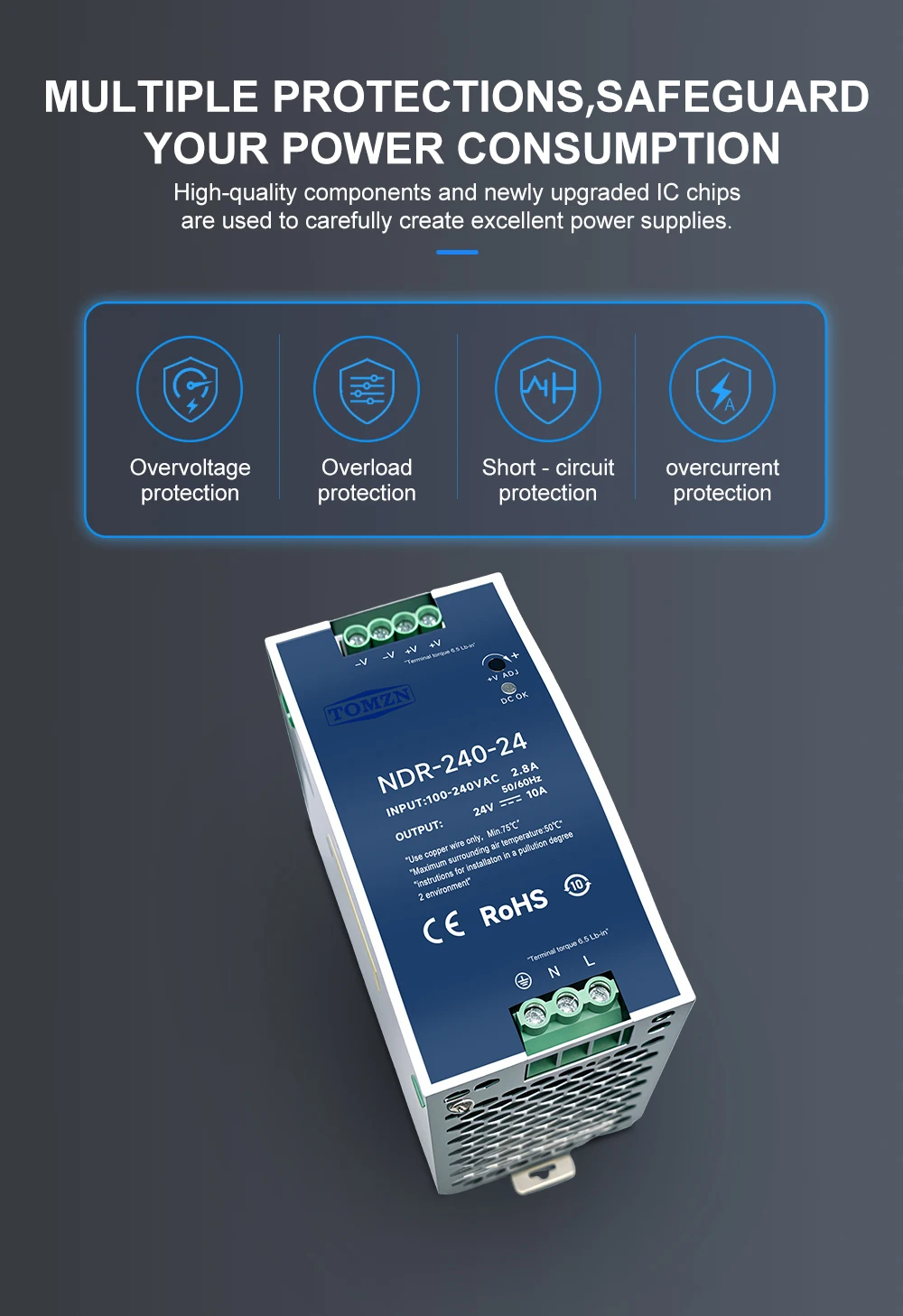

Built-in over voltage, over current, and short circuit protection.
