TOMZN Din rail WIFI collector 25PCS RS485 to WIFI DTU TUYA smartlife timer modbus remote control Bidirectional kwh energy meter

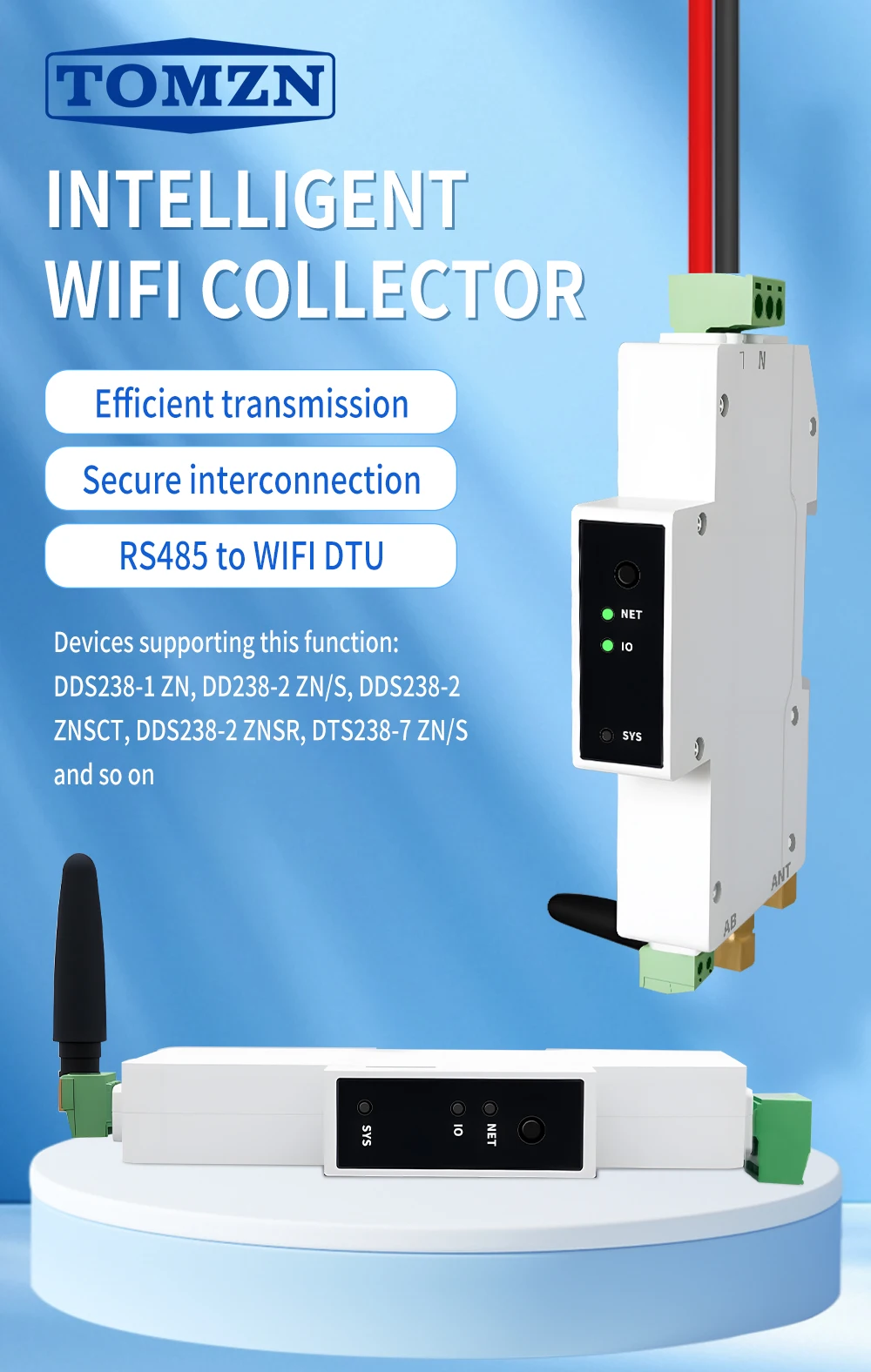

WIFI collector

RS485 to WIFI DTU

Function Introduction

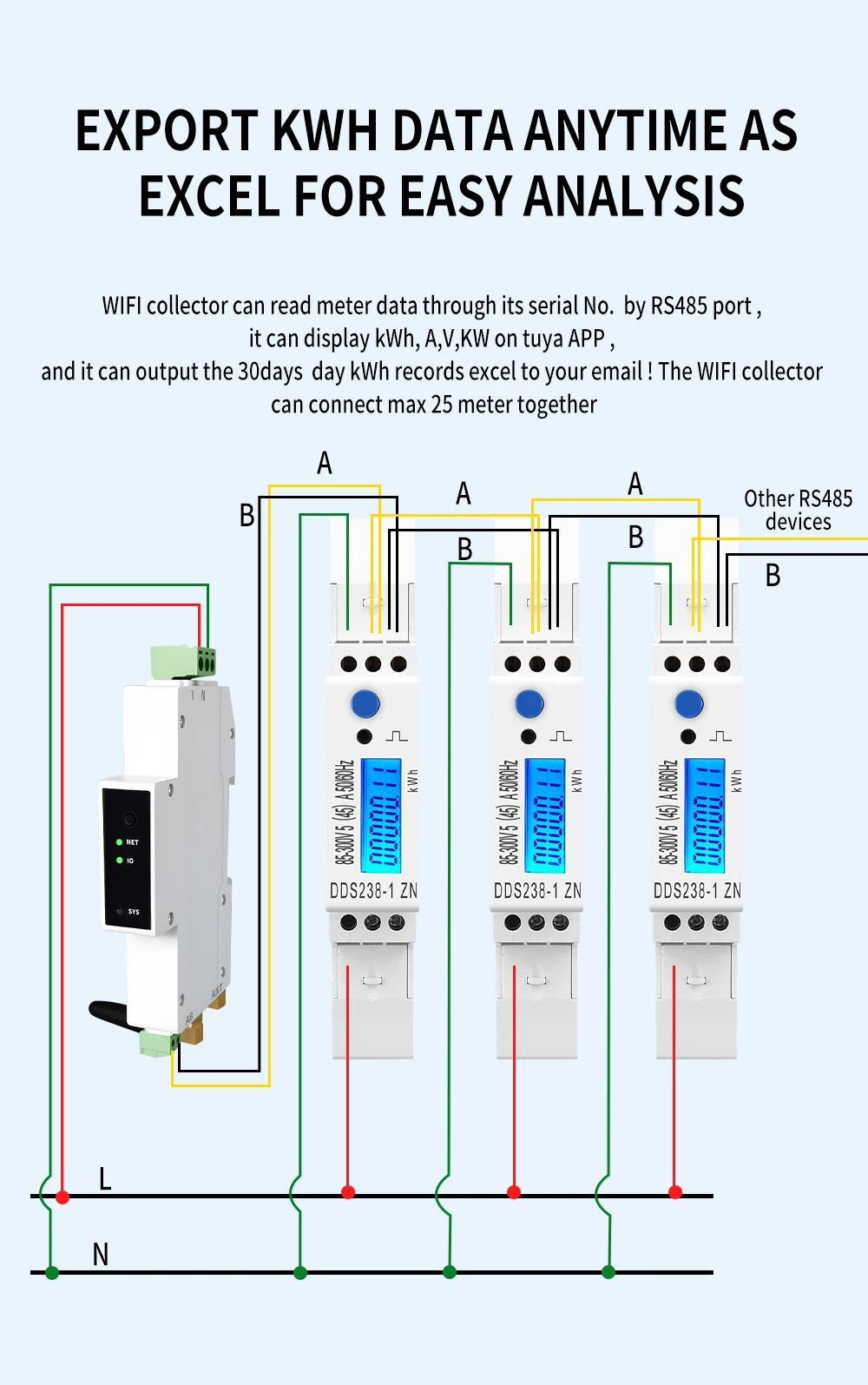

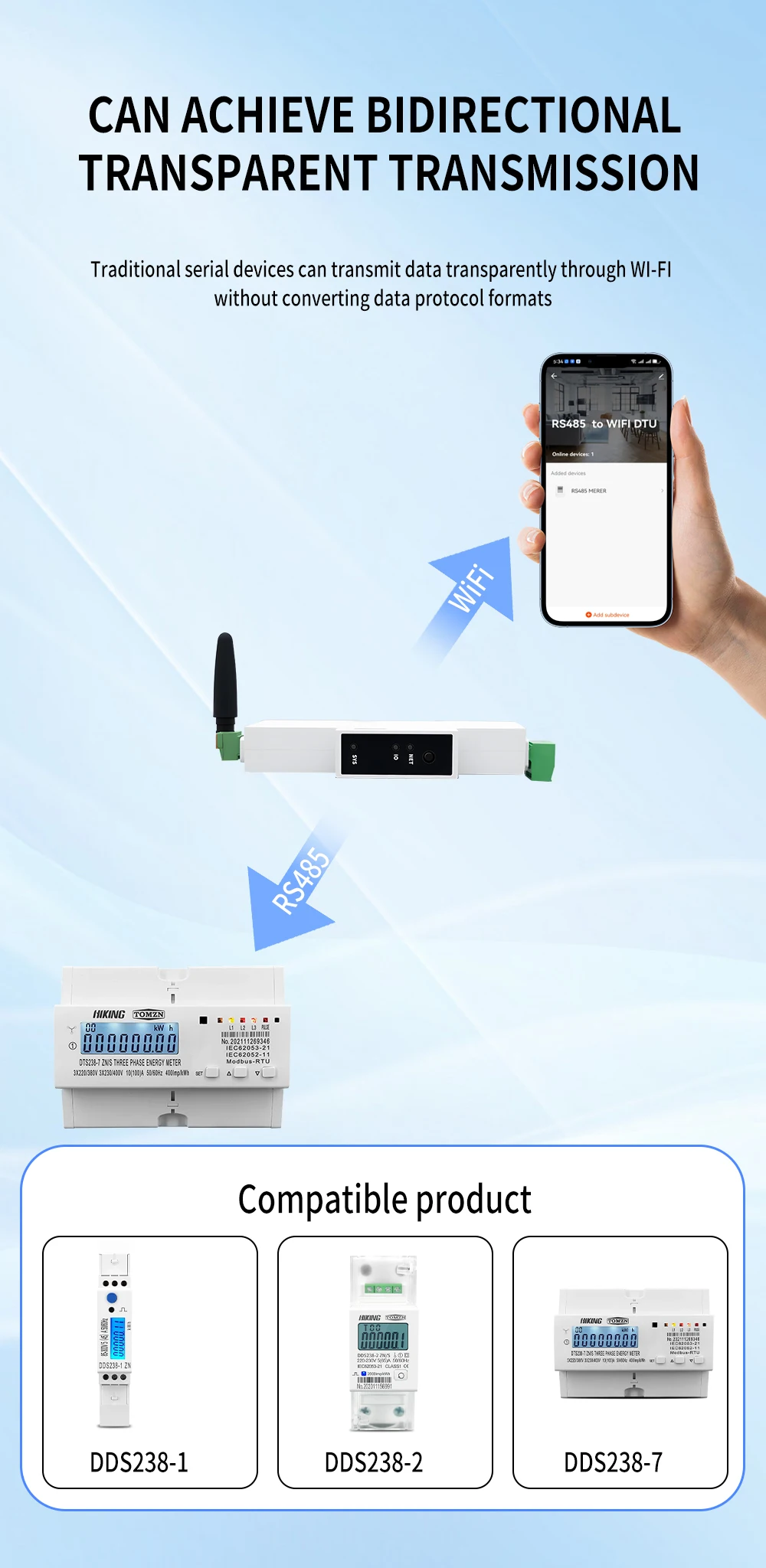

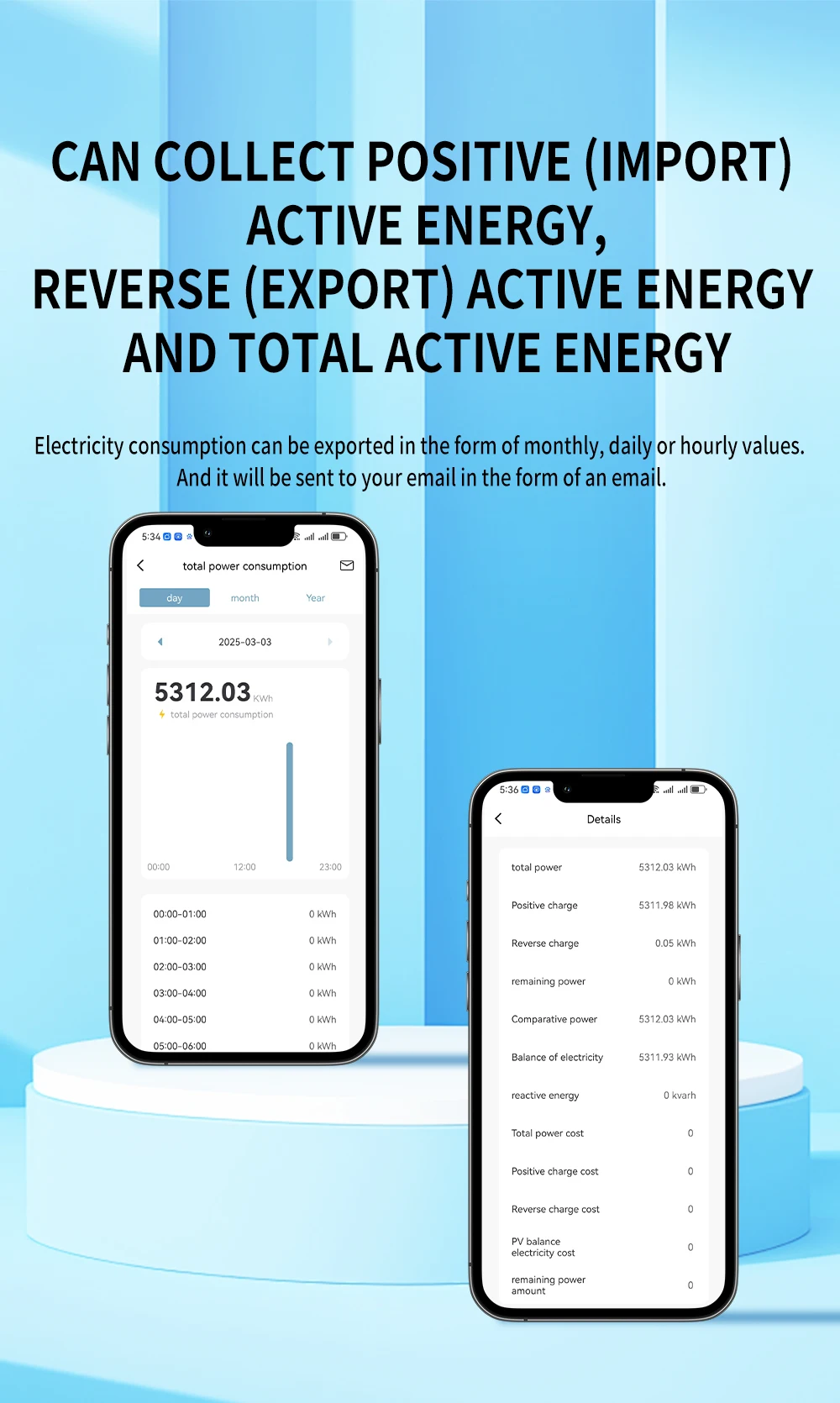

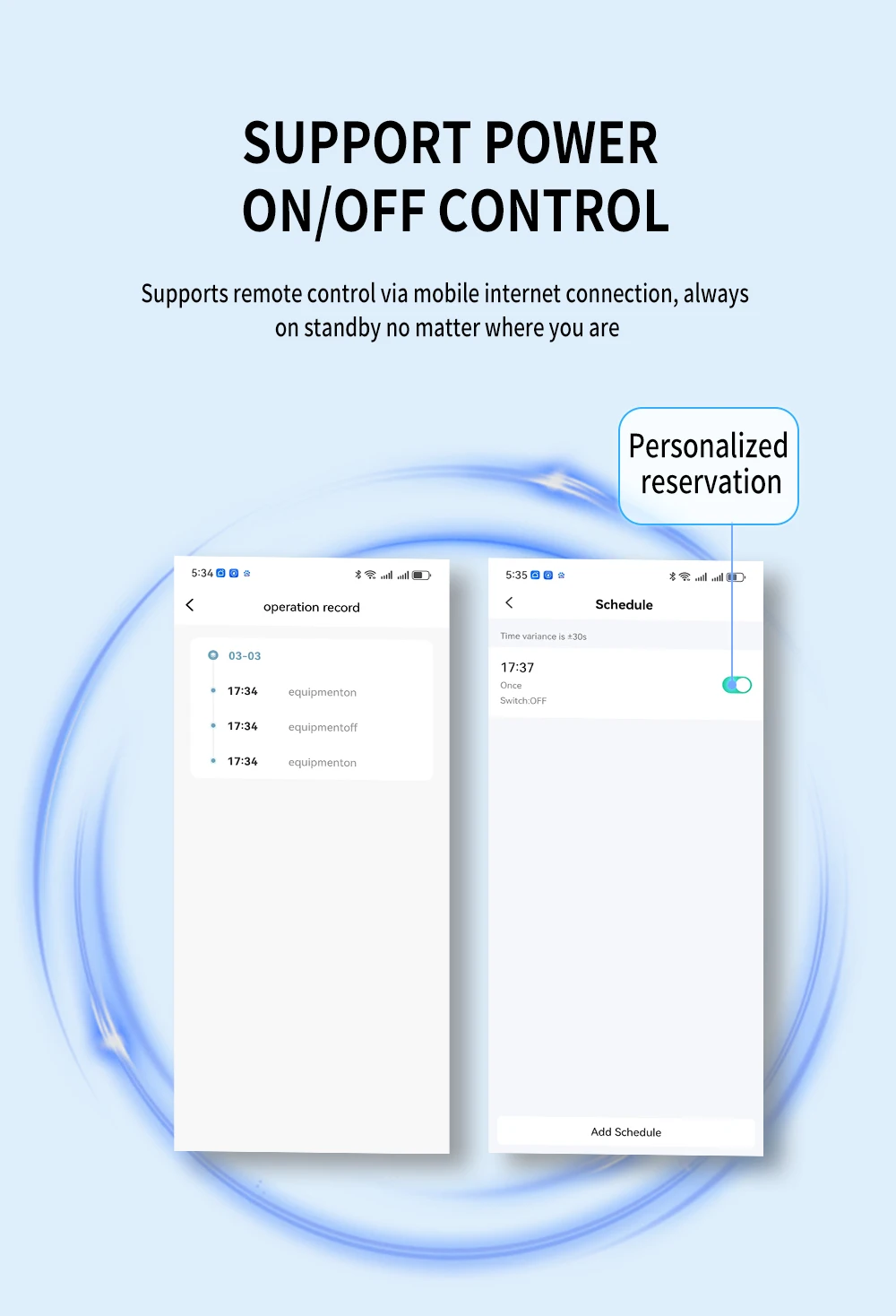

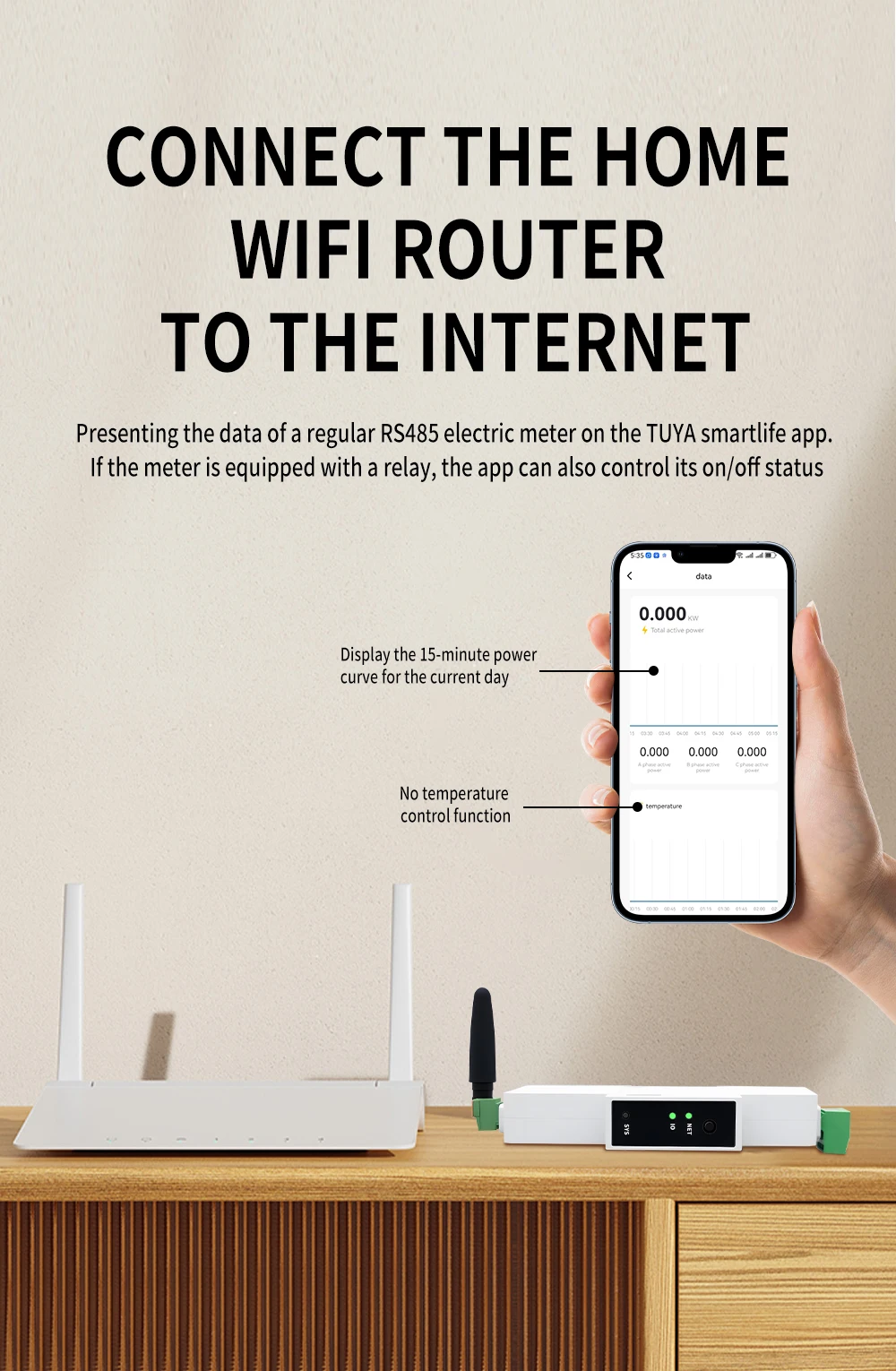

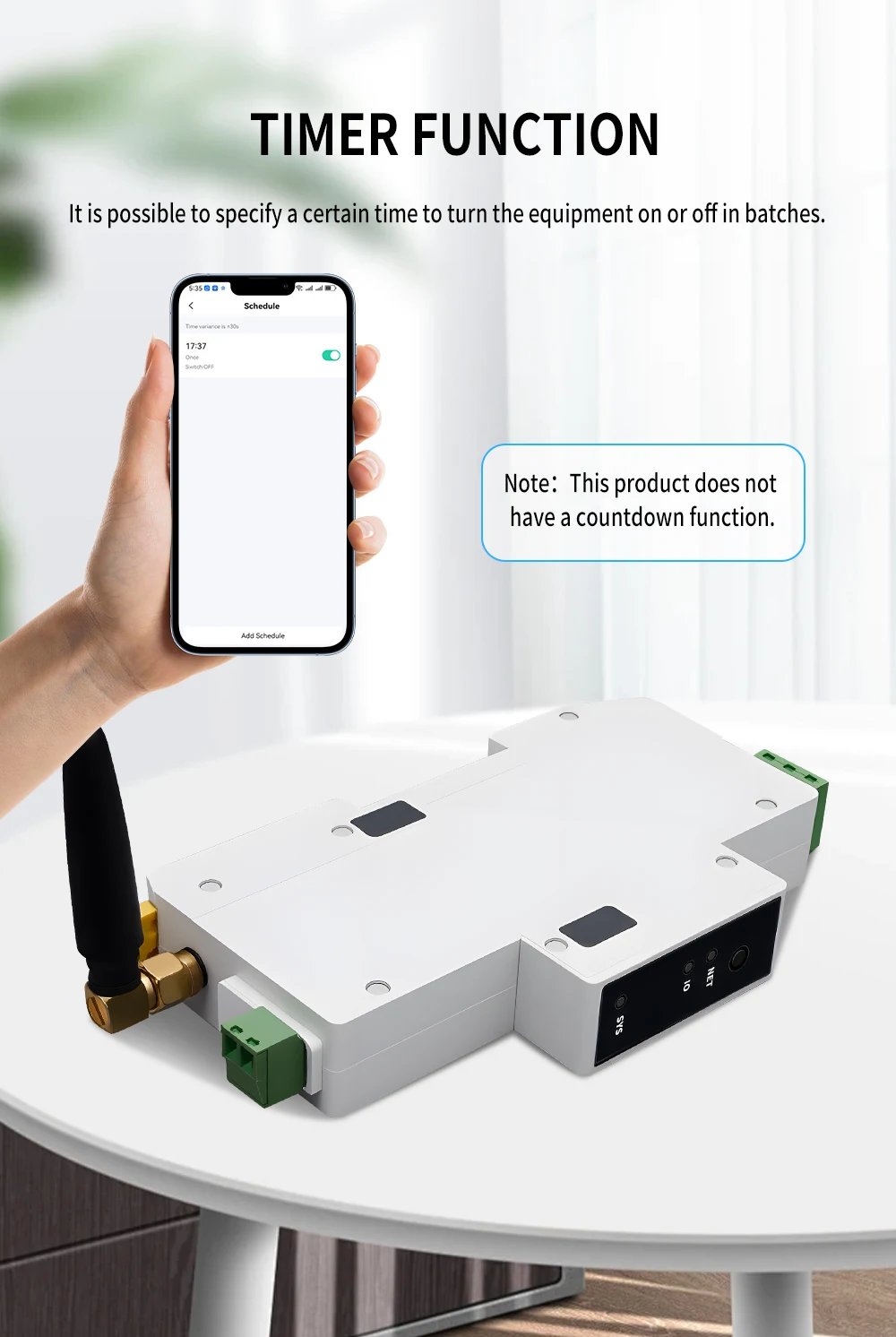

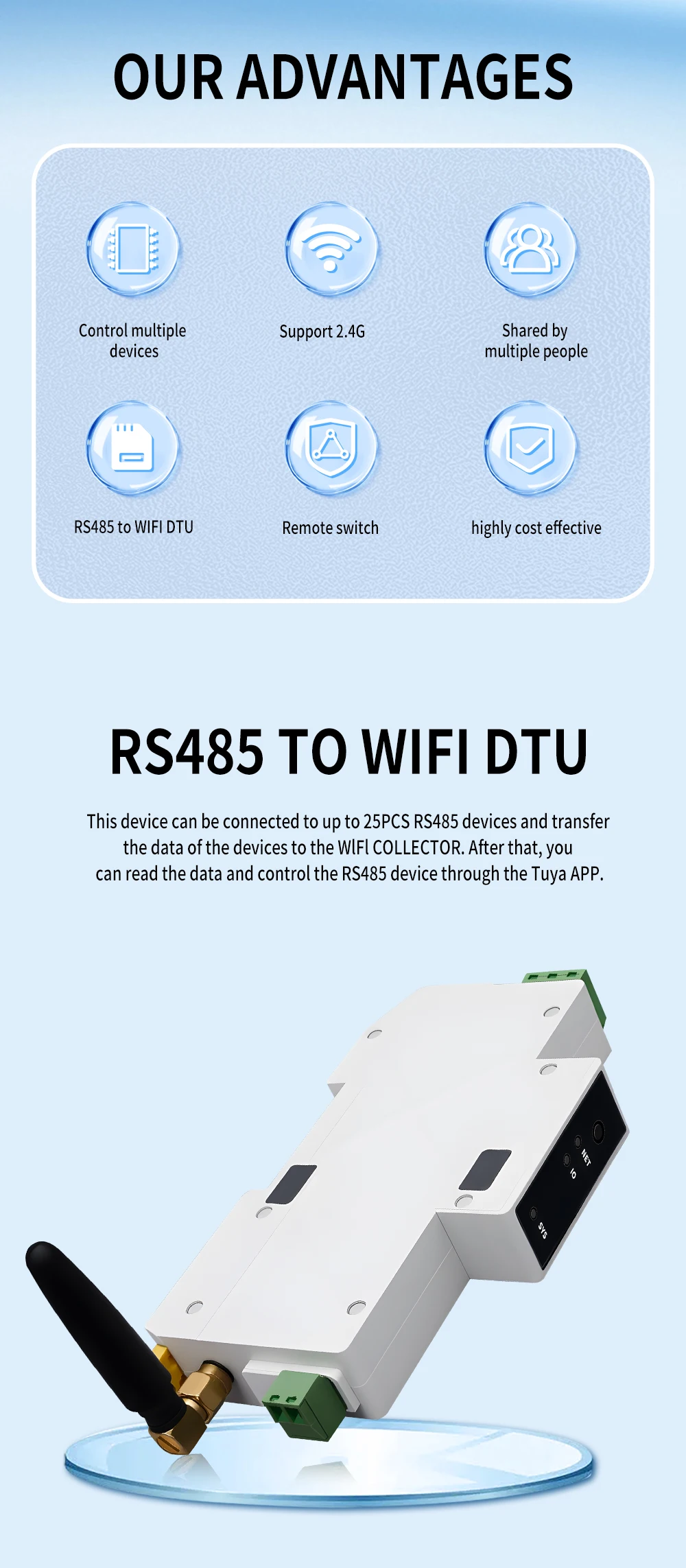

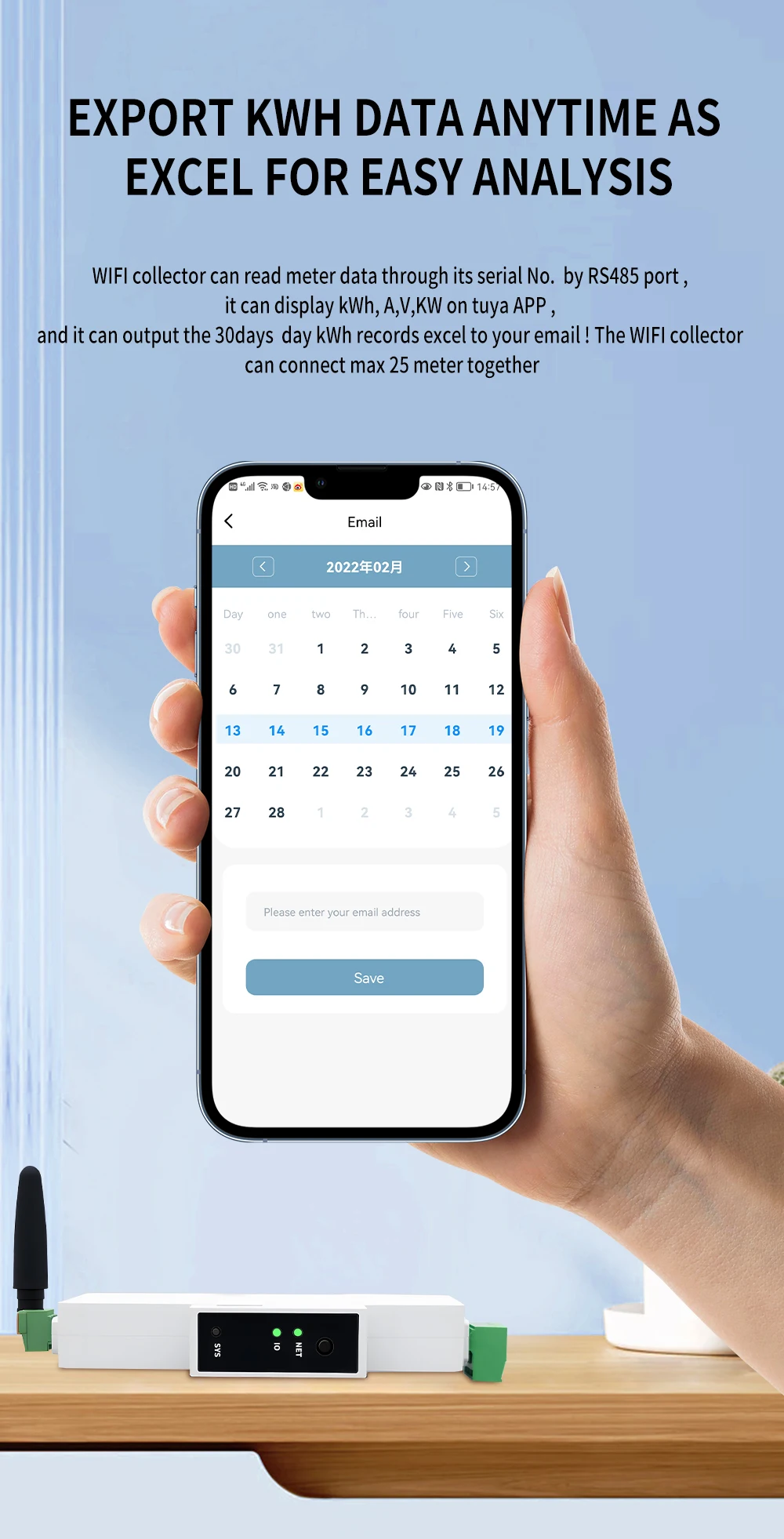

TCB11-W can connect up to 25PCS RS485 energy meter. And it can also read data from and control the devices via WIFI.

1.Product Name: RS485 Collection Terminal

2.Model: TCB11-W

3.PWR Input: AC 100V-240V

4.Operation Temperature: -10??C-60??C

5.NET: WiFi 2.4G

6.Product Size: 112.7×66.45×7.8mm

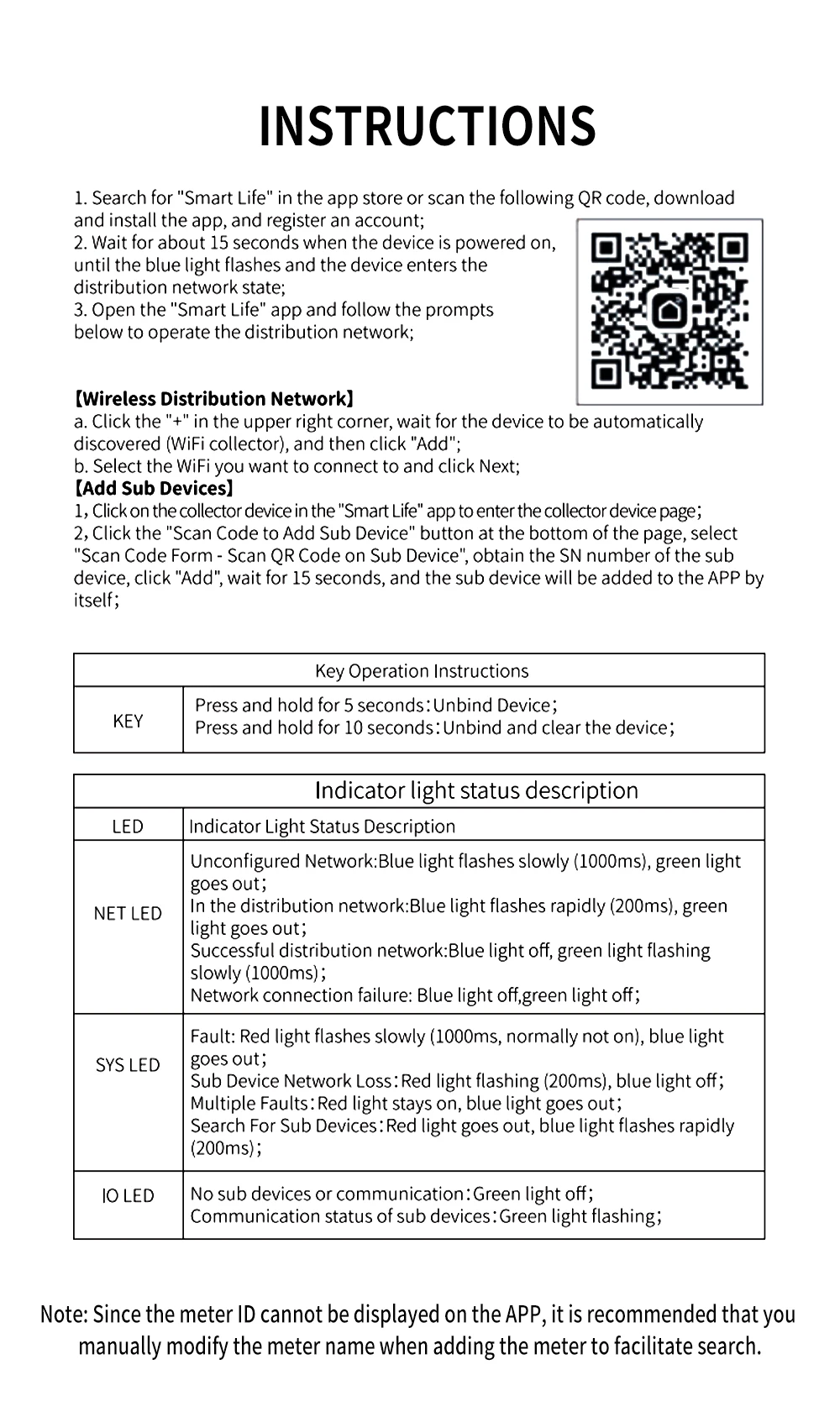

7.Key Operation Instructions:

• Press and hold for 5 seconds:Unbind Device
• Press and hold for 10 seconds:Unbind and clear the device

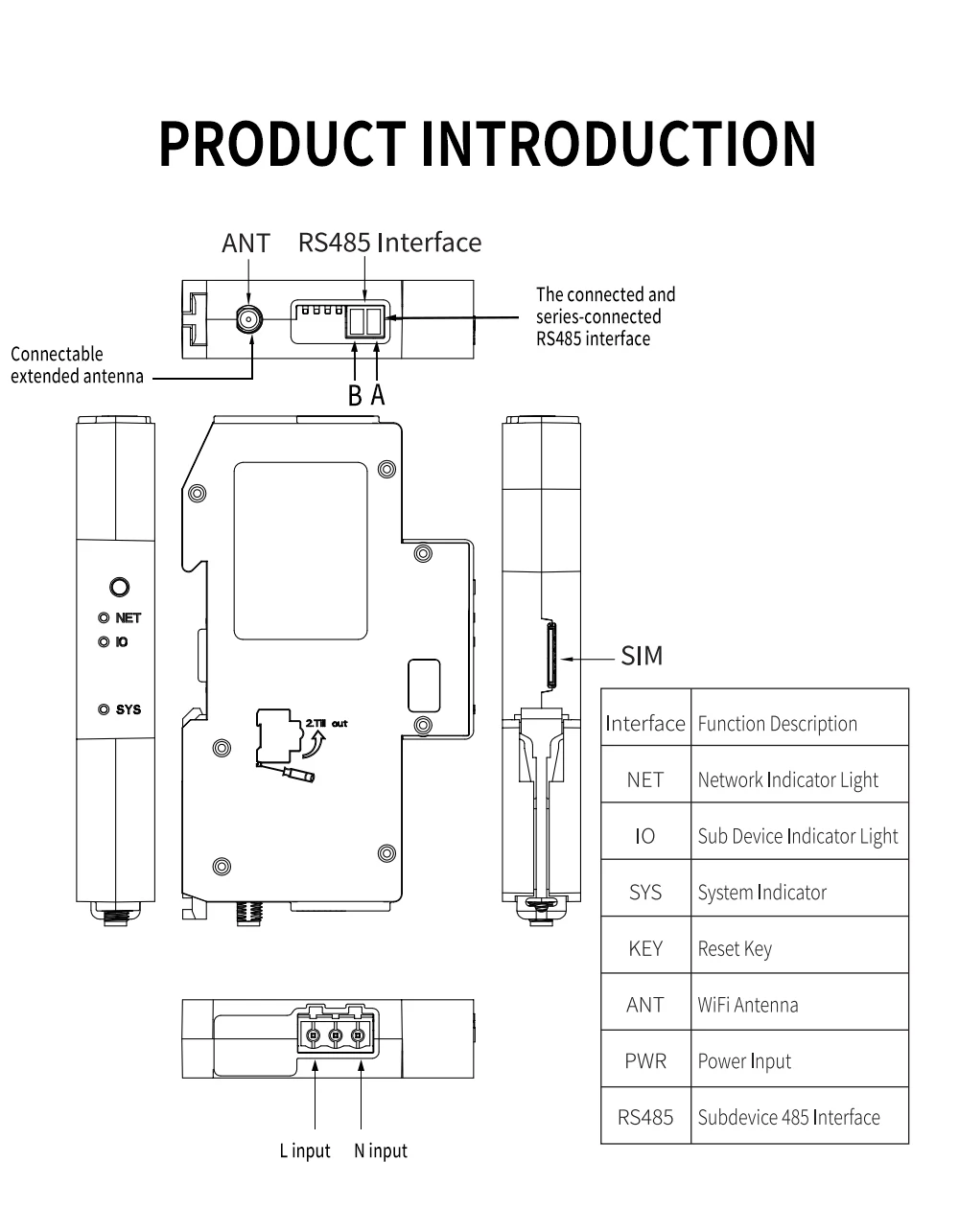

Indicatorlight status description

1.NET LED:

• Unconfigured Network:Blue light flashes slowly (1000ms), green light goes out
• In the distribution network:Blue light flashes rapidly (200ms), green light goes out
• Successful distribution network:Blue light off, green light flashing slowly(1000ms)
• Network connection failure: Blue light off,green light off

2.SYS LED??

• Fault: Red light flashes slowly (1000ms, normally not on), blue light goes out.
• Sub Device Network Loss: Red light flashing (200ms), blue light off.
• Multiple Faults:Red light stays on, blue light goes out.
• Search For Sub Devices:Red light goes out, blue light flashes rapidly(200ms).

3.IO LED:

• No sub devices or communication :Green light off.
• Communication status of sub devices:Green light flashing.
