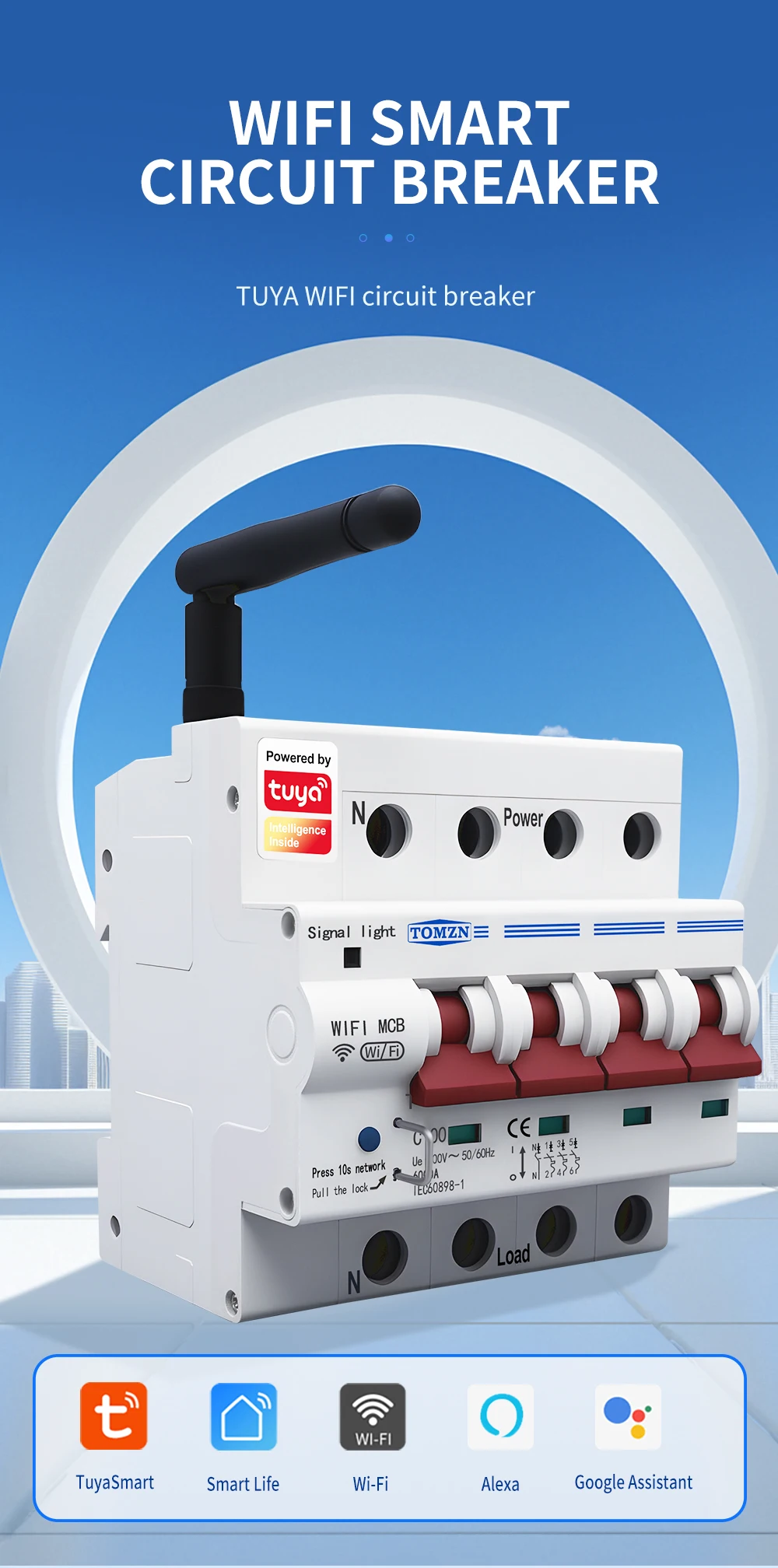

TOMZN DIN Rail TOB7S-100 WIFI Smart MCB 4P 400V~ 50/60Hz Lockable Multifunctional 100A Breaker For Three-phase Power EV Charger

Description

Description

report

TOB9L-63WIFI 2P can cut off L and N both,

With leakage protection, NO temperature control.

TOB9-63WIFI 1P Can only cut off L,

NO leakage protection, With temperature control.

TOB7S-100 4P 380VAC 10-100A

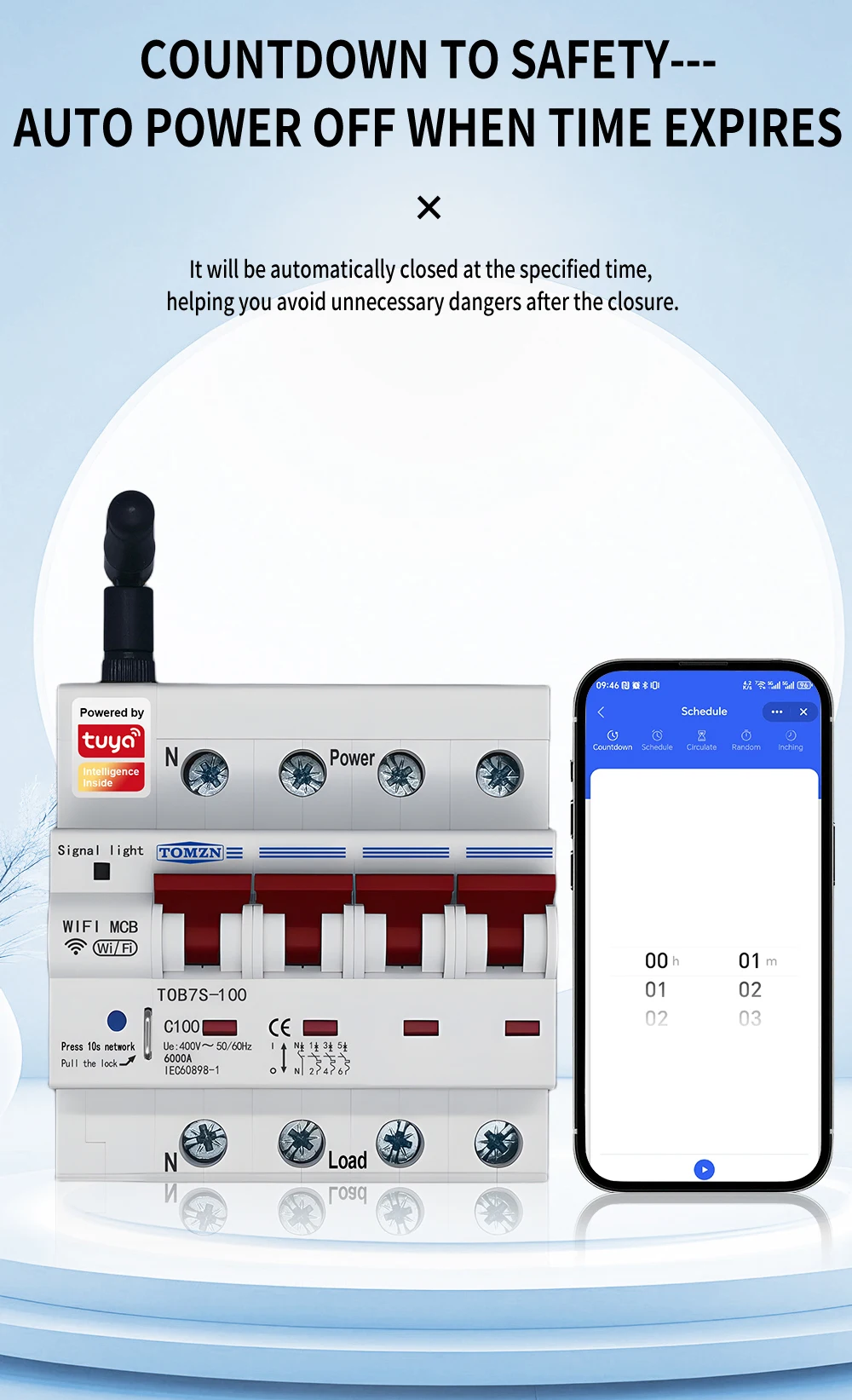

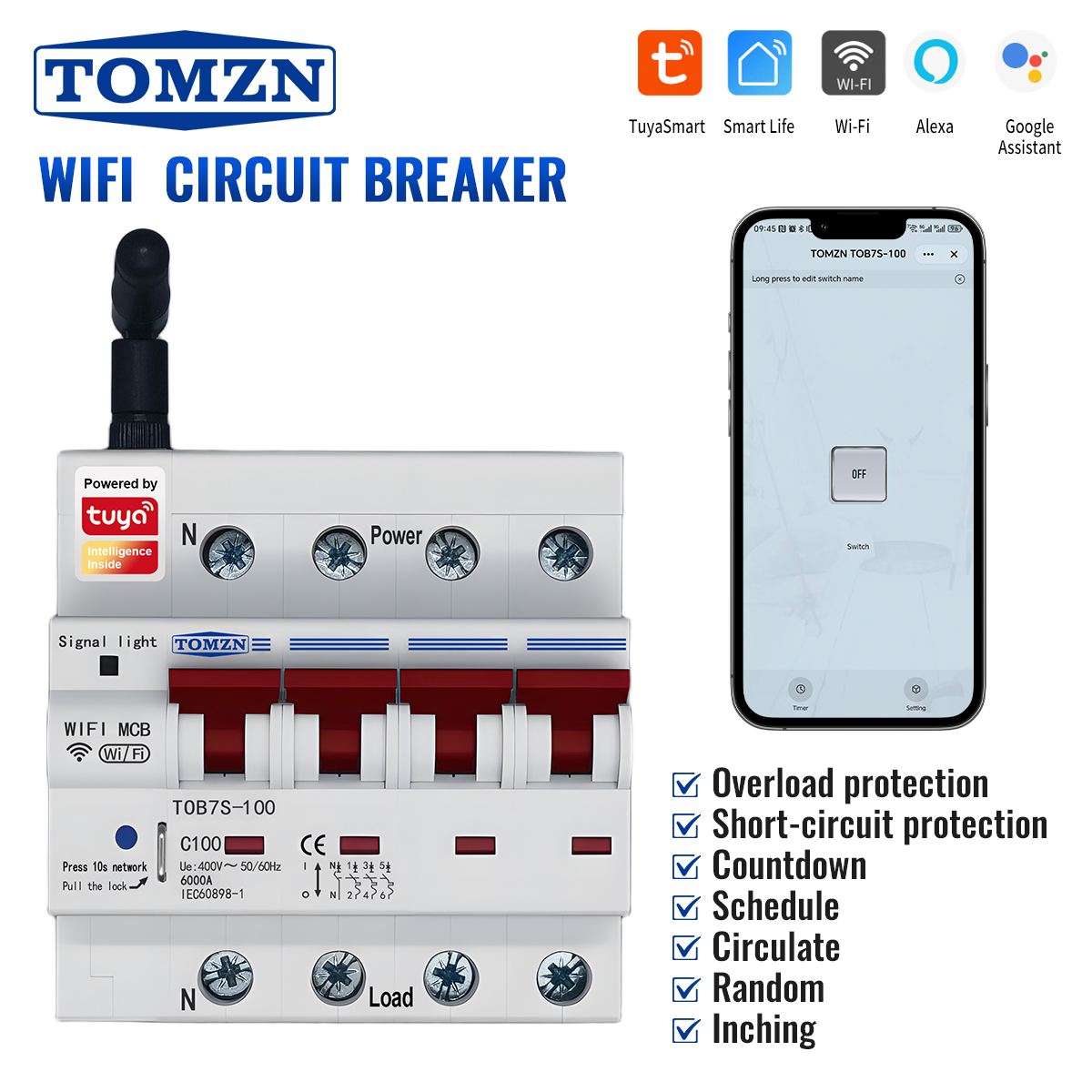

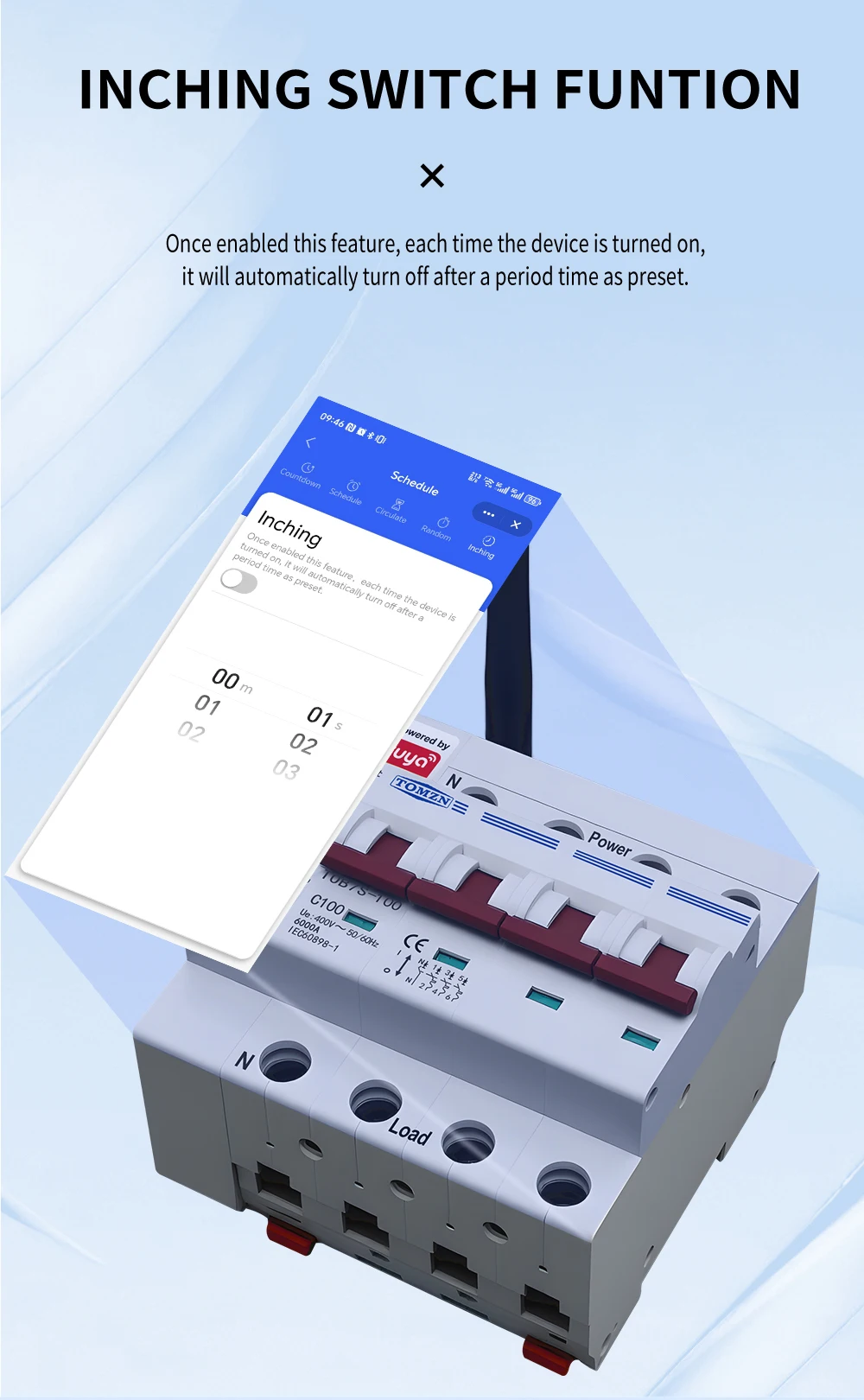

Remote ON/OFF + Timer

General

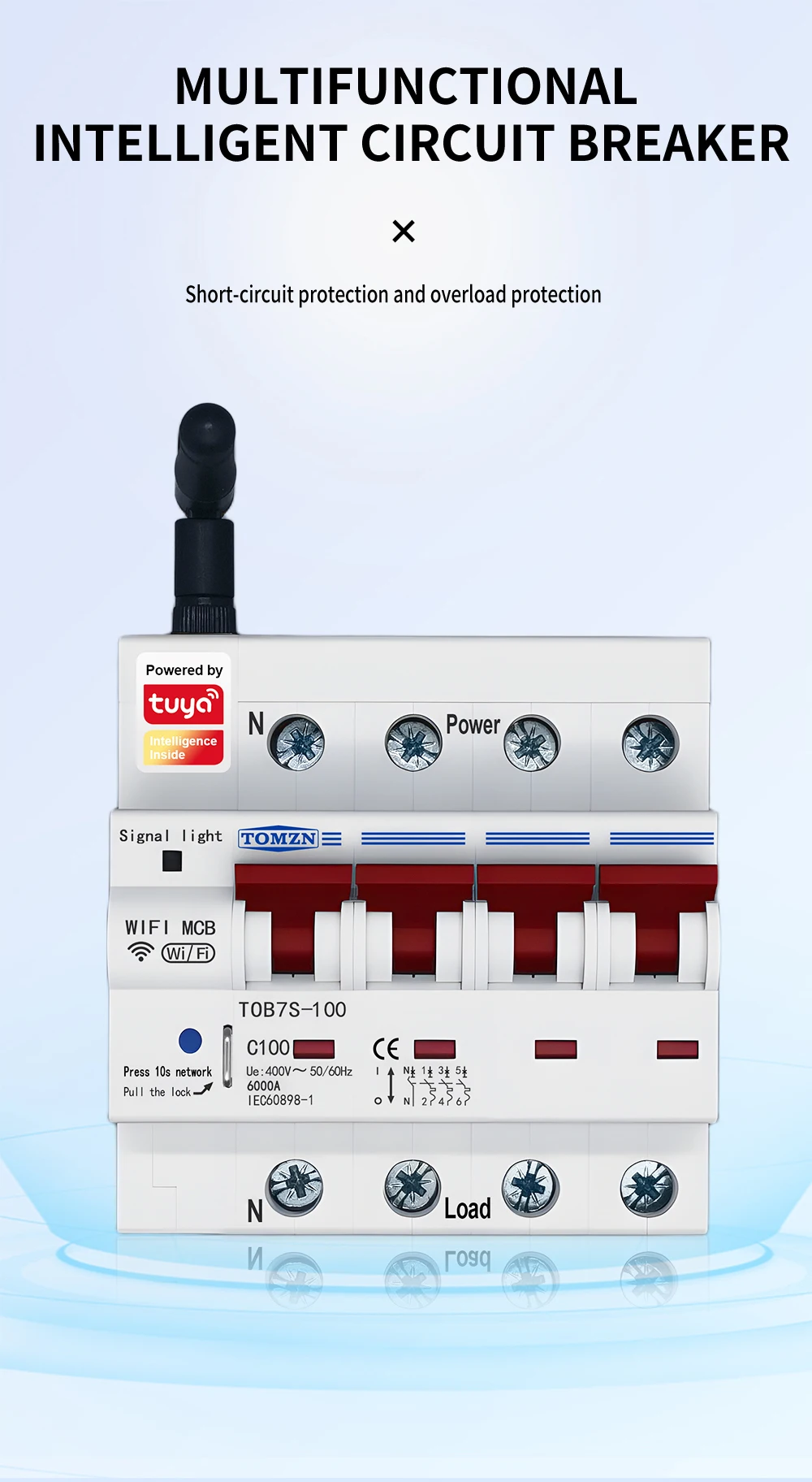

This product is an intelligent modular rail-type circuit breaker designed for AC 50/60Hz systems with a rated voltage of 400V and a rated current of 10-100A. It provides reliable overload and short-circuit protection for connected loads and circuits. The breaker features advanced mobile remote control functionality, allowing users to switch it on/off via a smartphone app, which also displays its real-time status. Additional smart capabilities include timing and delay control. With an attractive design, high reliability, strong breaking capacity, and fast trip mechanism, it is an ideal solution for modern electrical installations.

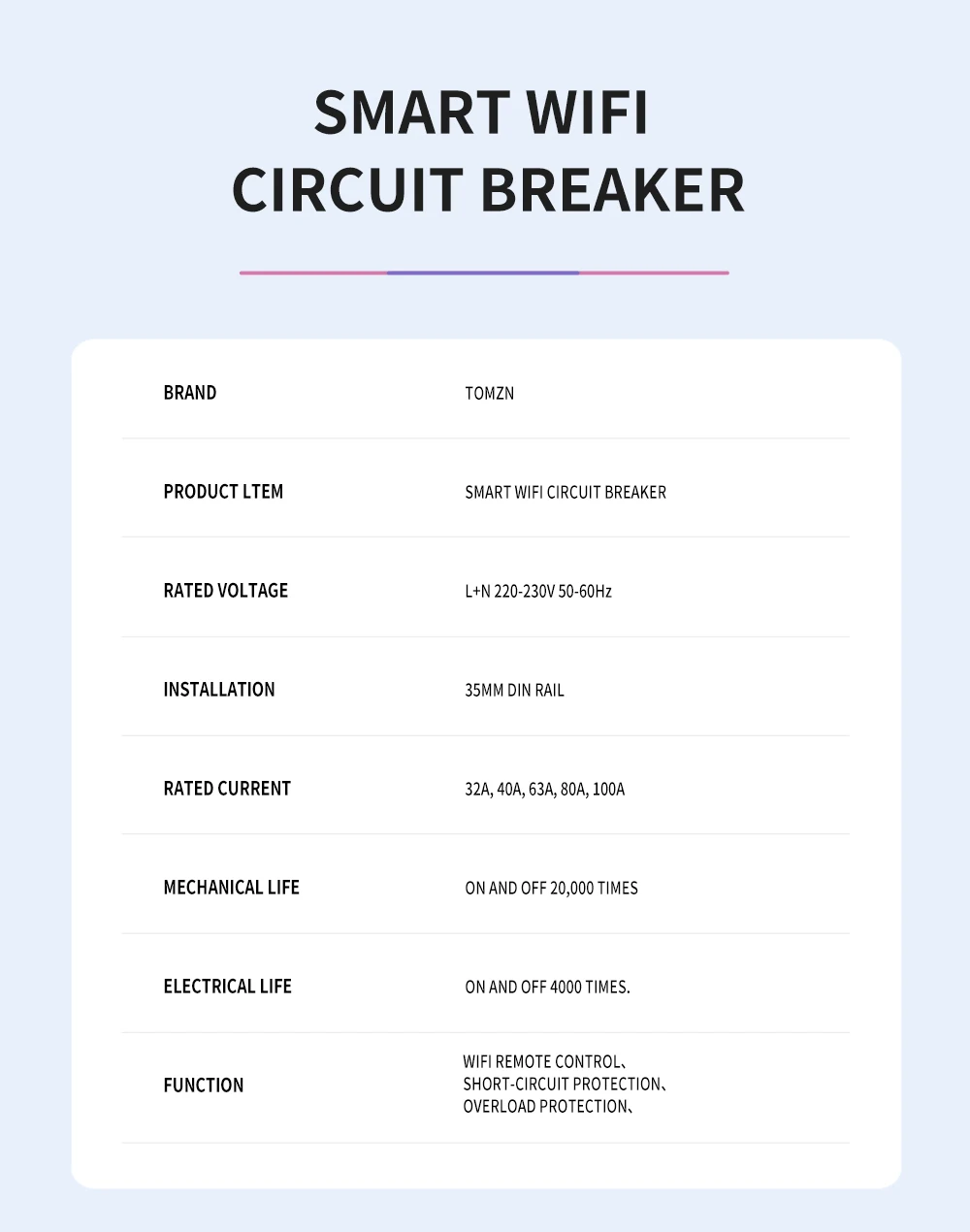

Product features

Rated Voltage: 3*220V or 380V AC

Rated Current: 10A, 16A, 20A, 32A, 40A, 50A, 63A, 80A, 100A

Rated Frequency: 50/60Hz

Number of poles: 4P

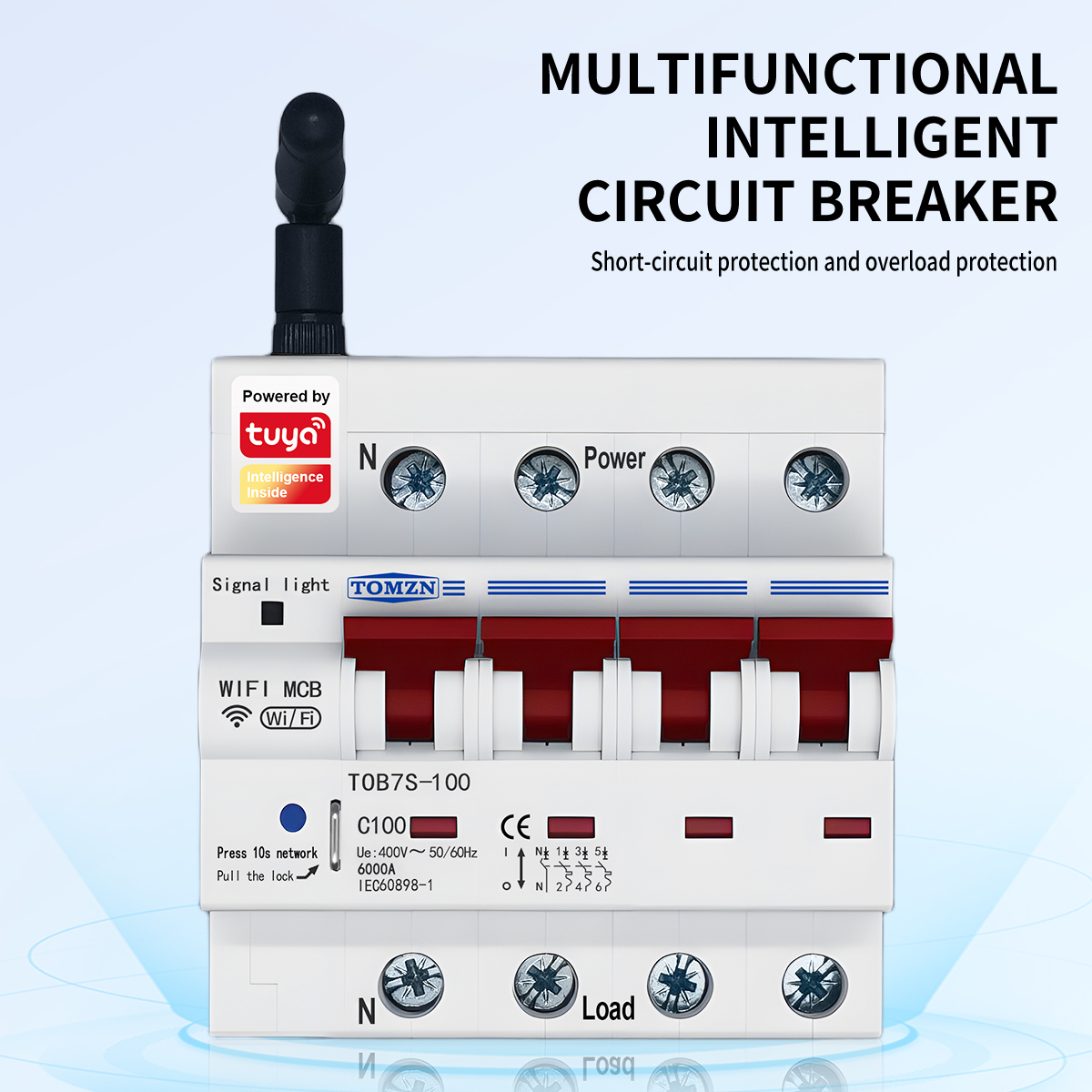

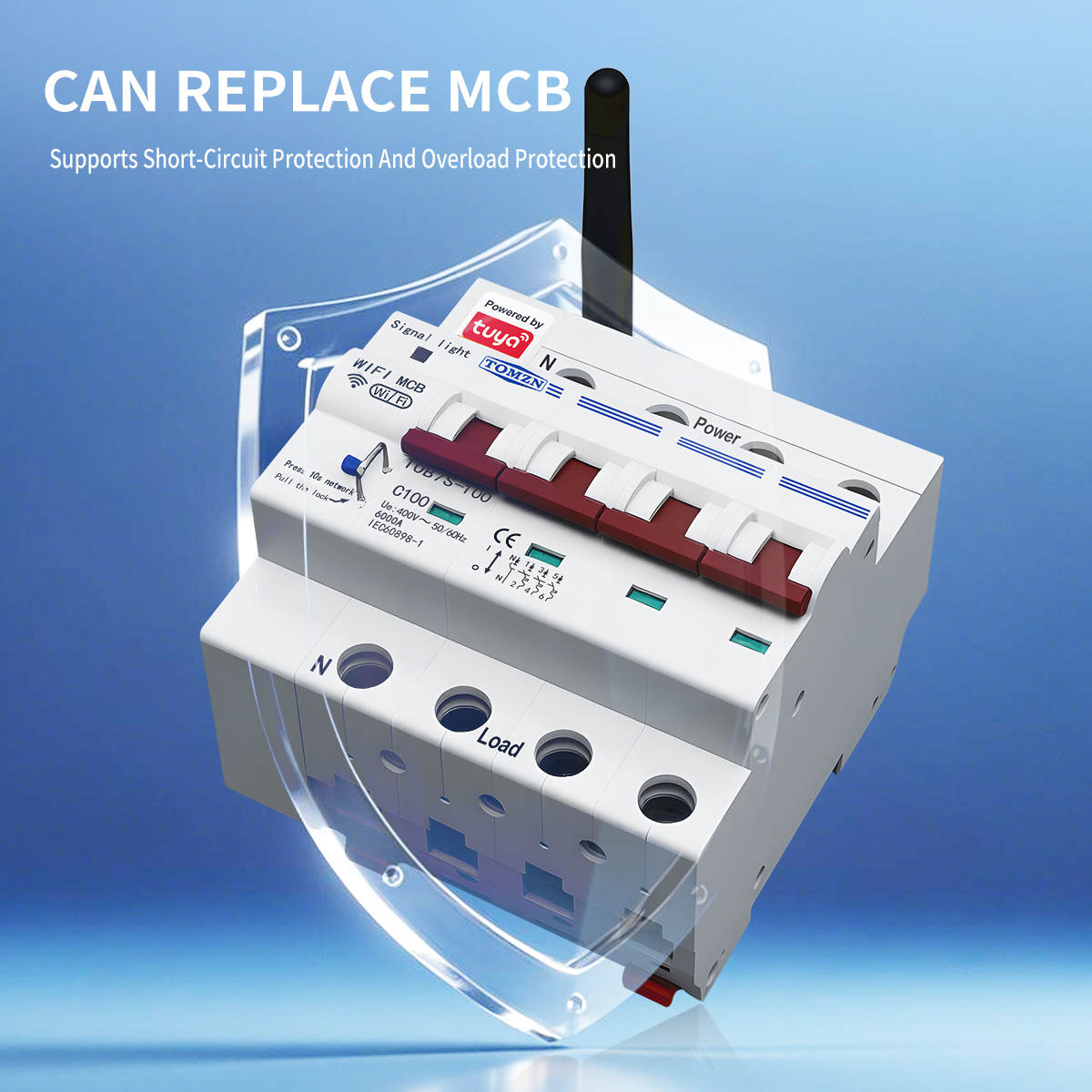

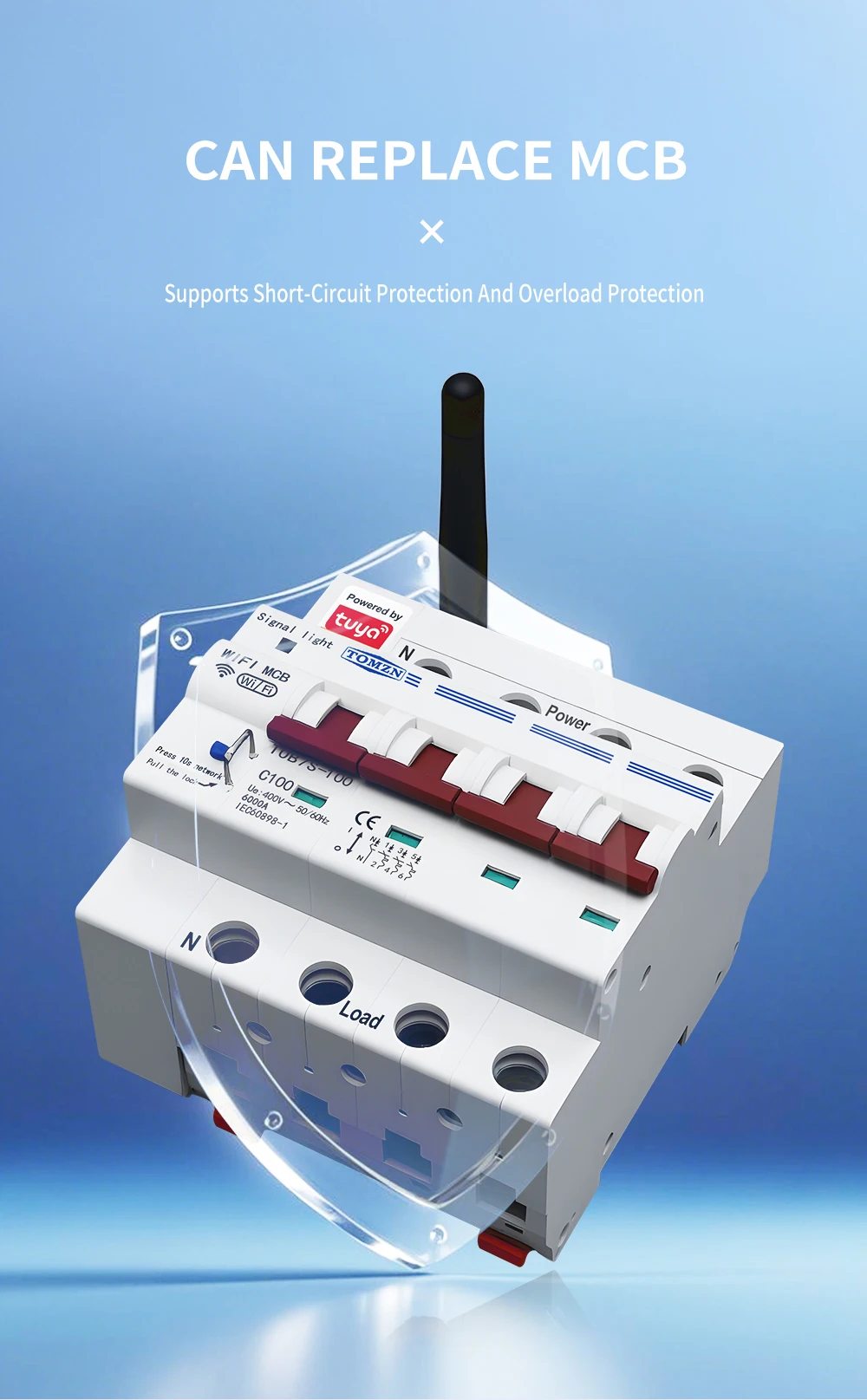

Protection Functions: Overload and short-Circuit protection

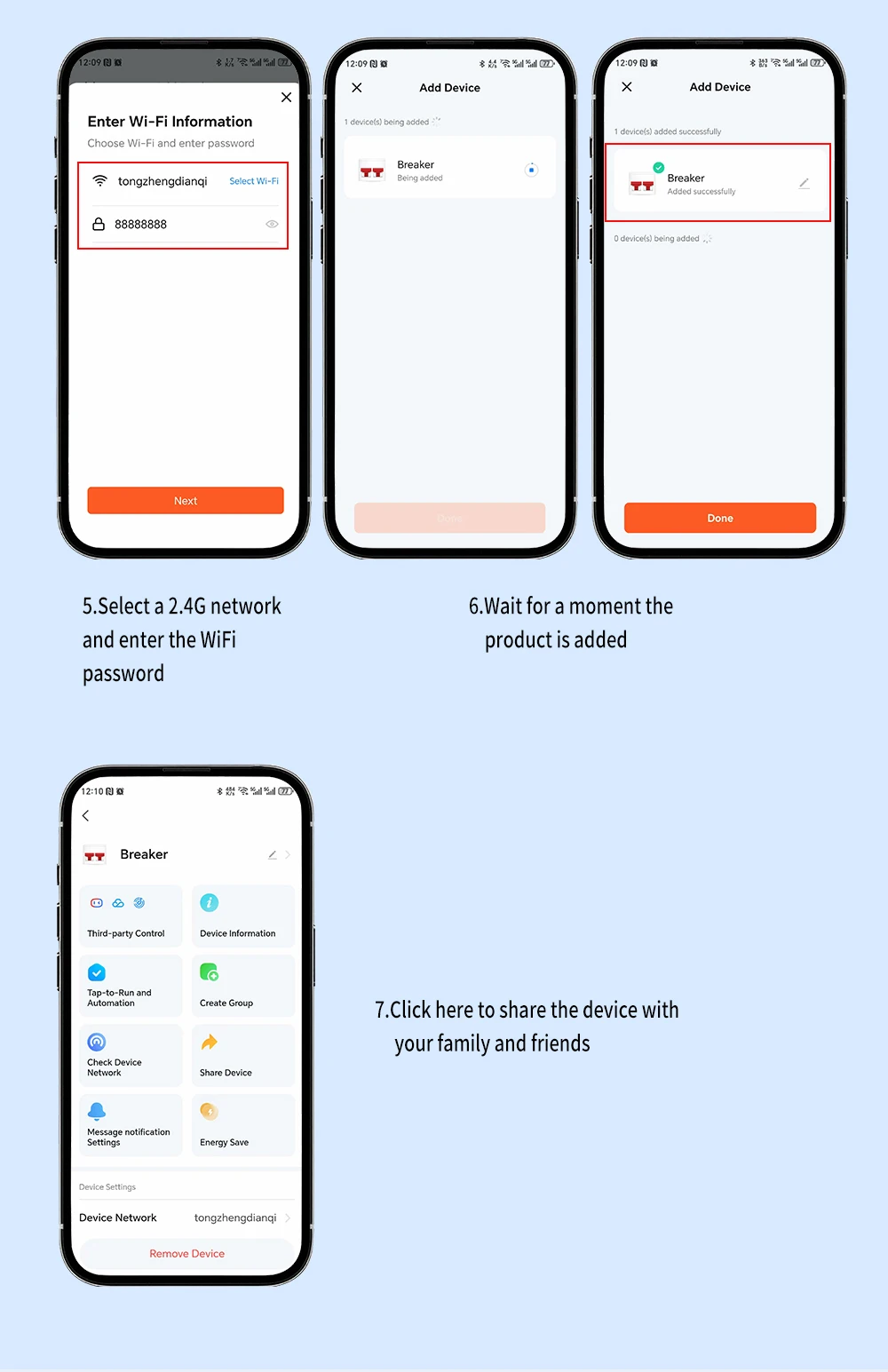

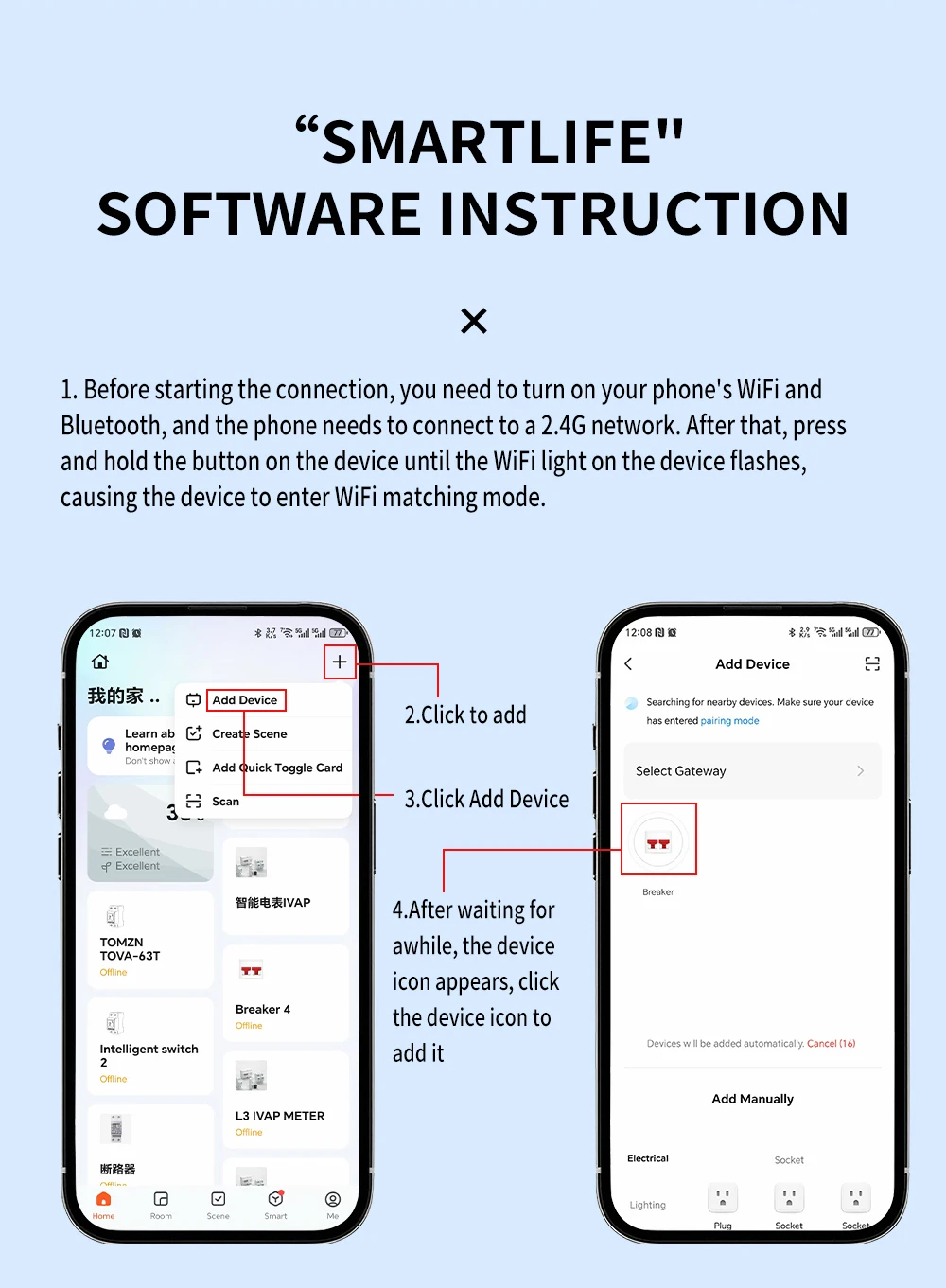

Control Method: TUYA APP or Manual control

Installation Type: Din rail

TOMZN DIN Rail TOB7S-100 WIFI Smart MCB 4P 400V~ 50/60Hz Lockable Multifunctional 100A Breaker for Three-phase Power EV Charger
In the modern world of electrical systems and smart home technologies, the need for reliable, intelligent, and efficient circuit protection has never been greater. Whether you’re managing a residential setup, a commercial building, or an industrial facility, having the right circuit breaker in place is essential for safety, performance, and energy management. The TOMZN DIN Rail TOB7S-100 WIFI Smart MCB 4P 400V~ 50/60Hz Lockable Multifunctional 100A Breaker is a cutting-edge solution designed to meet the demands of today’s advanced electrical environments, especially in applications involving three-phase power and electric vehicle (EV) charging systems.
What is a Circuit Breaker?
A circuit breaker is an essential electrical device that protects an electrical circuit from damage caused by overcurrent or short circuits. Unlike traditional fuses, which must be replaced after tripping, circuit breakers can be reset, making them a more convenient and cost-effective option for long-term use. They are commonly used in residential, commercial, and industrial settings to ensure the safety and stability of electrical systems.
Introducing the TOMZN TOB7S-100 Smart MCB
The TOMZN TOB7S-100 is a high-performance, four-pole (4P) molded case circuit breaker (MCB) that offers advanced protection and control for three-phase electrical systems. With a rated current of 100A and a voltage rating of 400V, this breaker is ideal for a wide range of applications, including industrial machinery, HVAC systems, and especially electric vehicle (EV) charging stations.
One of the standout features of the TOMZN TOB7S-100 is its Wi-Fi connectivity, which allows for remote monitoring and control via a smartphone or computer. This smart functionality makes it easier than ever to manage your electrical system, monitor energy usage, and receive real-time alerts in case of any issues.
Key Features of the TOMZN TOB7S-100
1. Smart Wi-Fi Connectivity
The TOMZN TOB7S-100 is equipped with built-in Wi-Fi, enabling seamless integration with smart home and industrial automation systems. This feature allows users to monitor and control the breaker remotely, making it an excellent choice for those who want to optimize energy efficiency and system performance.
2. Four-Pole (4P) Design

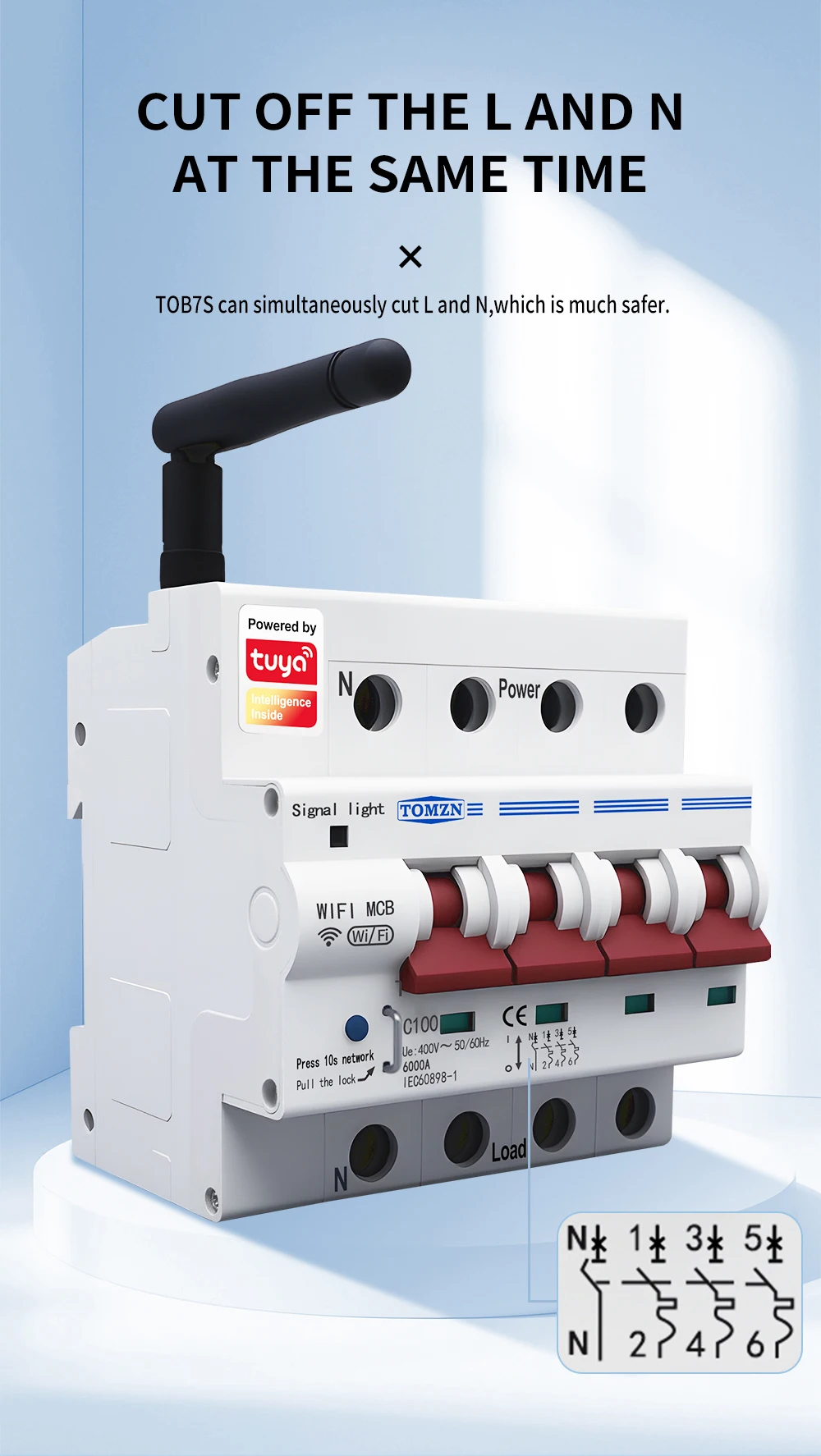

The 4P configuration ensures that all three live phases and the neutral line are protected simultaneously. This is particularly important in three-phase systems, where unbalanced loads or faults in one phase can affect the entire system.

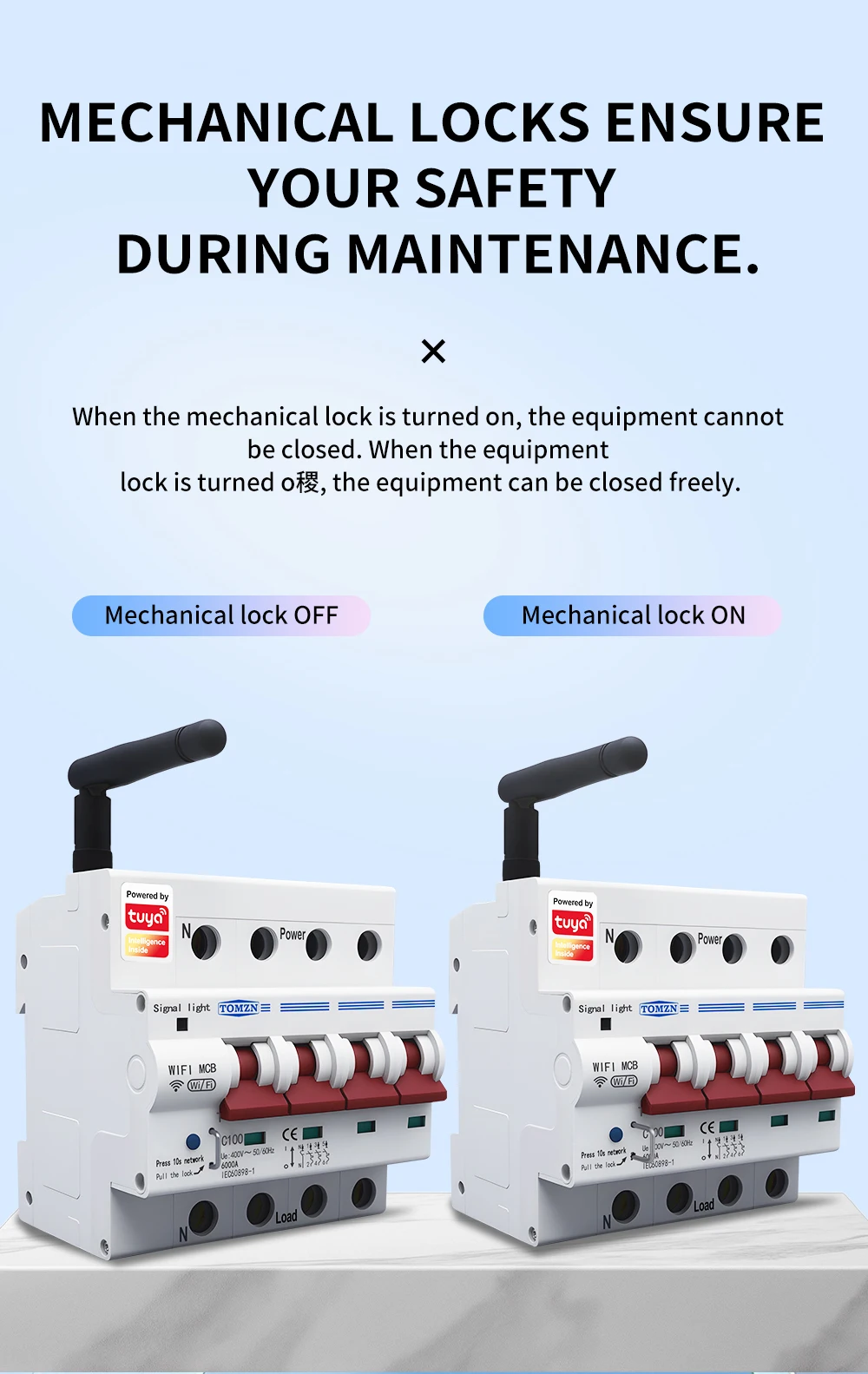

3. Lockable Mechanism
The breaker includes a lockable mechanism that prevents unauthorized access or tampering. This is especially useful in commercial and industrial environments where safety and security are a top priority.
4. Multifunctional Protection
The TOMZN TOB7S-100 offers comprehensive protection against overloads, short circuits, and other electrical faults. It is designed to trip automatically when it detects abnormal conditions, helping to prevent damage to connected equipment and ensuring the safety of personnel.
5. High Current and Voltage Rating
With a rated current of 100A and a voltage rating of 400V, this breaker is suitable for high-power applications. It can handle the demands of heavy-duty electrical systems, making it a reliable choice for industrial and commercial use.
6. DIN Rail Mounting
The breaker is designed for DIN rail mounting, which allows for easy and secure installation in control panels and electrical enclosures. This makes it a convenient option for both new installations and retrofitting existing systems.
7. Compatibility with Three-phase Power and EV Charging
The TOMZN TOB7S-100 is specifically designed for use in three-phase power systems, making it ideal for applications such as electric vehicle (EV) charging stations. Its high current rating and robust construction ensure that it can handle the power demands of modern EV charging equipment.
Applications of the TOMZN TOB7S-100
The TOMZN TOB7S-100 is a versatile circuit breaker that can be used in a wide range of applications, including:
– Industrial Machinery and Equipment: Protecting motors, pumps, and other high-power devices from electrical faults.
– Commercial Buildings: Ensuring the safety and reliability of electrical systems in offices, retail spaces, and other commercial environments.
– HVAC Systems: Providing protection for heating, ventilation, and air conditioning units.
– Electric Vehicle (EV) Charging Stations: Offering reliable power management and protection for EV charging equipment.
– Smart Home and Building Automation: Enabling remote monitoring and control of electrical systems through Wi-Fi connectivity.
Why Choose the TOMZN TOB7S-100?
When it comes to electrical protection, reliability and performance are key. The TOMZN TOB7S-100 stands out from the competition thanks to its advanced features, robust construction, and smart capabilities. Here are just a few reasons why this breaker is an excellent choice for your electrical system:
– Smart and Connected: The built-in Wi-Fi allows for remote monitoring and control, giving you greater visibility and control over your electrical system.
– High Performance and Durability: With a 100A rating and 400V support, this breaker is built to handle the demands of high-power applications.
– Easy to Install and Maintain: The DIN rail mounting design makes installation quick and straightforward, while the lockable mechanism ensures added security.
– Versatile and Reliable: Whether you’re managing an industrial facility, a commercial building, or an EV charging station, the TOMZN TOB7S-100 is a dependable solution for all your circuit protection needs.
Installation and Maintenance

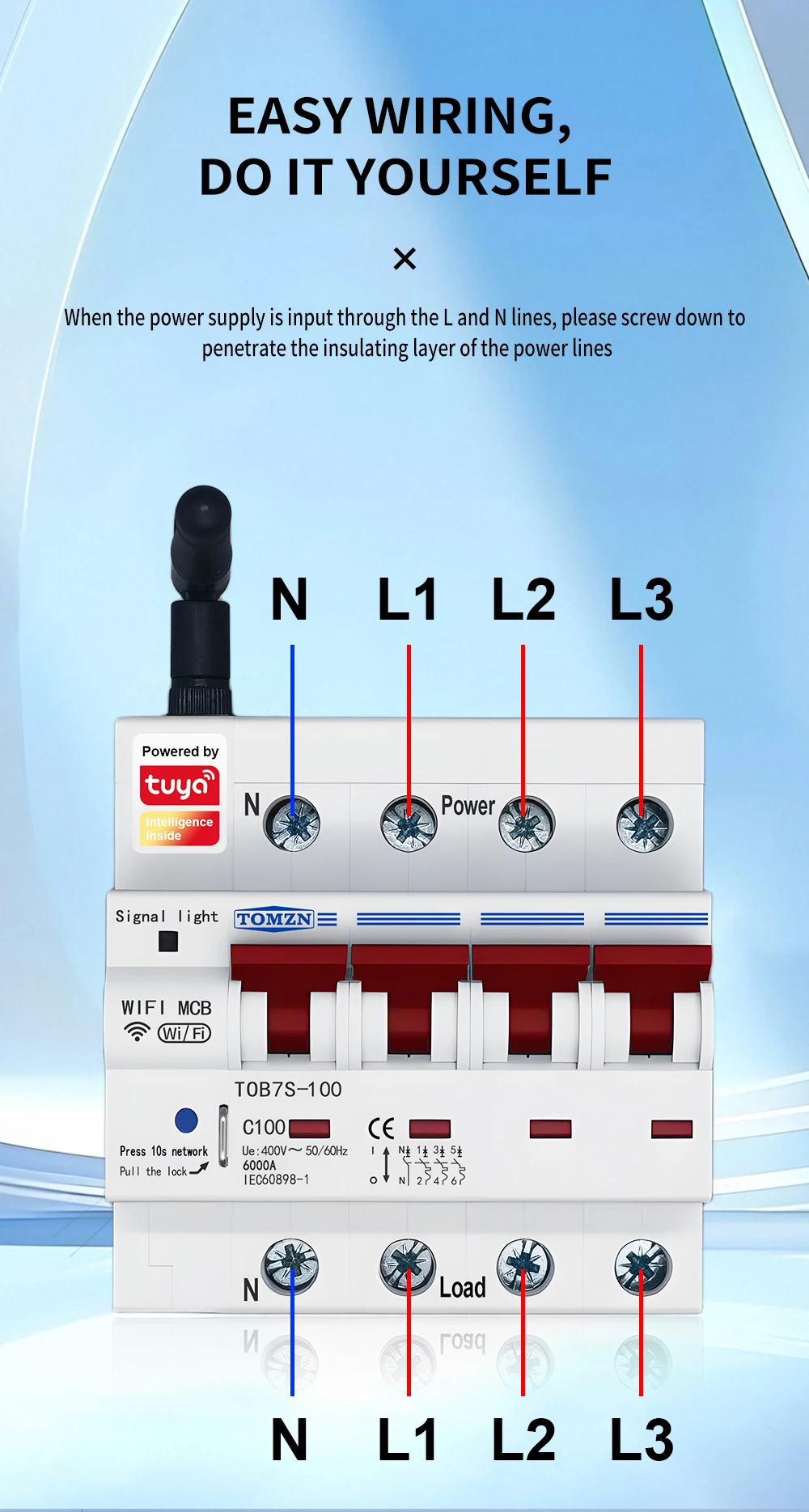

Installing the TOMZN TOB7S-100 is a straightforward process thanks to its DIN rail mounting design. Simply mount the breaker on a standard DIN rail within your electrical panel, connect the incoming and outgoing wires, and you’re ready to go. It is always recommended to have a qualified electrician perform the installation to ensure safety and compliance with local electrical codes.
Maintenance of the TOMZN TOB7S-100 is minimal, thanks to its durable construction and reliable performance. Regular visual inspections and testing are recommended to ensure that the breaker is functioning properly and to identify any potential issues before they become serious.
Conclusion
The TOMZN DIN Rail TOB7S-100 WIFI Smart MCB 4P 400V~ 50/60Hz Lockable Multifunctional 100A Breaker is a powerful and intelligent solution for modern electrical systems. With its advanced features, high performance, and smart connectivity, it is an ideal choice for a wide range of applications, including three-phase power systems and electric vehicle charging stations.
Whether you’re looking to upgrade your electrical protection system or install a new one from scratch, the TOMZN TOB7S-100 offers the reliability, safety, and convenience you need to keep your electrical system running smoothly. Invest in the TOMZN TOB7S-100 today and experience the future of smart circuit protection.
