Description
Description
TOB9L-63WIFI 2P can cut off L and N both,
With leakage protection, NO temperature control.
TOB9-63WIFI 1P Can only cut off L,
NO leakage protection, With temperature control.
1.General Description

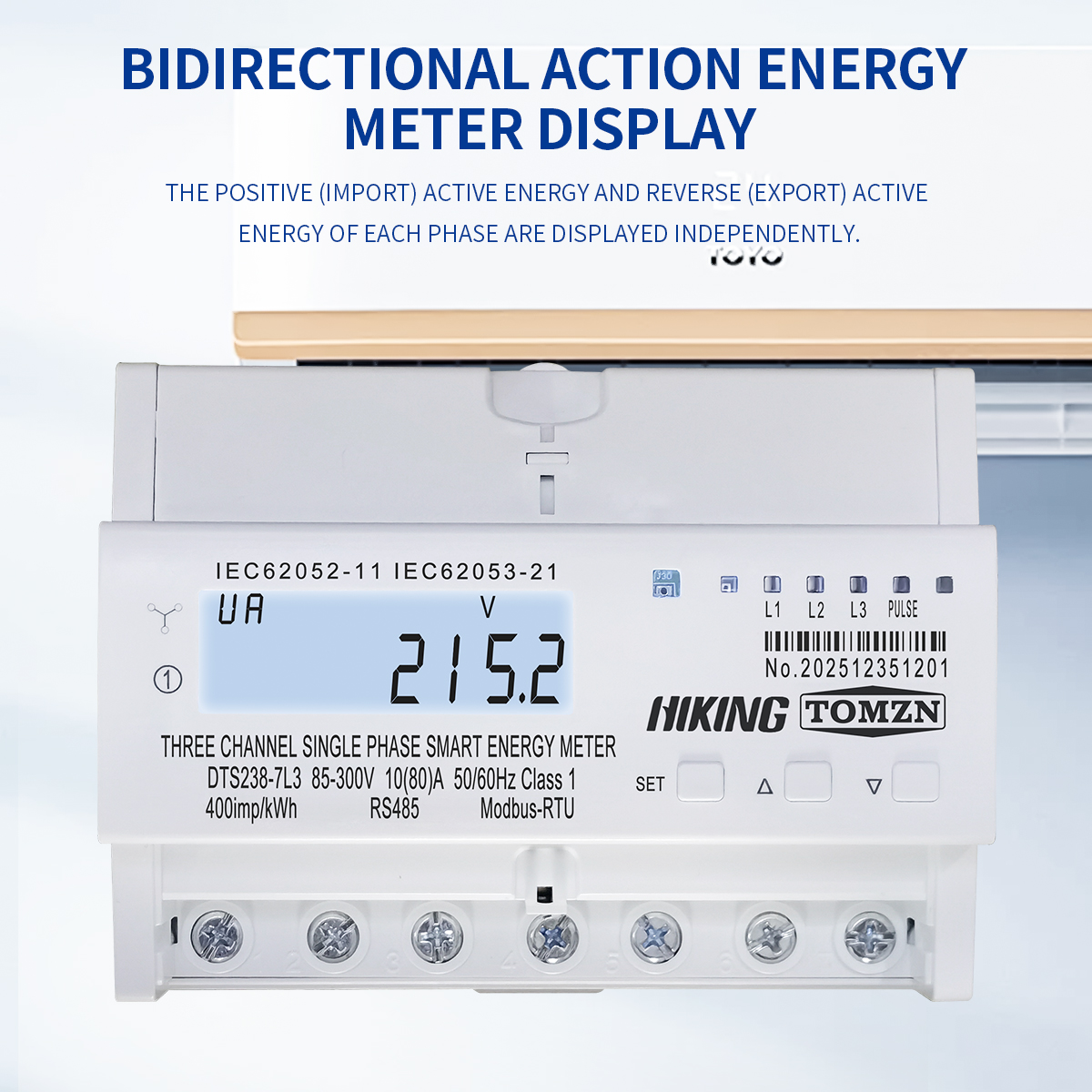

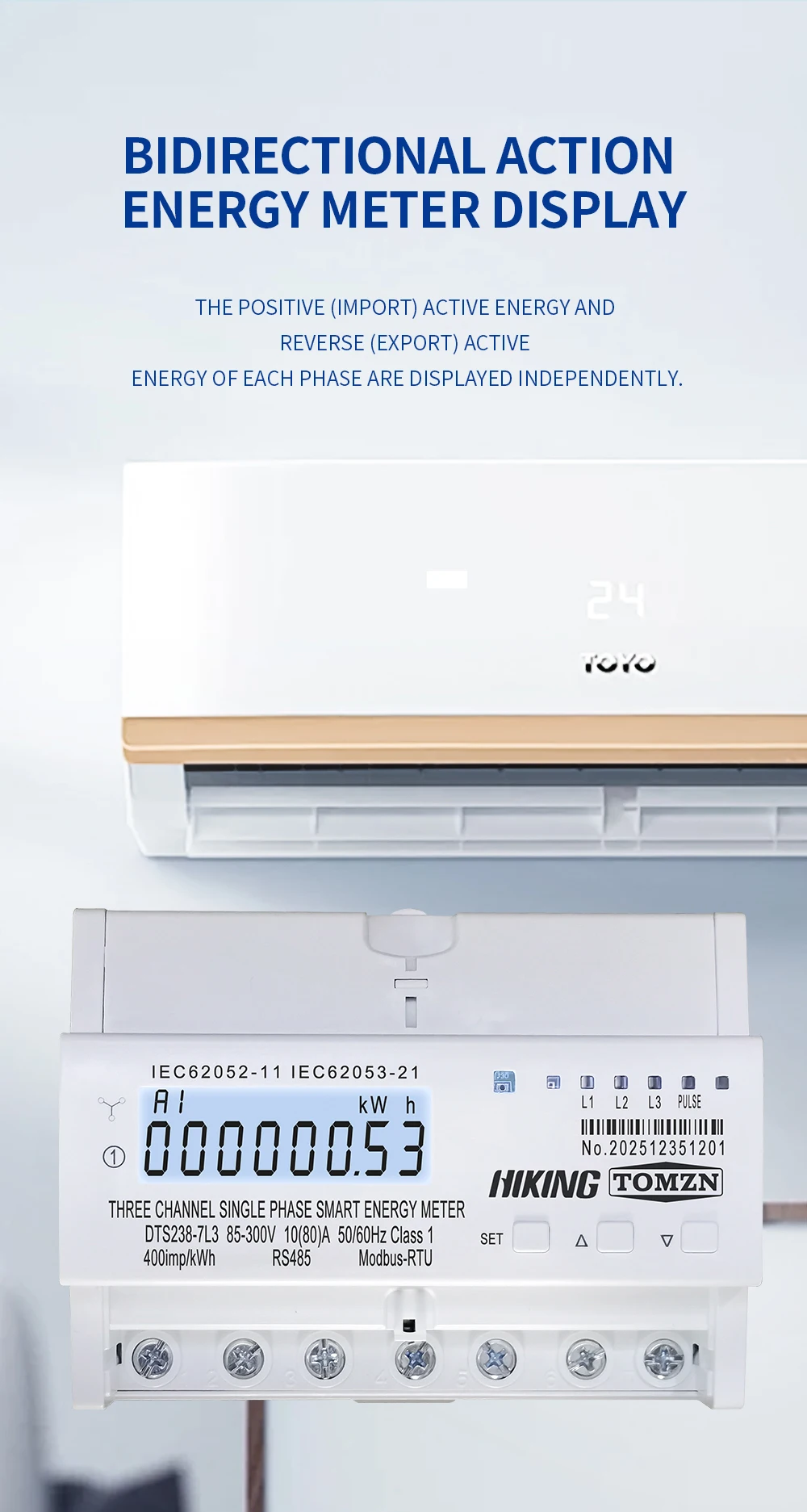

Static three-circuit single-phase two-wire energy meters are designed for measuring AC active energy and variable parameters. They adopt advanced large-scale integrated circuit (IC) and SMT manufacturing technology, featuring bi-directional energy measurement, wide voltage range, anti-tamper performance, high accuracy and reliability, large overload capacity, low self-consumption, compact size, and light weight. The meter is equipped with an RS485 communication port, enabling remote reading.
The meter should be installed in a suitable environment with an ambient temperature range of -25 °C to +55 °C, a relative humidity of less than 75%, and temperature limits between -40 °C and +70 °C.
The meter is manufactured in compliance with the international standards IEC 62052-11: Electricity metering equipment (AC) – General requirements, tests and test conditions, and IEC 62053-21: Static meters for active energy (classes 1 and 2).

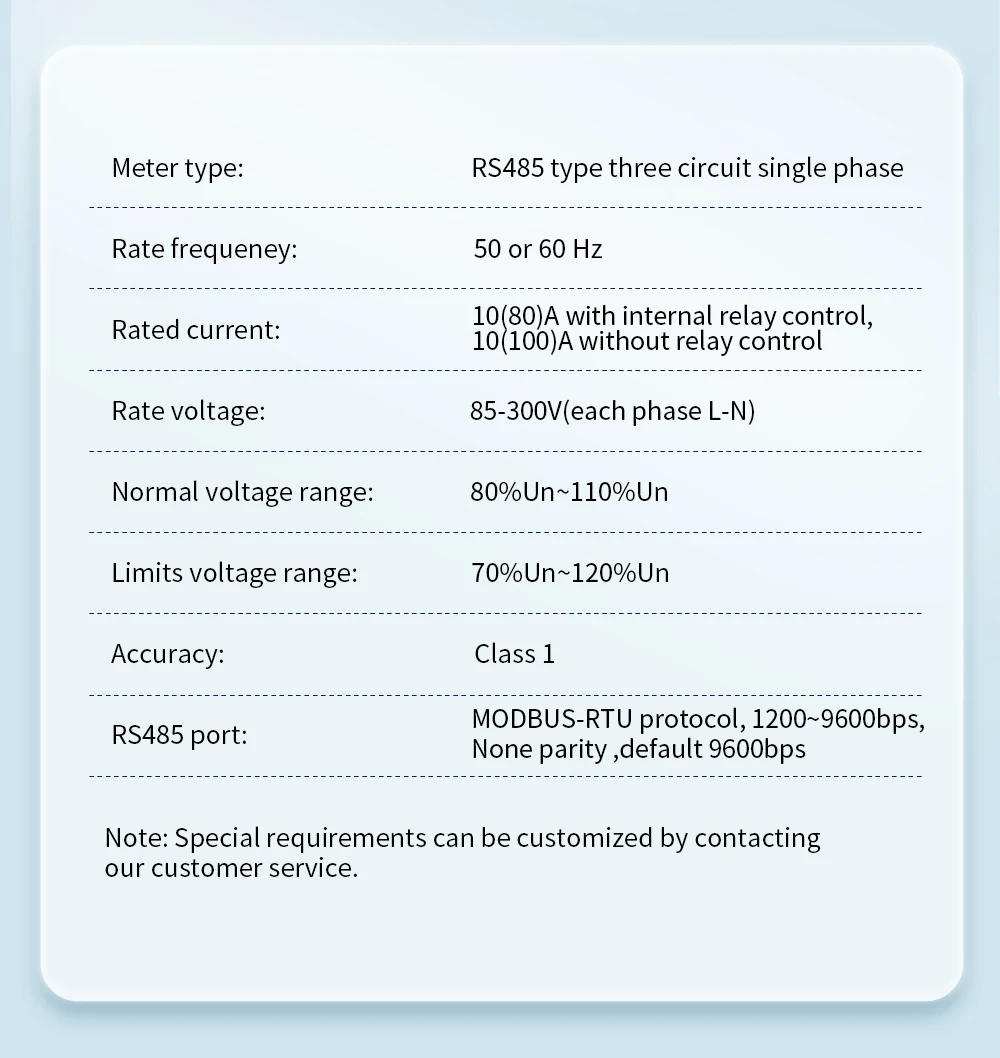

2.Basic Function
Meter type: Three circuit single phase
Rate frequency: 50 or 60 Hz
Rated current: 10(80)A with internal relay control, 10(100)A without relay control
Rate voltage: 85-300V (each phase L-N)
Normal voltage range: 80%Un~110%Un
Limits voltage range: 70%Un~120%Un
Accuracy: Class 1
Pulse constant: See meter

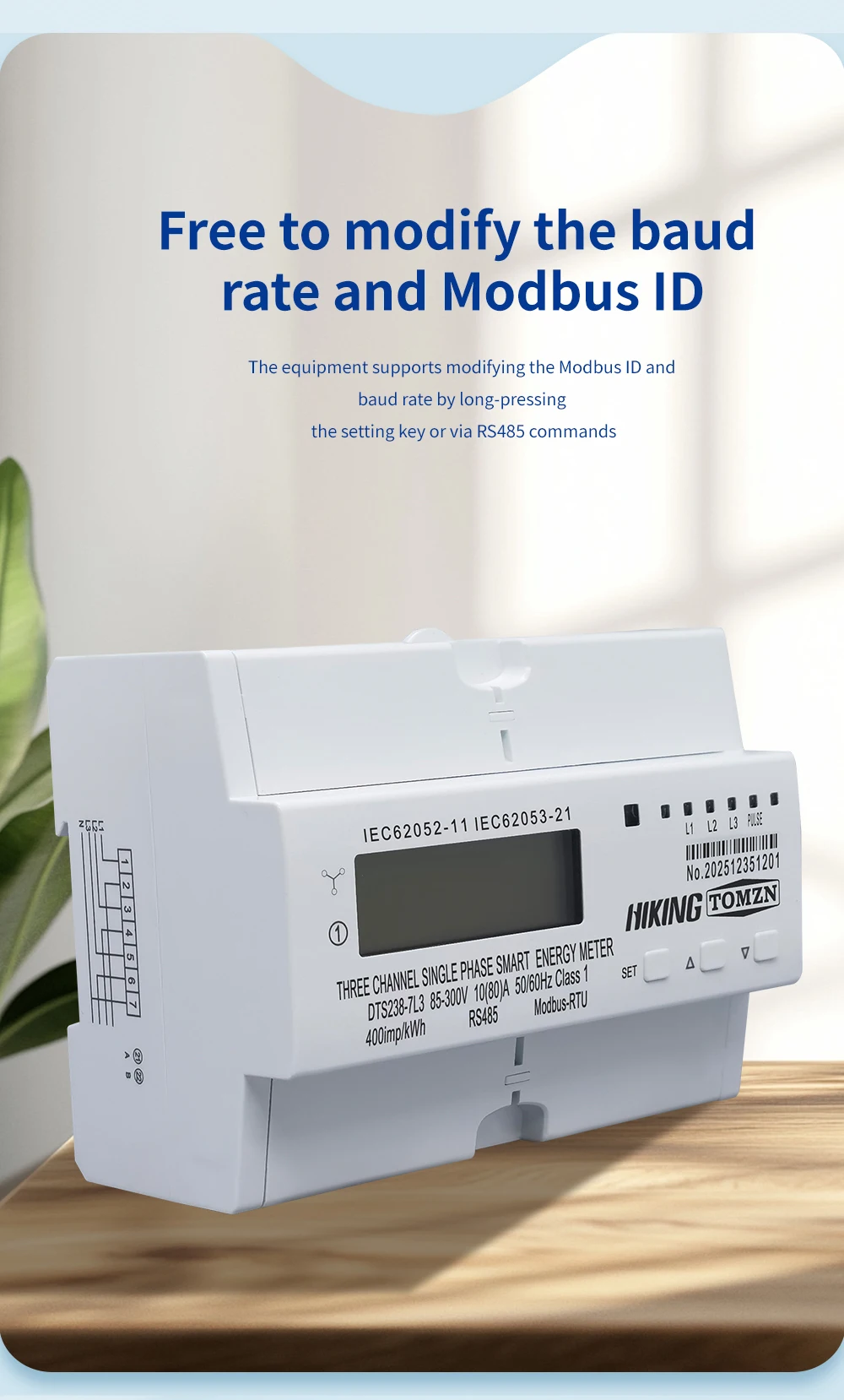

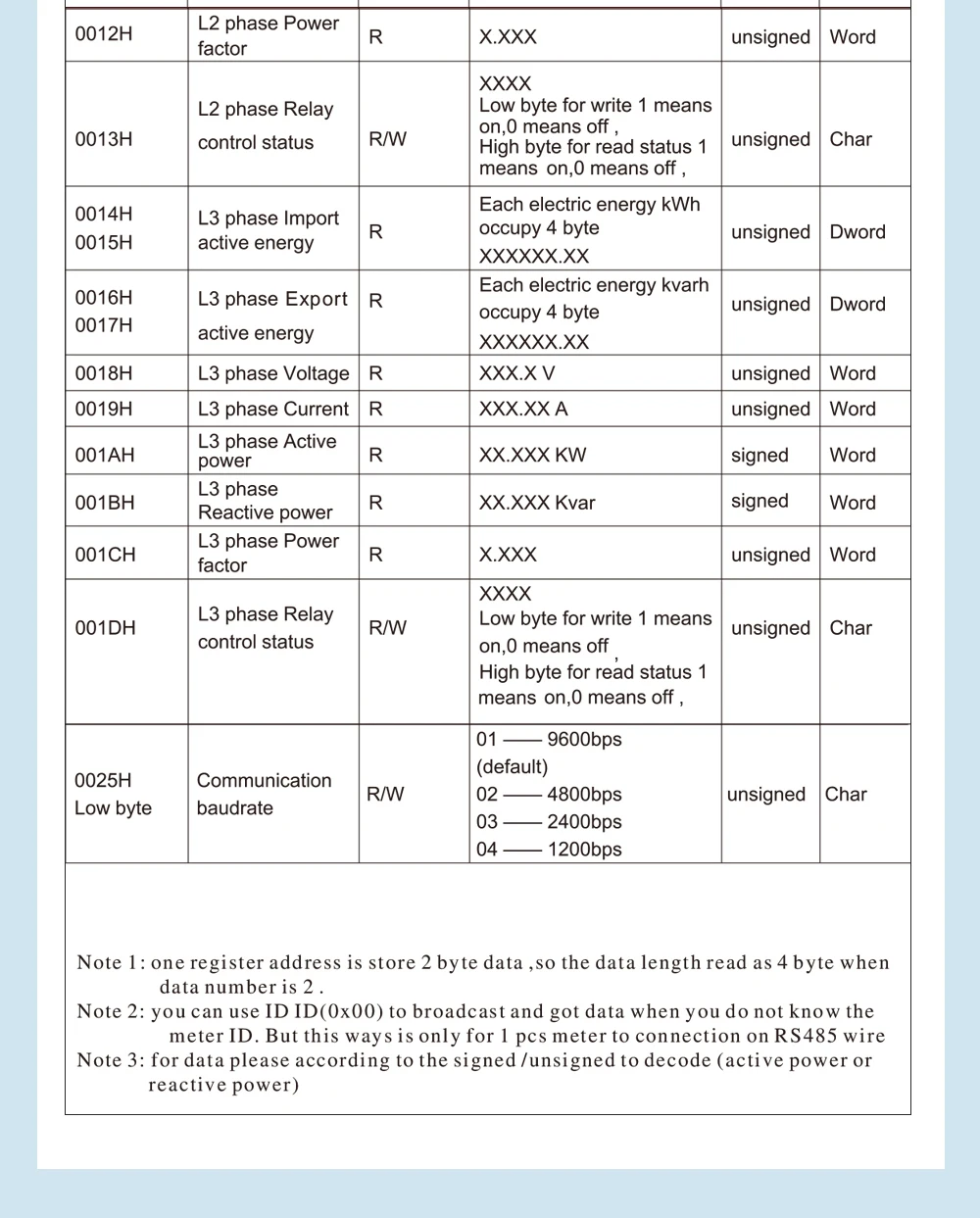

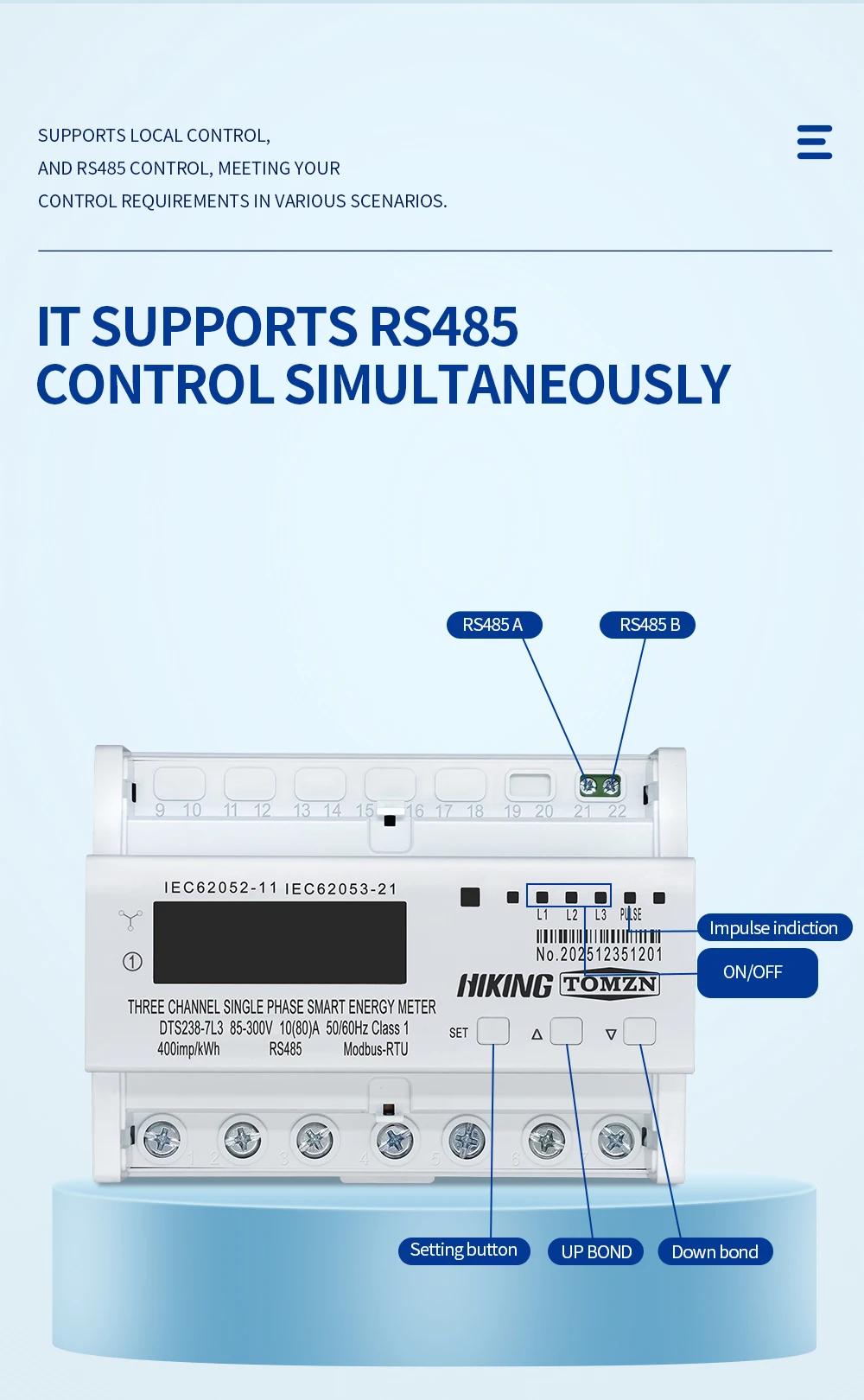

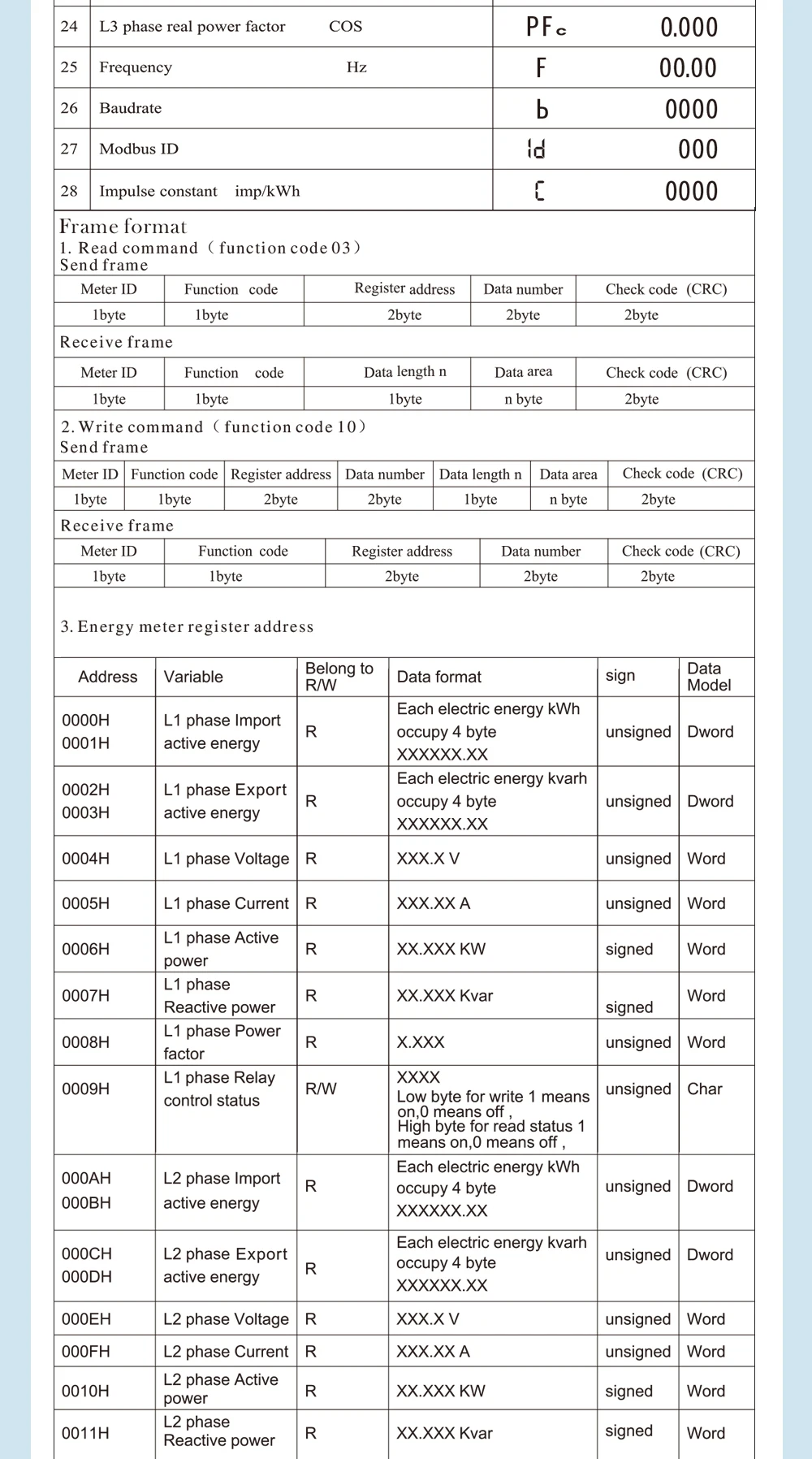

RS485 port: MODBUS-RTU protocol, 1200~9600bps, None parity, default 9600bps

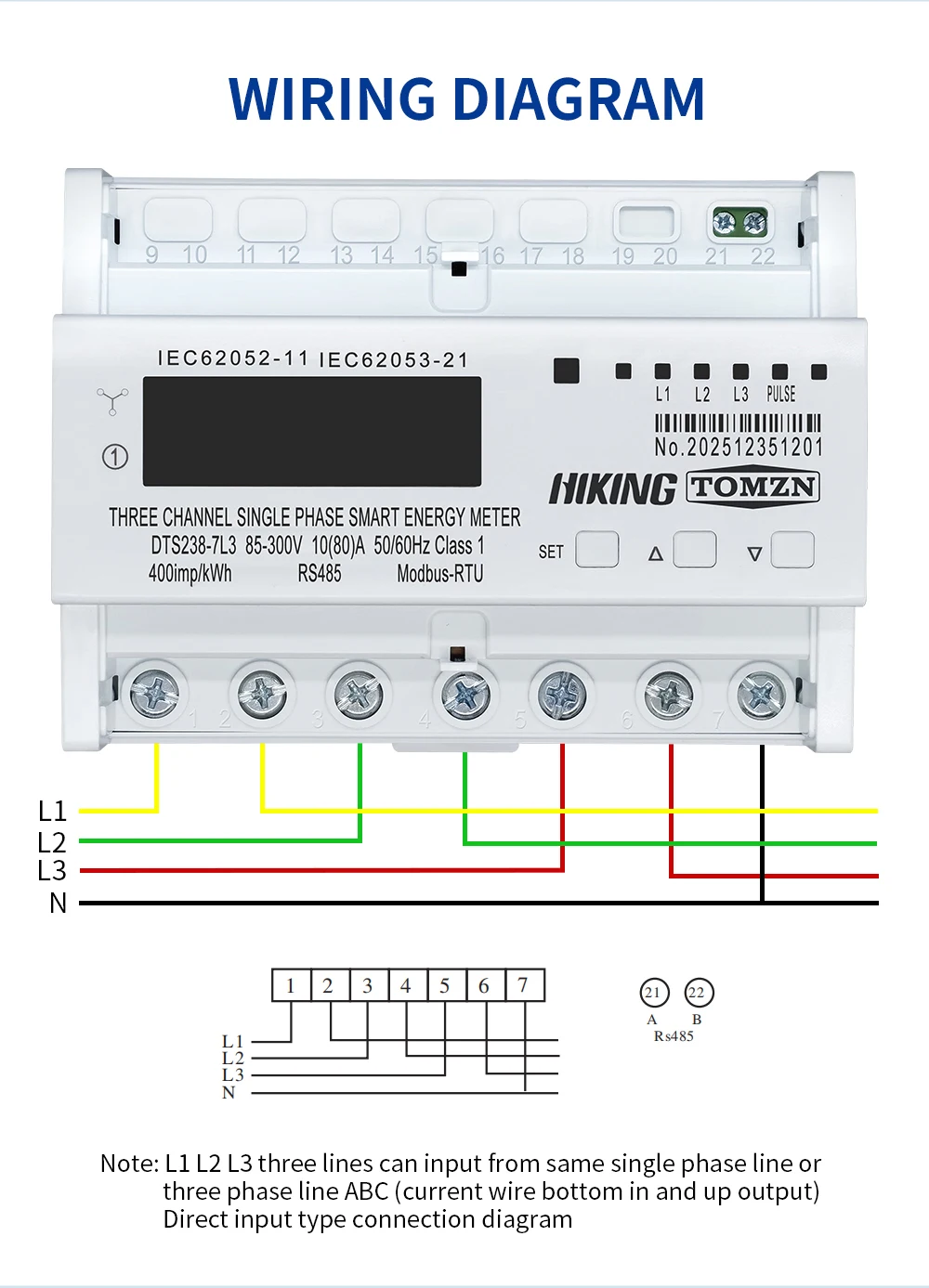

Note:The meter’s internal working voltage is supplied from the L1 phase. If L1 loses phase, the other two phases will also not work.
The TOMZN Din Rail DTS238-7L3 RS485 Three Circuit Single Phase Energy Meter is a high-performance, accurate, and reliable energy measurement solution designed for a wide range of industrial and commercial applications. This energy meter is specifically engineered to monitor and record electrical energy consumption in single-phase systems, making it an essential tool for energy management, billing, and system monitoring. With its advanced features, including RS485 communication, Modbus-RTU protocol, and a clear LCD display, this meter offers a comprehensive and user-friendly experience for both professionals and end-users.
The DTS238-7L3 model is built to meet the highest standards of accuracy and durability. It is classified as Class 1, which means it provides precise energy measurement with minimal error, ensuring reliable data for billing and energy auditing purposes. The meter operates within a voltage range of 85-300V and supports both 50Hz and 60Hz frequencies, making it suitable for use in various regions and power supply environments. Its maximum current rating of 80A ensures it can handle high-load applications without compromising performance or safety.

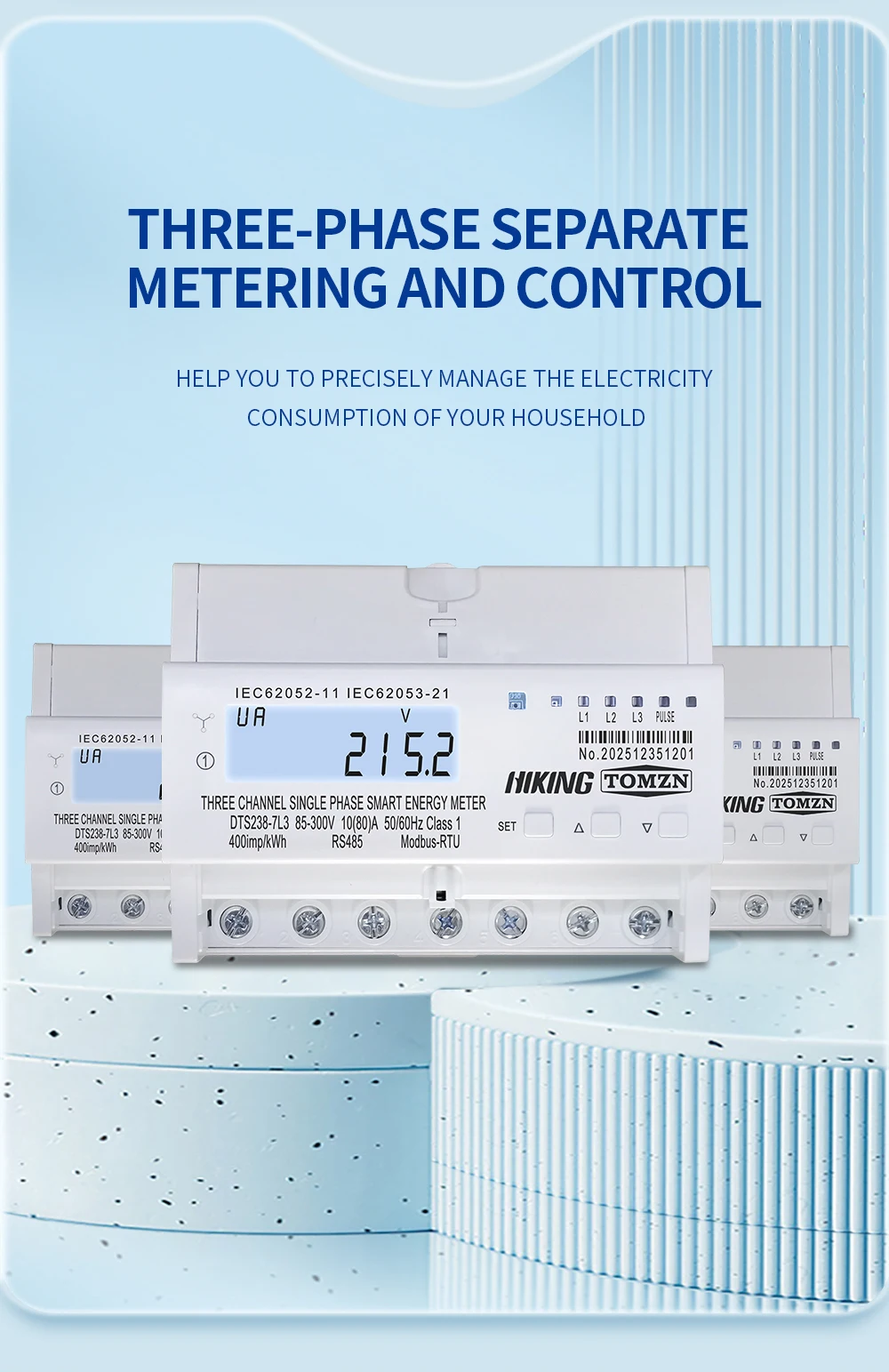

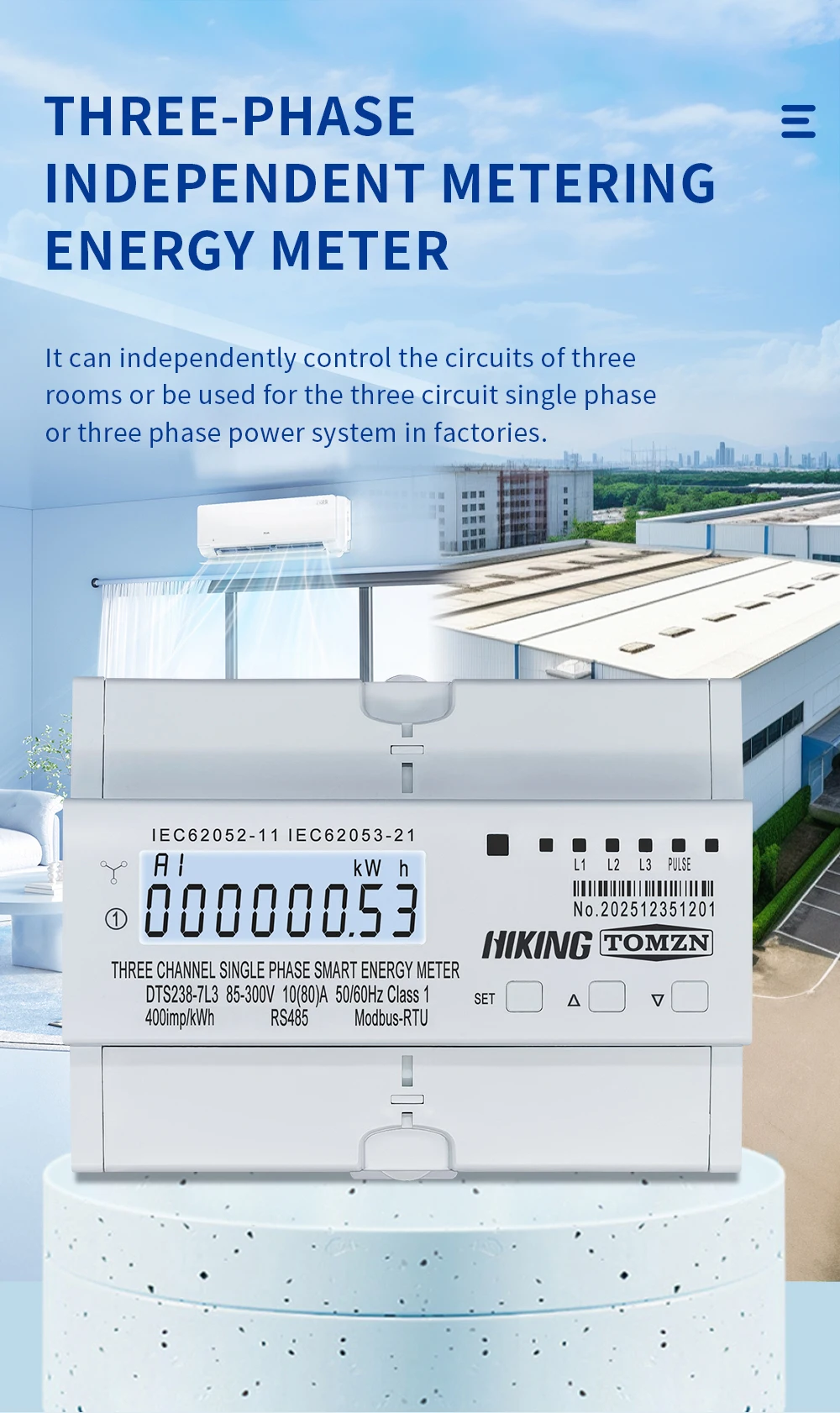

One of the standout features of this energy meter is its three-circuit design, which allows for the simultaneous monitoring of three separate circuits. This makes it ideal for applications where multiple loads or energy sources need to be tracked independently. Whether you’re managing a commercial building, a manufacturing facility, or a residential complex, the DTS238-7L3 provides the flexibility and precision needed to monitor energy usage effectively.
The RS485 communication interface is another key feature that enhances the functionality of this energy meter. This interface enables seamless integration with data acquisition systems, SCADA (Supervisory Control and Data Acquisition) systems, and other monitoring platforms. The Modbus-RTU protocol ensures efficient and reliable data transmission, allowing for real-time monitoring and remote control of energy consumption. This makes the DTS238-7L3 an excellent choice for smart grid applications and automated energy management systems.

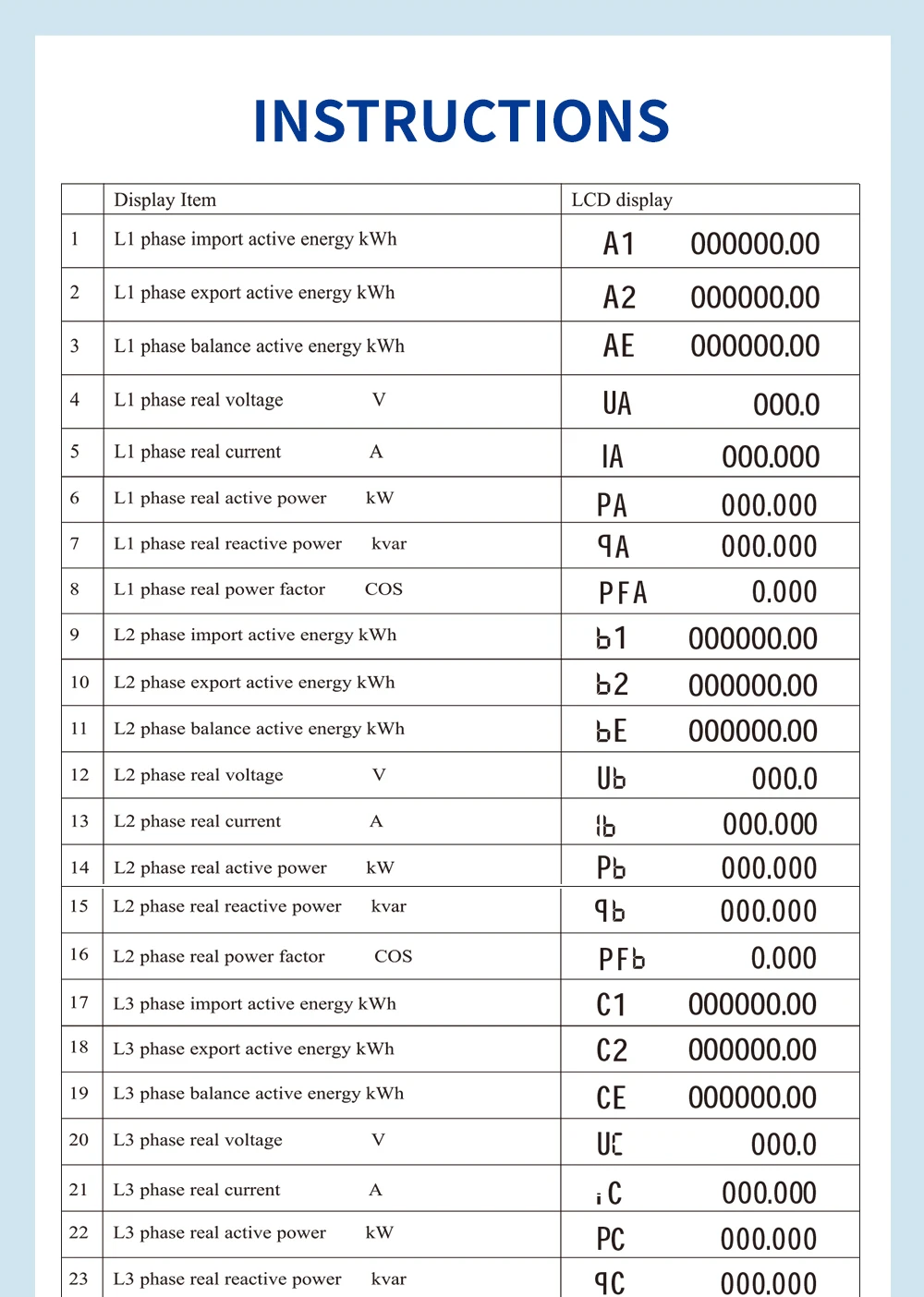

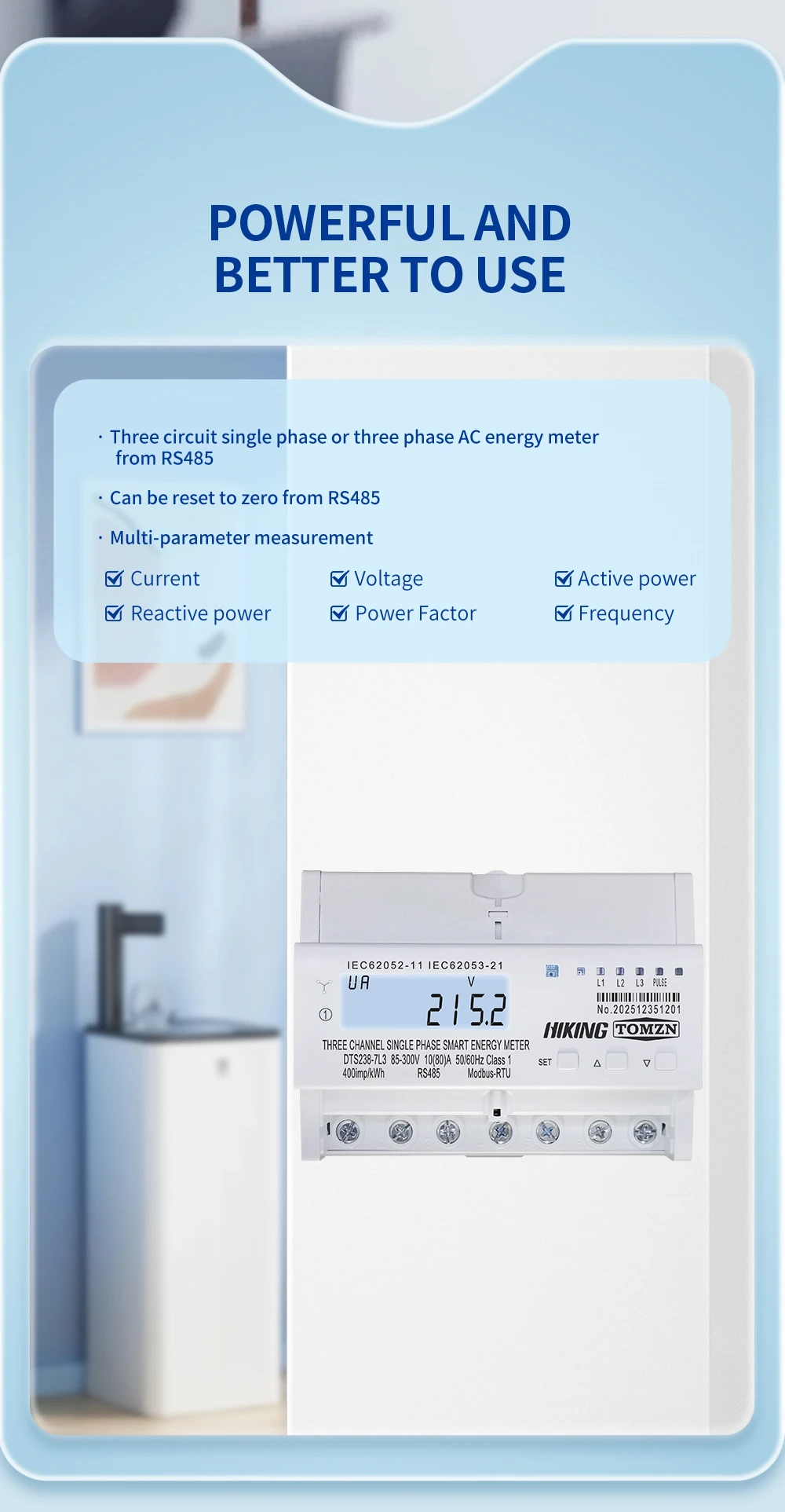

The LCD display on the DTS238-7L3 provides clear and easy-to-read information about energy consumption, including total kWh, active power, voltage, current, and frequency. This real-time data helps users make informed decisions about energy usage, identify inefficiencies, and optimize energy consumption. The intuitive interface ensures that even non-technical users can navigate the meter’s functions with ease.

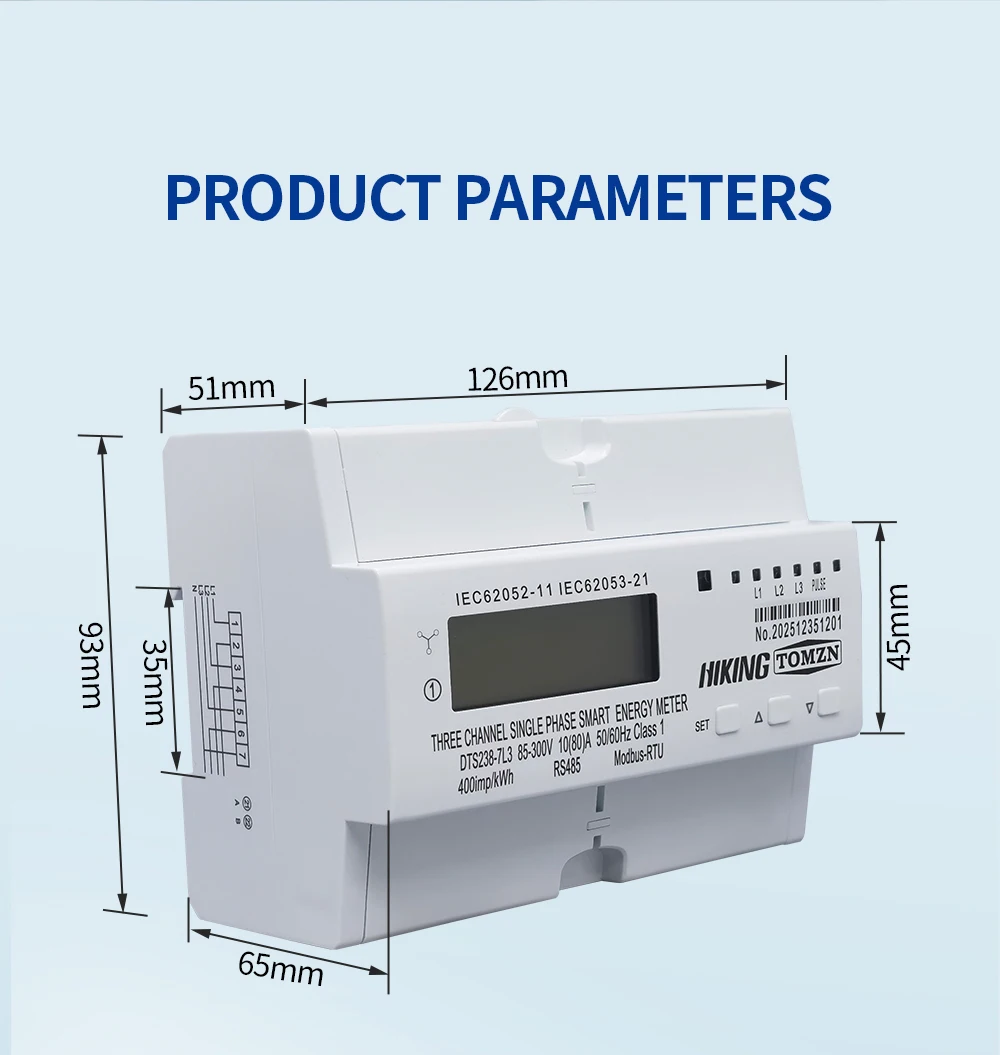

Designed for easy installation, the DTS238-7L3 is a DIN rail-mounted energy meter, which means it can be quickly and securely mounted in electrical panels or control cabinets. This compact and robust design ensures that the meter can be installed in a variety of environments, from industrial control rooms to commercial electrical rooms. The meter’s durable construction and high-quality components ensure long-term reliability and minimal maintenance requirements.
In addition to its technical specifications, the DTS238-7L3 is also designed with user convenience in mind. The meter is equipped with a built-in calibration function, allowing for easy verification and adjustment of measurement accuracy. This feature is particularly useful for maintenance personnel who need to ensure that the meter is operating within acceptable tolerances. The meter also supports data logging, which enables users to store and analyze energy consumption data over time, helping to identify trends and patterns in energy usage.
The DTS238-7L3 is suitable for a wide range of applications, including but not limited to:
– Industrial energy monitoring
– Commercial building energy management
– Smart grid systems
– Power distribution monitoring
– Energy auditing and billing
– Renewable energy systems
Whether you’re looking to improve energy efficiency, reduce costs, or comply with regulatory requirements, the TOMZN Din Rail DTS238-7L3 RS485 Three Circuit Single Phase Energy Meter is a versatile and reliable solution that meets the demands of modern energy management systems.
The energy meter’s compatibility with Modbus-RTU protocol ensures that it can be easily integrated into existing control systems, allowing for seamless data exchange and remote monitoring. This makes it an ideal choice for users who want to implement a centralized energy management system that can monitor multiple meters across different locations.

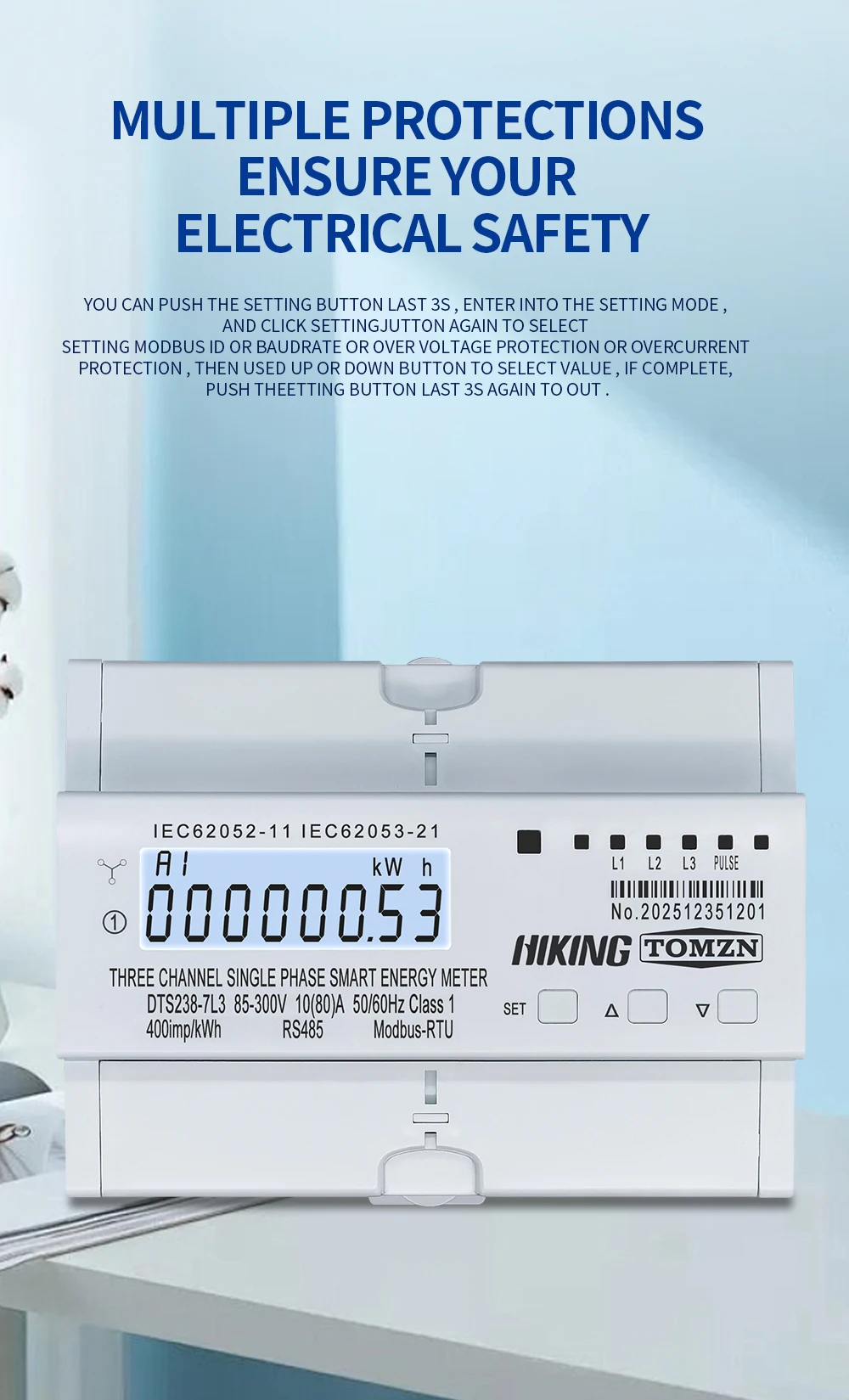

In terms of safety, the DTS238-7L3 is designed with built-in protection mechanisms to prevent damage from overloads, voltage fluctuations, and other electrical anomalies. This ensures that the meter remains operational even under challenging conditions, providing consistent and accurate measurements over time.
The meter’s ability to measure energy in both kWh and watt-hour units makes it suitable for a wide range of applications, from basic energy monitoring to detailed energy analysis. This flexibility allows users to choose the measurement unit that best suits their needs, whether they are tracking daily consumption or analyzing long-term energy trends.
The TOMZN Din Rail DTS238-7L3 RS485 Three Circuit Single Phase Energy Meter is a high-quality, feature-rich solution that offers excellent value for money. Its combination of accuracy, reliability, and advanced communication capabilities makes it a top choice for professionals and businesses looking to optimize their energy management systems. Whether you’re upgrading an existing system or setting up a new one, this energy meter provides the performance and functionality needed to meet your energy monitoring requirements.
In conclusion, the DTS238-7L3 is a powerful and versatile energy meter that delivers precise and reliable energy measurement in single-phase systems. With its three-circuit design, RS485 communication, Modbus-RTU protocol, and clear LCD display, it is an essential tool for energy management, monitoring, and control. Whether you’re in the industrial, commercial, or residential sector, this energy meter offers the performance, flexibility, and durability needed to meet your energy measurement needs.
