General

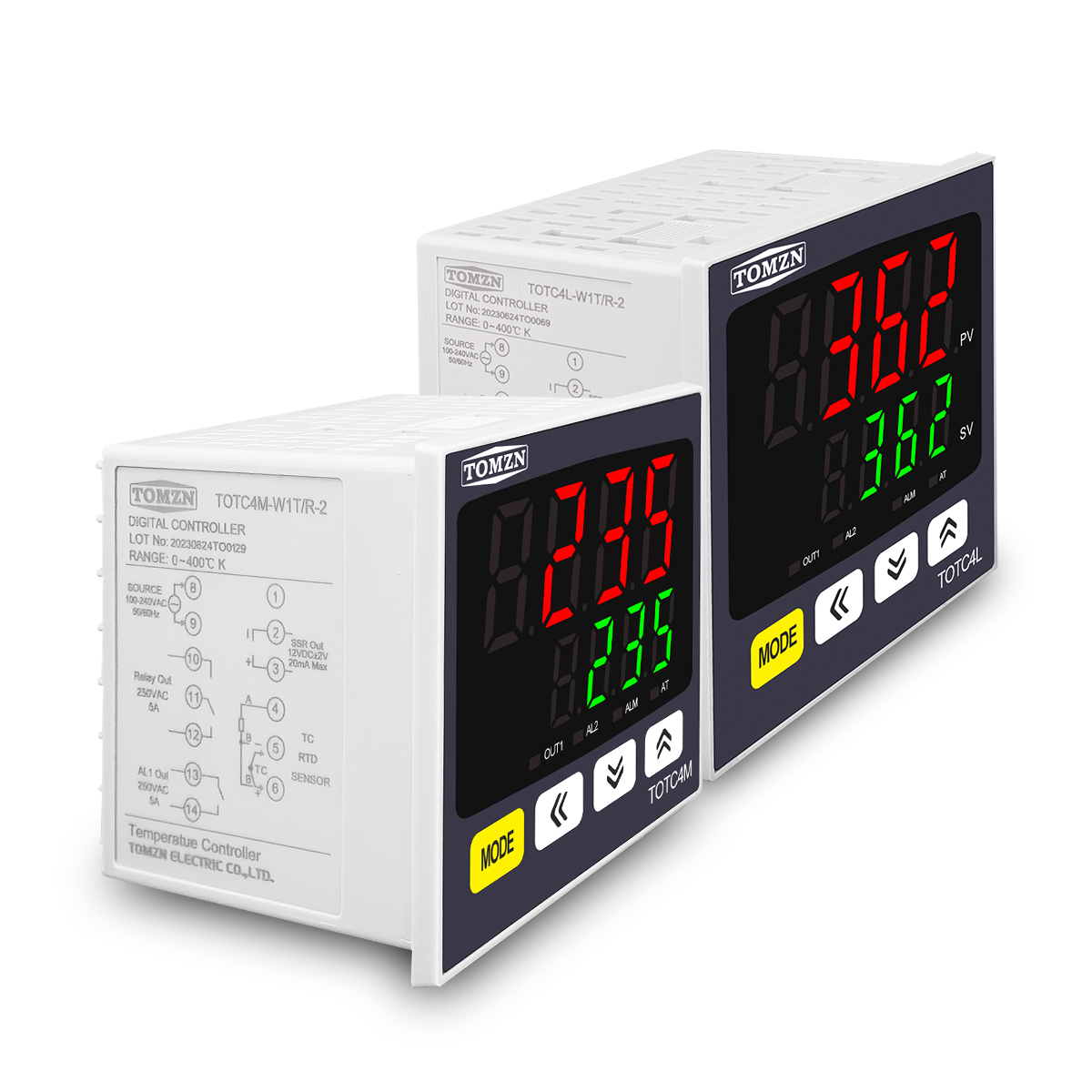

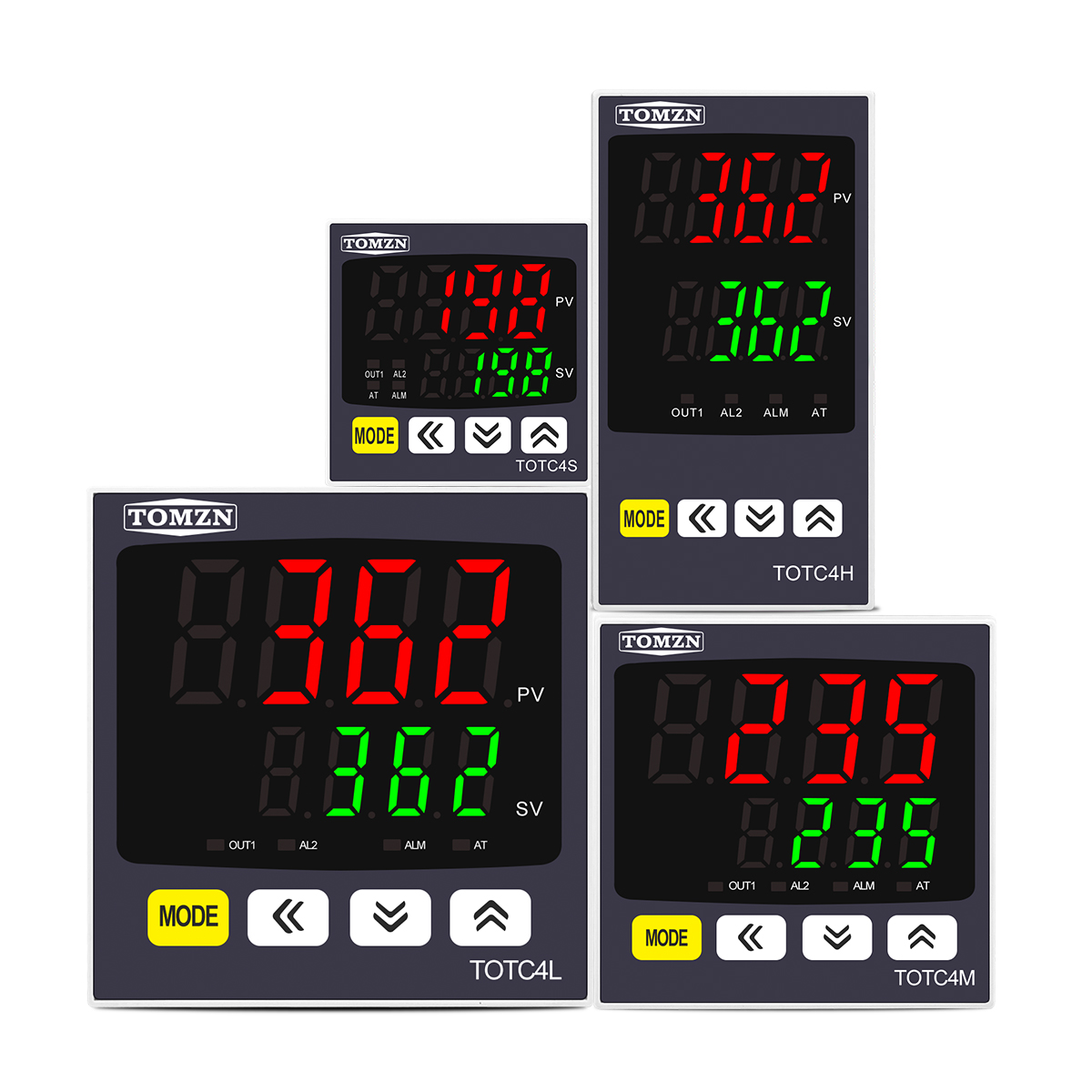

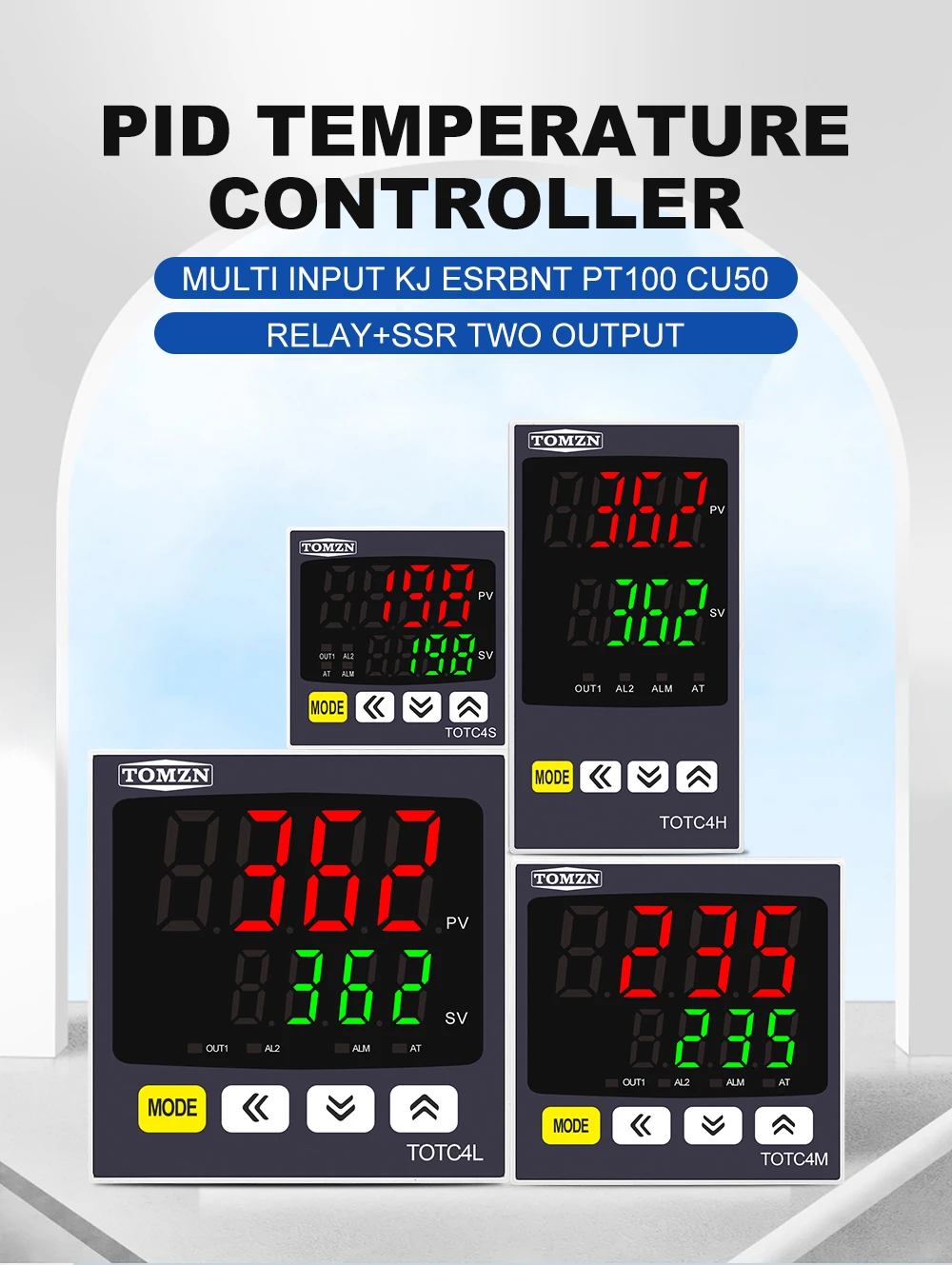

TOTC series is a compact PID temperature controller featuring 100ms high-speed sampling and dual output modes (relay/SSR drive). It delivers precise and stable temperature control in a space-saving design with enhanced display visibility.
- 100ms high-speed sampling with advanced PID algorithm

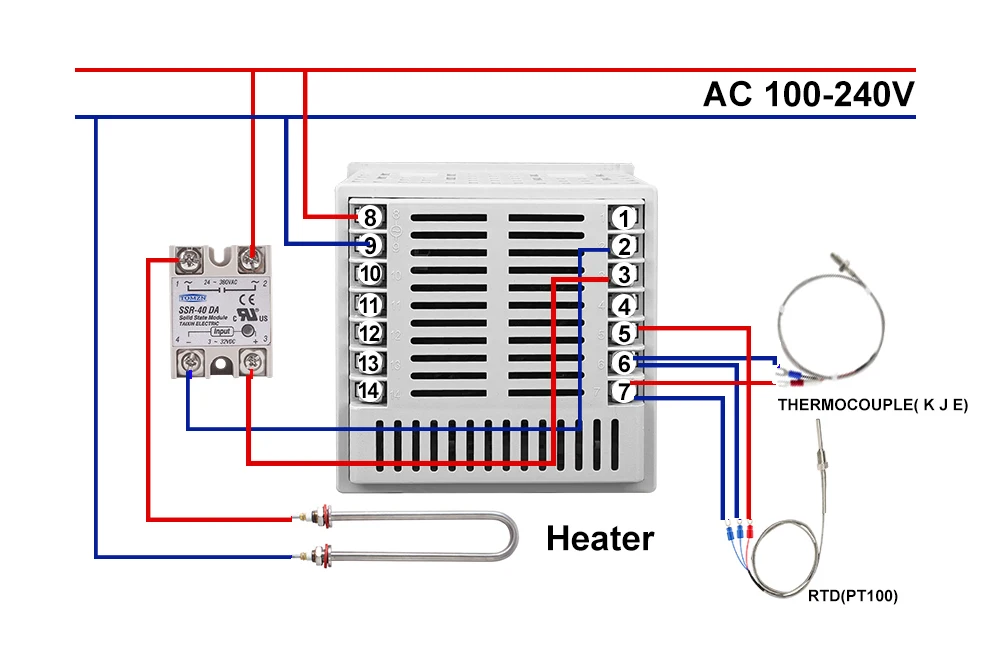

- Selectable relay or SSR output (SSRP function)
- 38% reduction in depth vs. previous models

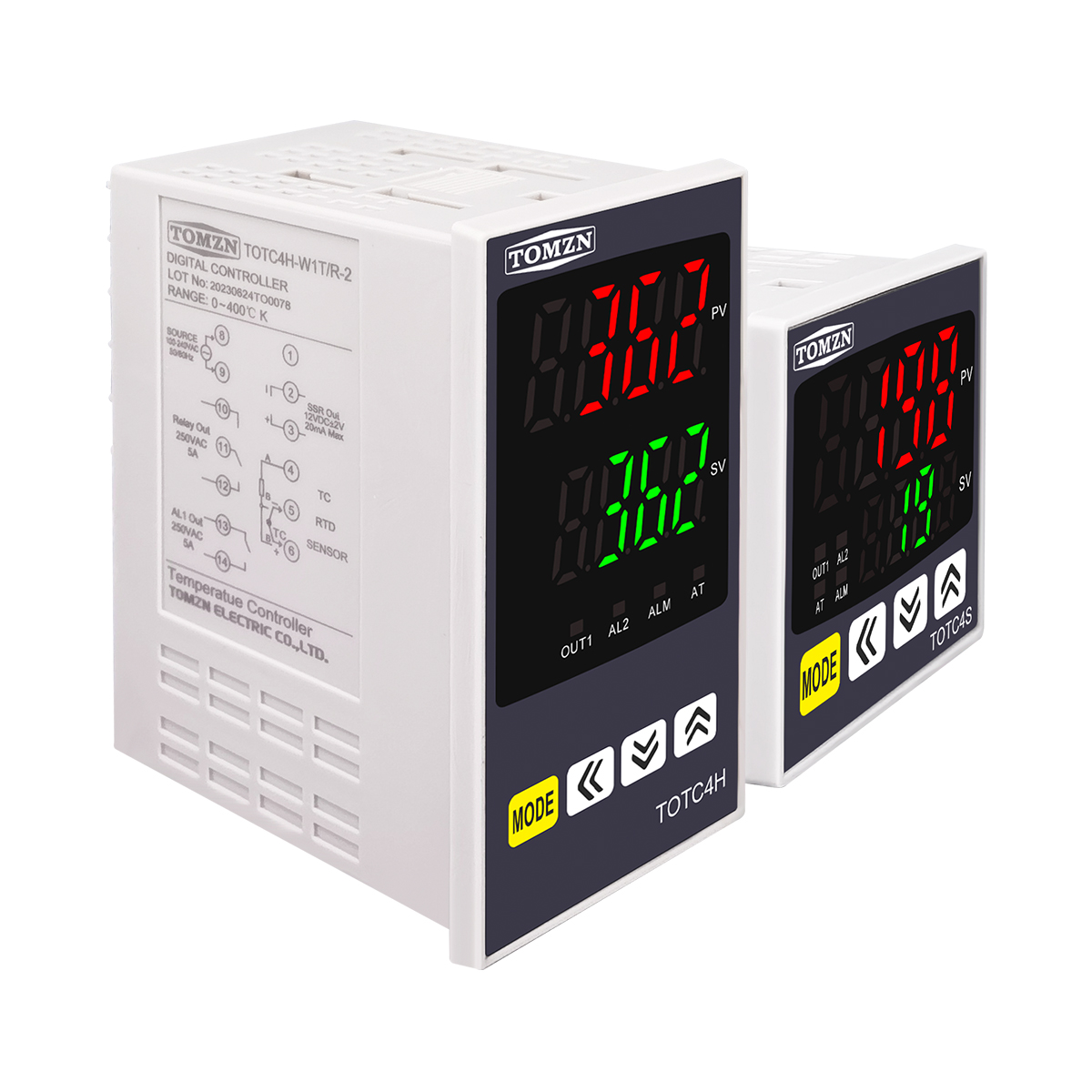

- Clear wide display with SV/PV deviation indication
- ±0.5%FS±1℃ accuracy
Product Data Sheet
Model number：TOTC series
Accuracy：±0.5%FS±1℃
Supply voltage：100-240V
Output types:Electromagnetic relay +SSR
Power consumption:AC100-240V:under 10VA
Control method:PID,or ON/OFF
Setting method：Touch switch
Indication method：8-segment 4-digital diasplay and LED indication
Operating temperature：-10 to 50℃
Operating humidity：35-85% RH max，non-condensing
Alias name：TOTC series pid temperature contrller，intelligent temperature controller
