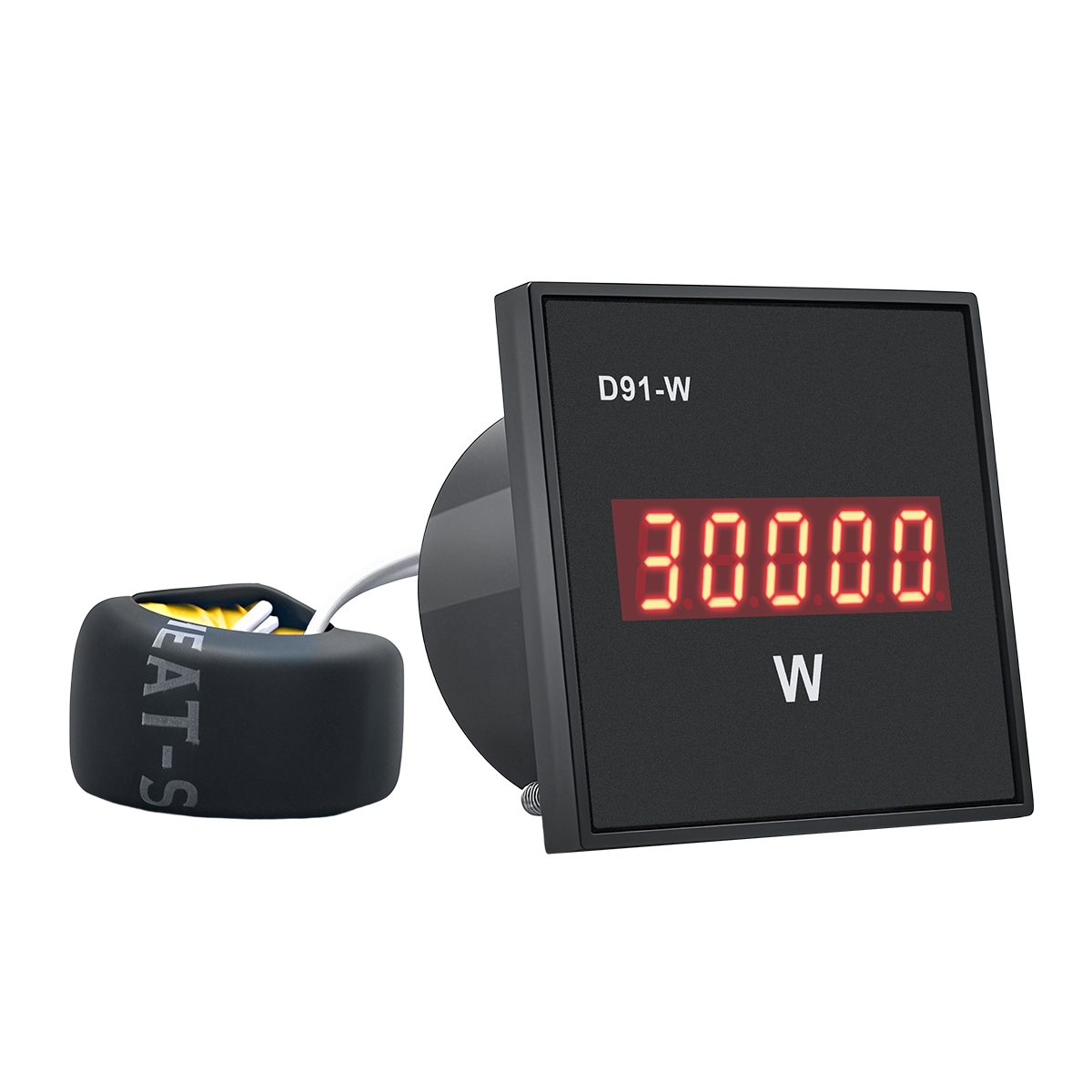

TOMZN Digital AC Active Power Meter 40-300V 0-99.9A 0-30000W 1%±2digits LED Dual Display High Precision Monitor Small Size 45*45

D91‑W Active Power measurement

General

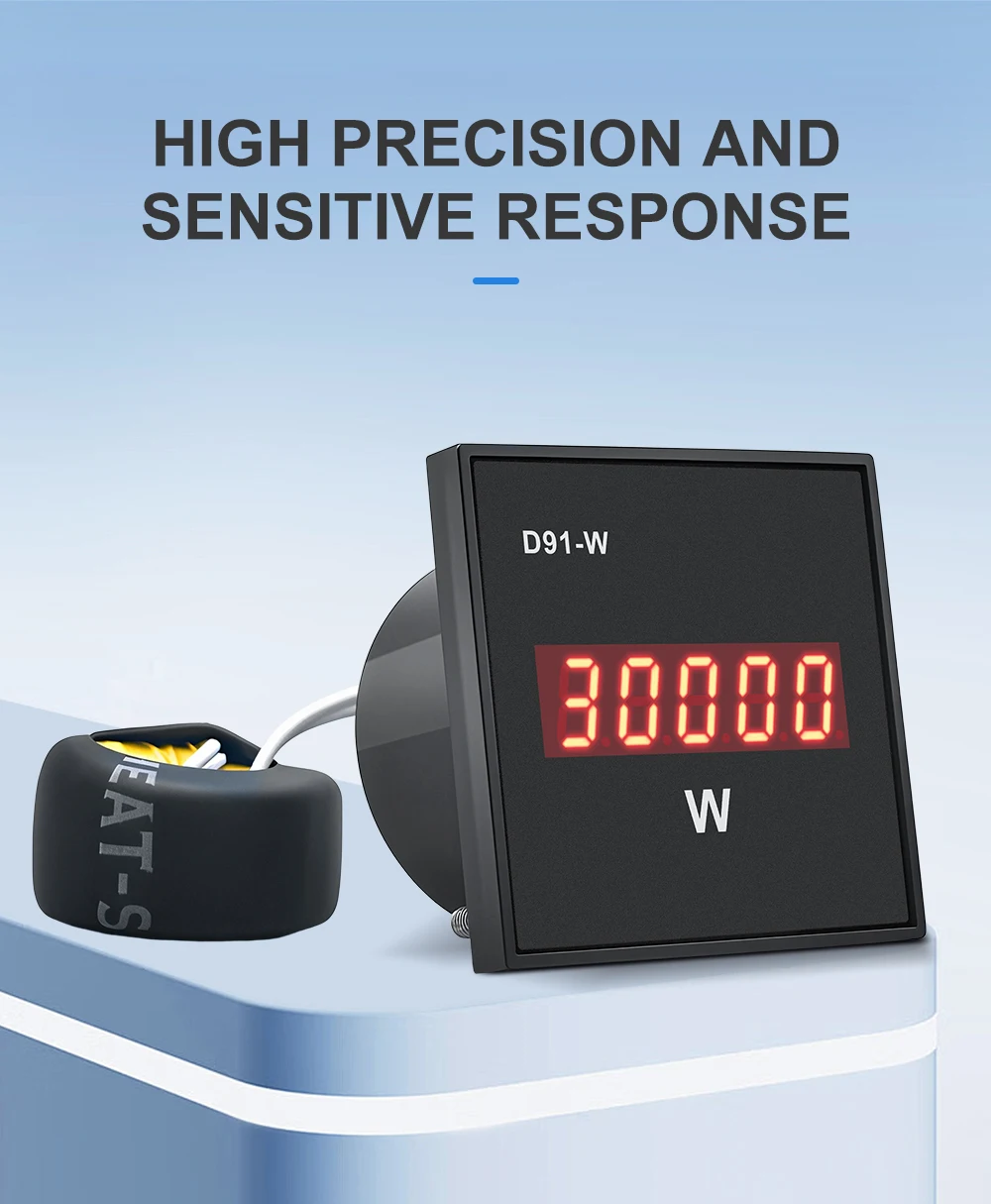

The D91-W is a compact digital AC active power meter with a 5‑digit red LED display. It measures active power from 0 to 30000W with 1% ±2 digits accuracy. The display automatically switches format: below 10000W it shows 0.0‑9999.9W, and above 10000W it shows 10000‑30000W. The meter features a built‑in current transformer (CT) for non‑invasive measurement — simply pass the conductor through the CT hole. Voltage measurement inputs are connected via rear terminals. It is ideal for power monitoring in industrial, commercial, and residential applications.

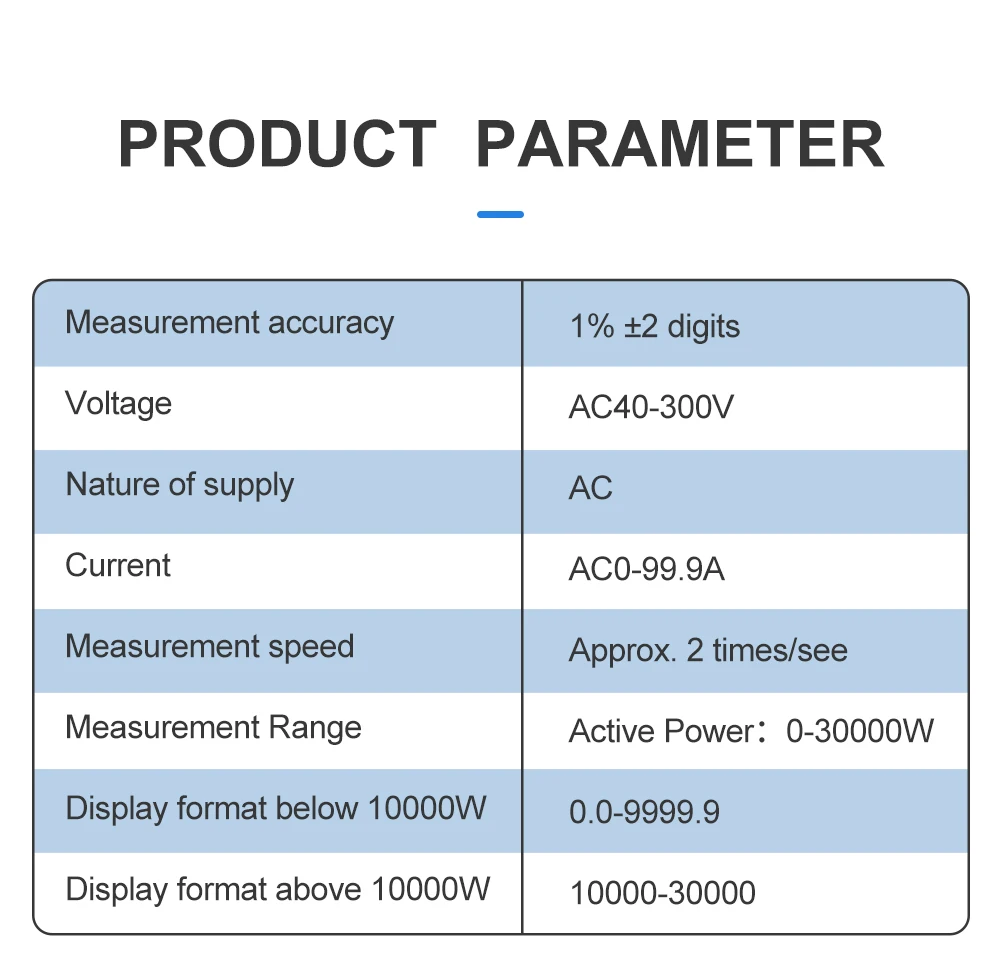

Product parameters

Product Model: D91‑W

​Product Type: Digital AC active power meter

Accuracy: 1% ±2 digits

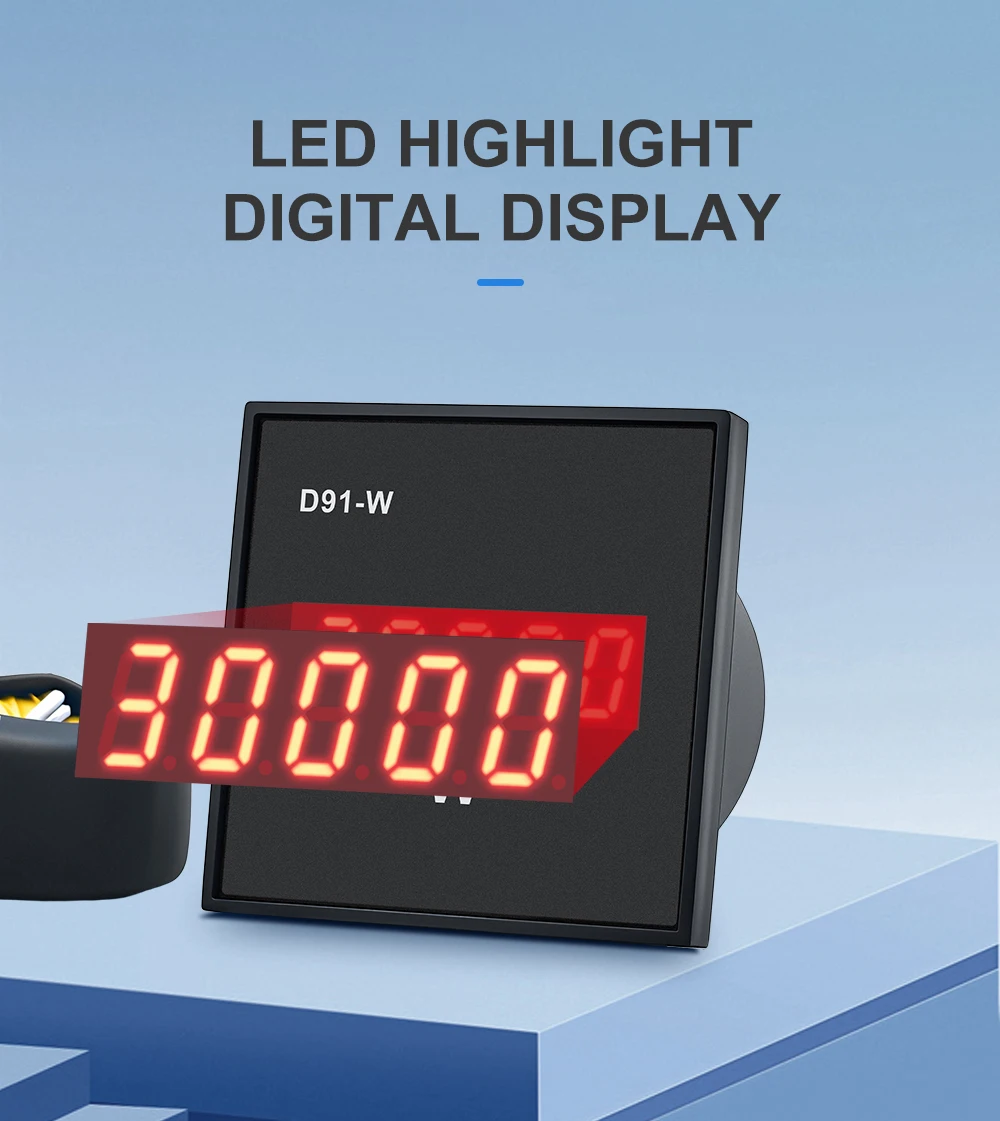

​Display Type: 5‑digit red LED

Measurement Range: 0‑30000W

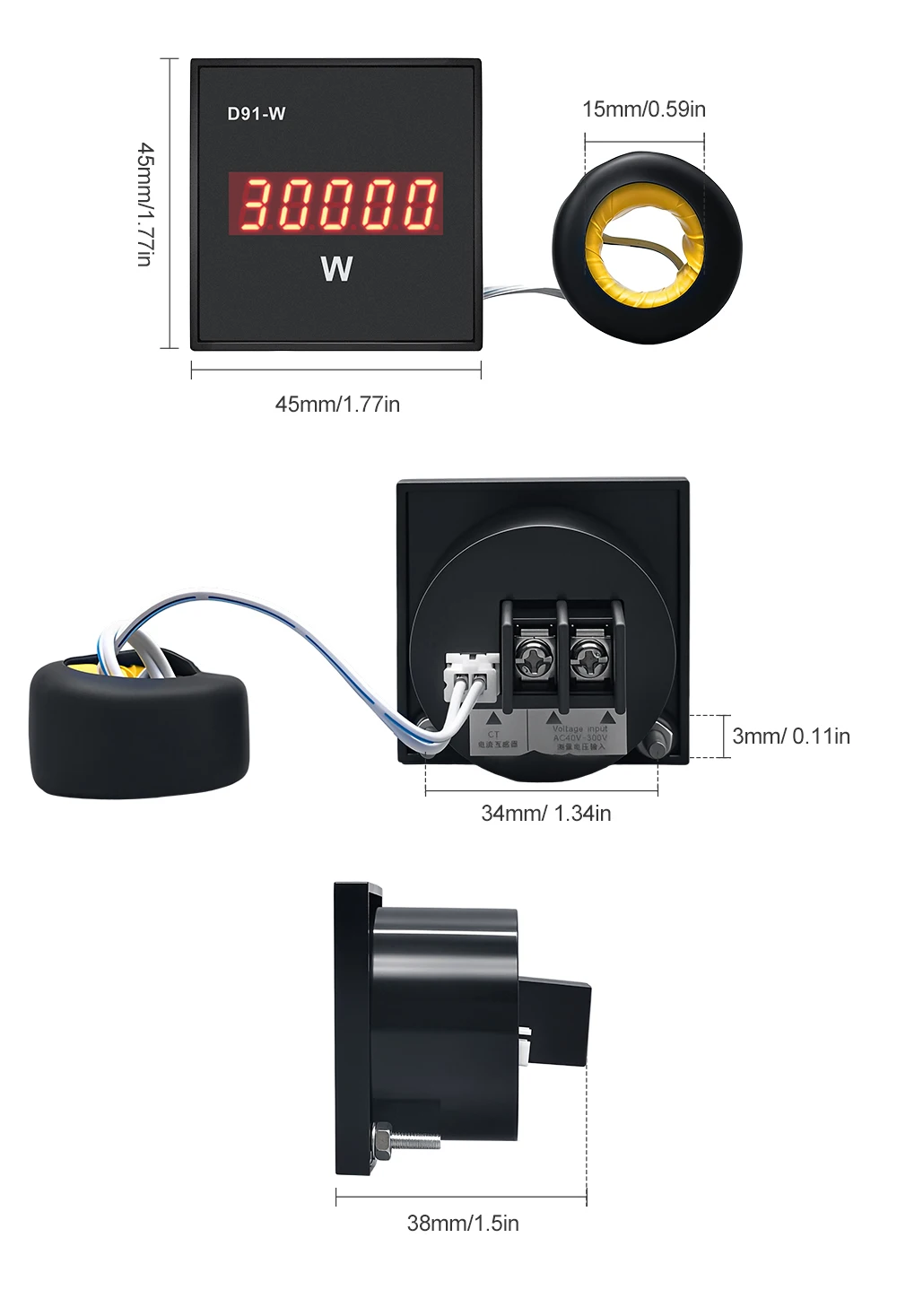

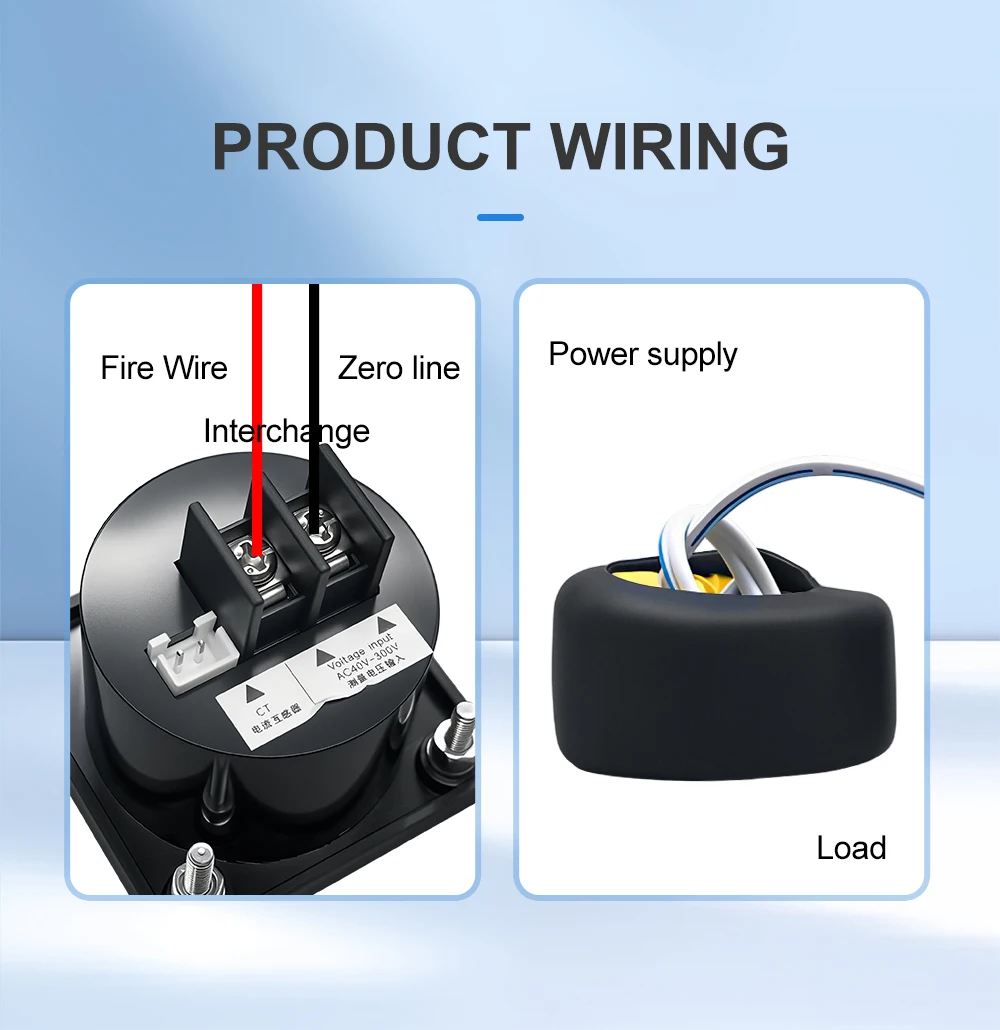

Display Format (<10000W): 0.0‑9999.9W ​Display Format (≥10000W): 10000‑30000W ​Measurement Speed: Approx. 2 times/second ​Voltage Input: AC40‑300V ​Current Input: Via  100A current transformer (CT) ​CT Installation: Pass conductor through CT hole ​CT Connection: Insert secondary terminals (white) into white socket on meter rear ​Voltage Connection: Connect to black terminals on meter rear ​Dimensions: 45 × 45 × 38 mm ​Accessories Included: 100A current transformer ×1 ​Application: Power monitoring for industrial, commercial, and residential systems
