TO219G 2P 400VAC 125A
General

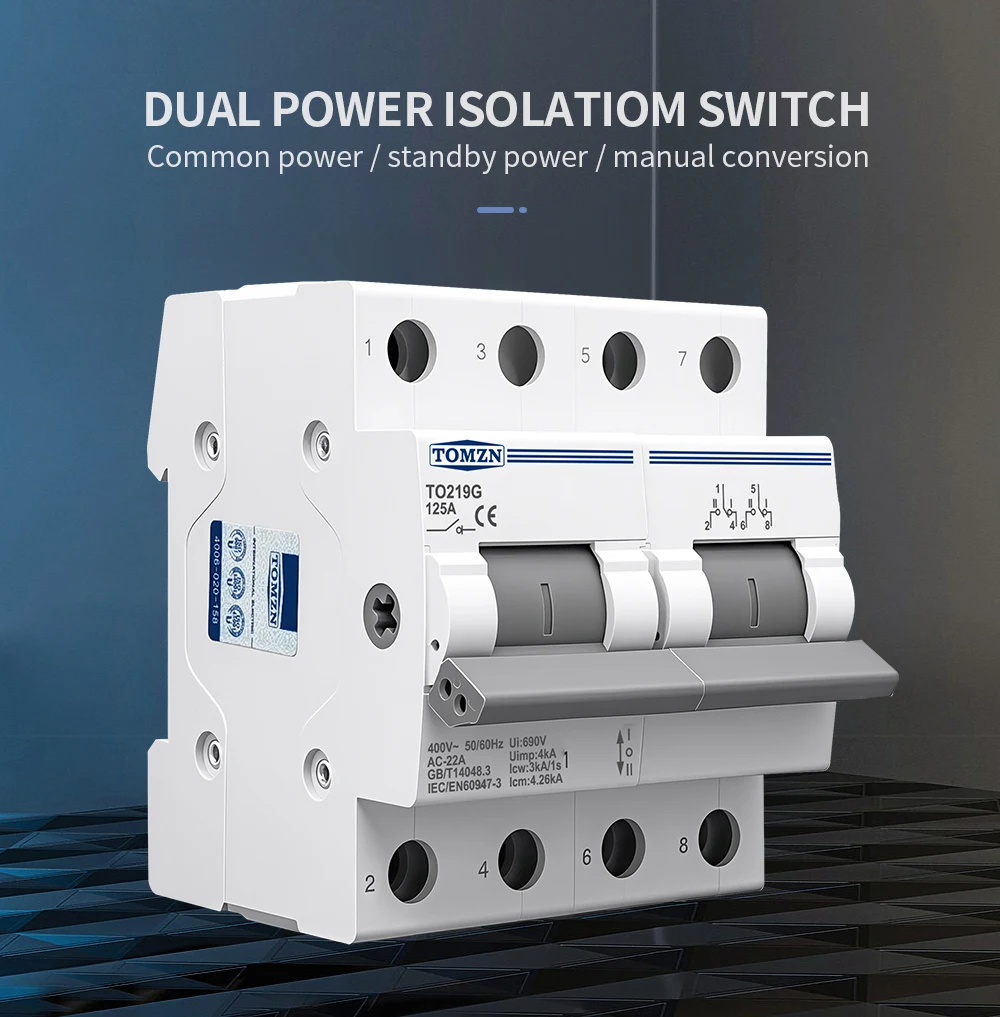

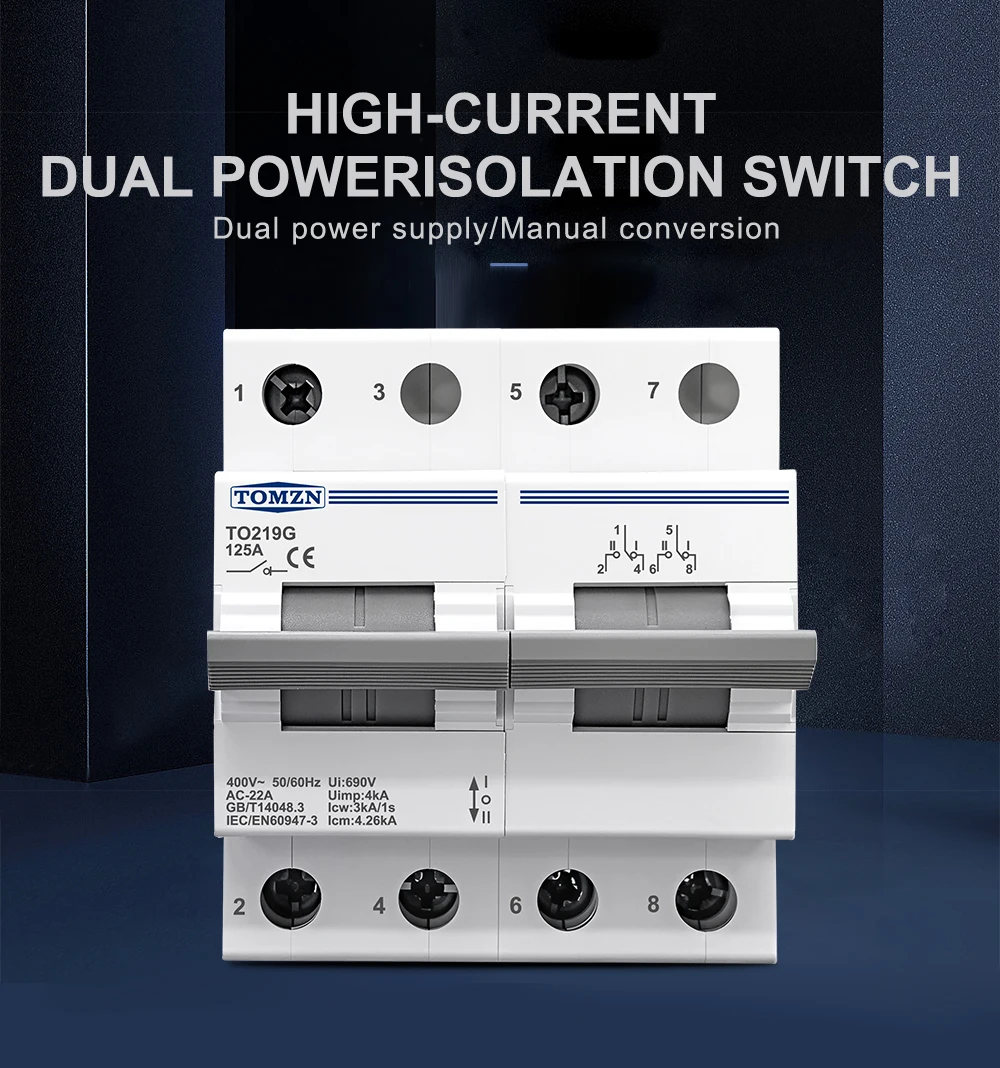

TO219G is a versatile manual isolation switch integrating four core functions: On, Off, Transfer, and Isolation. It enables safe switching or isolation between two loads on a single line or between two independent power sources. Constructed with a high-flame-retardant PA66 housing for durability, it is designed for easy DIN rail (35×7.5) mounting. Rated for 125A, it provides a reliable and safe solution for power switching and isolation in industrial equipment and circuits.

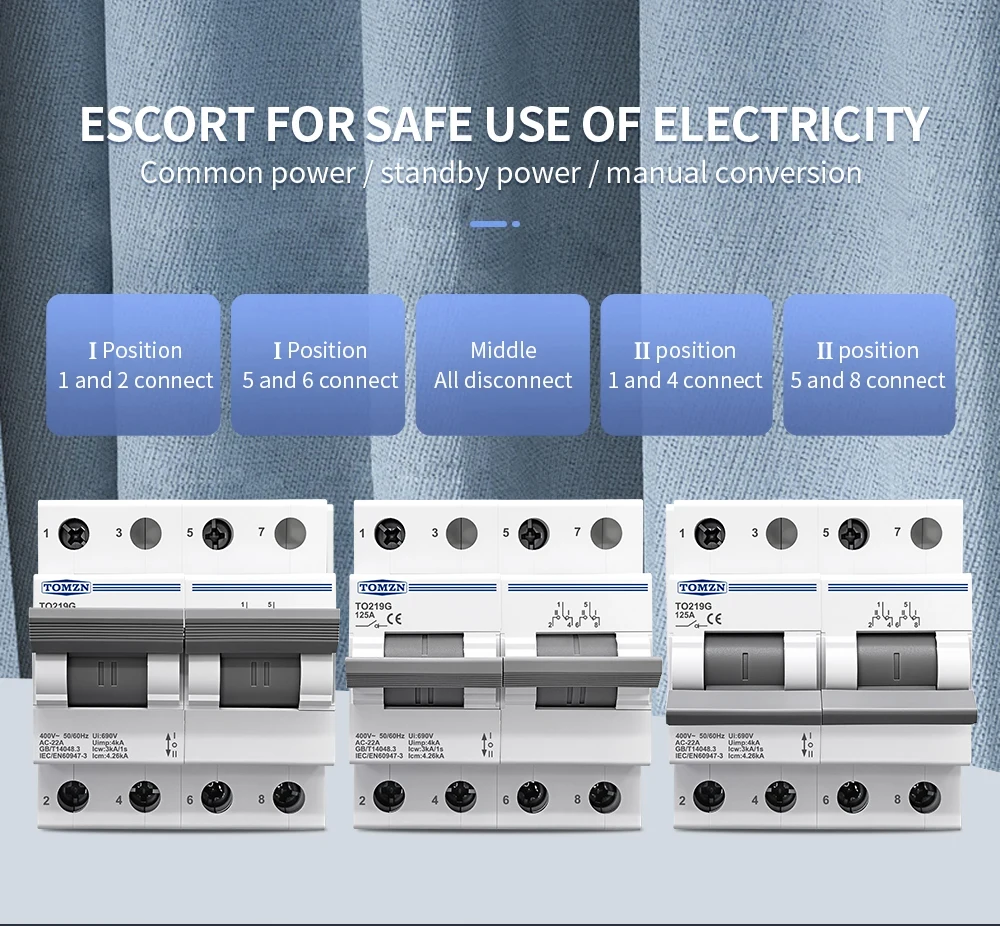

Function

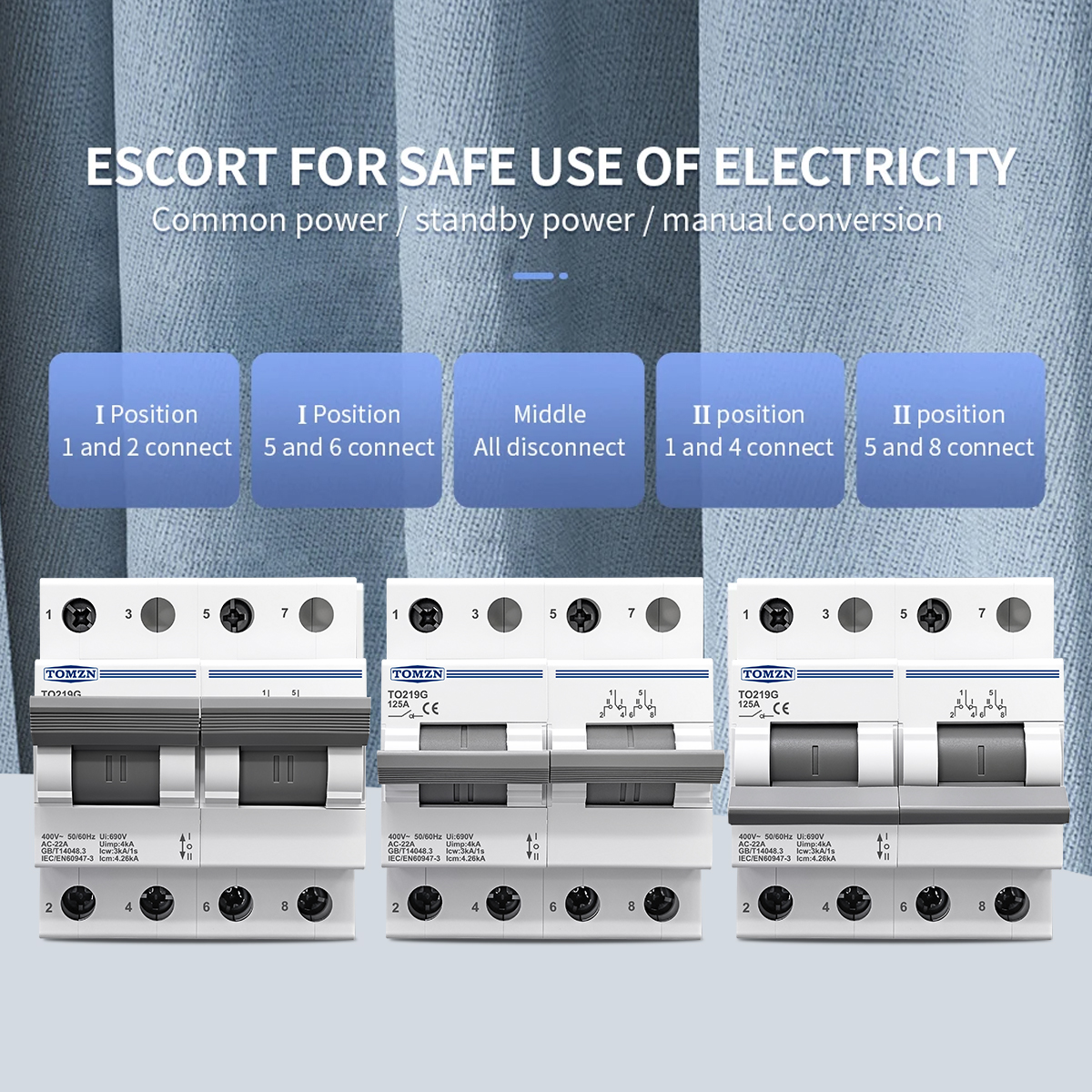

1.When the handle on the I position:
1 and 2 are connected
5 and 6 are connected.
2.When the handle on the II position:
1 and 4 are connected
5 and 8 are connected.
3.When the handle is in the middle position: both groups are disconnected.

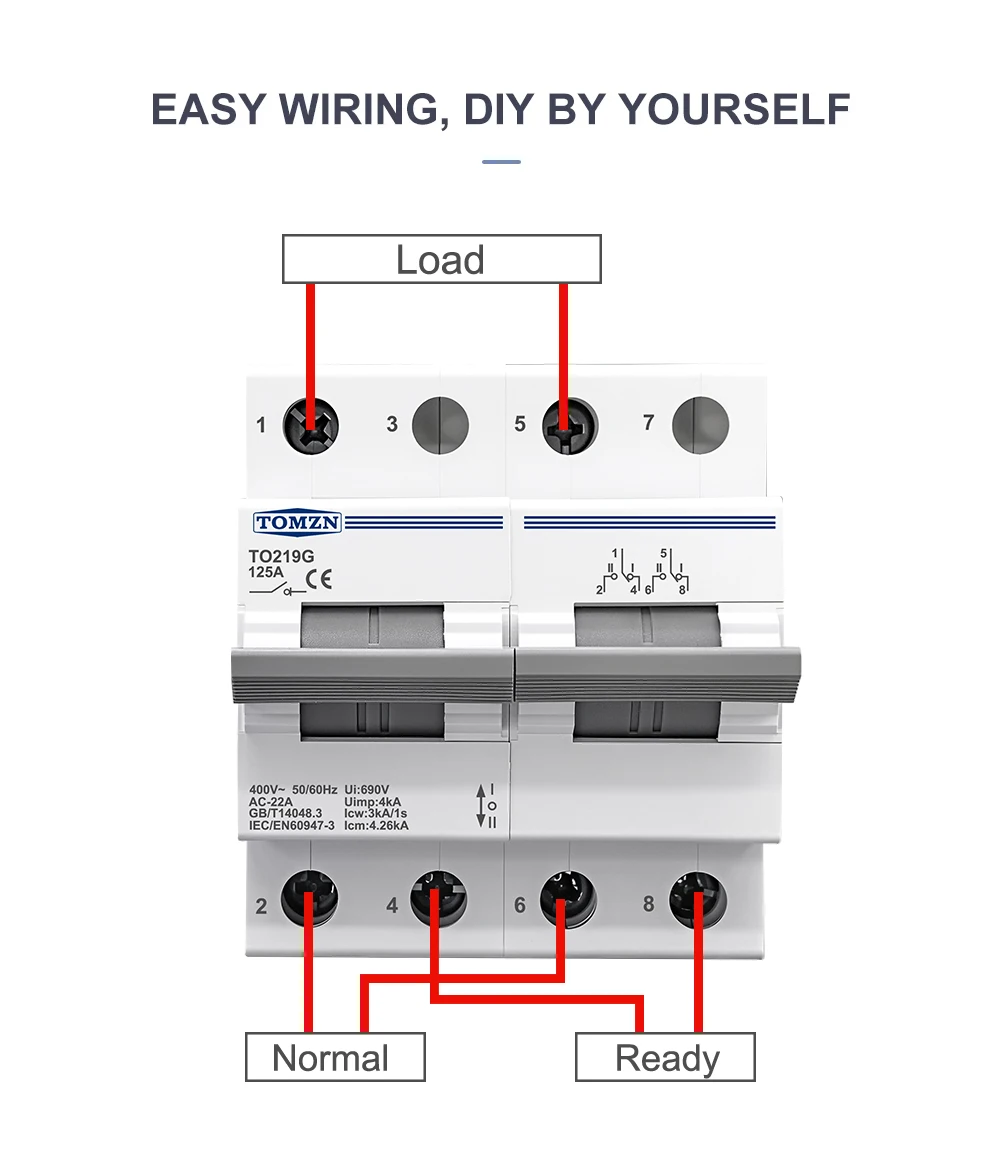

The position of the incoming and outgoing wires can be adjusted according to actual needs (the upper and lower out are not necessarily required, when used for dual power switching, the lower in and upper out must be used.)

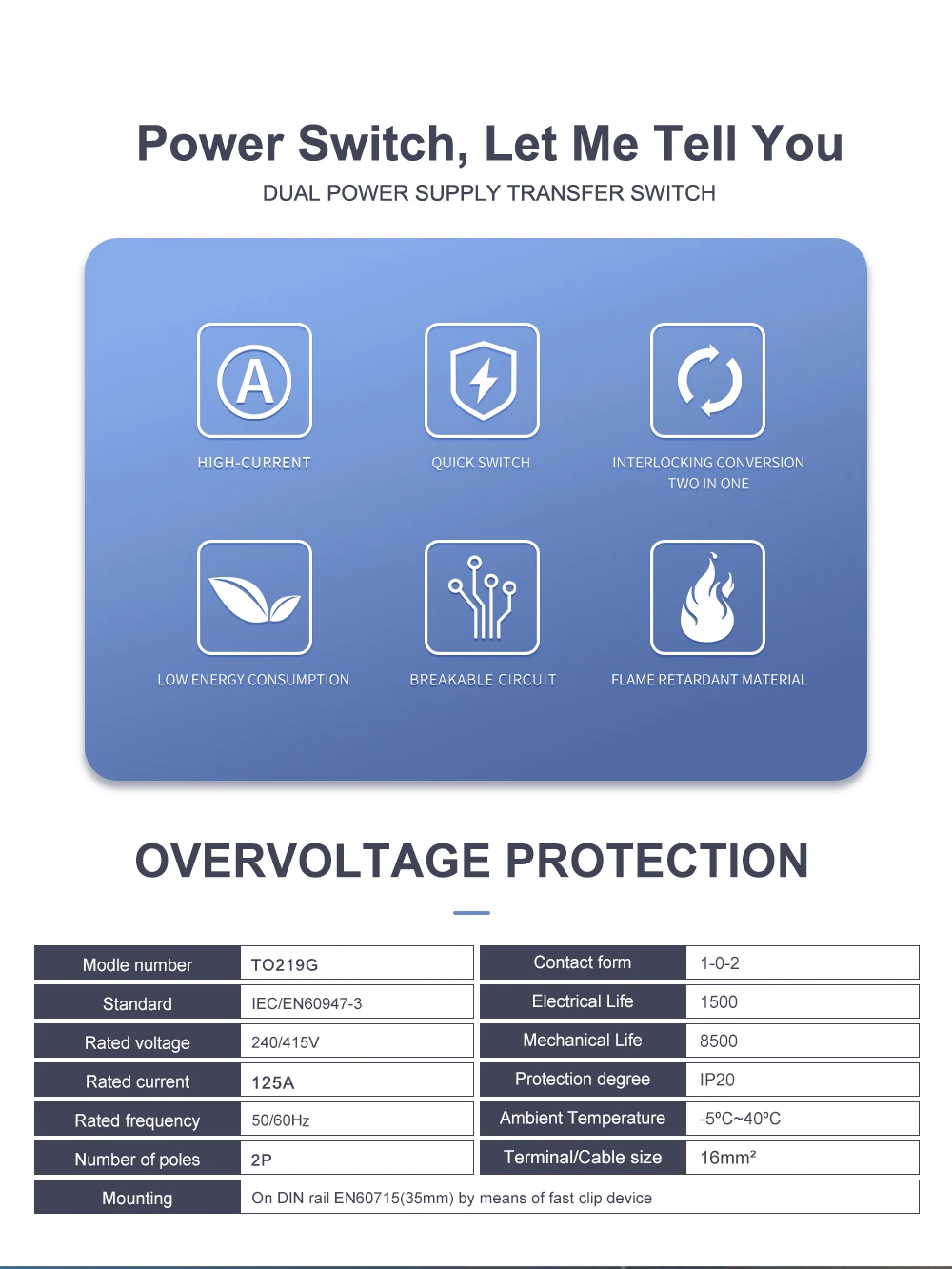

Product Parameter
Model：TO219G
Rated voltage：400VAC 50/60Hz
Rated current：125A
Ui：690V
Uimp：4kV

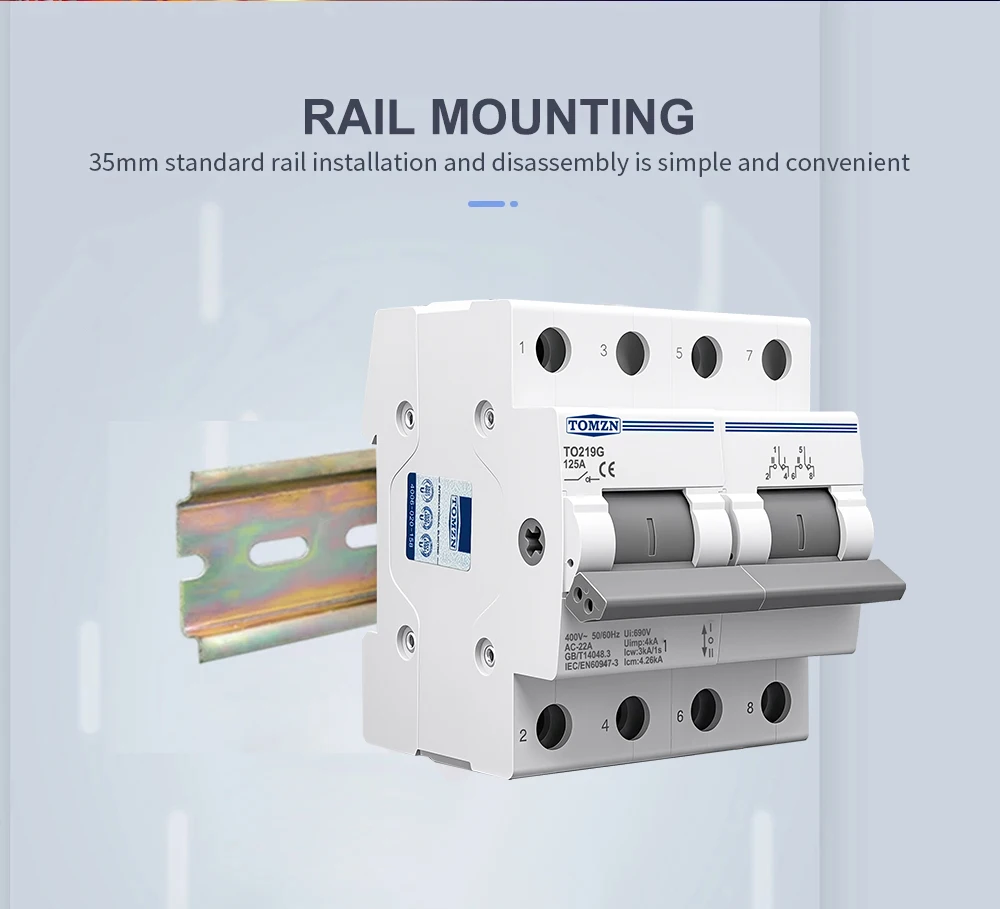

Way to install：35mm DIN Rail
The TOMZN Changeover Switch TO219G is a high-quality, reliable electrical component designed for seamless power transfer and circuit isolation. As a 2P (two-pole) circuit breaker with a voltage rating of 230VAC and a current capacity of 125A, this manual transfer switch is ideal for applications that require a safe and efficient way to switch between two power sources. Whether you’re managing a residential electrical system, a commercial facility, or an industrial setup, the TO219G offers a robust solution for power management and circuit protection.
This dual power manual transfer switch is specifically engineered to provide a secure and controlled method of switching between two independent power sources. It is commonly used in scenarios where uninterrupted power supply is critical, such as in backup power systems, emergency lighting, or critical machinery that cannot afford power interruptions. The TO219G ensures that the transition between power sources is smooth and safe, minimizing the risk of electrical surges or system failures.
One of the key features of the TOMZN TO219G is its manual operation, which allows users to switch between power sources without the need for automatic systems. This makes it a cost-effective and straightforward solution for those who prefer a hands-on approach to power management. The switch is equipped with an isolating interlock mechanism, which ensures that both power sources are completely disconnected during the switching process. This feature is essential for maintaining electrical safety and preventing accidental power overlap, which can lead to dangerous situations.
The TO219G is designed with a durable and compact housing that is suitable for both indoor and outdoor installations. Its construction is built to withstand harsh environmental conditions, making it a reliable choice for a wide range of applications. The switch is also equipped with a disconnectable design, allowing for easy maintenance and inspection without the need for complex tools or procedures. This makes it a user-friendly option for electricians and technicians who need to perform routine checks or repairs.
As a circuit breaker, the TO219G plays a crucial role in protecting electrical circuits from overloads and short circuits. Its 125A rating ensures that it can handle high current loads, making it suitable for use in heavy-duty applications. The 2P configuration means that it can control both the live and neutral conductors, providing a complete and balanced power supply. This is particularly important in systems where both poles must be disconnected simultaneously to ensure full circuit isolation.
The TOMZN Changeover Switch TO219G is an essential component for anyone looking to enhance the reliability and safety of their electrical system. Whether you’re setting up a backup power system, managing a commercial electrical panel, or upgrading an industrial facility, this switch offers a dependable and efficient solution. Its manual operation, isolating interlock, and disconnectable design make it a versatile and user-friendly option for a wide range of applications.
In addition to its core functionality, the TO219G is also designed with safety in mind. The switch includes built-in protection mechanisms that prevent accidental operation and ensure that the power sources are fully isolated during the switching process. This is especially important in environments where electrical safety is a top priority, such as in hospitals, data centers, or manufacturing plants. The switch’s robust construction and high-quality materials ensure long-term performance and minimal maintenance requirements.
The TOMZN TO219G is compatible with a wide range of electrical systems and can be easily integrated into existing setups. Its standard dimensions and mounting options make it a convenient choice for both new installations and system upgrades. The switch is also designed to meet international electrical standards, ensuring that it can be used in various regions and applications without compromising on performance or safety.
For those who are looking for a reliable and cost-effective solution for power transfer and circuit isolation, the TOMZN Changeover Switch TO219G is an excellent choice. Its combination of manual operation, isolating interlock, and disconnectable design makes it a versatile and user-friendly option for a wide range of applications. Whether you’re an electrician, a facility manager, or a homeowner, this switch offers the performance and reliability you need to ensure a safe and efficient electrical system.
In summary, the TOMZN TO219G is a high-quality, durable, and reliable manual transfer switch that provides a safe and efficient way to switch between two power sources. With its 2P configuration, 230VAC voltage rating, and 125A current capacity, it is suitable for a wide range of applications. Its isolating interlock mechanism and disconnectable design ensure maximum safety and ease of maintenance, making it an ideal choice for both residential and commercial use. Whether you’re looking to enhance the reliability of your electrical system or ensure a smooth power transition, the TO219G is a dependable and efficient solution.
This dual power manual transfer switch is specifically engineered to provide a secure and controlled method of switching between two independent power sources. It is commonly used in scenarios where uninterrupted power supply is critical, such as in backup power systems, emergency lighting, or critical machinery that cannot afford power interruptions. The TO219G ensures that the transition between power sources is smooth and safe, minimizing the risk of electrical surges or system failures.
One of the key features of the TOMZN TO219G is its manual operation, which allows users to switch between power sources without the need for automatic systems. This makes it a cost-effective and straightforward solution for those who prefer a hands-on approach to power management. The switch is equipped with an isolating interlock mechanism, which ensures that both power sources are completely disconnected during the switching process. This feature is essential for maintaining electrical safety and preventing accidental power overlap, which can lead to dangerous situations.
The TO219G is designed with a durable and compact housing that is suitable for both indoor and outdoor installations. Its construction is built to withstand harsh environmental conditions, making it a reliable choice for a wide range of applications. The switch is also equipped with a disconnectable design, allowing for easy maintenance and inspection without the need for complex tools or procedures. This makes it a user-friendly option for electricians and technicians who need to perform routine checks or repairs.
As a circuit breaker, the TO219G plays a crucial role in protecting electrical circuits from overloads and short circuits. Its 125A rating ensures that it can handle high current loads, making it suitable for use in heavy-duty applications. The 2P configuration means that it can control both the live and neutral conductors, providing a complete and balanced power supply. This is particularly important in systems where both poles must be disconnected simultaneously to ensure full circuit isolation.
The TOMZN Changeover Switch TO219G is an essential component for anyone looking to enhance the reliability and safety of their electrical system. Whether you’re setting up a backup power system, managing a commercial electrical panel, or upgrading an industrial facility, this switch offers a dependable and efficient solution. Its manual operation, isolating interlock, and disconnectable design make it a versatile and user-friendly option for a wide range of applications.
In addition to its core functionality, the TO219G is also designed with safety in mind. The switch includes built-in protection mechanisms that prevent accidental operation and ensure that the power sources are fully isolated during the switching process. This is especially important in environments where electrical safety is a top priority, such as in hospitals, data centers, or manufacturing plants. The switch’s robust construction and high-quality materials ensure long-term performance and minimal maintenance requirements.
The TOMZN TO219G is compatible with a wide range of electrical systems and can be easily integrated into existing setups. Its standard dimensions and mounting options make it a convenient choice for both new installations and system upgrades. The switch is also designed to meet international electrical standards, ensuring that it can be used in various regions and applications without compromising on performance or safety.
For those who are looking for a reliable and cost-effective solution for power transfer and circuit isolation, the TOMZN Changeover Switch TO219G is an excellent choice. Its combination of manual operation, isolating interlock, and disconnectable design makes it a versatile and user-friendly option for a wide range of applications. Whether you’re an electrician, a facility manager, or a homeowner, this switch offers the performance and reliability you need to ensure a safe and efficient electrical system.
In summary, the TOMZN TO219G is a high-quality, durable, and reliable manual transfer switch that provides a safe and efficient way to switch between two power sources. With its 2P configuration, 230VAC voltage rating, and 125A current capacity, it is suitable for a wide range of applications. Its isolating interlock mechanism and disconnectable design ensure maximum safety and ease of maintenance, making it an ideal choice for both residential and commercial use. Whether you’re looking to enhance the reliability of your electrical system or ensure a smooth power transition, the TO219G is a dependable and efficient solution.
