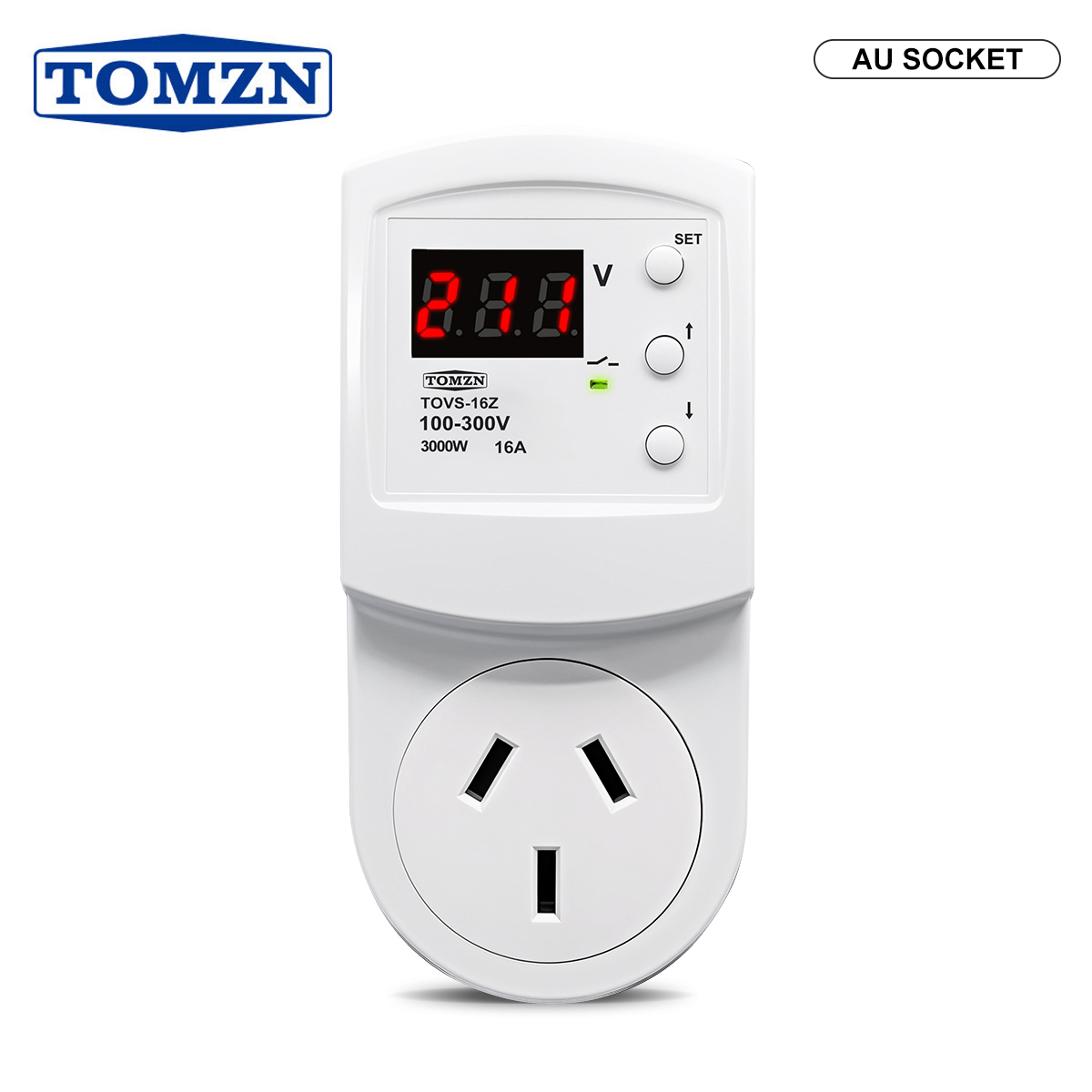

TOMZN Australia Plug Voltage Protector AC 230V 16A TOVS-16Z OVP UVP with Auto Reconnect for Household Appliances

TOVS-16Z AC110V 230V 16A AU socket AU Plug

Voltage measurement + Overvoltage and undervoltage protection

General

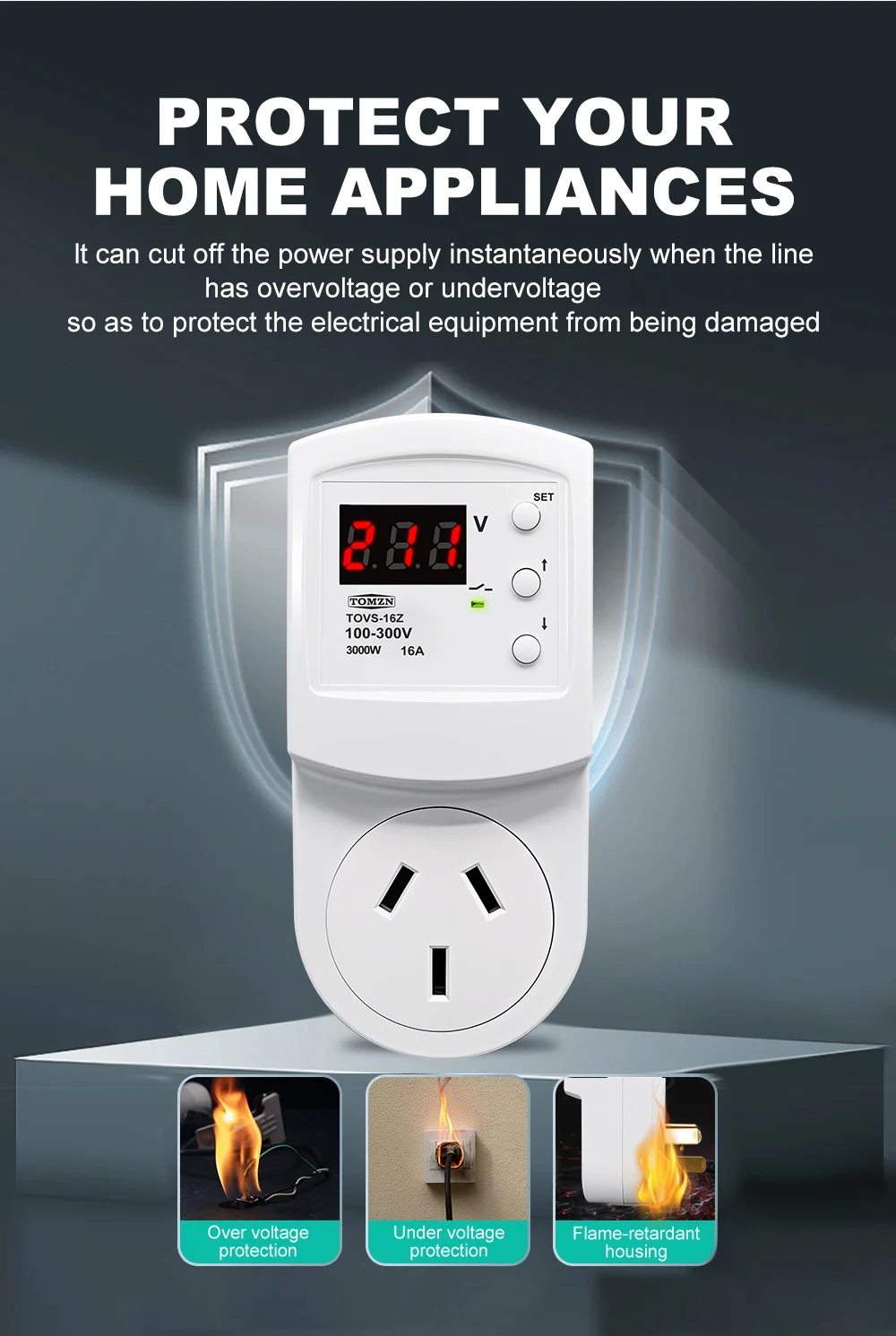

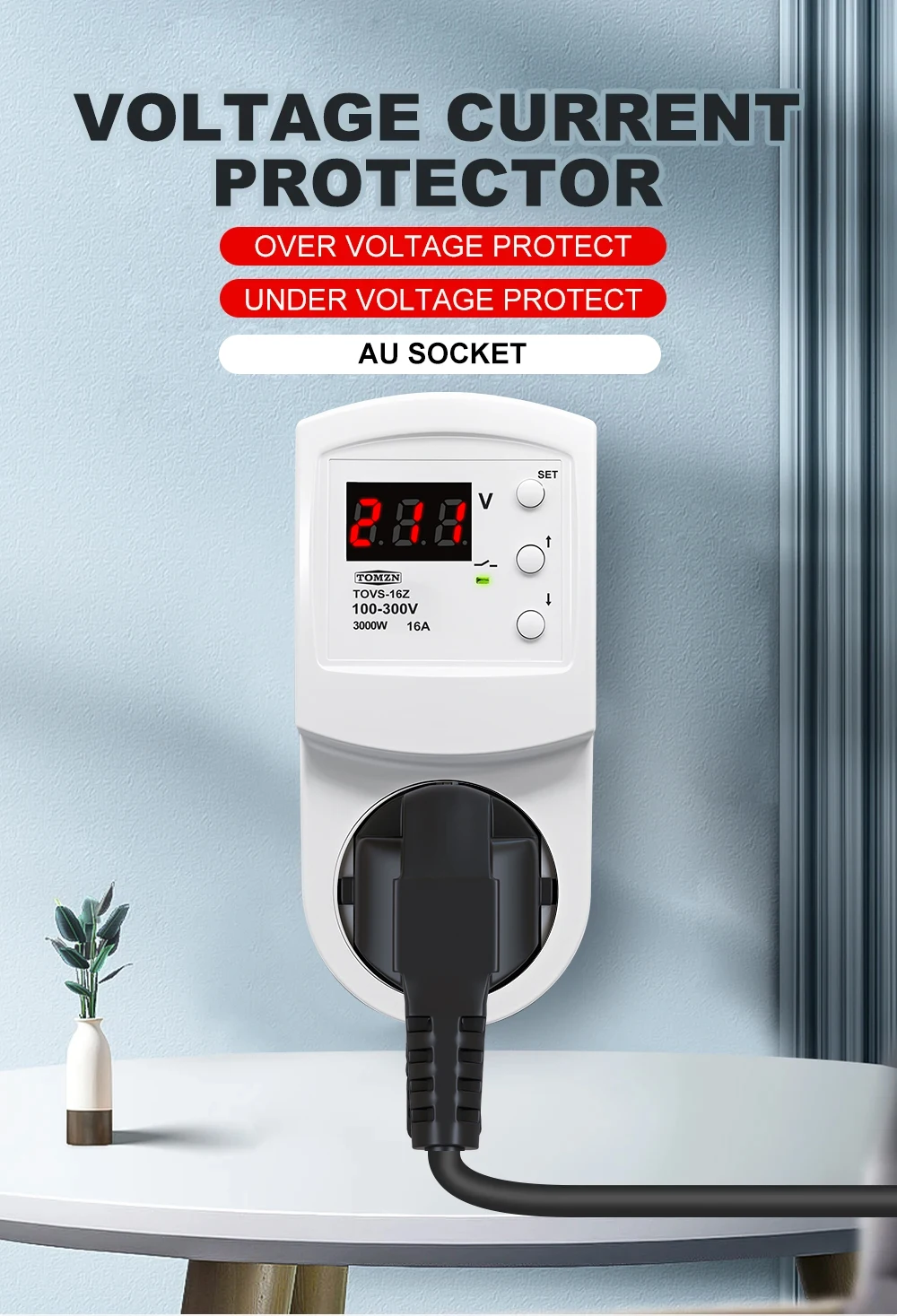

  TOMZN TOVS-16Z is an economical and reliable voltage protector designed for Australian standard electrical systems (AU plug and universal socket). It provides real-time voltage measurement, overvoltage protection, and undervoltage protection for connected household appliances.

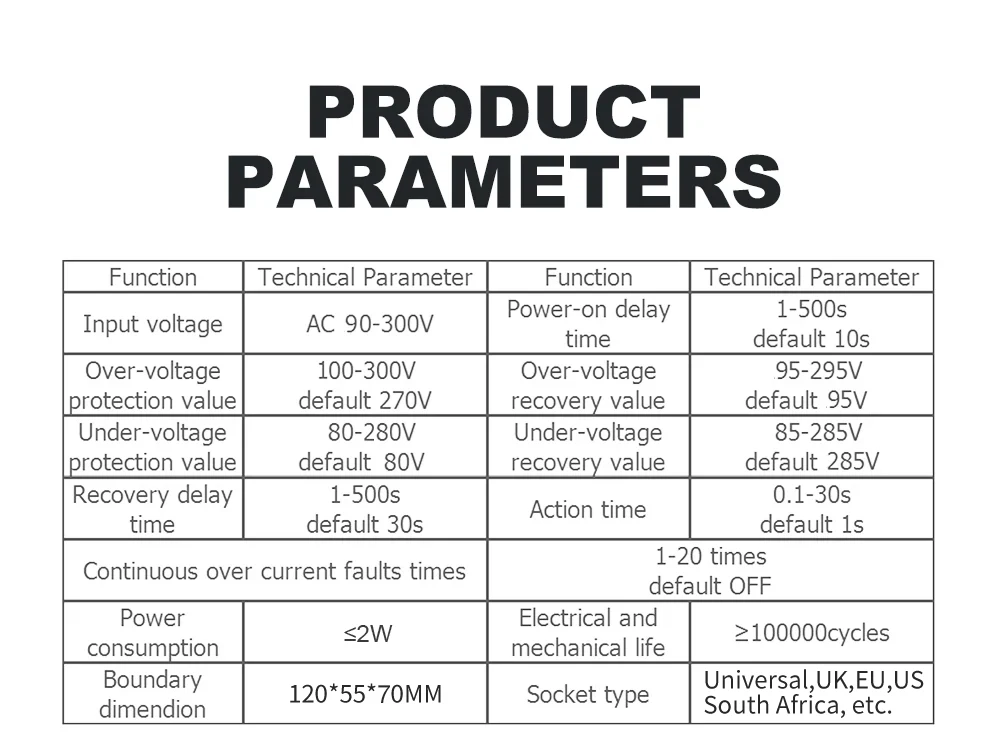

Product Parameters

• Model:TOVS-16Z

• Input Plug: AU Plug

• Output Socket:Universal Socket

• Rated Voltage:100-300V AC

• Max. Load Current:16A(unadjustable）

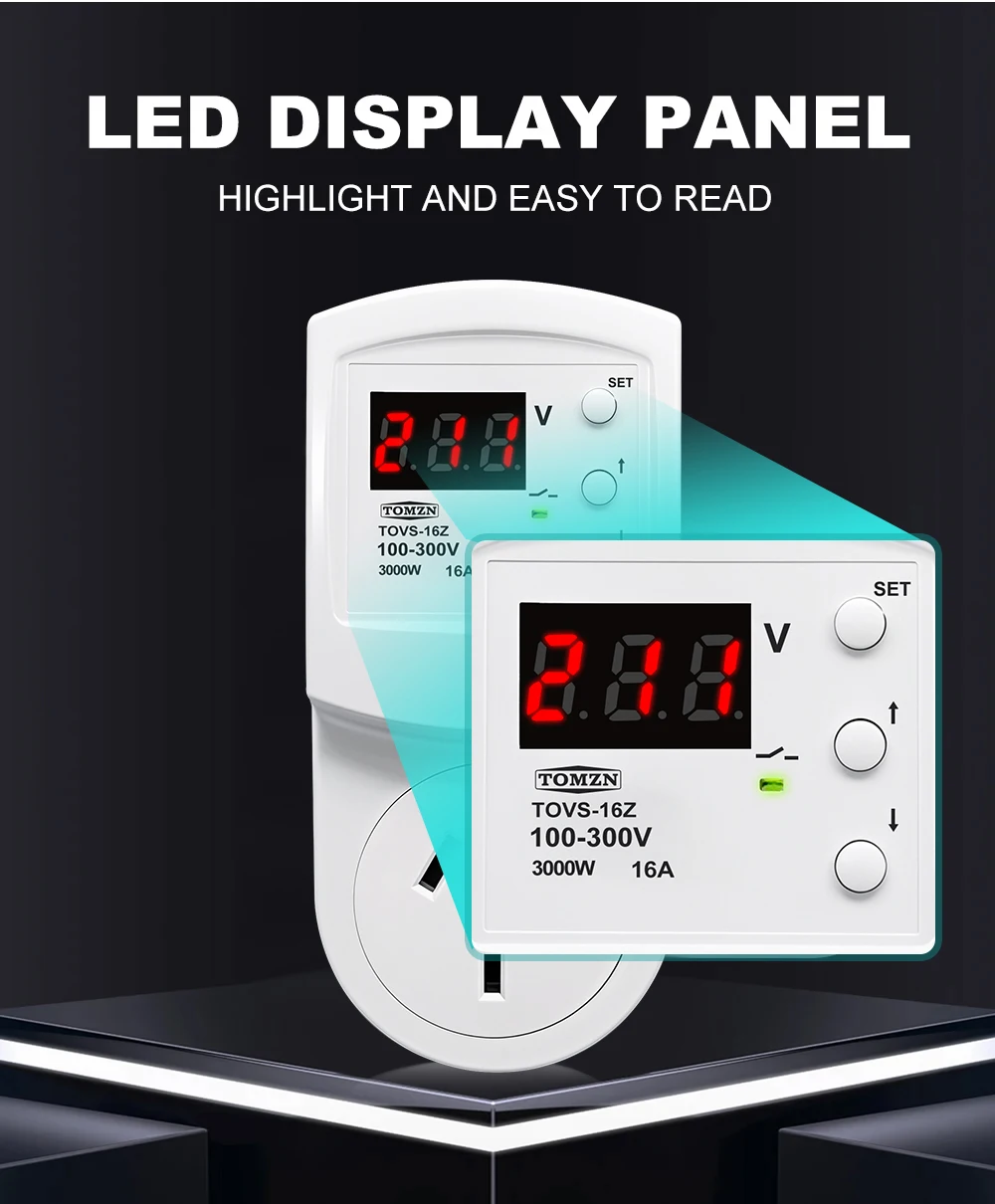

• Voltage Display:Real-time voltage measurement and LED display

• Voltage Calibration:adjustable ±9.5%

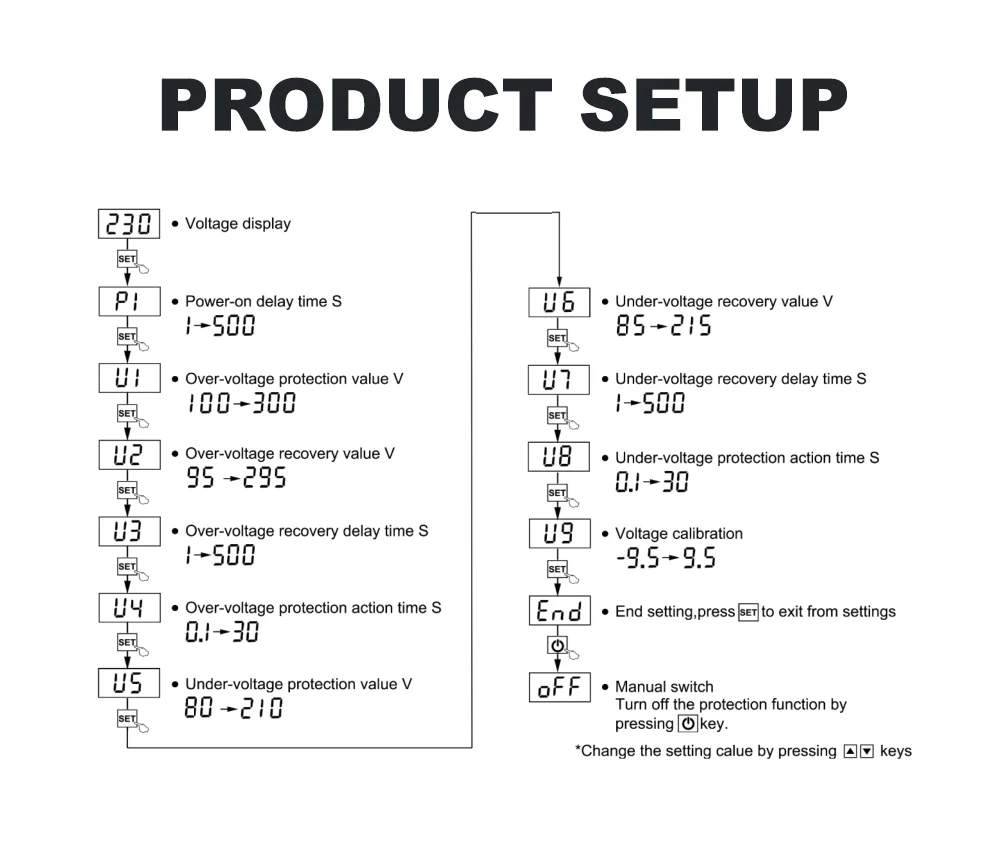

• Over-Voltage Protection:

  • Protection Threshold Range: 100~300V (Default: 270V)

  • Recovery Threshold Range: 95~295V (Default: 265V)

  • Protection Response Time: 0.1s~30s (Default: 1s)

  • Recovery Delay Time: 1~500s (Default: 30s)

• Under-Voltage Protection:

  • Protection Threshold Range: 80~280V (Default: 80V)

  • Recovery Threshold Range: 85~285V (Default: 285V)

  • Protection Response Time: 0.1s~30s (Default: 1s)

  • Recovery Delay Time: 1~500s (Default: 30s)

• General Parameters:

• • Power-On Delay Time: 1~500s (Default: 10s)

  • Power Consumption (Standby): < 2W

  • Mechanical Life (Switching Cycles): 100,000 times

NOTED: This device does not support current measurement and adjustment of overcurrent protection.
