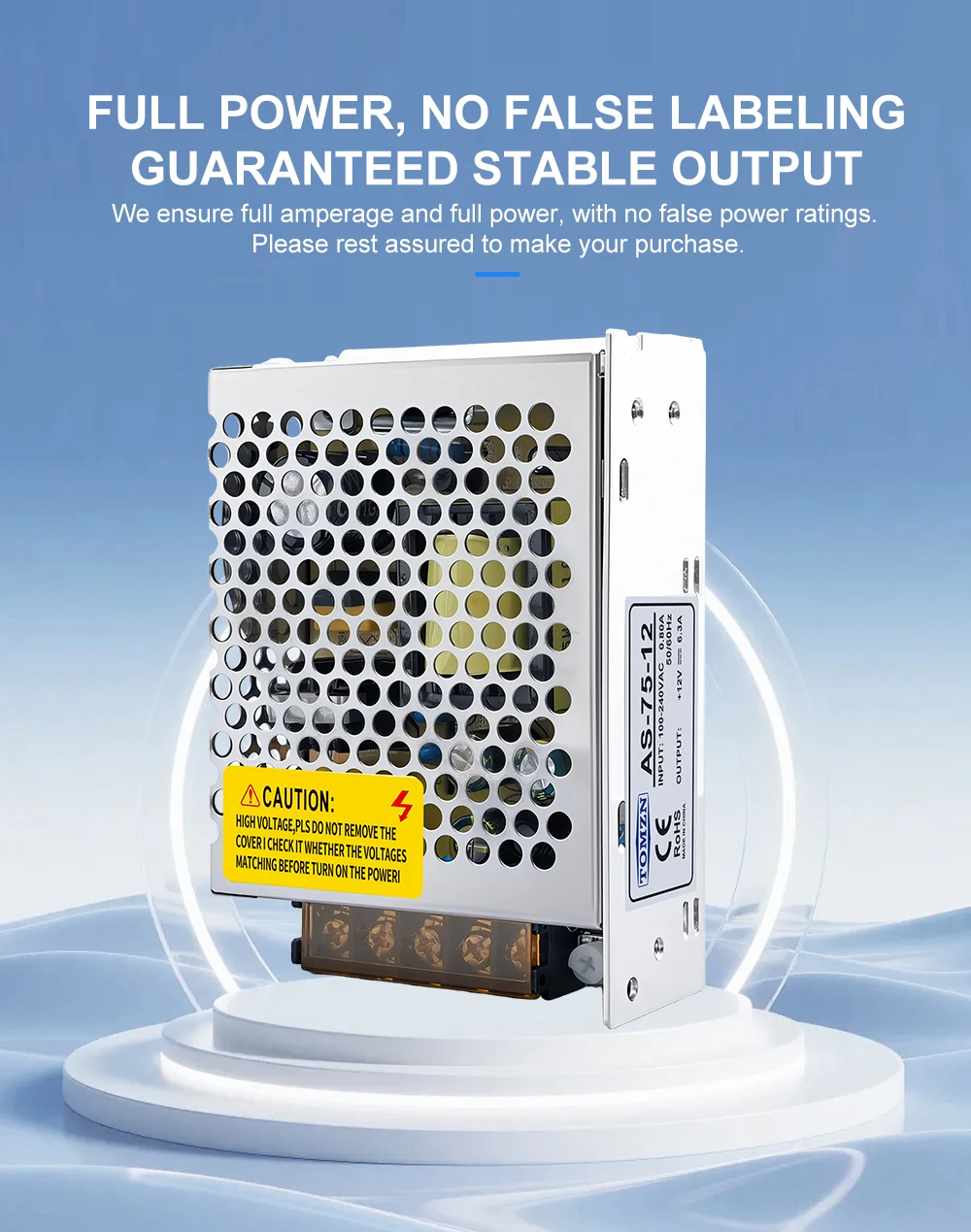

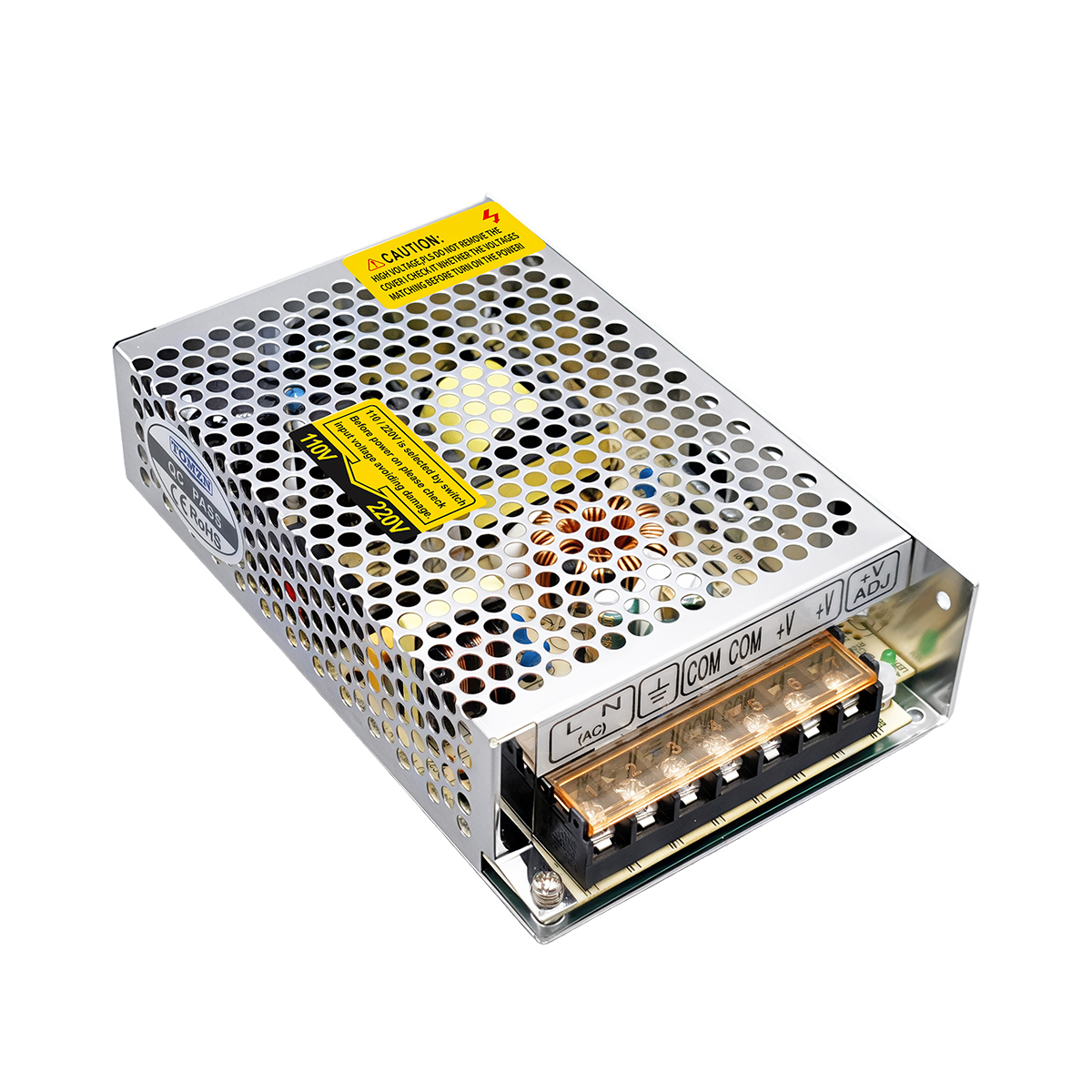

TOMZN AS Series Switching Power Supply AC to DC 15W 25W 35W 50W 60W 75W 100W 120W AC110V 230V to DC12V 24V 36V 48V 60V For CNC

Function: AS series can convert AC110V/220V voltage to DC12V/24V/36V/48V/60V voltage.

General

AS Series is an AC‑DC single‑output switching power supply designed for industrial control, LED lighting, and automation equipment. It covers a wide power range from 15W up to 2000W. With compact size, light weight, and high efficiency (typically 72%–86%), the AS series reduces system energy consumption.

The series supports a universal AC input voltage (85–264VAC or 90–264VAC for standard models, and 180–260VAC for high‑power models), making it suitable for global power grids. Output voltages include 5V, 12V, 15V, 24V, 36V, 48V, and 60V, meeting diverse load requirements from small electronics to heavy‑duty industrial devices.

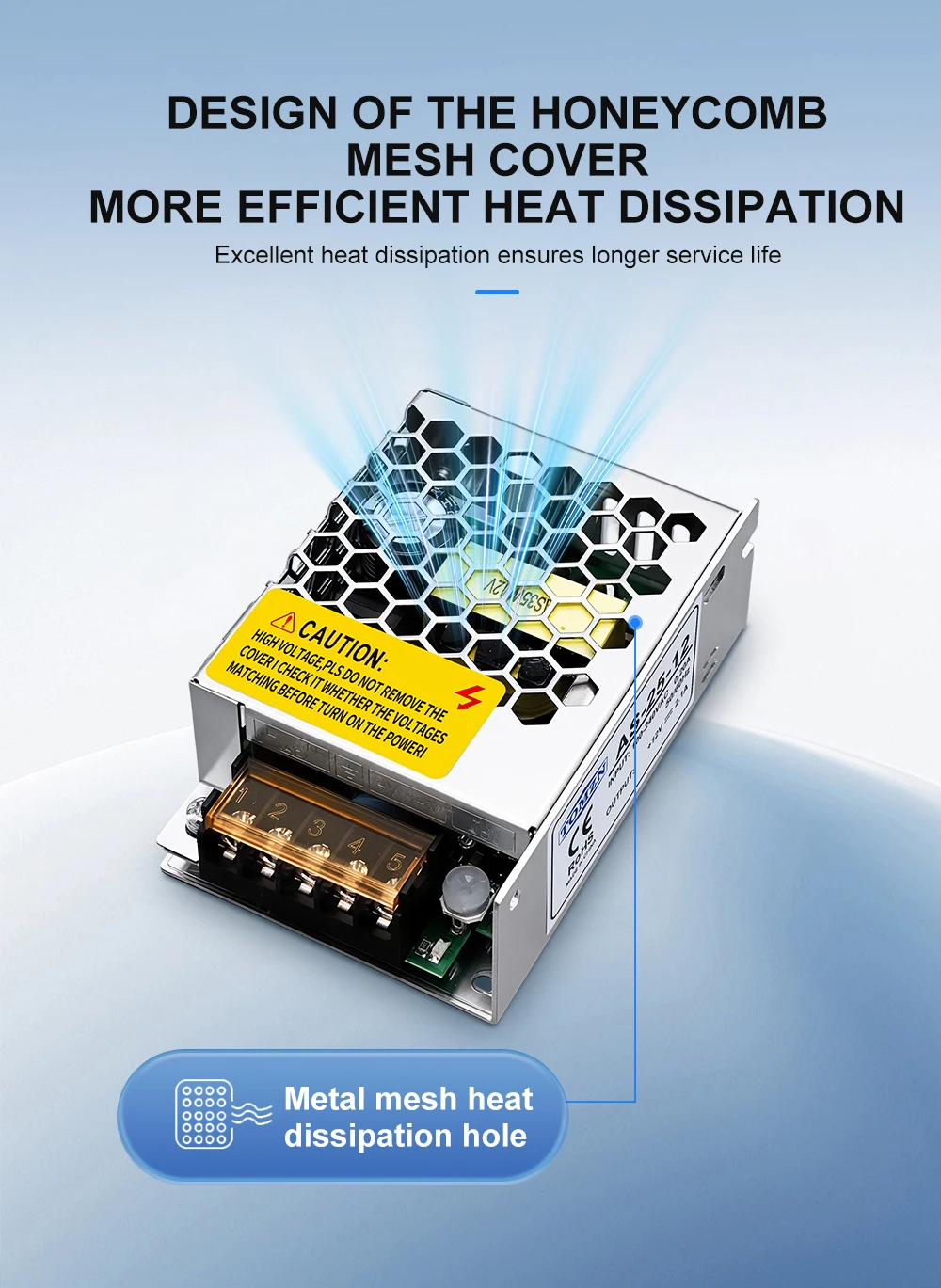

Safety features include built‑in overload protection (hiccup mode, auto‑recovery), over‑voltage protection, and short‑circuit protection. Every unit is 100% burn‑in tested at full load before shipment. The power supply complies with CE safety standards, operates from –20°C to +70°C, and uses natural air convection cooling. Some models also provide an adjustable output voltage (ADJ) for fine‑tuning.

Technical Specifications

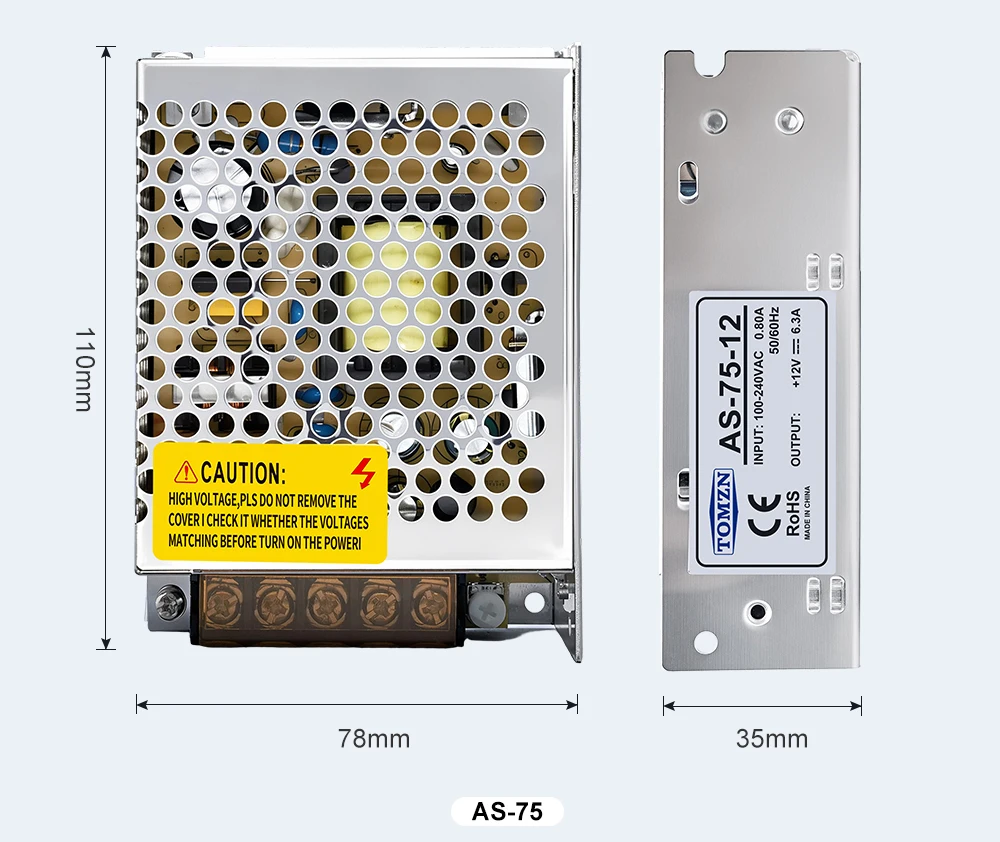

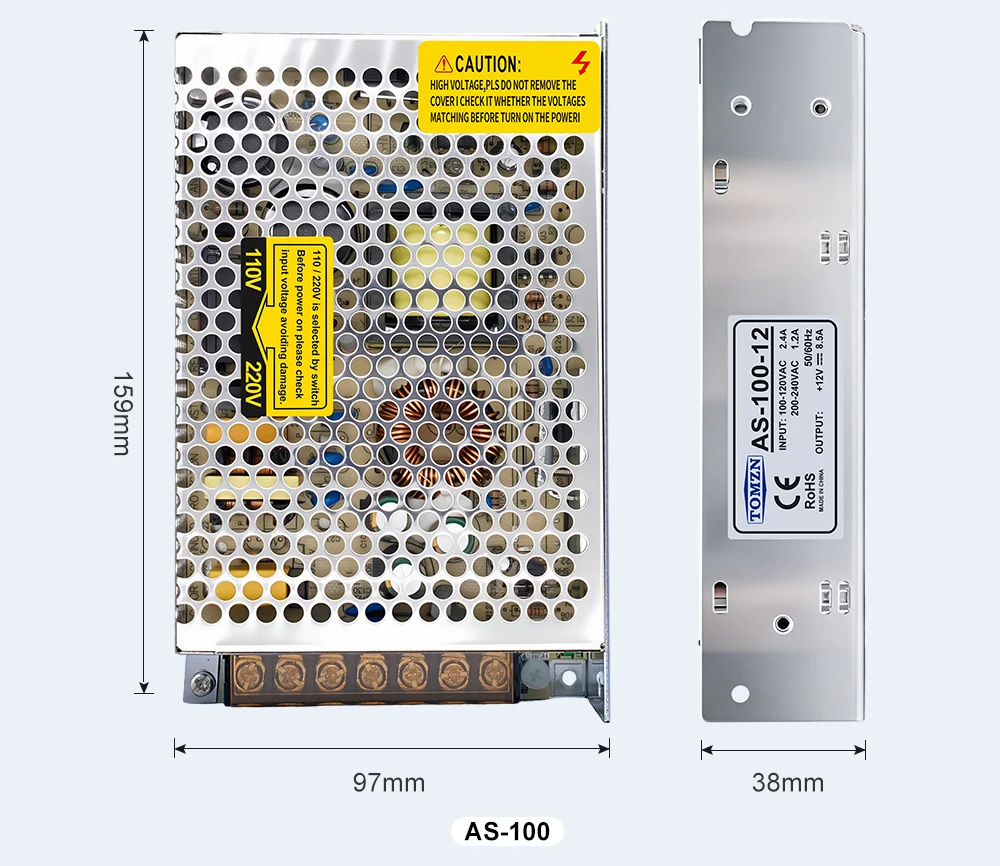

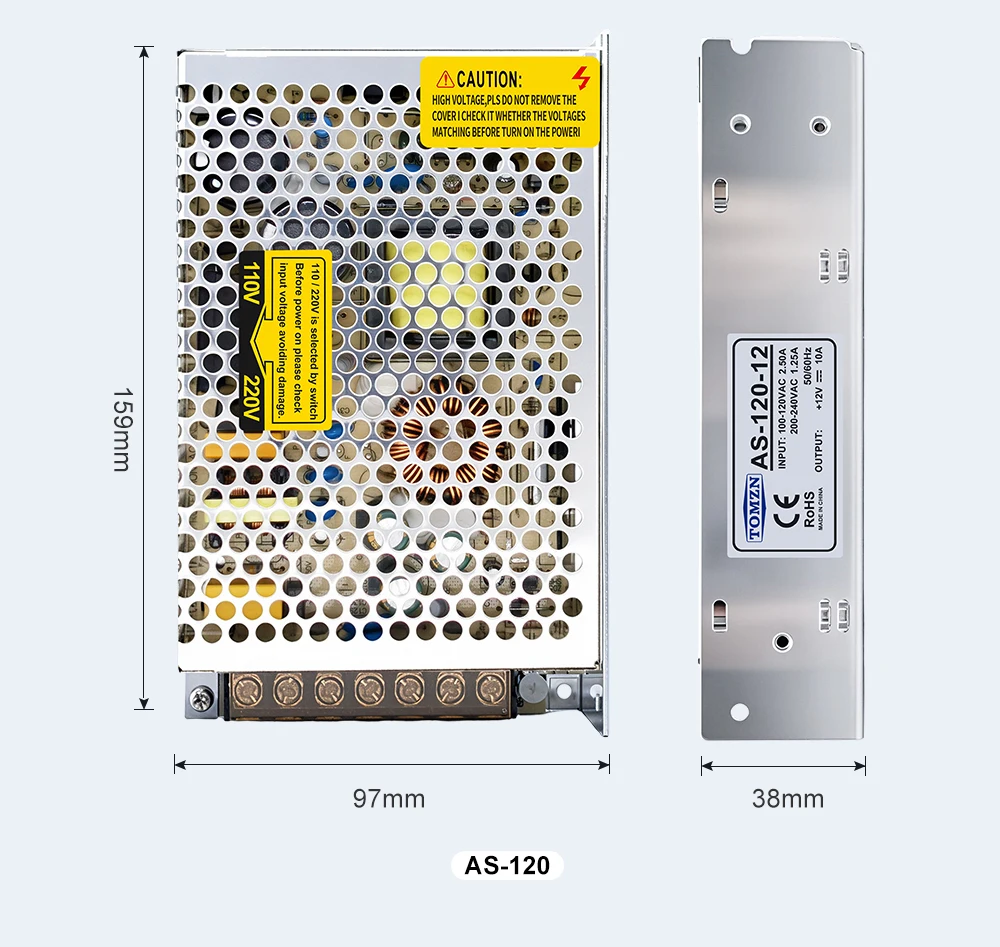

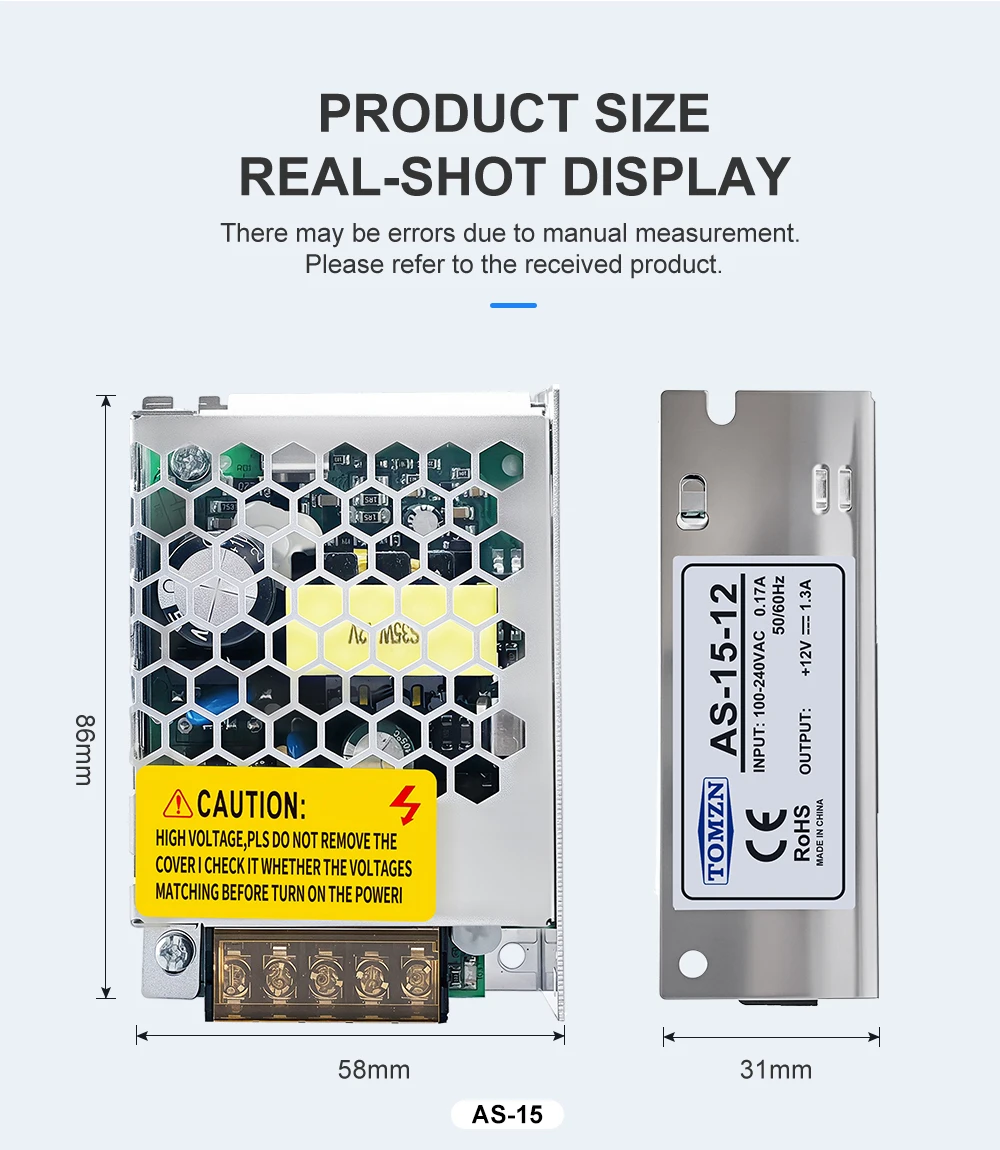

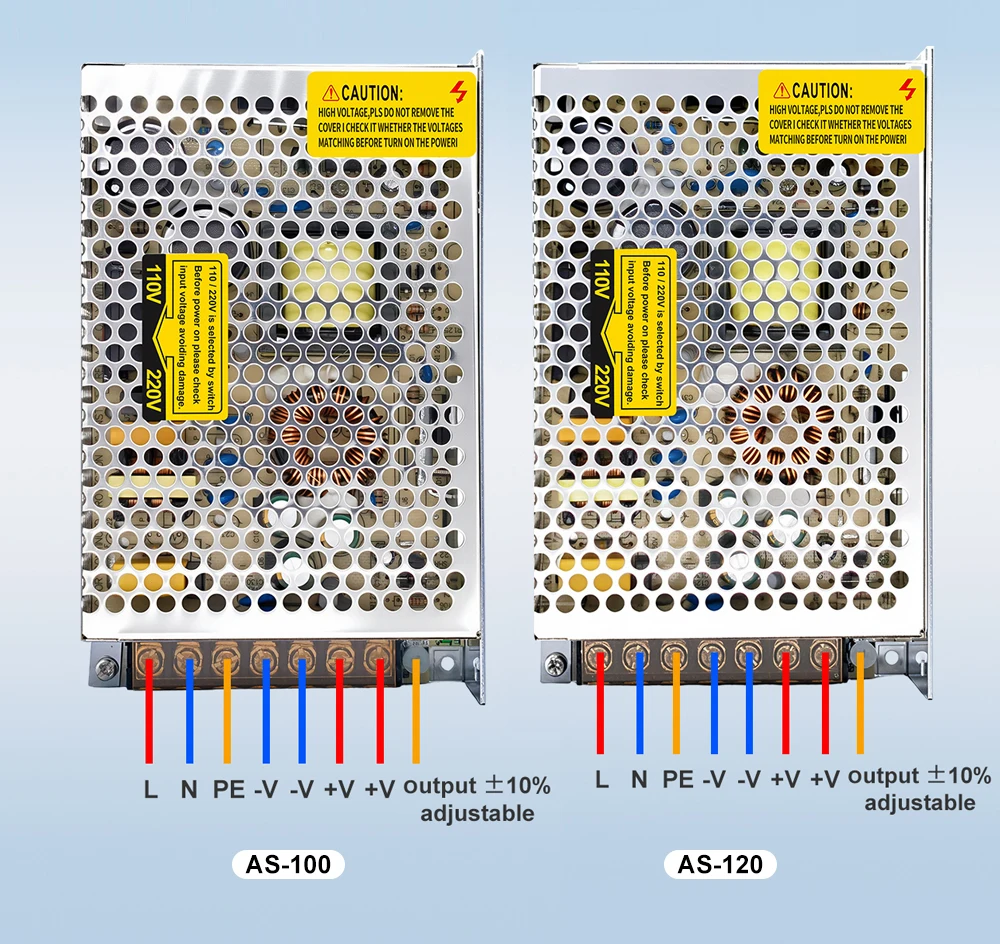

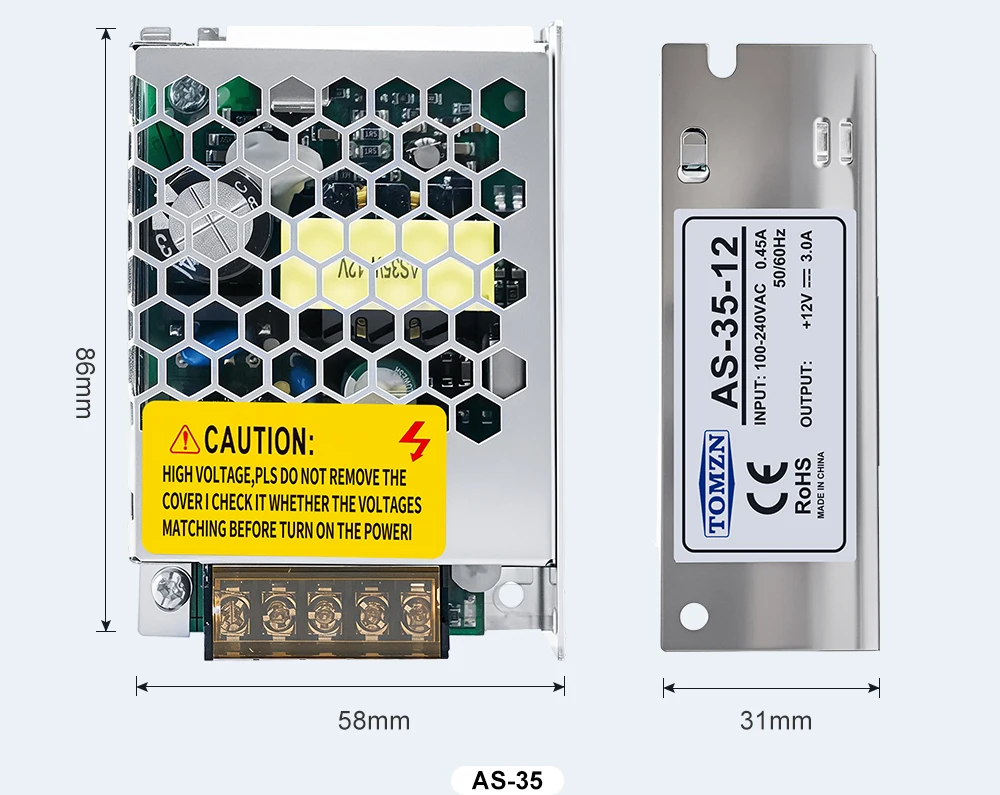

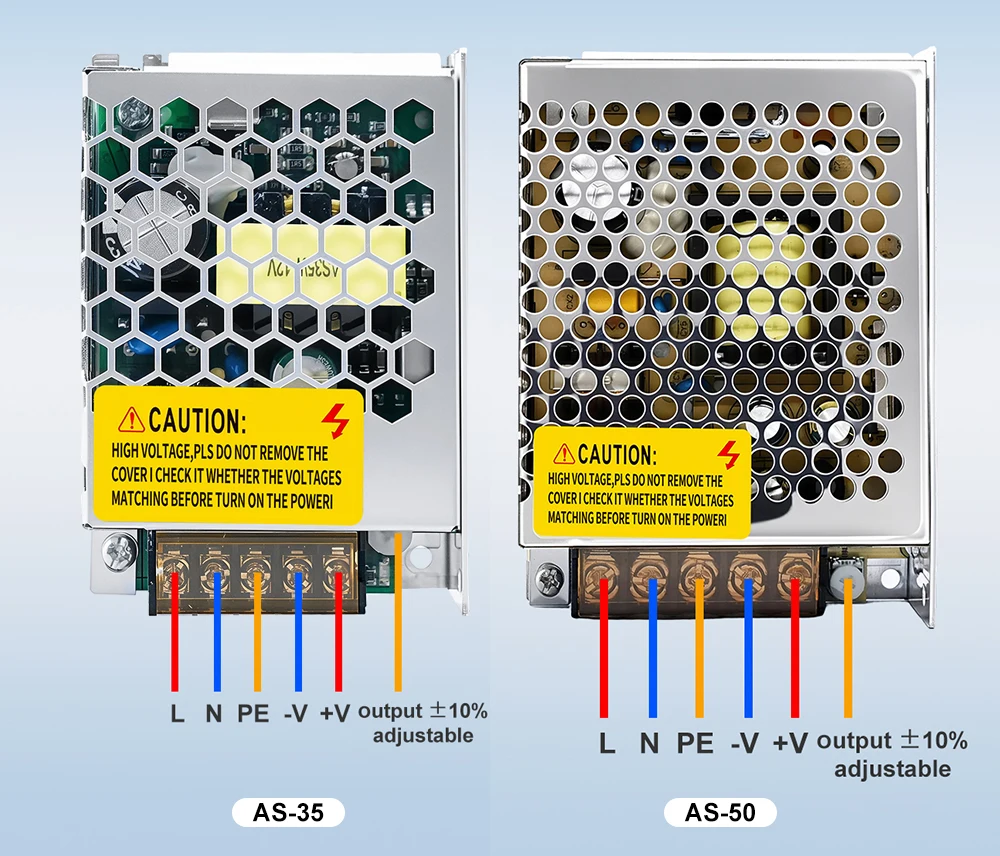

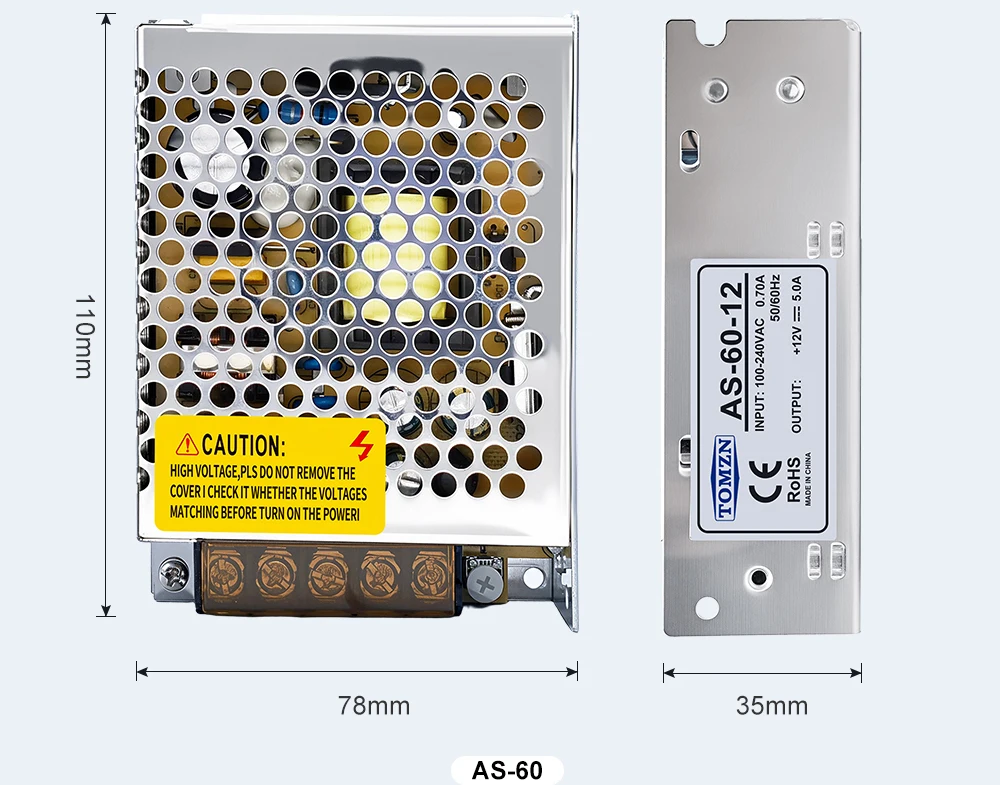

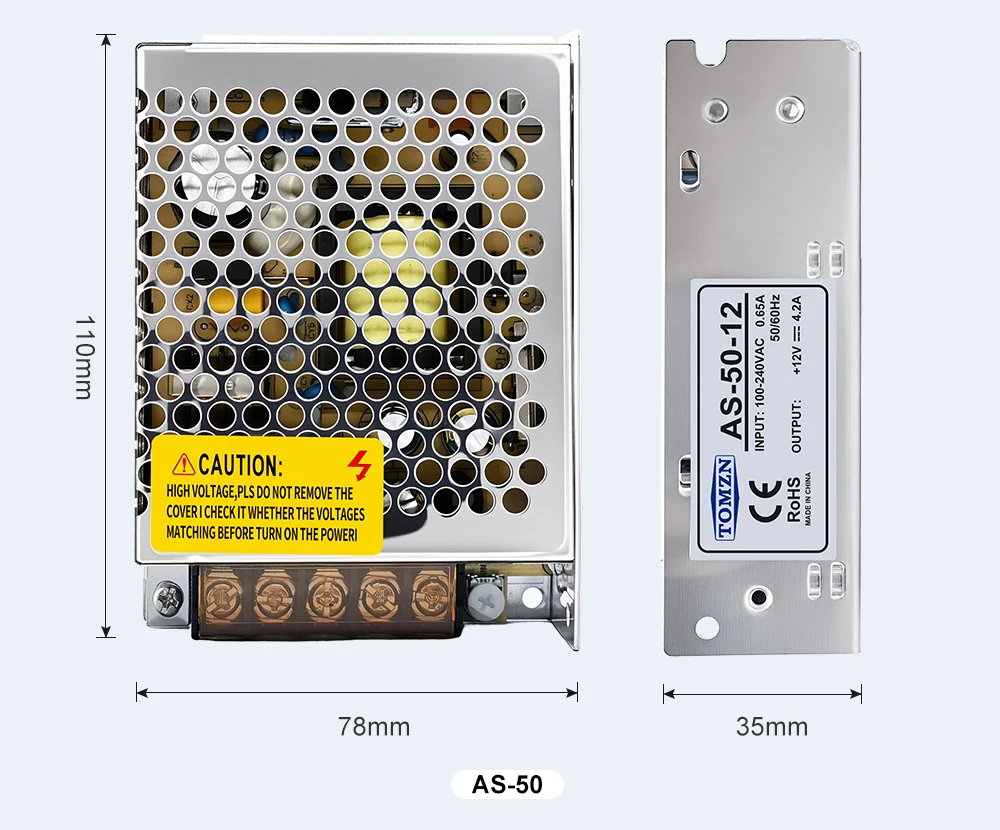

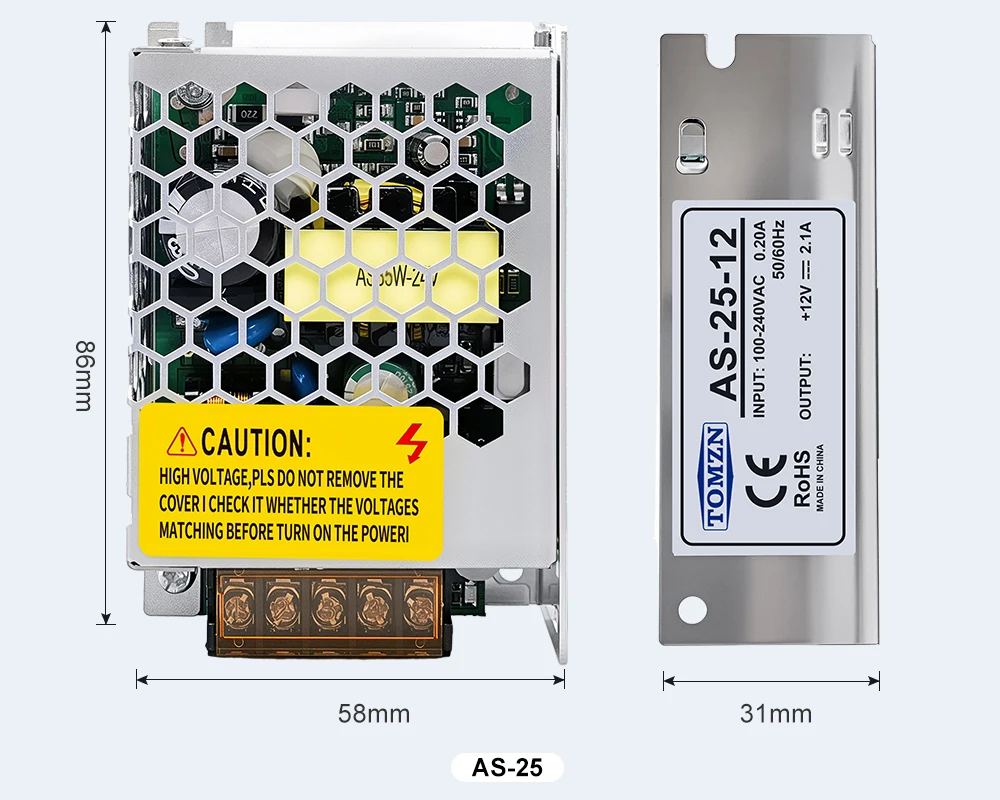

Model: AS-15W, AS-25W, AS-35W, AS-50W, AS-60W, AS-75W, AS-100W, AS-120W.
Output Voltage Options: 12V / 24V / 36V / 48V / 60V
AC Input Range: 115VAC / 230VAC

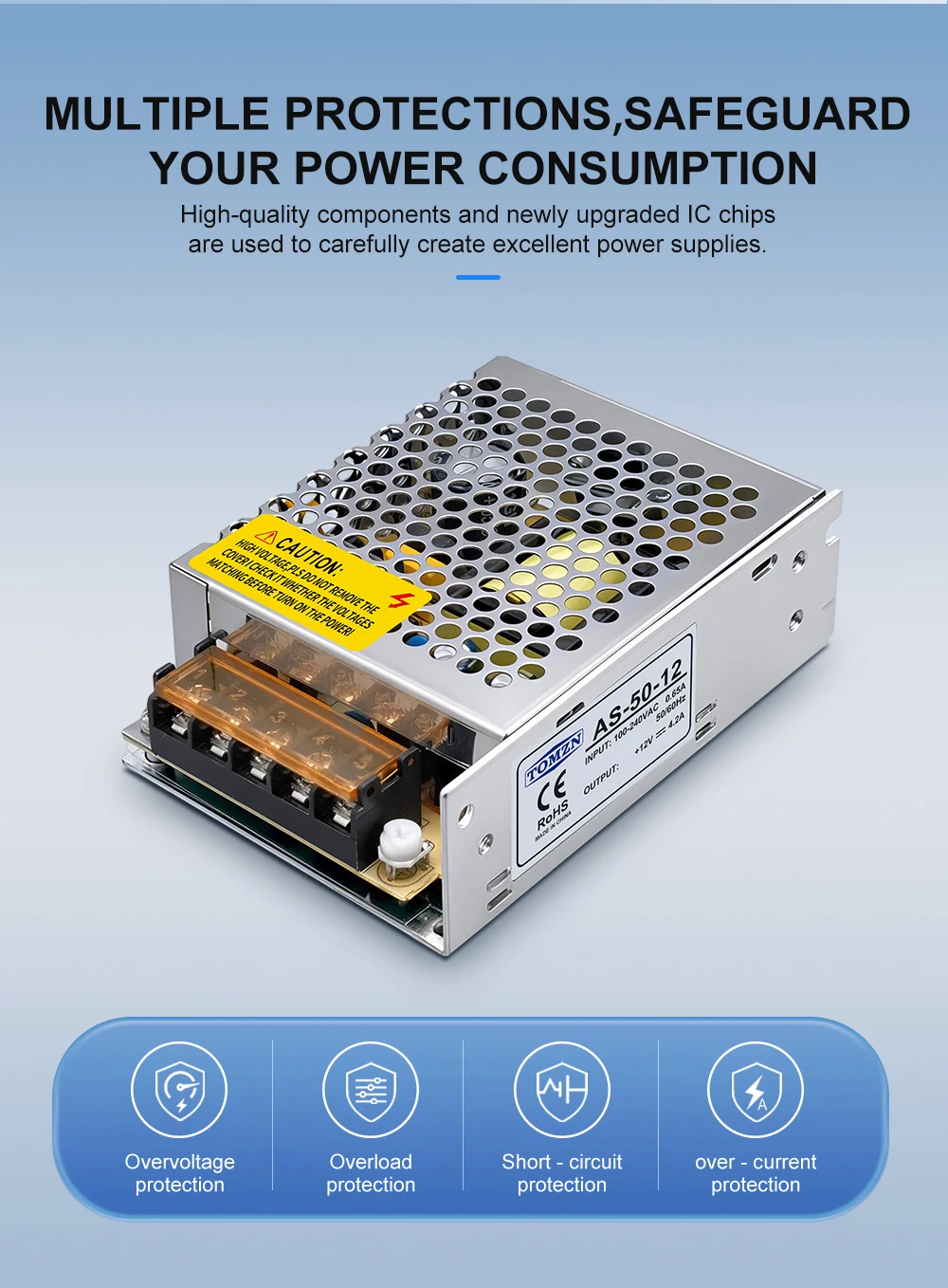

Protections: Short circuit / Overload / Over voltage
Operating Temperature: -25°C to +70°C (derating required above 50°C)
Operating Altitude: Up to 5000 meters
Efficiency: Up to 89%
No-Load Power Consumption: <0.75W
Safety Standards: IEC/UL 60950-1 compliant
Vibration Resistance: 5G
Burn-In Test: 100% full load burn-in
Applications: Industrial automation machinery / Industrial control systems / Mechanical and electrical equipment.
