Description

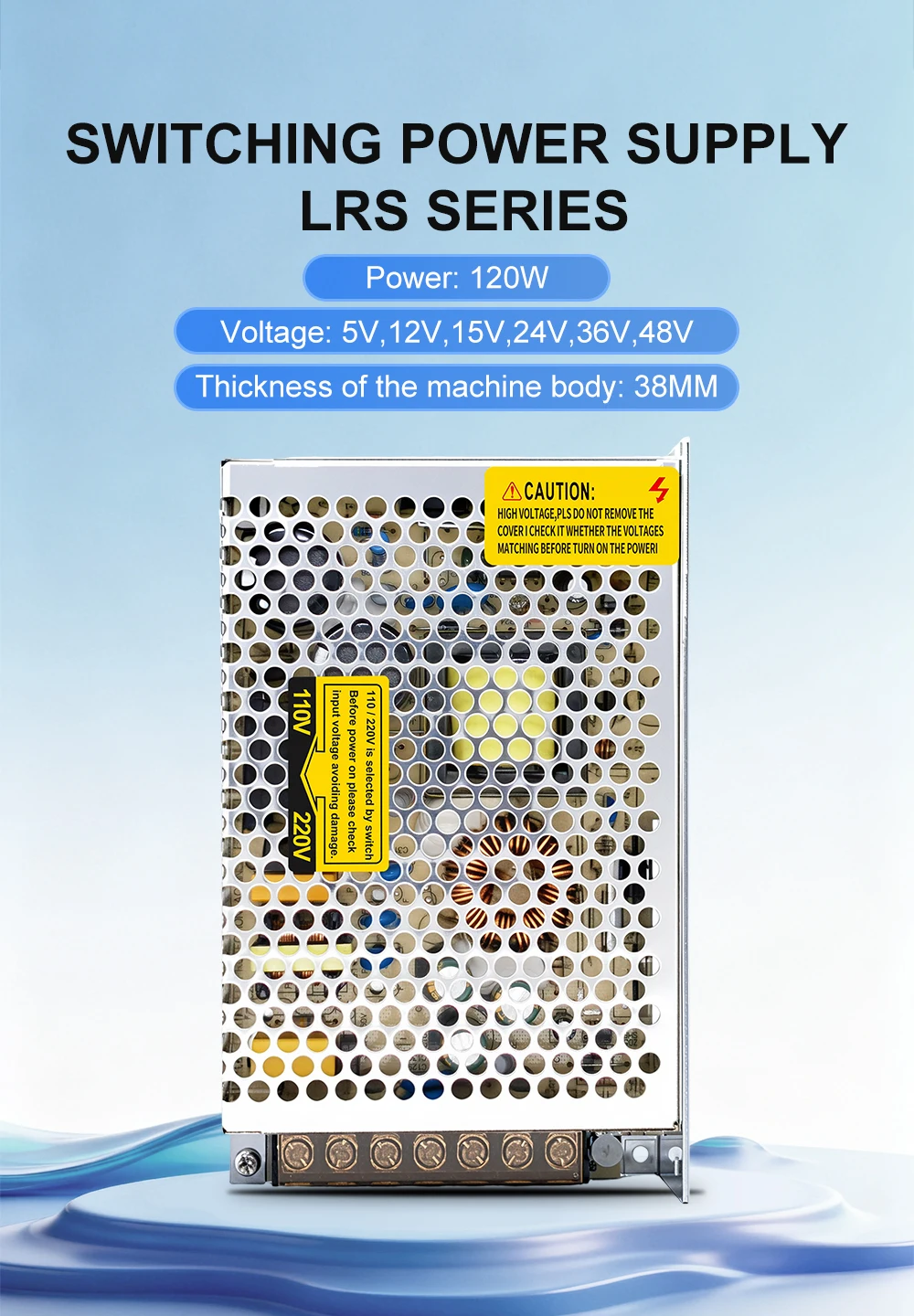

Switching power supply

AS-120W can convert AC 110V/220V voltage to DC 12V/24V/36V/48V/60V voltage.

General

The AS Series is a family of single-output switching power supply designed for a wide range of industrial applications. With models ranging from 15W to 2000W, these power supplies offer reliable AC-to-DC conversion, supporting input voltages of 115VAC or 230VAC (selectable via a switch for models from 50W to 350W). Output voltages include 12V, 24V, 36V, 48V, 60V providing flexibility for various system requirements.

Built with efficiency and durability in mind, the AS Series achieves up to 89% efficiency and features forced air cooling via a built-in DC fan to ensure stable operation even under full load. The series supports a wide operating temperature range from -25°C to +70°C and can operate at altitudes up to 5000 meters, making it suitable for demanding environments.

Comprehensive protection circuits are included for short circuit, overload, and over voltage conditions. Each unit undergoes 100% full-load burn-in testing to guarantee reliability. With low no-load power consumption (<0.75W) and compliance with international safety standards (such as IEC/UL 60950-1), the S Series delivers a high price-to-performance solution for industrial automation, control systems, machinery, and electronic equipment.

Technical Specifications

Model: AS-120W-12V, AS-120W-24V

Output Voltage Options: 12V / 24V / 36V / 48V / 60V

AC Input Range: 115VAC / 230VAC

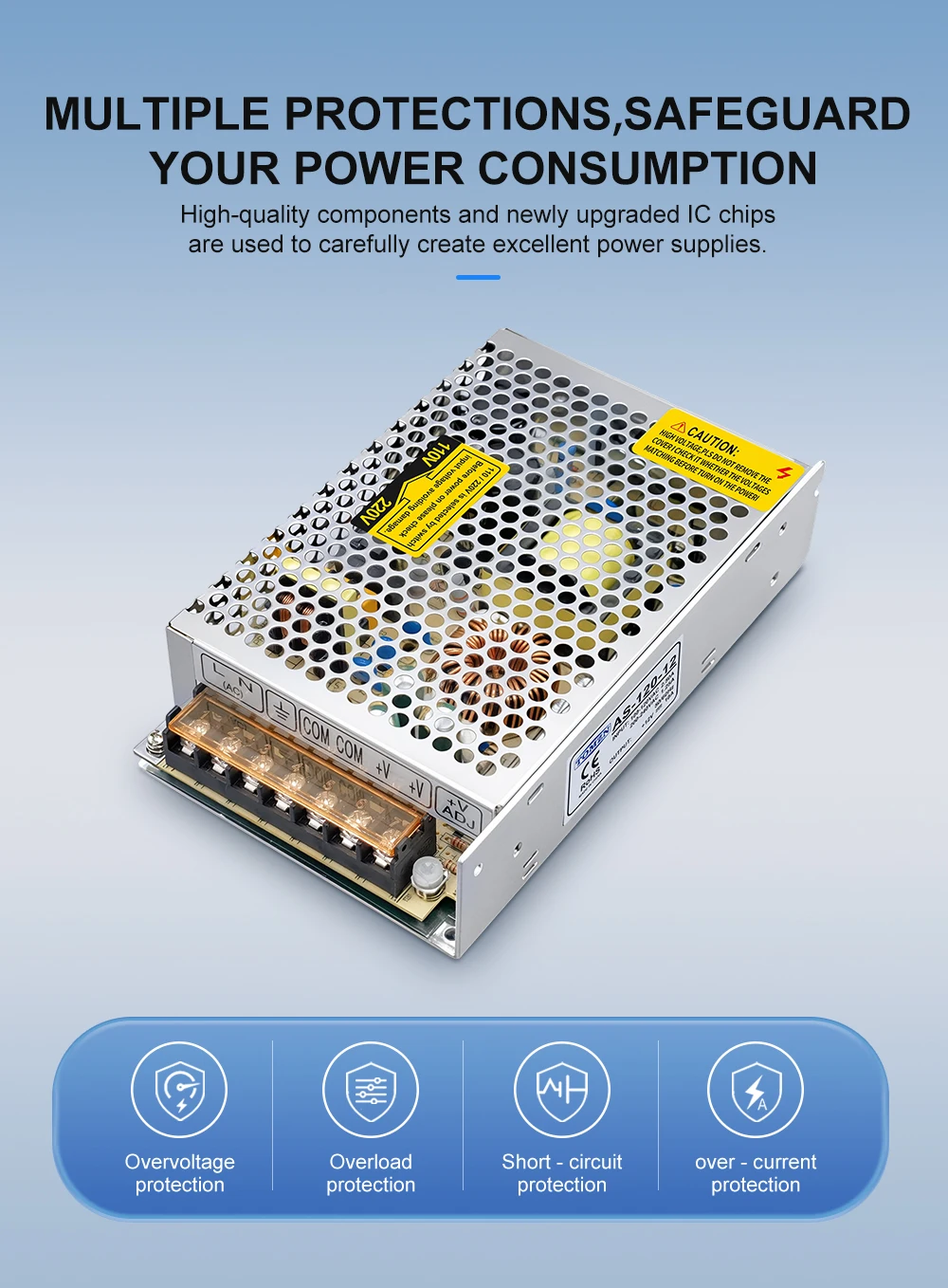

Protections: Short circuit / Overload / Over voltage

Cooling Method: Forced air cooling by built-in DC fan

Operating Temperature: -25°C to +70°C (derating required above 50°C)

Operating Altitude: Up to 5000 meters

Efficiency: Up to 89%

No-Load Power Consumption: <0.75W

Safety Standards: IEC/UL 60950-1 compliant

Vibration Resistance: 5G

Burn-In Test: 100% full load burn-in

Applications: Industrial automation machinery / Industrial control systems / Mechanical and electrical equipment / Electronic instruments and apparatus.
