Description
Description
TOB9L-63WIFI 2P can cut off L and N both,
With leakage protection, NO temperature control.
TOB9-63WIFI 1P Can only cut off L,
NO leakage protection, With temperature control.

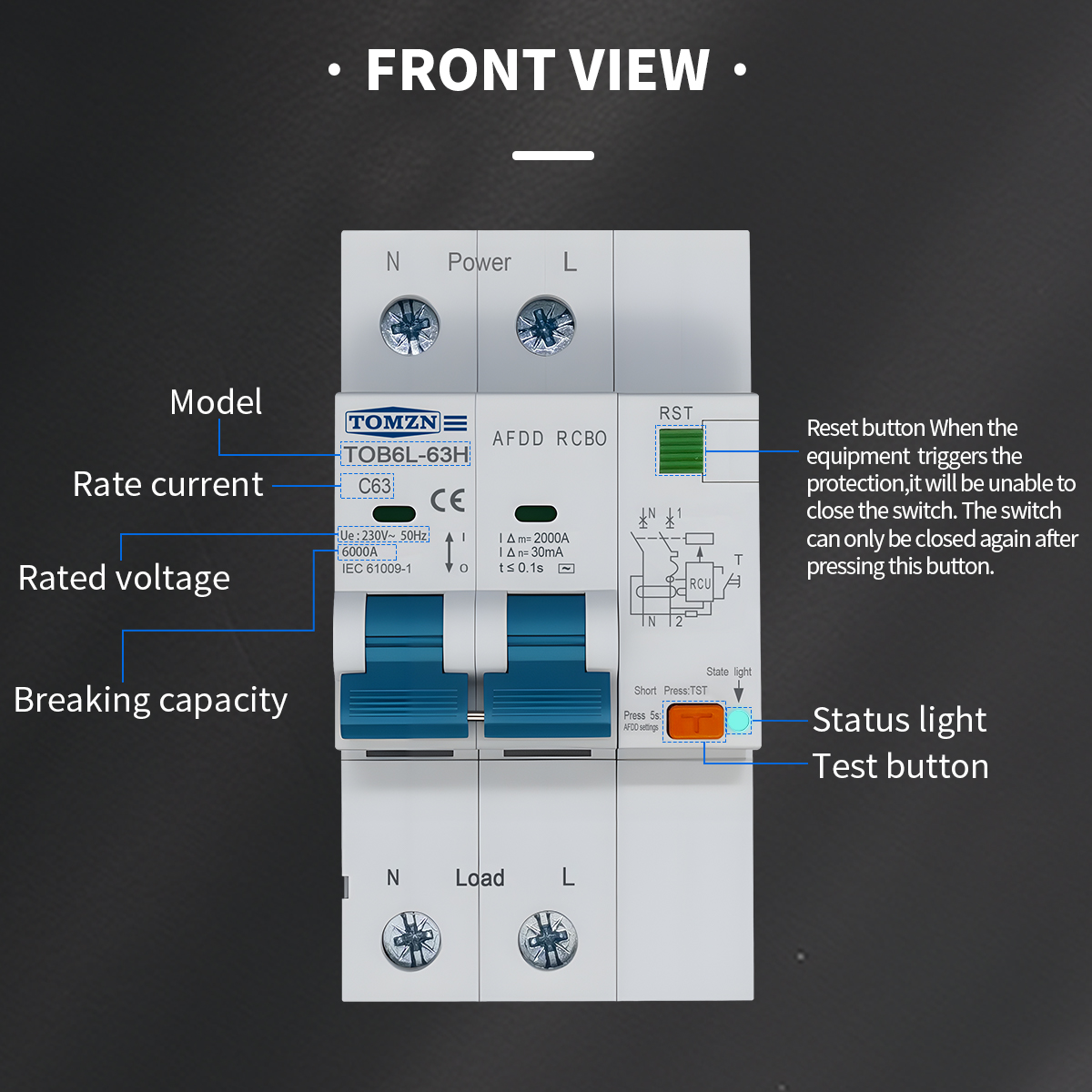

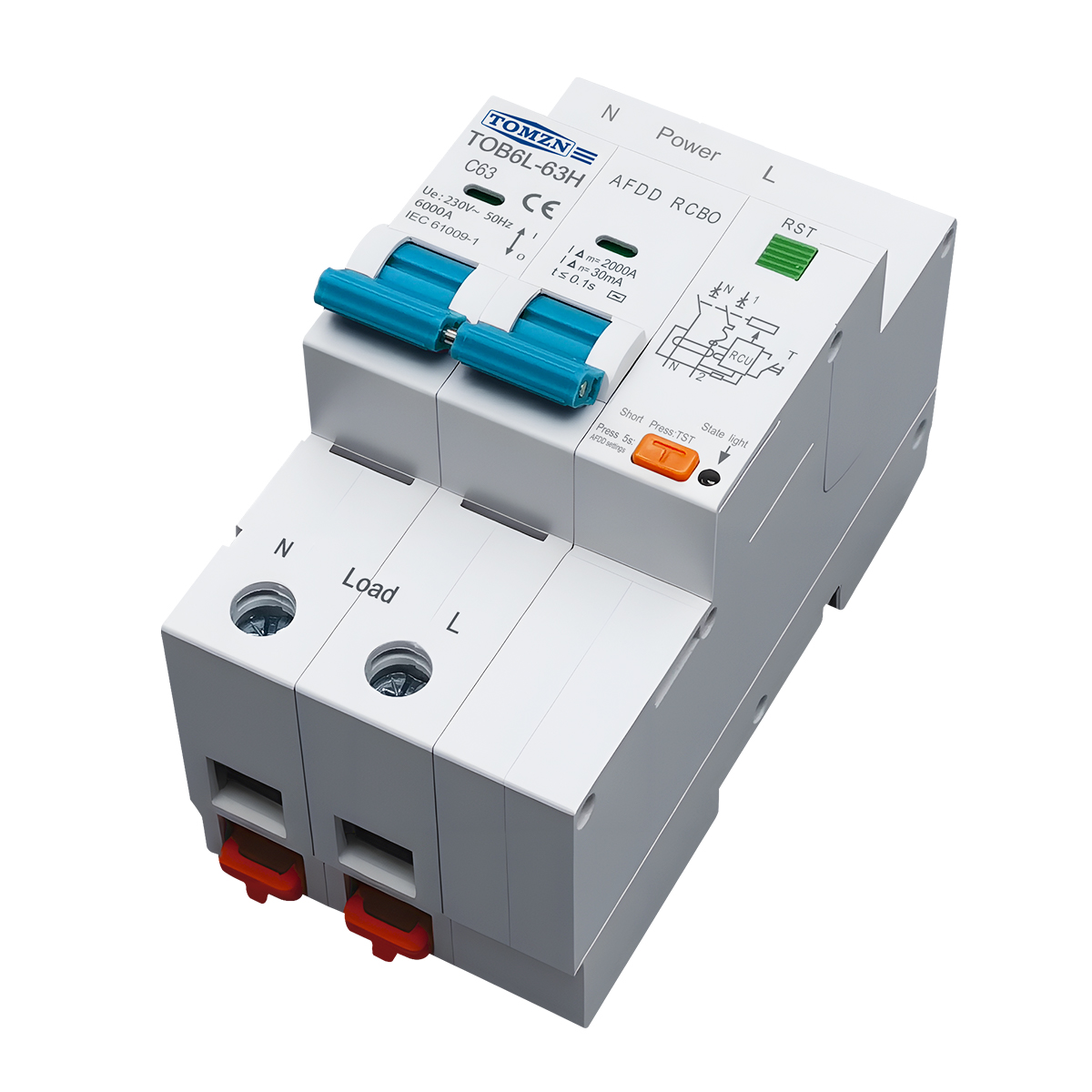

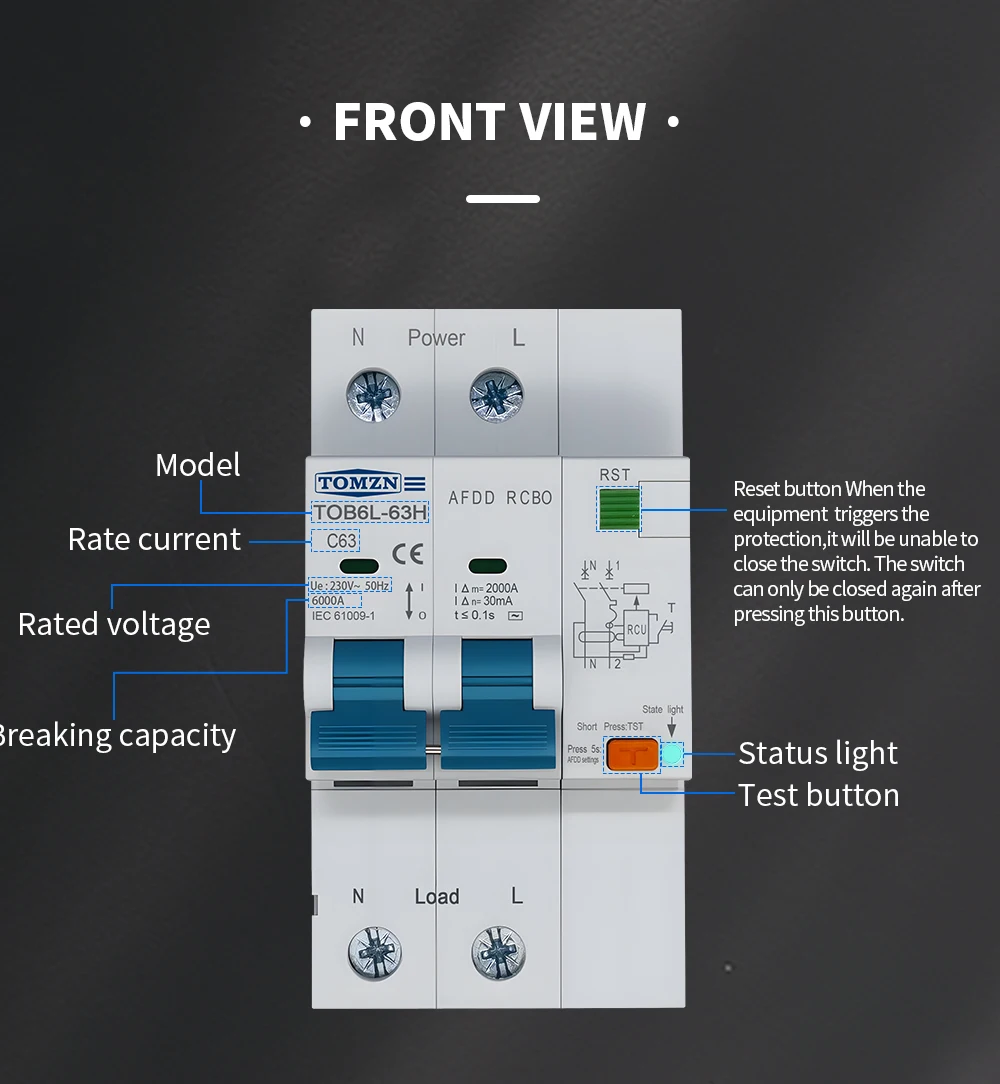

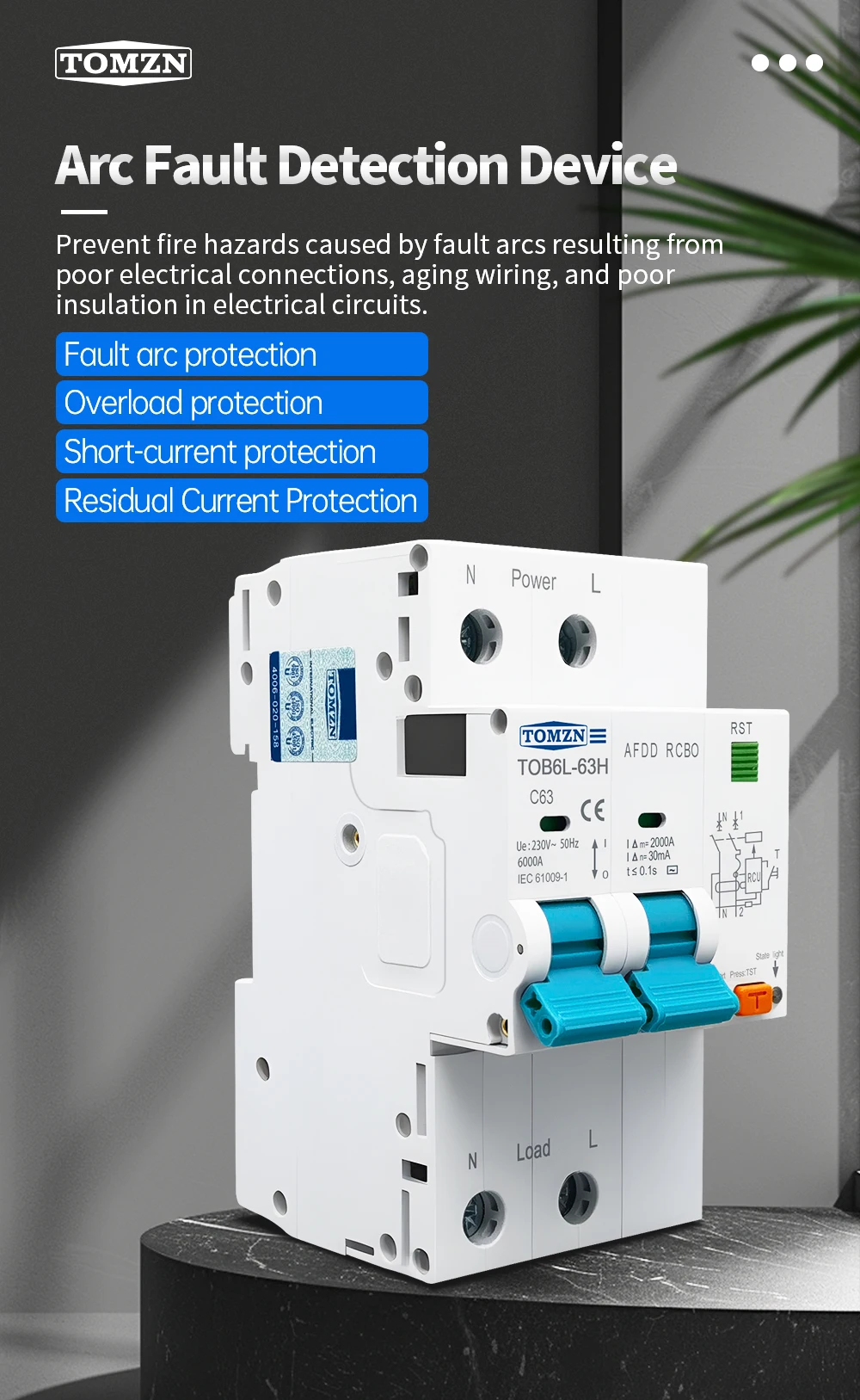

TOB6L-63H AFDD+RCBO 2P AC230V
10A 16A 20A 25A 32A 40A 50A 63A
- Short circuit protection
- Overload protection
- Residual current leakage protection(AC Type)
- Arc fault protection
General

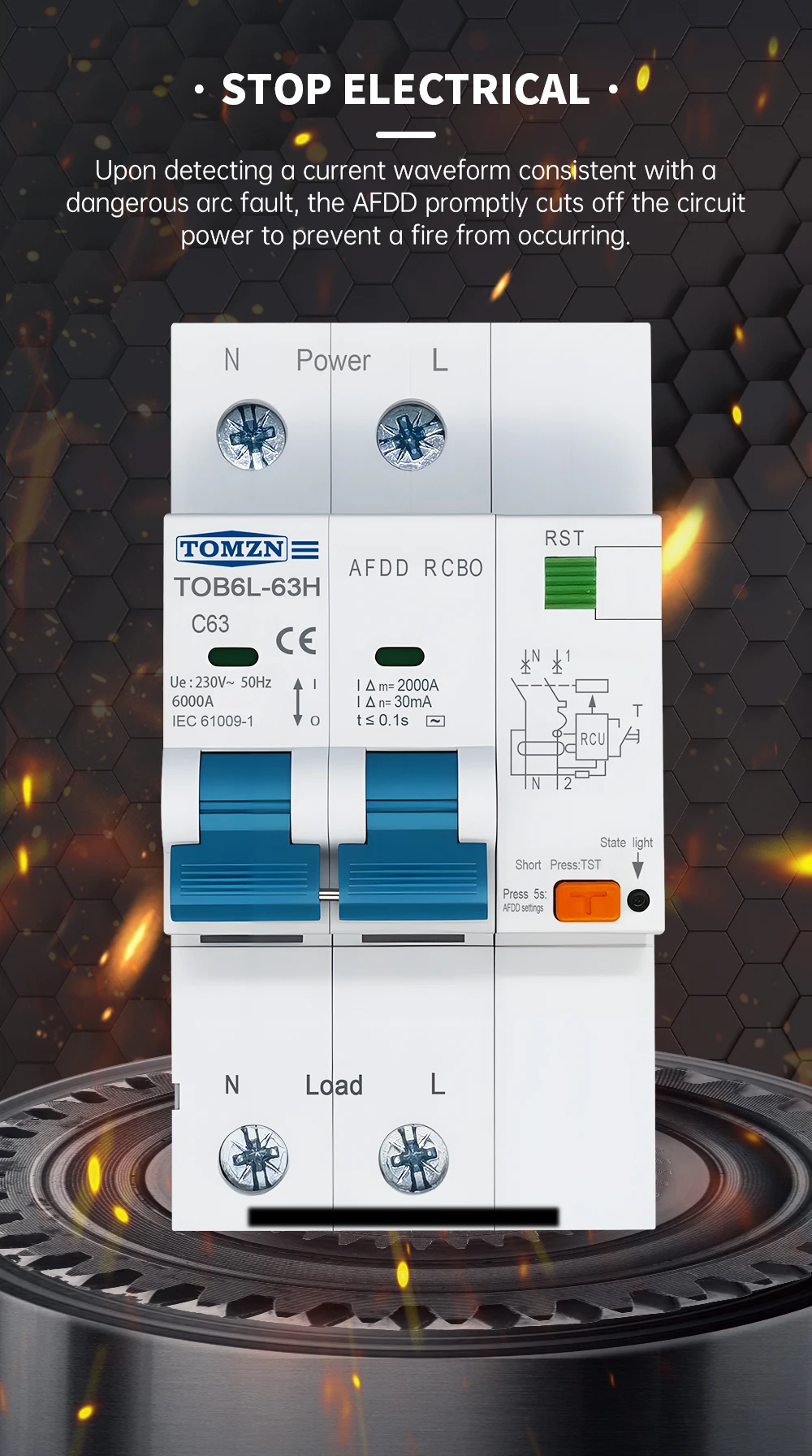

TOB6L-63H is an advanced combined Arc Fault Detection Device (AFDD) and Residual Current Circuit Breaker with Overcurrent Protection (RCBO) designed for 2P applications at AC 230V. It provides comprehensive protection against electrical fires by continuously monitoring circuit waveforms to distinguish dangerous arcing—caused by damaged cables, loose connections, crushed cords, or aging insulation—from normal operational arcing inherent in switches, motor brushes, or dimmers, thereby preventing nuisance tripping. This device integrates short-circuit protection, overload protection, AC-type residual current leakage protection, and arc fault protection into a single compact module, ensuring safety and reliability in final electrical circuits.

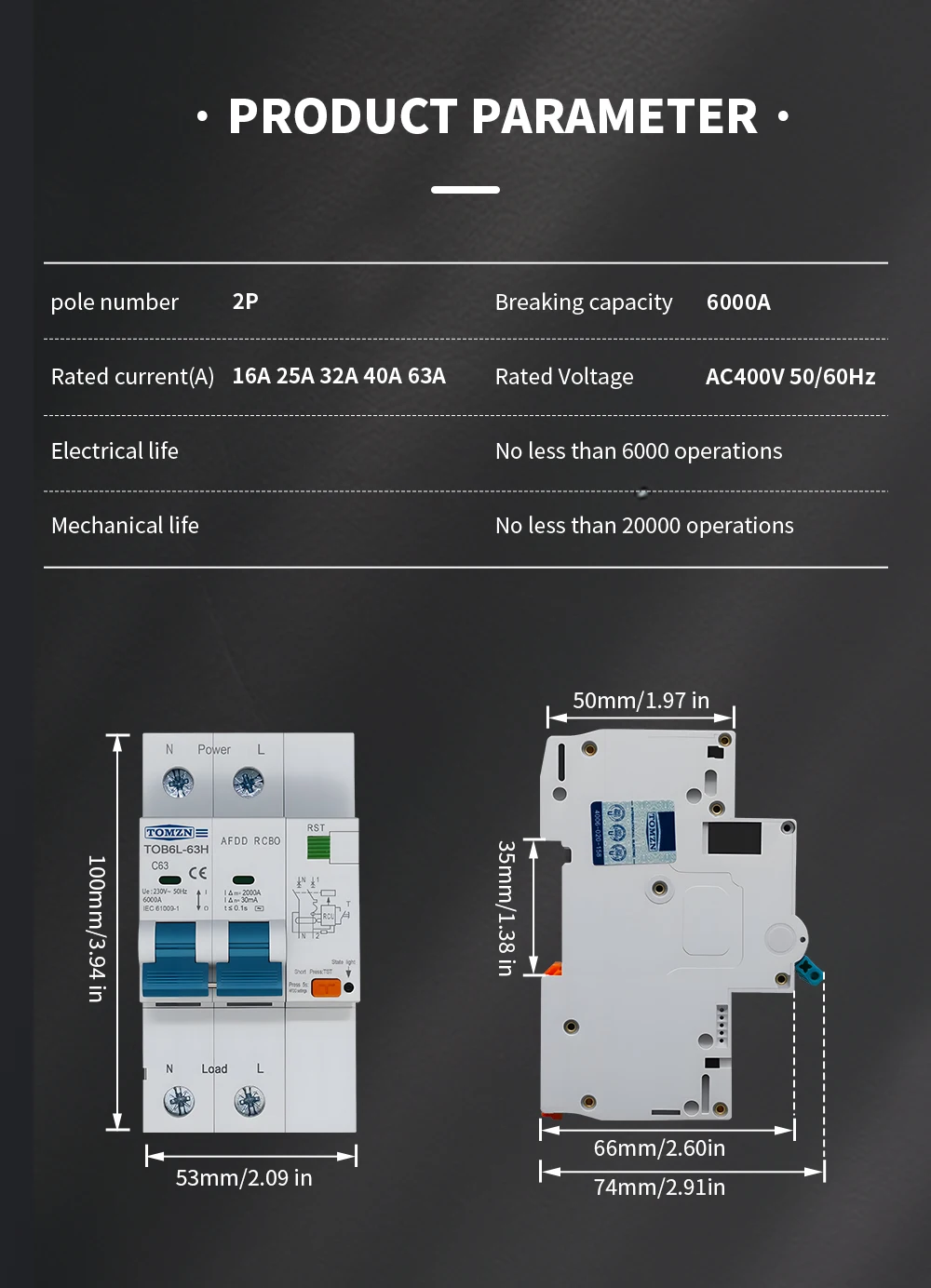

Parameter
Product Type: Arc Fault Detection Device + RCBO
Model: TOB6L-63H
Number of Poles: 2P
Rated Voltage: AC 230V
Rated Current: 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A
Rated Residual Current (IΔn): 30mA
Protection Functions: Short-circuit protection, overload protection, residual current leakage protection (AC Type), arc fault protection
Standards: Complies with IEC 61009 (RCBO) and IEC 62606 (AFDD)
Mounting: 35mm DIN rail mounting
