Description
Description
TOB9L-63WIFI 2P can cut off L and N both,
With leakage protection, NO temperature control.
TOB9-63WIFI 1P Can only cut off L,
NO leakage protection, With temperature control.

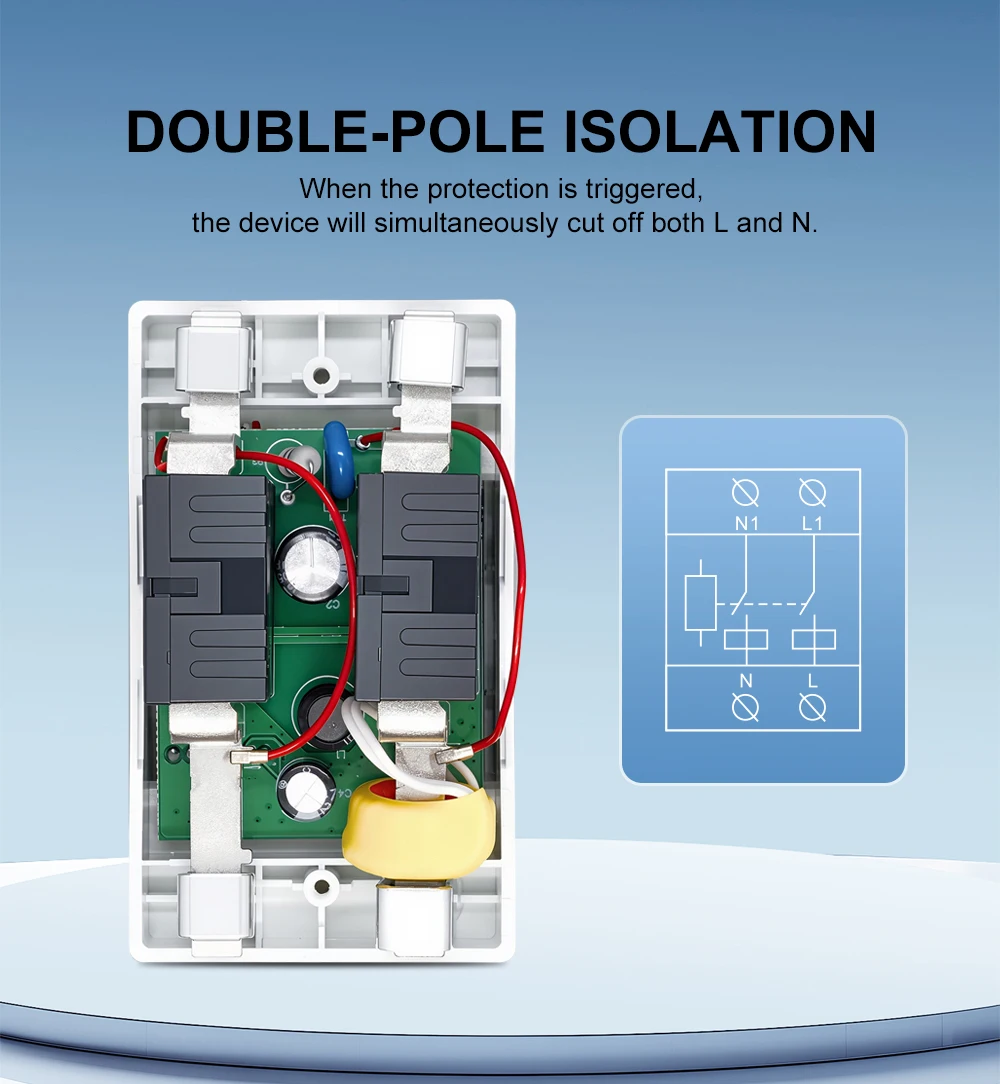

TOVPD1-63DK Can simultaneously isolate both L and N
General

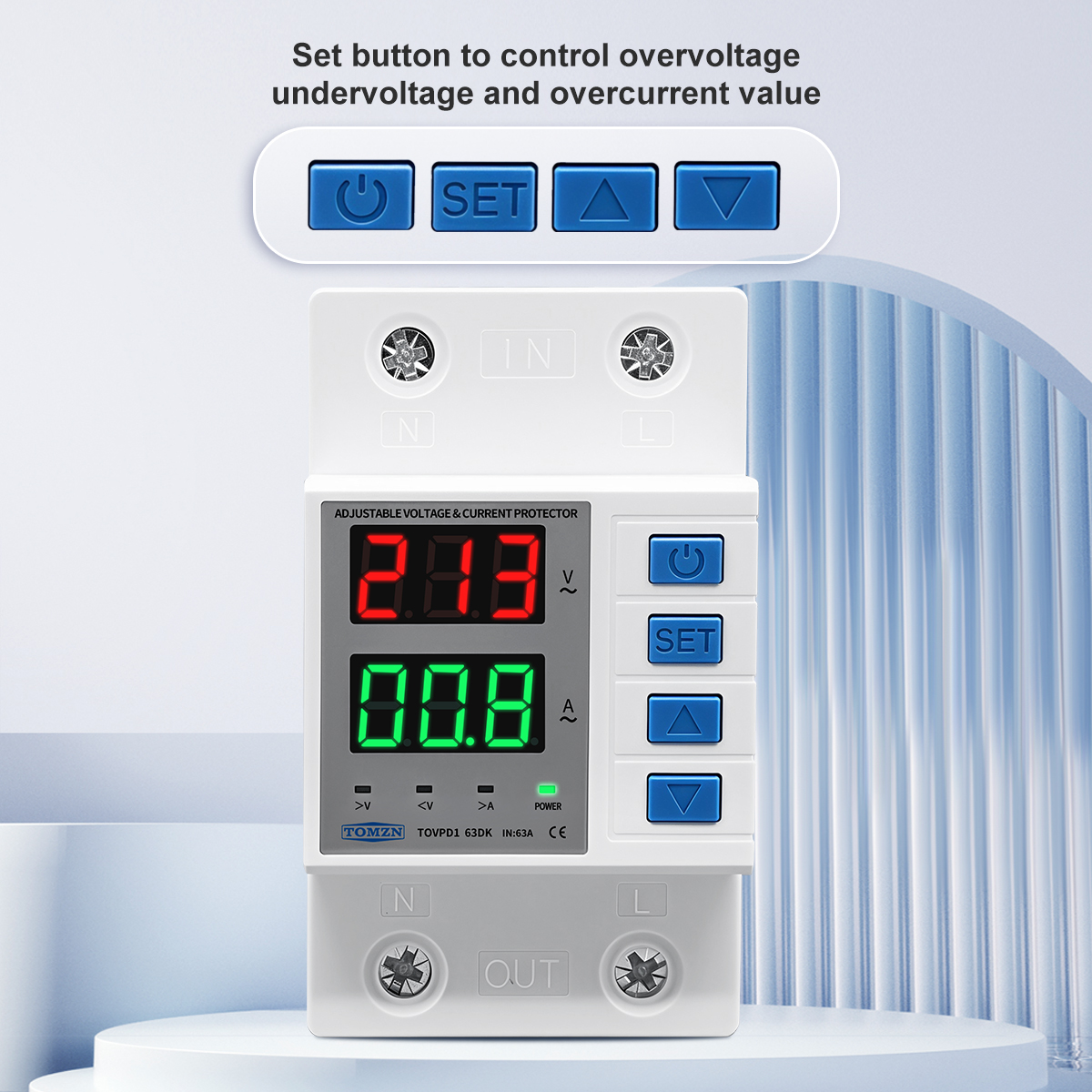

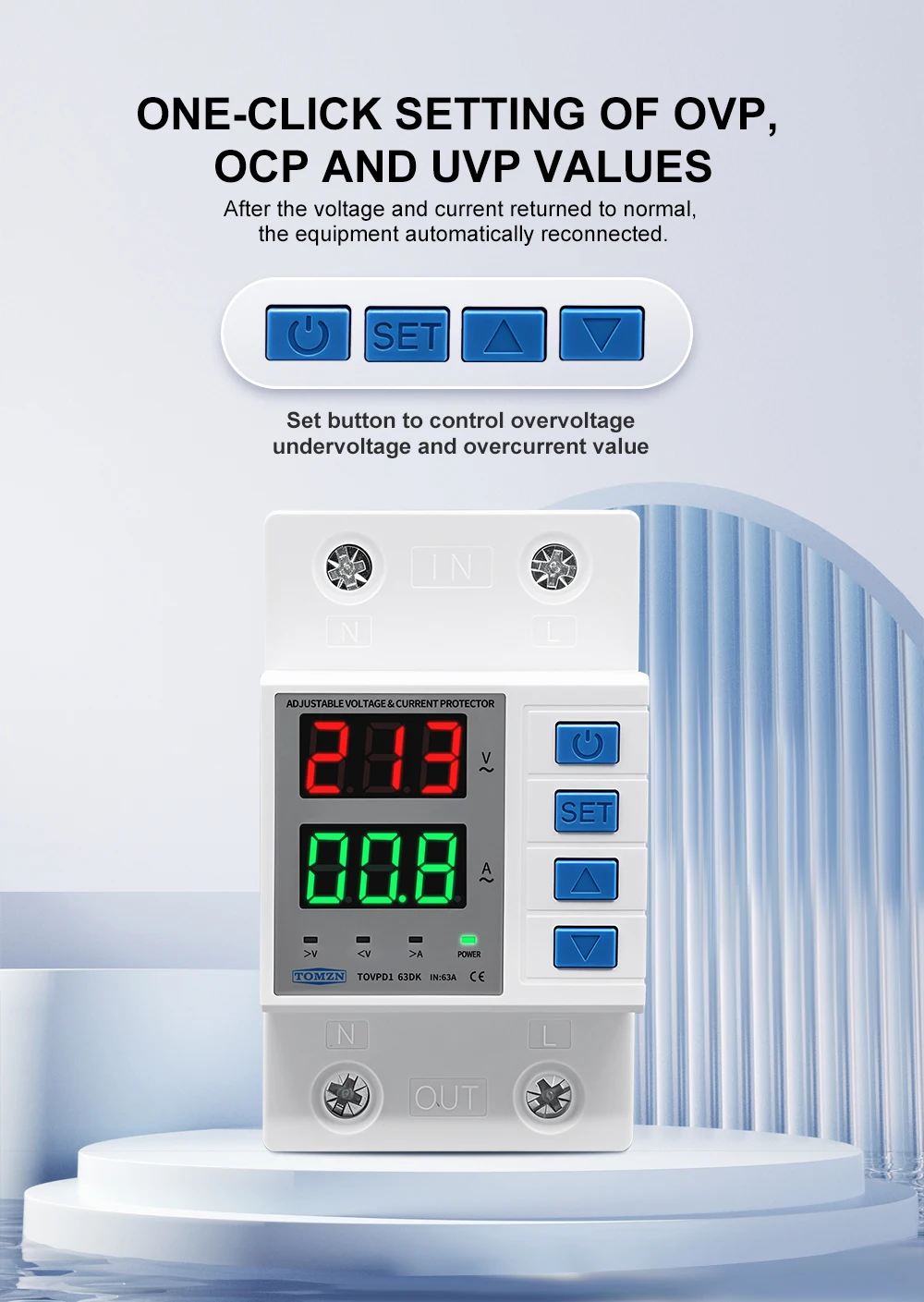

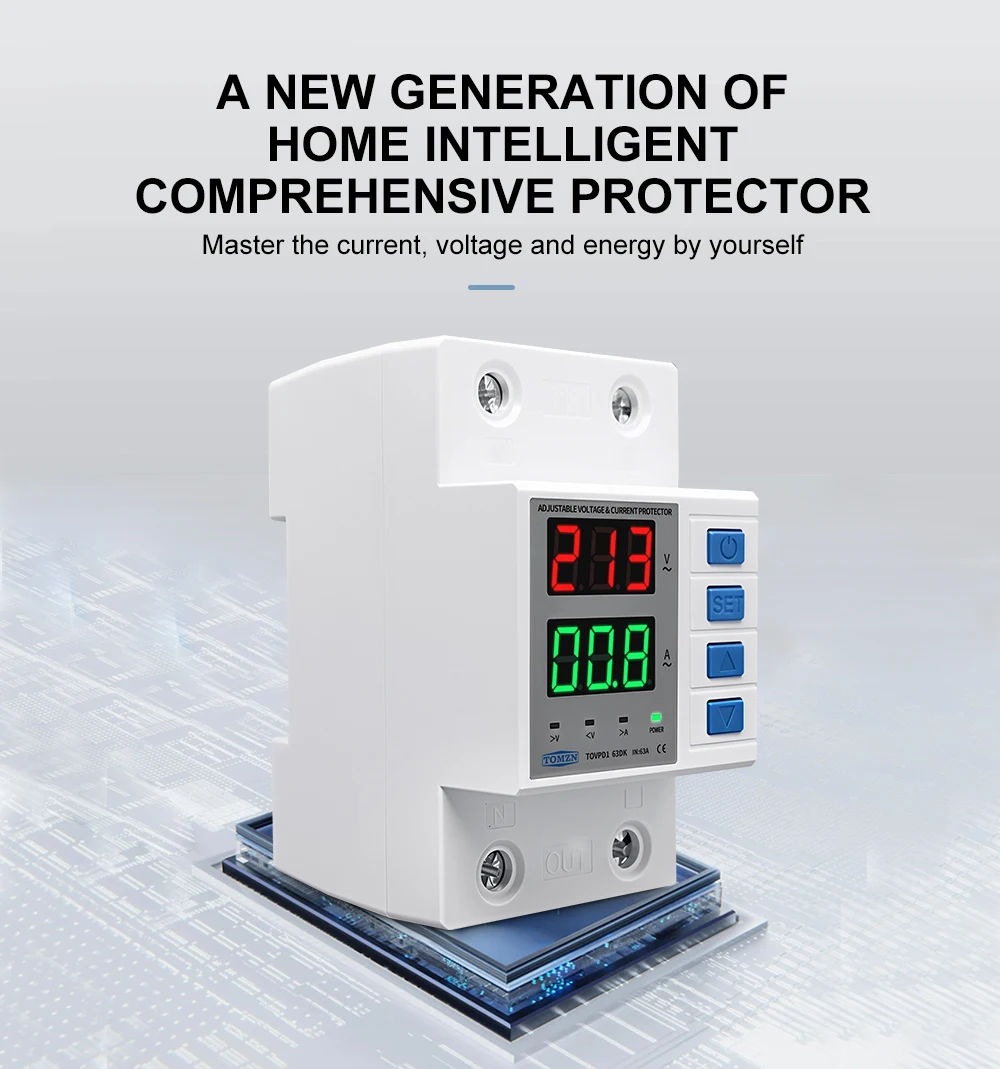

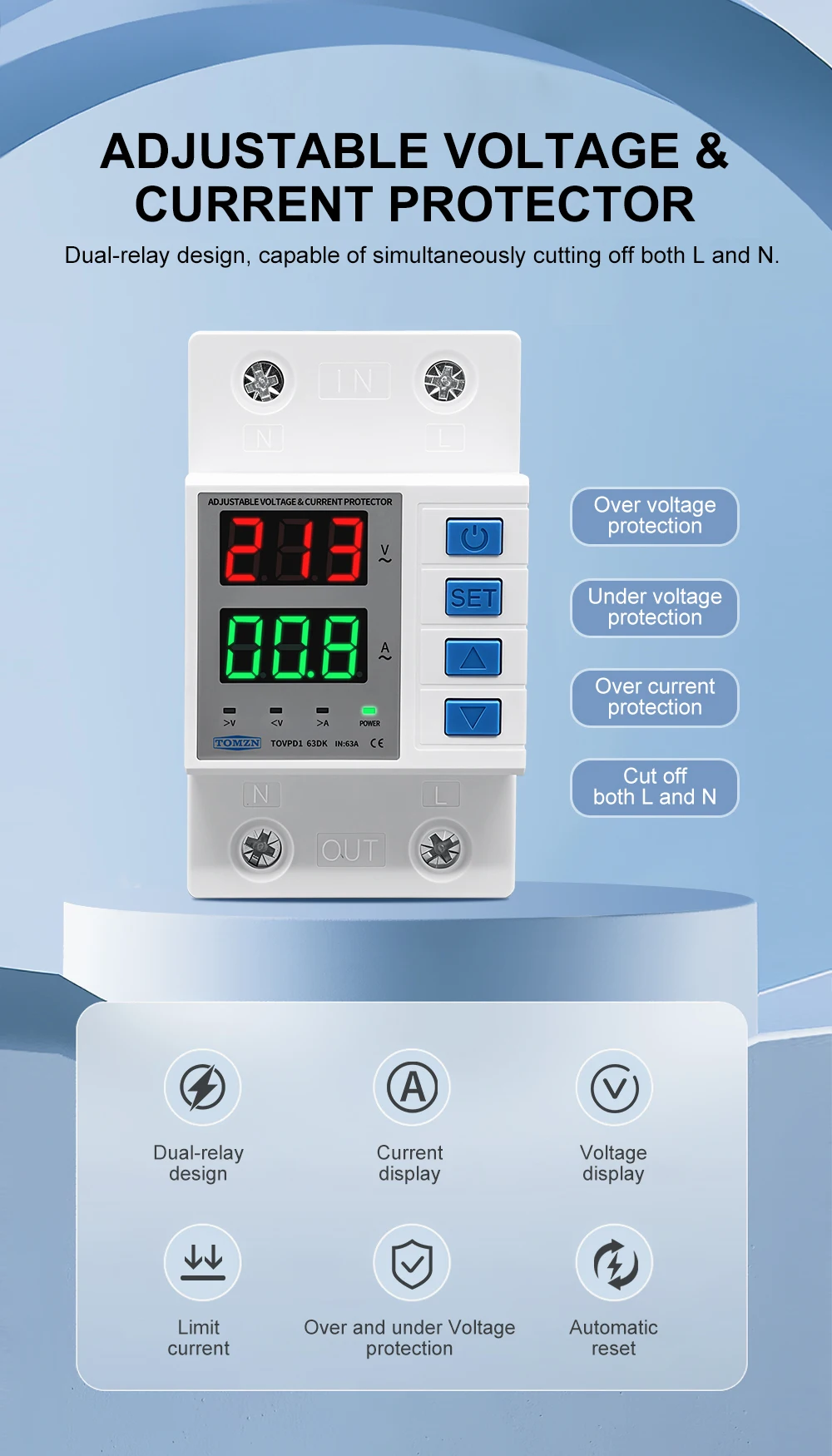

Adjustable voltage and current protective device is an intelligent protector integrated with over-voltage protector, under-voltage protector and over-current protector. In case of over-voltage fault, under-voltage fault or over-current fault in the line, this product can instantly power off to prevent electrical equipment from being damaged. The over-voltage, under-voltage, and over-current values of this product can all be set by the user and adjusted according to local practical conditions.
Functions

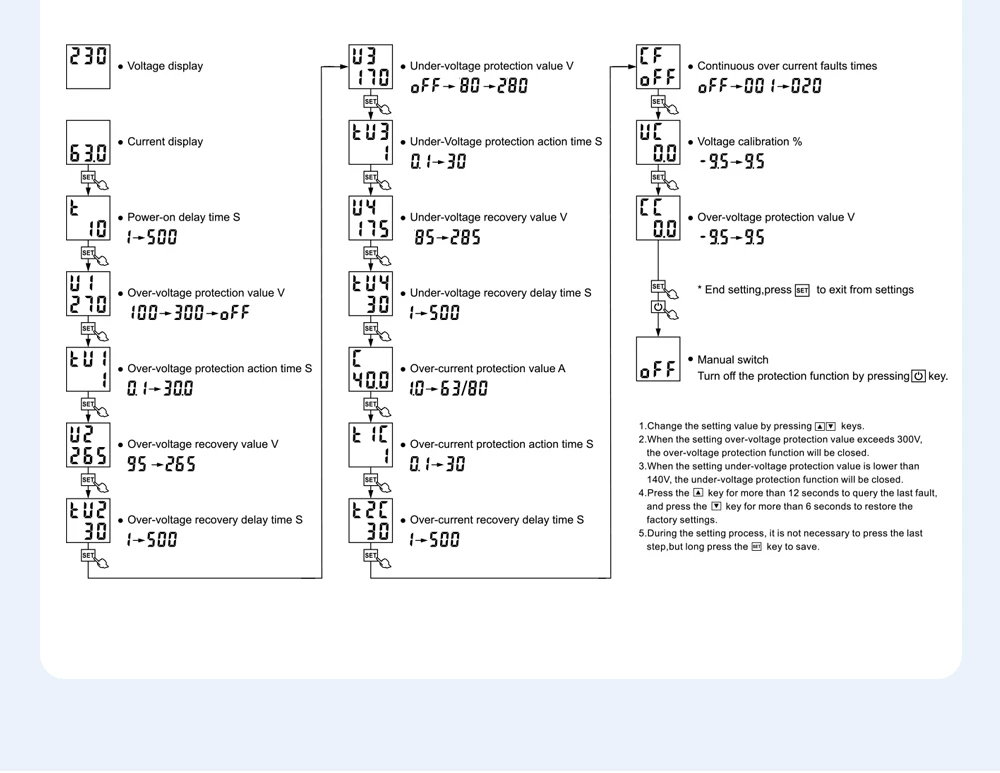

9.Fault inquiry: Press the UP button from more than 12S

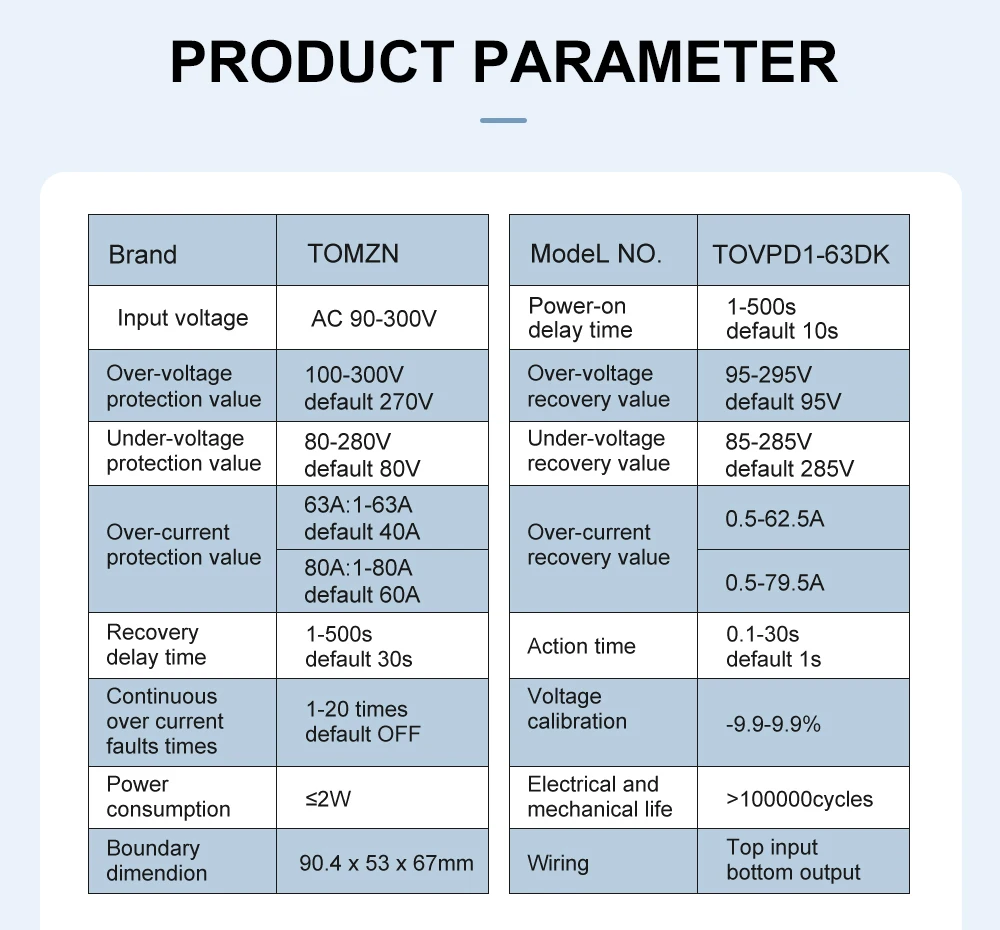

Max. Loading Power: 1-63A Adjustable (default: 63A)
Over-Voltage Protection Value Range: 100-300V (default: 270V)
Under-Voltage Protection Value Range: 80-280V (default: 80V)
Over-Current Adjustment Range: 1-63A (default: 40A)

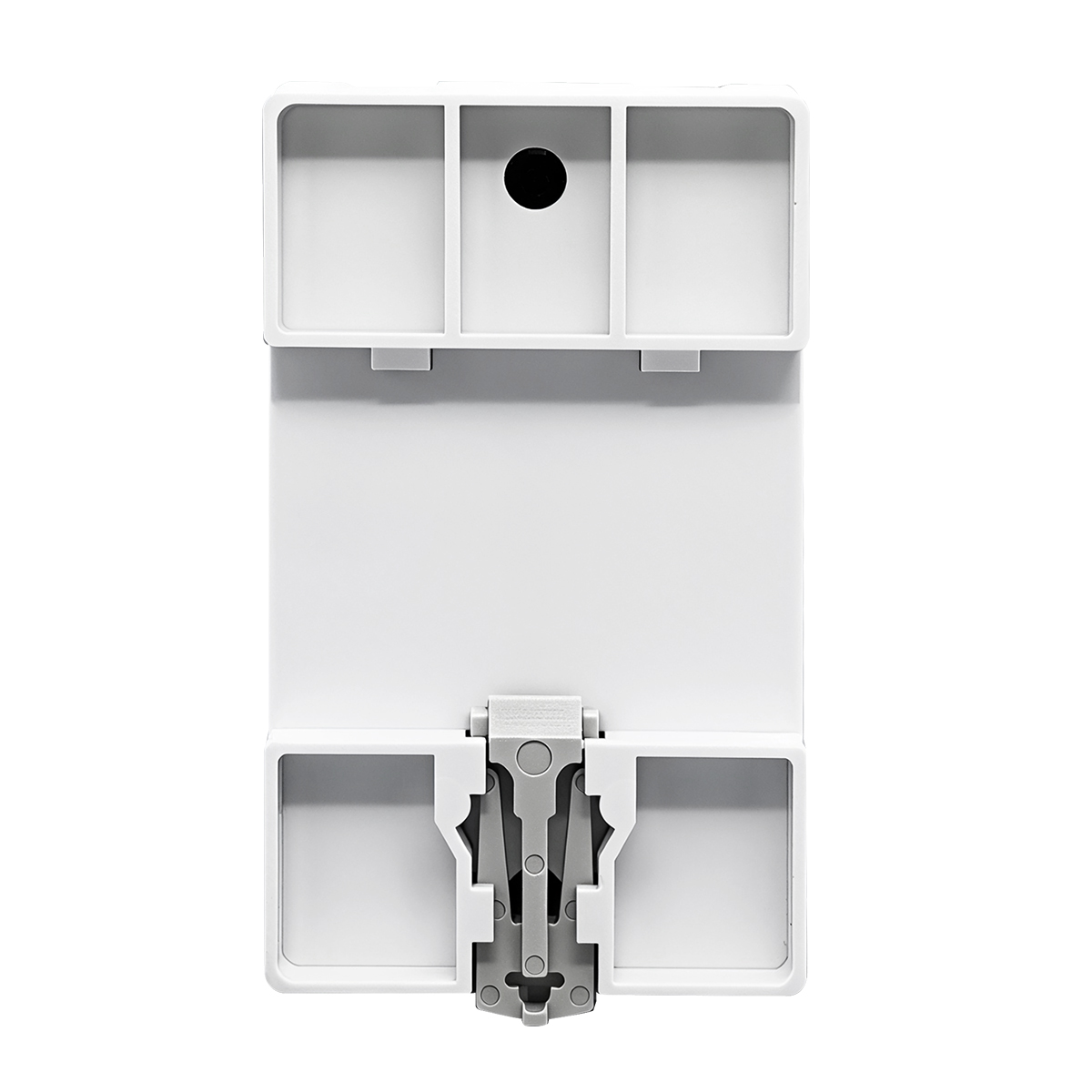

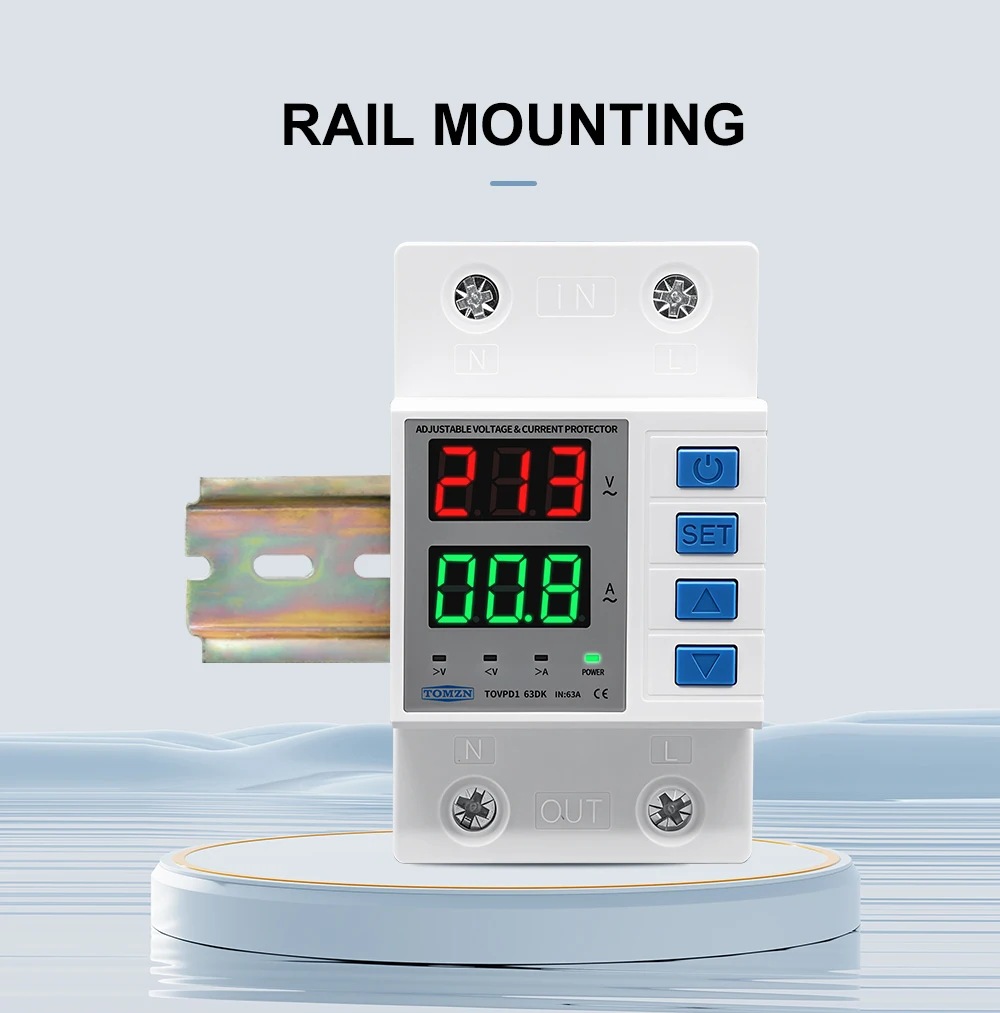

Installation: 35mm DIN rail
**Advanced Protection and Versatility**
The TOMZN Adjustable Voltage&Current Protector is an essential piece of equipment for safeguarding electrical systems against potential hazards. This robust device is designed to simultaneously protect against over-voltage, under-voltage, and over-current conditions, ensuring the safety of your appliances and equipment. With a wide adjustable voltage and current range, from 1-63A, this protector is suitable for a versatile array of applications, including residential, commercial, and industrial settings.
**User-Friendly Design and Functionality**

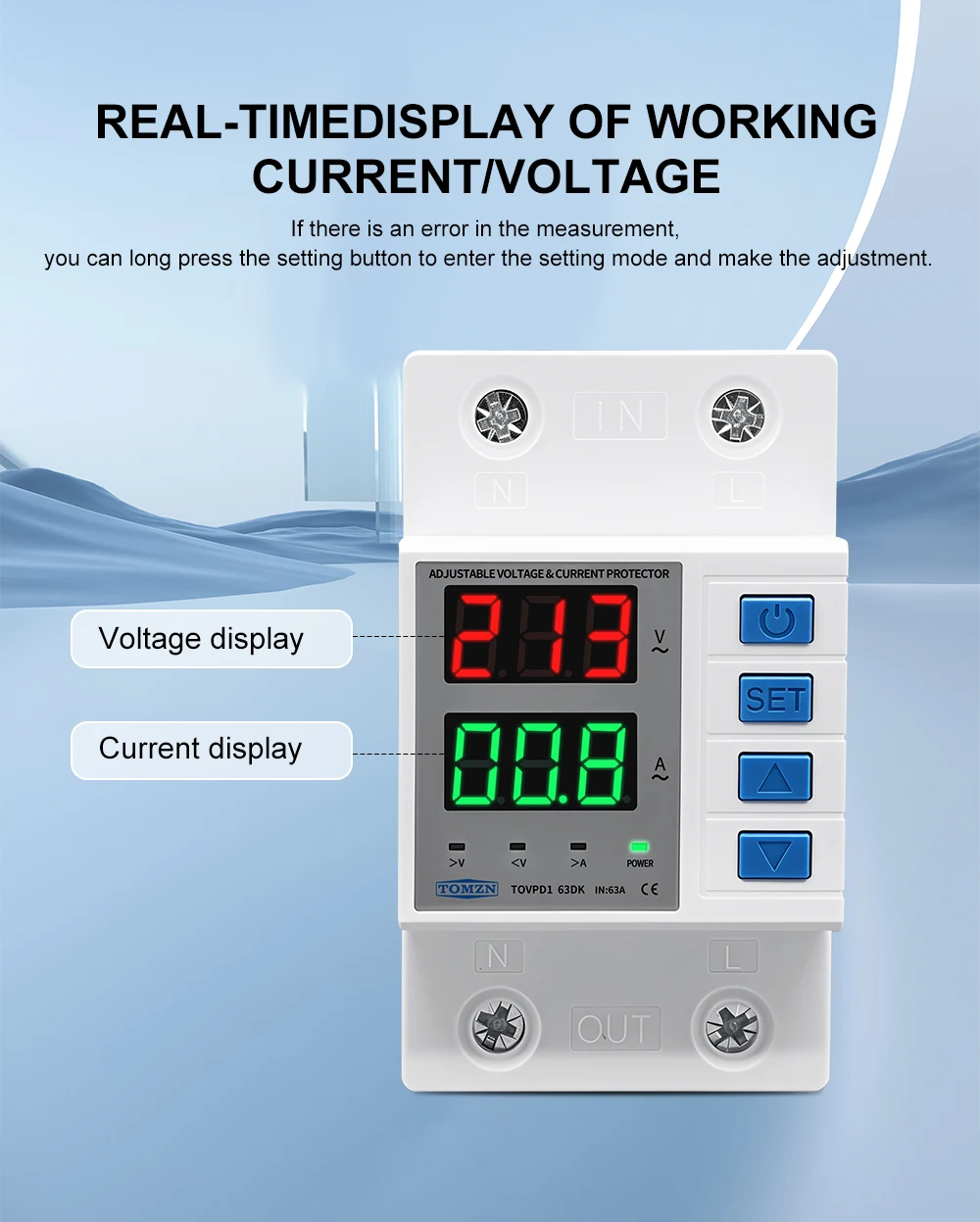

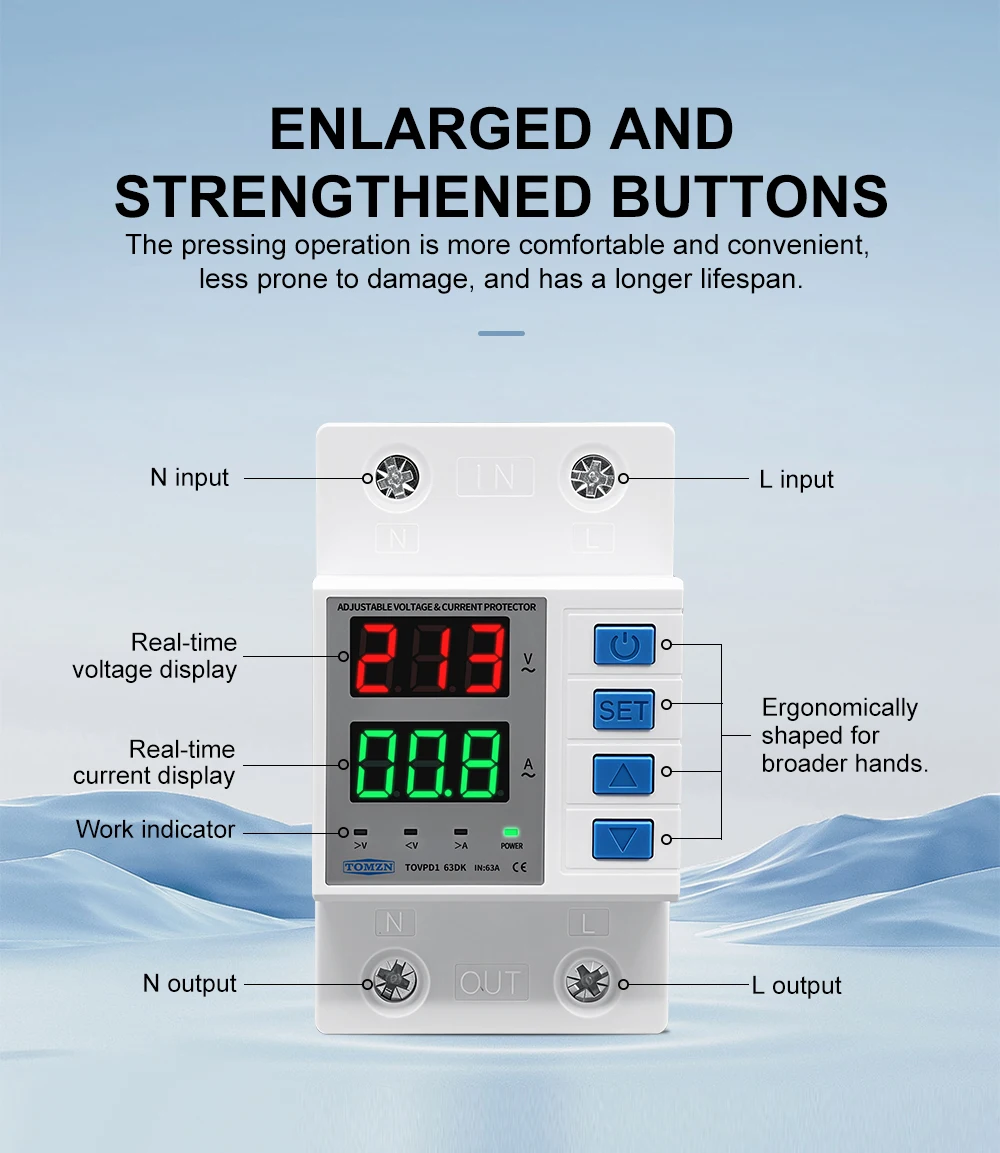

The TOMZN protector is not only a reliable safeguard but also a user-friendly device. It boasts a clear voltage and current display, allowing users to monitor the status of their electrical system in real-time. Moreover, the protector’s settings can be easily adjusted to match local conditions, thanks to its ±9.5% voltage calibration feature and the ability to restore factory settings with a simple button press. Users can also inquire about faults and reset the protector with ease, making maintenance a breeze.
**Reliable and Durable Performance**

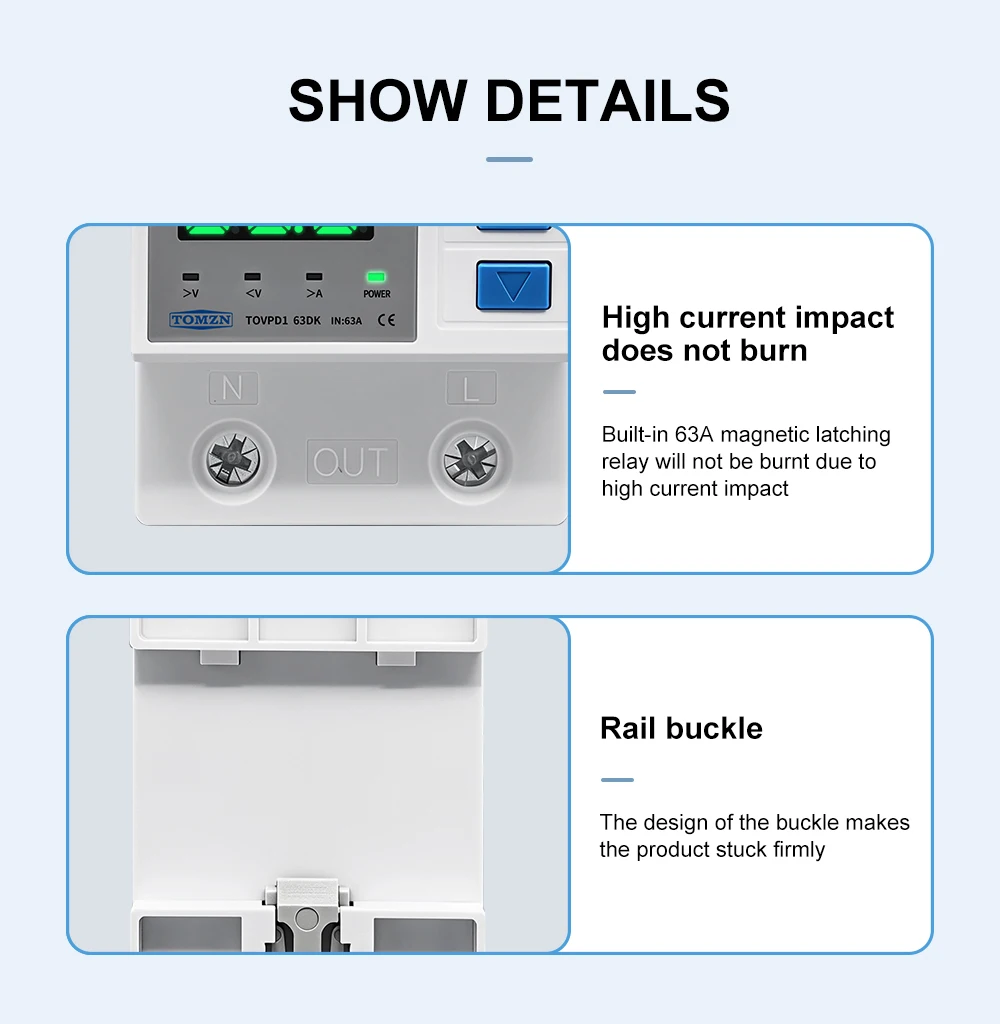

Constructed with high-quality materials, the TOMZN over voltage protector is built to last. It has an electric machinery life of 100,000 times, ensuring long-term reliability. The protector’s power consumption is minimal, standing at less than 2W, which means it operates efficiently without adding unnecessary load to your electrical system. Whether you’re protecting sensitive equipment in a home, a critical system in an industrial facility, or any other application requiring robust voltage and current protection, the TOMZN protector is the ideal solution.
