TOMZN 6IN1 WIFI Smart Multi-function Meter Voltage Current power energy frequence PF Measurement Timer Internal/External CT

Description

Description

report

TOB9L-63WIFI 2P can cut off L and N both,

With leakage protection, NO temperature control.

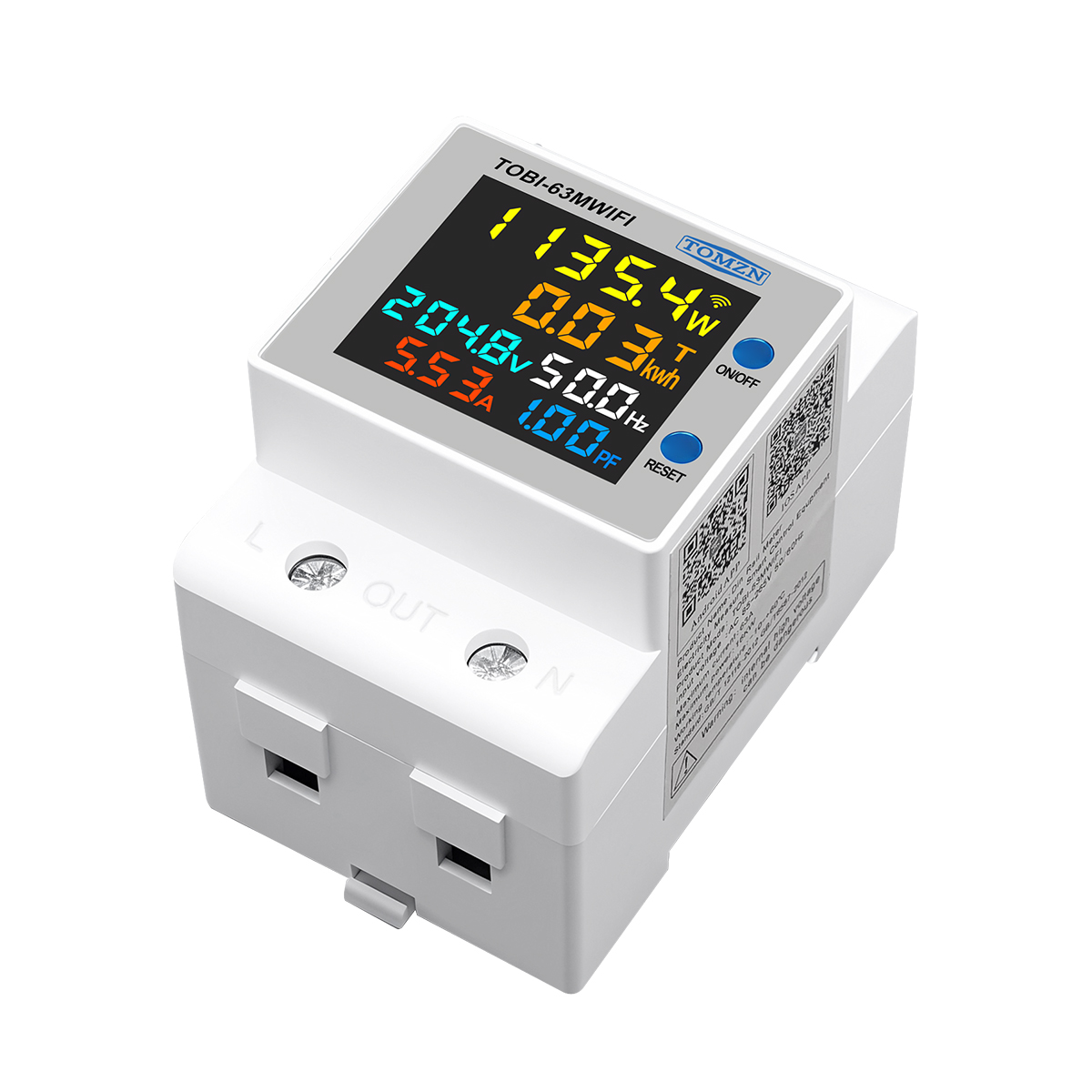

TOB9-63WIFI 1P Can only cut off L,

NO leakage protection, With temperature control.

General

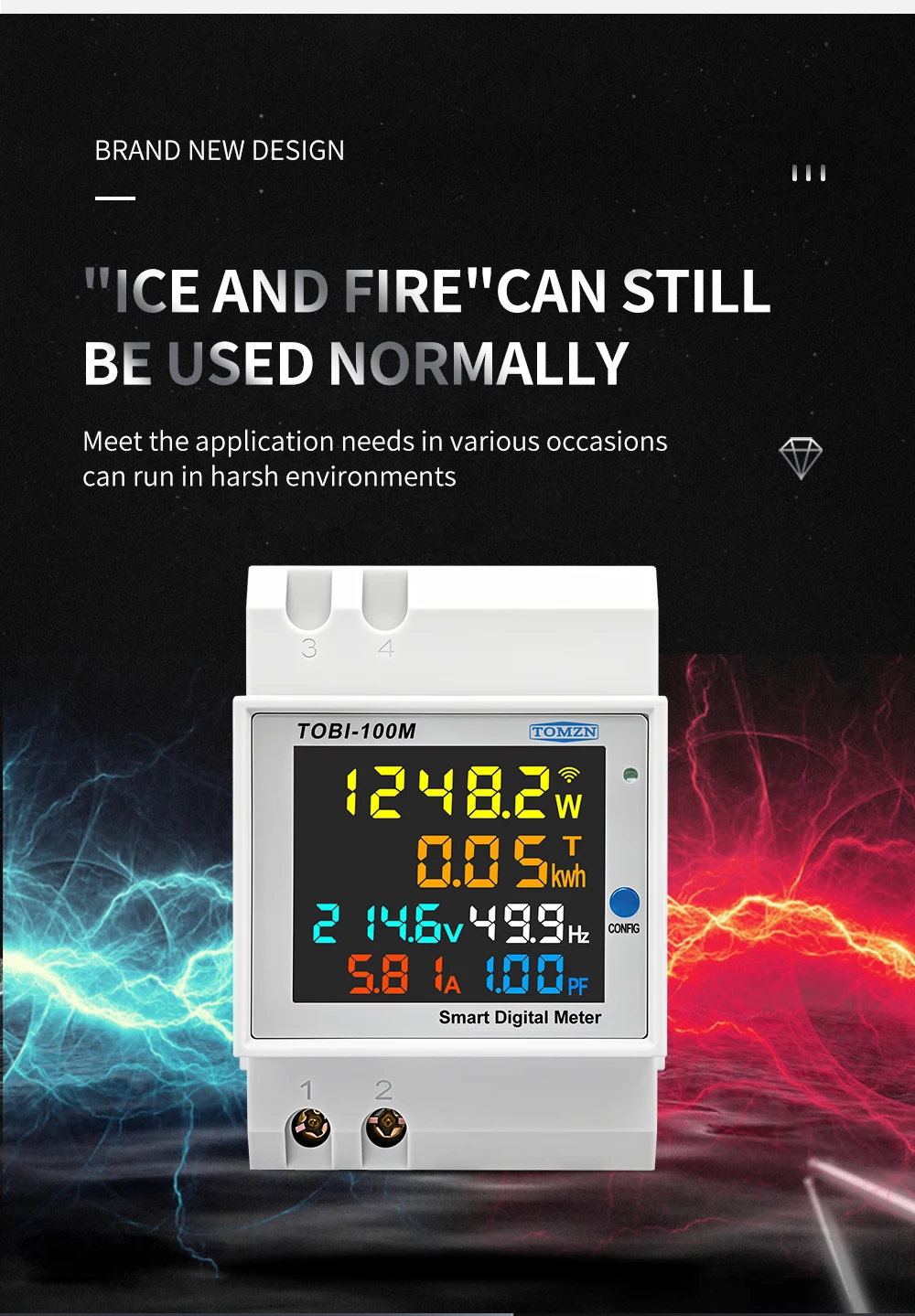

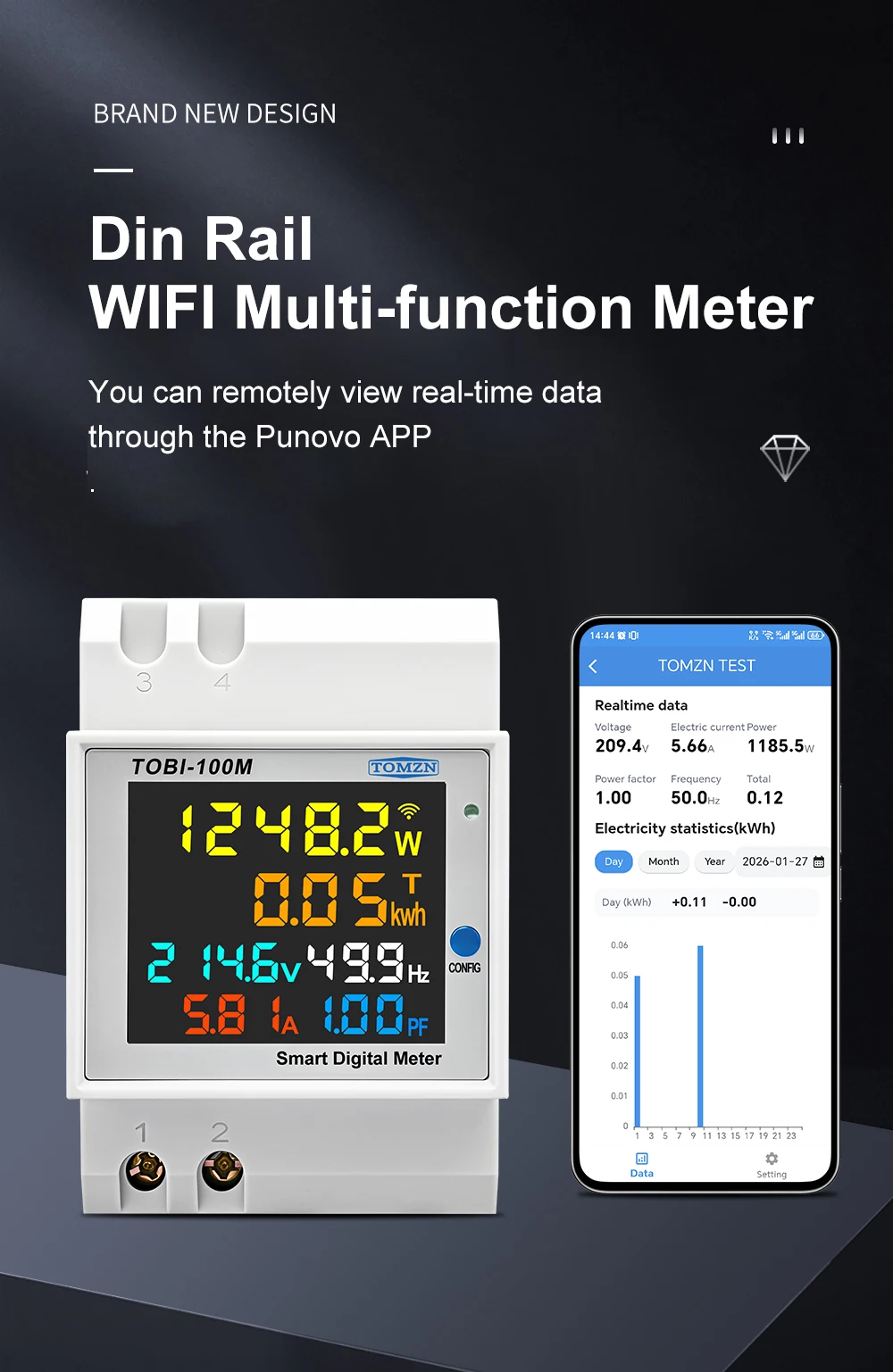

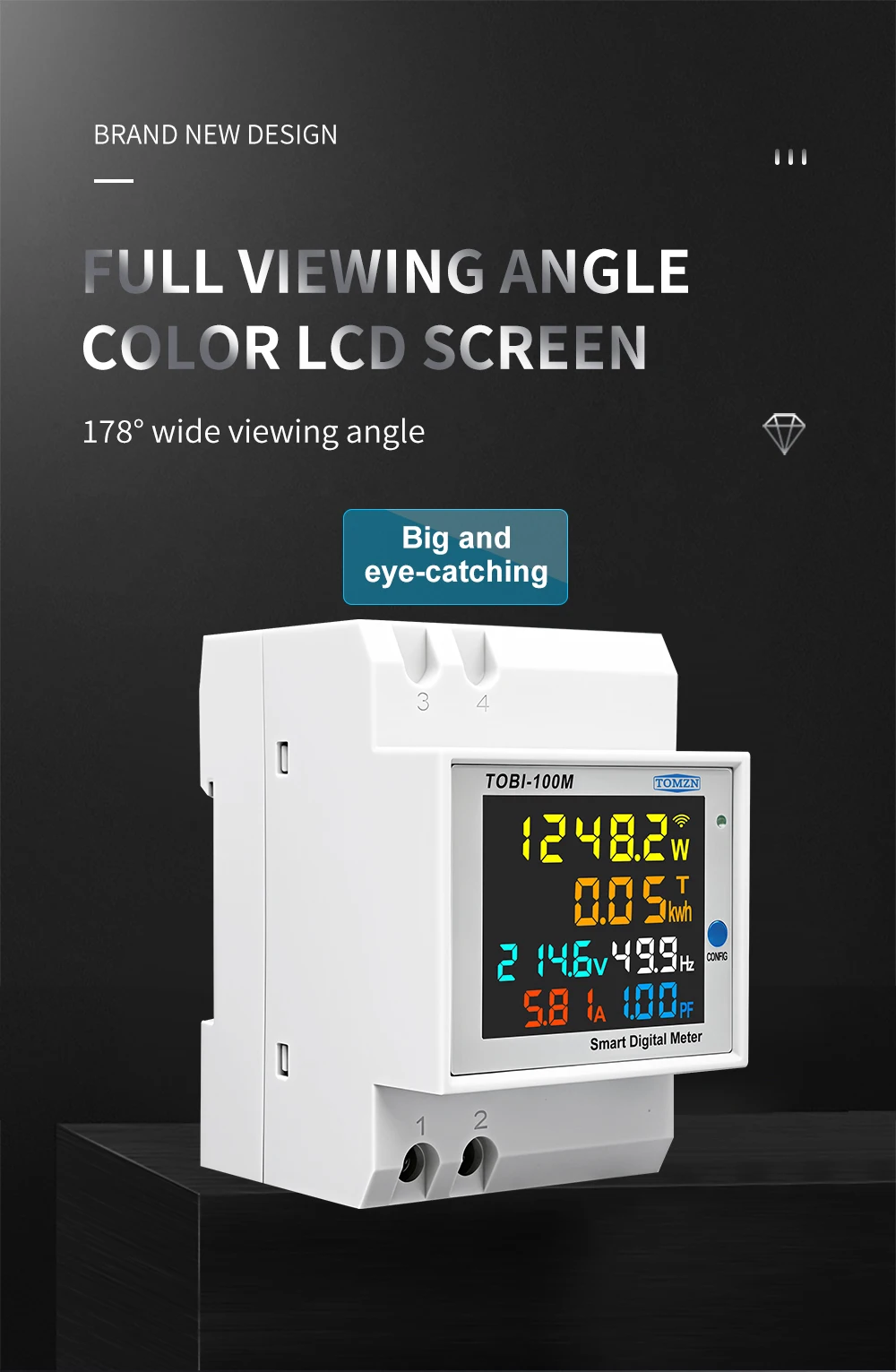

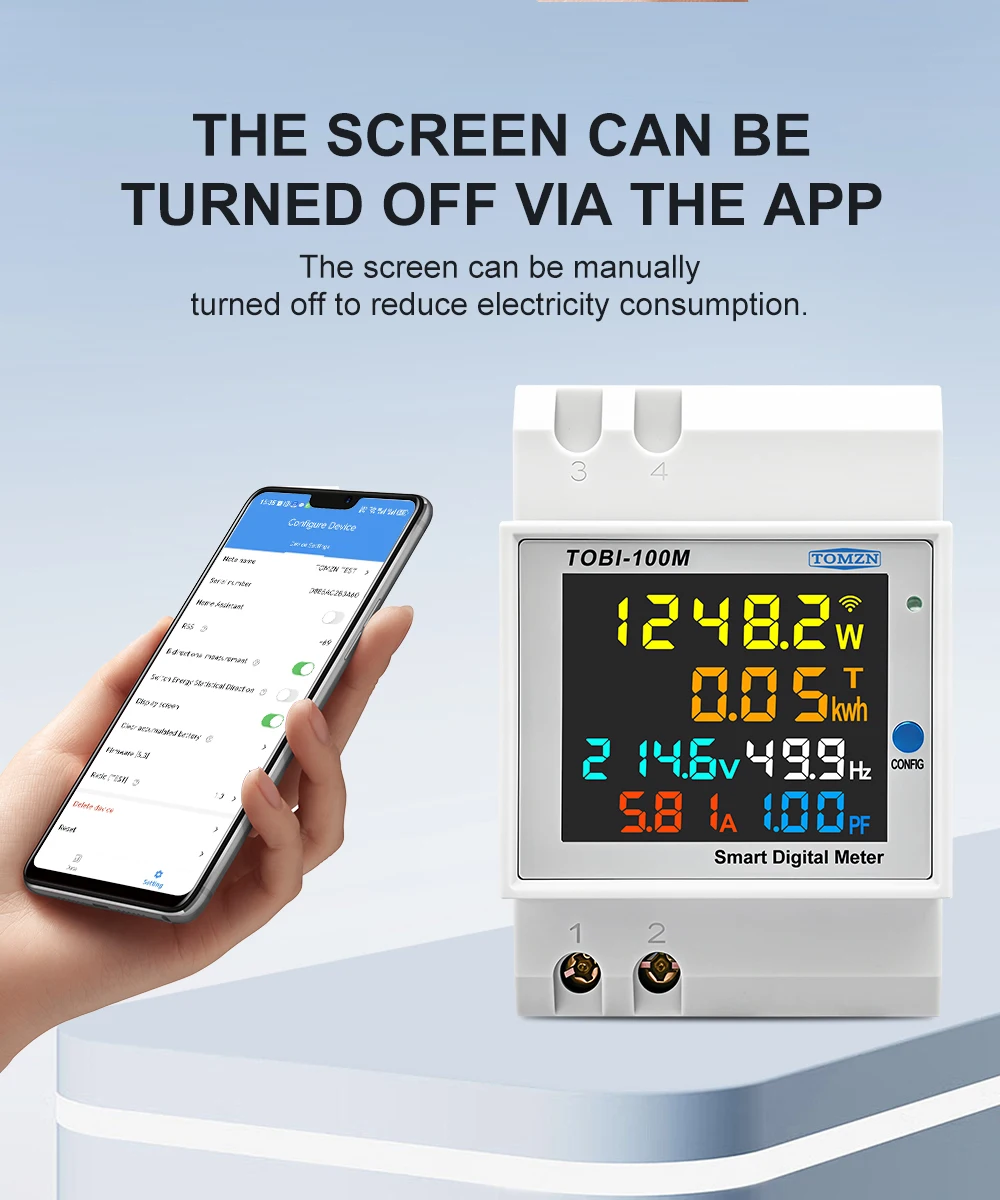

Smart meter TOBI-100M can to be measure and display AC voltage, AC current, active power, power factor, frequence and electric energy at same time, After the meter to be connect to 2.4G WIFI and bind with your wechat or app, you can see all of the electric parameters in your cell-phone any where,at the same time the app will show the statistics of the days, month and year of the electric energy.

Technical Indicators

1. measurement accuracy: 1%±2 word
2. sample frequency: 2 per second

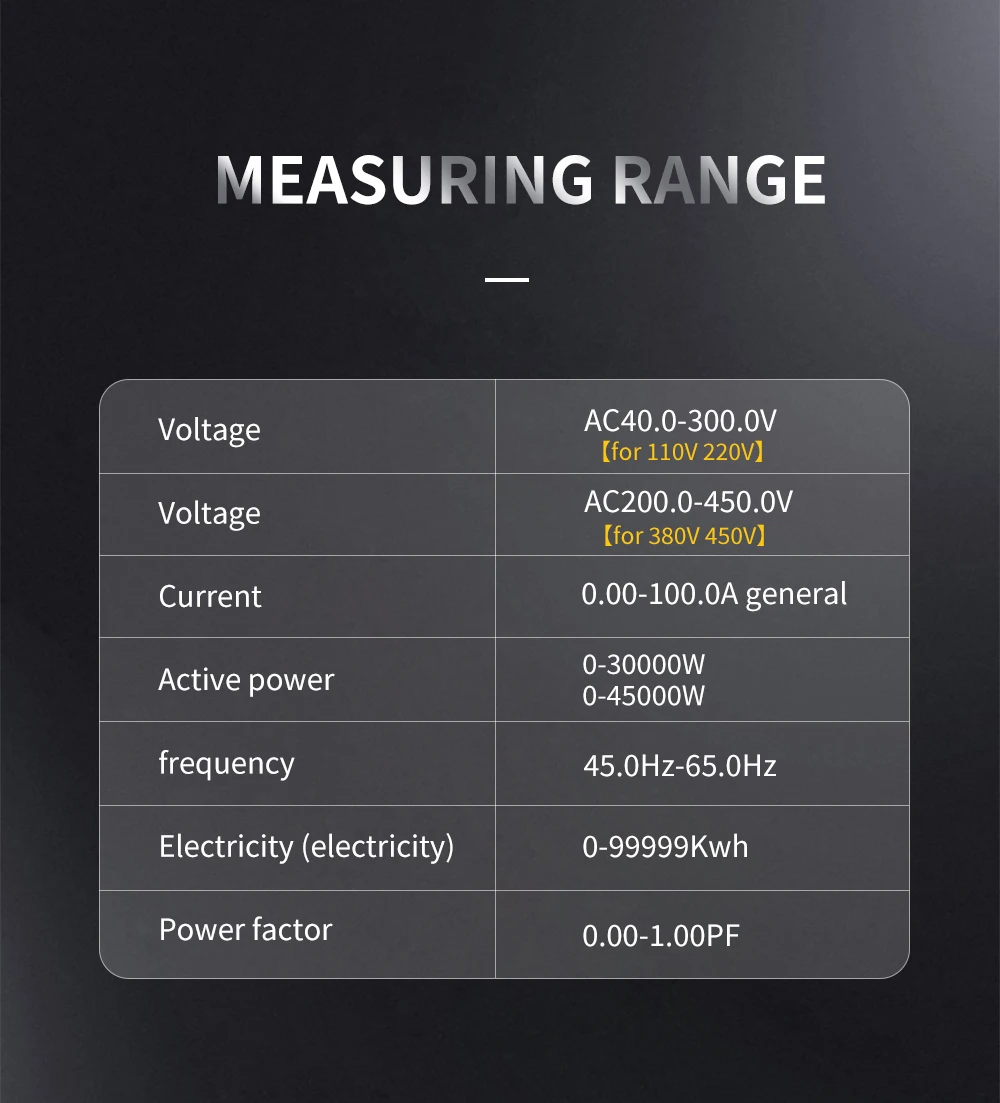

3. measurement parameters:

• AC voltage: 80-300V
• Electric energy: 0-99999kwh (Unlimited in app)
• AC current: 0.00-100.0A
• Frequency: 45-65Hz
• Real power: 0-30000W
• Power factor: 0.00-1.00

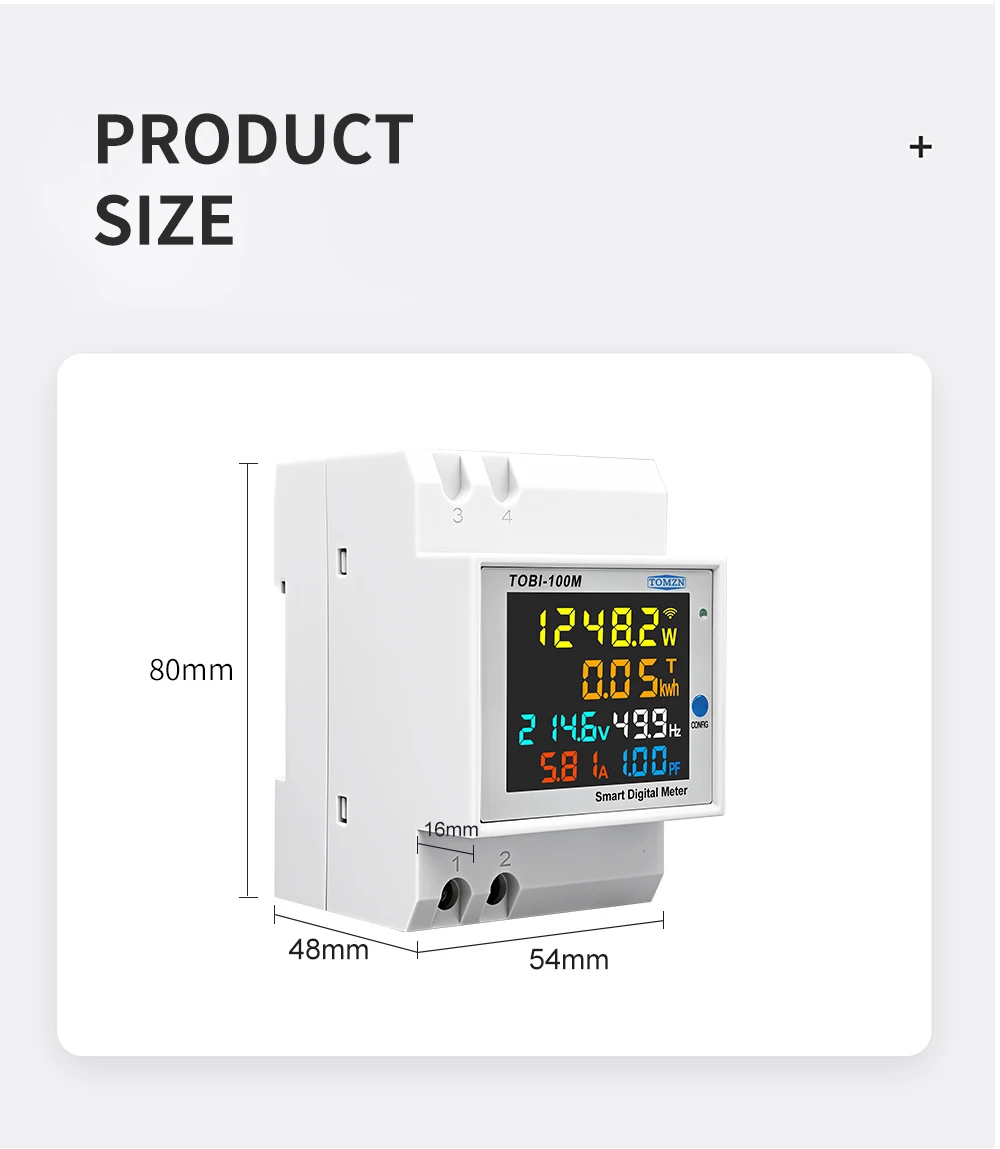

4. Installation size: 54*48*80 mm

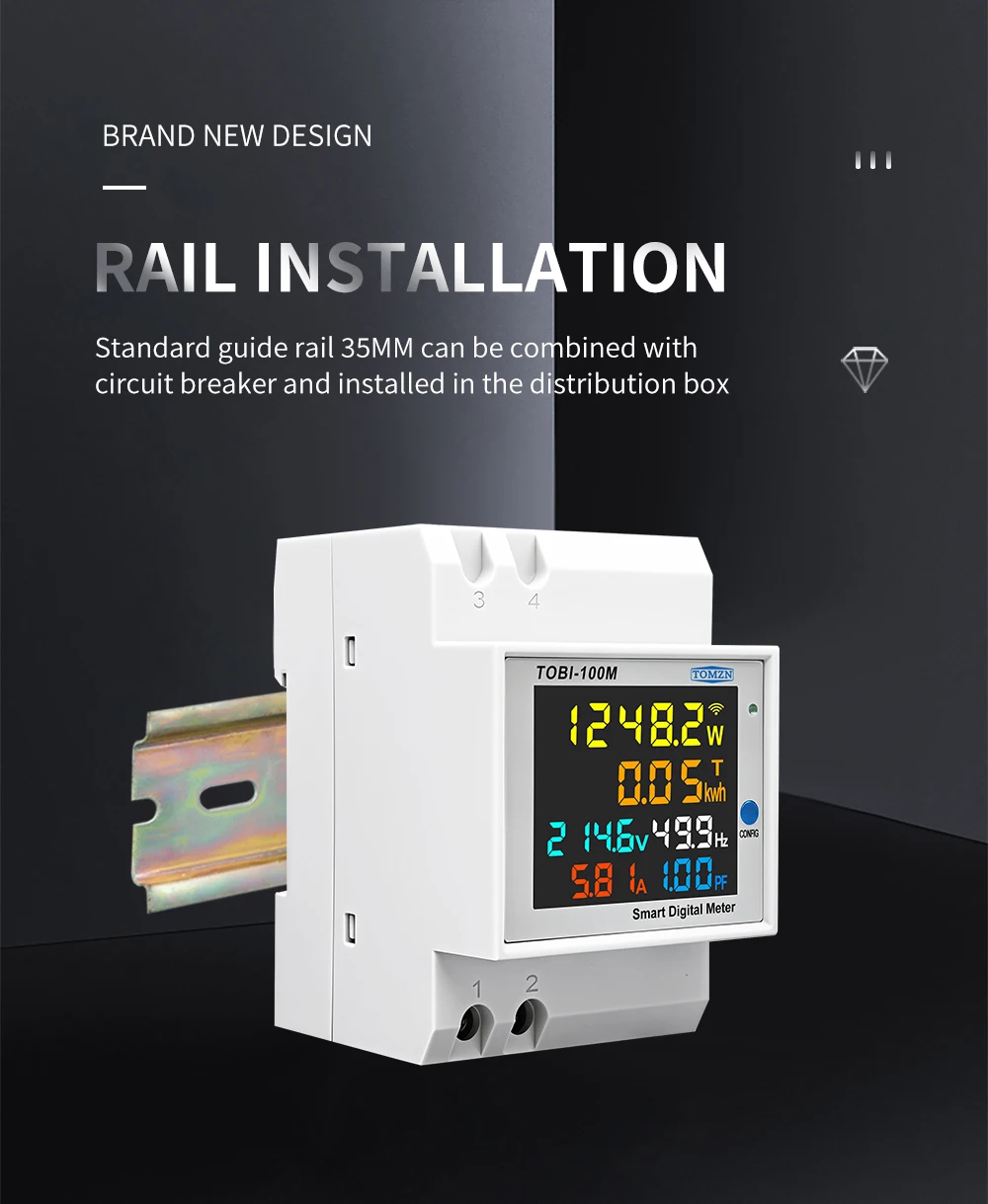

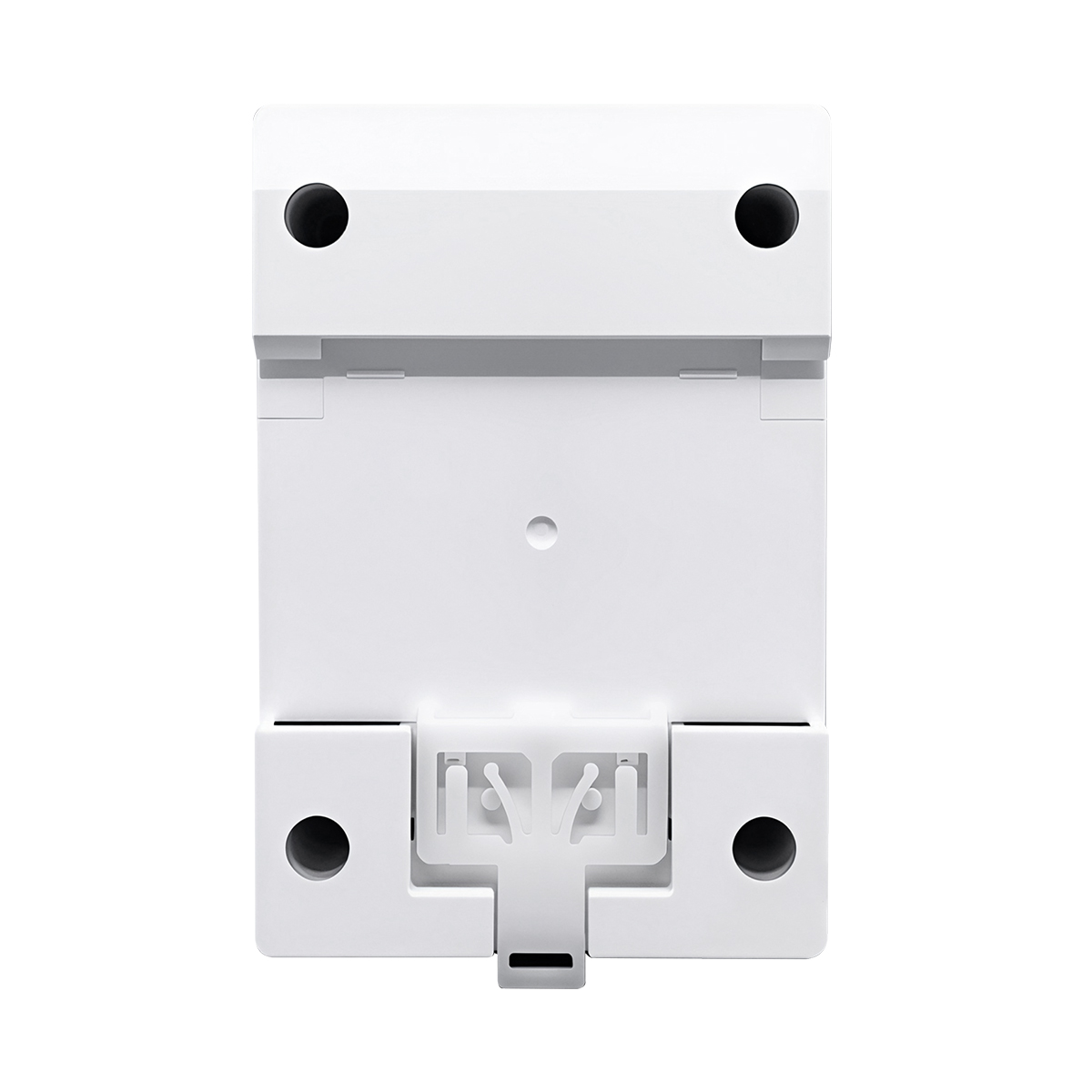

5. Installation method: DIN Rail (C45 35mm)

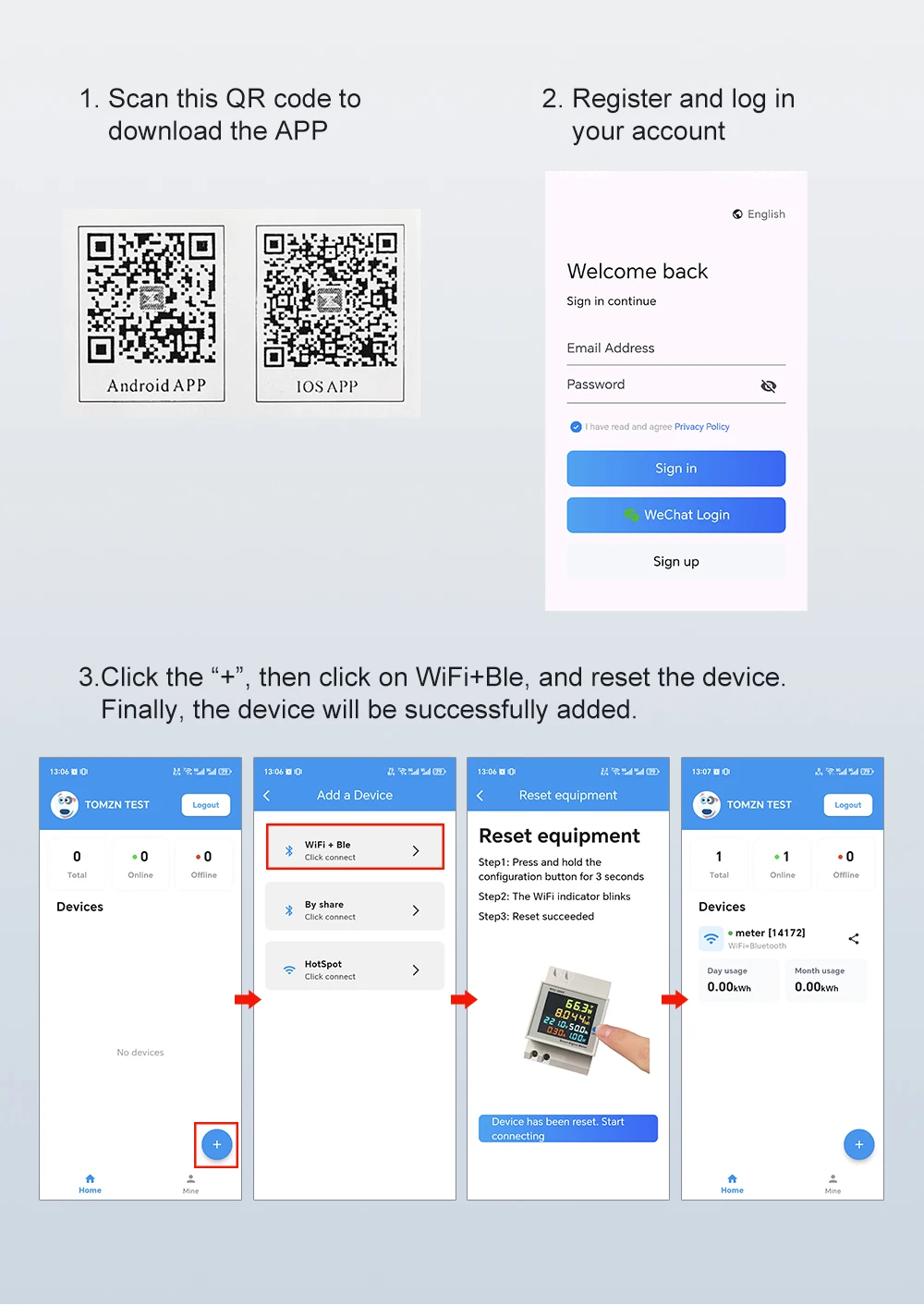

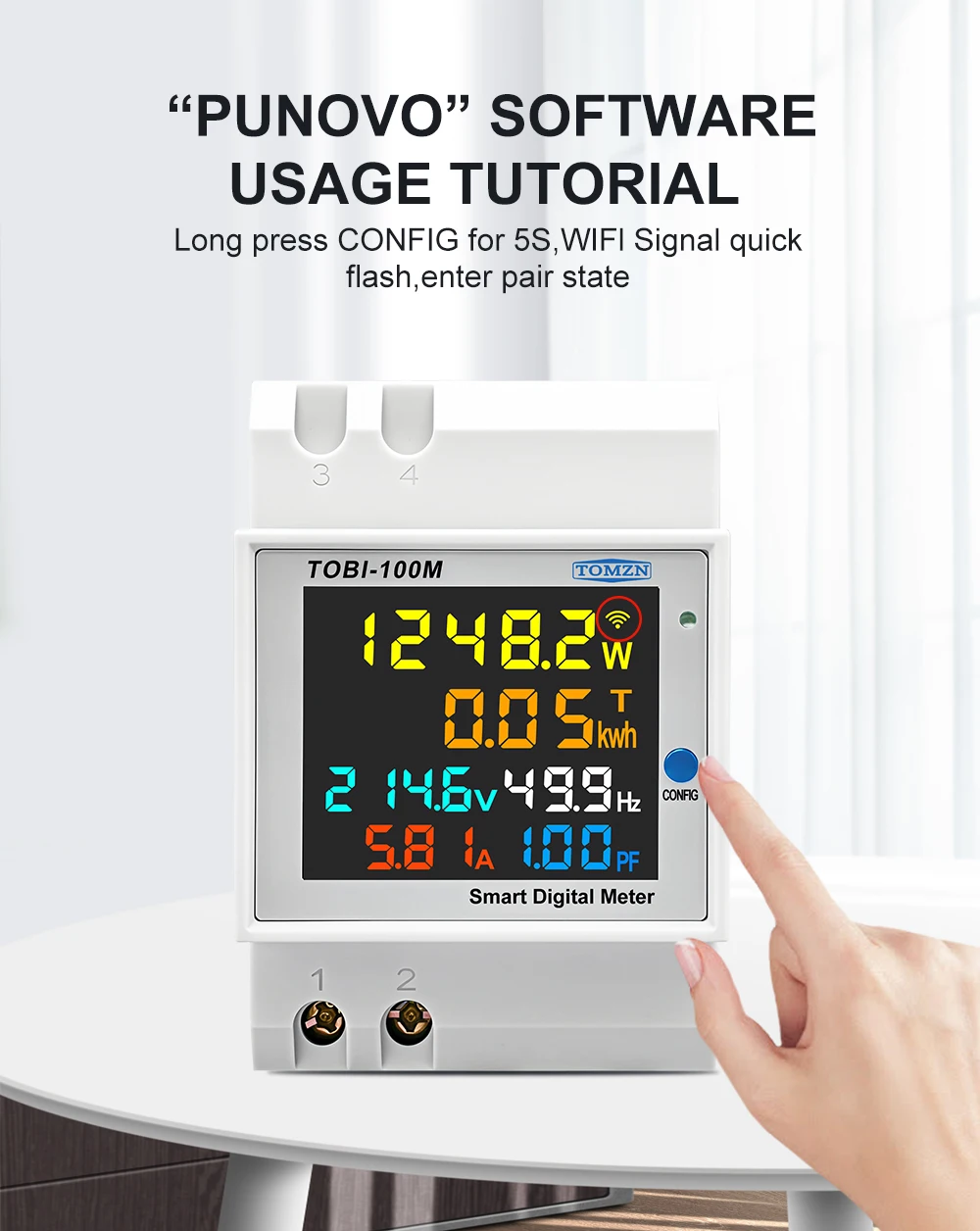

Noted: You can scan this QR code to download the device-related APP.
