TOMZN 50PCS Universal Lever Wire Connectors 1-to-1 Assemblable Wire Connector Electrical Connectors Wire Terminals Quick Connect

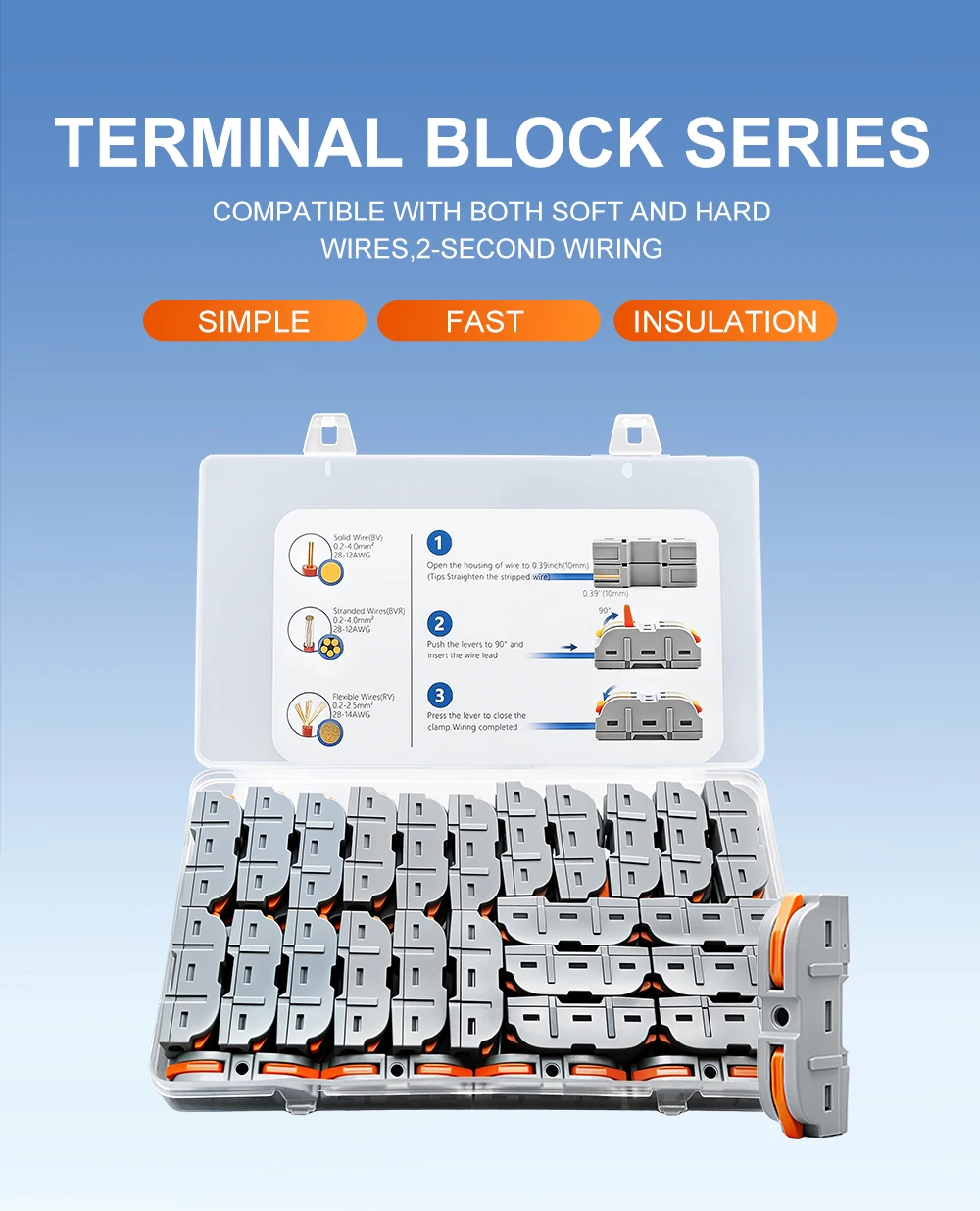

PCT-221 1BOX 50PCS

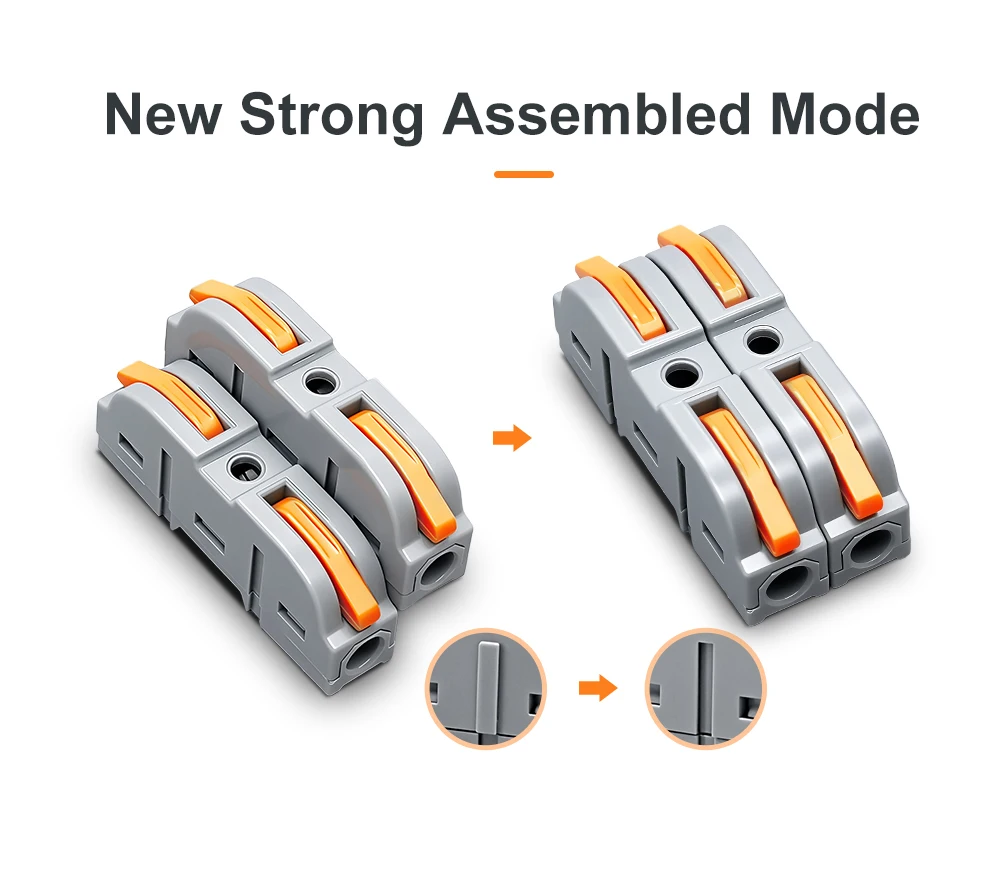

Assembled Mode Lever Wire Connectors DIY ANY WAY

General

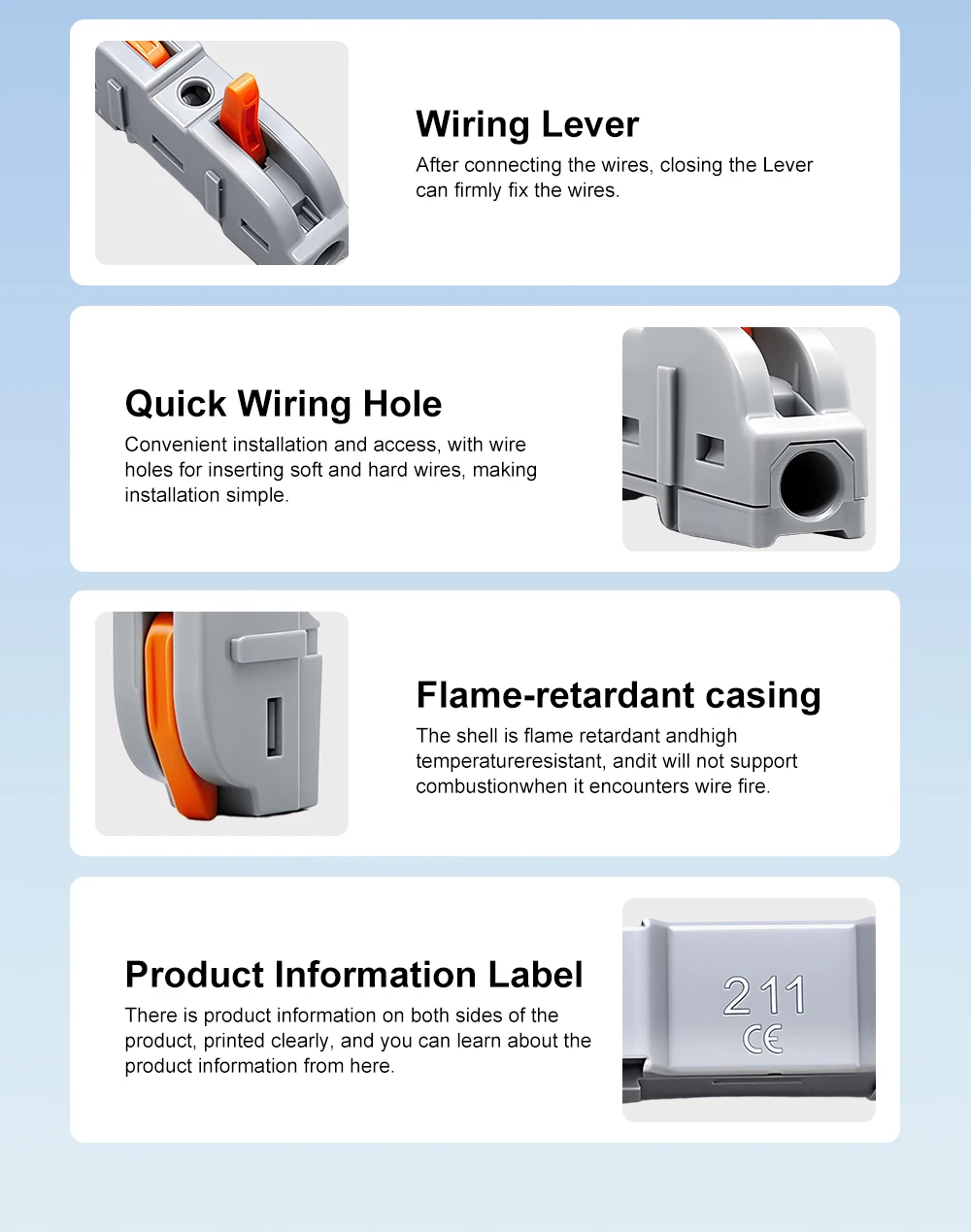

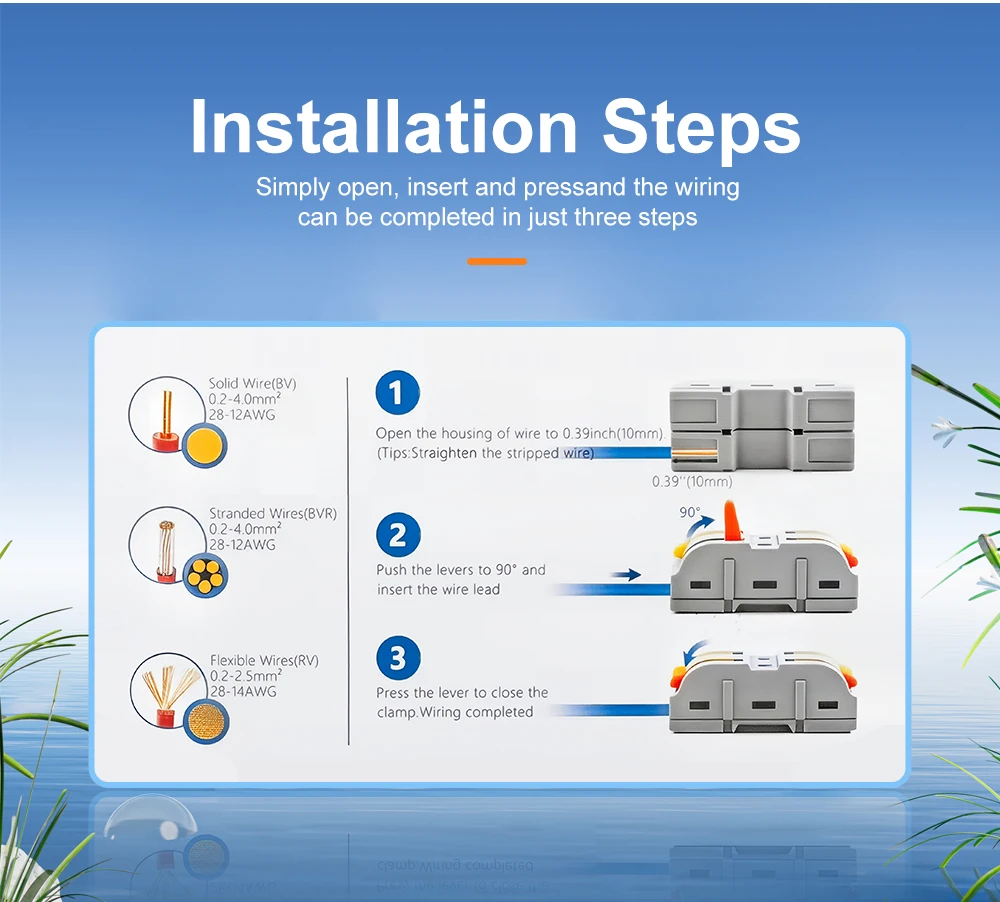

The PCT-221 Lever Wire Connector Kit comes with 50 pieces in one box. Each connector is a 1‑way block, meaning it takes one input wire and one output wire. The clever design has grooves and tabs on the sides, so you can snap multiple units together to make any number of connections you want – no tools required. Just press the lever, insert the wire, and release. It holds tight and stays secure even with vibration. This connector works with wires from 28 to 12 AWG (0.2 to 4.0 mm²), handles up to 600 V and 32 A, and only needs a 9‑10 mm strip length. Made of copper and nylon, it is small (about 4 × 1.6 cm), safe, and easy to use. Perfect for joining wires, making branches, or any DIY electrical job. Build your connection your way – quickly and simply.

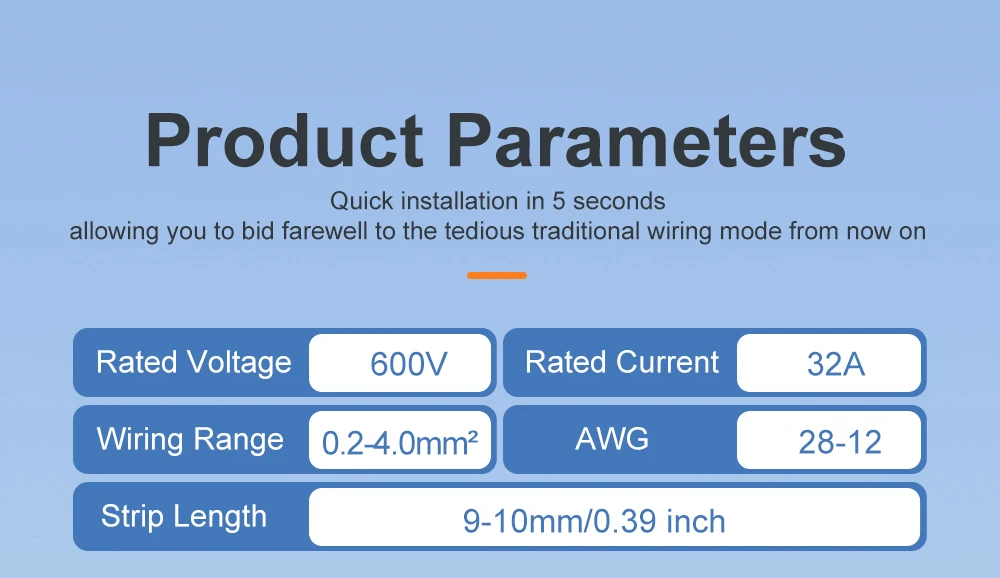

Product parameters

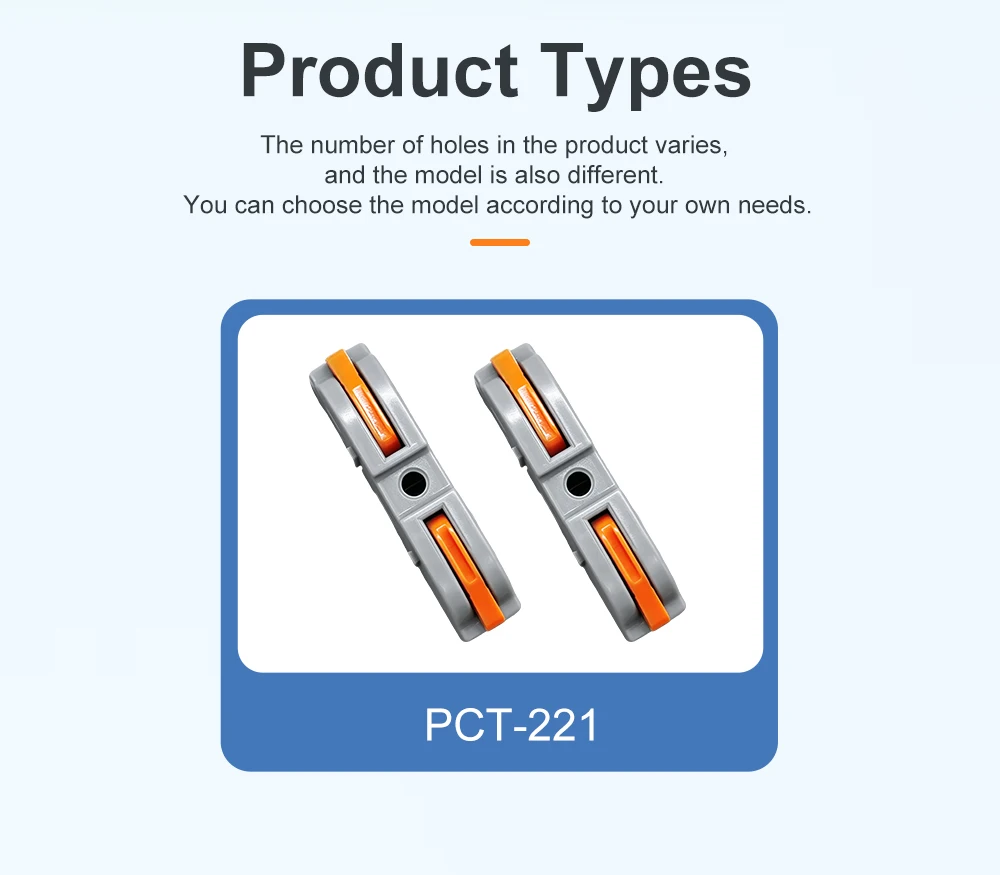

Model: PCT-221 Box
Quantity: 50 PCS
Rated Voltage: 600 V
Rated Current: 32 A
Wiring Range: 0.2~4.0 mm²
AWG: 28~12
Strip Length: 9 – 10 mm / 0.39 inch
Connection Style: 1‑way (1 input + 1 output), expandable via side‑interlocking
Mounting: Free‑standing / snap‑together

Category: Wire connectors
Material: Copper, Nylon
Size: About 4 * 1.6cm
Features: Can be freely spliced into any number of digits, safe insulation, good conductivity, easy operation
Applicable: Wire connection, branching
Quantity: 50PCS
