Description

PCT-221 1BOX 40PCS
Assembled Mode Lever Wire Connectors DIY ANY WAY

General
The PCT‑221 is a versatile lever‑operated wire connector engineered for fast, tool‑free splicing and branching. Its 1‑in‑1‑out design handles single‑wire connections, while integrated side grooves and protrusions let you snap multiple units together to create custom multi‑way assemblies – giving you unlimited DIY flexibility. Ideal for junction boxes, lighting fixtures, control panels, and general industrial wiring, the PCT‑221 accepts solid and stranded wires from 0.2 to 4.0 mm² (28‑12 AWG) and is rated for 600 V / 32 A. The transparent housing allows instant visual verification of proper insertion, and the sturdy lever ensures a secure, vibration‑resistant grip. Packaged in a convenient 40‑piece box, it streamlines inventory and project planning.

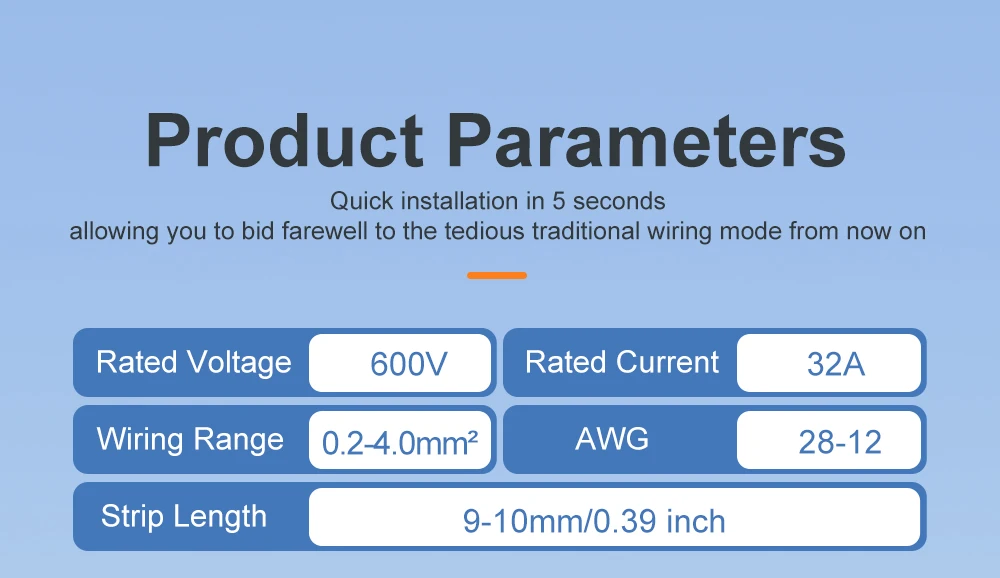

Product parameters

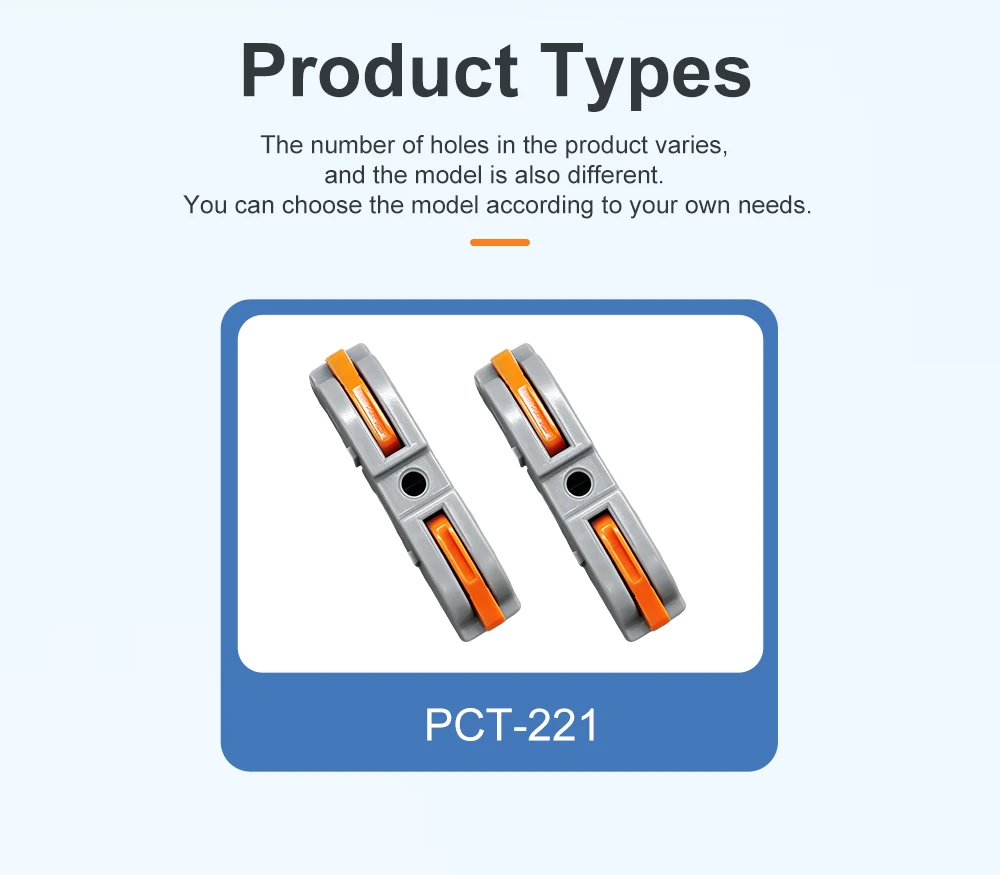

Model: PCT‑221 Box

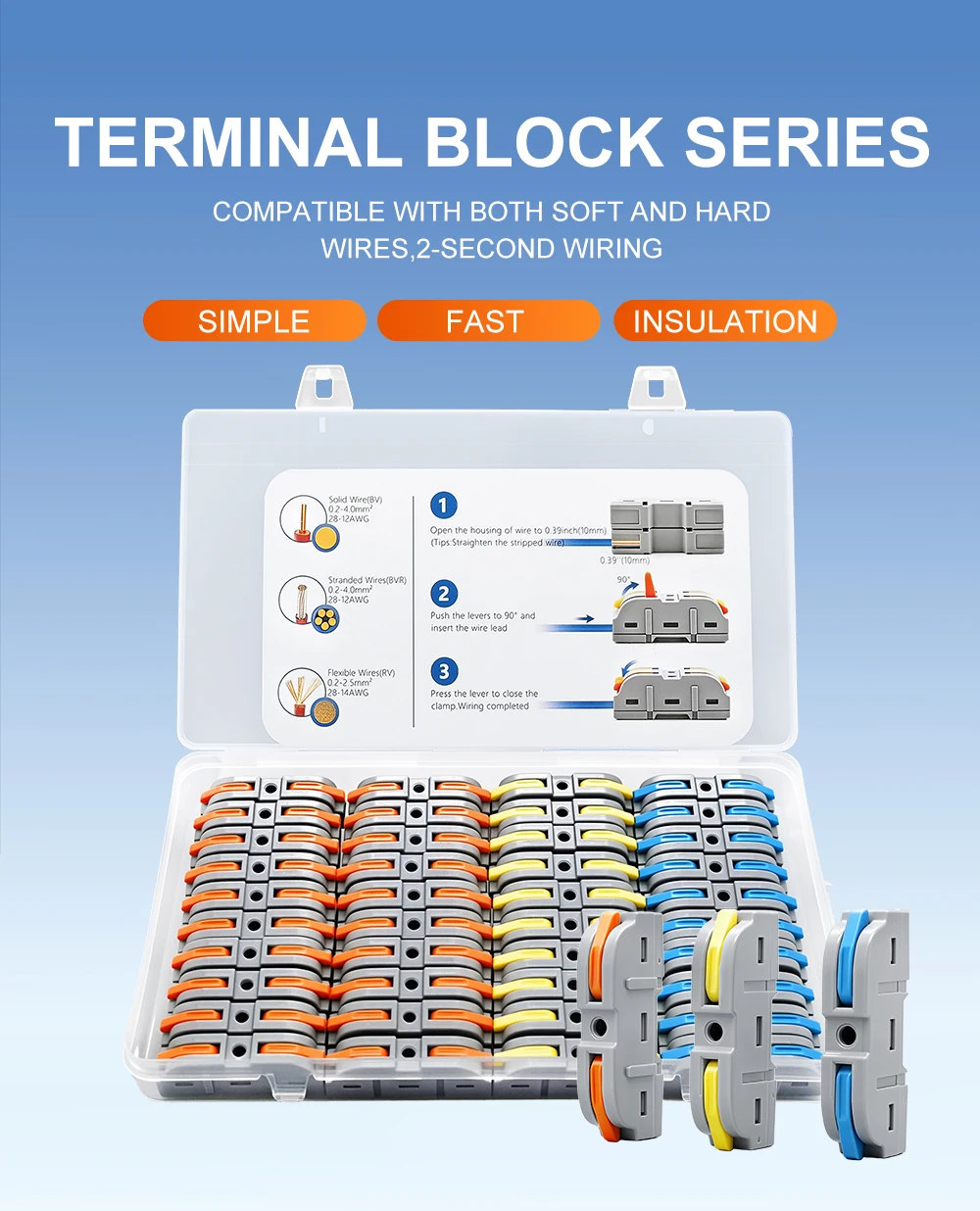

Quantity: 40 PCS
Rated Voltage: 600 V
Rated Current: 32 A
Wiring Range: 0.2 – 4.0 mm²
AWG: 28 – 12

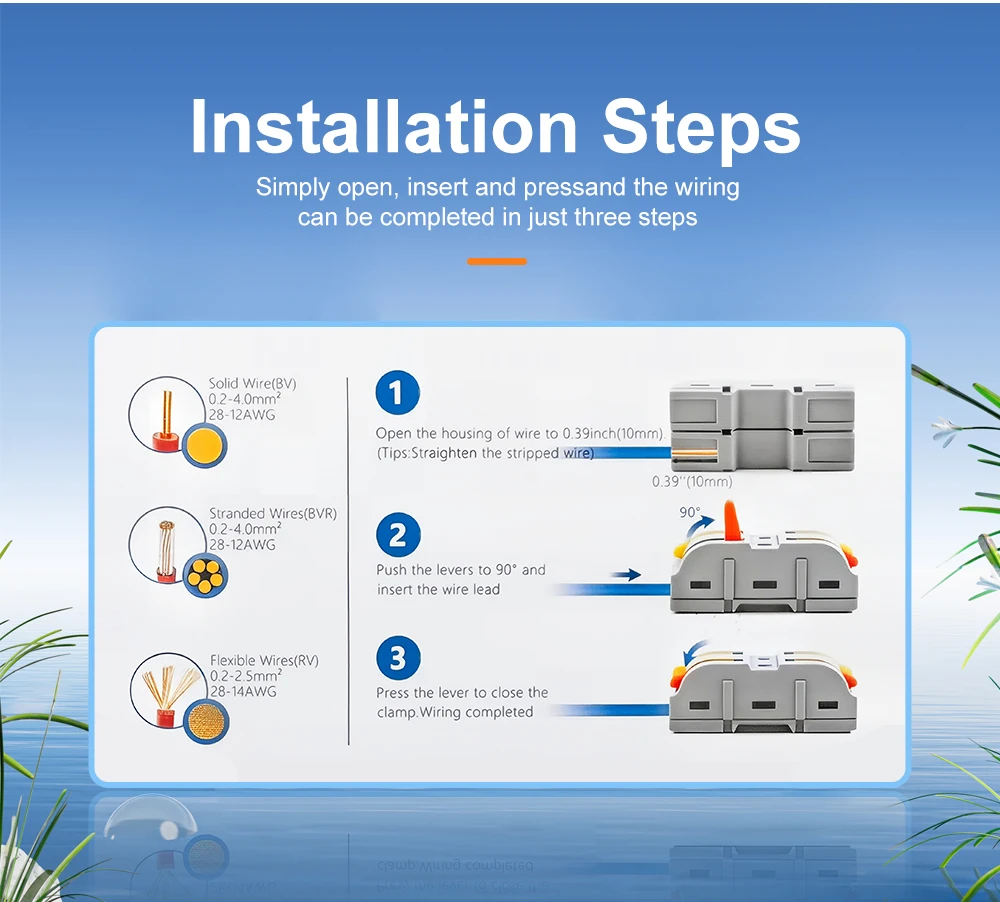

Strip Length: 9 – 10 mm (0.39 inch)

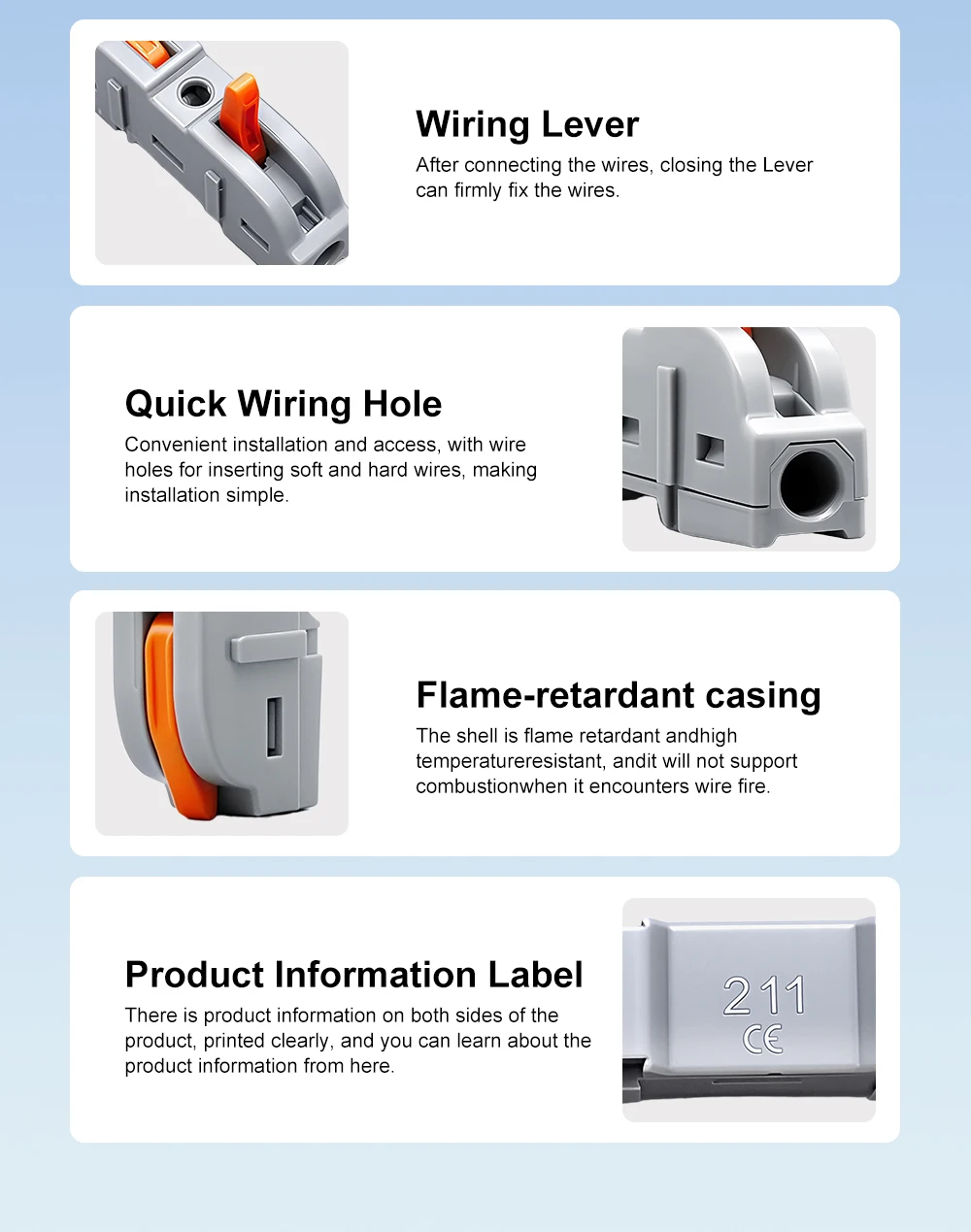

Connection Type: Lever‑operated, push‑in termination

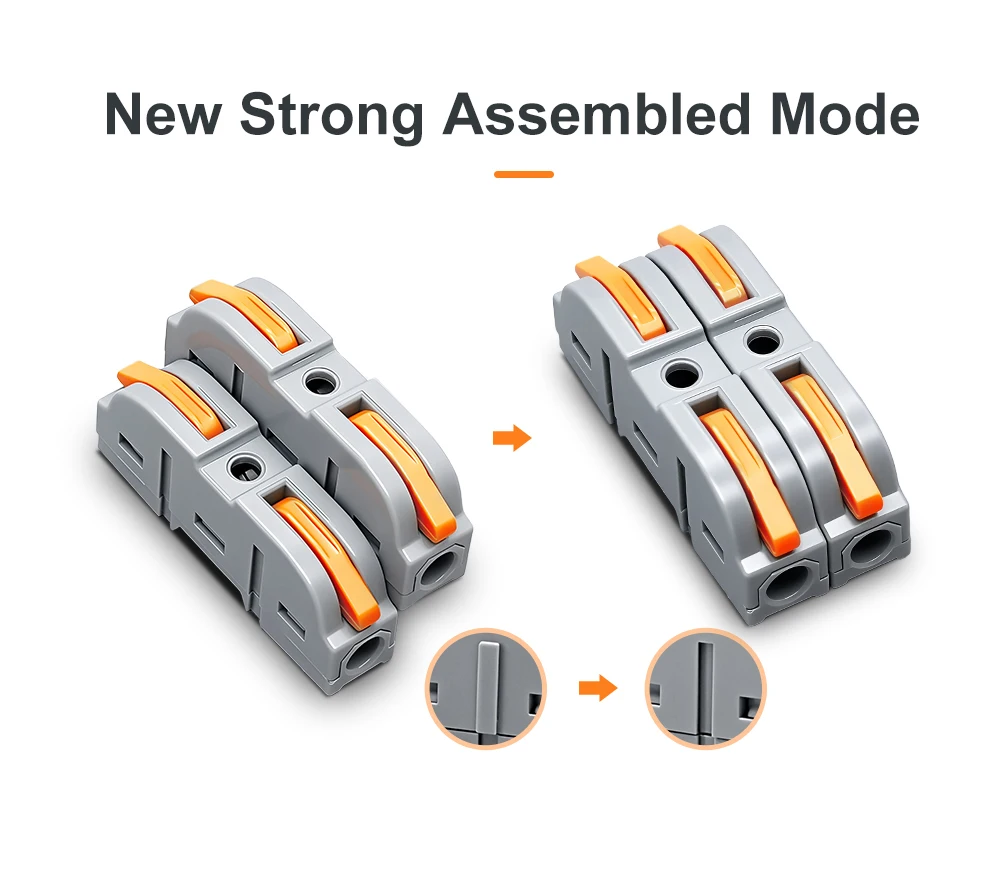

Configuration: 1‑way (expandable by snapping multiple units)
Housing Material: Transparent polycarbonate (flame‑retardant)
Operating Temperature: –40 °C to +105 °C (typical)
Certifications: Compliant with IEC/EN standards (check local approvals)
