Description

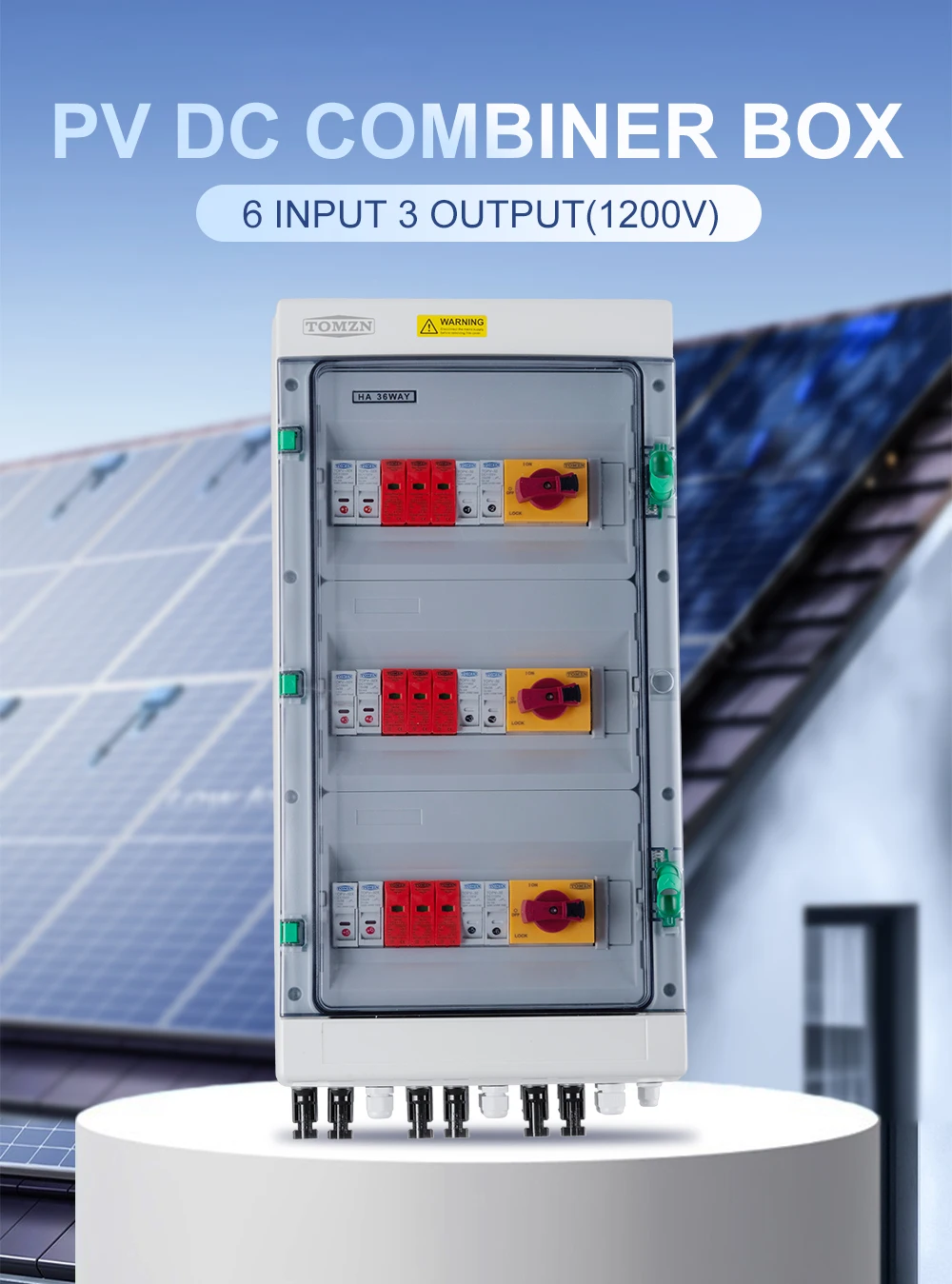

36ways 6 input 3 output DC 1200V PV IP65 Combiner Box

General

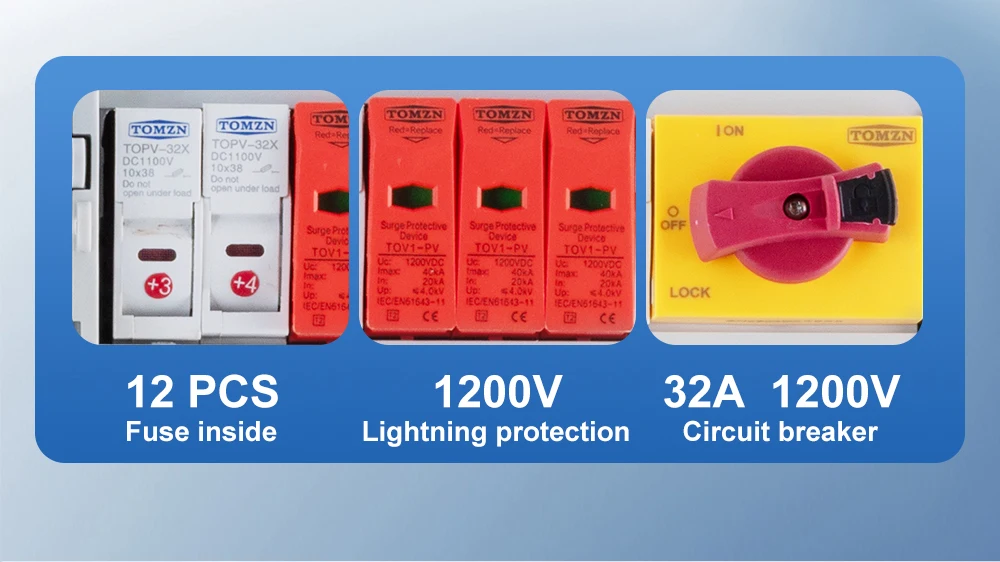

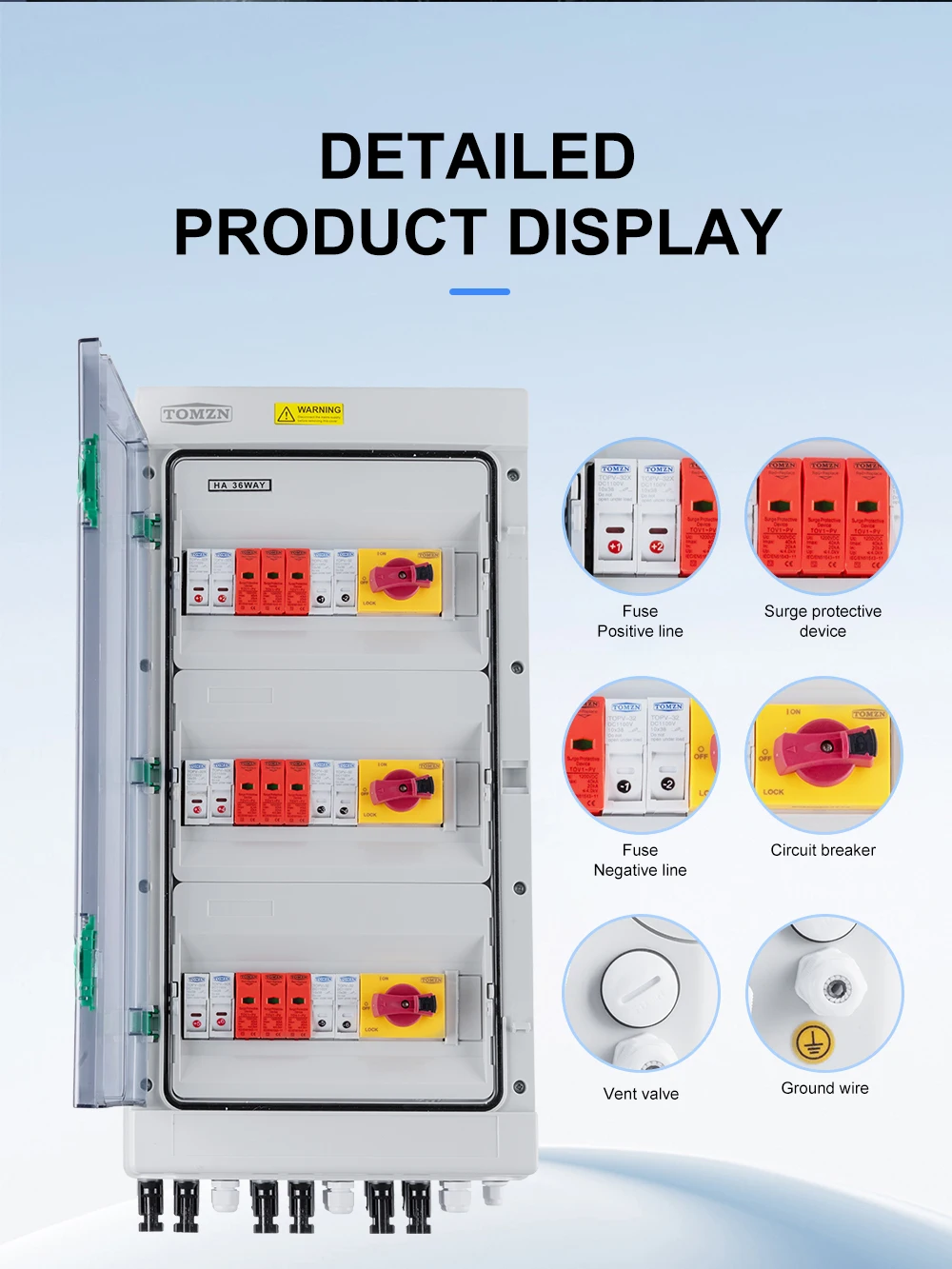

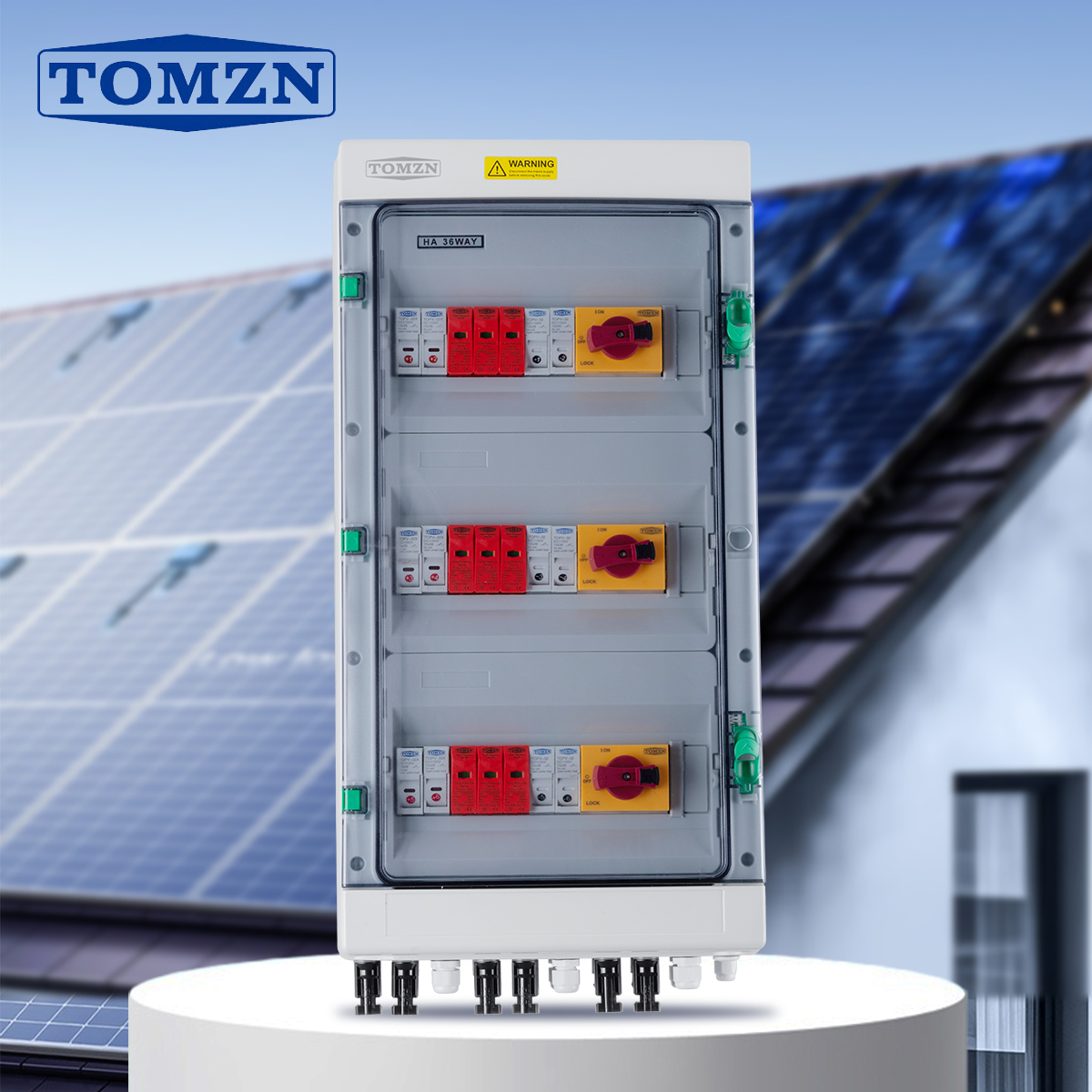

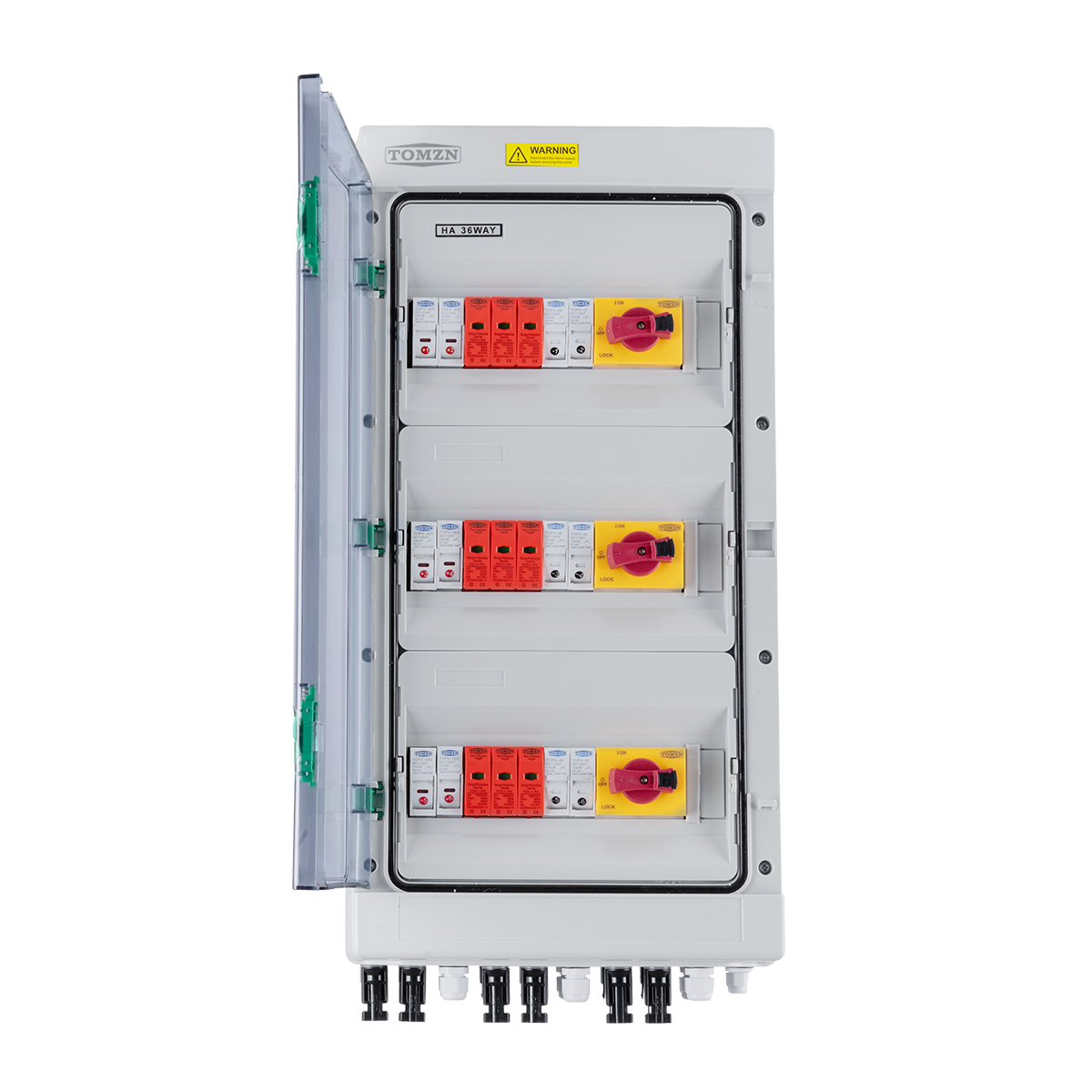

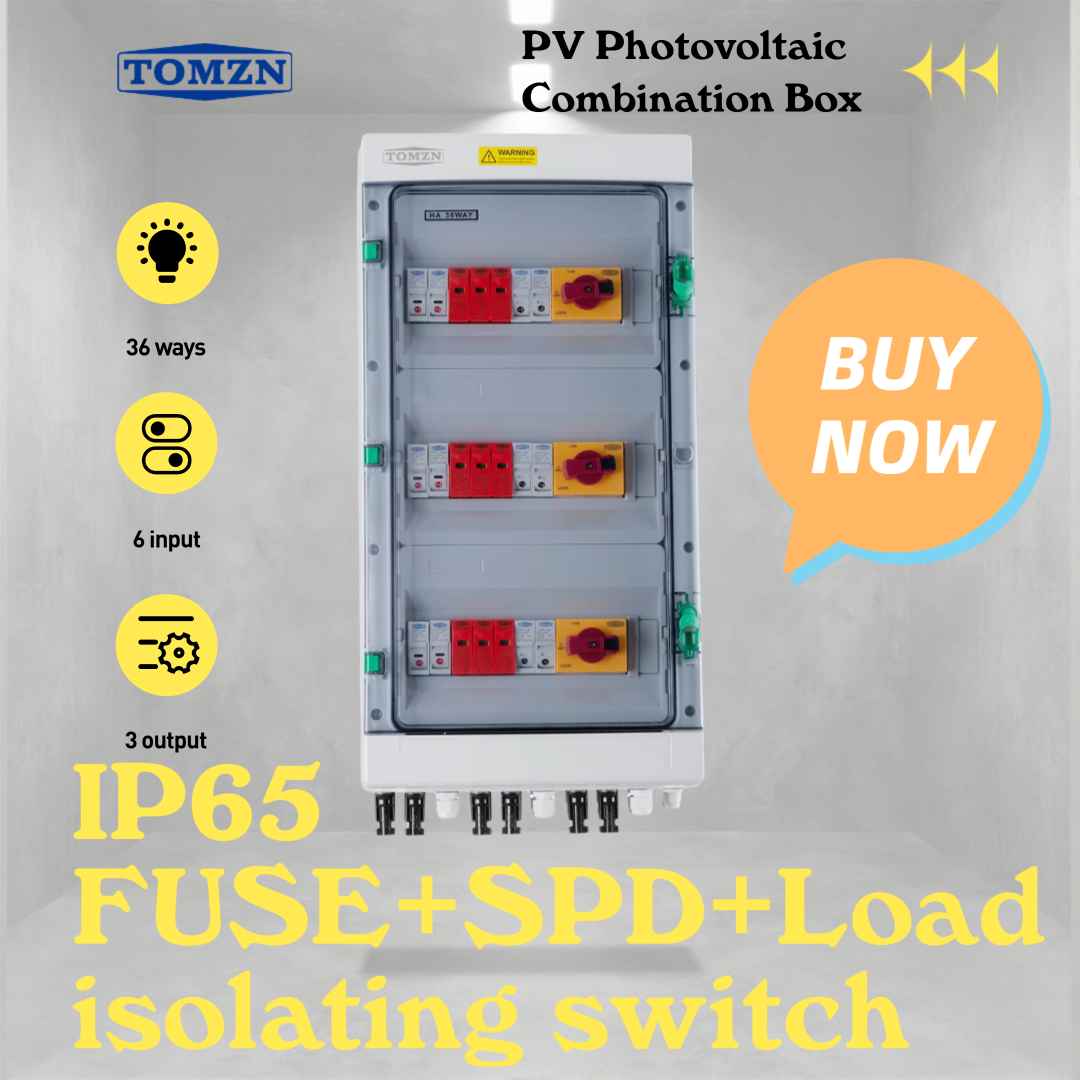

TOPV36-6-3 is a DC combiner box designed specifically for photovoltaic systems. With 36 ways, 6 inputs, and 3 outputs, it efficiently consolidates multiple solar panel strings. The enclosure features IP65 dustproof and waterproof protection, making it suitable for outdoor installations. Internally, the unit includes fuses, a surge protective device (SPD), and a disconnect switch to provide essential protection for the PV system. Key components are an 1100V fuse holder with 32A fuses, a 2P DC 1200V load isolating switch, and a 3P DC 1200V SPD.

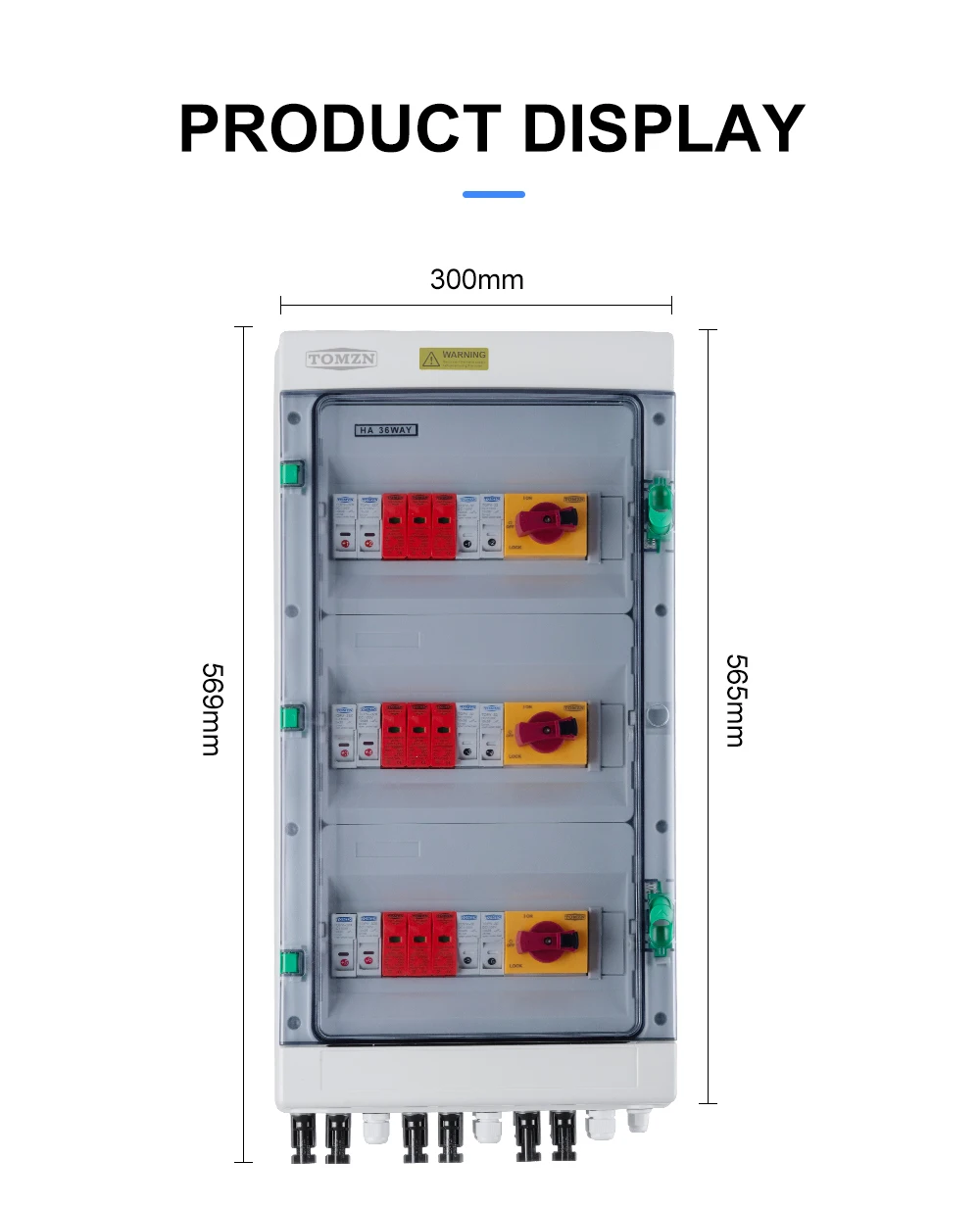

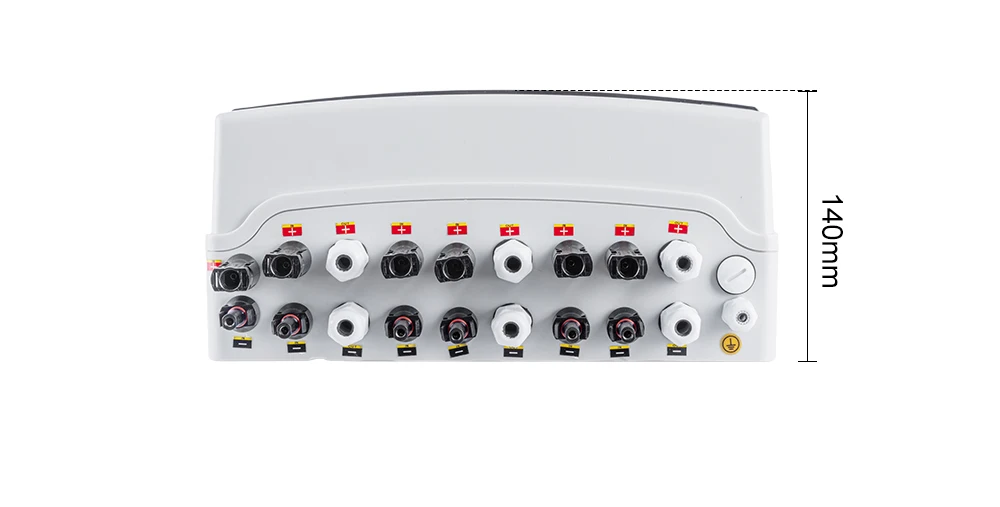

Product Data Sheet
Model: TOPV36-6-3
Type: PV DC combiner box
Ways: 36

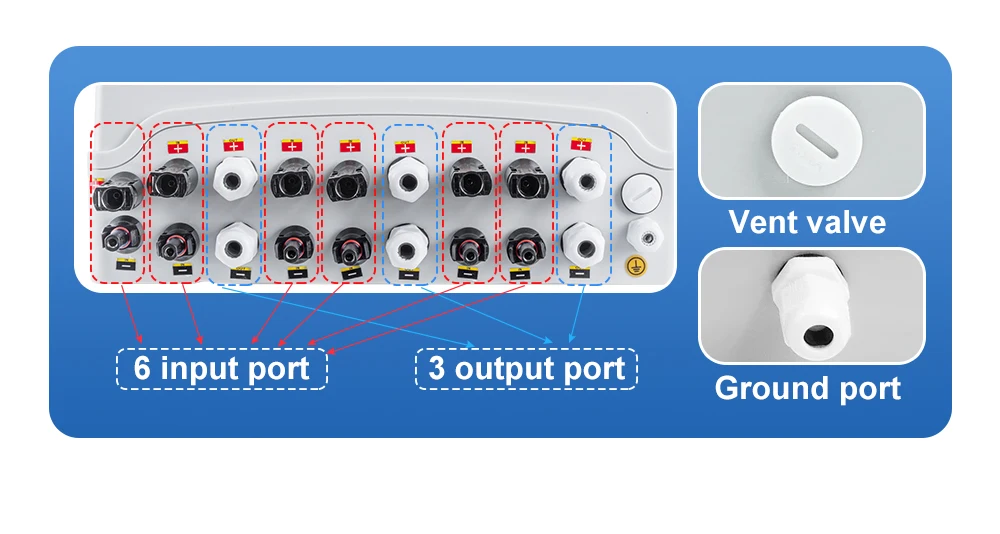

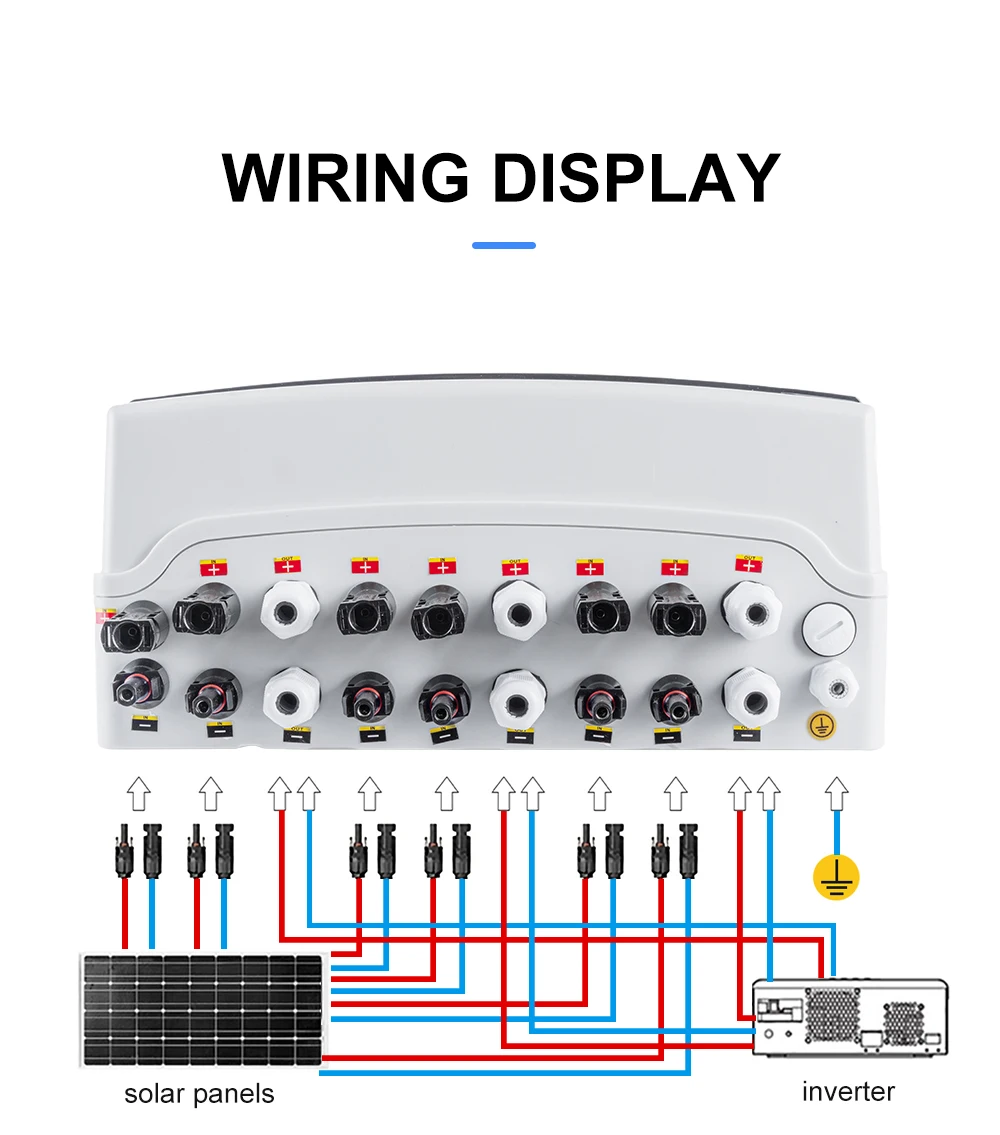

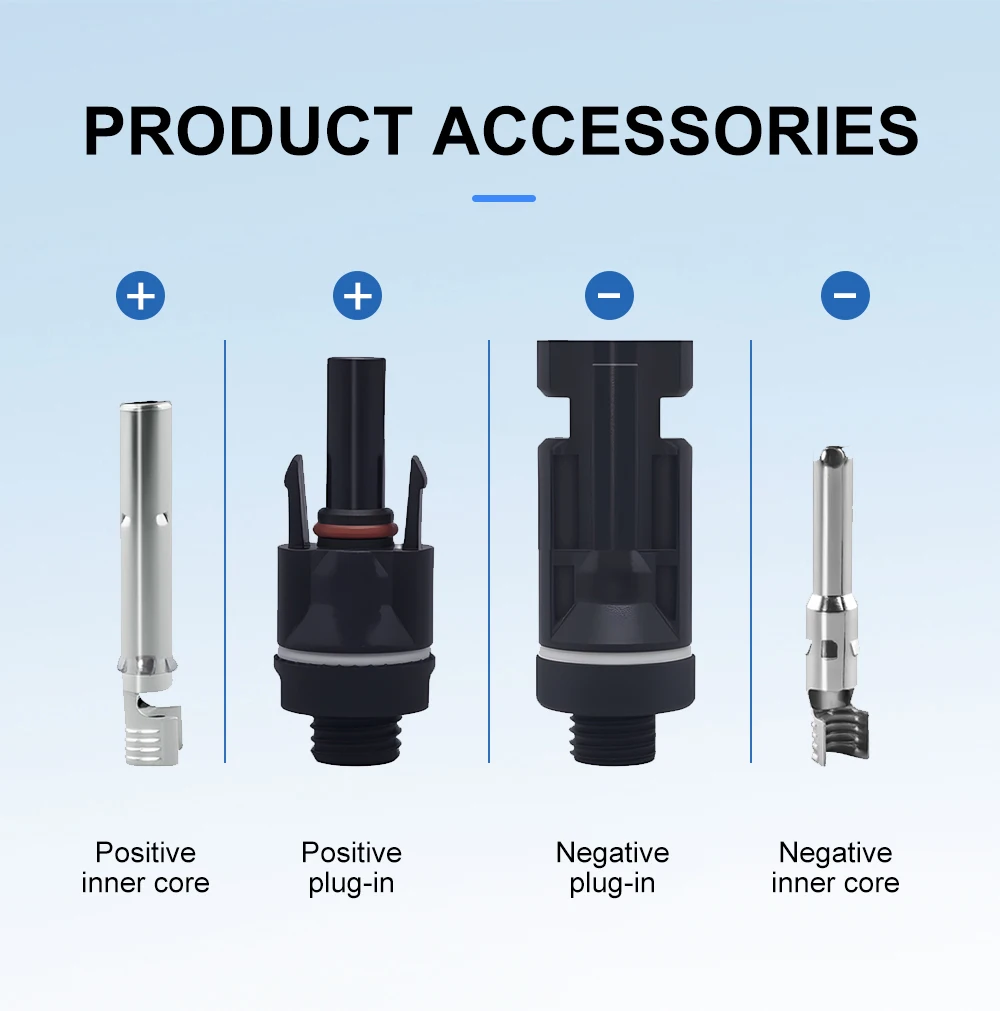

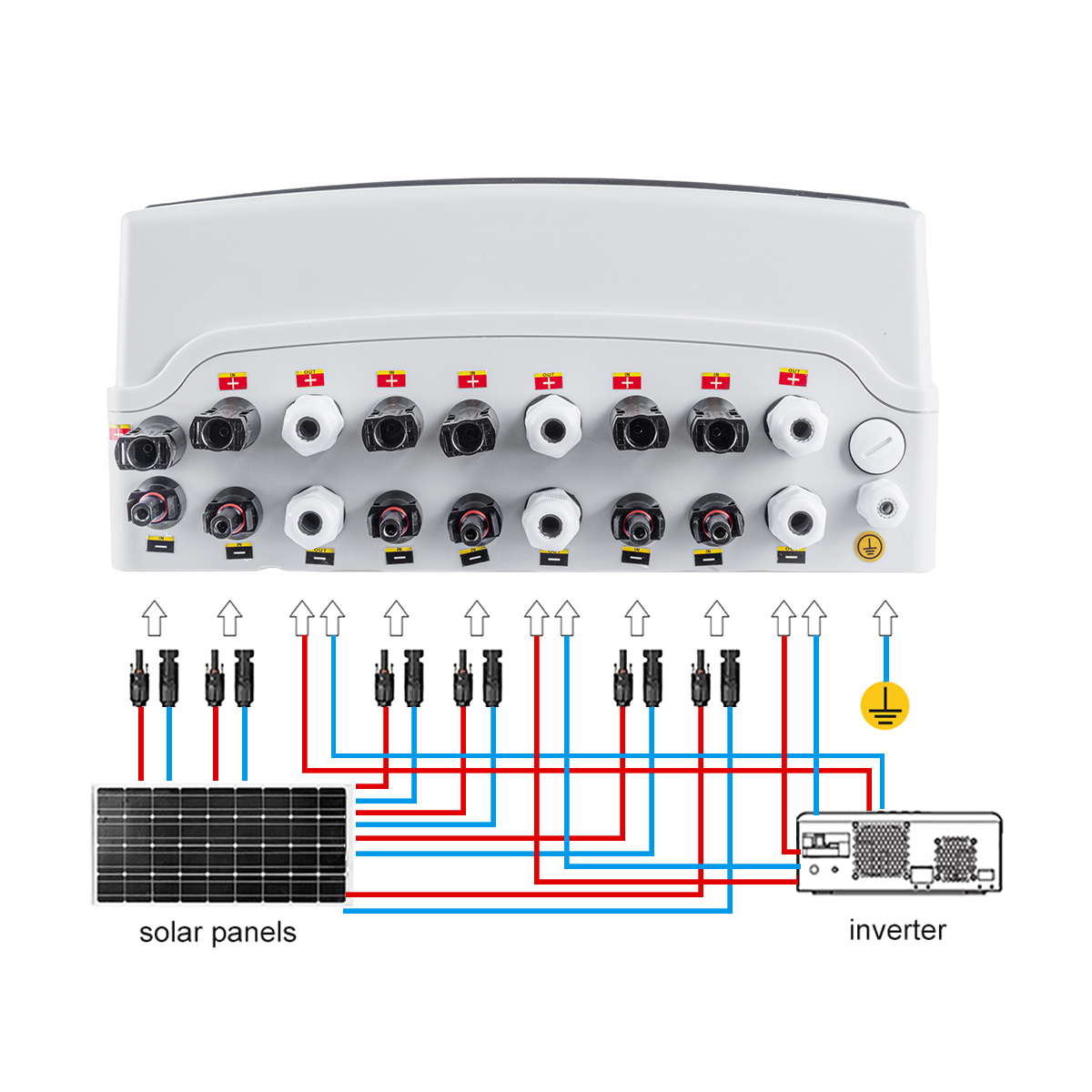

Number of inputs: 6
Number of outputs: 3
Max DC voltage: 1200V

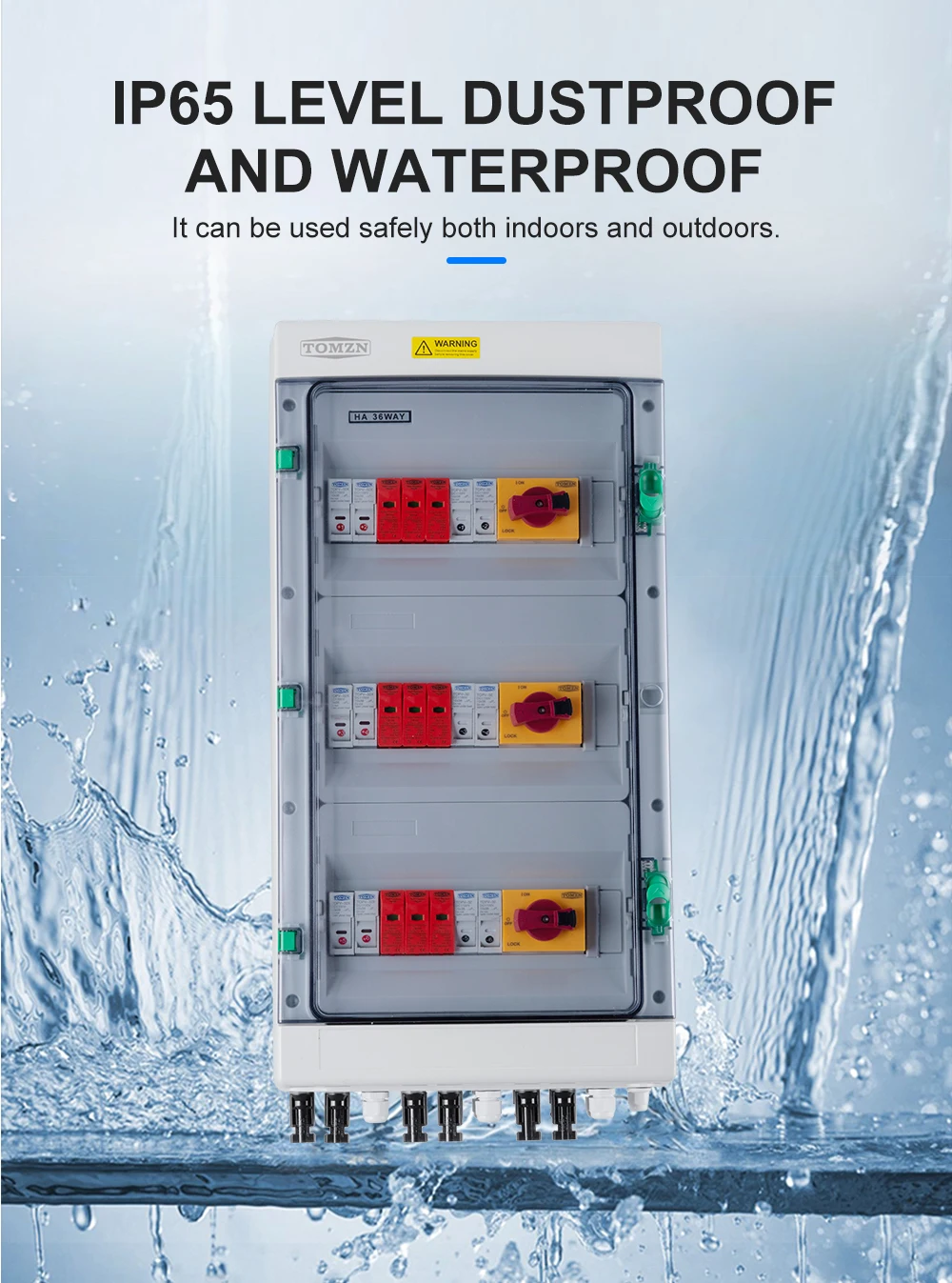

Enclosure rating: IP65 (dustproof and waterproof)
Fuse holder rating: 1100V
Fuse rating: 32A
Load isolating switch: 2P DC 1200V
Surge protective device (SPD): 3P DC 1200V
Application: Outdoor photovoltaic systems
