Description

PCT-221 1BOX 34PCS
Assembled Mode Lever Wire Connectors DIY ANY WAY

General
The PCT‑221 Lever Wire Connector Kit gives you 34 pieces of 1‑way inline connectors that can be snapped together side‑by‑side to create any number of poles you need – no tools, no soldering. Each unit accepts one input and one output wire (28‑12 AWG / 0.2‑4.0 mm²), and the lever mechanism ensures a secure, vibration‑proof connection with just a press. Rated for 600 V and 32 A, these compact connectors (approx. 4 × 1.6 cm) are made of copper and flame‑retardant nylon for safe, durable performance. Perfect for splicing, branching, or any DIY electrical project – build your connection your way, quickly and simply.

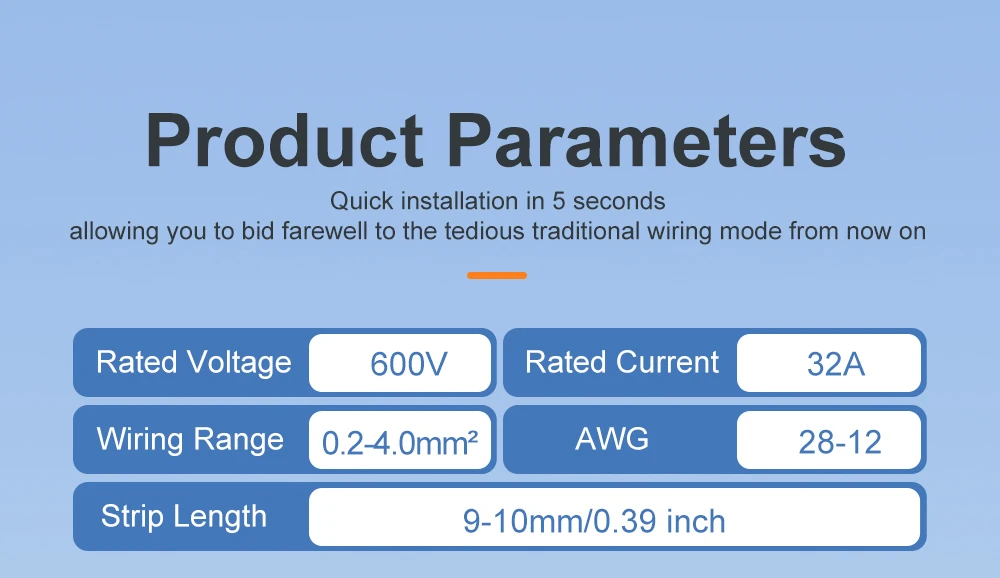

Product parameters

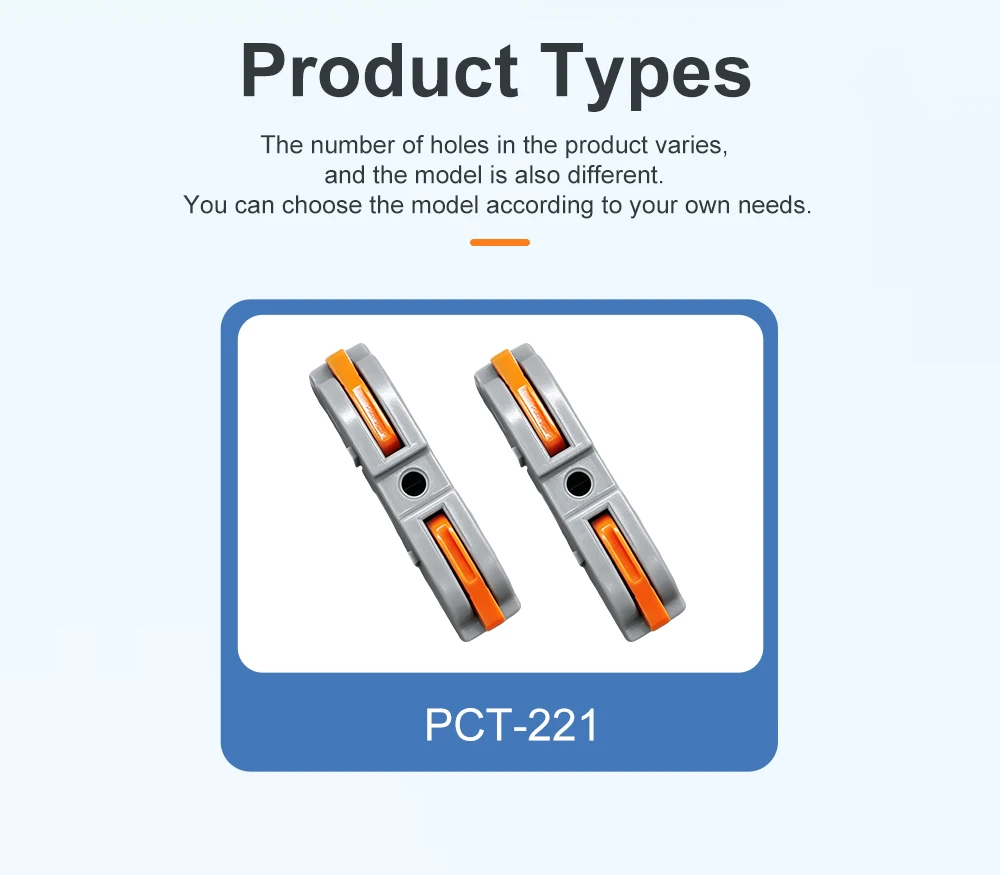

Model: PCT‑221 Box

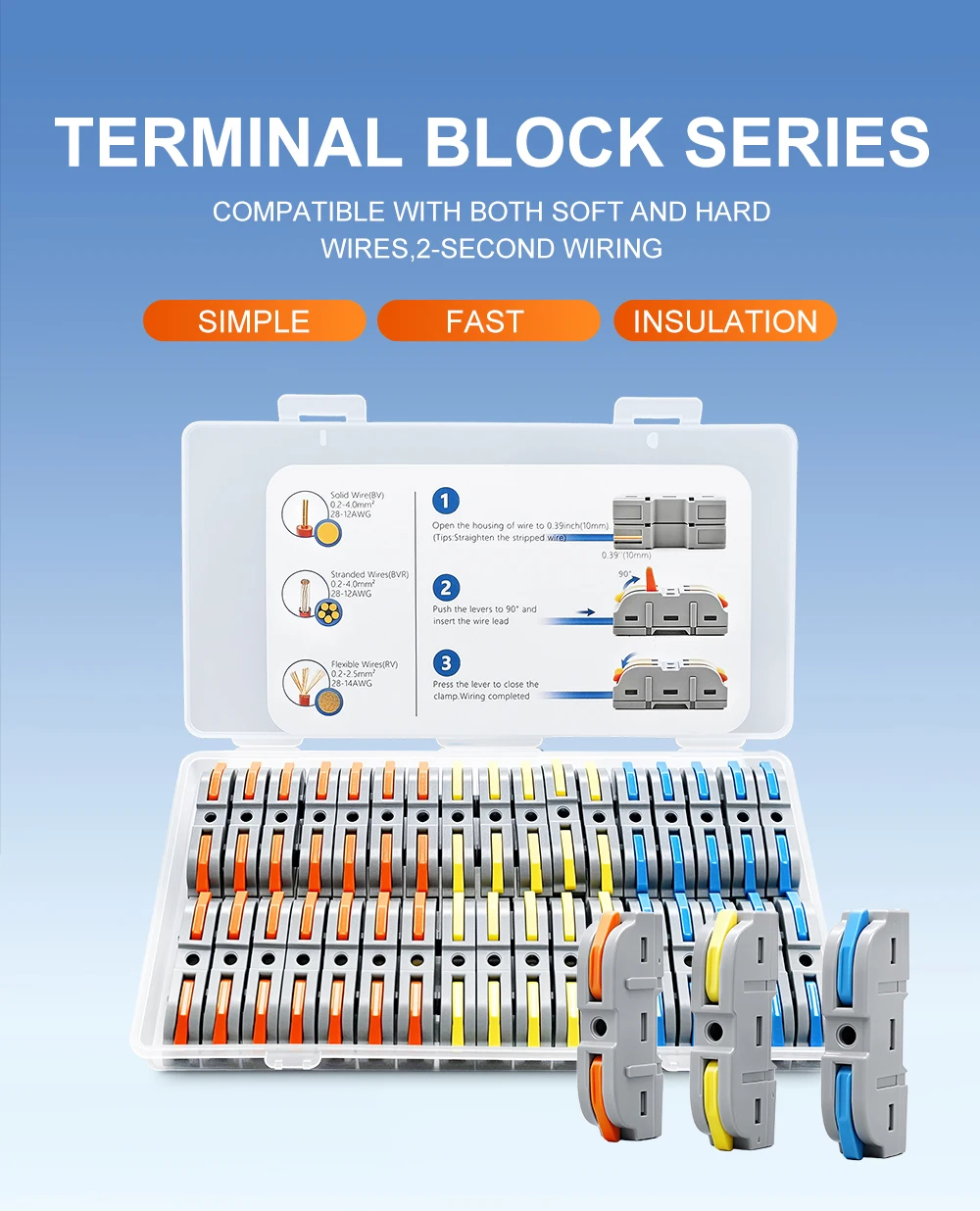

Quantity: 34 PCS
Rated Voltage: 600 V
Rated Current: 32 A
Wire Range: 0.2-4.0 mm² (28-12 AWG)

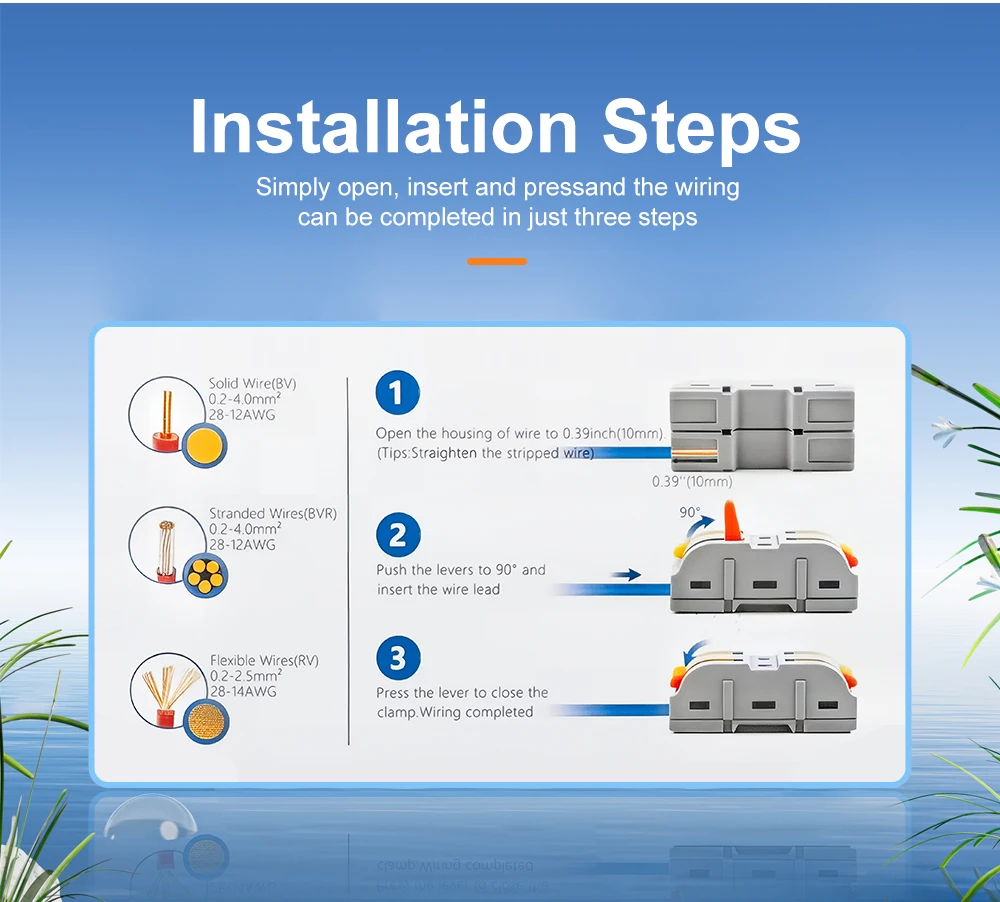

Strip Length: 9-10 mm (0.39 in)

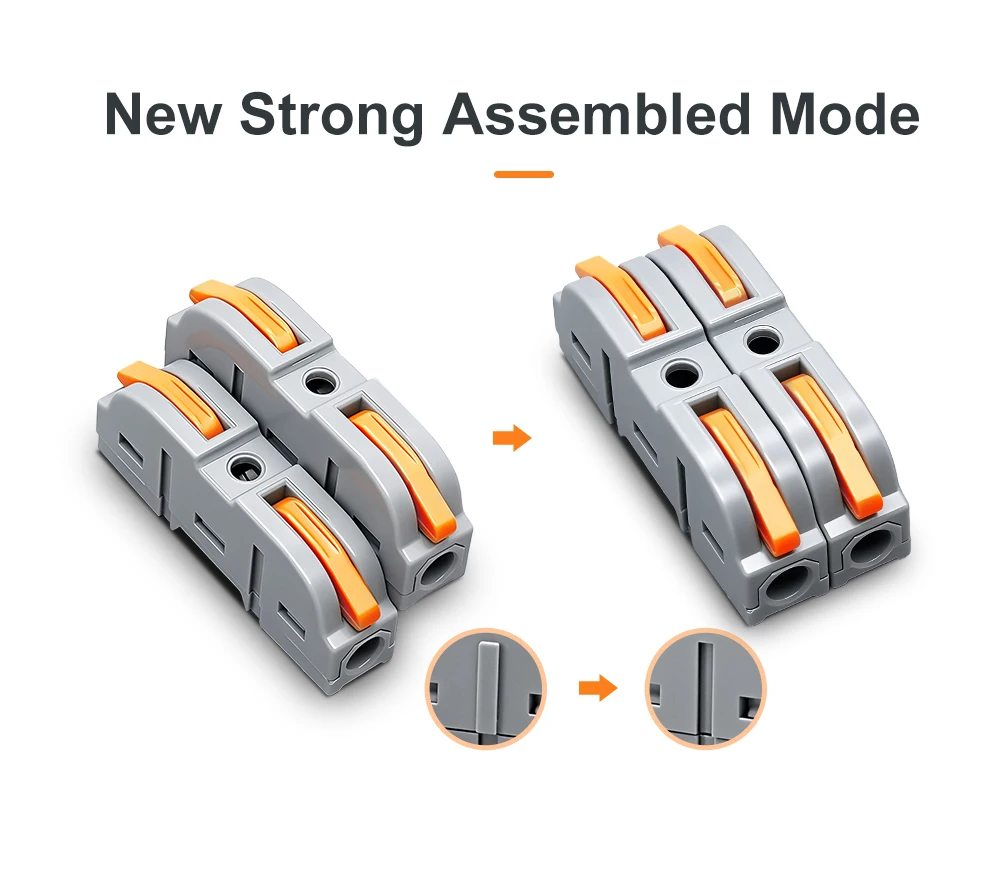

Connection Type: 1‑way (1 input + 1 output), expandable via side‑interlocking
Mounting: Free‑standing / snap‑together
Material: Copper (conductor), Nylon (housing)
Dimensions: Approx. 4 × 1.6 cm

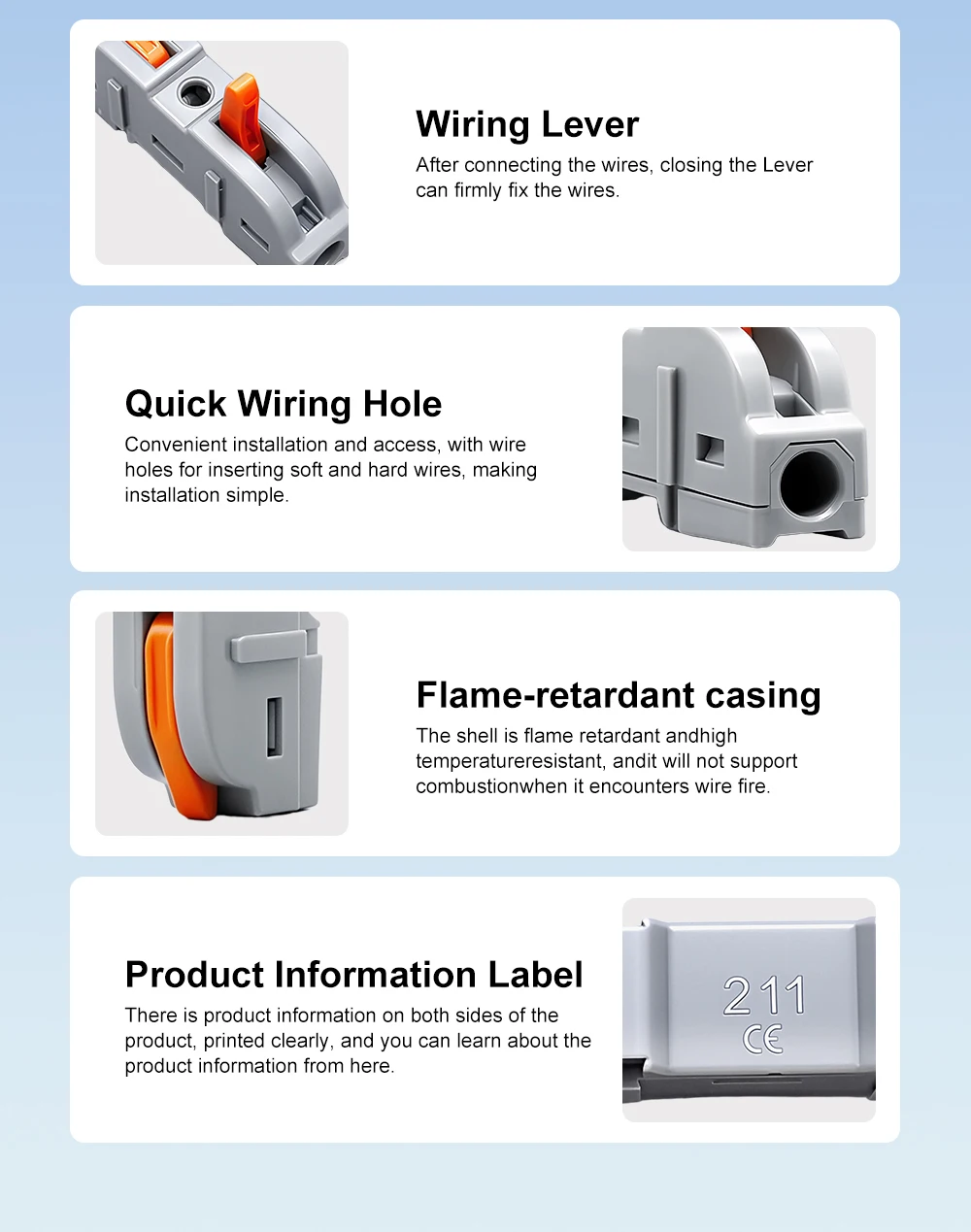

Features: Tool‑free, reusable, safe insulation, good conductivity, easy operation
Applications: Wire splicing, branching, DIY electrical connections
