Description

TOEM-63DN Multi-tariff Energy Meter with adjustable voltage,current and leakage protective device

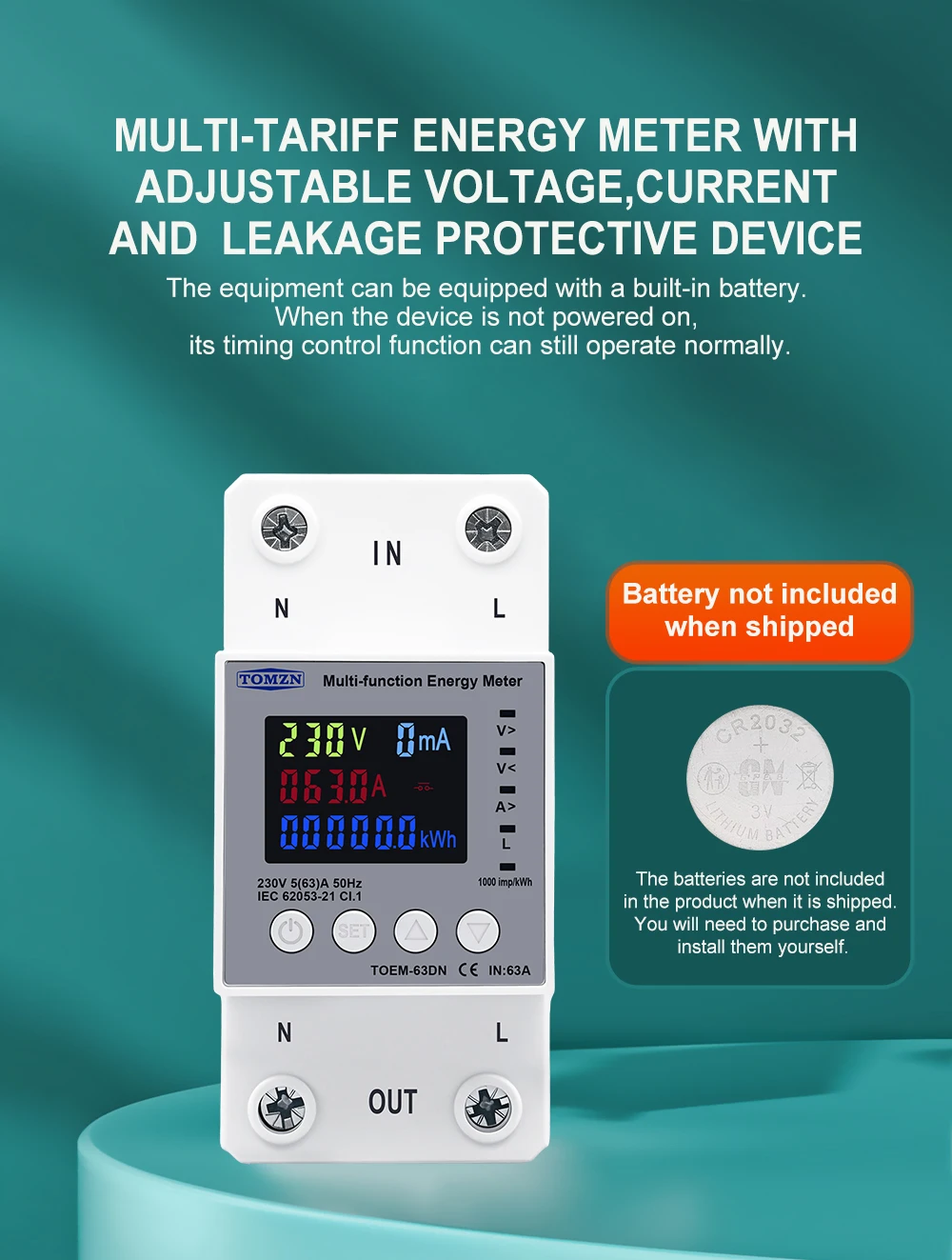

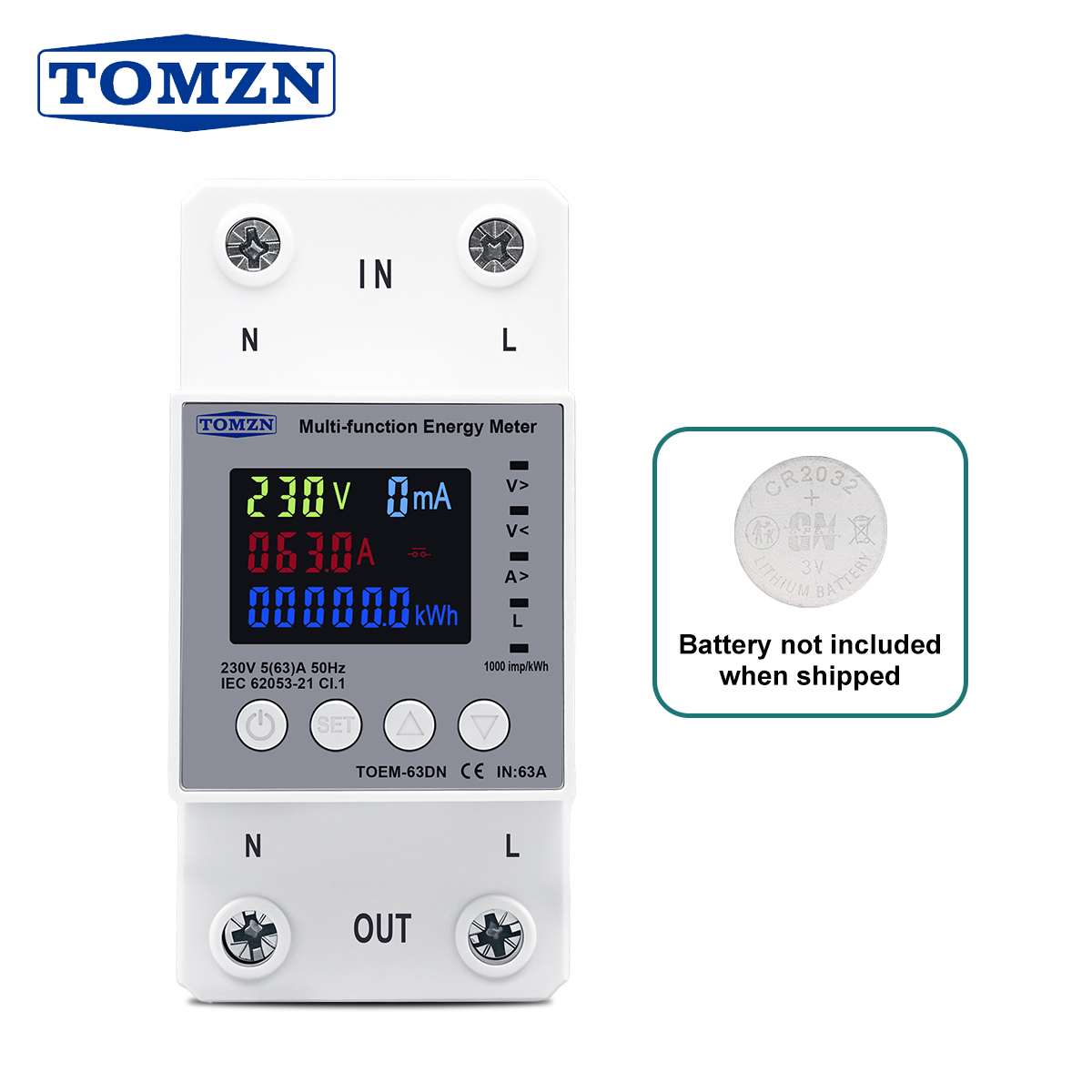

Note: This device can be equipped with a battery , but it is not included in the shipment. You will need to purchase CR2032 button batteries on your own.

General

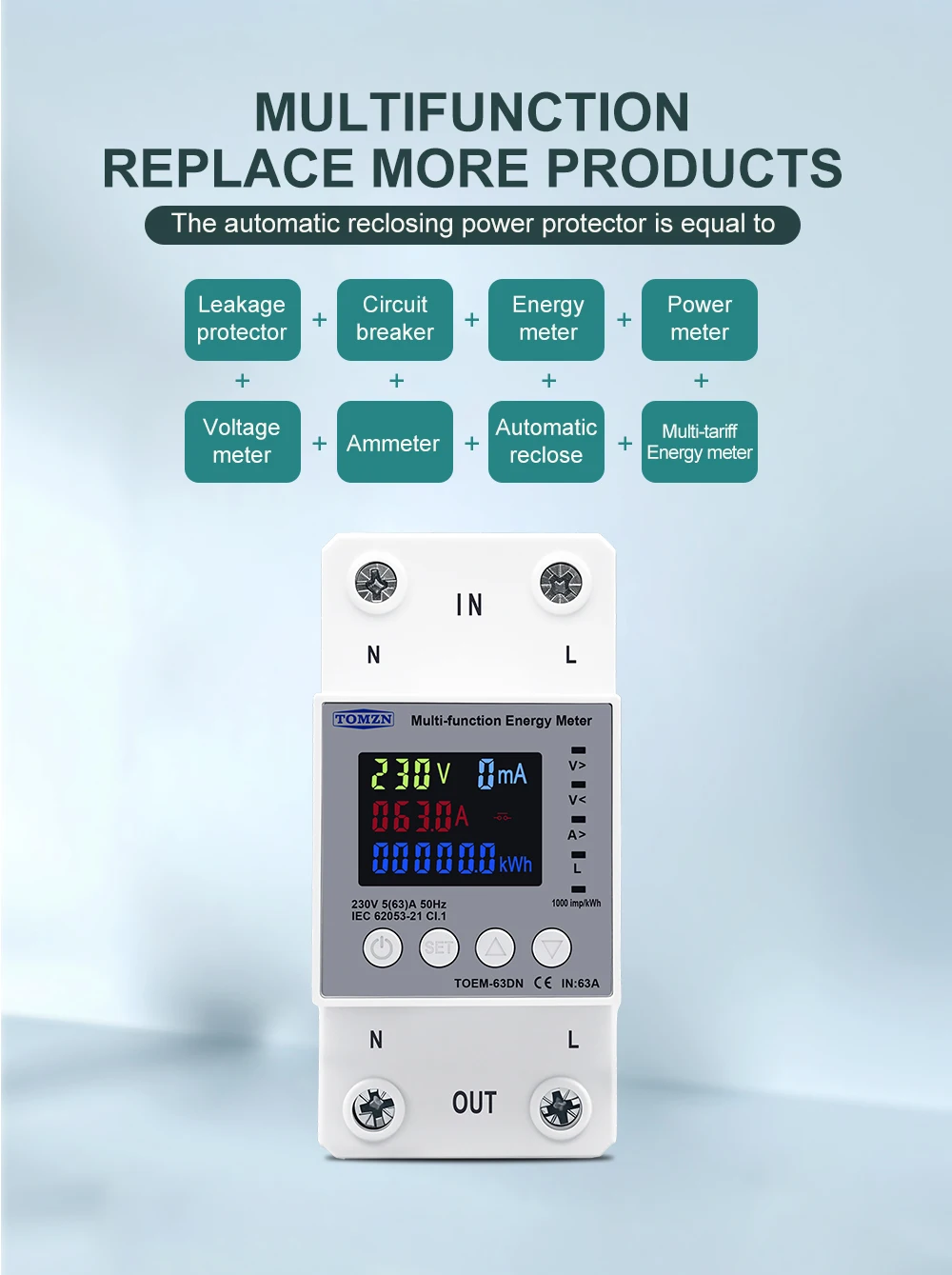

The TOEM-63DN is an all-in-one intelligent energy management solution that combines precise electricity monitoring with robust circuit protection. Specifically designed for multi-tariff billing, it allows you to separately track consumption during Day (T1) and Night (T2) periods.

Beyond metering, this device acts as a comprehensive guard for your electrical systems, featuring adjustable over-voltage, under-voltage, over-current, and leakage protection. It instantly cuts off power during faults to prevent equipment damage and features an intelligent auto-recovery function that restores connection once the line returns to normal. With support for RTC battery backup (CR2032), your time settings and historical data remain secure even during total power failures.

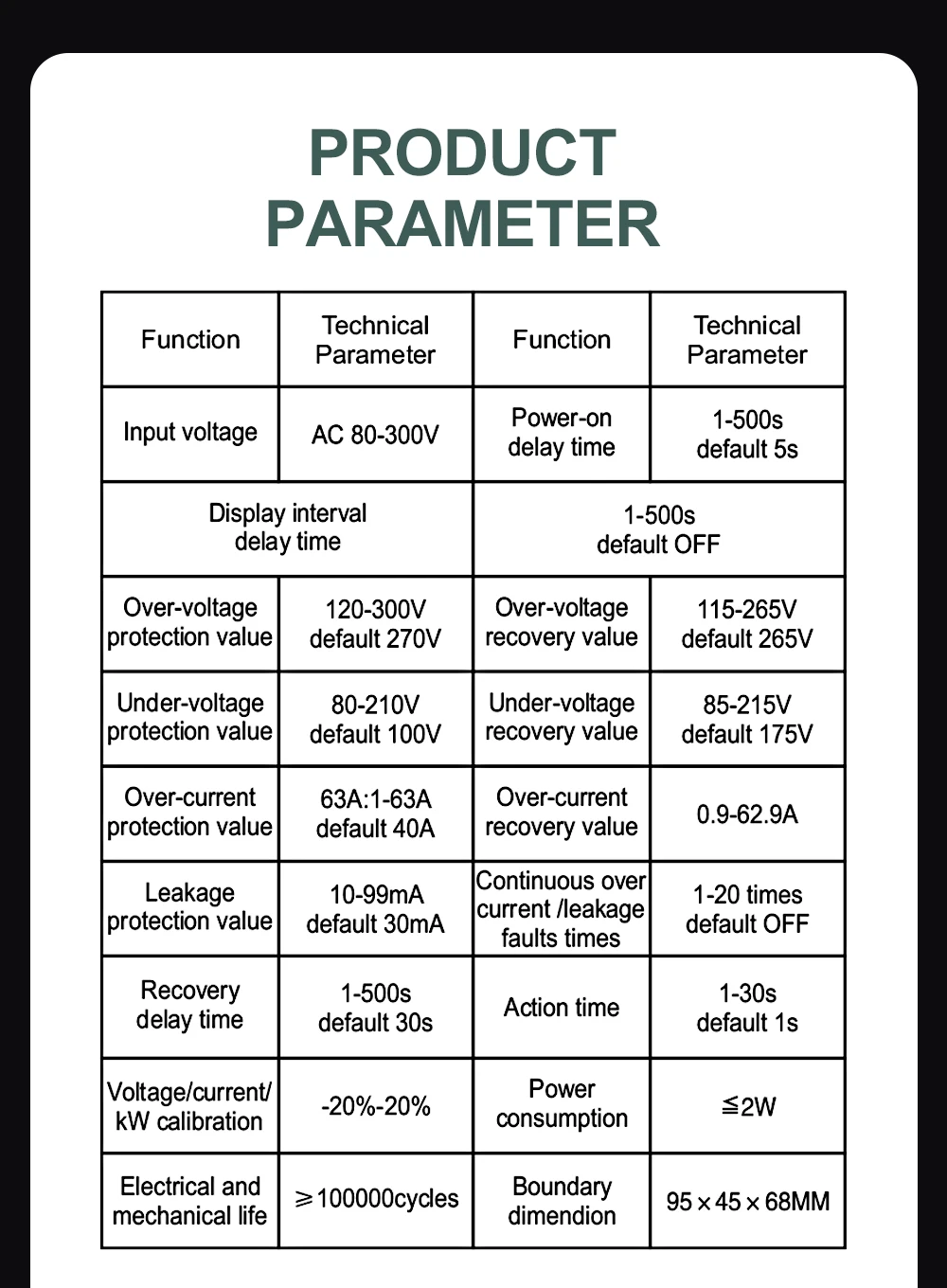

Product parameter

Model: TOEM-63DN
Functions: Multi-tariff Metering + 4-in-1 Protection (V/A/mA/kW)

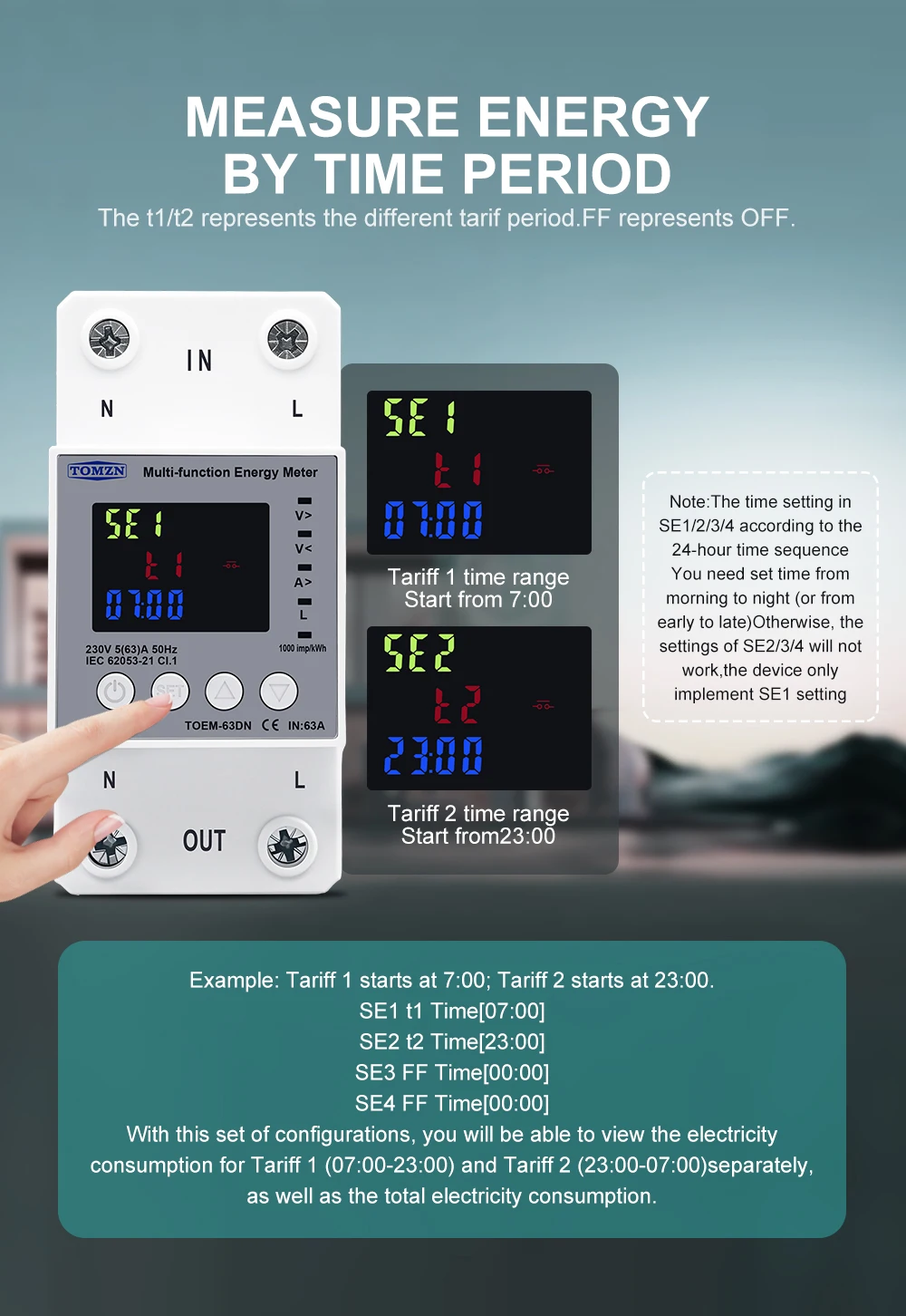

Tariff Tracking: T1 (Day) / T2 (Night) / Total kWh
Rated Voltage: AC 80V – 300V
Frequency: 50Hz / 60Hz
Rated Current Range: 1A – 63A (Adjustable)

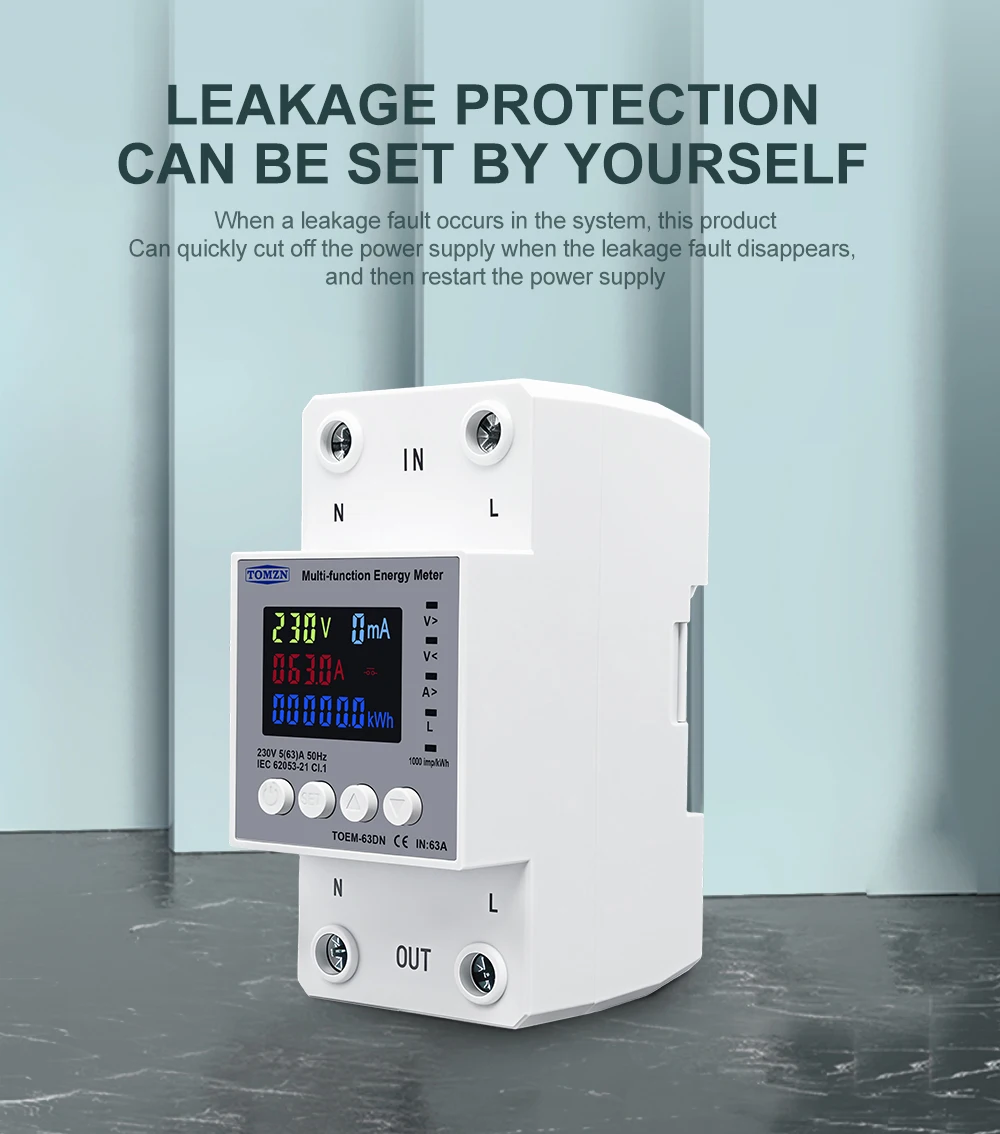

Leakage Protection: Adjustable mA Protection

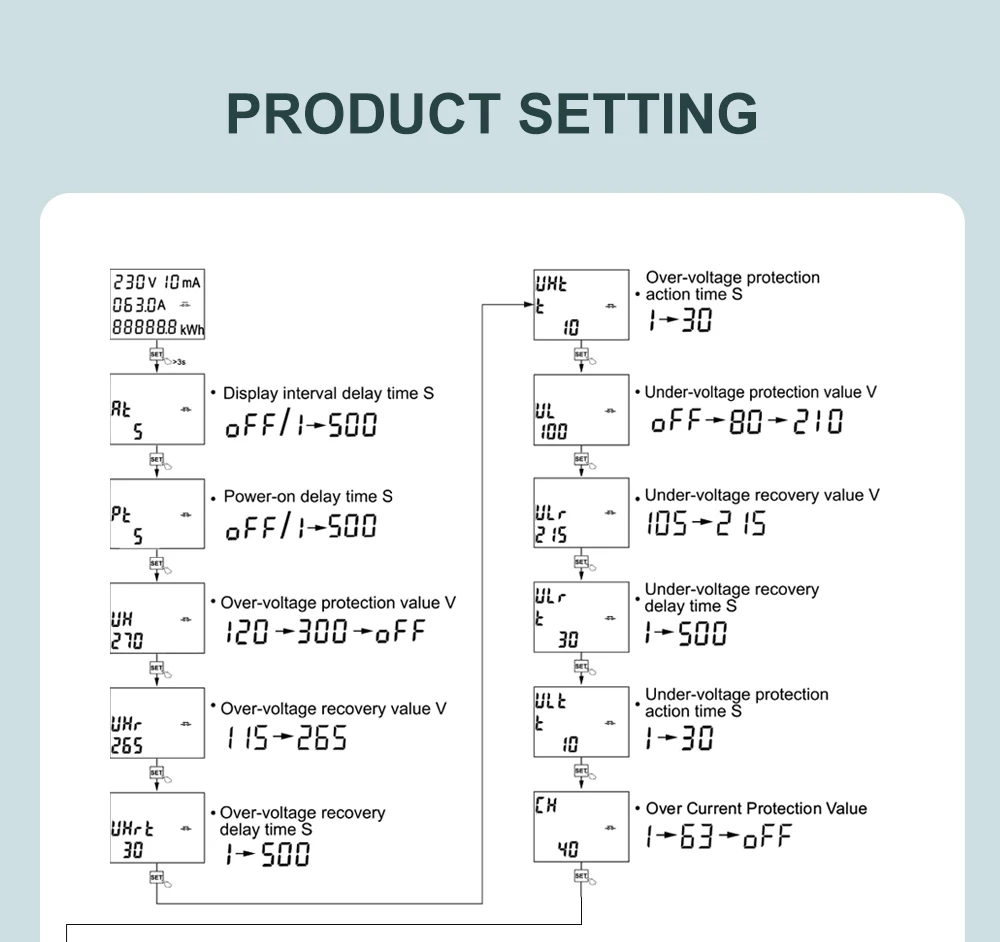

Over-Voltage Protection Range: 120V – 300V – OFF (Default: 270V)
Under-Voltage Protection Range: 80V – 210V – OFF (Default: 170V)
Over-Current Rate Limiting: 1A – 63A – OFF (Default: 40A)
Reconnect Delay Time: 1s – 500s (Default: 30s)

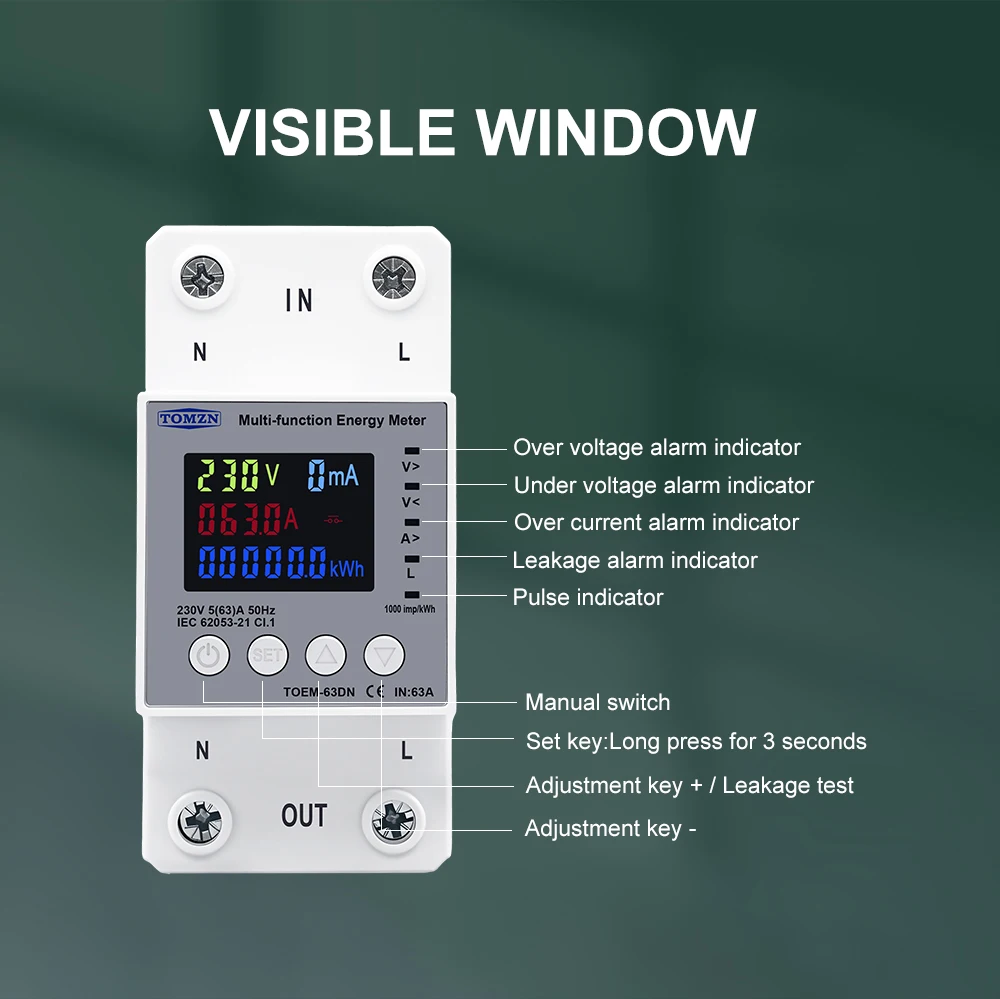

Display Parameters: Voltage, Amps, kW, PF, Hz, T1/T2 kWh, mA, Time/Date
Calibration Range: ±20% for Voltage/Current/kW
Action Time: 1s – 30s (Default: 1s)
Power Consumption: < 2W
Battery Support: Supports CR2032 (For data memory; battery not included)

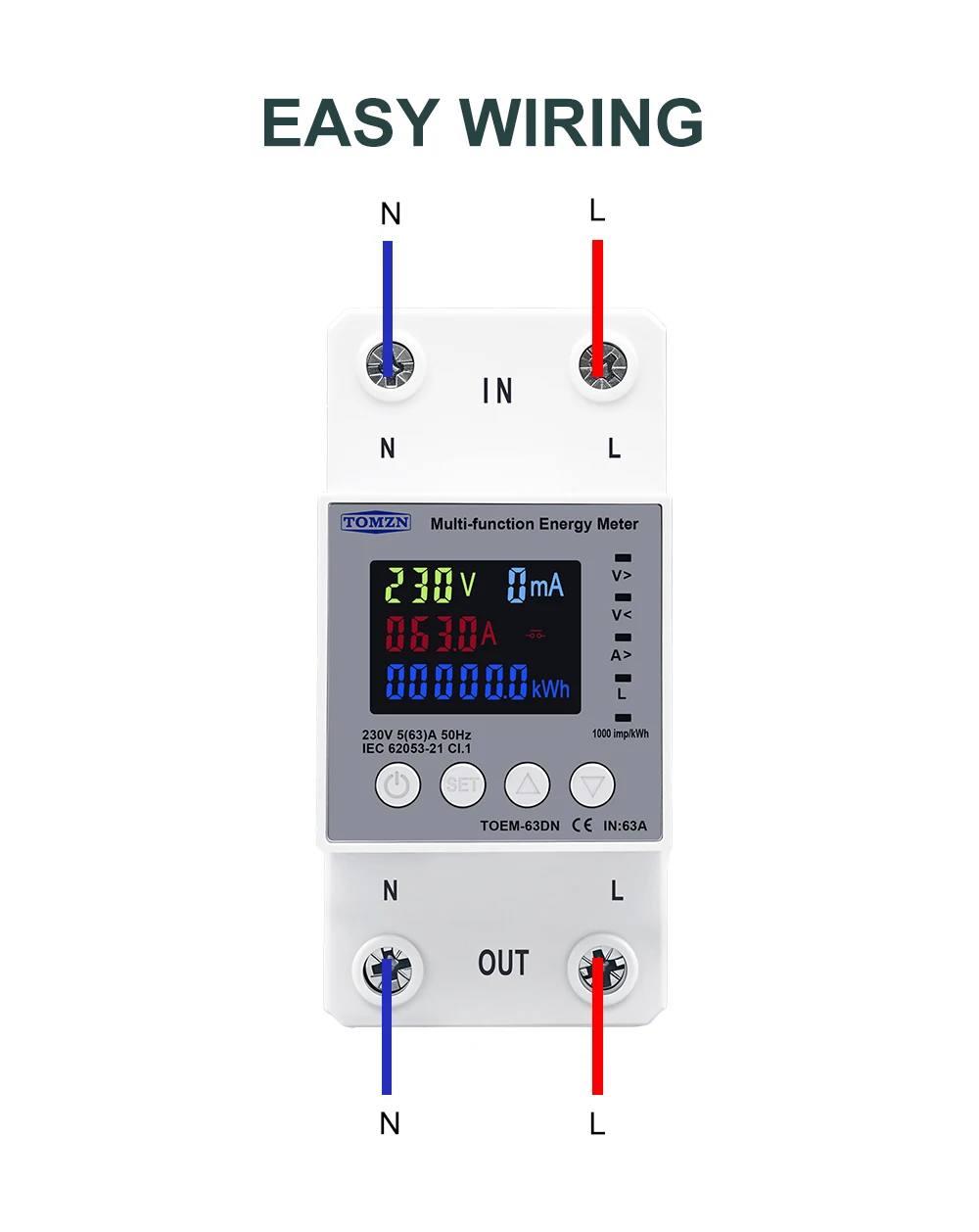

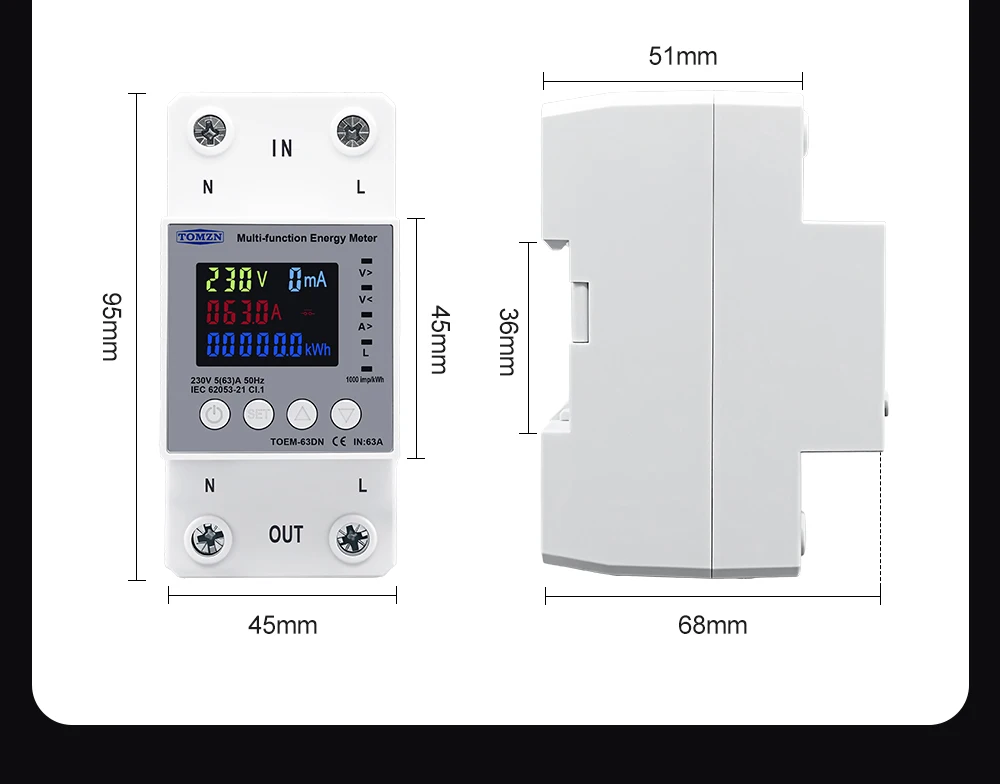

Installation: 35mm DIN Rail Mount
