TOMZN 200W Waterproof LED Driver IP67 AC to DC 12V 24V Outdoor Switching Power Supply Lighting Transformer for LED Strips PLC

SMV-200W-12V/24V

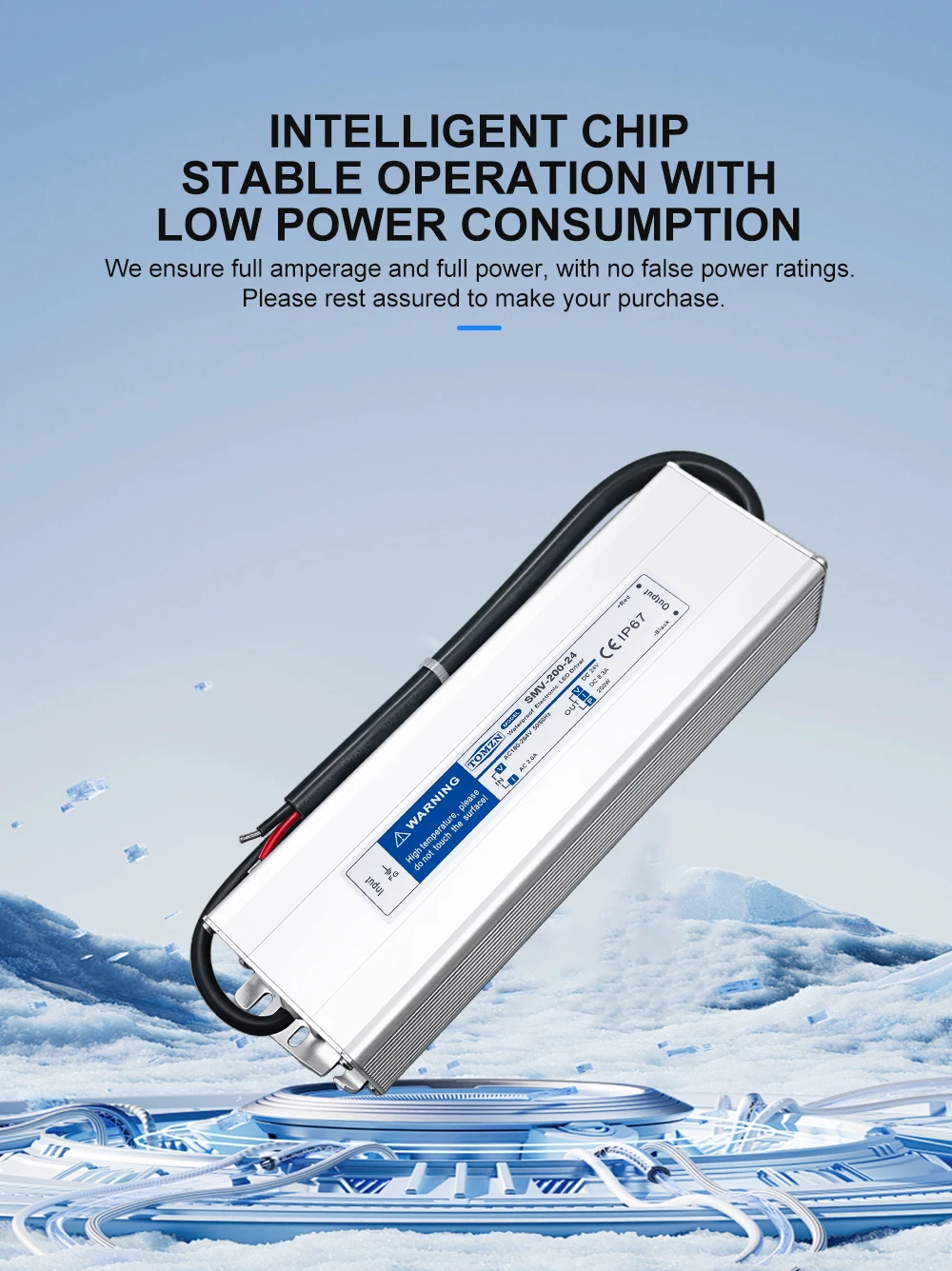

IP67 Waterproof Switching Power Supply

Product Introduction
The SMV Series is an outdoor switching power supply built for harsh environments. Its fully glue‑sealed aluminum shell provides IP67 waterproof protection, making it ideal for outdoor LED lighting, security systems, and public lighting projects. It delivers stable 12V or 24V DC output at 200W from an AC 180‑264V input. Built‑in protections include short circuit, overload, and overvoltage with self‑recovery. High efficiency (89%), low output ripple (120mVp‑p), and wide operating temperature (-40°C to +65°C) ensure long‑term reliability.

Product Data Sheet

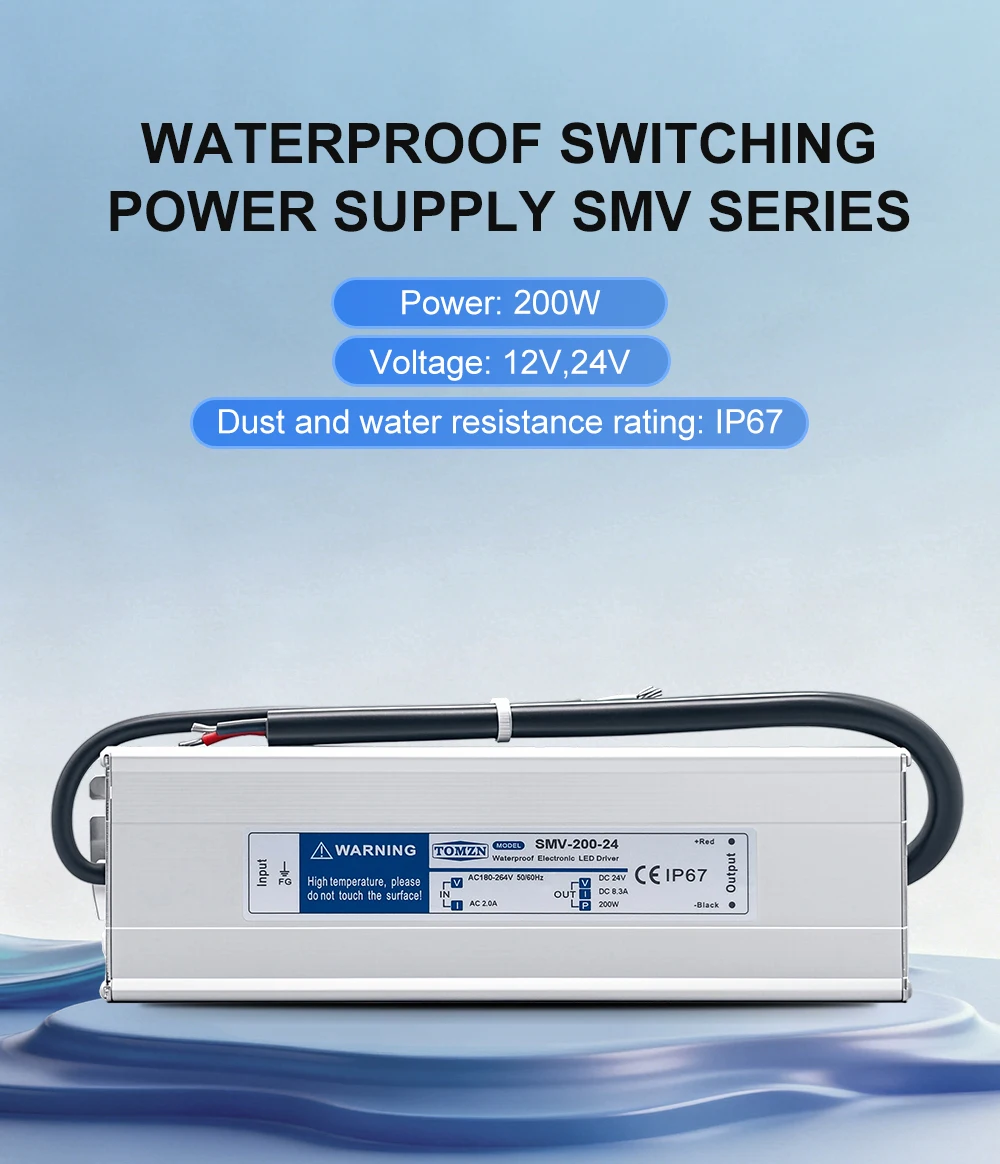

Product Name: SMV Series Outdoor Switching Power Supply
Product Type: IP67 waterproof switching power supply / LED driver
Application: Outdoor LED engineering, security systems, public lighting
Input Voltage: AC 180-264V, 50/60Hz
Output Voltage: DC 12V or 24V

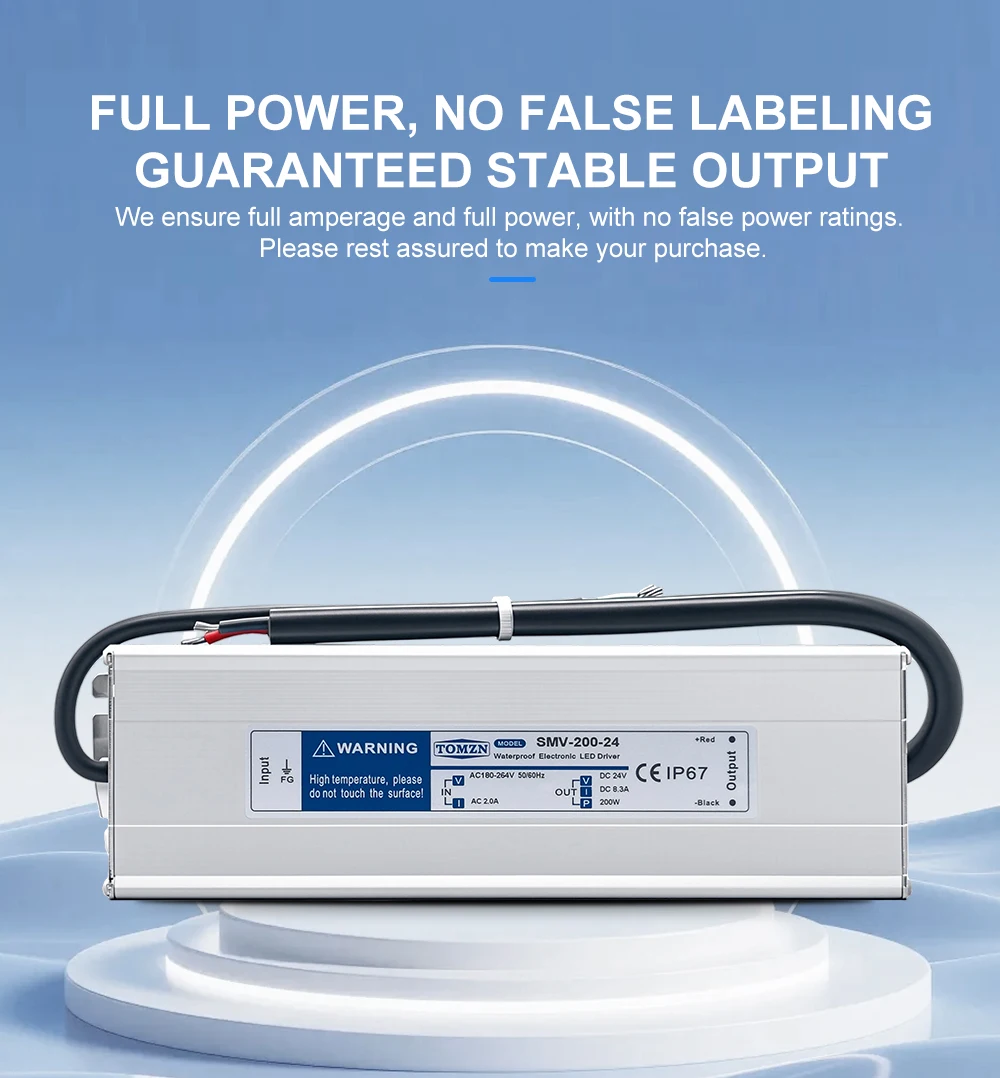

Output Power: 200W

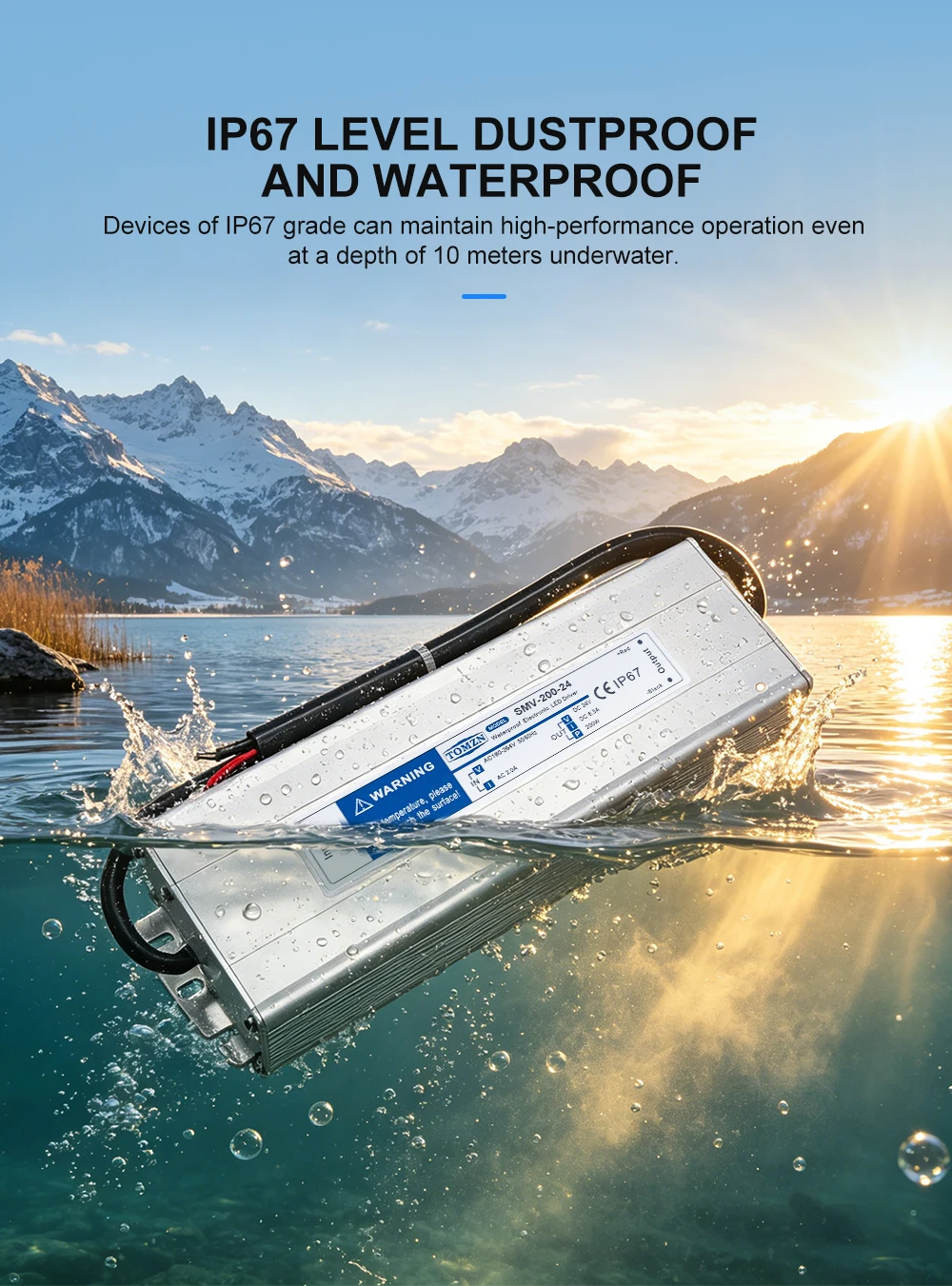

Protection Class: IP67 (fully glue‑sealed aluminum shell)
Efficiency: 89%
Output Voltage Accuracy: 98%
Voltage Adjustment Range: ±10%
Operating Temperature: -40°C to +65°C
Max Case Temperature: 60°C

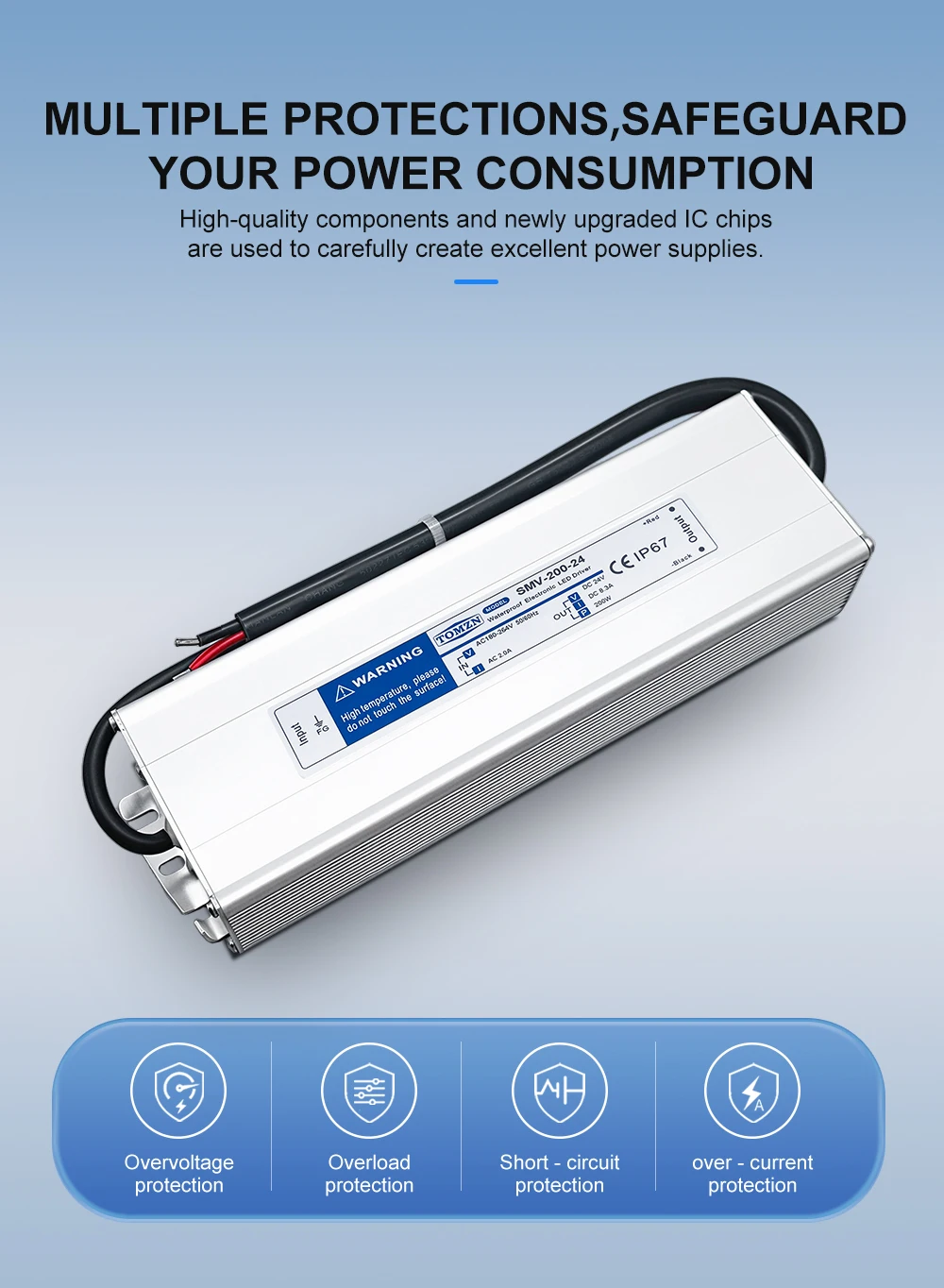

Protections: Short circuit (SCP), overload (OLP), overvoltage (OVP) – all with self‑recovery
Cooling Method: Free air convection

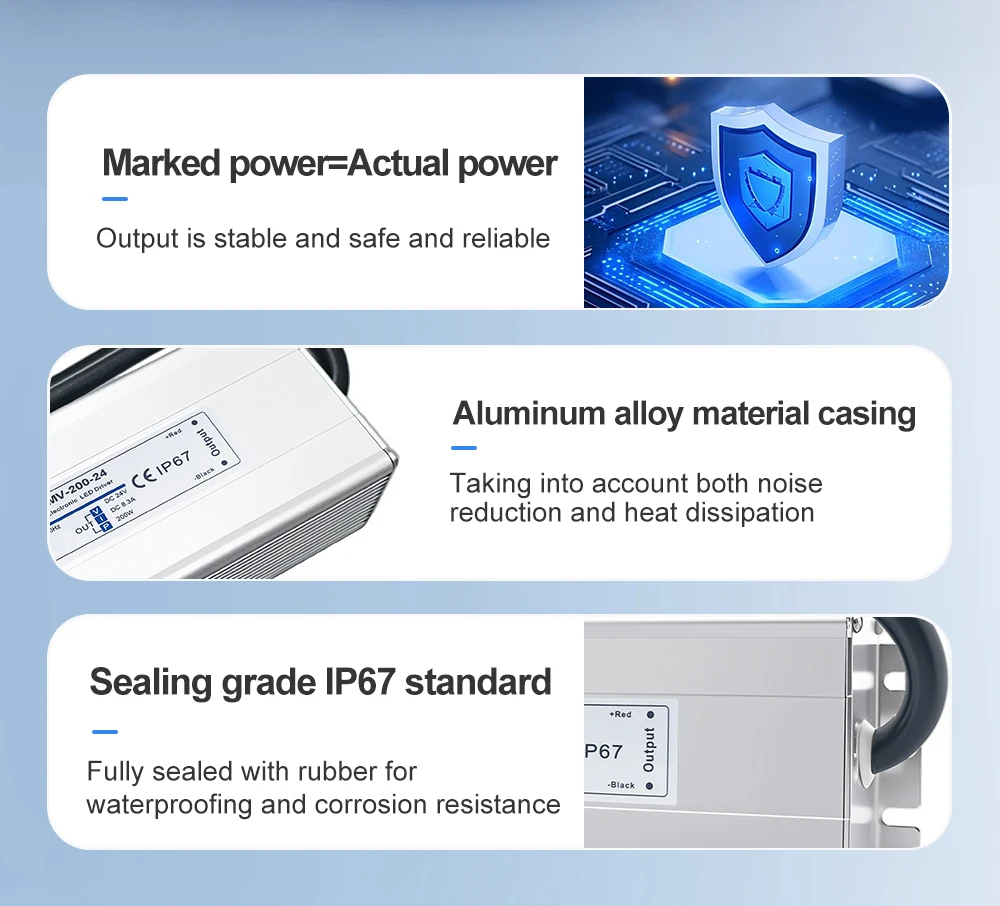

Material: Aluminum shell + glue filling
Dimensions: 235 × 120 × 56 mm (L×W×H)
Weight: Approx. 2.4kg
Warranty: 1 year
