Description

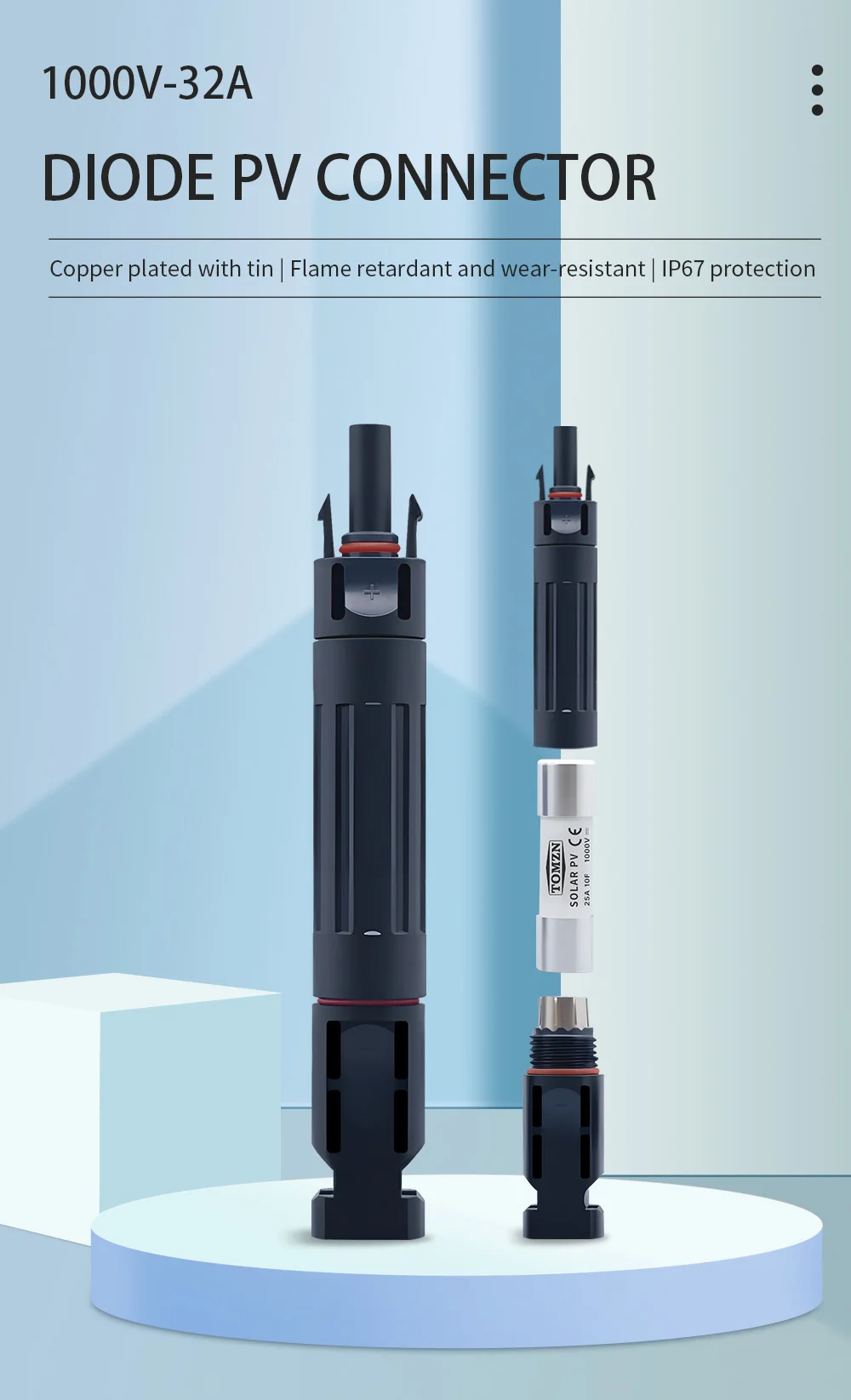

FUSE-PV Connector 1000V 3A 6A 10A 15A 16A 20A 25A 30A 32A

General

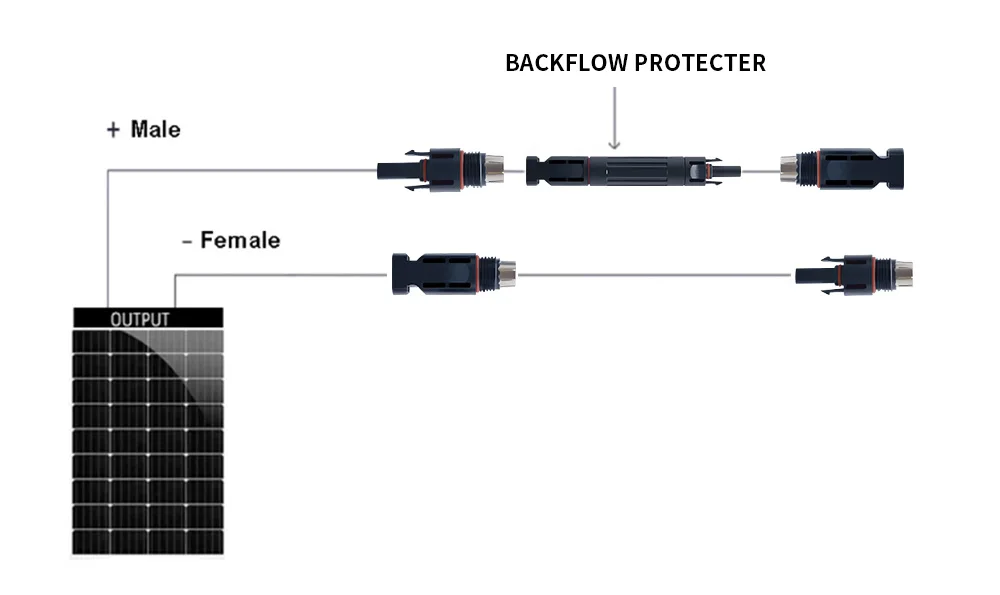

MC4 Fuse Connector is a compact and cost-effective solution for overcurrent protection in photovoltaic systems. Designed to replace bulky distribution boxes, this inline fuse holder integrates directly into solar panel connections. It accommodates 1100V DC cartridges with current ratings of 3A, 6A, 10A, 15A, 16A, 20A, 25A, 30A, and 32A, providing flexible protection for various string configurations. With its standard MC4 compatible design and IP67 waterproof rating, it is ideal for small-scale solar installations, DIY projects, and applications where space and budget are limited.

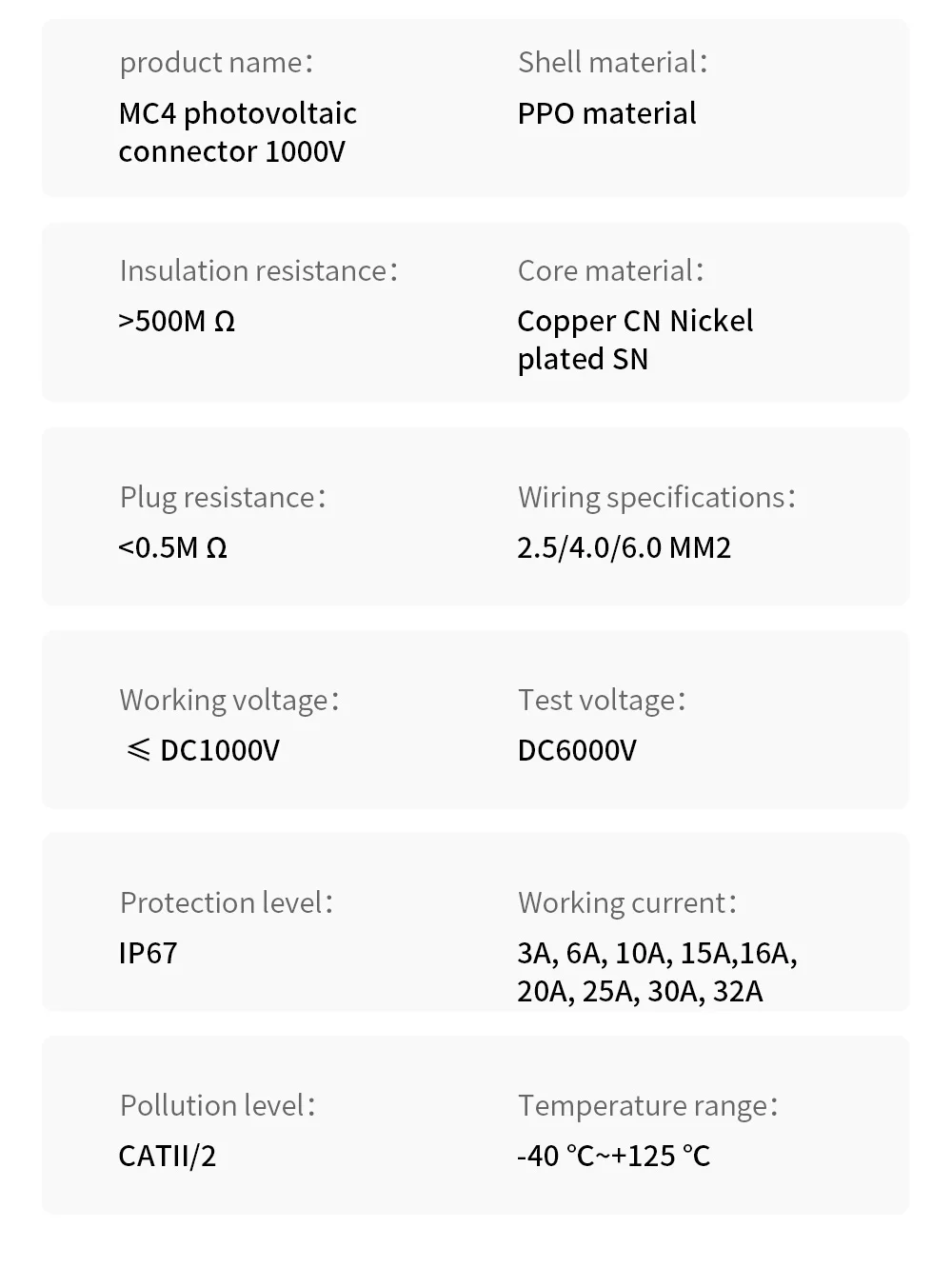

Parameters

Product Type: MC4 fuse connector

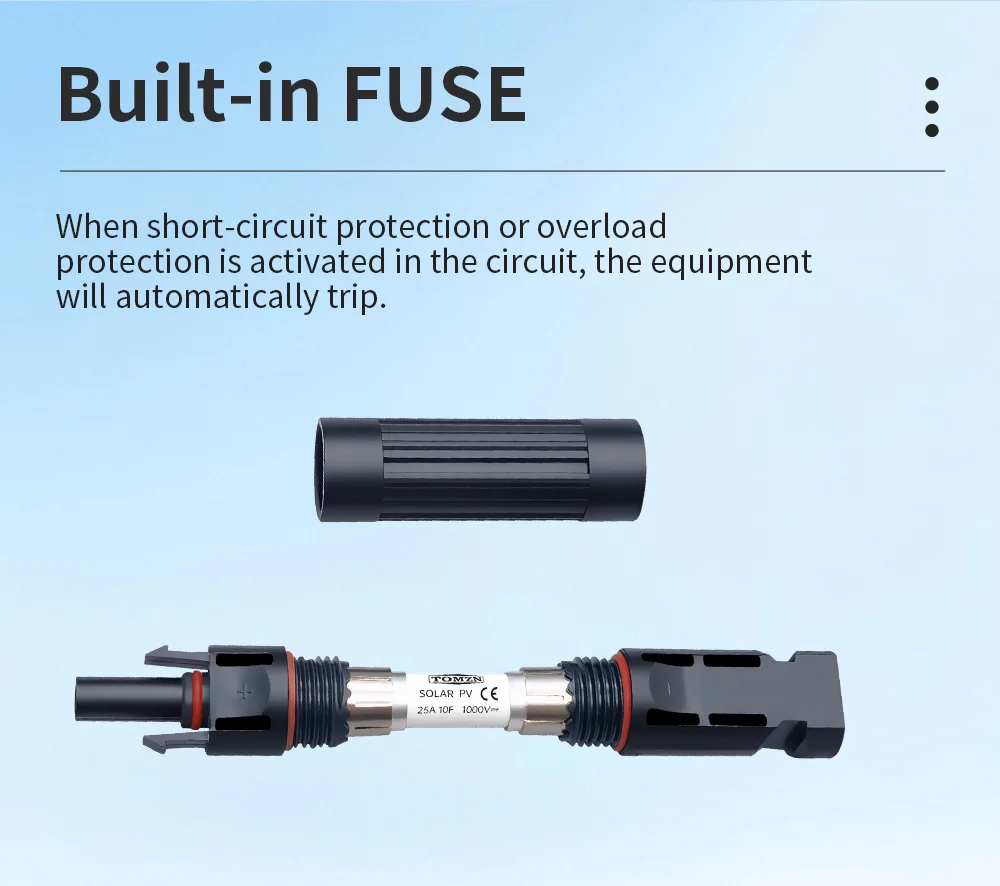

Fuse Compatibility: 1100V DC cartridge fuse
Available Fuse Ratings: 3A, 6A, 10A, 15A, 16A, 20A, 25A, 30A, 32A
Rated Voltage: 1100V DC
Protection Function: Overcurrent (fuse-based)
Connector Type: MC4 compatible

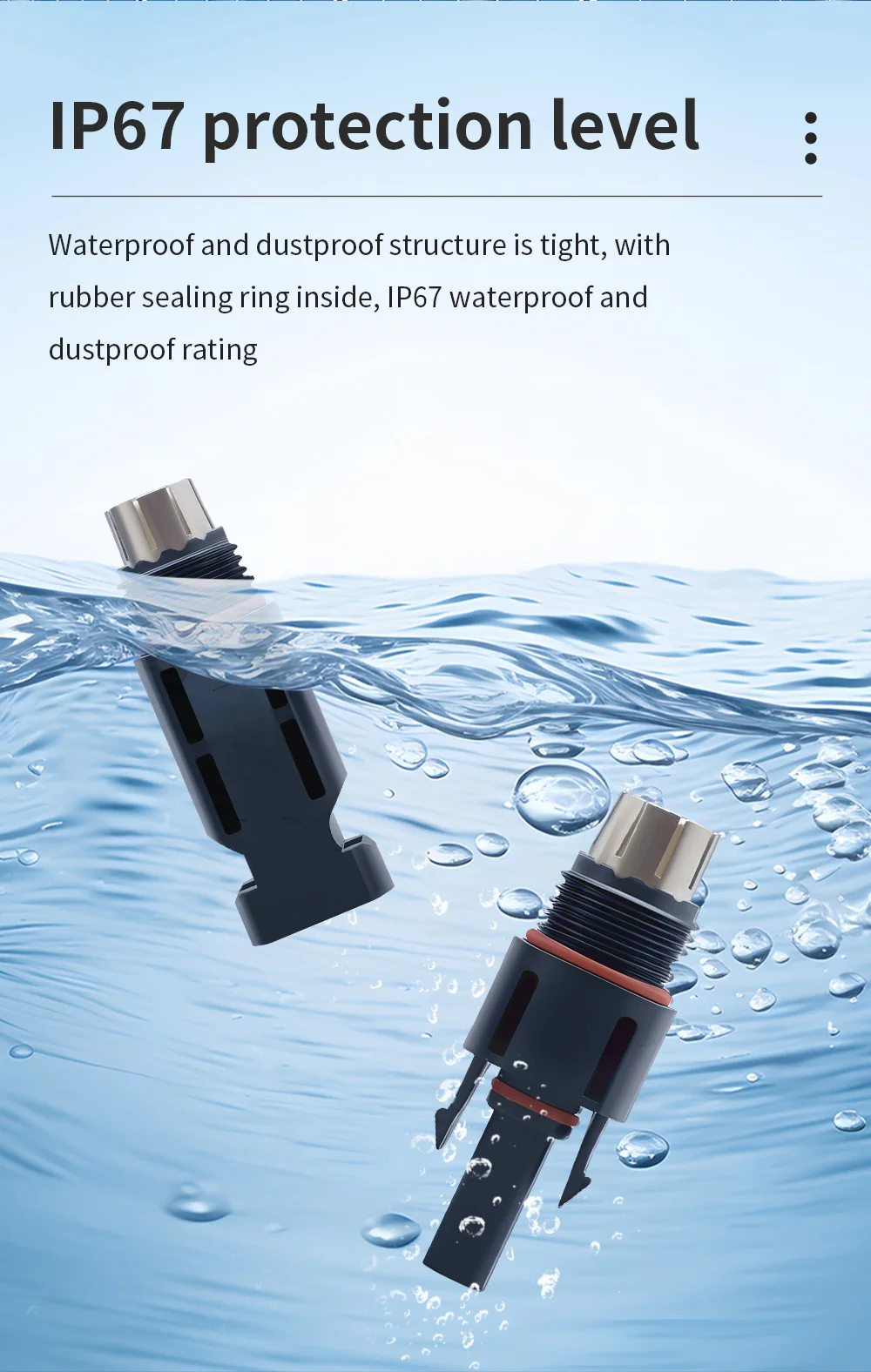

Waterproof Rating: IP67
Key Advantage: No bulky distribution box needed
Application: Small solar systems, DIY projects, space-limited installations, budget-conscious buyers
Installation: Inline, tool-free assembly

NOTED: If you choose “NO FUSE“, then there will be no fuse included in your photovoltaic connector.
