Description

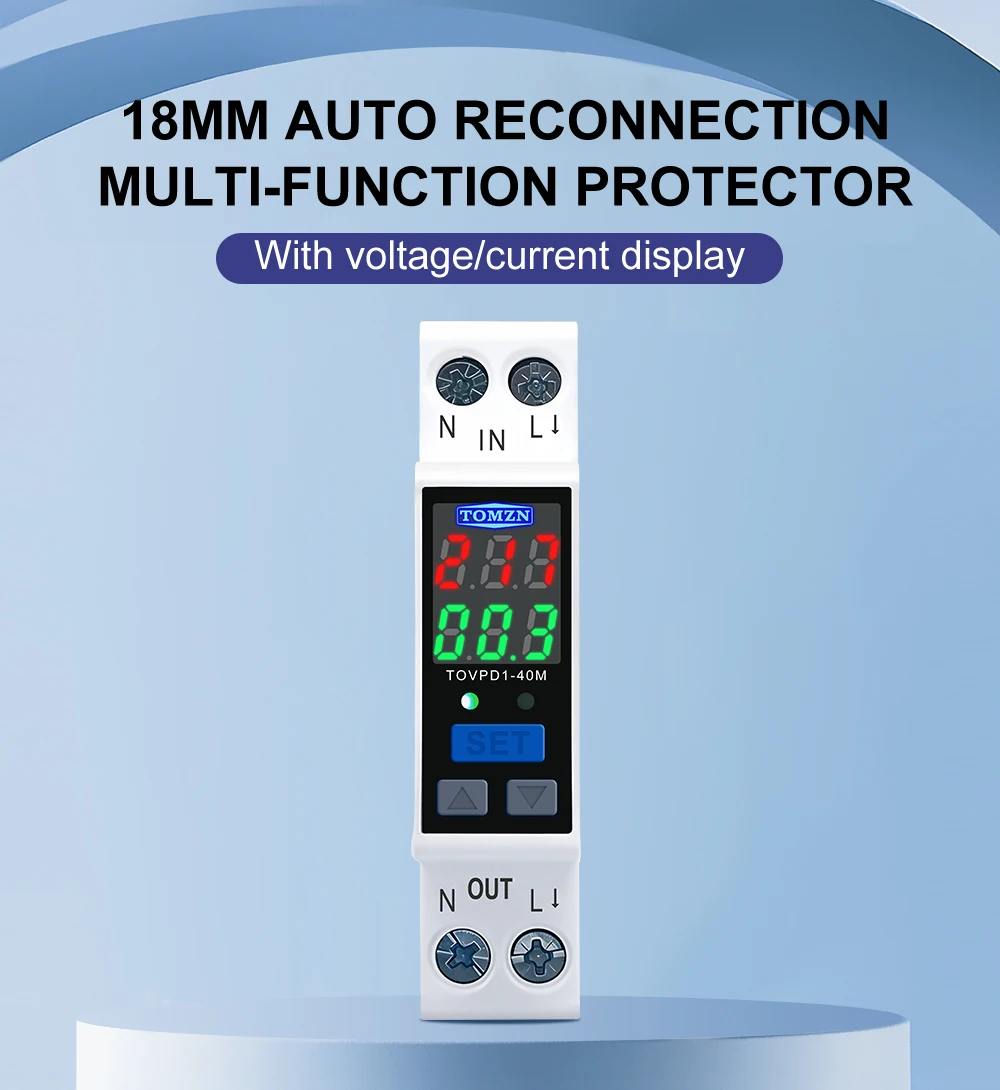

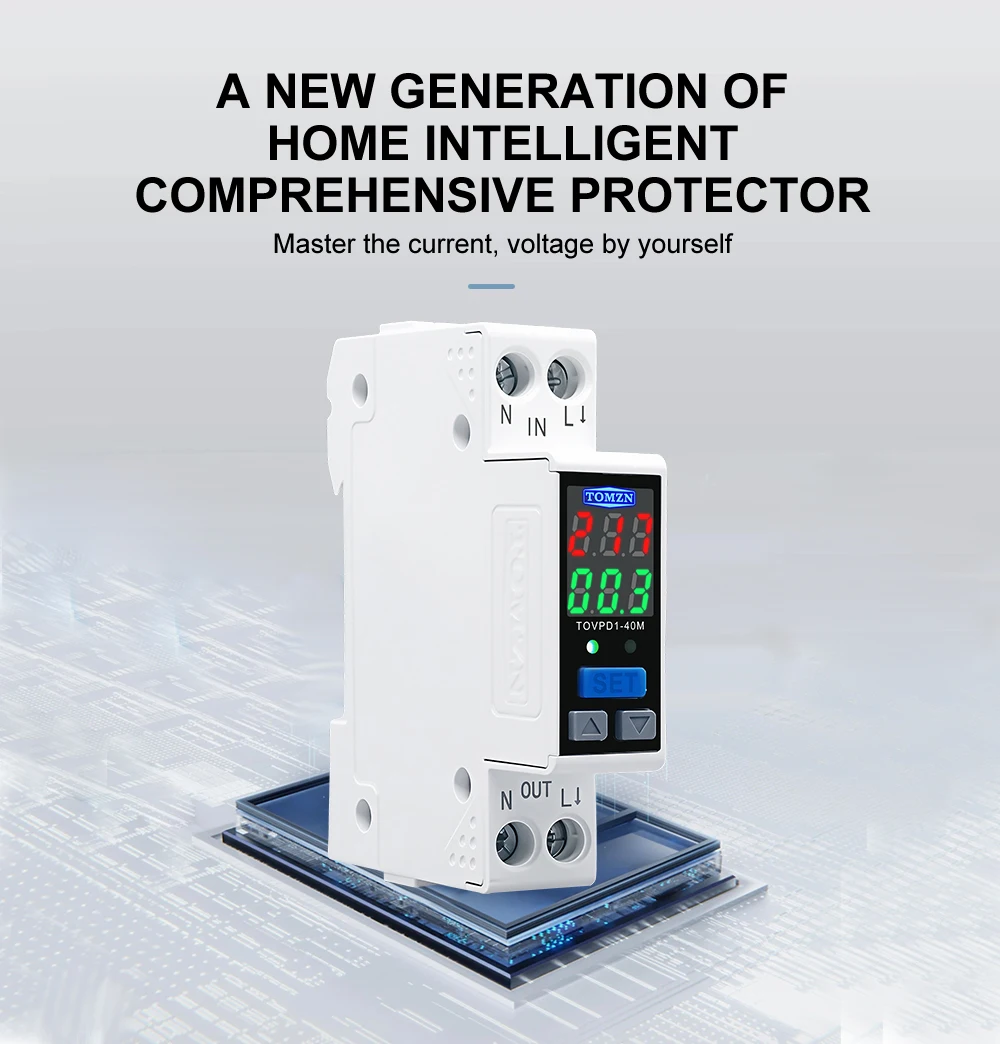

18mm over and under voltage protector with over current protection

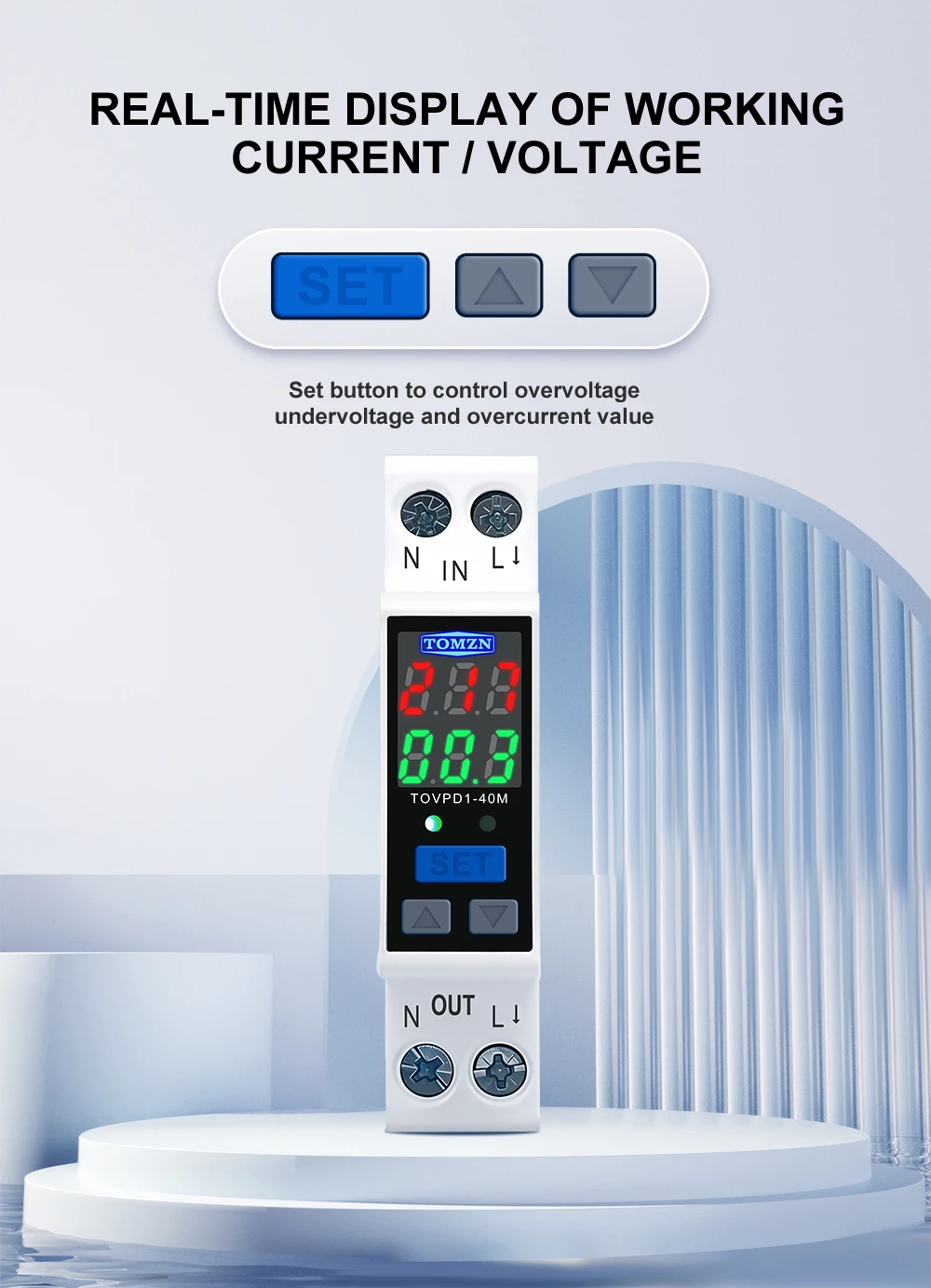

voltage and current display

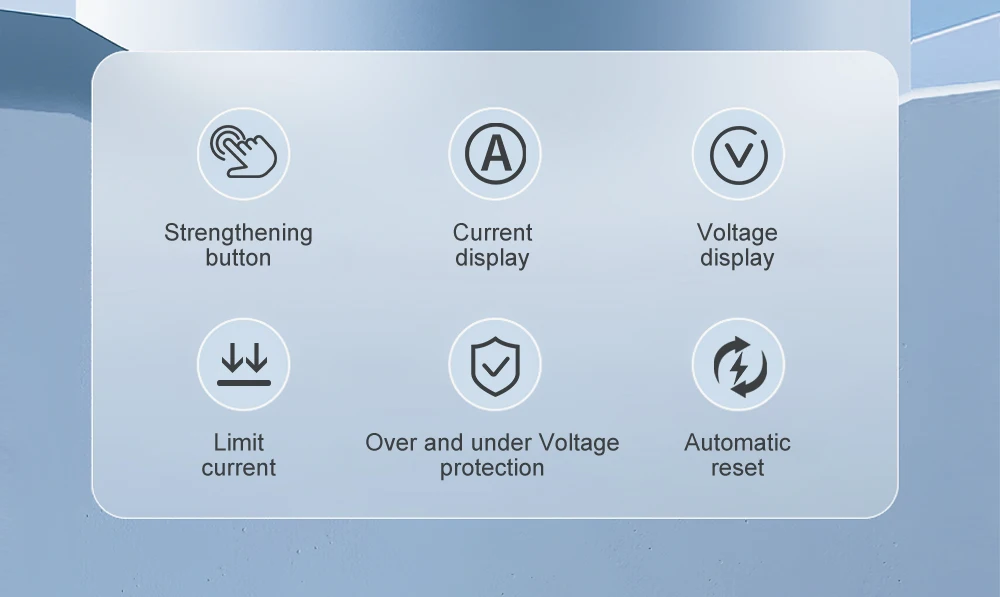

Functions
1.Over-voltage protection
2.Under-voltage protection
3.Over-current protection
4.Automatic recovery

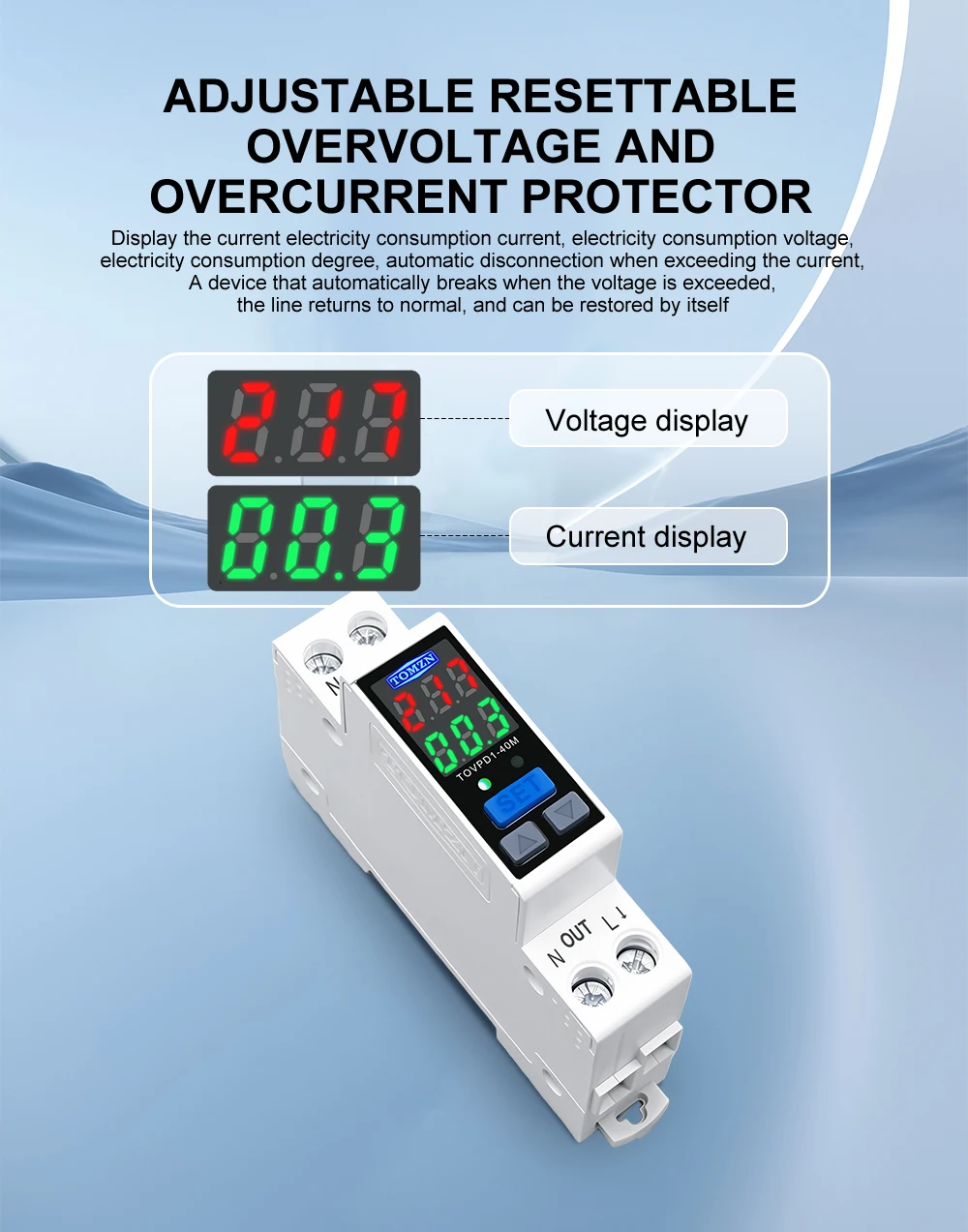

5.Voltage display(voltage measurement)
6.Current display(current measurement)

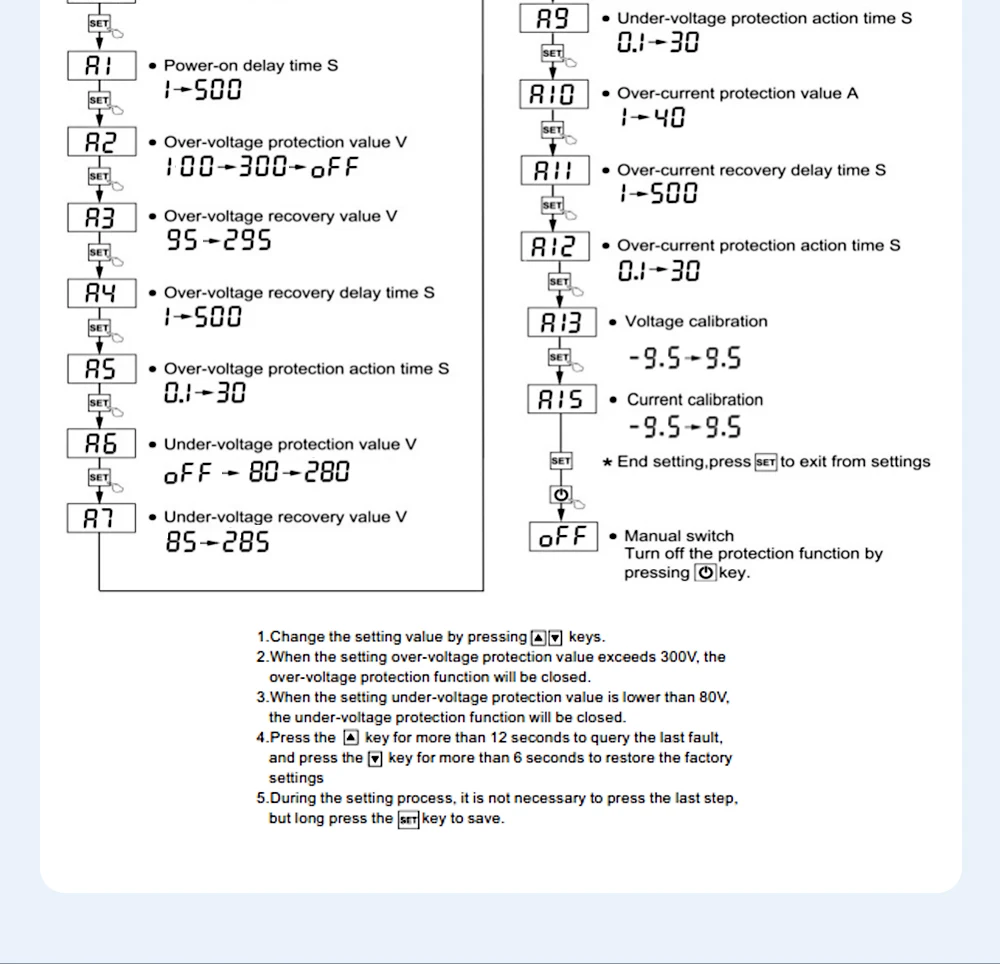

7.Voltage calibration:
Voltage ±10% adjustable. A13
Current ±10% adjustable. A15

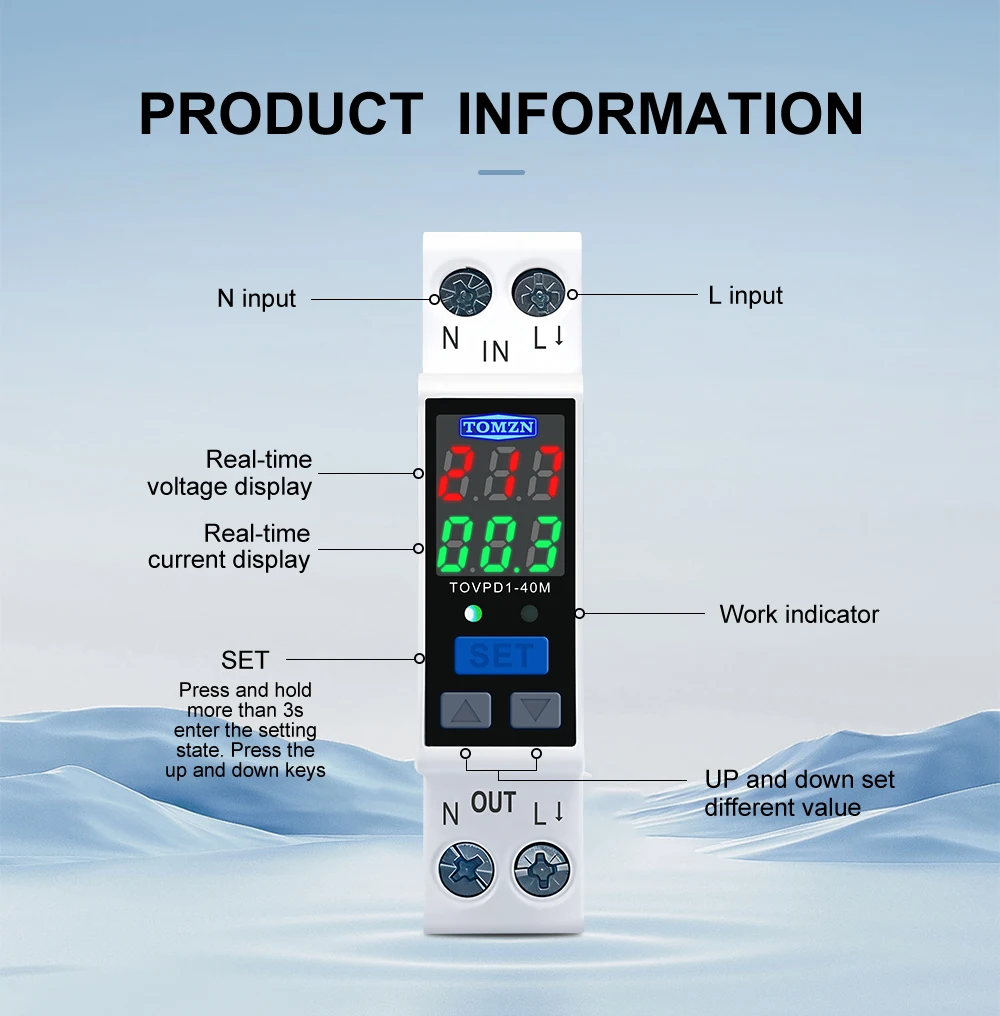

8.Restore factory settings: press the down button for more than 12s
9.Fault inquiry: Press the UP button from more than 12S

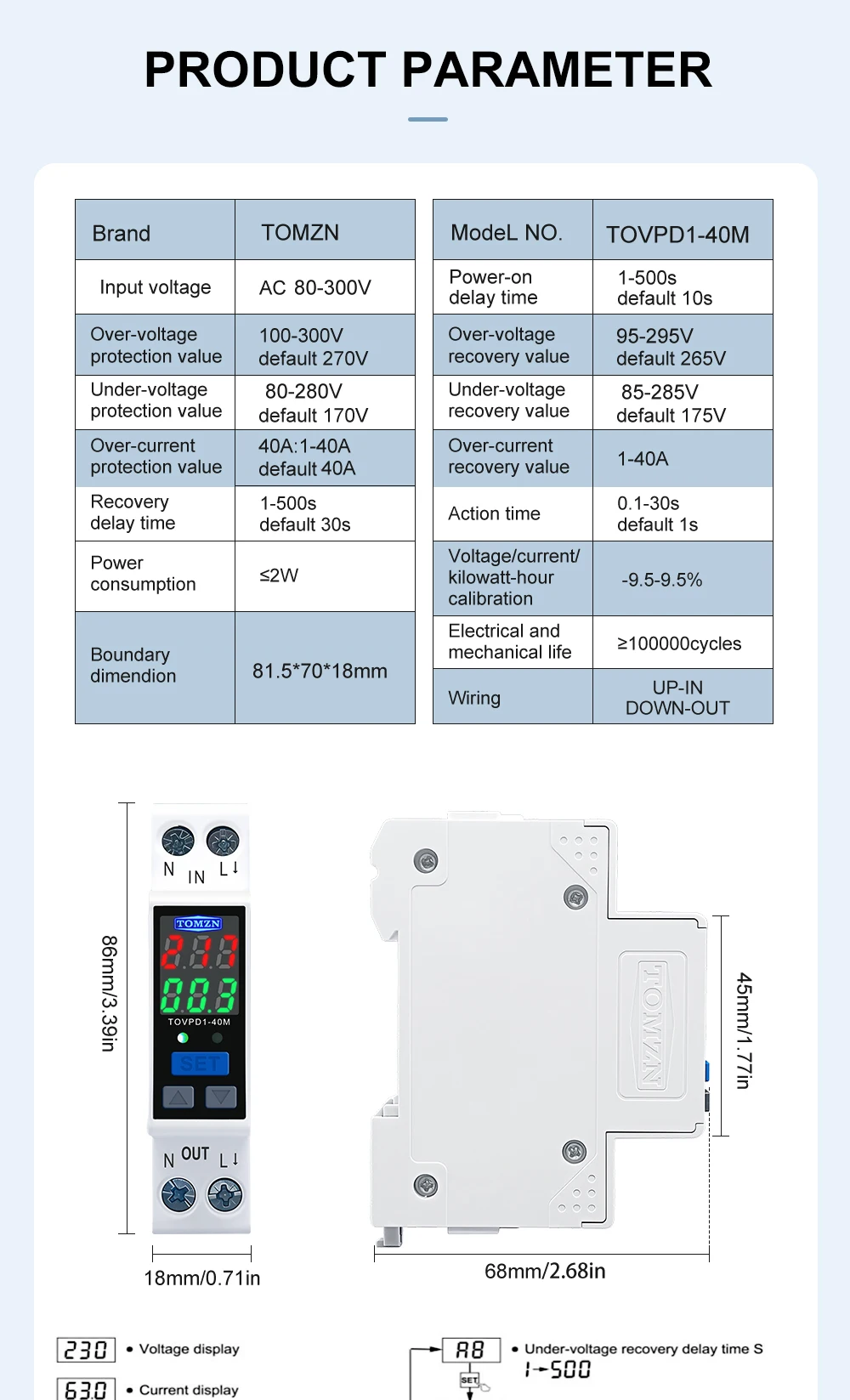

Product Parameters
1.Model number:TOVPD1-40M
2.Power supply:110V/230VAC 50/60Hz
3.Max.Loading power:1~40A Adjustable(default:40A)
4.Over-voltage protection value range:100V~300V~OFF(default:270V)
Over-voltage recovery voltage range:95V~295V(default:265V)
Over-voltage protection action time:0.1s~30s(default value:1s)
Over-voltage recovery delay time:1s~500s(default:30s)
5.Under-voltage protection value range:80V~280V~OFF(default:170V)
Under-voltage recovery voltage range:85V~285V (default:175V)
Under-voltage protection action time:0.1s~30s(default:1s)
Under-voltage recovery delay time:1s~500s(default:30s)
6.Over-current adjustment range:1~40A (default:40A)
Over-current action range:0.1~30 second (default:1s)
Over-current recovery delay time:1s~500s(default:30s)
7.Power-on delay time:1s~500s(default:10s)
9.Power consumption: <2W
10.Electric machinery life: 100,000 times

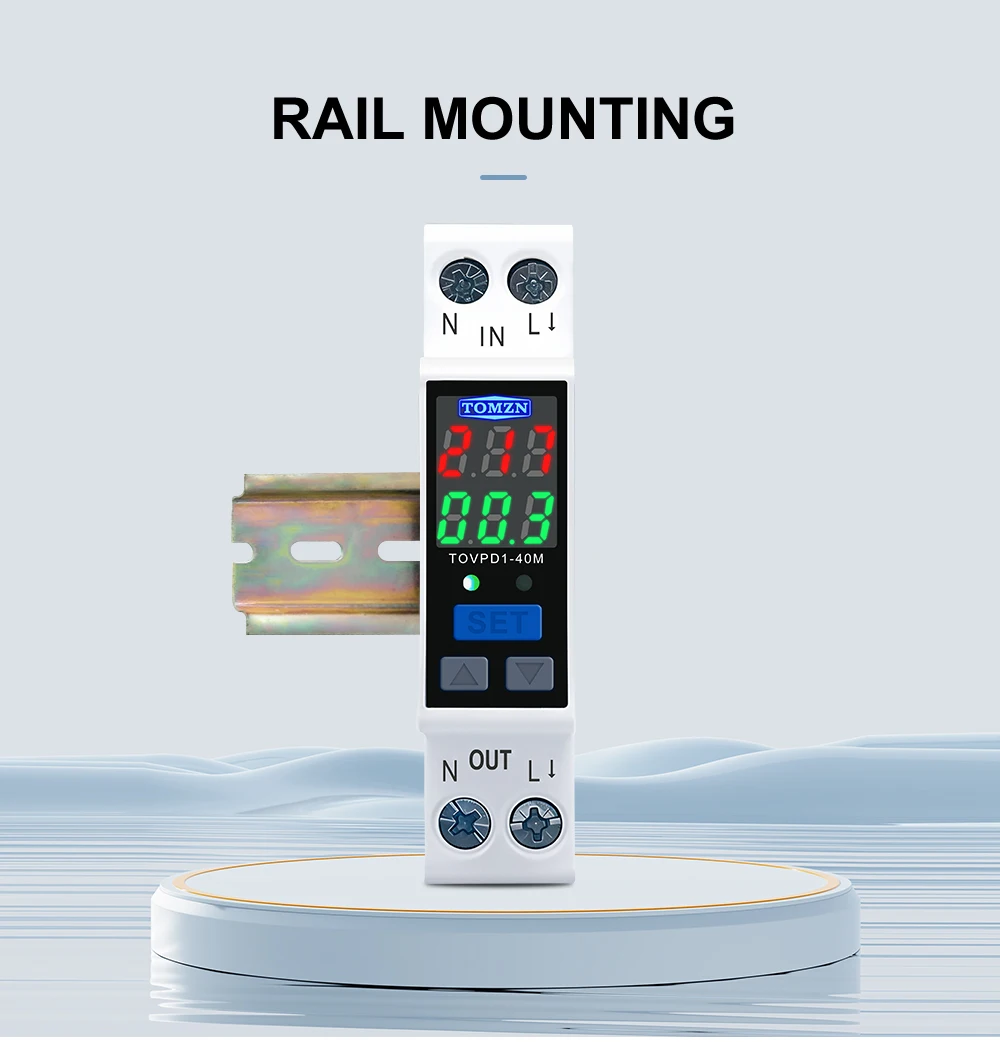

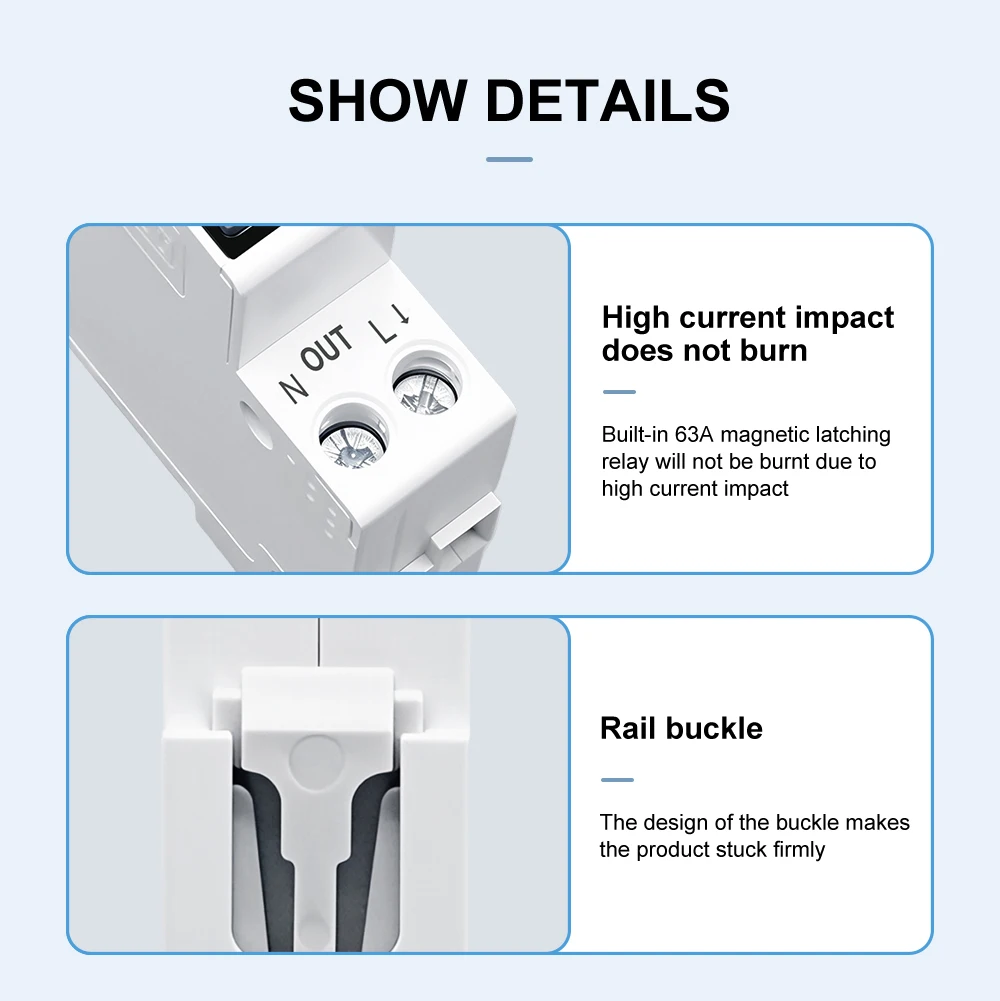

11.Installation: 35mm DIN rail
