Description

Product Introduction

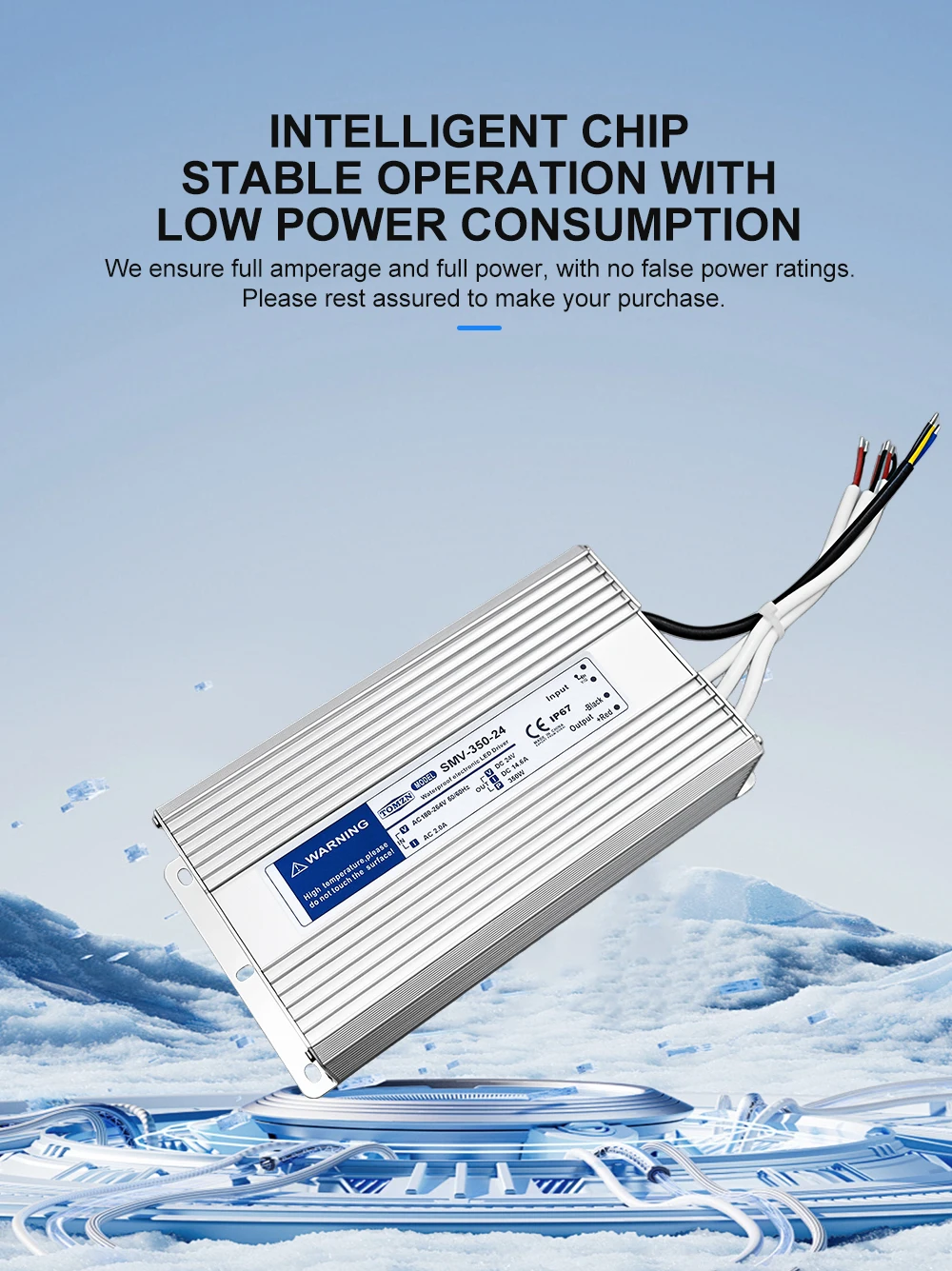

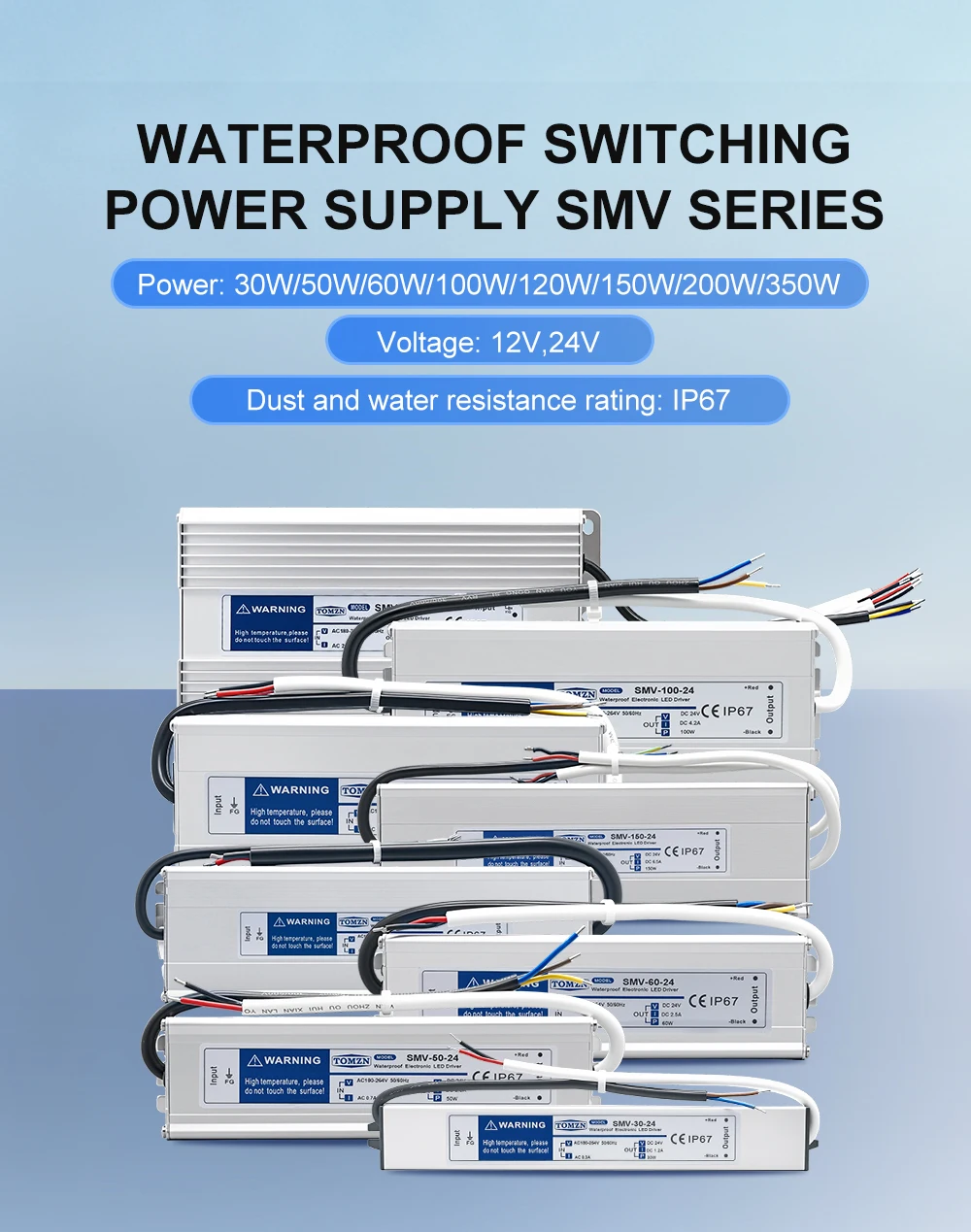

This SMV series outdoor switching power supply is designed for durability and reliability in harsh environments. Featuring a fully glue-sealed aluminum shell with an IP67 waterproof rating, it provides stable 12V 24V DC power for outdoor LED engineering, security systems, and public lighting. With built-in protections for short circuits, overloads, and overvoltage, this high-efficiency AC-to-DC converter ensures a long service life and high reliability.

Technical Data Sheet

Product Name: IP67 Waterproof Switching Power Supply
Series: Lighting Transformer
Application Type: Electronic LED Driver / AC-DC Converter
Input Voltage: AC 180-264V
Output Voltage: DC 12V 24V
Output Power: 30W 50W 60W 100W 120W 150W 200W 350W
Protection Class: IP67 (Fully sealed with glue)
Modulation Method: Pulse Width Modulation (PWM)
Transistor Connection: Half-Bridge
Work Efficiency: 89%
Output Ripple Noise: 120mVp-p
Output Voltage Accuracy: 98%
Voltage Adjustment Range: ±10%
Operating Frequency: 50/60Hz
Environment Temperature: -40°C ~ 65°C
Max Case Temperature: 60°C

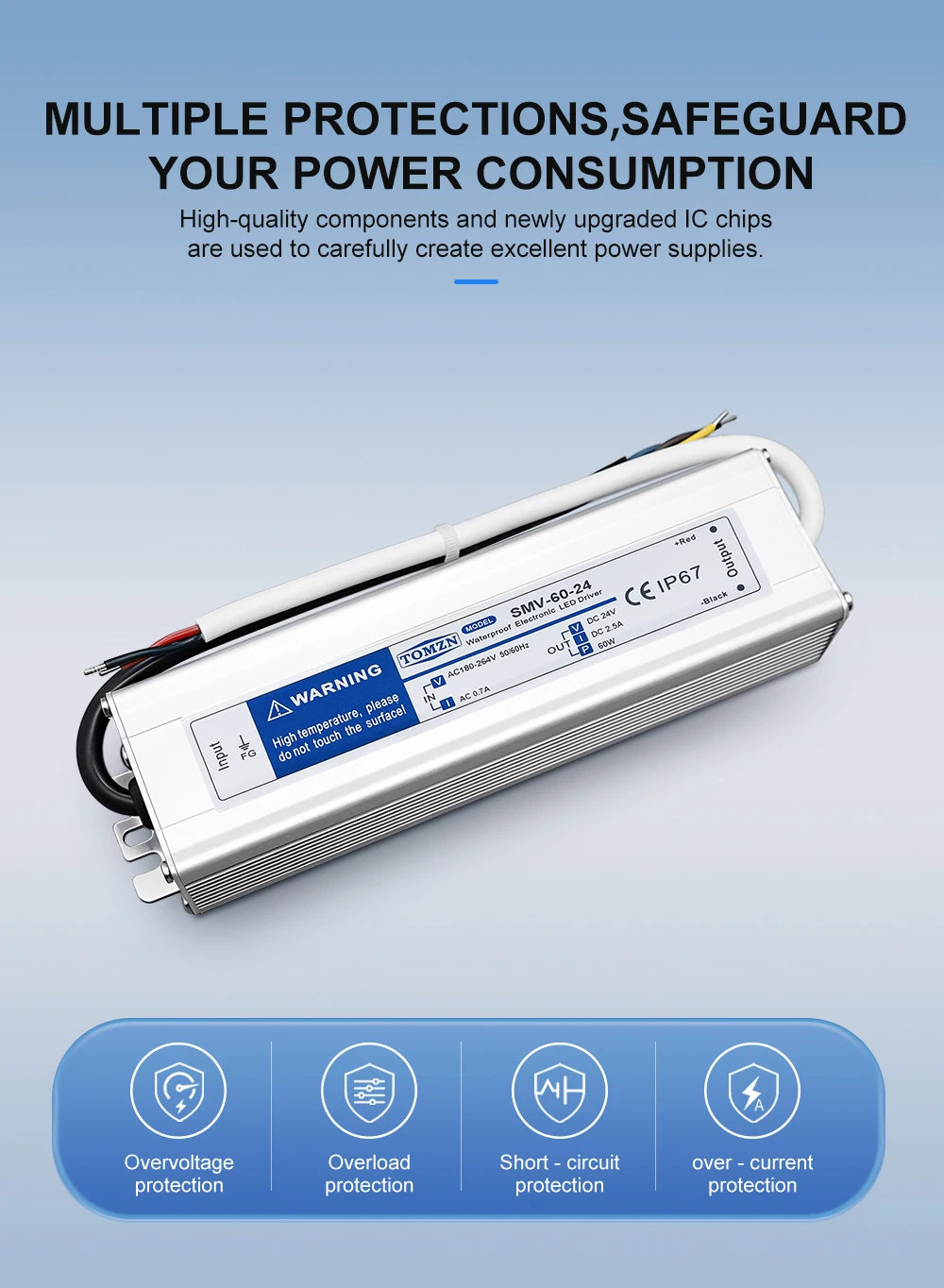

Protections: Short Circuit (SCP), Overload (OLP), Overvoltage (OVP)
Reset Method: Self-recovery
Cooling Method: Free Air Convection (Free Cooling)
Material: Aluminum Shell + Glue Filling

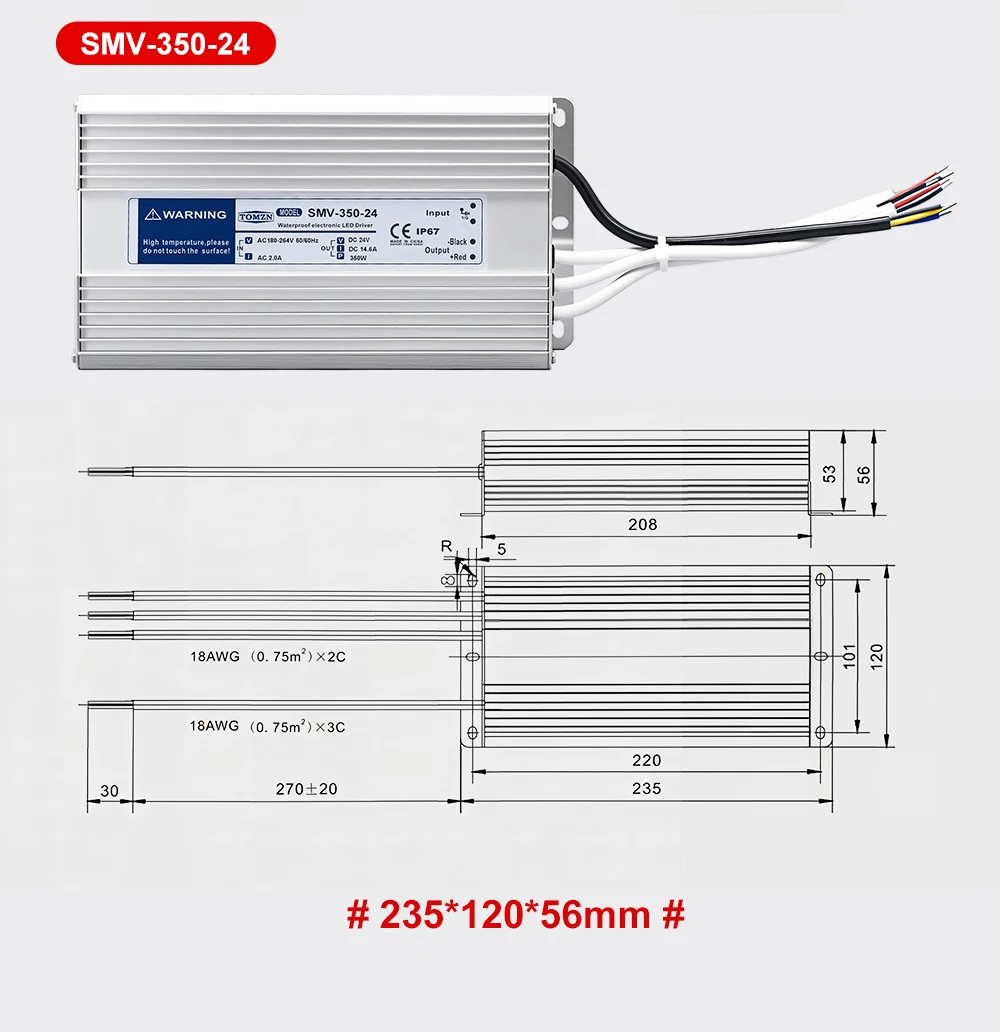

Dimensions: 235*120*56mm (LWH)
Weight: approx: 2.4kg
Warranty: 1 Years
