TOMZN 18 Ways 3 input 3 output PV Photovoltaic Combination Box IP65 Fuse SPD Isolating switch 600V ABS 16A 20A 25A 32A 50A 63A

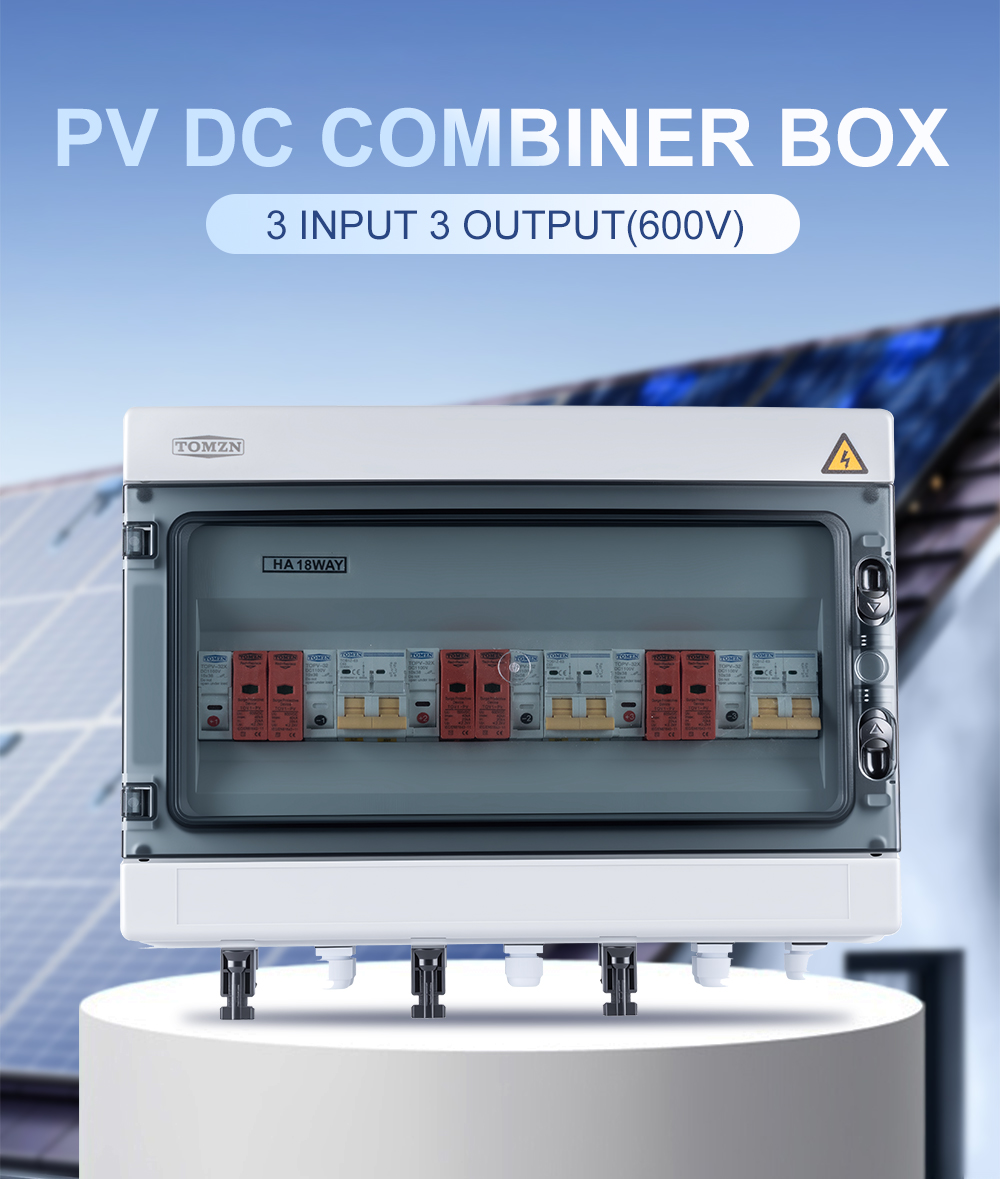

18ways 3 input 3 output DC 600V PV IP65 Combiner Box

General

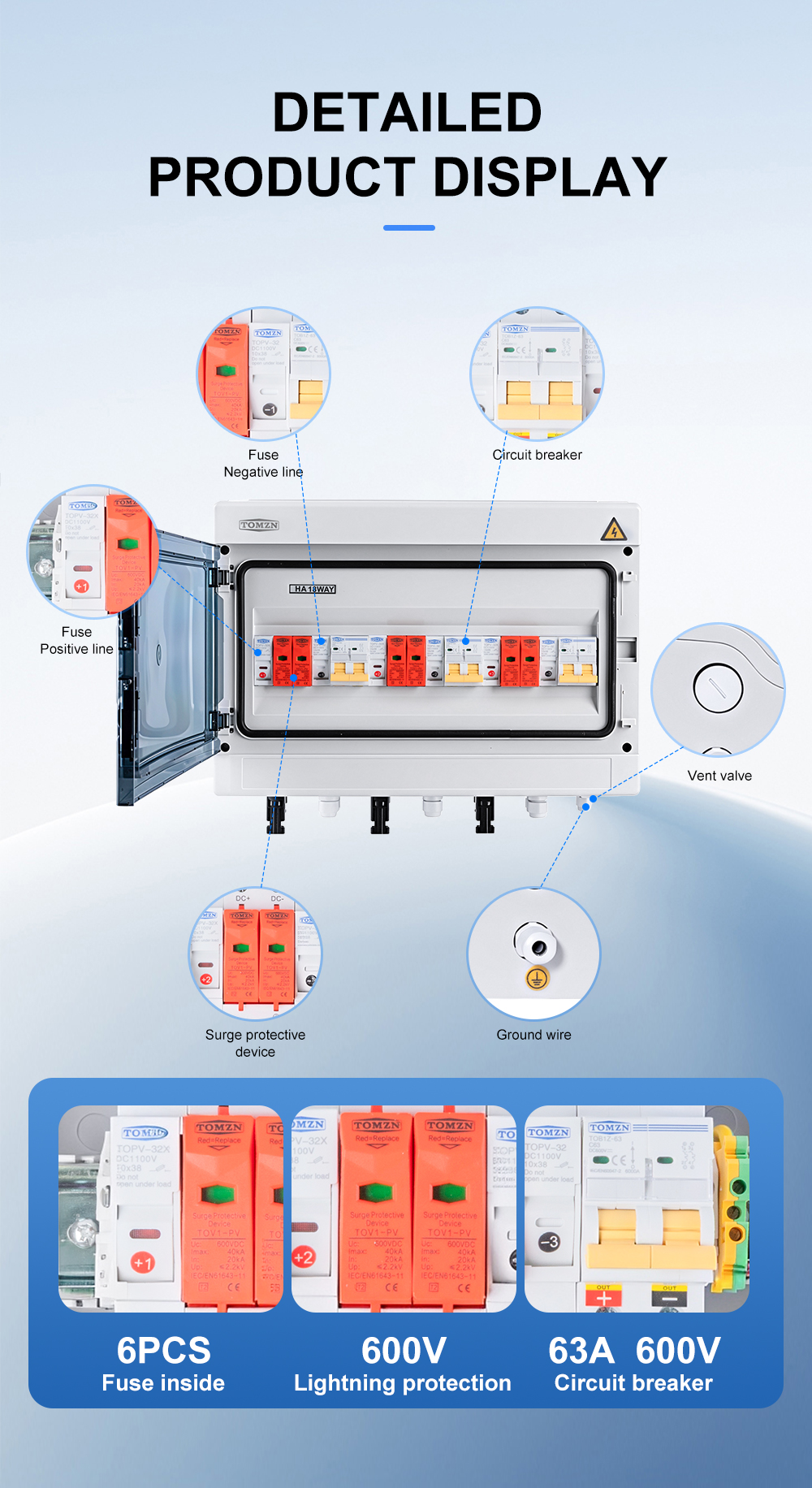

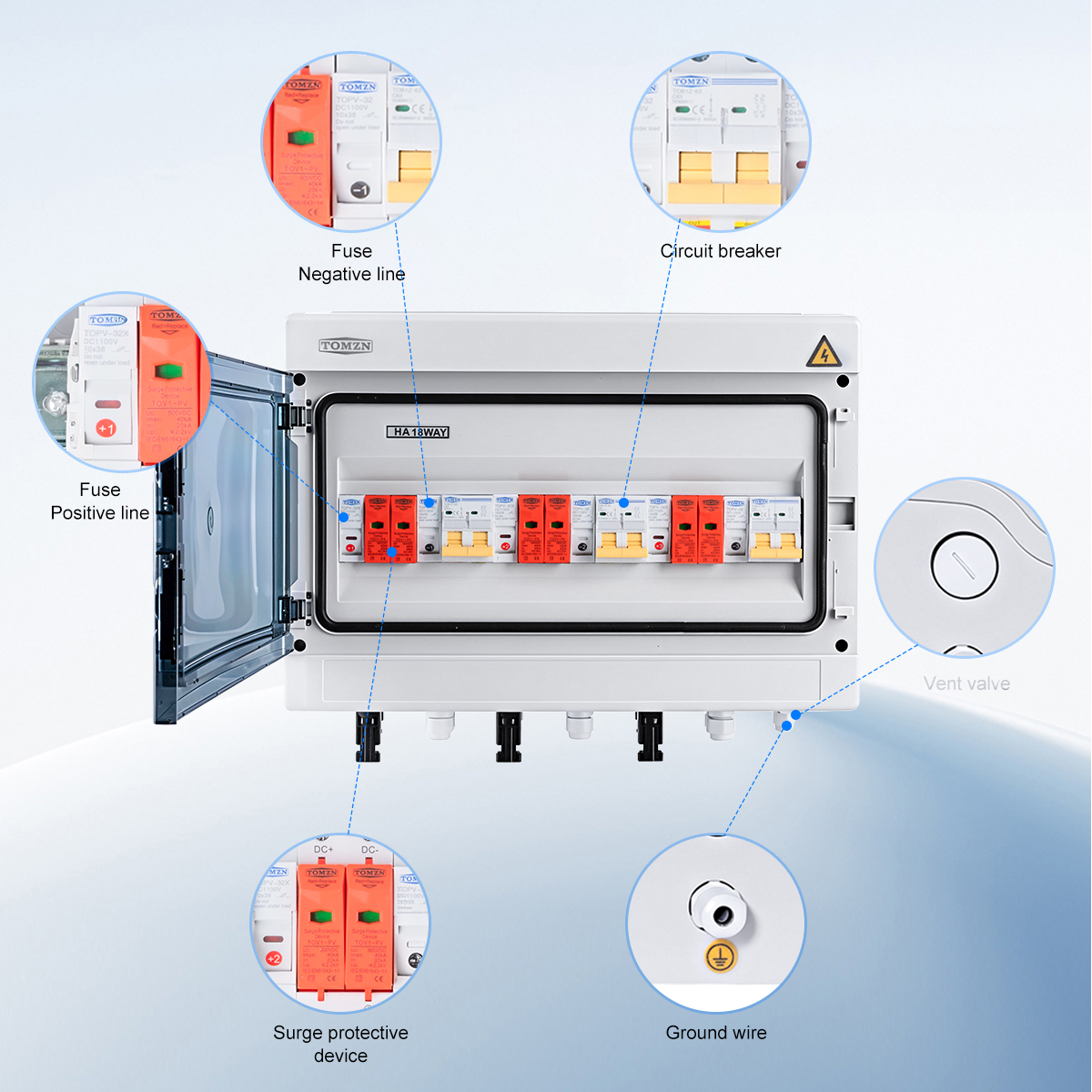

TOPV18-3-3 is a high-performance DC combiner box designed for photovoltaic systems, featuring 18 input ways organized into 3 input channels and 3 output channels. Rated for DC 600V and IP65 enclosure, it is well-suited for outdoor PV installations. The box integrates essential protection components including 1100V fuse holders with fuses, 2P DC 600V circuit breakers, and 2P DC 600V surge protective devices (SPD), ensuring reliable overcurrent, overvoltage, and surge protection for solar arrays.

Product Data Sheet

Model: TOPV18-3-3
Number of input ways: 18
Number of input channels: 3
Number of output channels: 3
Maximum system voltage: DC 600V

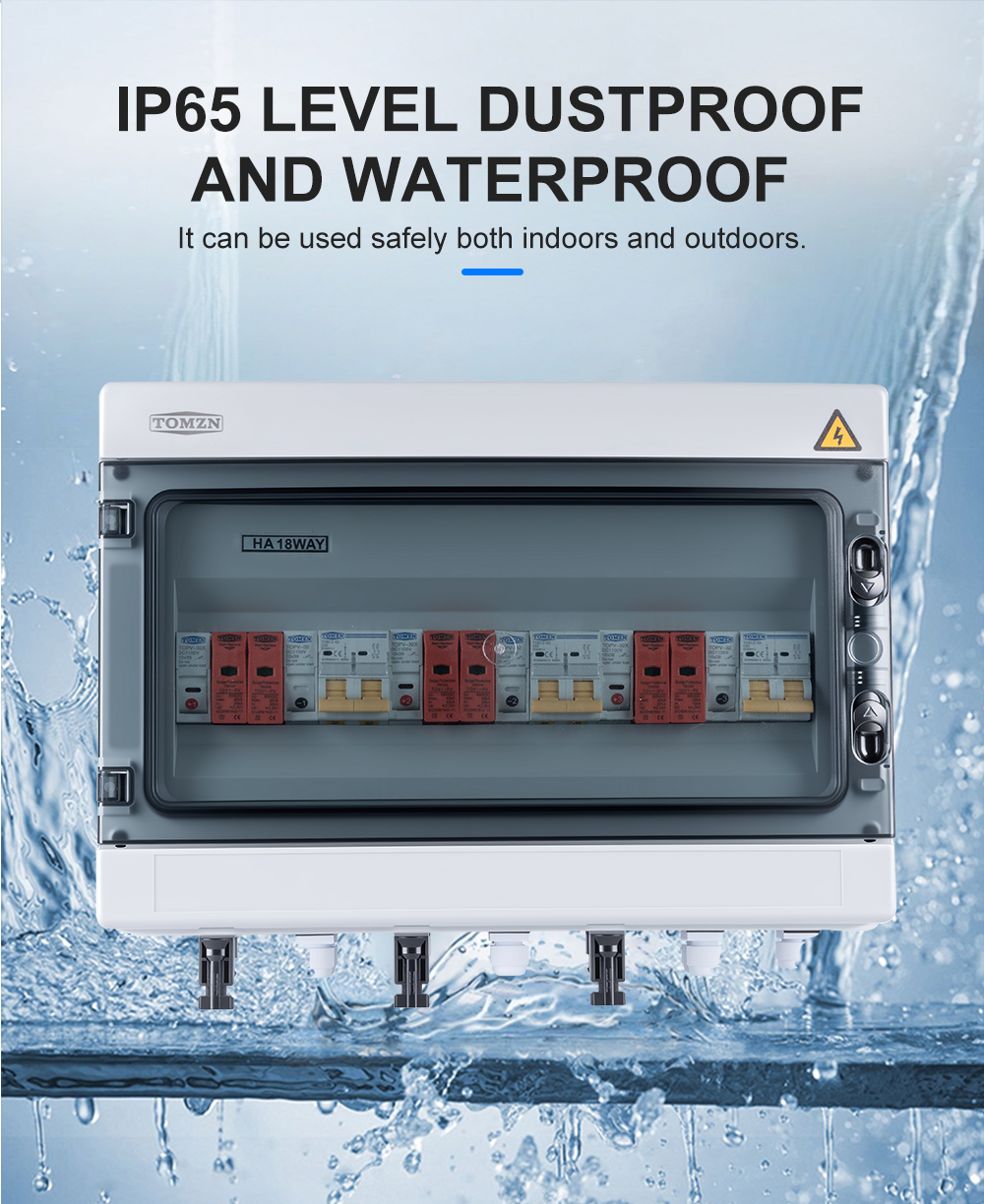

Enclosure rating: IP65
Fuse holder rating: 1100V DC (with fuse)
Circuit breaker type: 2P DC 600V
SPD type: 2P DC 600V
Protection features: Overcurrent protection, surge protection, disconnection function

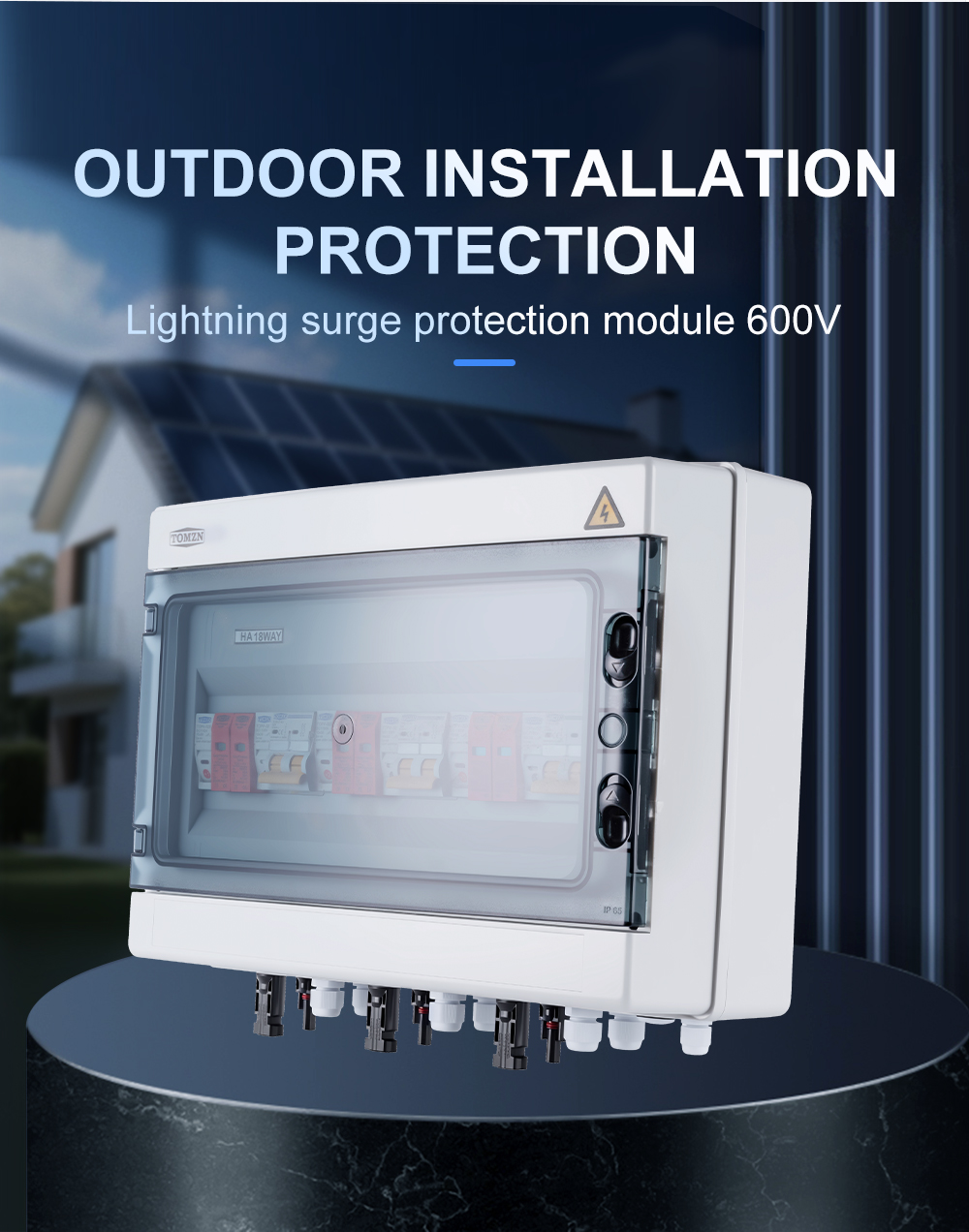

Application: Outdoor photovoltaic combiner box.
