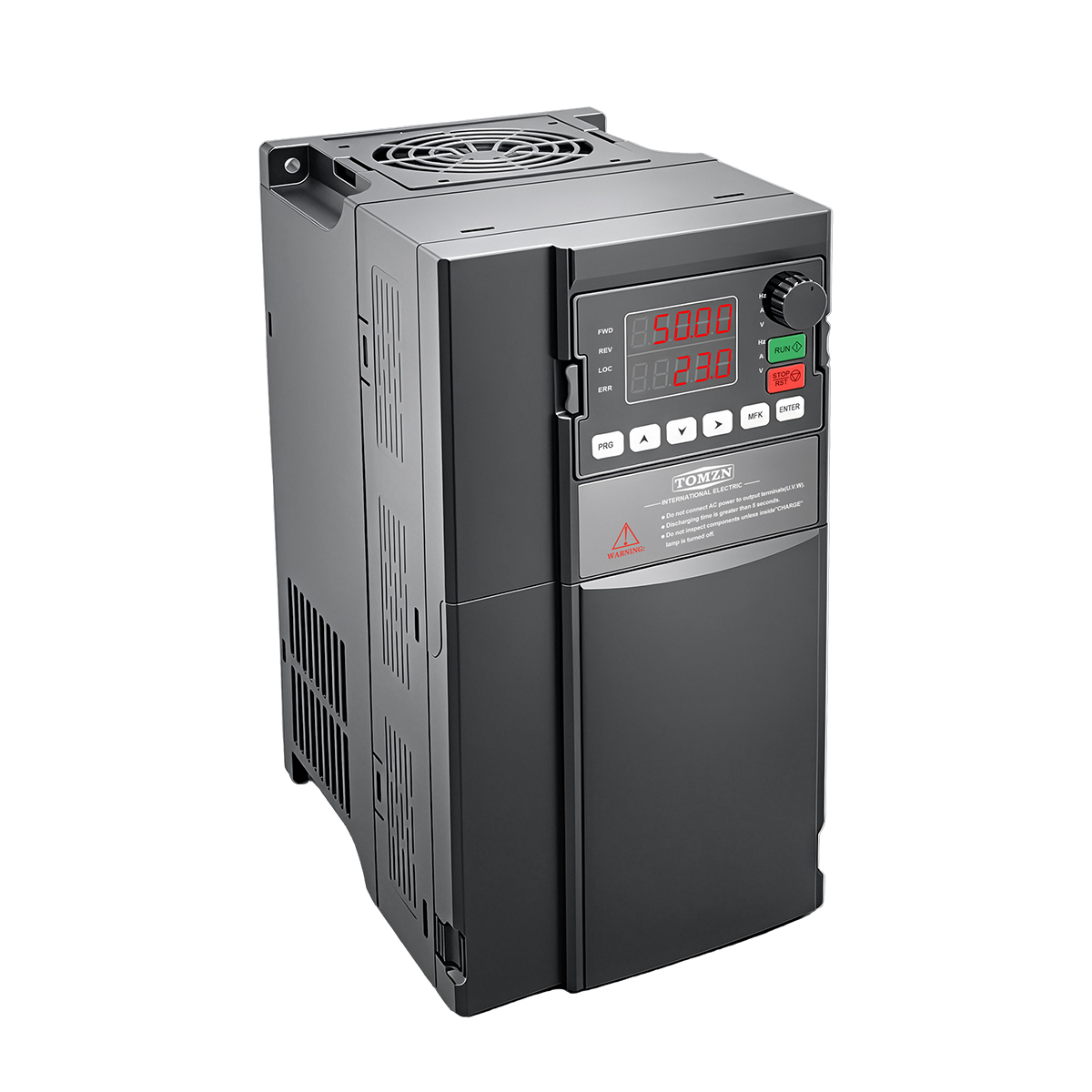

TOMZN 15kW 20HP VFD 380V 3 Phase Inverter Vector Control Frequency Converter for CNC Motor Pump Fan Speed Controller Soft Start

General Description

The TOP700S-15G4L is a heavy-duty, 15kW (20HP) Variable Frequency Drive engineered for demanding industrial applications. Combining advanced Sensorless Vector Control with rugged hardware, it delivers precision speed regulation and high starting torque even at low frequencies. Designed to thrive in harsh environments, this VFD is the ultimate solution for optimizing motor performance in CNC machining, pumping systems, and automated production lines.

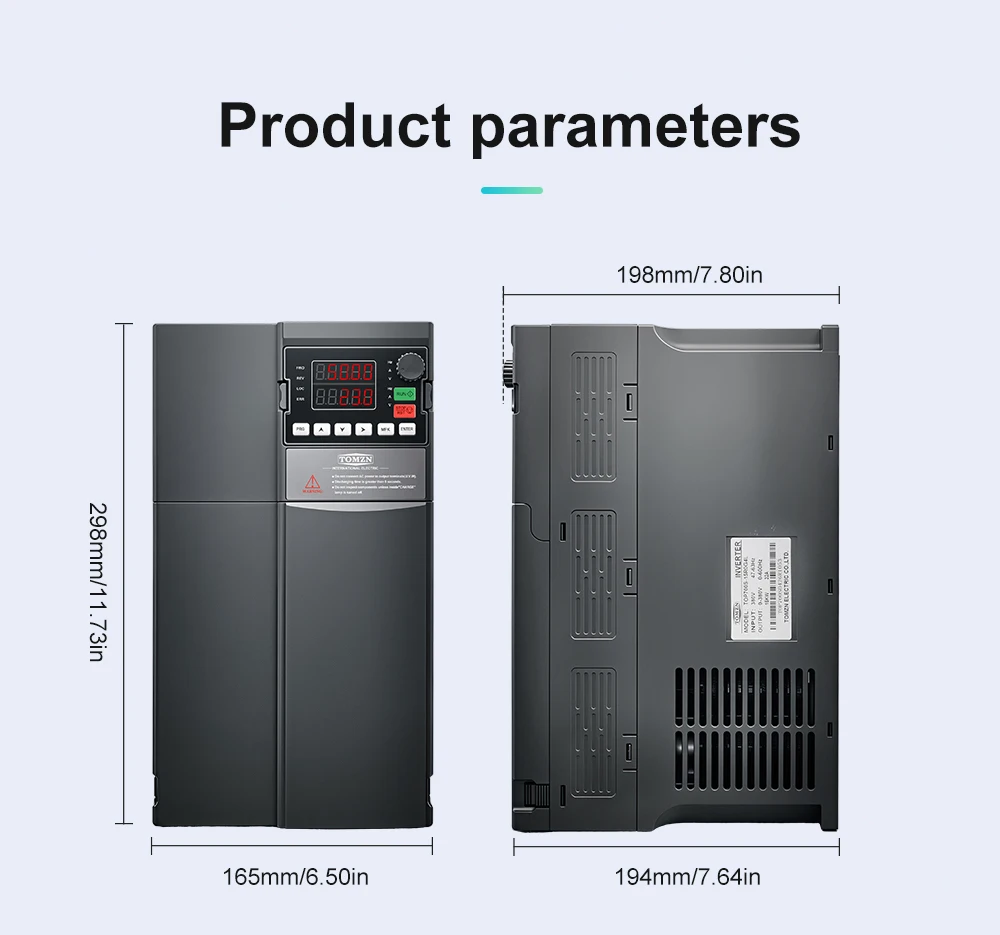

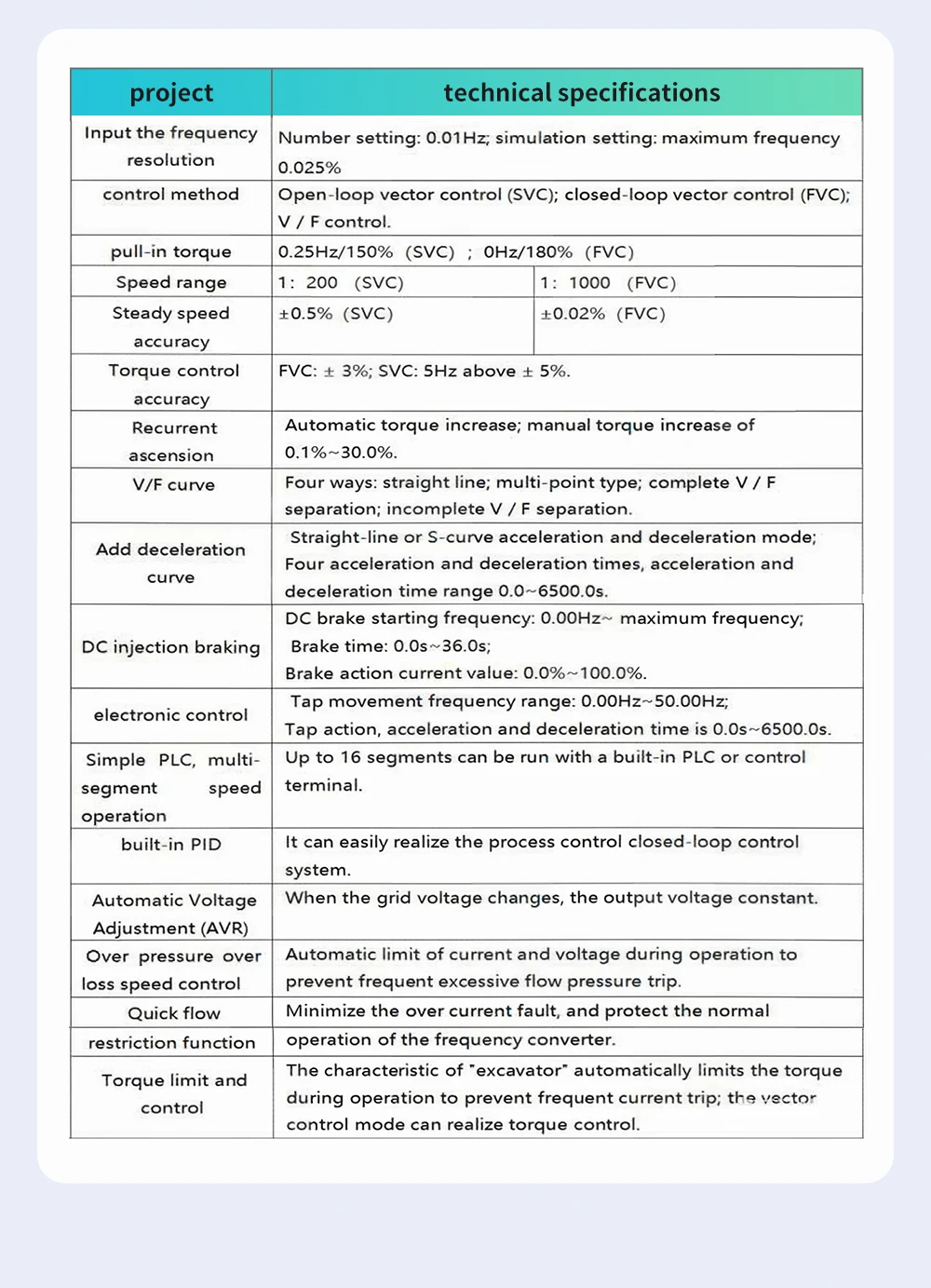

Product Parameters

Product Model: TOP700S-15G4L
Product type:  General purpose inverter

Power specifications: 15kW

Input Voltage: 380V

Rated current: 32A

Input frequency: 50/60Hz

Temperature range: -20°C~60°C

Cooling mode: Self-cooling fan

Use the motor: Suitable for fans and pumps

Product protection: 6 great protections

Scope of use: Woodworking machinery/food machinery/textile machinery/plastic machinery/CNC machine printing machinery/automation and other occasions requiring higher motorcontrol
