Description
Description
TOB9L-63WIFI 2P can cut off L and N both,
With leakage protection, NO temperature control.
TOB9-63WIFI 1P Can only cut off L,
NO leakage protection, With temperature control.
TOB7S-100 3P+N 400V~ 10-100A
Remote ON/OFF + Timer switch
General
This product is an intelligent modular rail-type circuit breaker designed for AC 50/60Hz systems with a rated voltage of 400V and a rated current of 10-100A. It provides reliable overload and short-circuit protection for connected loads and circuits. The breaker features advanced mobile remote control functionality, allowing users to switch it on/off via TUYA app, which also displays its real-time status. Additional smart capabilities include timing and delay control. With an attractive design, high reliability, strong breaking capacity, and fast trip mechanism, it is an ideal solution for modern electrical installations.
Product features
Product Type: Intelligent Circuit Breaker
Rated Frequency: 50/60Hz
Rated Voltage: 400V~ 50/60Hz
Rated Current: 10A, 16A, 20A, 32A, 40A, 50A, 63A, 80A, 100A
Protection Functions: Overload and Short-Circuit
Control Method: Mobile Phone Remote Control (On/Off, Real-time Status Display, Timing, Delay)
Installation Type: 35mm DIN Rail
Ambient Temperature: -5°C to +40°C (Service Temperature Limit: -25°C to +70°C)
Max. Altitude: 2000 meters
Pollution Level: Level 2
Installation Class: Class II, Class III

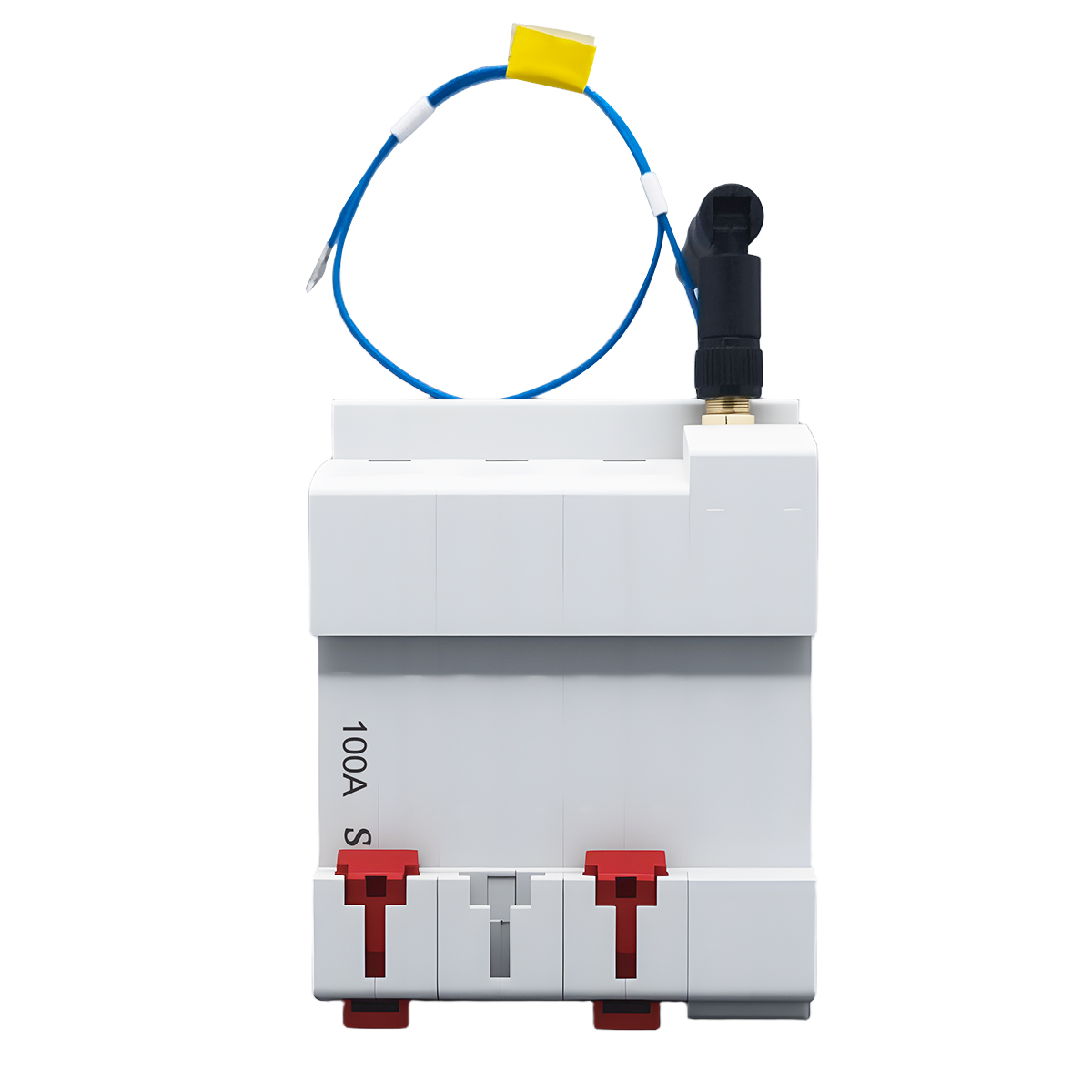

Smart and Reliable Electrical Protection: TOB7S-100 WIFI Circuit Breaker 3P+N
In today’s fast-paced and technology-driven world, ensuring the safety and efficiency of your electrical systems is more important than ever. Whether you’re managing an office, a commercial space, or a residential building, having a reliable and intelligent circuit protection solution is essential. The TOB7S-100 WIFI Circuit Breaker 3P+N is a cutting-edge electrical protection device designed to provide comprehensive safety, convenience, and control for your three-phase four-wire electrical systems.
This advanced circuit breaker is engineered to offer overload protection, short-circuit protection, and intelligent timer switching capabilities, all integrated into a single, compact unit. With its built-in Wi-Fi connectivity, the TOB7S-100 allows for remote monitoring and control, making it an ideal solution for modern office environments and commercial applications.
—
What is the TOB7S-100 WIFI Circuit Breaker 3P+N?
The TOB7S-100 is a smart circuit breaker designed for three-phase four-wire electrical systems. It is specifically built to protect electrical circuits from overloads and short circuits, which are common causes of electrical failures and potential hazards. The 3P+N configuration ensures that all three phases and the neutral wire are monitored and protected simultaneously, providing a complete and balanced protection solution.
Unlike traditional circuit breakers, the TOB7S-100 incorporates advanced smart technology, including Wi-Fi connectivity and a built-in timer switch. This allows users to monitor and control their electrical systems remotely via a smartphone or computer, offering greater flexibility and convenience.
—
Key Features of the TOB7S-100 WIFI Circuit Breaker
1. Smart Wi-Fi Connectivity
One of the standout features of the TOB7S-100 is its built-in Wi-Fi module. This allows the circuit breaker to connect to your local network and be controlled remotely through a dedicated app or web interface. You can monitor the status of your electrical circuits in real-time, receive alerts in case of any anomalies, and even manually switch the breaker on or off from anywhere in the world.
This feature is especially useful in office environments where electrical systems need to be monitored and managed efficiently. It also helps in reducing the need for manual inspections and maintenance, saving both time and resources.
2. Overload and Short-Circuit Protection
The TOB7S-100 is designed to detect and respond to electrical overloads and short circuits quickly and effectively. In the event of an overload, the breaker will automatically trip to cut off the power supply, preventing damage to connected equipment and reducing the risk of electrical fires.
Short-circuit protection is equally important, as it helps prevent dangerous surges that can cause equipment failure or even pose a fire hazard. The TOB7S-100 ensures that your electrical system remains safe and stable, even under unexpected conditions.
3. Timer Switch Functionality
Another innovative feature of the TOB7S-100 is its built-in timer switch. This allows users to schedule the on/off times of the circuit breaker, making it ideal for managing energy consumption and reducing electricity costs.
For example, in an office setting, you can set the breaker to turn off non-essential circuits after working hours and turn them back on in the morning. This not only helps in saving energy but also extends the lifespan of your electrical equipment by reducing unnecessary usage.
4. Three-Phase Four-Wire Compatibility
The TOB7S-100 is specifically designed for three-phase four-wire systems, making it suitable for a wide range of commercial and industrial applications. The 3P+N configuration ensures that all three phases and the neutral wire are protected, providing a balanced and reliable power distribution system.
This makes the TOB7S-100 an excellent choice for office buildings, manufacturing facilities, and other environments where three-phase power is commonly used.
5. Compact and Durable Design
Despite its advanced features, the TOB7S-100 is built with a compact and durable design that makes it easy to install and integrate into existing electrical panels. It is constructed from high-quality materials that ensure long-term reliability and performance, even in demanding environments.
The device is also designed to be user-friendly, with clear labeling and intuitive controls that make setup and operation straightforward.
—
Why Choose the TOB7S-100 for Your Electrical System?
There are many reasons why the TOB7S-100 is a smart and reliable choice for your electrical protection needs:
– Enhanced Safety: With built-in overload and short-circuit protection, the TOB7S-100 helps prevent electrical failures and potential hazards.
– Remote Monitoring and Control: The Wi-Fi connectivity allows for real-time monitoring and remote control, giving you greater control over your electrical system.
– Energy Efficiency: The timer switch function helps reduce energy consumption and lower electricity bills.
– Versatile Application: Suitable for a wide range of three-phase four-wire systems, making it ideal for offices, commercial buildings, and industrial facilities.
– Easy Installation and Use: Compact design and user-friendly interface make installation and operation simple and hassle-free.
—
Applications of the TOB7S-100 Circuit Breaker
The TOB7S-100 is a versatile circuit breaker that can be used in various applications, including:
– Office Buildings: Ideal for managing electrical systems in office environments, where energy efficiency and remote control are essential.
– Commercial Spaces: Suitable for retail stores, restaurants, and other commercial facilities that require reliable electrical protection.
– Industrial Facilities: Perfect for manufacturing plants and warehouses that use three-phase power systems.
– Residential Buildings: Can be used in multi-unit residential buildings to manage and protect electrical circuits.
– Smart Home Systems: Integrates well with smart home automation systems for enhanced control and convenience.
—
Installation and Setup
Installing the TOB7S-100 is a straightforward process that can be completed by a qualified electrician. The device is designed to fit into standard electrical panels and requires minimal wiring. Once installed, the Wi-Fi module can be configured using a smartphone or computer, allowing you to connect the device to your network and start using its smart features.
The setup process typically involves the following steps:
1. Mounting the Breaker: Secure the TOB7S-100 into the electrical panel using the provided mounting hardware.
2. Wiring the Circuit: Connect the three-phase and neutral wires to the appropriate terminals on the breaker.
3. Configuring Wi-Fi: Use the dedicated app or web interface to connect the breaker to your Wi-Fi network.
4. Setting Up Timer and Alerts: Customize the timer settings and enable notifications for real-time monitoring.
Once the setup is complete, you can start using the TOB7S-100 to monitor and control your electrical system with ease.
—
Maintenance and Longevity
The TOB7S-100 is built to last, with high-quality components that ensure long-term performance and reliability. Regular maintenance is minimal, but it is recommended to periodically check the connections and ensure that the device is functioning correctly.
If any issues arise, the remote monitoring feature allows you to quickly identify and address potential problems before they escalate. This helps in reducing downtime and ensuring that your electrical system remains safe and efficient.
—
Conclusion
The TOB7S-100 WIFI Circuit Breaker 3P+N is a powerful and intelligent solution for protecting and managing three-phase four-wire electrical systems. With its advanced features such as Wi-Fi connectivity, overload and short-circuit protection, and timer switch functionality, it offers a comprehensive and reliable way to safeguard your electrical infrastructure.
Whether you’re managing an office, a commercial space, or an industrial facility, the TOB7S-100 provides the safety, efficiency, and convenience you need to keep your electrical systems running smoothly. Invest in the TOB7S-100 today and experience the future of smart electrical protection.
