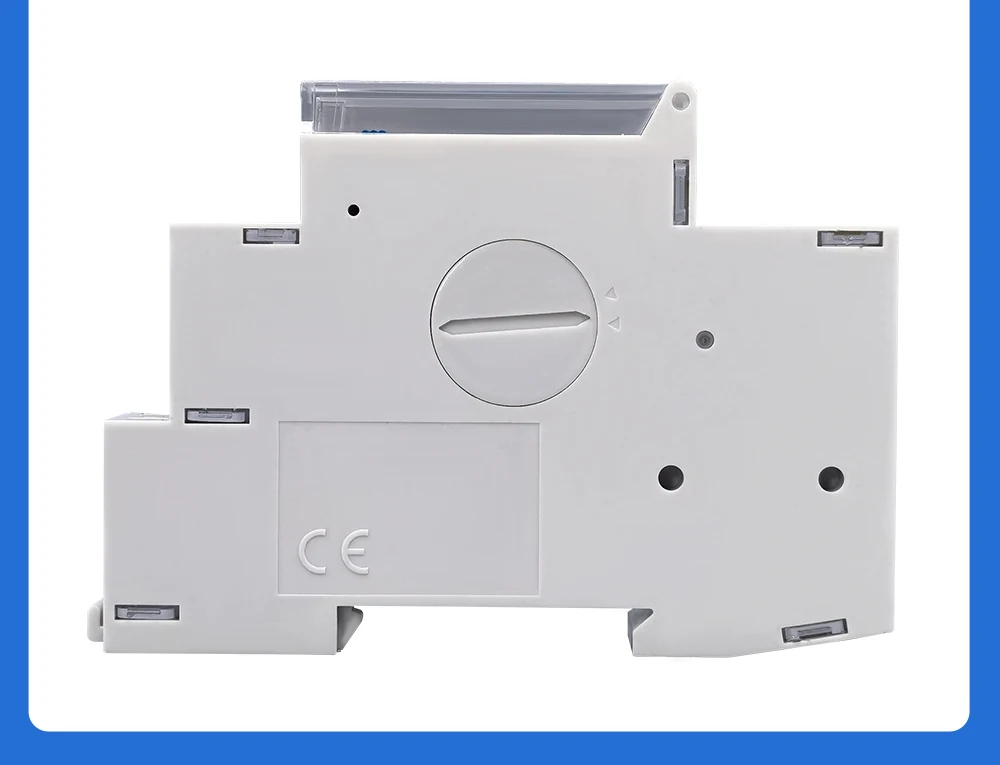

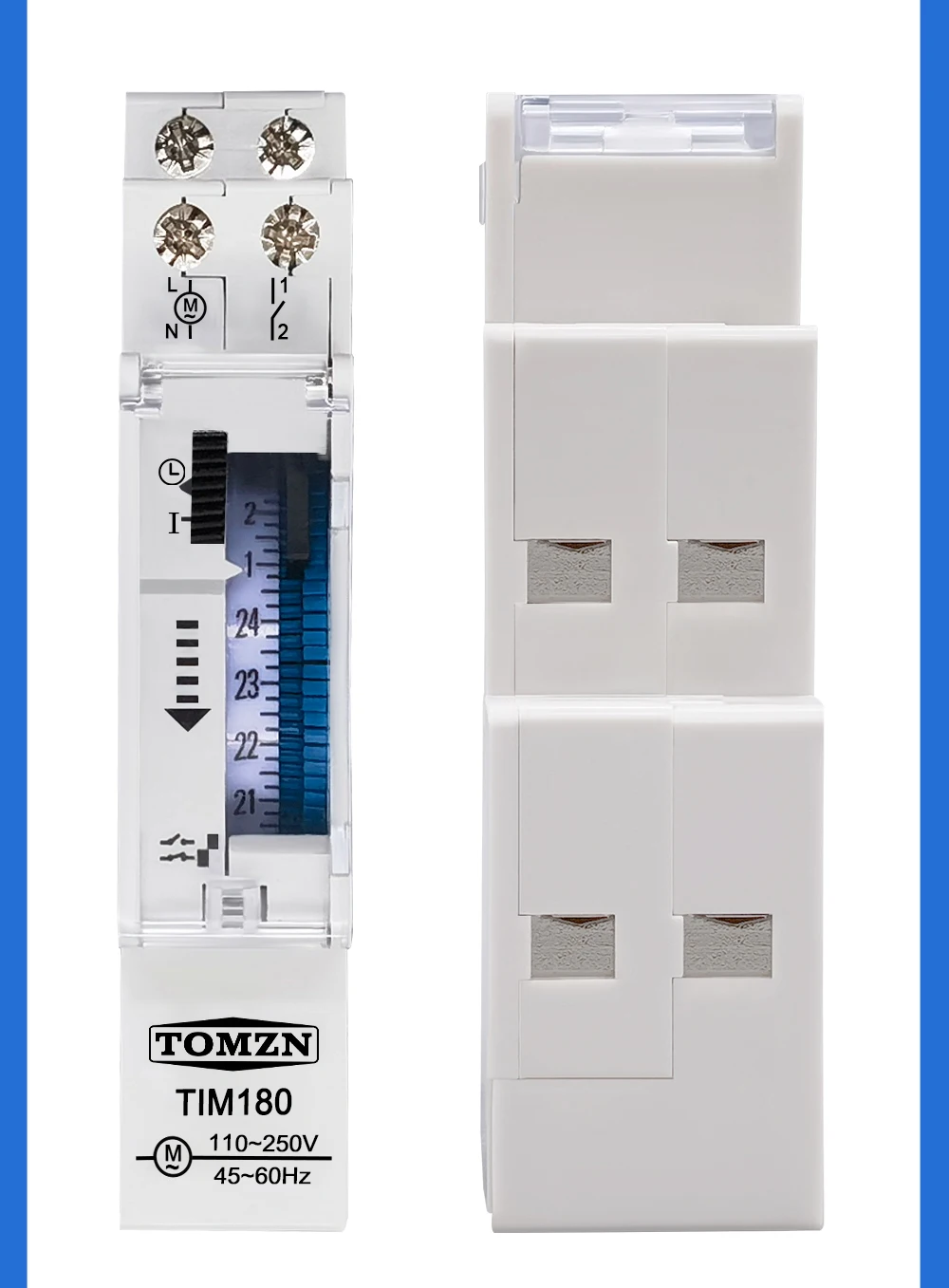

24-Hour Mechanical Time Switch

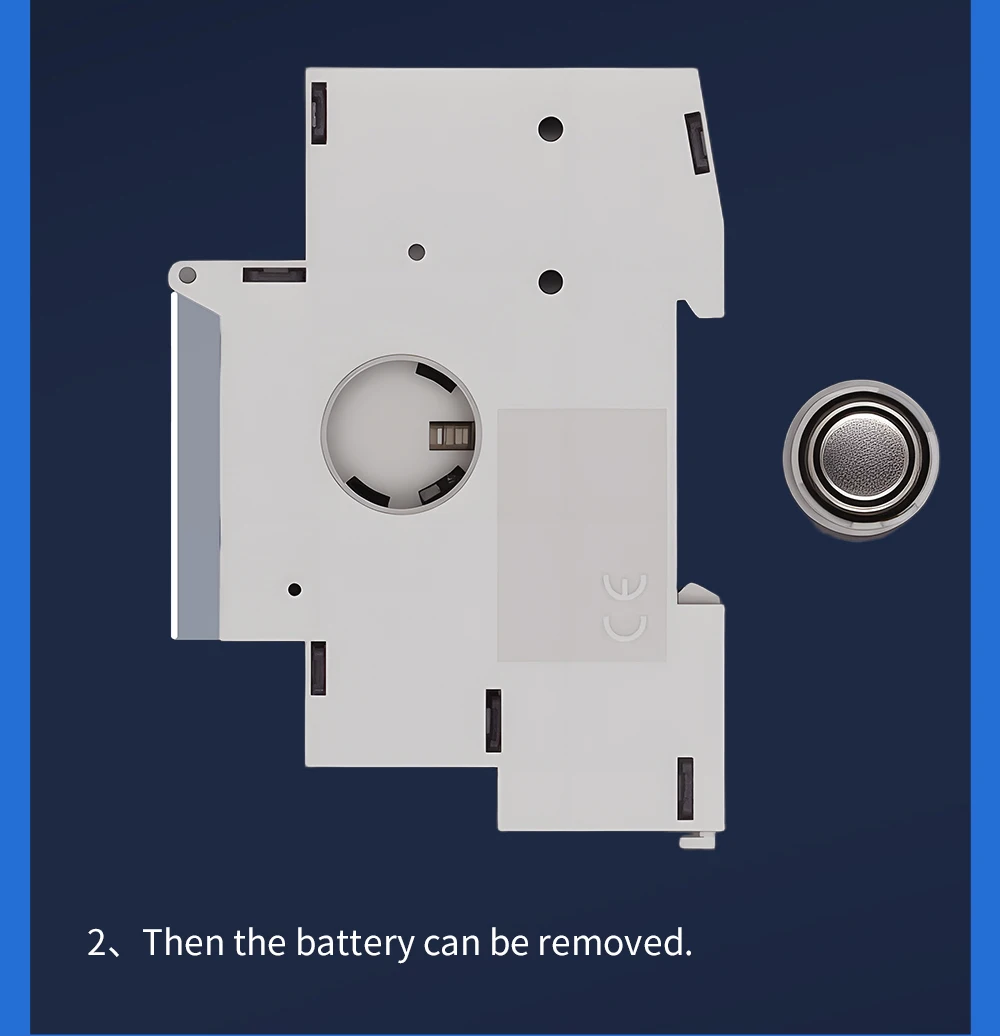

1.General
Electrical devices must be installed and assembled by an authorized installer. They should be installed in switchboard cabinets made of 35mm symmetric sections in accordance with EN 50022.
The switch is protected internally against interference by a safety device,however, particularly strong electromagnetic fields may alter its operation. Such interference can be avoided by adhering to the following recommendations during the installation.
-The device should not be installed near inductive loads (motors,transformers,contactors,etc).
-A separate power line is recommended (equipped with a network filter if necessary).
-Inductive loads should be equipped with interference suppressors (Varistor, RC filter).

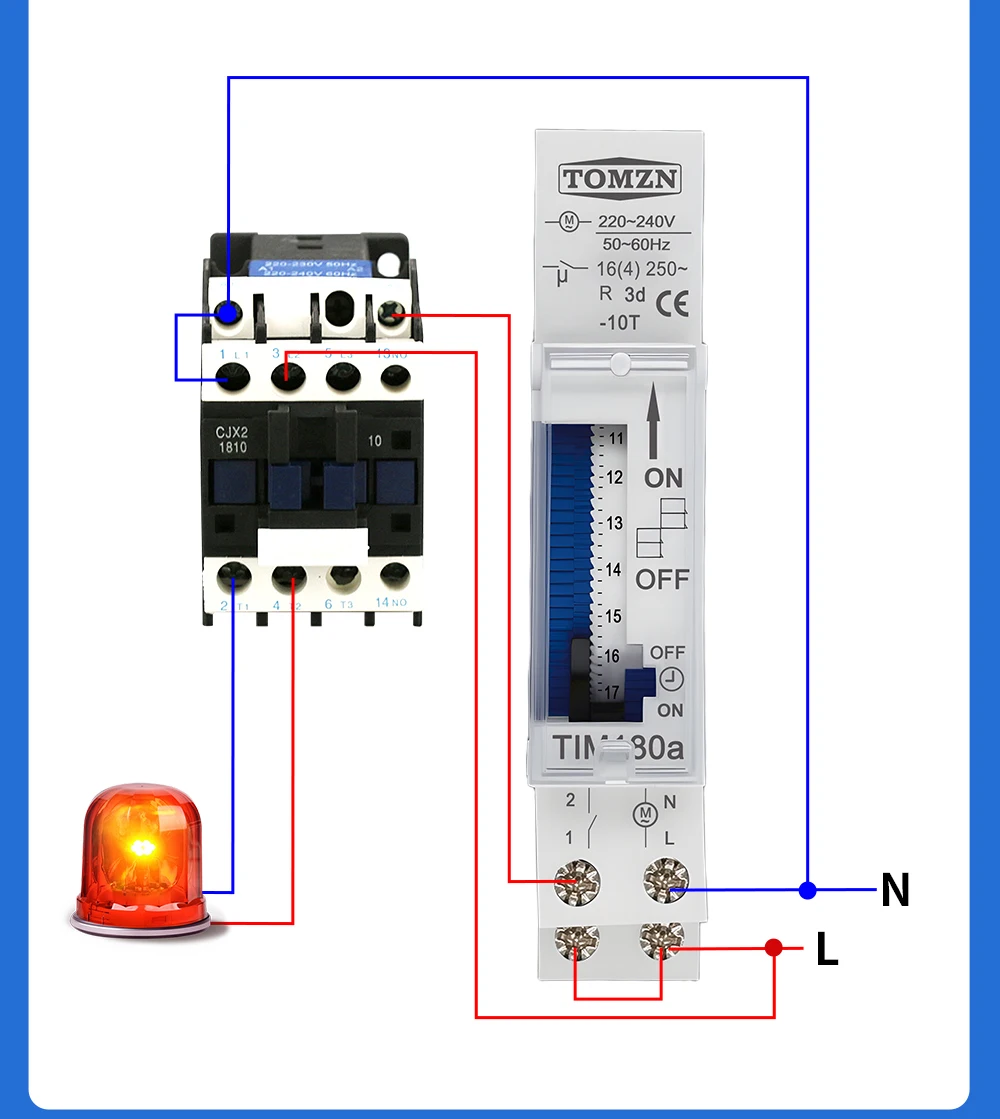

lf the time switch is to be used in combination with other devices; it is necessary to verify that no parasitic disturbances will be caused by the group.

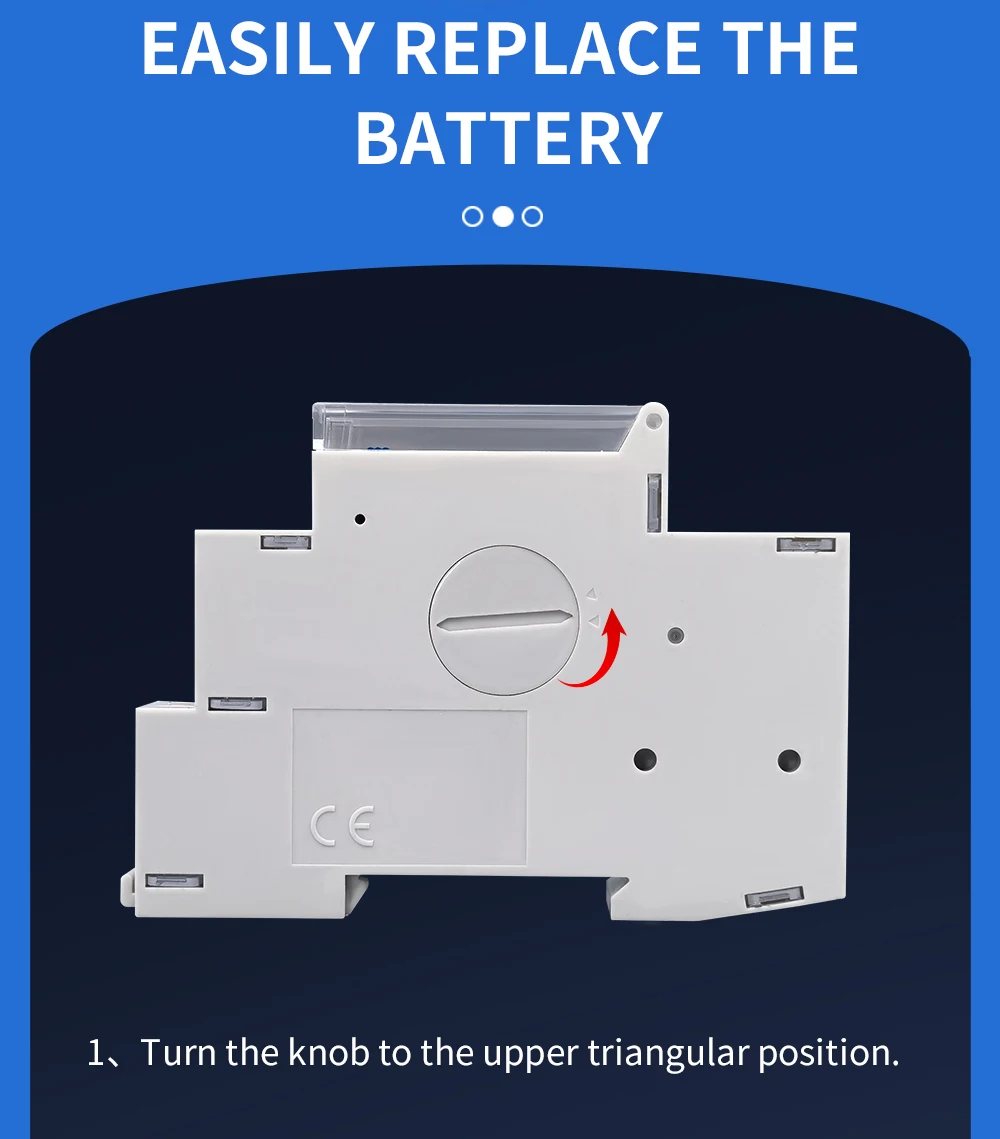

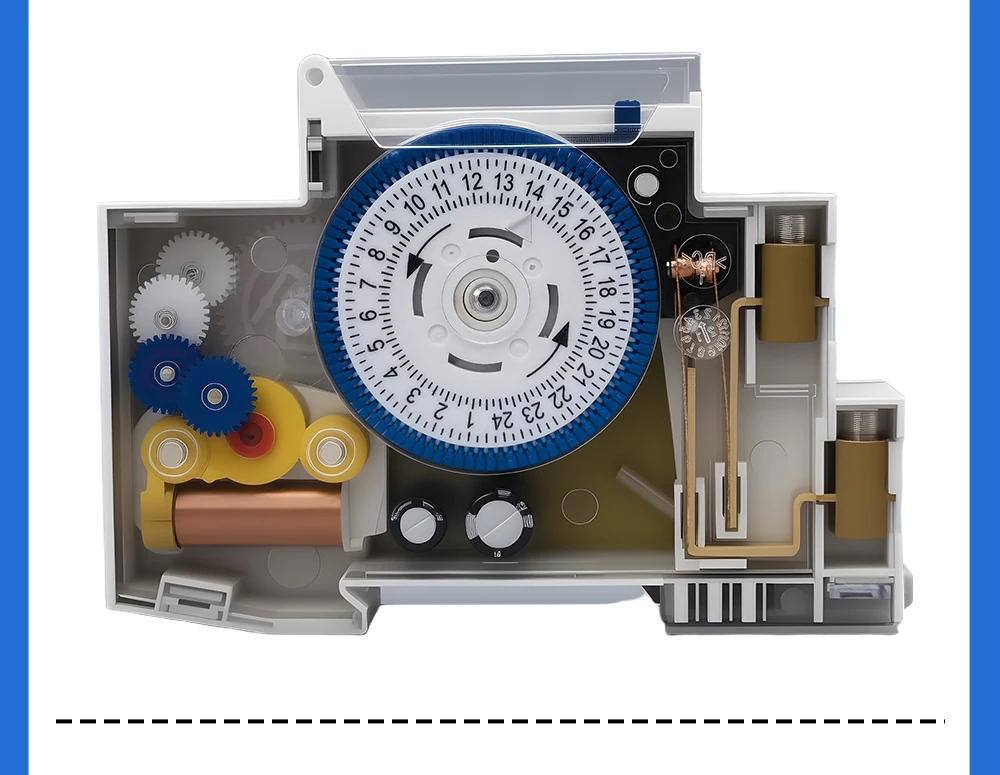

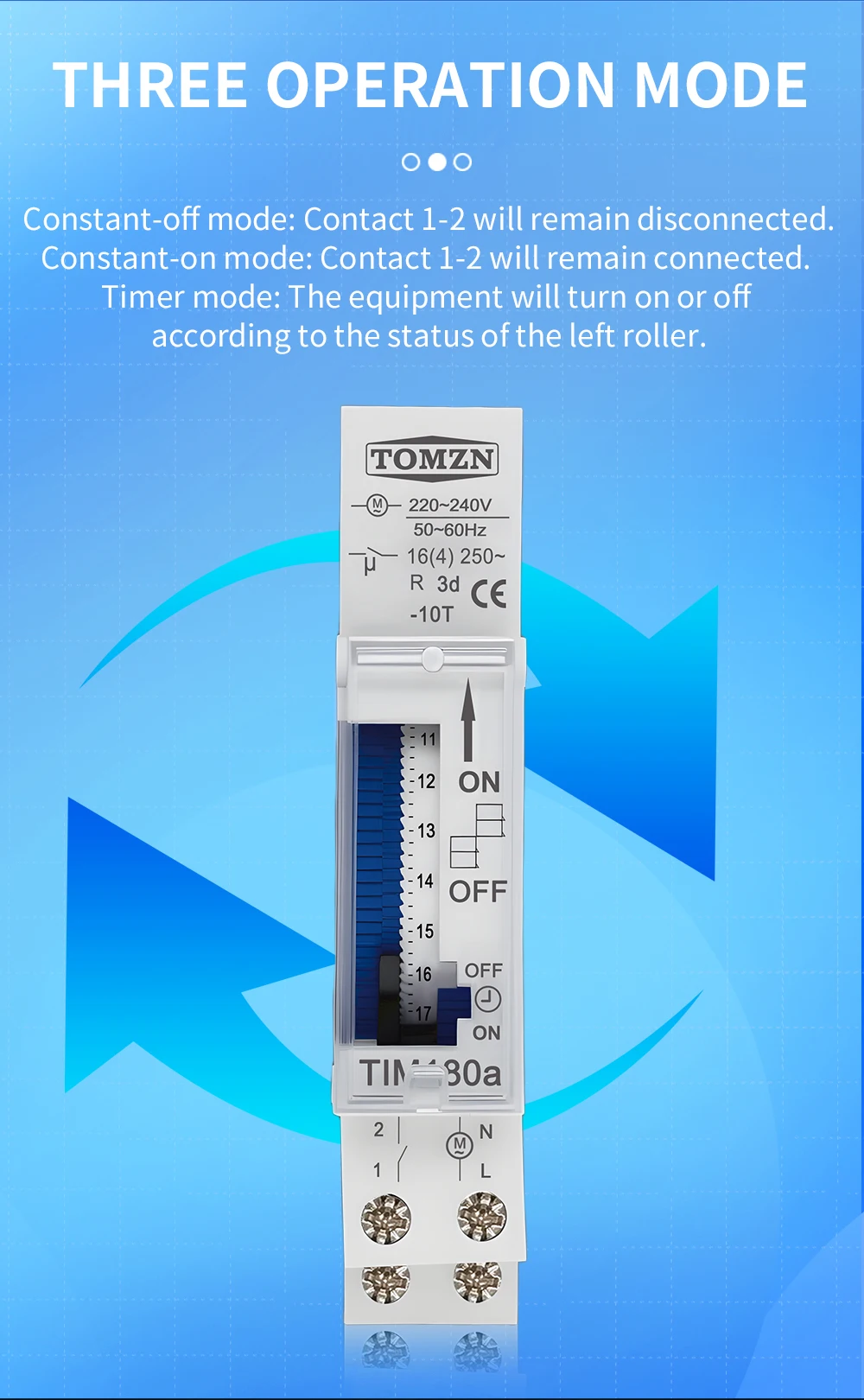

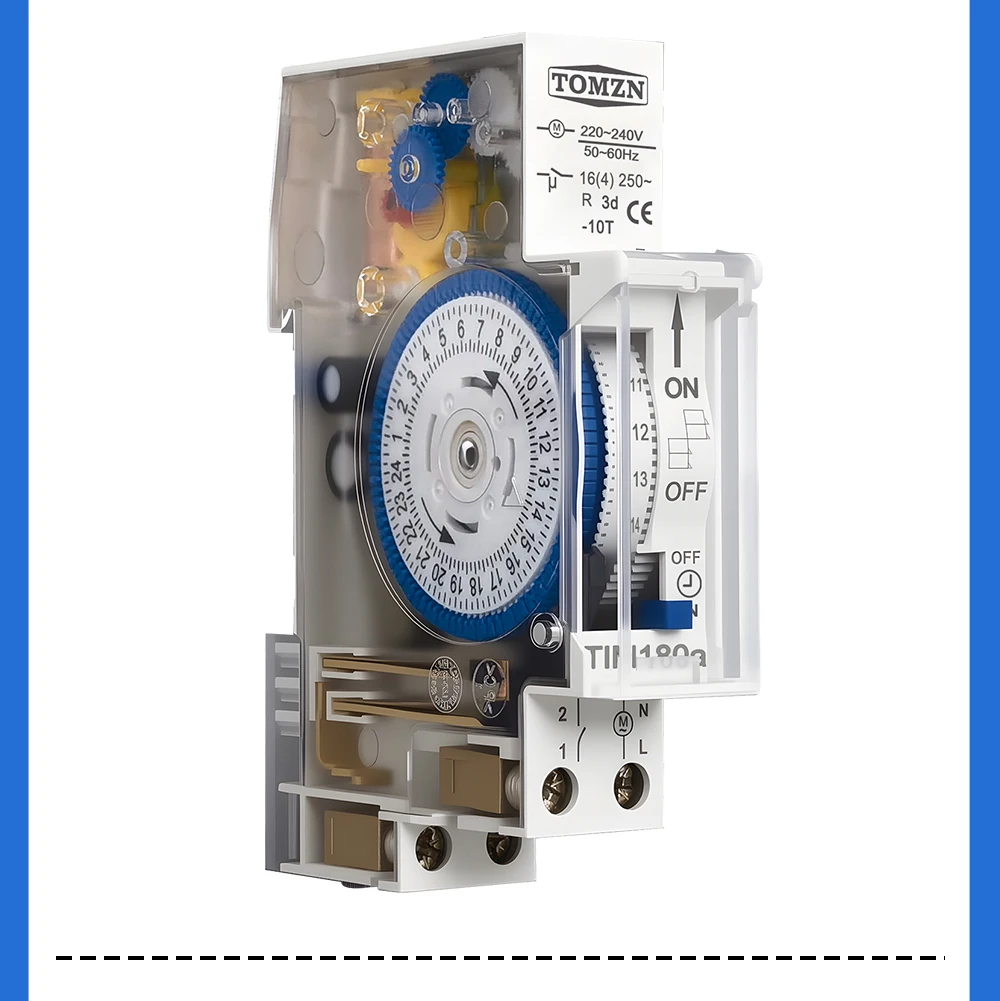

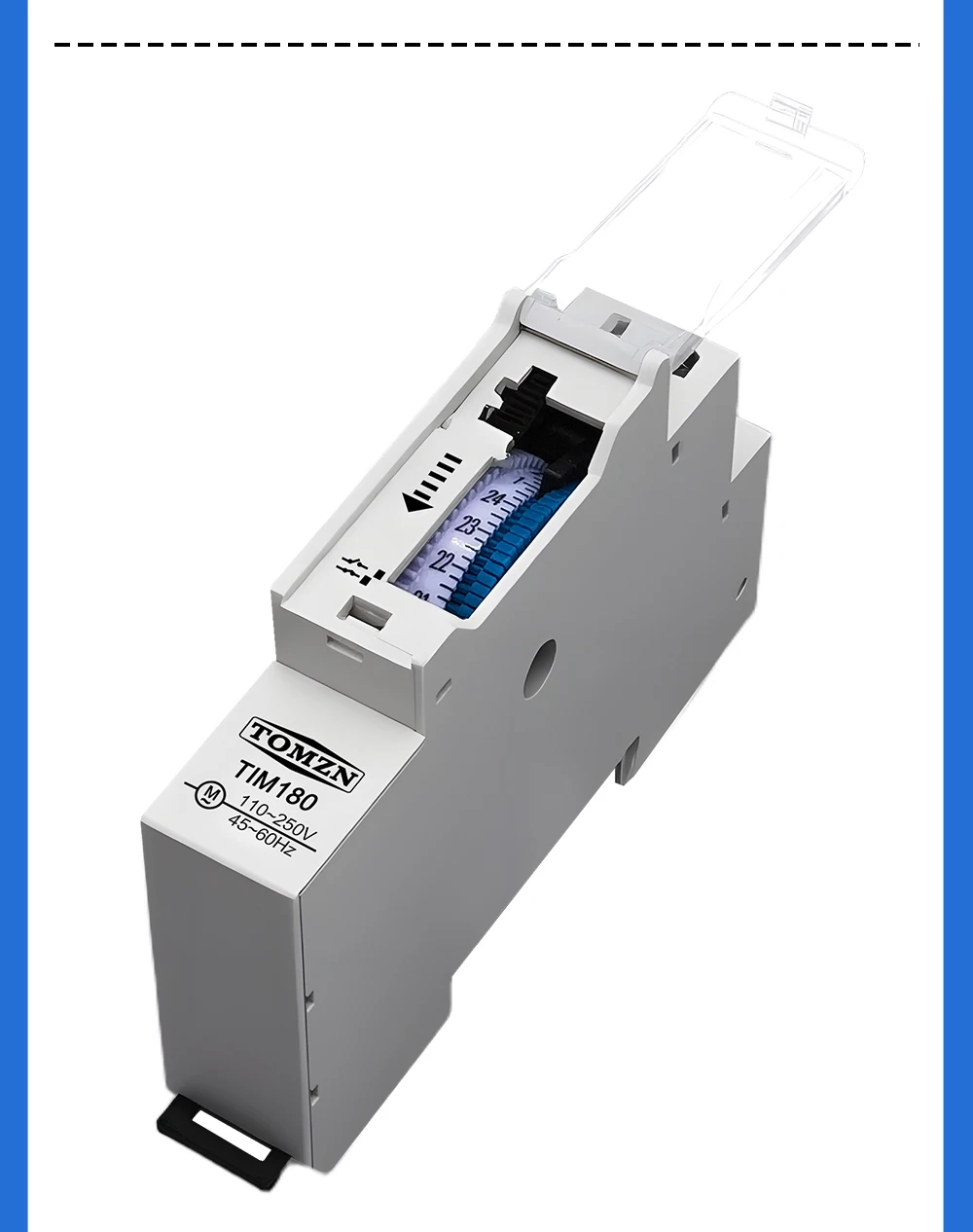

2.Operation

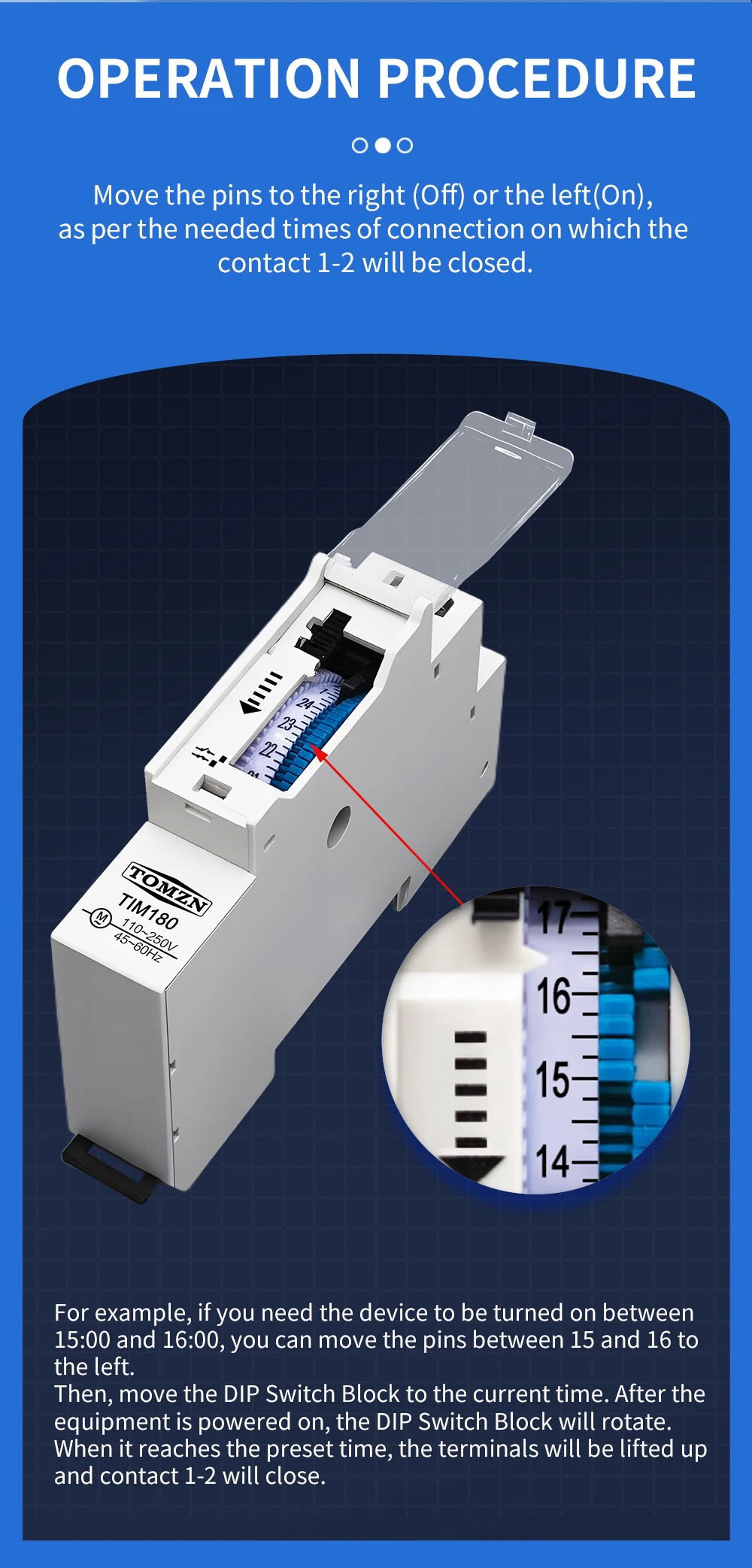

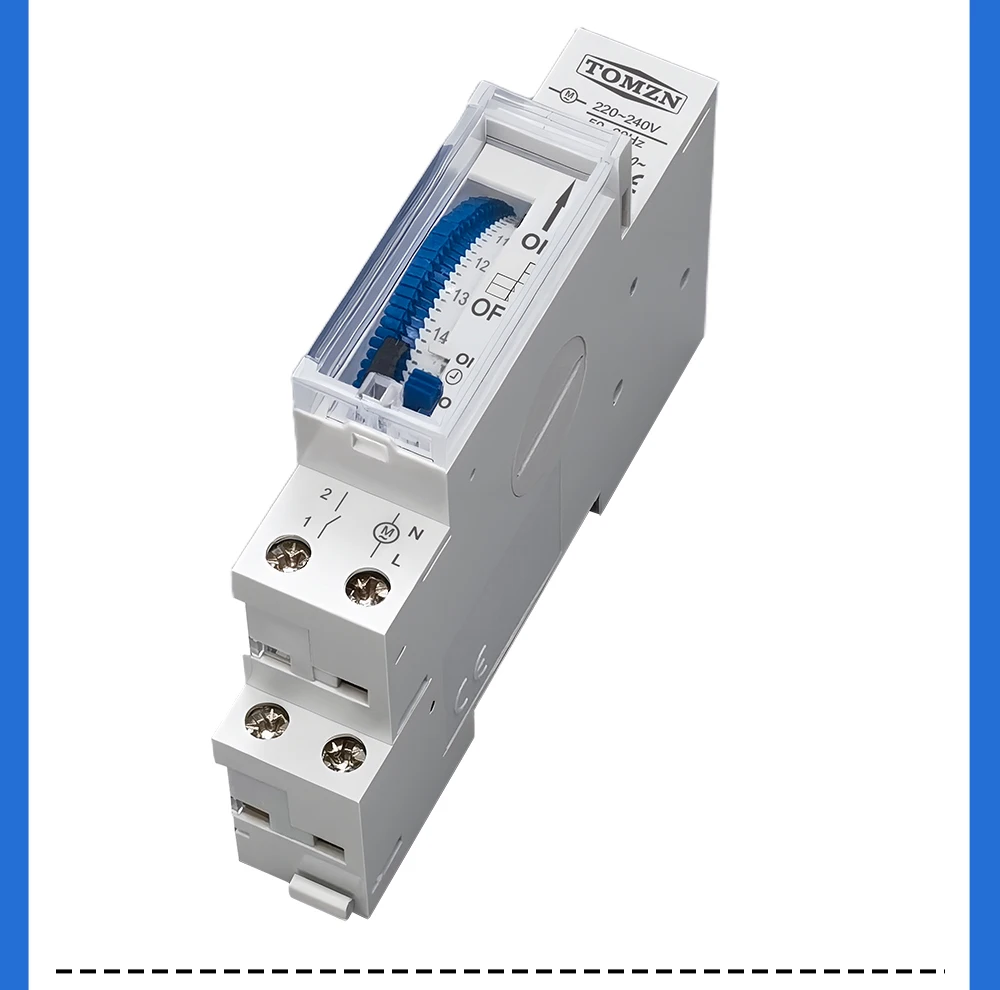

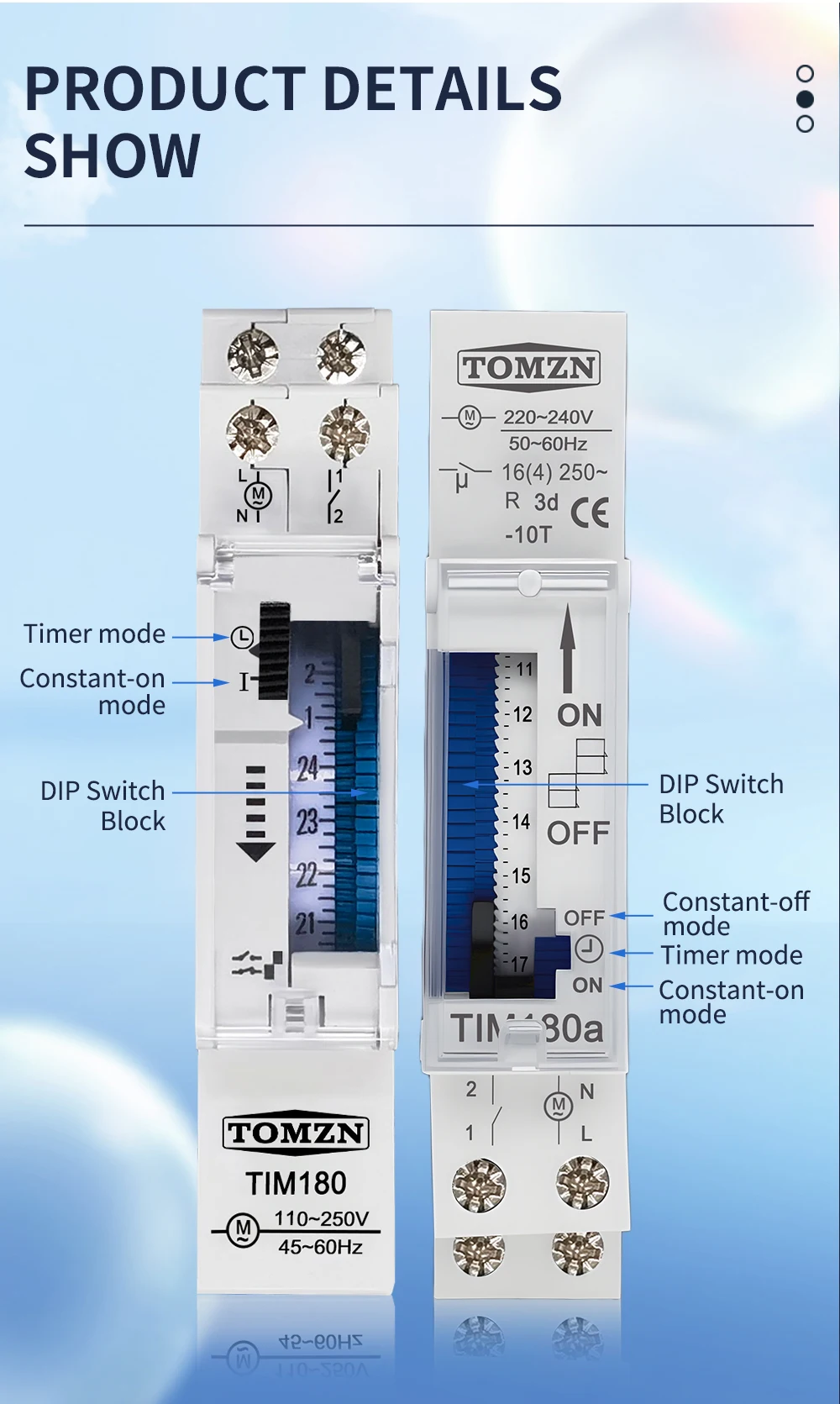

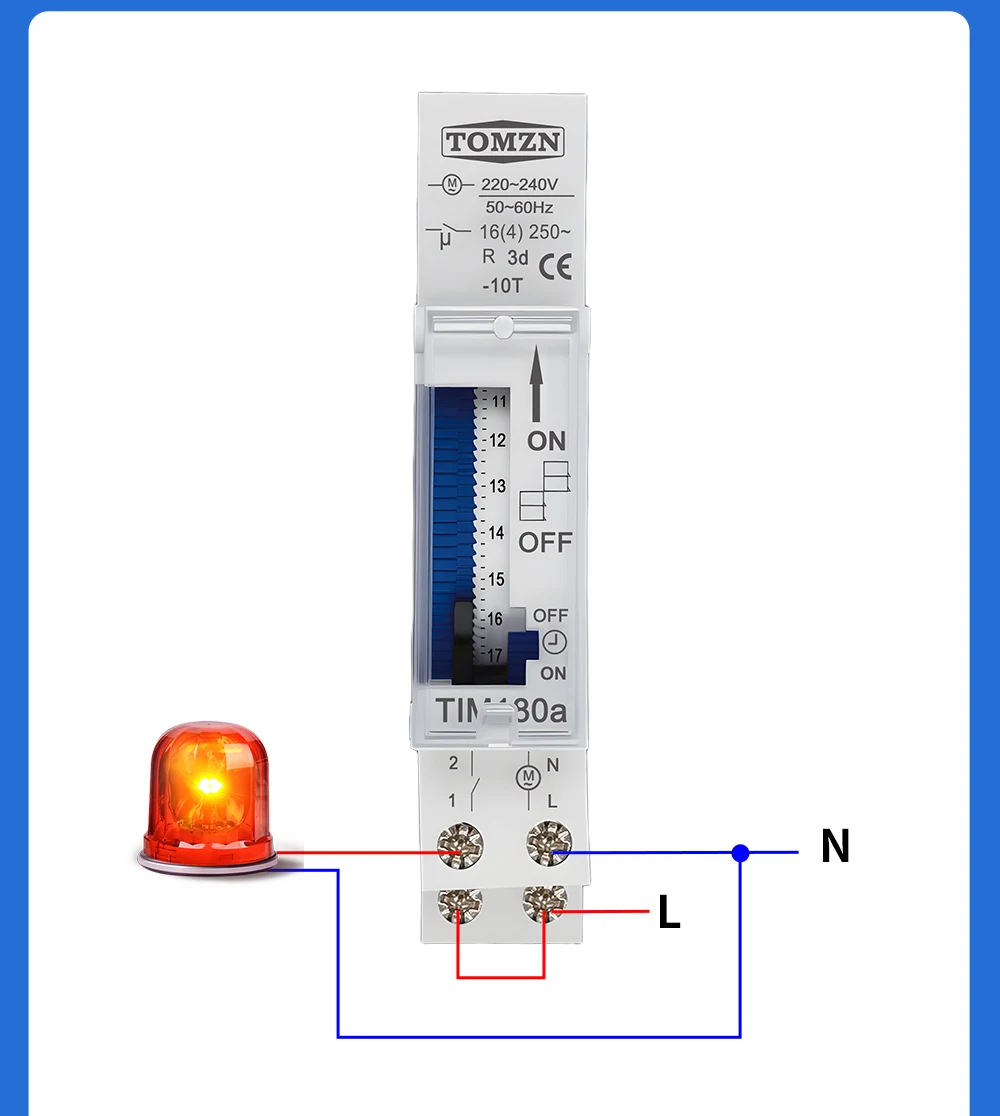

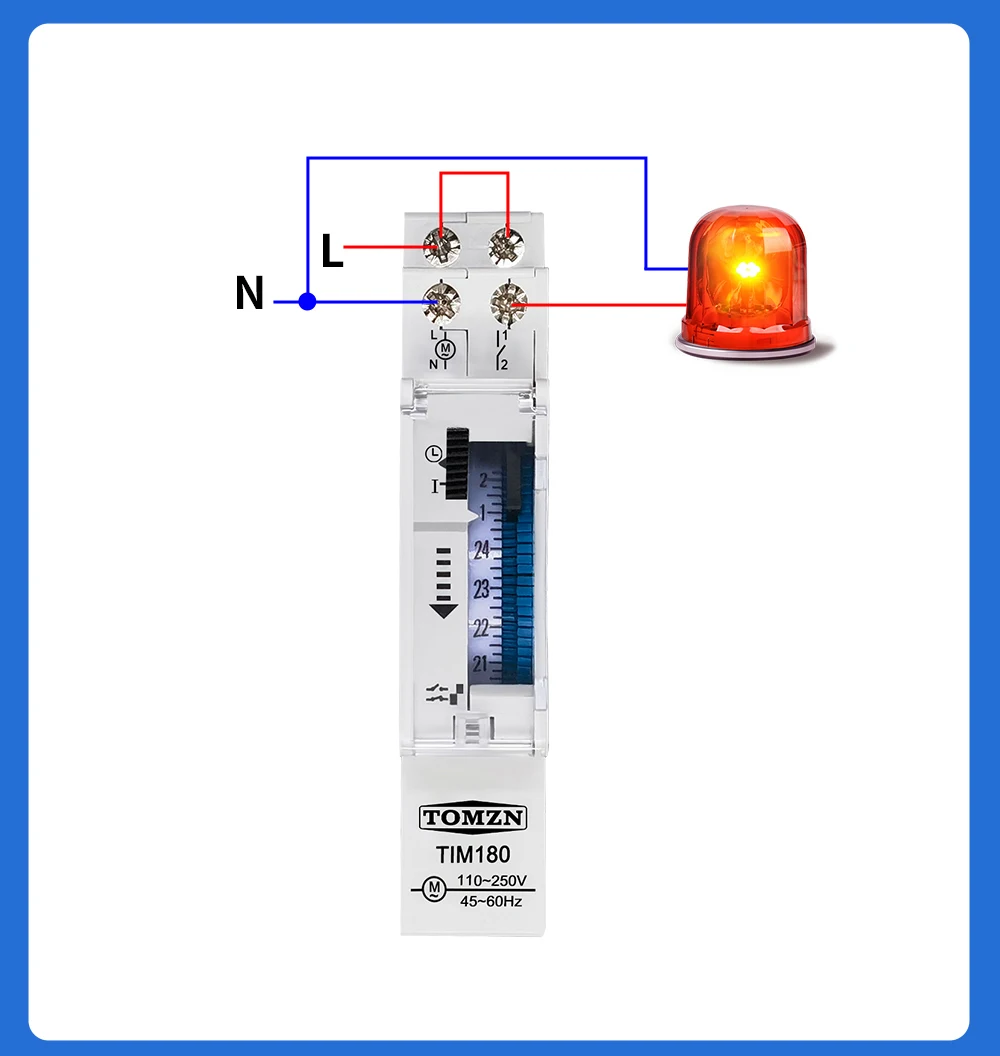

Move the pins to the right (Off) or the left (On)，as per the neaded times of connection on which the contact 1-2 will be closed.

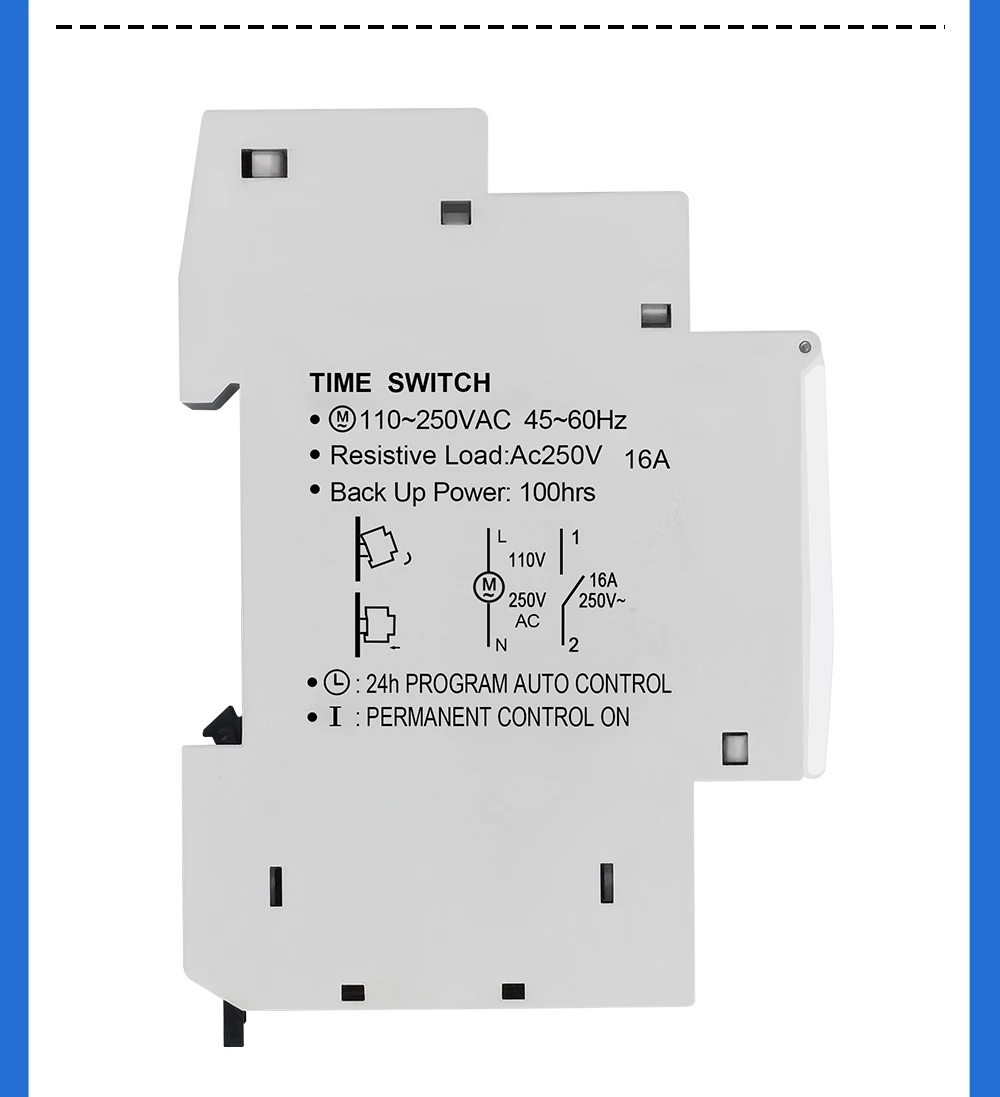

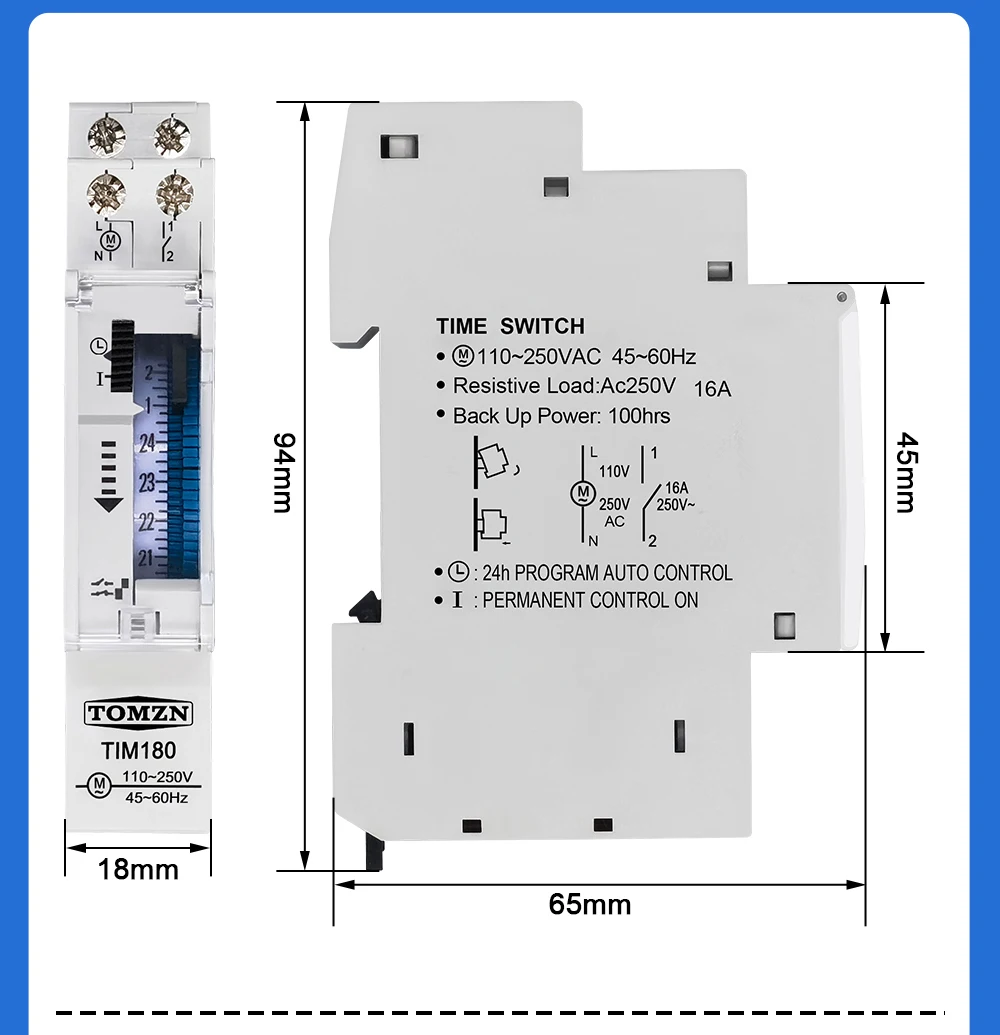

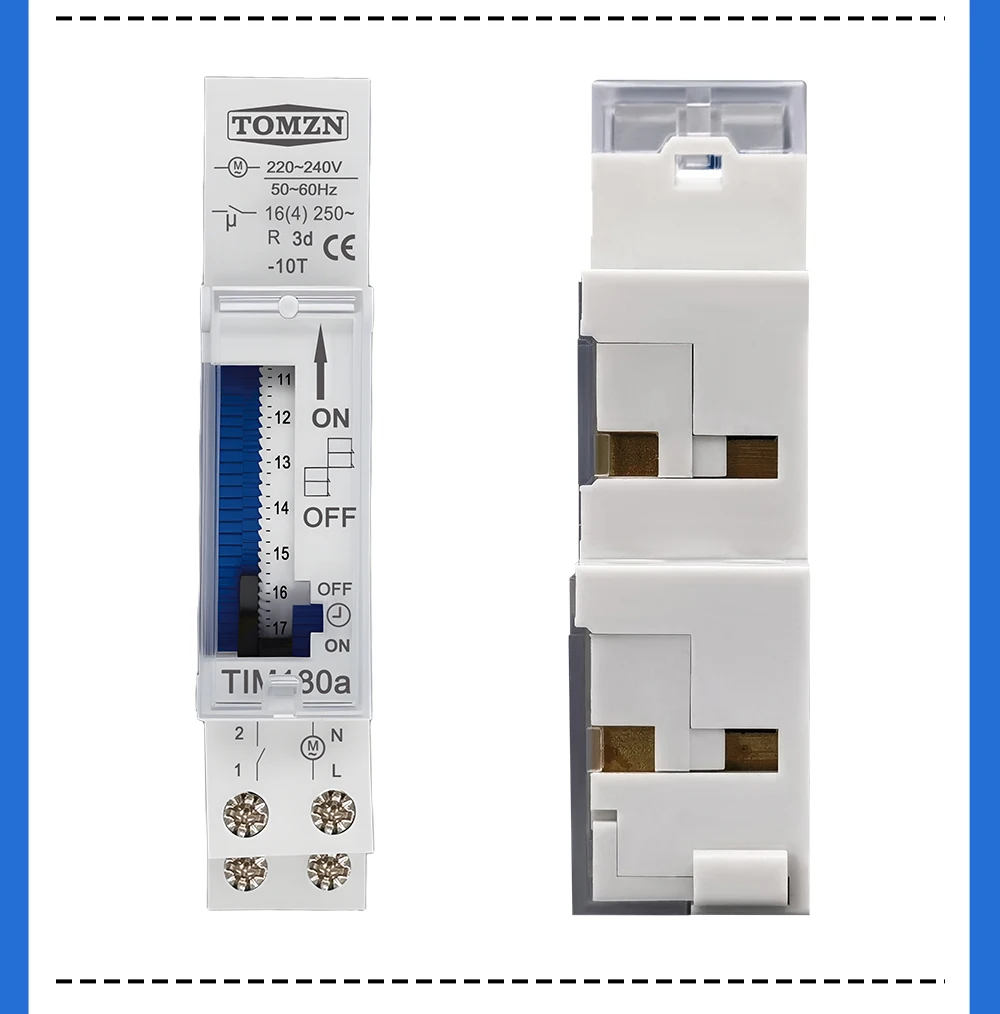

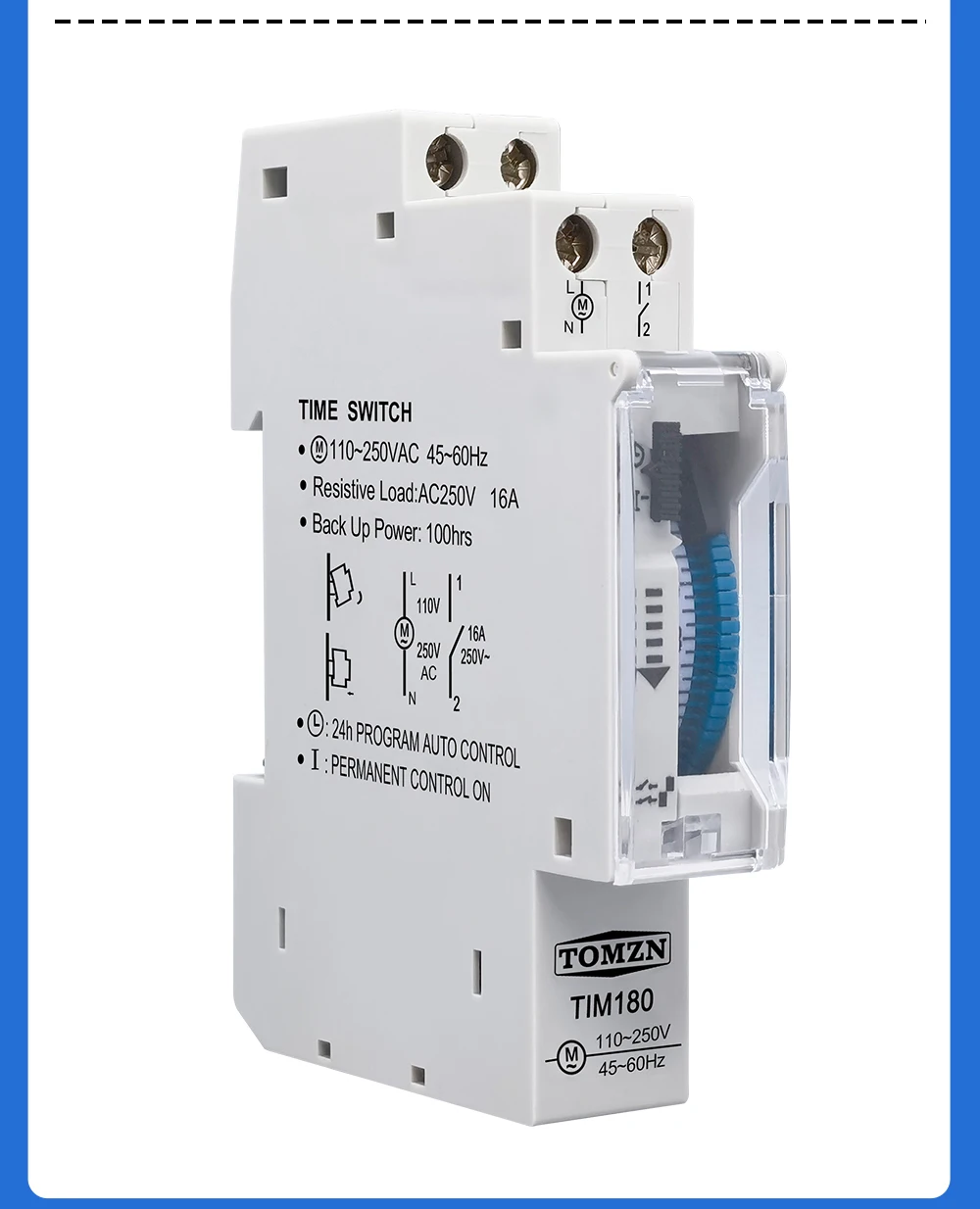

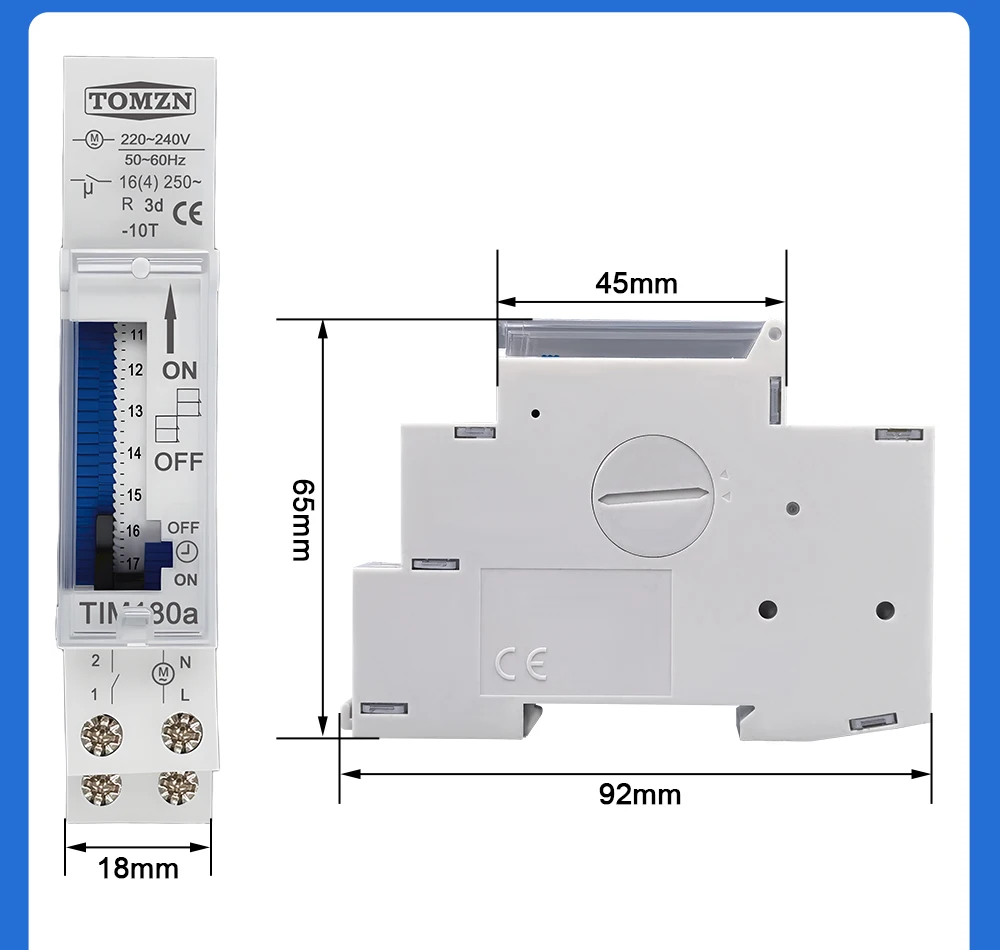

3.Technical Data
|
Model |
TIM180 |
TIM180a |
|
Side view status |
NOT transparent |
Transparent |
|
Temp.range |
-10℃~55℃ |
-10℃~50℃ |
|
Installation |
DIN RAIL |
DIN RAIL |
|
Rated voltage |
220-240V AC |
90-121VAC 200-264VAC |
|
Rated current |
16A |
15A |
|
Precision |
±3sec/day at 22℃ |
±3sec/day at 22℃ |
|
mode |
Timer/Constant-ON |
Timer/Constant-ON/Constant-OFF |
|
Terminal wires |
2*2.5mmq |
2*2.5mmq |
