FOR 28-14(12) A.W.G. / 0.08-2.5(4) mm²

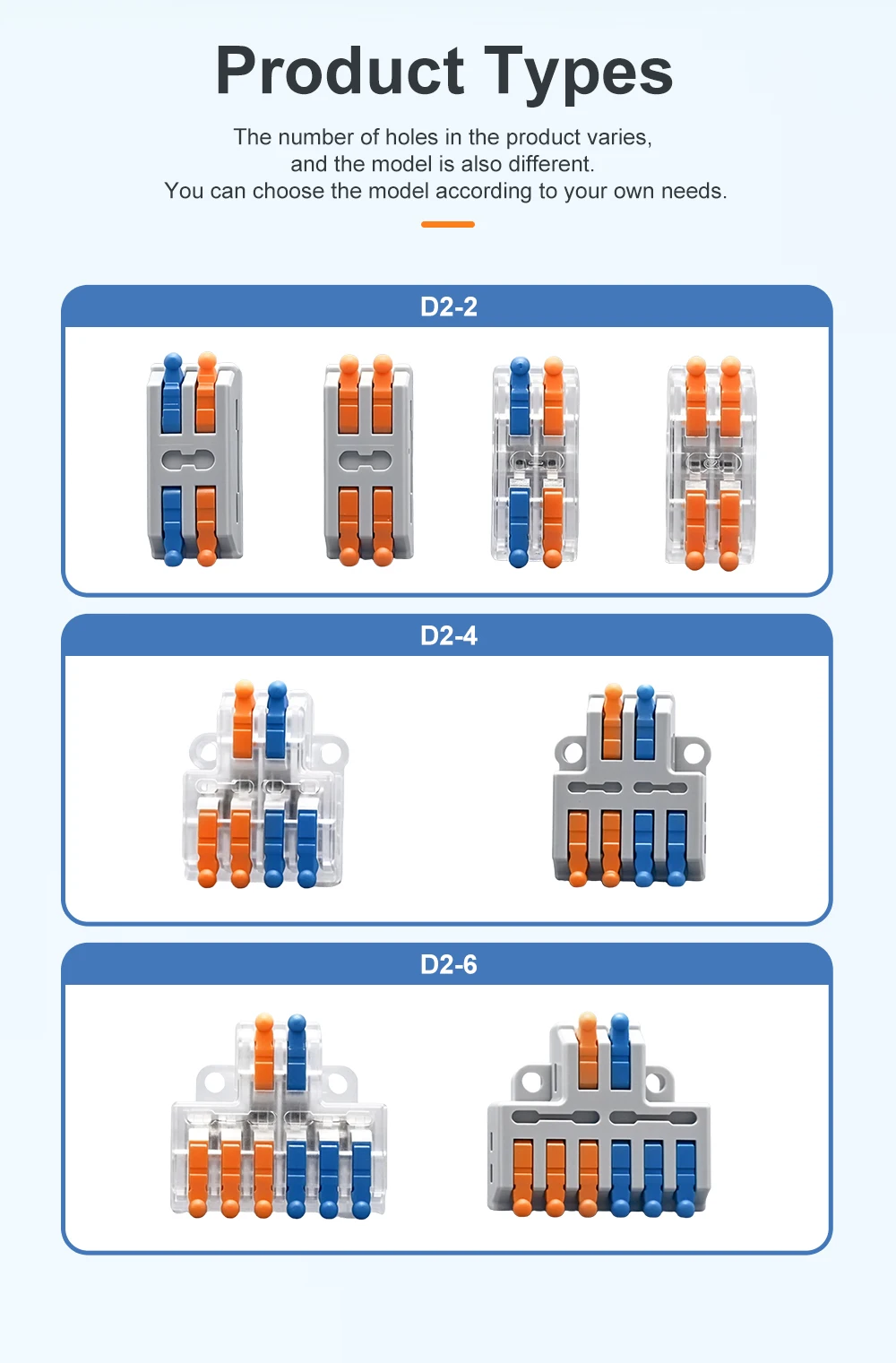

Three types：

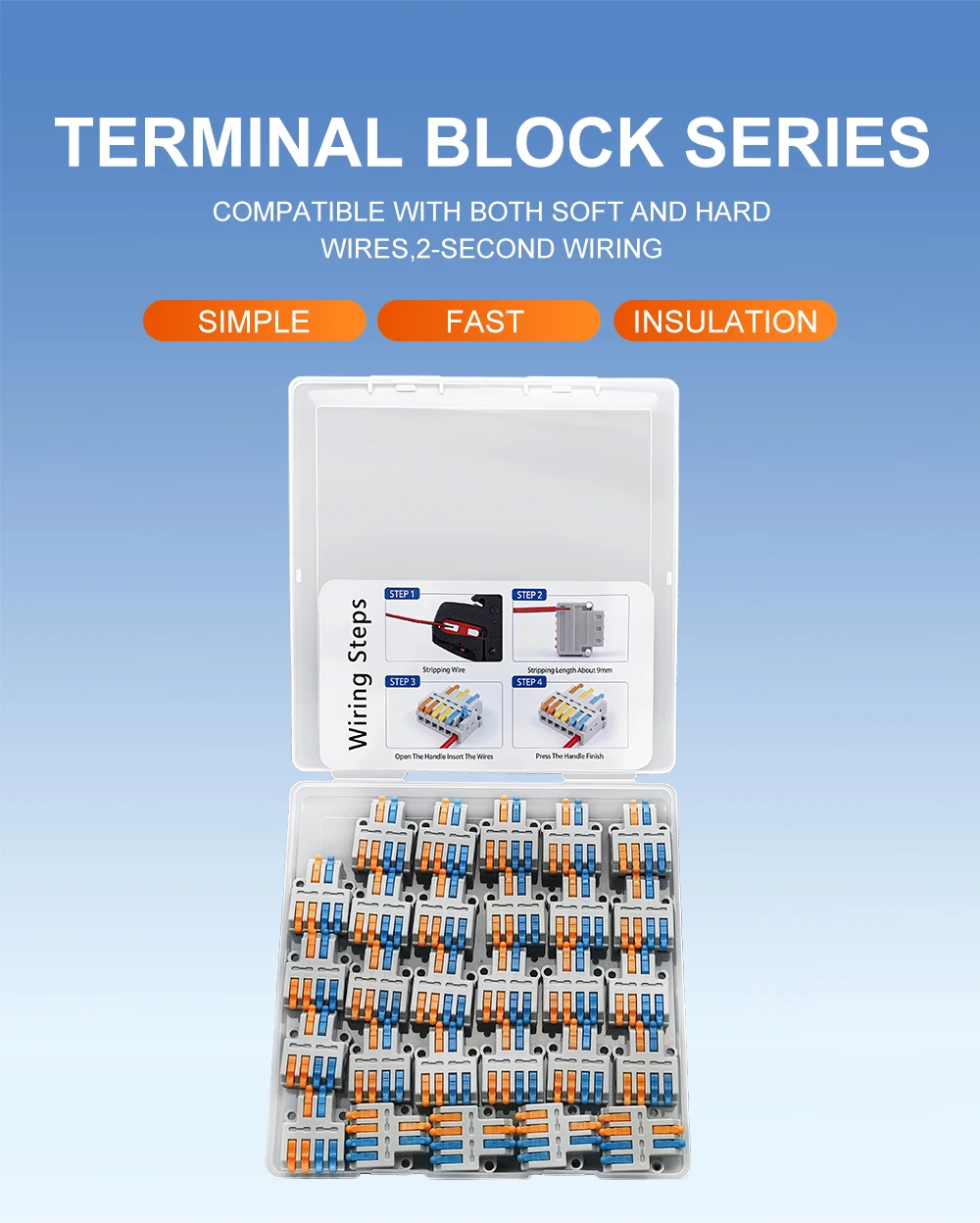

D2-2 1Box 30PCS

D2-4 1Box 28PCS

D2-6 1Box 30PCS

General

The D2 Series is a versatile family of tool-free, reusable wire connectors designed for fast, reliable electrical connections. Ideal for combining, branching, and managing complex circuits, these connectors support a wide wire range (28–14 AWG / 0.08–2.5 mm²) and handle up to 32A at 250V. Available in three kit configurations—D2‑2, D2‑4, and D2‑6—each pre‑packed box contains only the corresponding terminals, allowing you to select the exact quantity and type for your project. With a durable copper conductor and nylon housing, they ensure safe insulation, excellent conductivity, and easy operation for junction boxes, lighting, DIY electronics, and more.

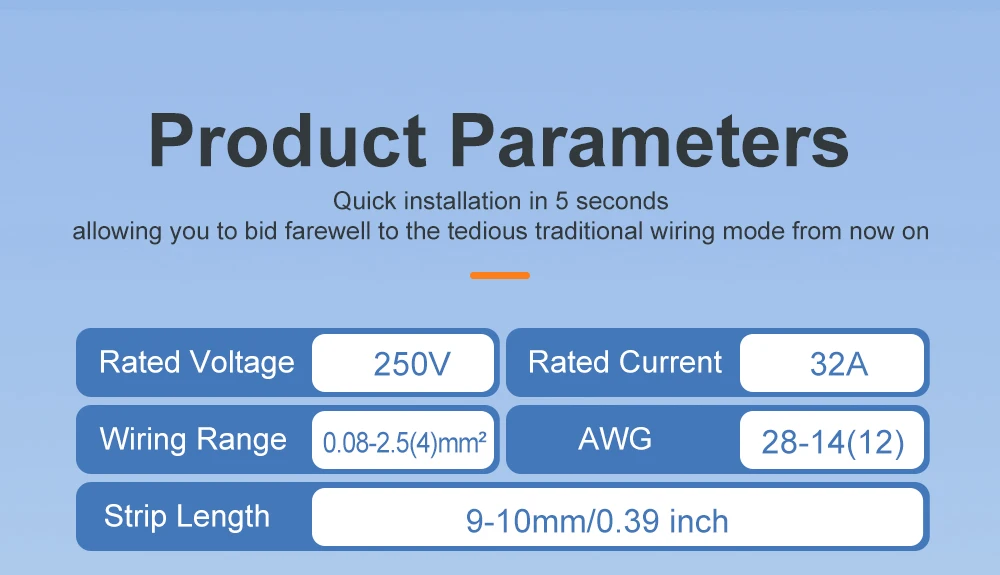

Product parameters

Model: D2‑2, D2‑4, D2‑6
Connection Type: 2‑in‑2 / 2‑in‑4 / 2‑in‑6
Wire Range: 28‑14(12) AWG / 0.08‑2.5(4) mm²
Rated Voltage: 250V
Rated Current: 32A

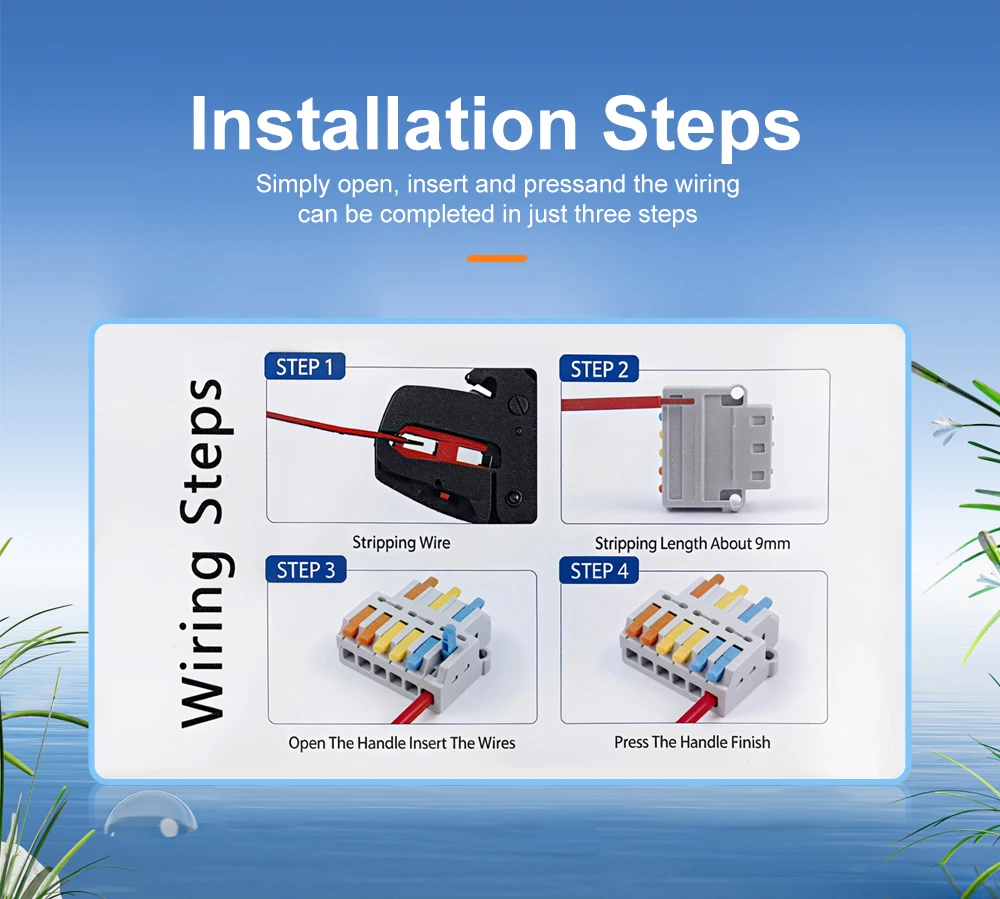

Strip Length: 9‑10 mm (0.39 in)
Mounting: Free‑standing
Material (Conductor): Copper
Material (Housing): Nylon

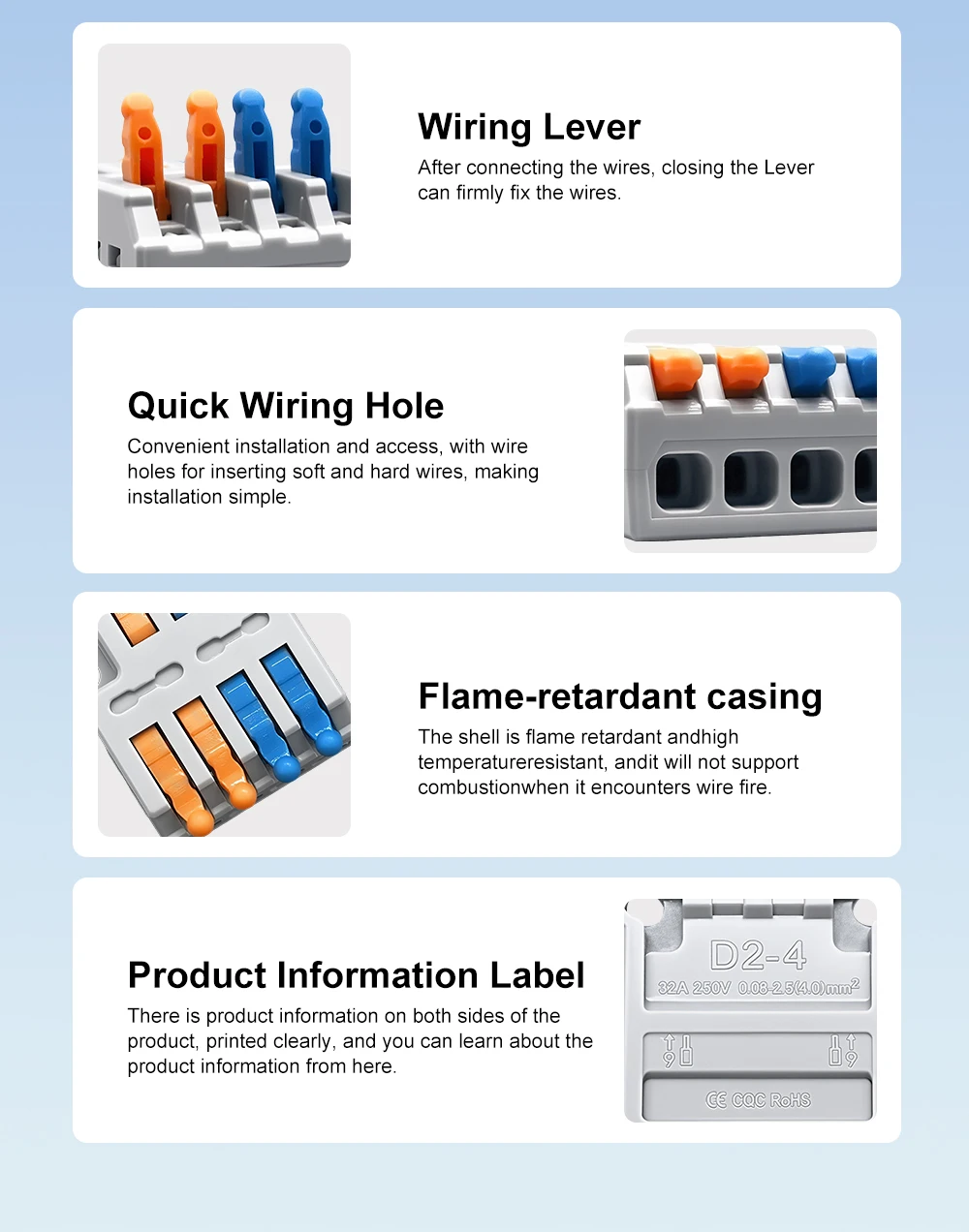

Features: Tool‑free, reusable, safe insulation, good conductivity, easy operation
Applications: Wire combining, branching, complex circuit connections, junction boxes, lighting, DIY electronics

NOTED

The D2 series consists of three types of kits, namely D2-2, D2-4, and D2-6. You can choose the appropriate set box according to your needs. Each kit box only contains the corresponding terminals.
