Description
Description
TOB9L-63WIFI 2P can cut off L and N both,
With leakage protection, NO temperature control.
TOB9-63WIFI 1P Can only cut off L,
NO leakage protection, With temperature control.
1.General

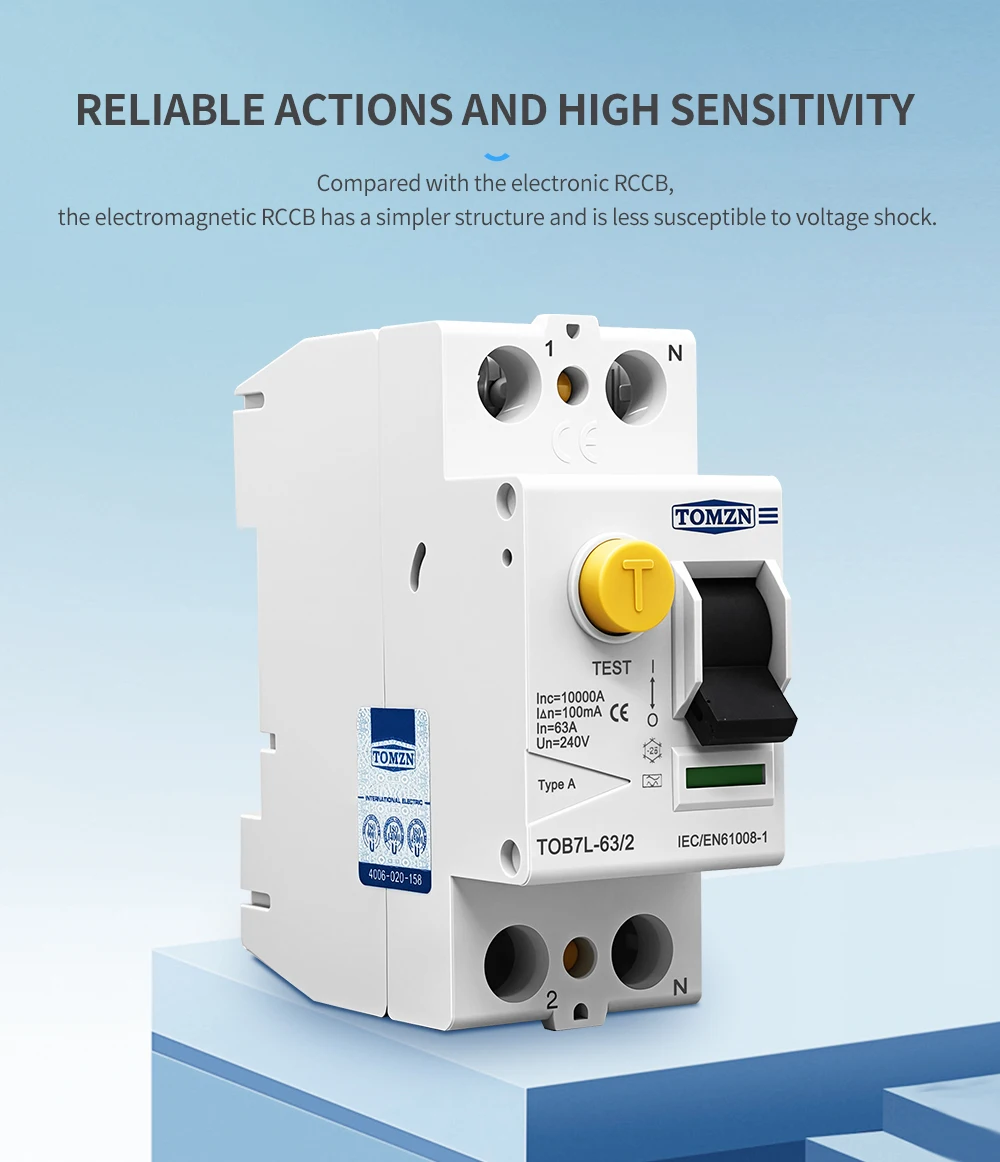

TOB7L-63 Series is a premium line of Electromagnetic Residual Current Circuit Breakers (RCCB) engineered to deliver uncompromising safety for industrial, commercial, and high-end residential electrical installations. Unlike voltage-dependent devices, the pure electromagnetic core ensures fail-safe operation, providing reliable earth leakage protection even in the event of a neutral fault, without requiring an auxiliary power supply.
2.Product features

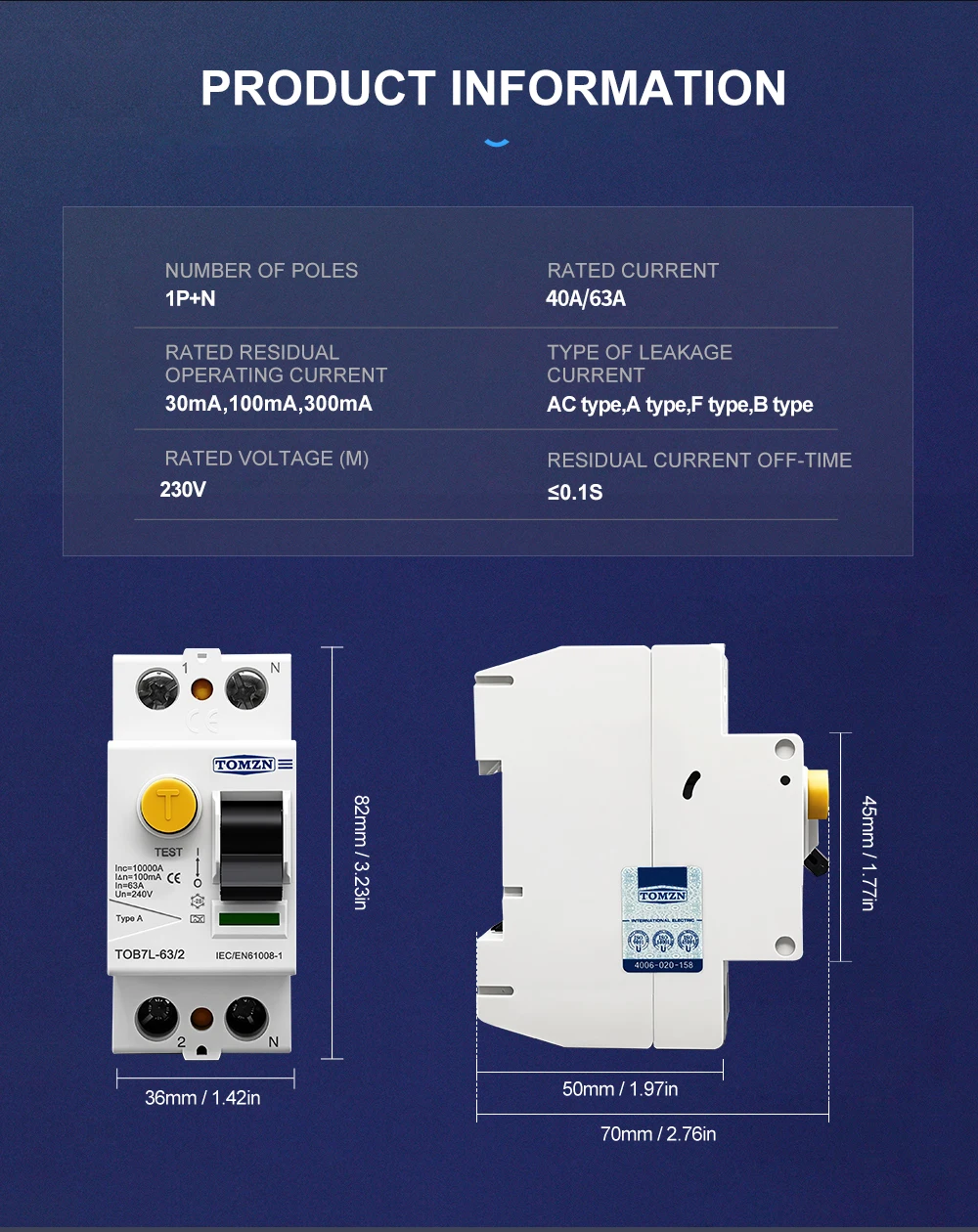

Product Model：TOB7L-63
Product Type：Electromagnetic Residual Current Circuit Breaker (RCCB)
Standards Compliance：IEC 61008-1, GB/T 16916.1
Rated Current (In)：40A, 63A
Rated Operational Voltage (Ue):230V AC

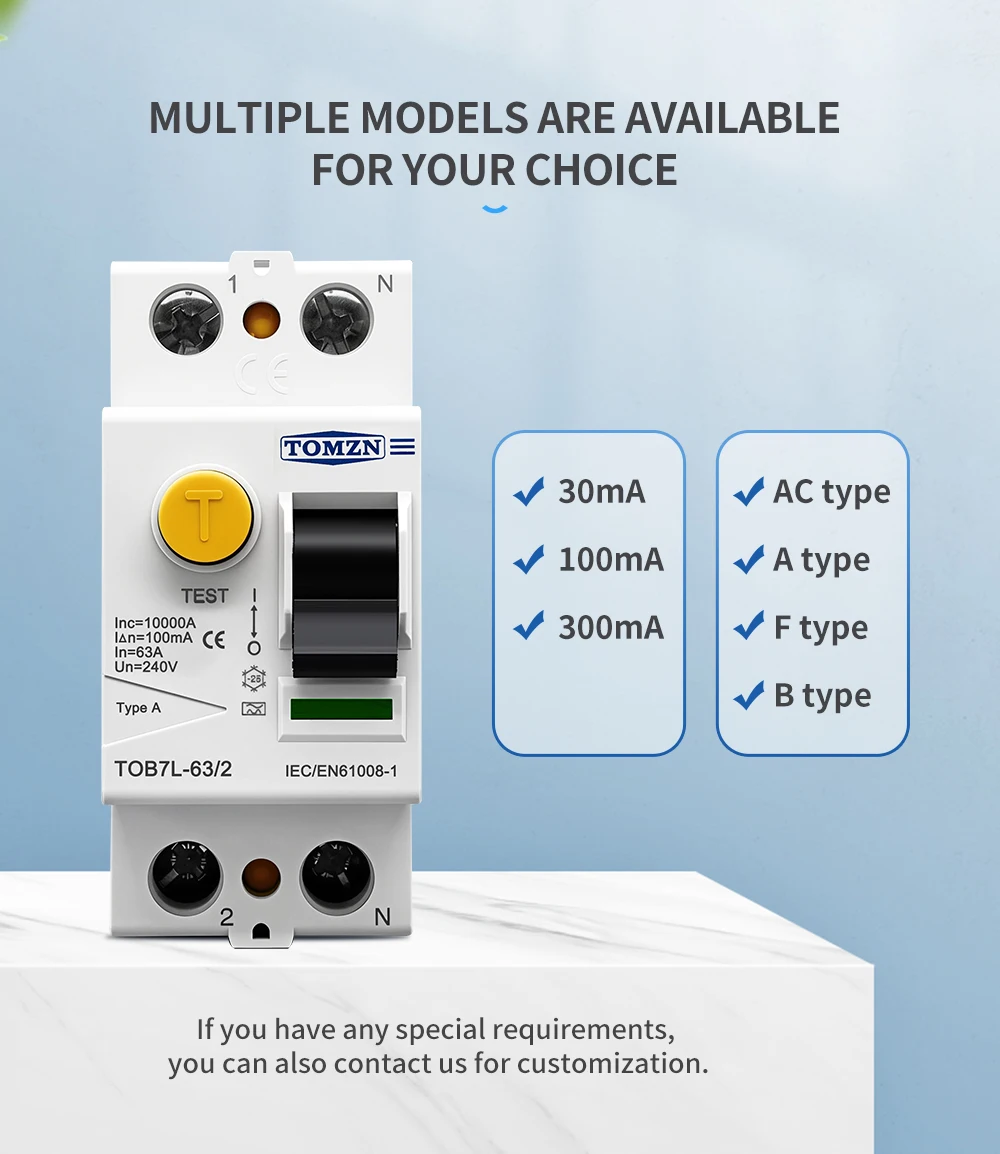

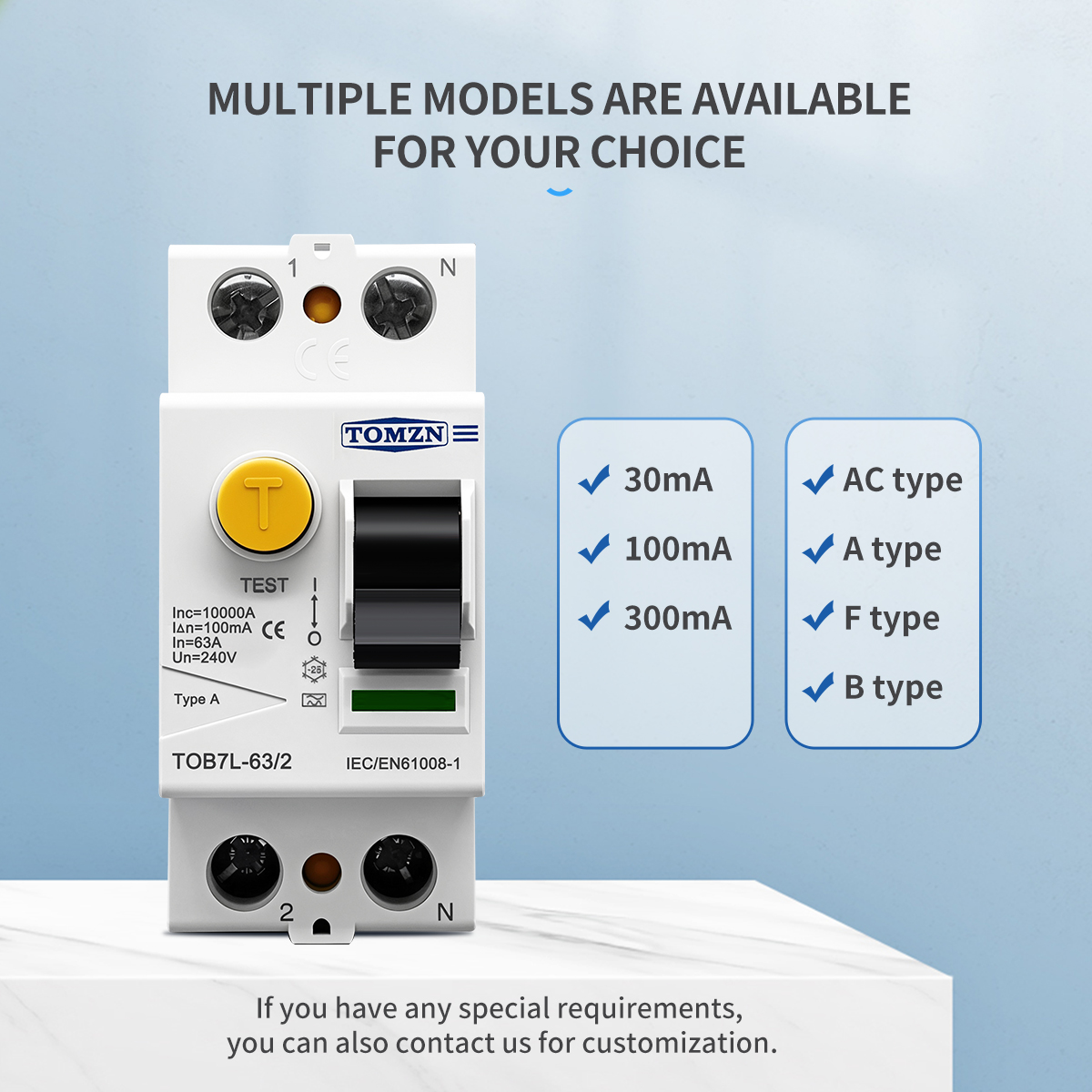

Rated Residual Current (IΔn):30mA, 100mA, 300mA
Residual Current Type:AC Type, A Type, F Type, B Type (Selectable)

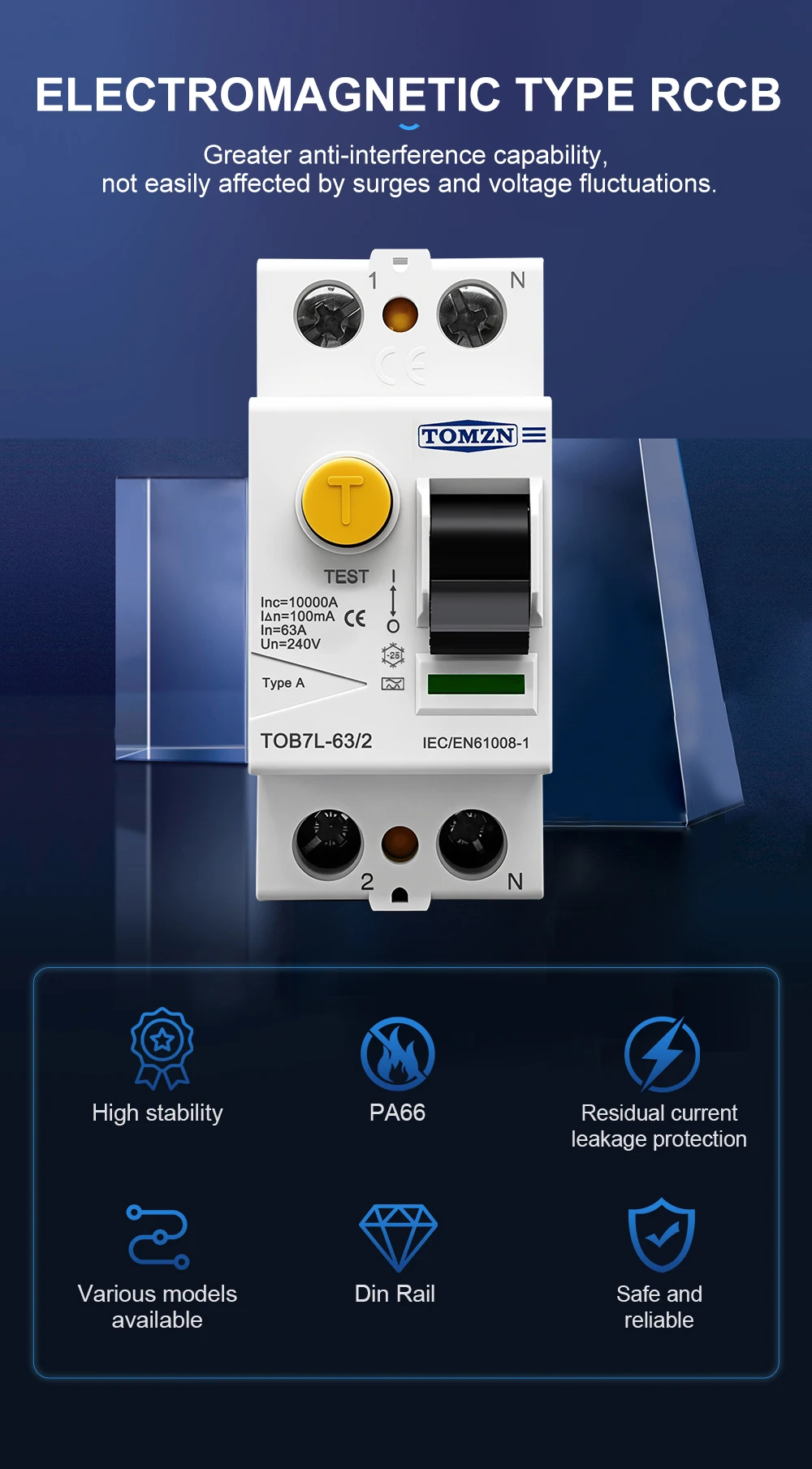

Tripping Principle:Electromagnetic (Voltage-Independent)
Electrical Link Option:Y-link, O-link

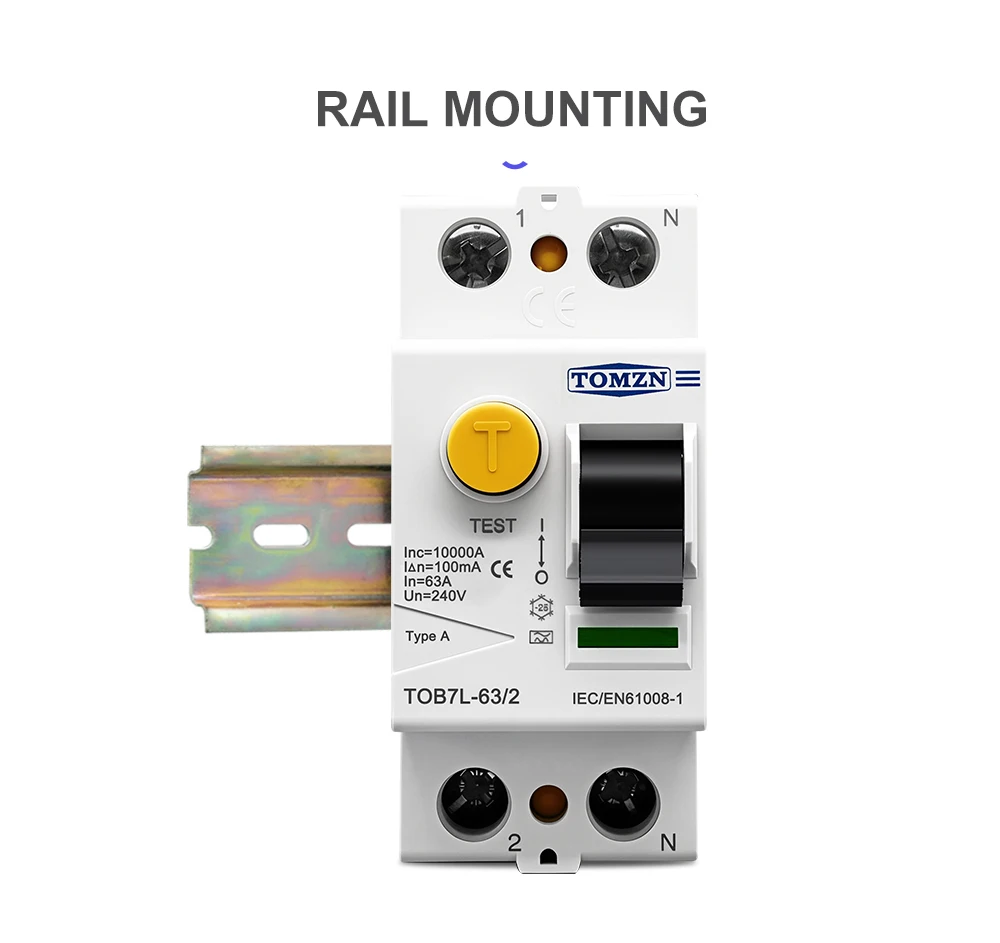

Mounting: 35mm Din Rail
NOTE: This product is RCCB. It does not have overload protection or short-circuit protection.
Product Type: Electromagnetic Residual Current Circuit Breaker (RCCB)
Standards Compliance: IEC 61008-1, GB/T 16916.1
Rated Current (In): 40A, 63A
Rated Operational Voltage (Ue): 230V AC
Residual Current Type: AC Type, A Type, F Type, B Type (Selectable)
Tripping Principle: Electromagnetic (Voltage-Independent)
Electrical Link Option: Y-link, O-link
Mounting: 35mm Din Rail
Note: This product is RCCB. It does not have overload protection or short-circuit protection.

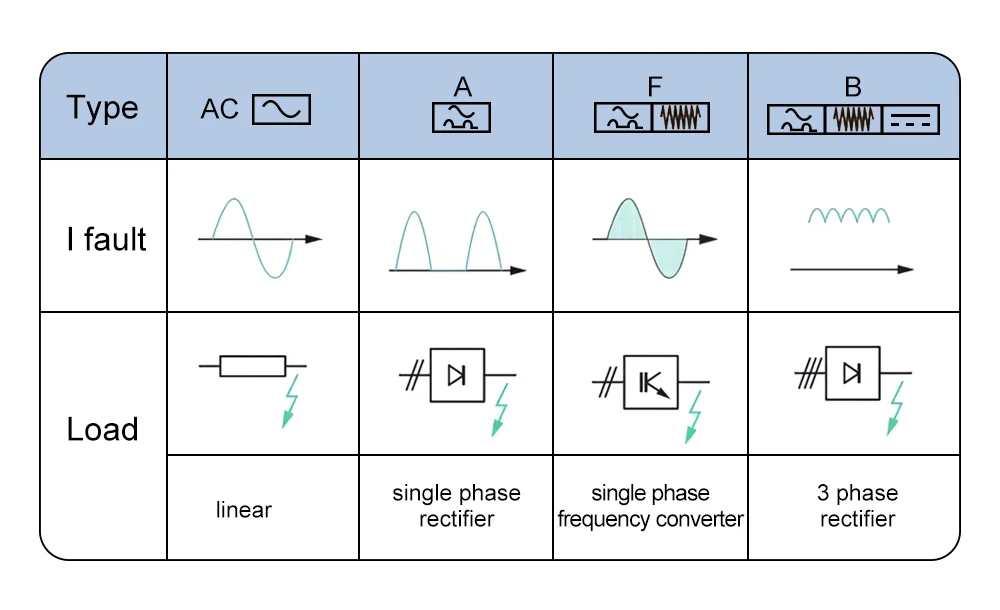

|Type A Rccb|Type B Rccb|Type F Rccb|
**Unmatched Safety and Performance**
The Electromagnetic Residual Current Circuit Breaker (RCCB) is a crucial component in safeguarding electrical installations against ground faults and earth leakage. Designed to meet the highest standards of electrical safety, this RCCB is a must-have for any industrial, commercial, or high-end residential setting. With its pure electromagnetic core, the RCCB ensures fail-safe operation, providing reliable earth leakage protection without the need for auxiliary power. Its voltage-independent tripping principle makes it a reliable choice for safeguarding against neutral faults, which are often overlooked by traditional circuit breakers.
**Versatile and User-Friendly**
The TOB7L-63 RCCB is engineered to be versatile, offering a choice of AC Type, A Type, F Type, and B Type residual current types to cater to diverse electrical needs. Its compact design, with a 35mm Din Rail mounting, makes it easy to integrate into various electrical setups. Although it does not provide overload or short-circuit protection, it shines in its primary function of earth leakage protection. The RCCB’s tripping mechanism is electromagnetic, ensuring a fast and reliable response to ground faults without the need for complex electrical calculations.
**Designed for Seamless Integration**
The TOB7L-63 RCCB is a smart choice for any environment where electrical safety is paramount. Its compatibility with IEC 61008-1 and GB/T 16916.1 standards ensures that it meets the highest industry standards. Whether in a shower room or any other environment where electrical safety is critical, the RCCB’s 2P/4P pole configurations and selectable residual current types make it a versatile and reliable solution. Its lack of smart device capabilities keeps the focus on safety, making it a non-negotiable component in any electrical system.
