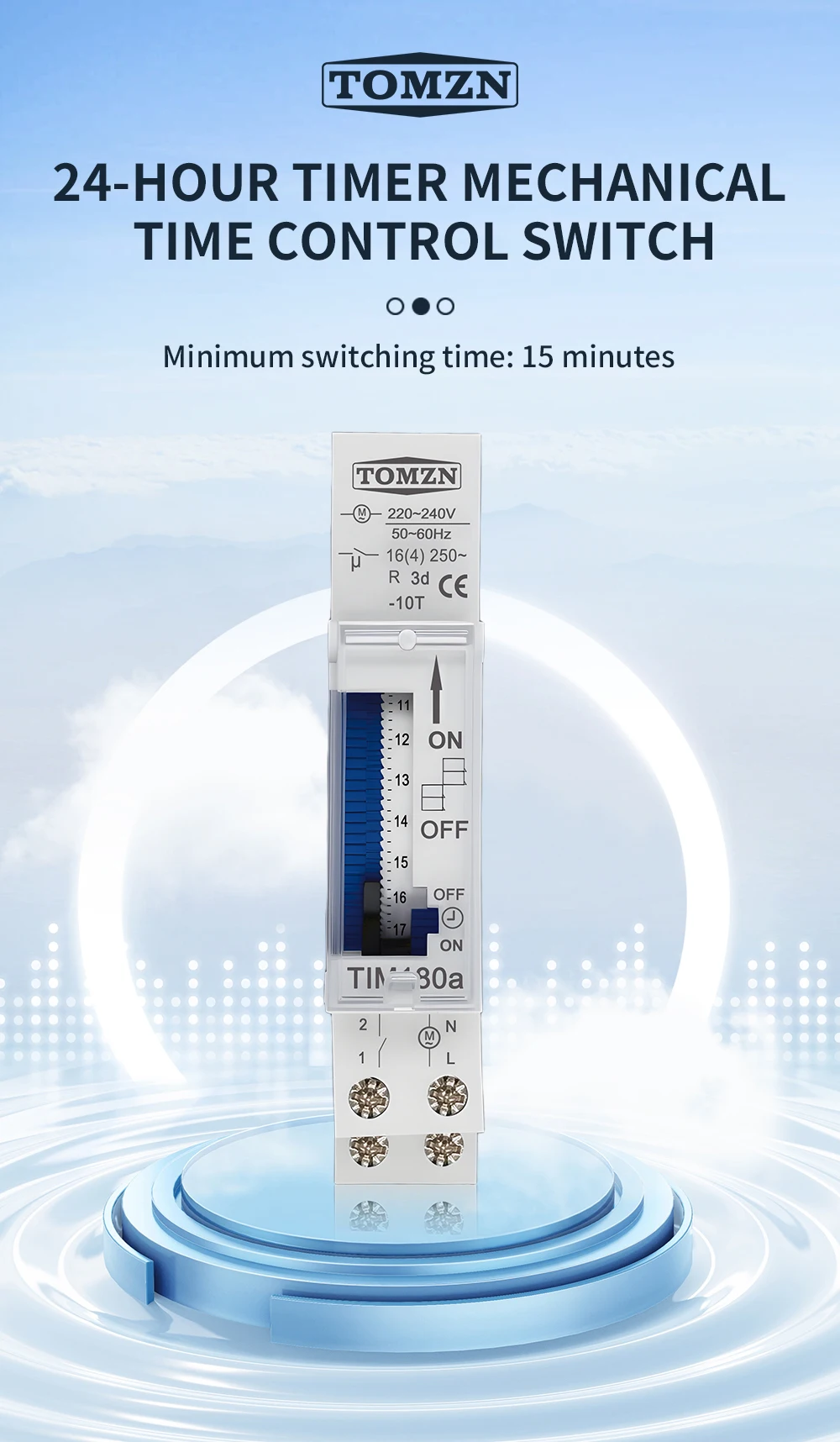

24-Hour Mechanical Time Switch
1.General

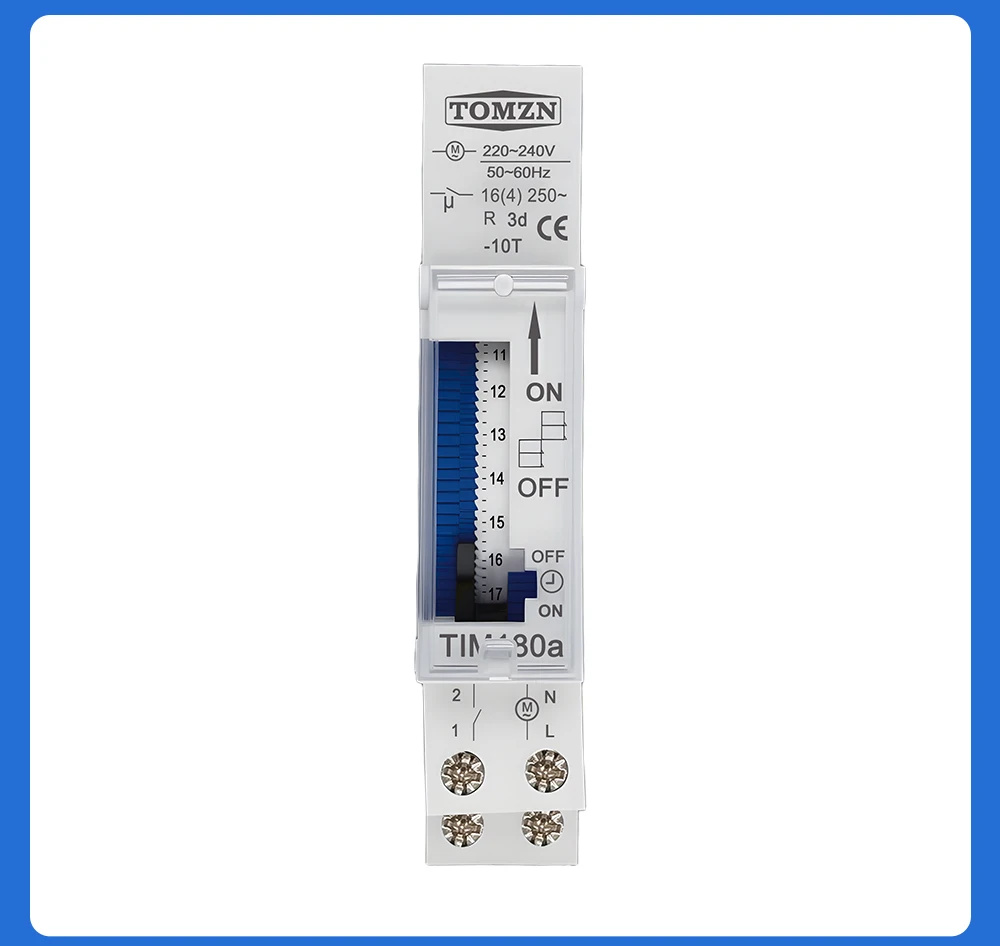

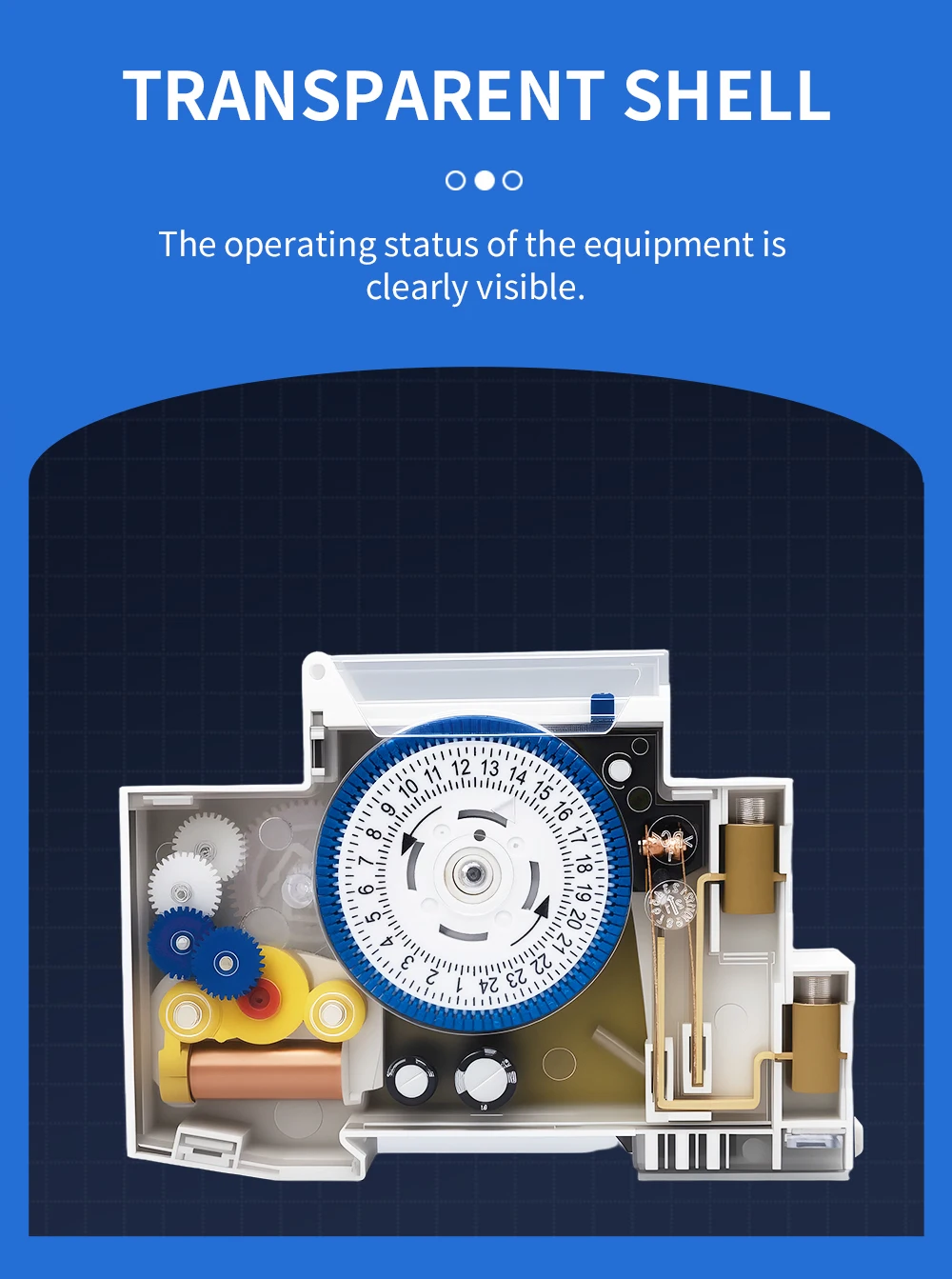

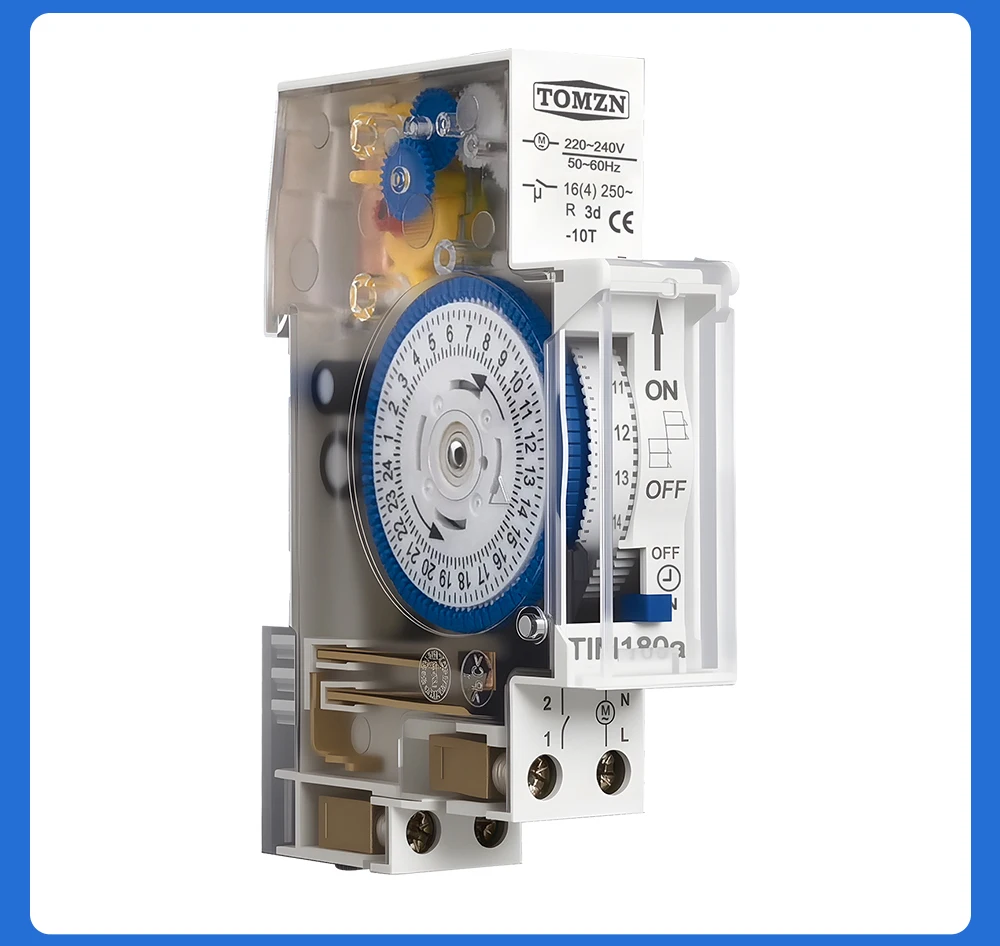

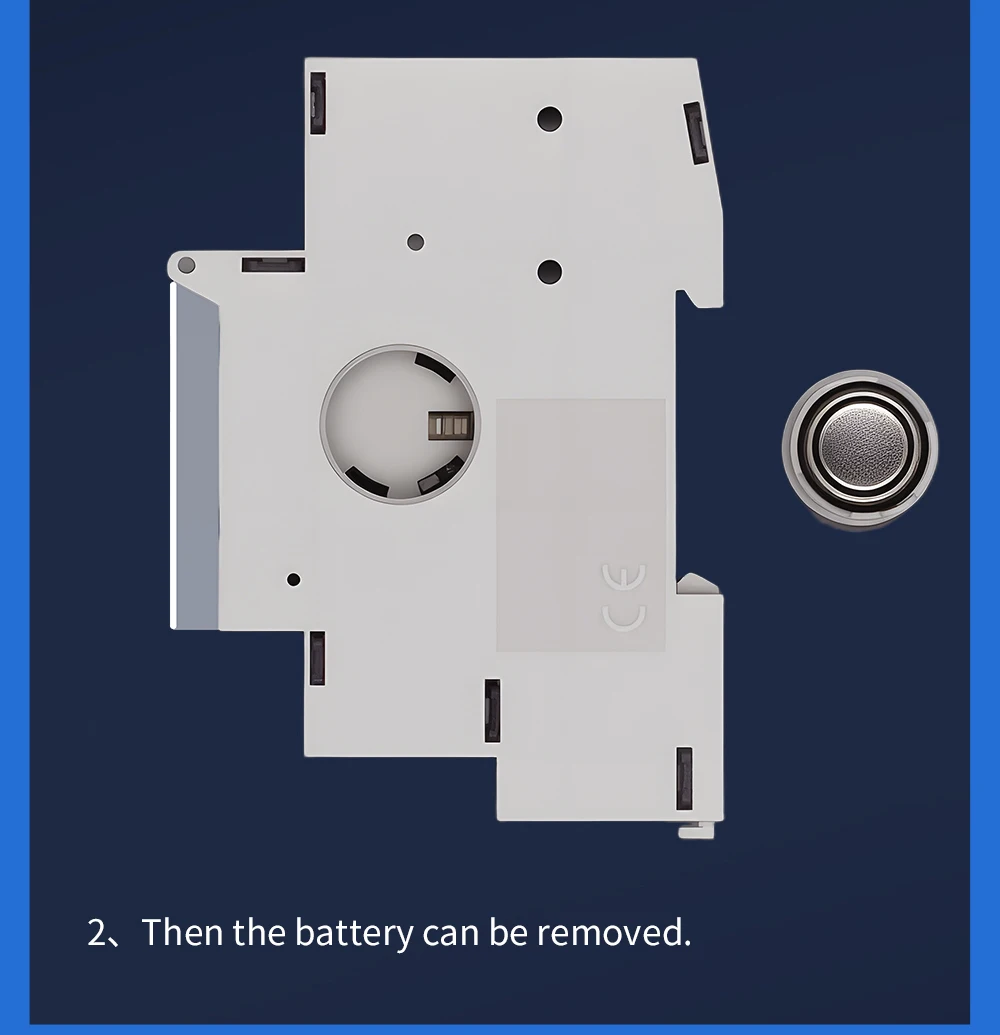

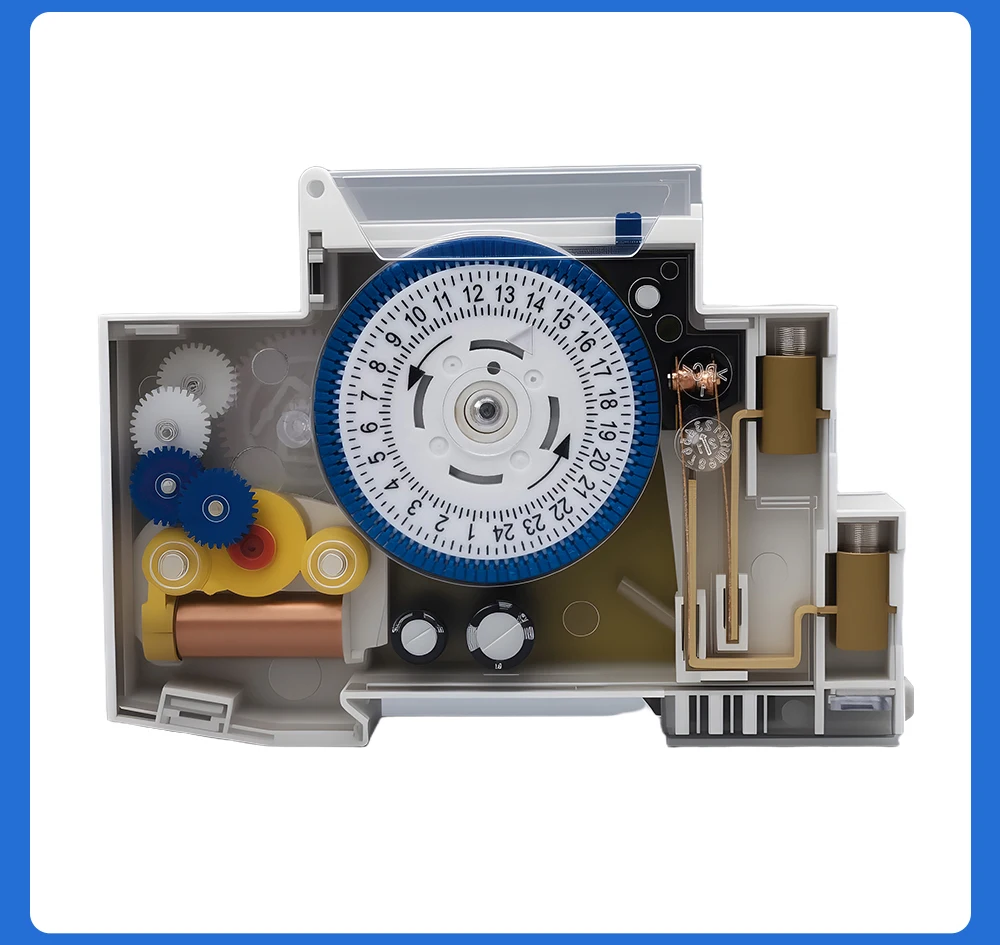

This programmable timer switch offers flexible control within a 24-hour cycle, allowing you to set any number of on/off periods in 15-minute increments. It features a mechanical dial with a transparent side panel for a distinct industrial aesthetic and reliably maintains its schedule via a built-in battery during power outages. Operation is simplified with three straightforward modes: ON, AUTO, and OFF.

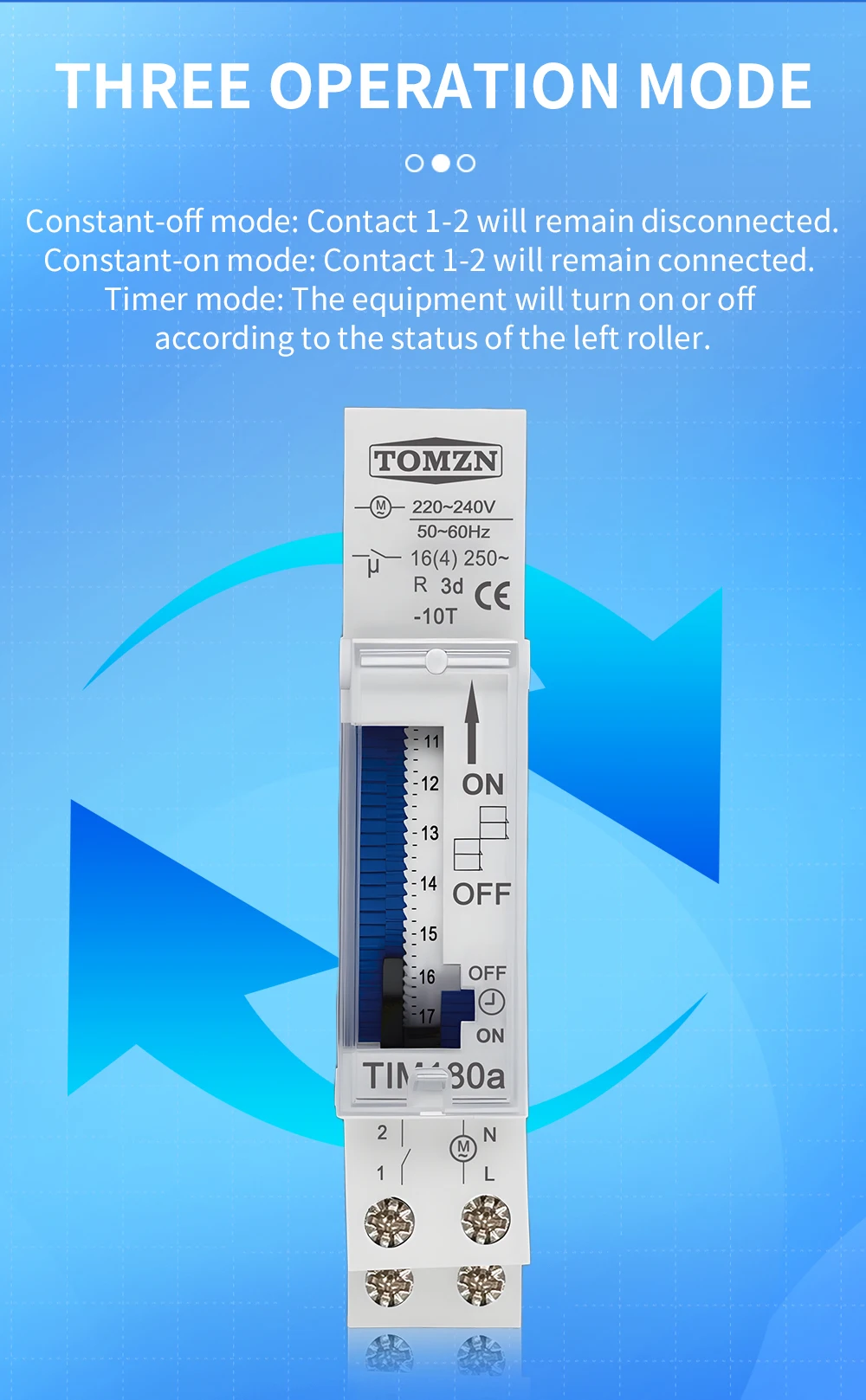

2.Operation

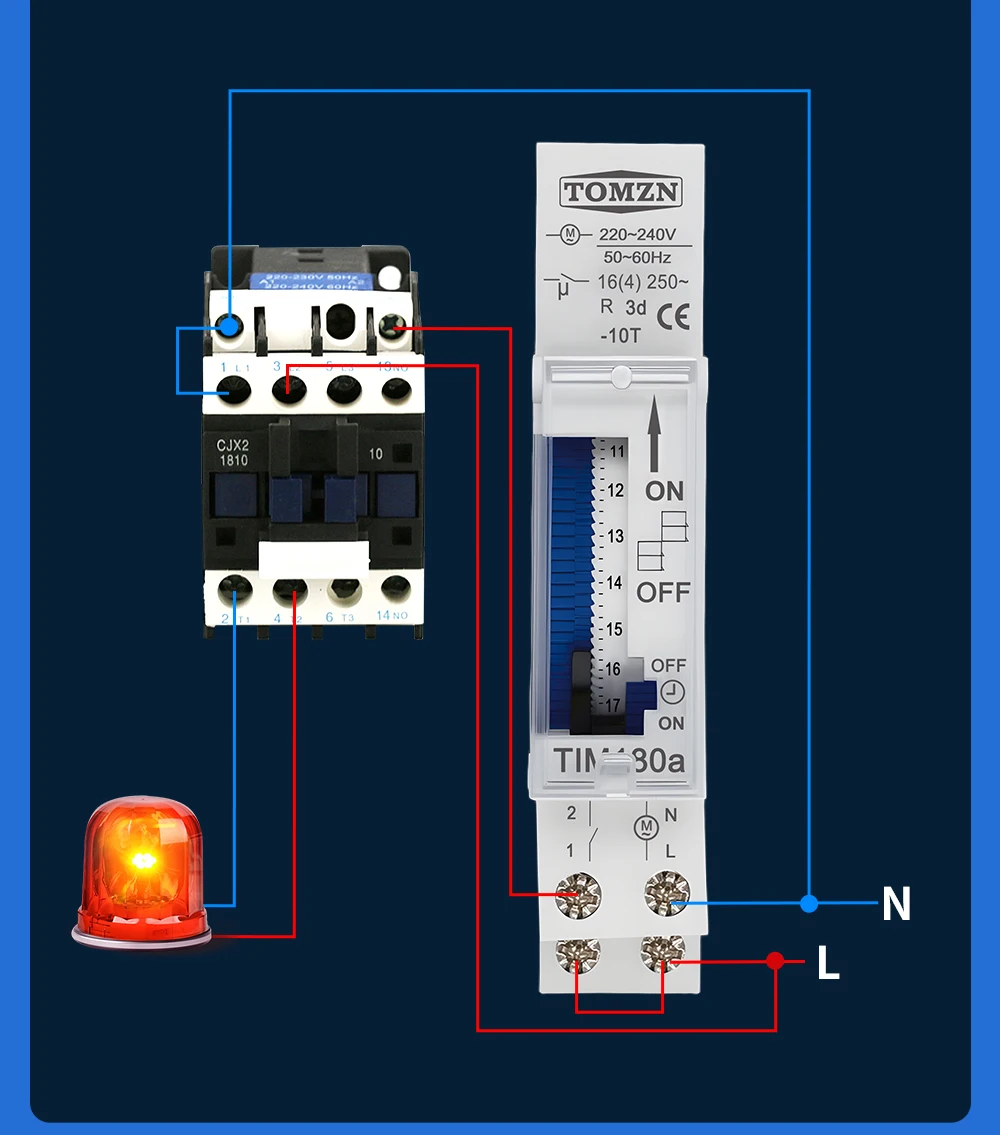

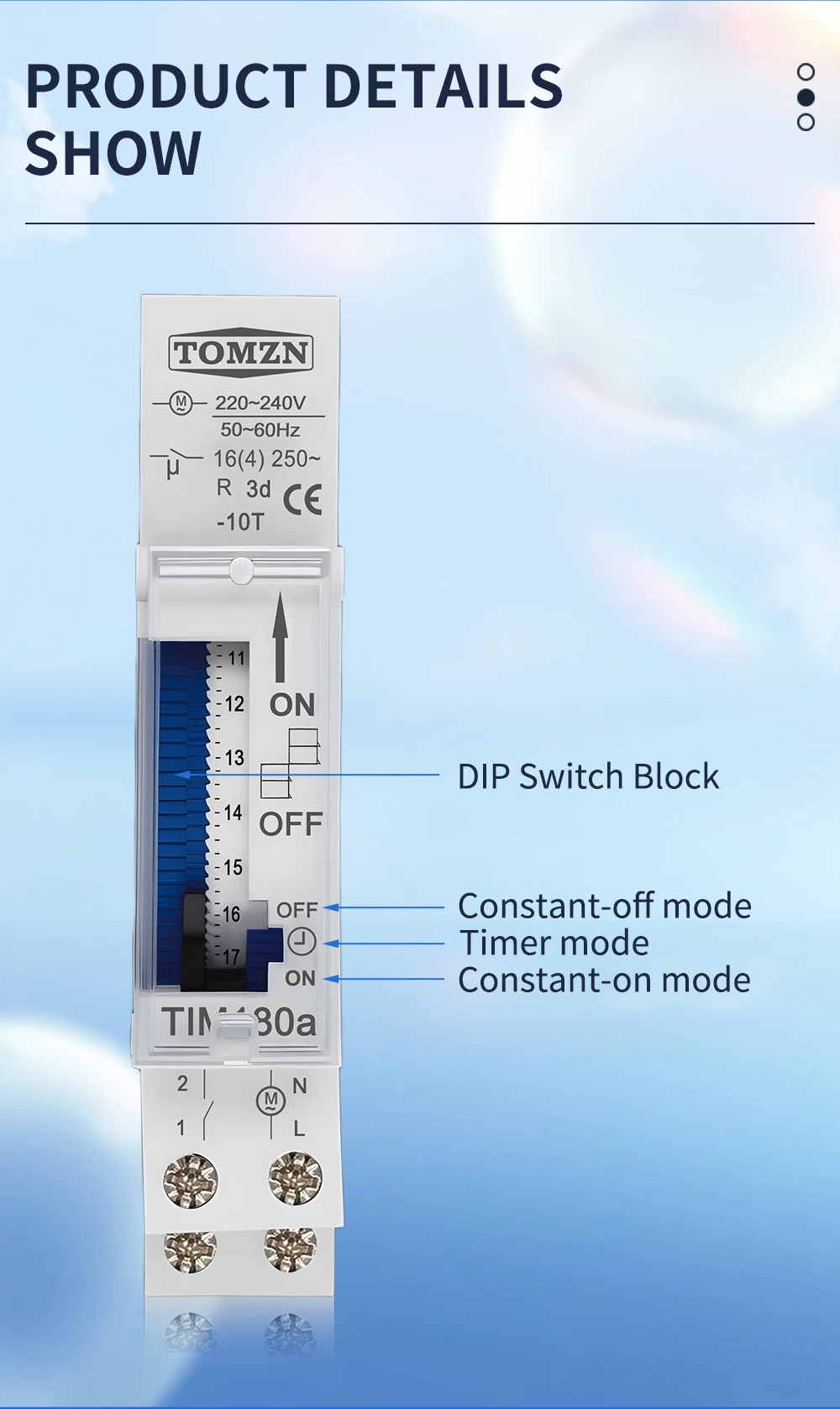

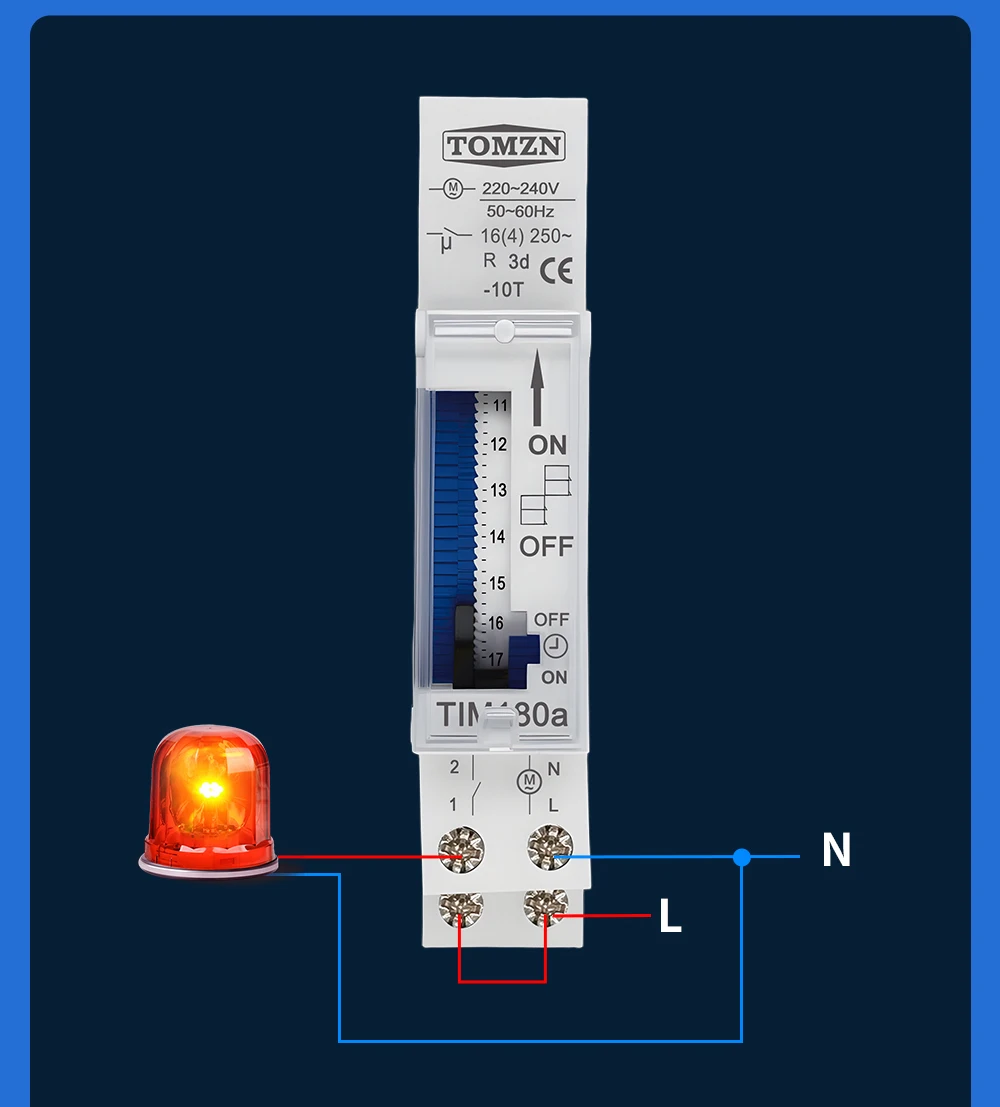

Move the pins to the right (Off) or the left (On) ,as per the neaded times of connection on which the contact 1-2 will be closed.
3.Technical Data
|
Model |
TIM180a |
|
Temp.range |
-10℃~50℃ |
|
Installation |
DIN RAIL |
|
Rated voltage |
90-121VAC 200-264VAC |
|
Rated current |
15A |
|
Precision |
±3sec/day at 22℃ |
|
mode |
Timer/Constant-ON/Constant-OFF |
|
Terminal wires |
2*2.5mmq |
Note: To ensure reliable operation, install this electrical device in a standard cabinet away from interference sources, using protective measures and verifying system compatibility.
Installation: DIN Rail
Rated Voltage: 90-121VAC/200-264VAC
Rated Current: 15A
Precision: ±3sec/day at 22℃
Modes: Timer/Constant-ON/Constant-OFF
**Optimal Time Management**
The Din Rail 18mm tomzn TIM180a is a versatile time switch that allows for precise control over your electrical appliances. With its mechanical dial and transparent side panel, it offers a clear display of the time and its status, making it a reliable and user-friendly addition to any industrial setting. The built-in battery ensures that your schedule remains intact during power outages, offering peace of mind and convenience. With three straightforward operation modes—OFF, AUTO, and ON—this time switch is designed for simplicity, allowing you to manage your electrical devices with ease.
**Reliable Performance in Various Environments**
The tomzn time switch is engineered to perform under a range of conditions. Its robust design, with a temperature range from -10℃ to 50℃, makes it suitable for use in various climates. The switch’s installation on the DIN rail ensures secure attachment, reducing the risk of accidental disconnection. The rated voltage of 90-121VAC and 200-264VAC accommodates a broad range of electrical systems, making it an adaptable choice for different environments. With a precision of ±3sec/day at 22℃, you can trust that your schedule will be adhered to with minimal deviation.
**Tailored for Your Needs**

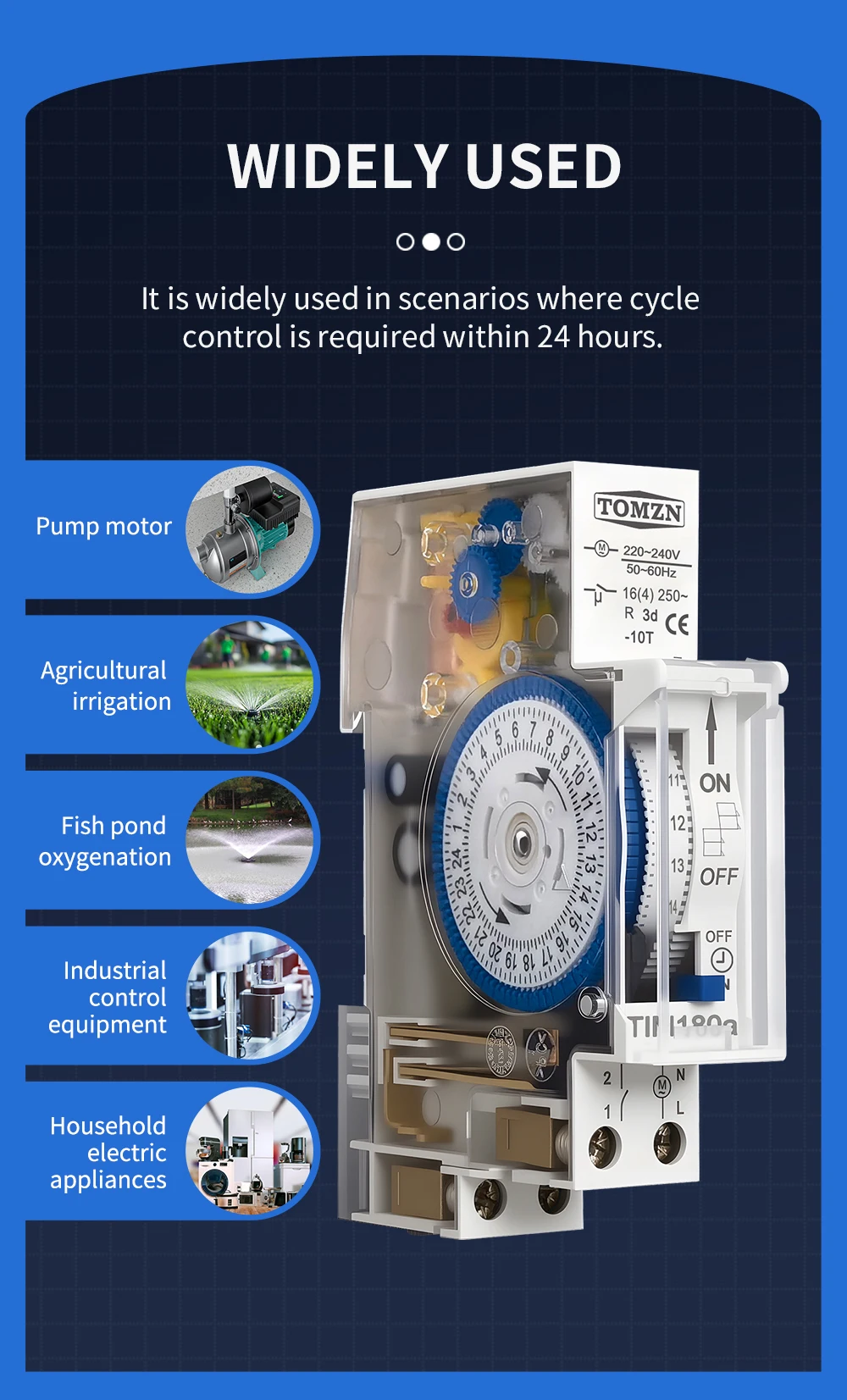

The tomzn TIM180a is not only a time switch; it is a tool designed to cater to your specific requirements. Whether you need to manage lighting, heating, or cooling systems, this switch offers the flexibility to set up to 15-minute on/off periods within a 24-hour cycle. Its compatibility with a wide range of electrical devices ensures that it can be used in various settings, from residential to industrial applications. With its customization option, the tomzn TIM180a can be tailored to your specific needs, making it an indispensable asset for any user seeking reliable and adaptable time management solutions.
