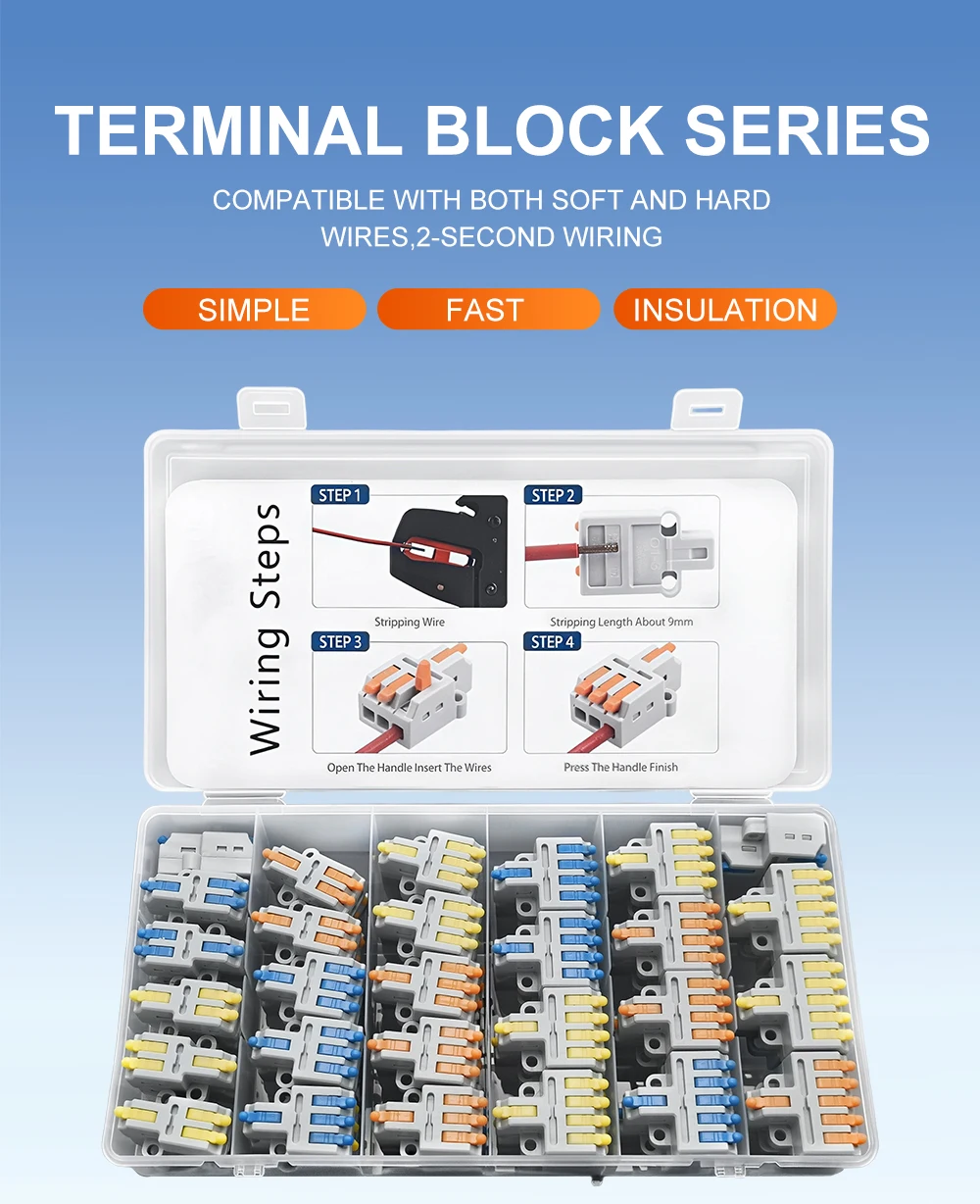

54PCS TOMZN Lever Wire Connectors Quick Push-in Splicing Terminal Block Assortment Kit 2/3/4/5 Port 250V 32A 28-12 AWG Reusable

D1-2345 FOR 28-14(12) A.W.G. / 0.08-2.5(4) mm²

Include：

D1-2 15PCS

D1-3 15PCS

D1-4 15PCS

D1-5 9PCS

General

The D1‑2345 is a complete 54‑piece wire connector kit designed for fast, tool‑free wiring in complex circuits. It combines 2‑in‑1, 3‑in‑1, 4‑in‑1, and 5‑in‑1 connectors in one box, letting you join multiple wires into a single branch or split one line into several outputs. Each connector uses a sturdy lever mechanism for secure, repeatable connections without soldering or crimping. Rated for 28‑14(12) AWG / 0.08‑2.5(4) mm² wires, it handles currents up to 32 A and voltages up to 250 V. The nylon housing provides reliable insulation, while the transparent cover allows quick visual inspection. Ideal for junction boxes, lighting installations, and DIY electronics, this kit simplifies wire management and reduces installation time.

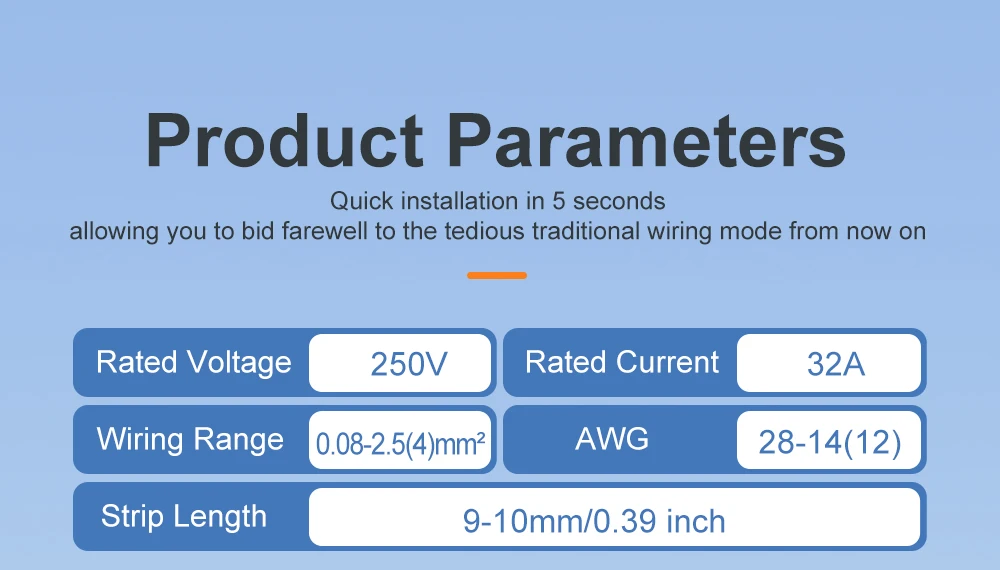

Product parameters

Model: D1‑2345 Box
Total Quantity: 54 PCS

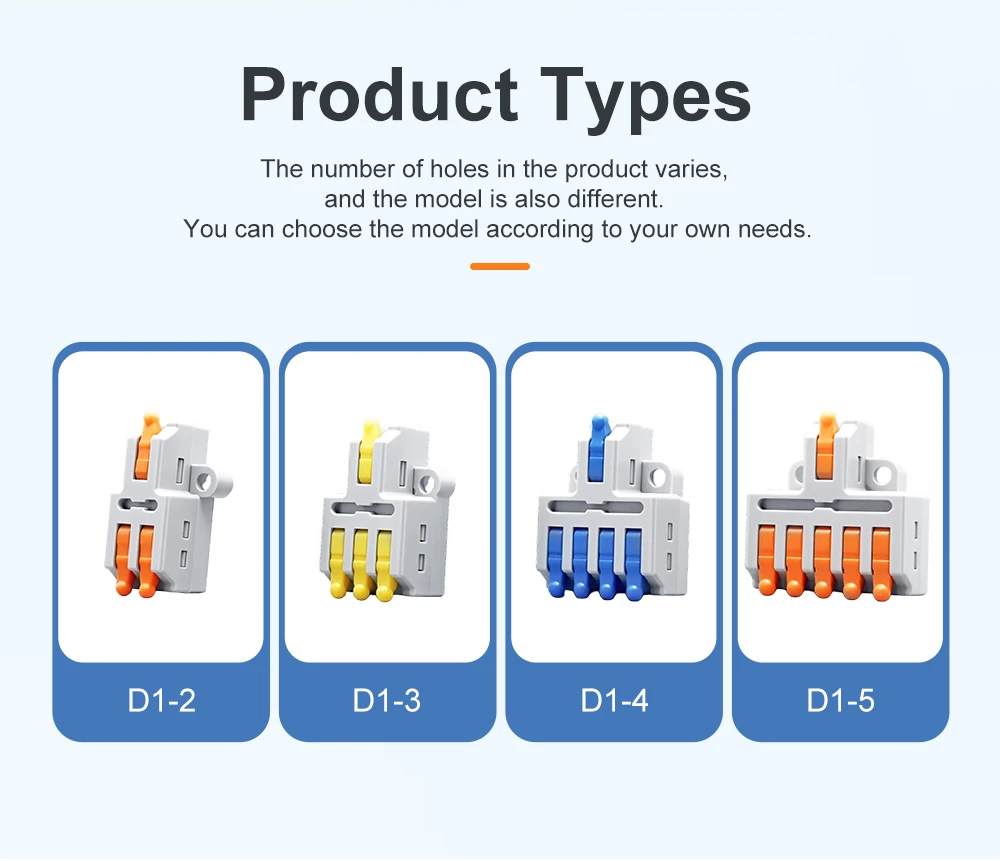

Includes: D1‑2: 15 PCS, D1‑3: 15 PCS, D1‑4: 15 PCS, D1‑5: 9 PCS
Connection Type: 2‑in‑1 / 3‑in‑1 / 4‑in‑1 / 5‑in‑1 (combine or split)
Wire Range: 28‑14(12) AWG / 0.08‑2.5(4) mm²
Rated Voltage: 250 V
Rated Current: 32 A
Strip Length: 9 – 10 mm (0.39 in)
Mounting: Free‑standing
Conductor Material: Copper
Housing Material: Nylon

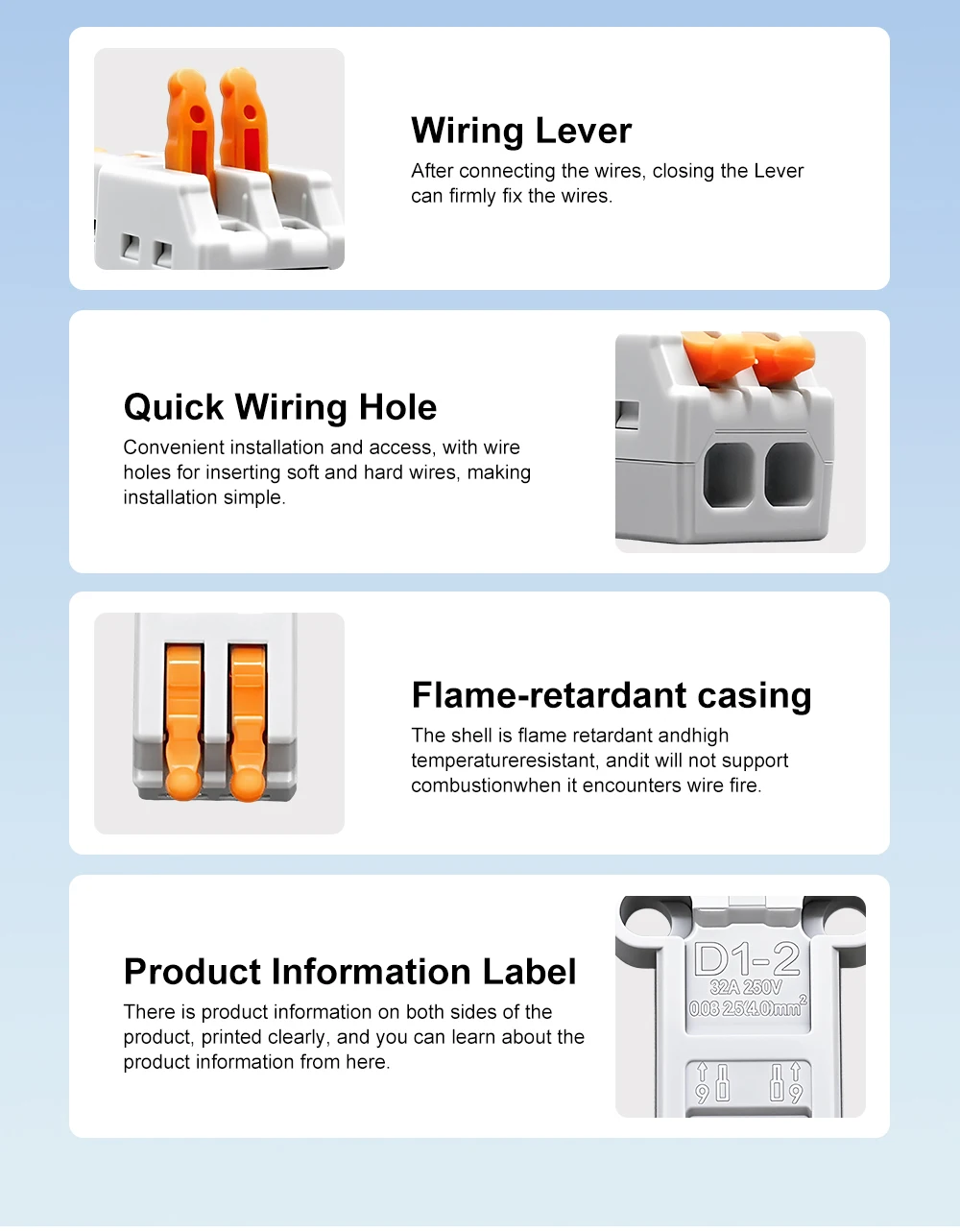

Features: Tool‑free, reusable, transparent housing, vibration‑proof lever
Applications: Junction boxes, lighting systems, circuit branching, DIY electronics
