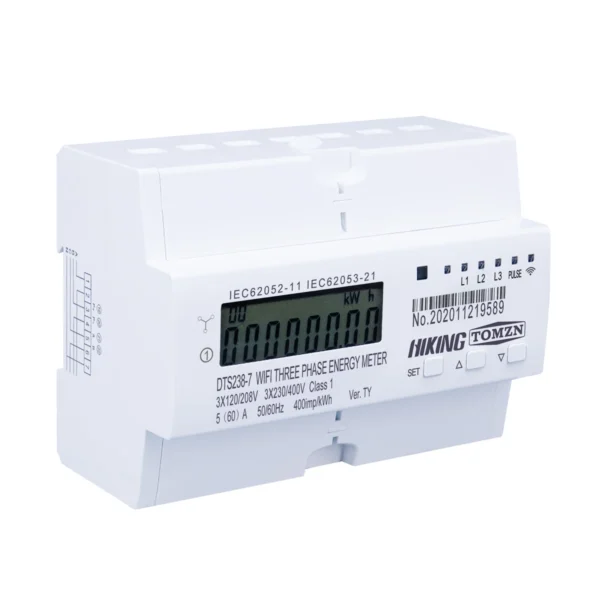

WIFI Smart TUYA 3P 4 wire Energy Meter 3*120V 3*220V 3*230V 50/60Hz timer Power Consumption Monitor kWh Meter Wattmeter

Description:

1. Remote Control ON/OFF by Tuya APP or Smart Life APP at anytime from anywhere

2. Total active energy kWh measure

3. APP can read kWh , R.M.S current , voltage , active power(The active power current voltage only for A phase, if balance it’s all the same for 3 phase)

4.  Timer control function

5. Delay time cut off function

6.  LCD display, Real-time display of Voltage, Current, Active Power, reactive Power, power factory ,frequence, total Energy kWh

7. Power Supply: 3*120 3*220V 3*230V 3*240V 50-60Hz

8. Rated Current: 60A

10. Pulse Frequency: 400imp/kWh

11. 35mm Din Rail install

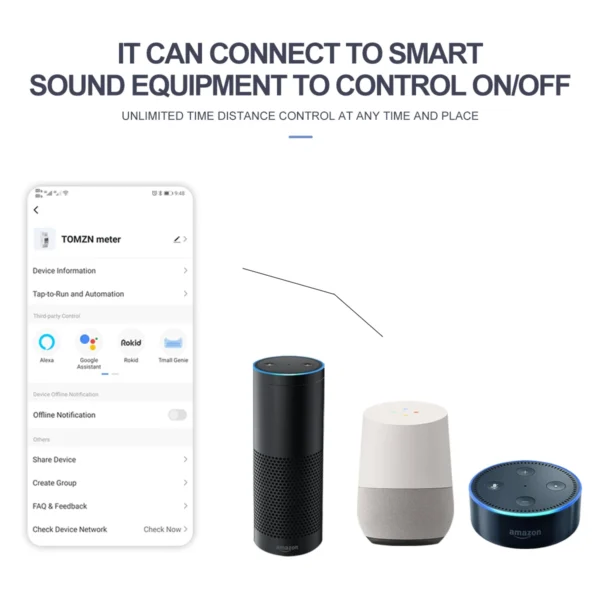

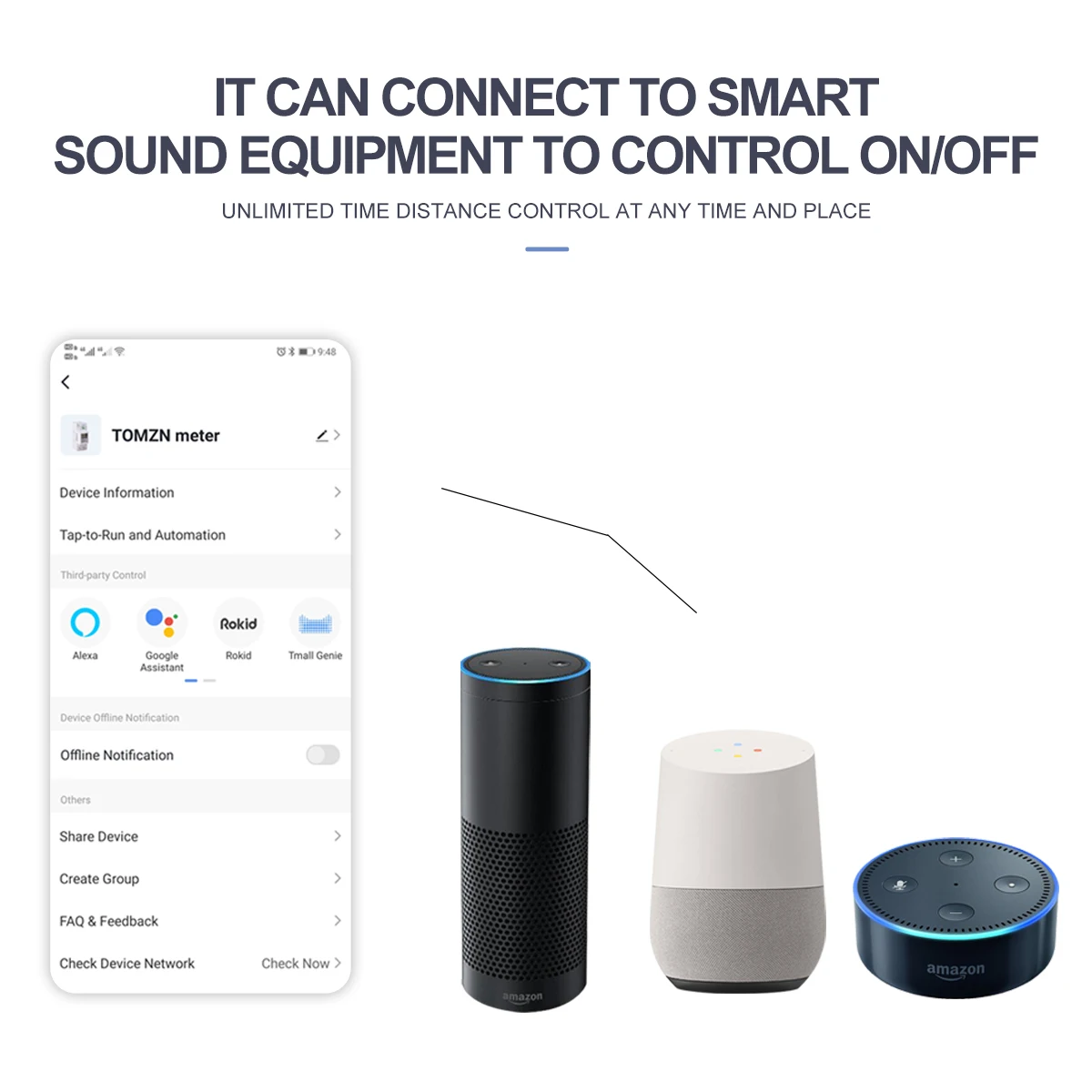

12. can use same TUYA APP, compatible with other TUYA product such WIFI socket , led ,fans and so on

13. Active energy accurate isclass 1 , IEC62053-21

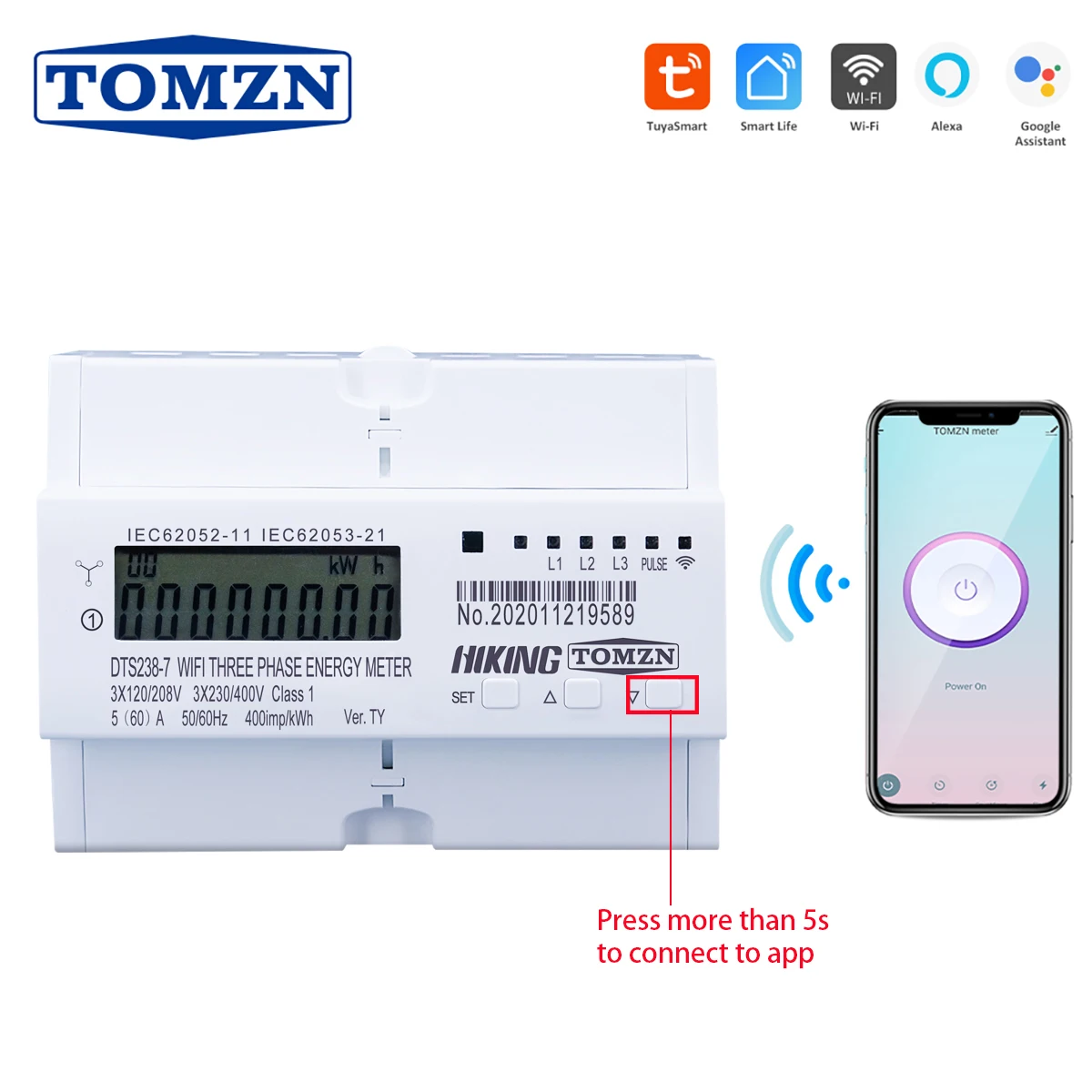

Push the button last more than 10s , the WIFI led will flash quickly , then use APP to operation

Note:This meter Only supports 2.4G Wireless Network,  NOT for 5G
