Description

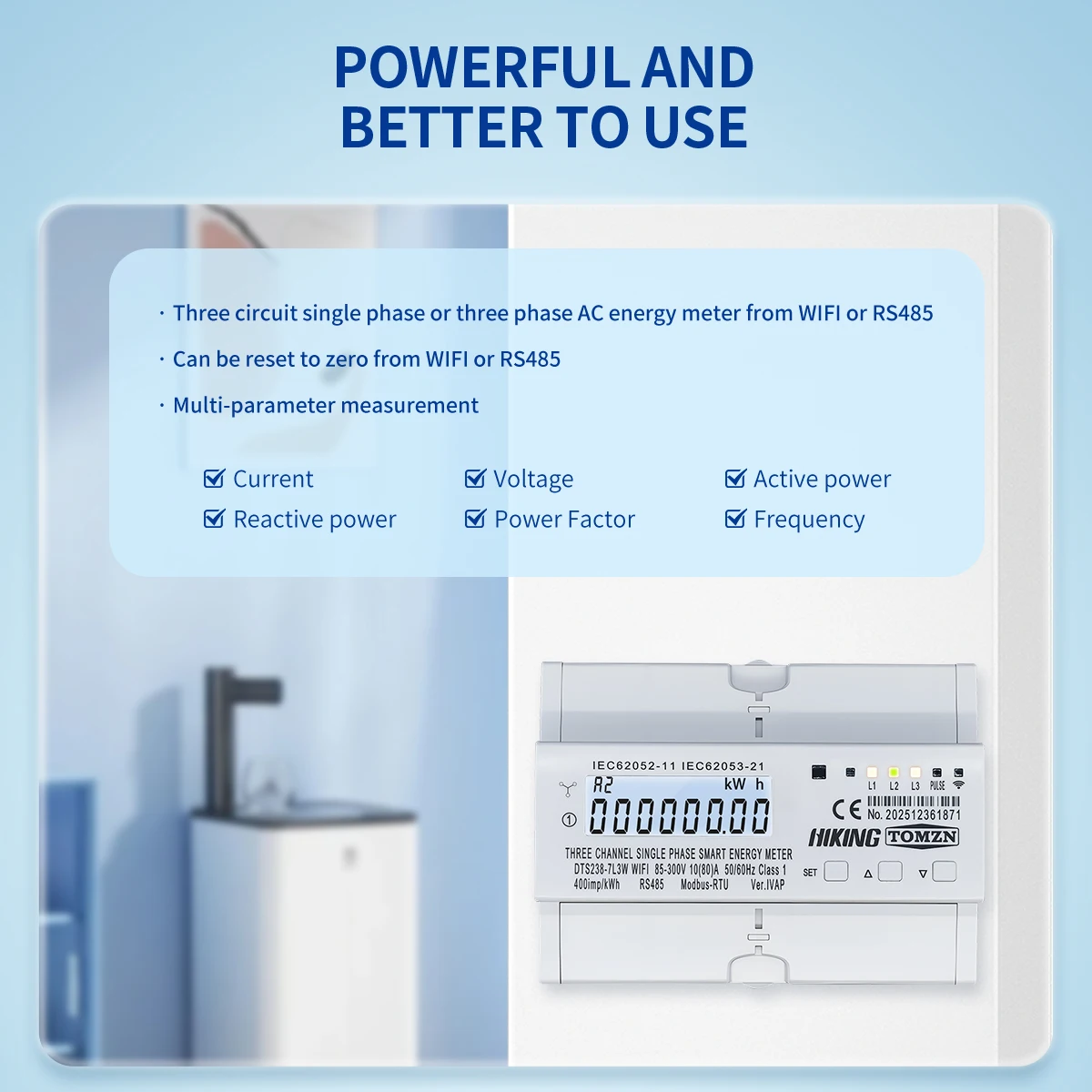

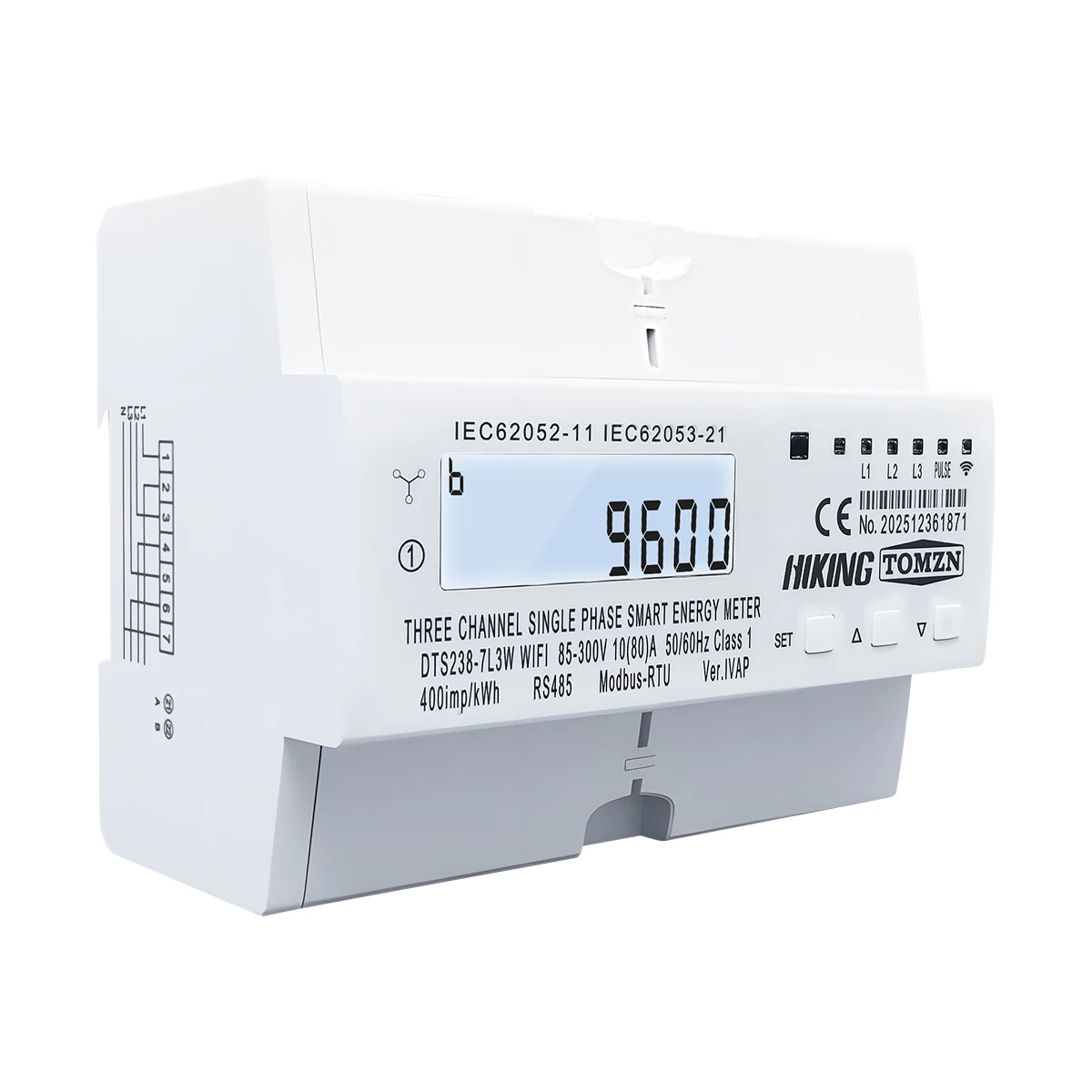

DTS238-7L3WThree Circuit Single Phase WIFI Smart energy meter
It can control three single-phase circuits, or a three-phase circuit. And each phase can be controlled independently.
1.General Description
Static three circuit single phase two wire energy meter for measure AC active energy and variable parameter adopt advanced large-scale integrated circuit IC and SMT manufacturing technology. They have following features: bi-directional energy measurement , wide voltage , anti-tamper , high accuracy and reliability , large overload, ow self-consumption , small volume , light weight. The meter have RS485 communication port??can realize remote reading .
The meter should be installed in suitable environment with ambient temperature rang between -25??-+55??,the relative humidity less than 75% and temperature limits between -40??-+70??.
The meter is manufactured complying with international standard EC62052-11 on ??Electricity metering equipment (AC) General requirements tests and test conditions?? and IEC62053-21 on ??Static meters for active energy(classes 1 and 2)??.
2.Basic Function

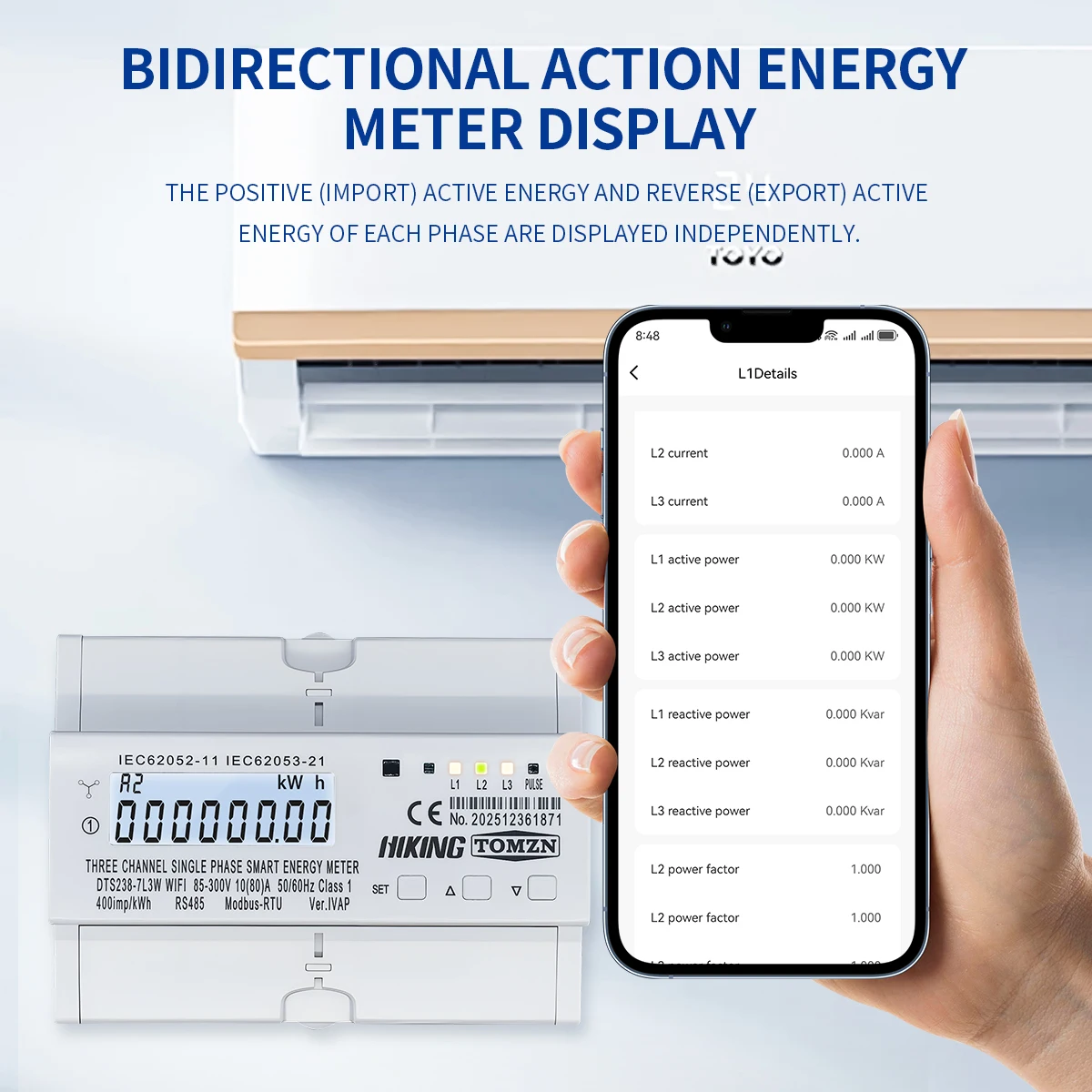

??Measuring three circuit single phase positive & negative active energy separately, LCD display with backlight.
??The meter LCD also display three circuit single phase real voltage , current , active power , reactive power, power factor.

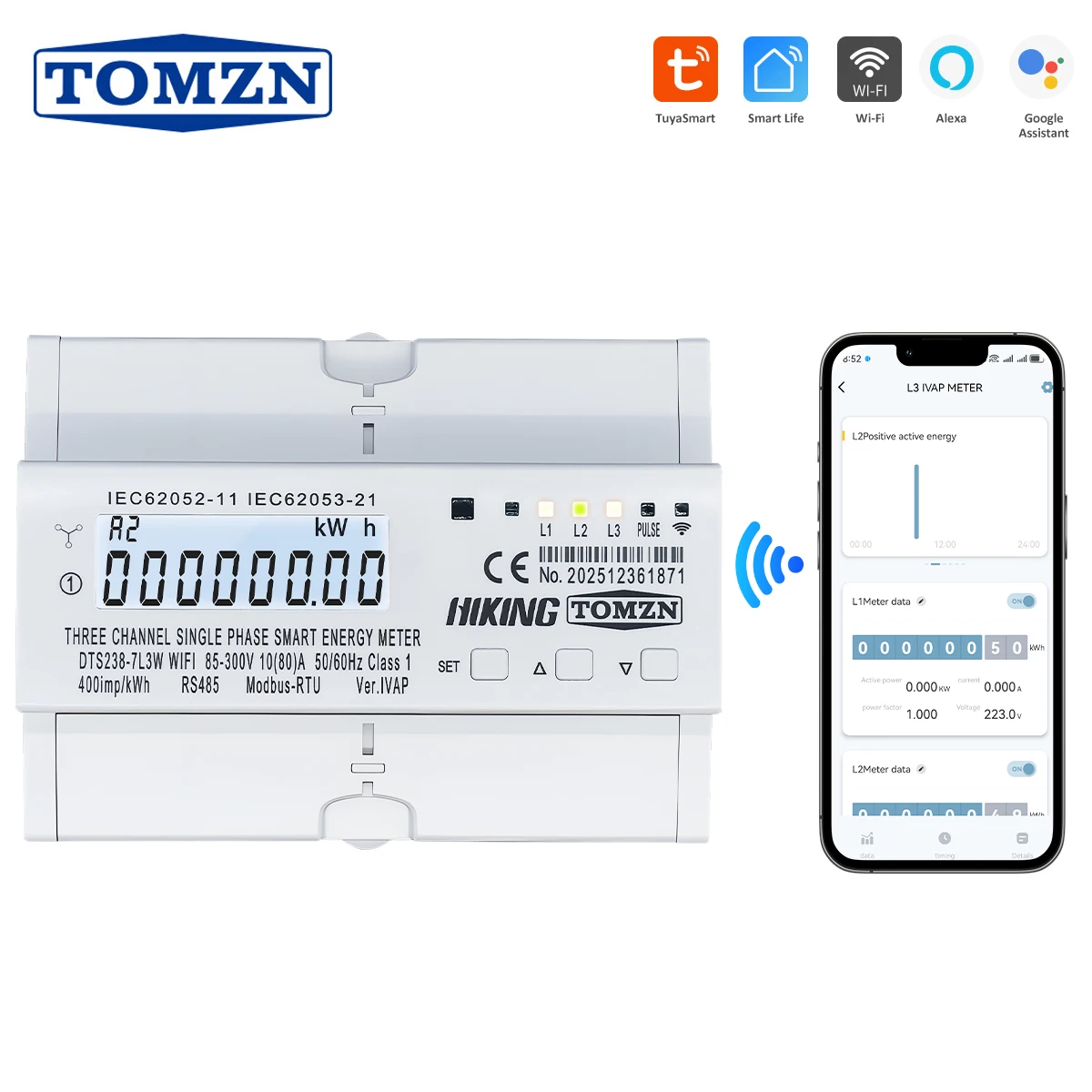

??APP can display three circuit single phase positive active energy , reverse active energy and real parameter and remote control on/off.
??Hour/Day/Month/Year history active energy consumption tracking by APP, and also can output excel records by email.

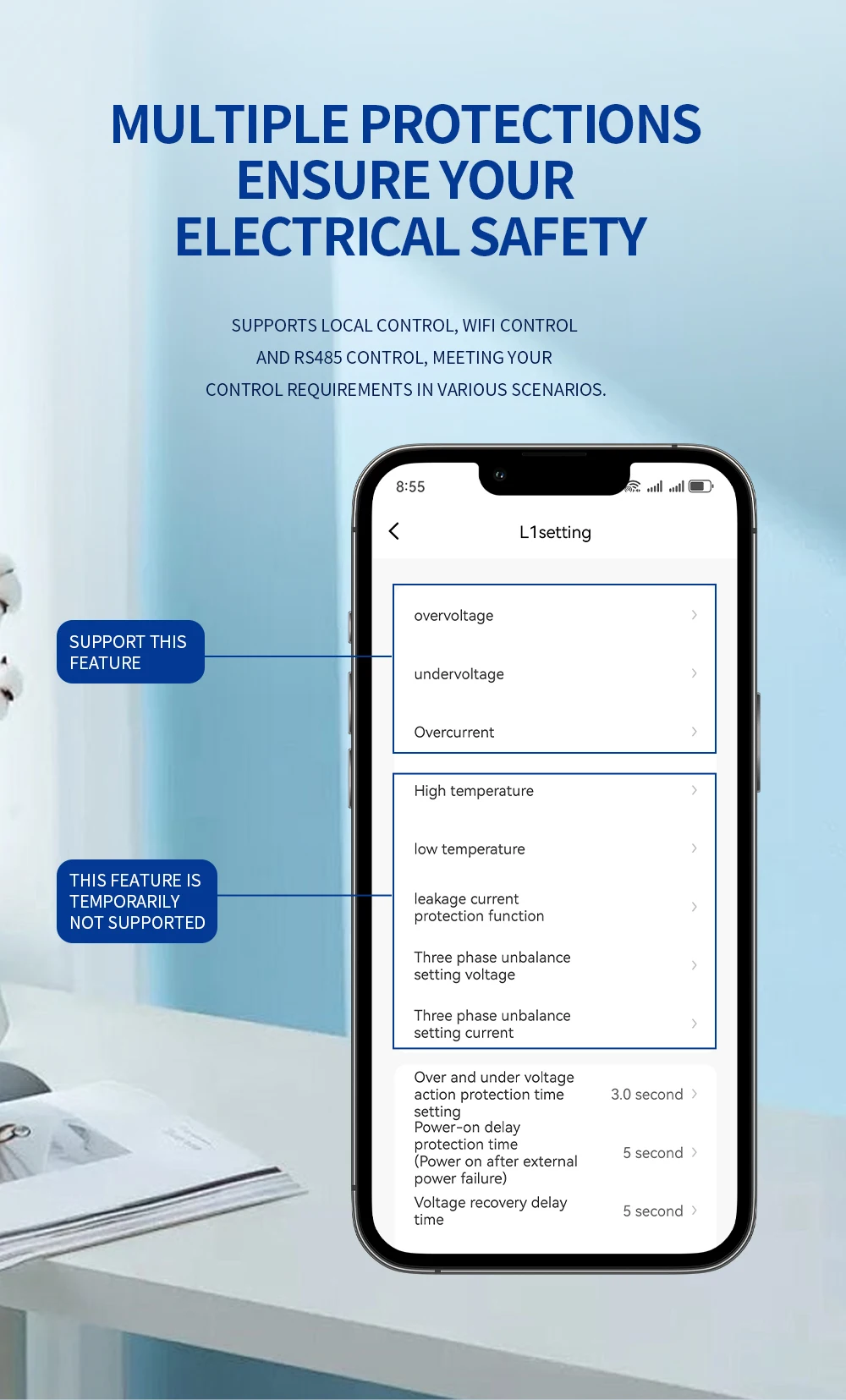

??Over voltage and under voltage protection which can set by APP, Each protection function can be opened/closed as customer requirement
??Current protection which can set by APP for three circuit each phase separately
??Alarm event records and on/off operation records on APP for three circuit each phase separately
??Prepayment function if balance energy used up. It will cut off automatic. This function can be opened/closed by APP for three circuit each phase separately
??Energy data can store on memory chip when power off, it also still measure energy when lose WIFI connection and it will update the energy on APP when connect WIFI again
??It has timing control function , it can set value from APP for three circuit each phase separately
??It can reset the active energy to zero from APP for three circuit each phase separately
??It have active power 15minutes interval curve only one day for three circuit each phase
separately
??It have energy consumption cost and carbon emission on APP for three circuit each phase separately
??Measuring active energy without calibration under long term operation
??Three circuit each phase relay on/off led indication
??RS485 communication Modbus-RTU protocol , it can remote control on/off for three circuit each phase separately
??The meter can control three circuit on/off together by hand which push up/down button on time .
