TOVA-63T can only cut off L White Screen

Rated voltage: 80-300V; Frequency: 50/60Hz

This product can work with L N 110V/220V AC.

1.Remote control ON/OFF at anytime from anywhere by phone.

2.Review current/voltage/leakage current/total kWh/Power factor/Frequency on phone

3.Timer function in smartlife TUYA app

4.Relay Status: OFF, ON, Memory

5.Password protection

6.Can set overload/over voltage/under voltage/over current /leakage current/High temperature in app

7.Overload protection 1-17kW (adjustable) (default: 13kW)

Overload protection delay 1-500s  (default: 1s)

8.Under voltage protection 80V-210V (adjustable) (default: OFF)

Undervoltage protection delay 1-500s(default: 1s)

9.Over voltage proteciton 120V-300V (adjustable) (default: 270V)

Overvoltage protection delay 1-500s  (default: 1s)

10.Over current protection 1A-63A (adjustable) (default: 63A)

Overcurrent protection delay 1-500s  (default: 1s)

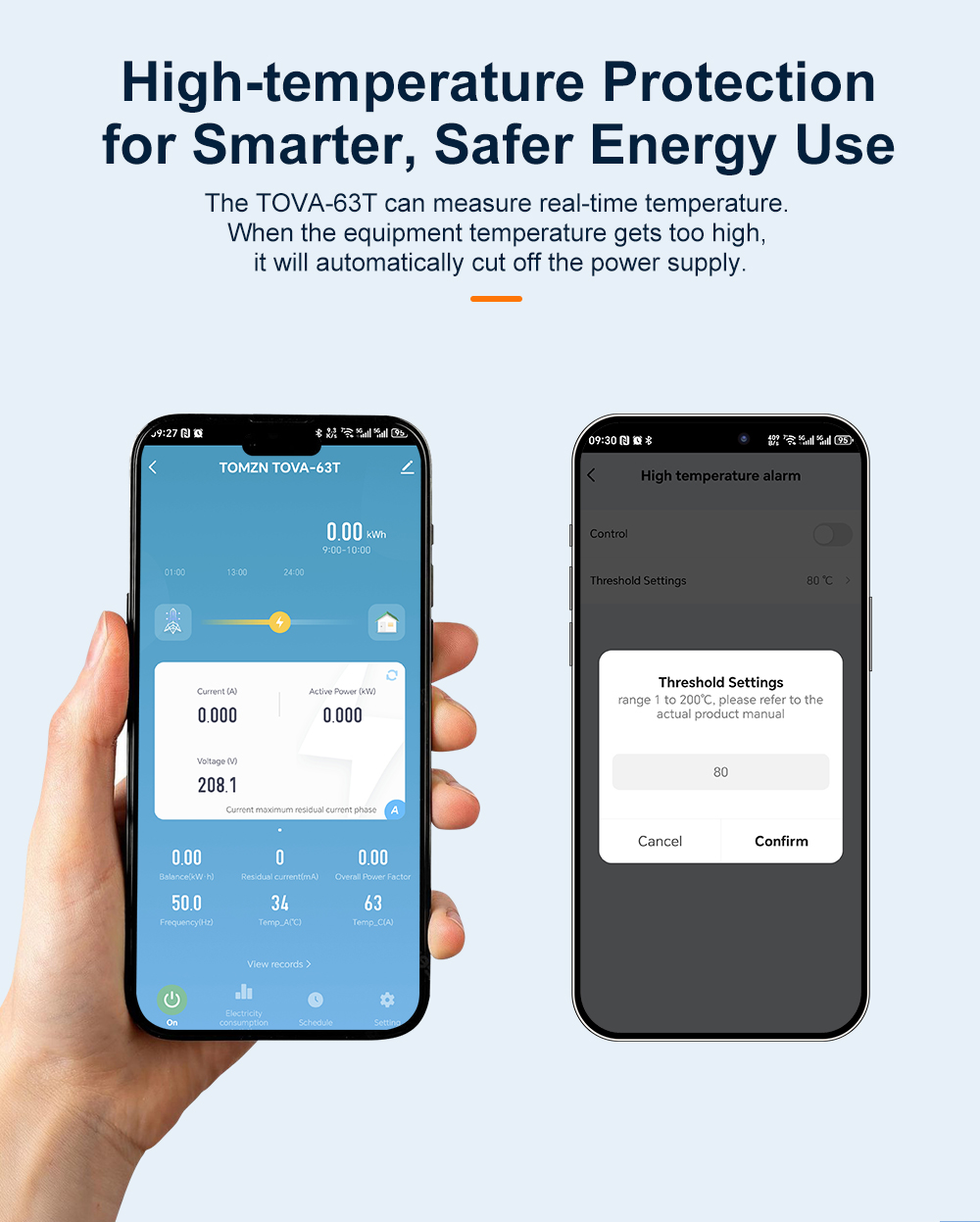

11.High temperature protection 1-200℃ (adjustable) (default: 80A)

Temperature protection delay 1-500s  (default: 1s)

12.Leakage protection 0mA-99mA (adjustable) (default:0mA)

Leakage protection delay 0.1-10S (default: 0.1s)

13.Reconnect time (delay on time): 0s-500s (default: 10s)

Reclosure Times Limit 1-30times(default: 5times)

14.Voltage/current/kW calibration: -9.9%-9.9%

15.Action time: 1-30s (detault 0.5s)

16.Restore factory settings

17.Countdown function

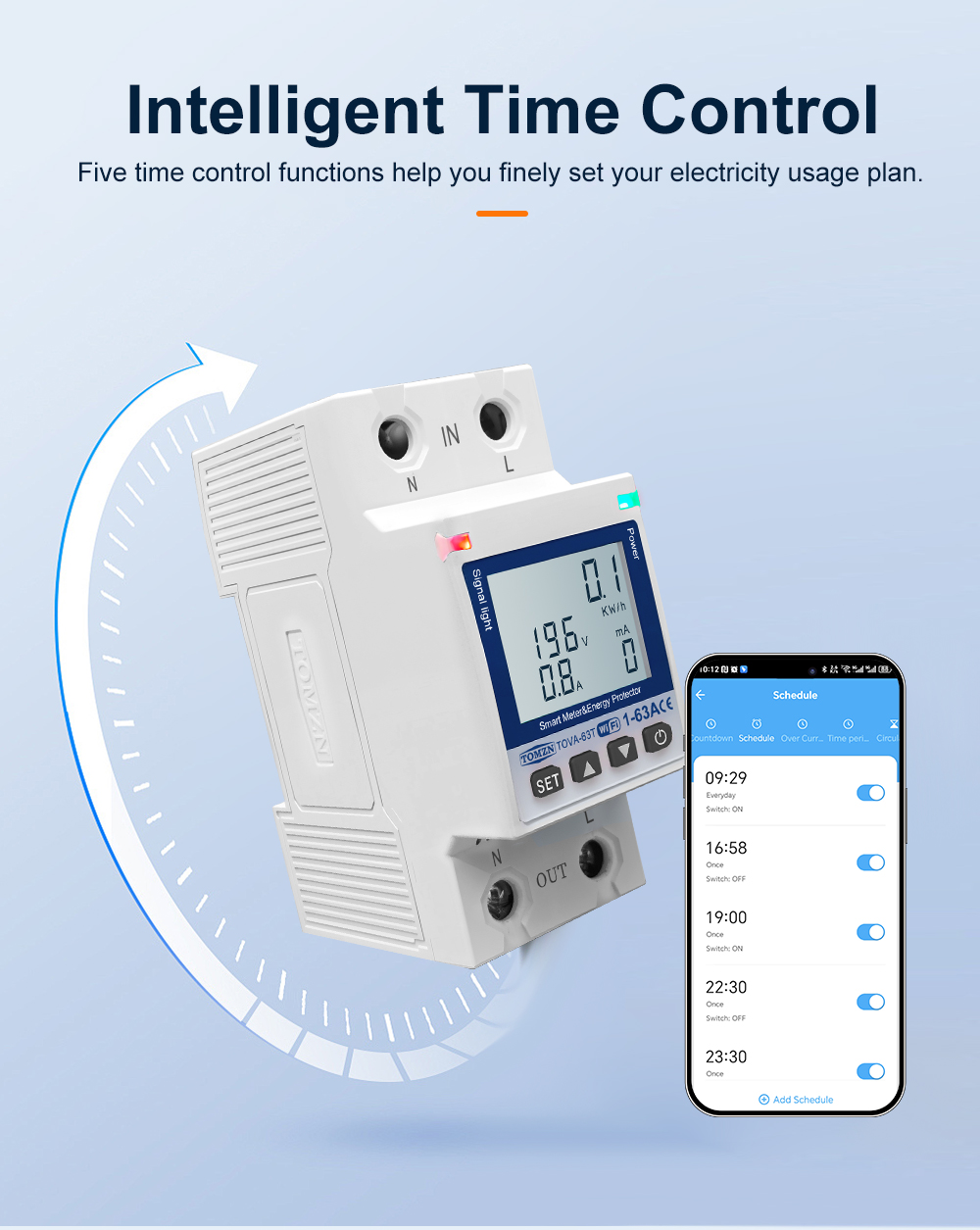

18.Schedule function

19.Time period rate limiting function

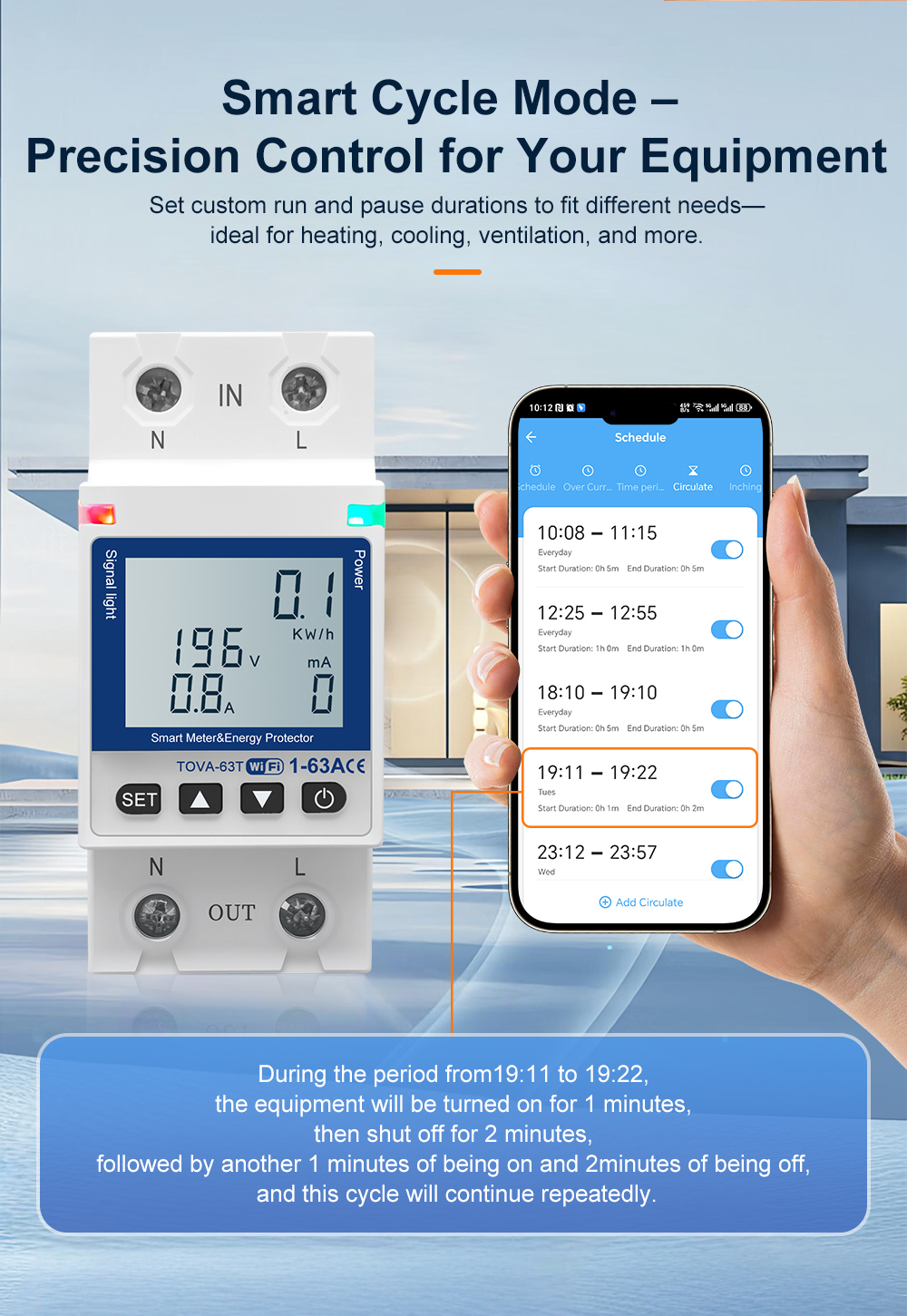

20.Circulate function

21.Inching function

22.power consumption less than 2W

Note: This meter Only supports 2.4G Wireless Network,  NOT for 5G.
