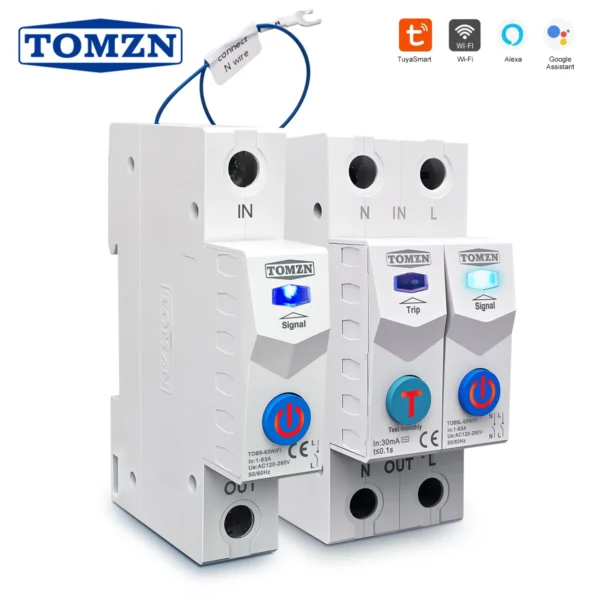

TOMZN TUYA 1-63A 1P 2P WIFI Smart Switch Energy Meter Circuit Breaker voltage current leakage temperature protection cut off L+N

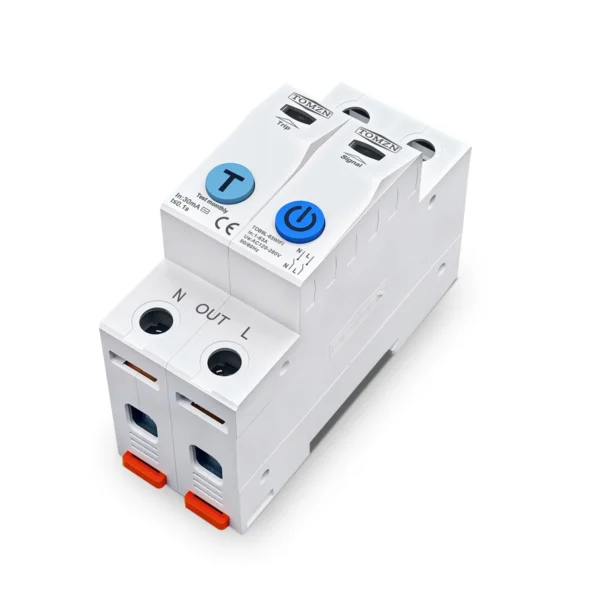

TOB9L-63WIFI can cut off L and N both

With leakage protection, NO temperature control.

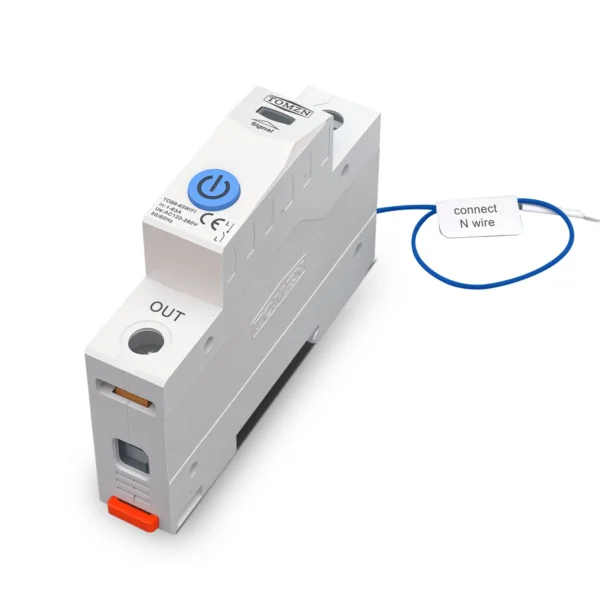

TOB9-63WIFI Can only cut off L

NO leakage protection, With temperature control.

Rated voltage: 120-280V; Frequency: 50Hz/60Hz

• 1.Remote control ON/OFF at anytime from anywhere by phone.

  2.Review current, voltage, total kWh on phone

  3. Timer function in smartlife TUYA app

  4. Prepaid function:The equipment will automatically shut off after consuming the specified amount of kwh.

  5.Relay status function:It is possible to set whether the system will reconnect after power failure by breaking the circuit, closing the circuit, or remembering the state before the power outage.

  6.Can set over voltage/under voltage/over current in app or can set these by manual

  7.Under voltage protection 76V-220V (adjustable) (default: 85V)

  8.Over voltage proteciton 85V-300V (adjustable) (default: 270V)

  9.Over current protection 1A-63A (adjustable) (default: 63A)

  11.Overload protection 1-17.6KW(adjustable)(default:13kW)

  12.Clear energy funtion

  13. power consumption less than 2W

• Note:This meter Only supports 2.4G Wireless Network,  NOT for 5G
