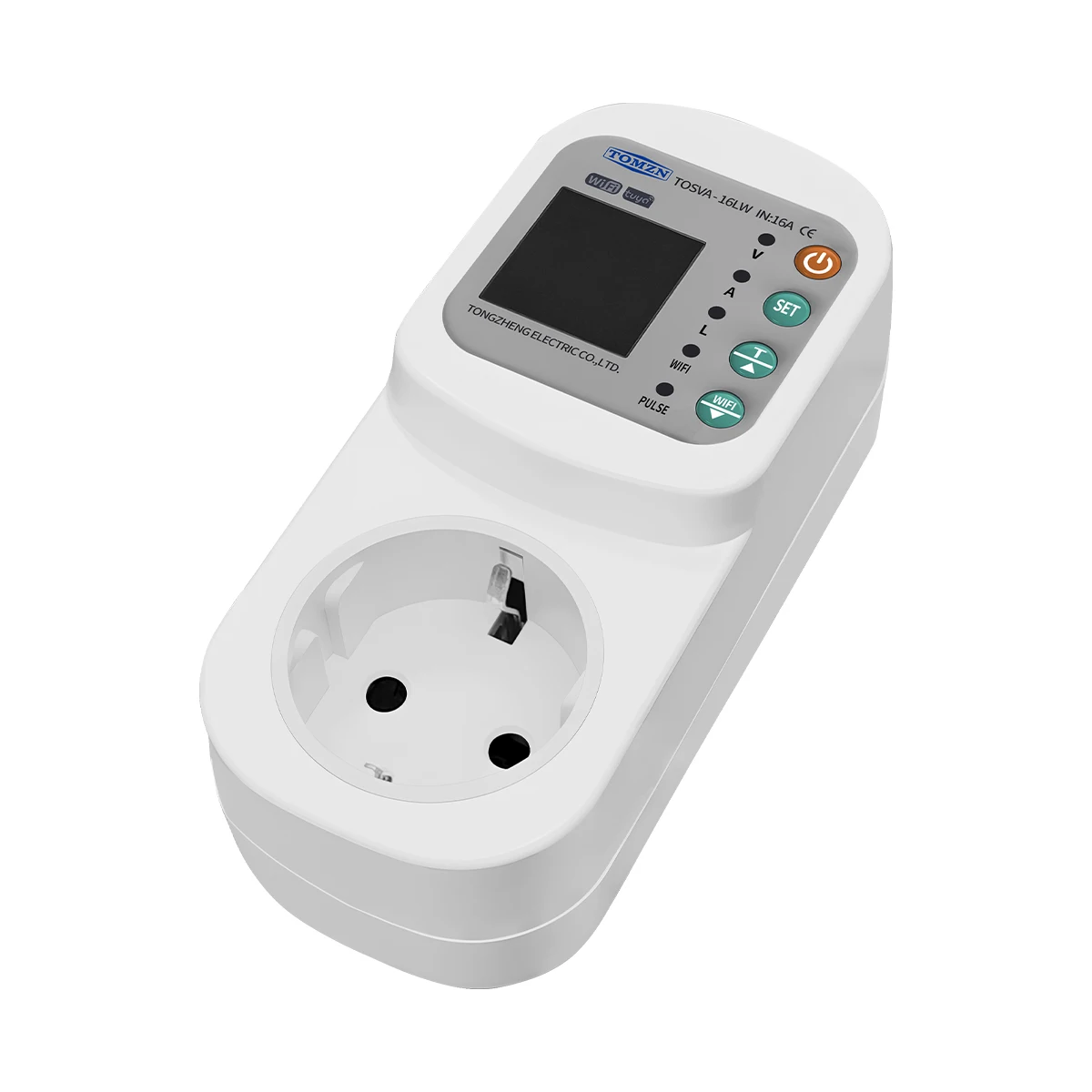

TOMZN TOSVA-16LW EU WIFI TUYA voltage current leakage Socket AC 110V 220V Adjustable 1-16A Power Surge Protector metering timer





WIFI SMART SOCKET EU TYPE



1.Model number:TOSVA-16LW

2.Power supply:140-300VAC 50/60Hz

3.Max.Loading power: 1~16A  Adjustable(default:16A)

4.Over-voltage protection value range: 230~300V (default:270V)
Over-voltage recovery voltage range: 225~295V (default:265V)
Over-voltage protection action time: 0.1s~30s(default value:1s)

Over-voltage recovery delay time: 1s~500s(default:10s)

5.Under-voltage protection value range:140~210V (default:170V)

Under-voltage recovery voltage range:145~215V (default:175V)

Under-voltage protection action time:0.1s~30s(default:1s)

Under-voltage  recovery delay time:1s~500s(default:10s)

6.Over-current adjustment range:1-16A  (default:16A)
Over-current action range:0.1~30 second (default:1s)

Over-current recovery delay time:1s~500s (default:30s)

7.Leakage protection value:10-99mA (default:30mA)

8.Power-on/display interval delay time:1s~500s (default:10s)

9.Recovery delay time:1-500s (default:30s)

10. Voltage/current/KW calibration: ??20% adjustable

11.Power consumption : <2W

12.Continuous over current/leakage faults times:1-20 times (default OFF)
