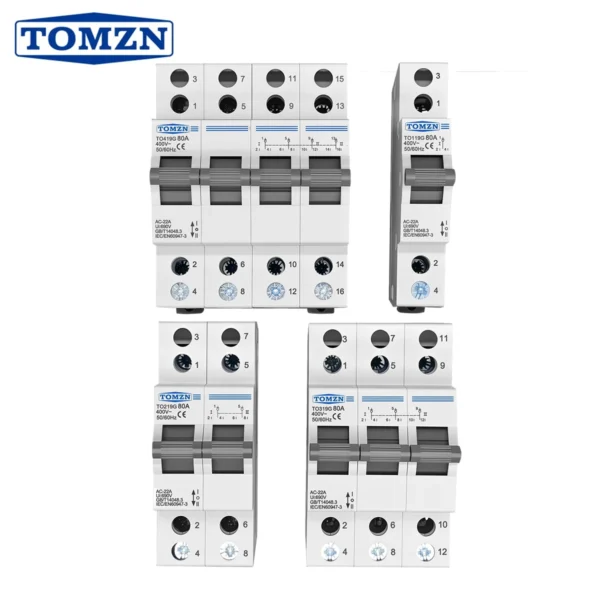

TOMZN TO419G Changeover Switch 1234P 400V~ 80A MTS Dual Power Manual Transfer Isolating Interlock Circuit Breaker Disconnectable

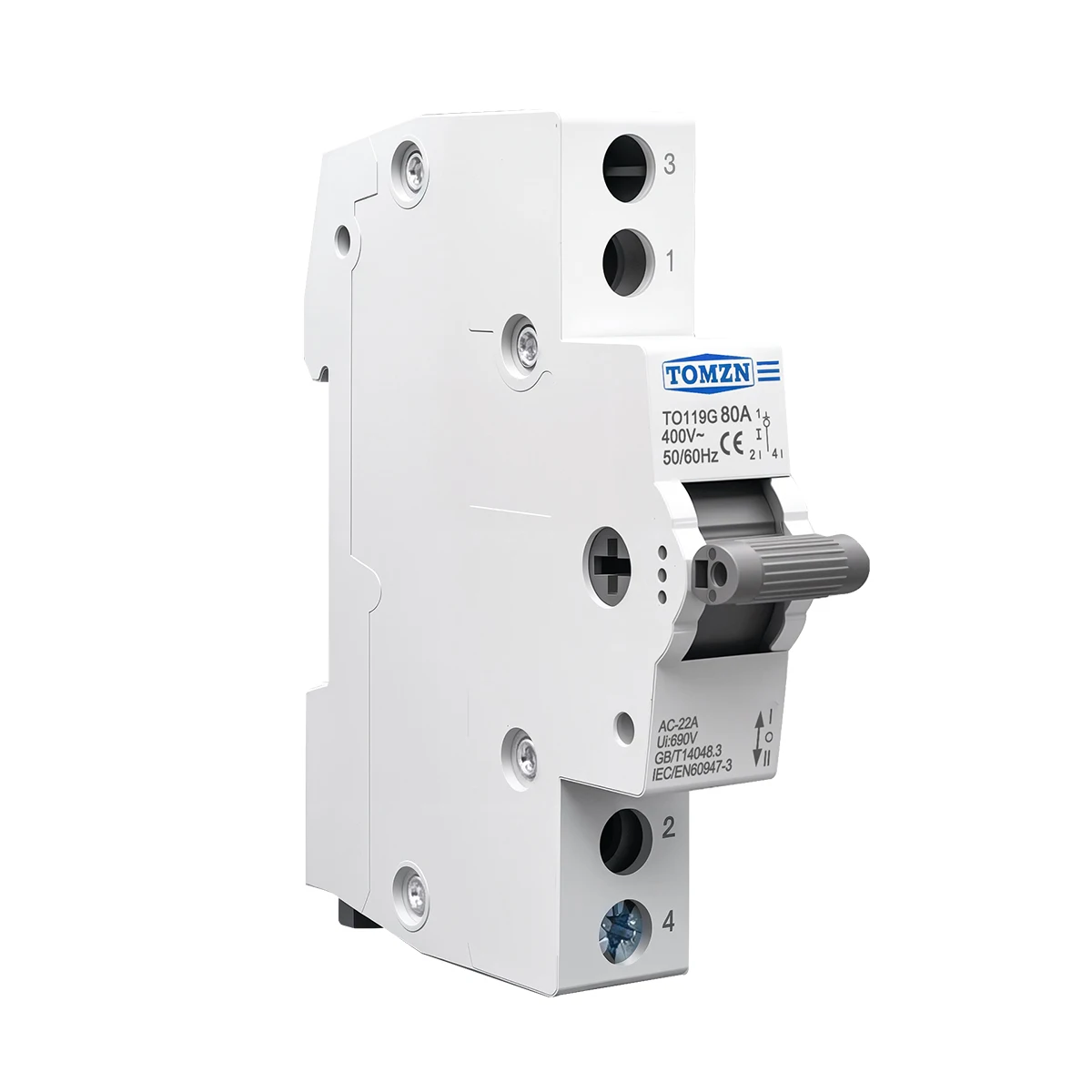

TO119G 1P 80A 400V AC

1P Manual Transfer Switch(MTS)

1.When the handle on the I position: 1 and 2 are connected

2.When the handle on the II position: 1 and 4 are connected

3.When the handle is in the middle position: both groups are disconnected.

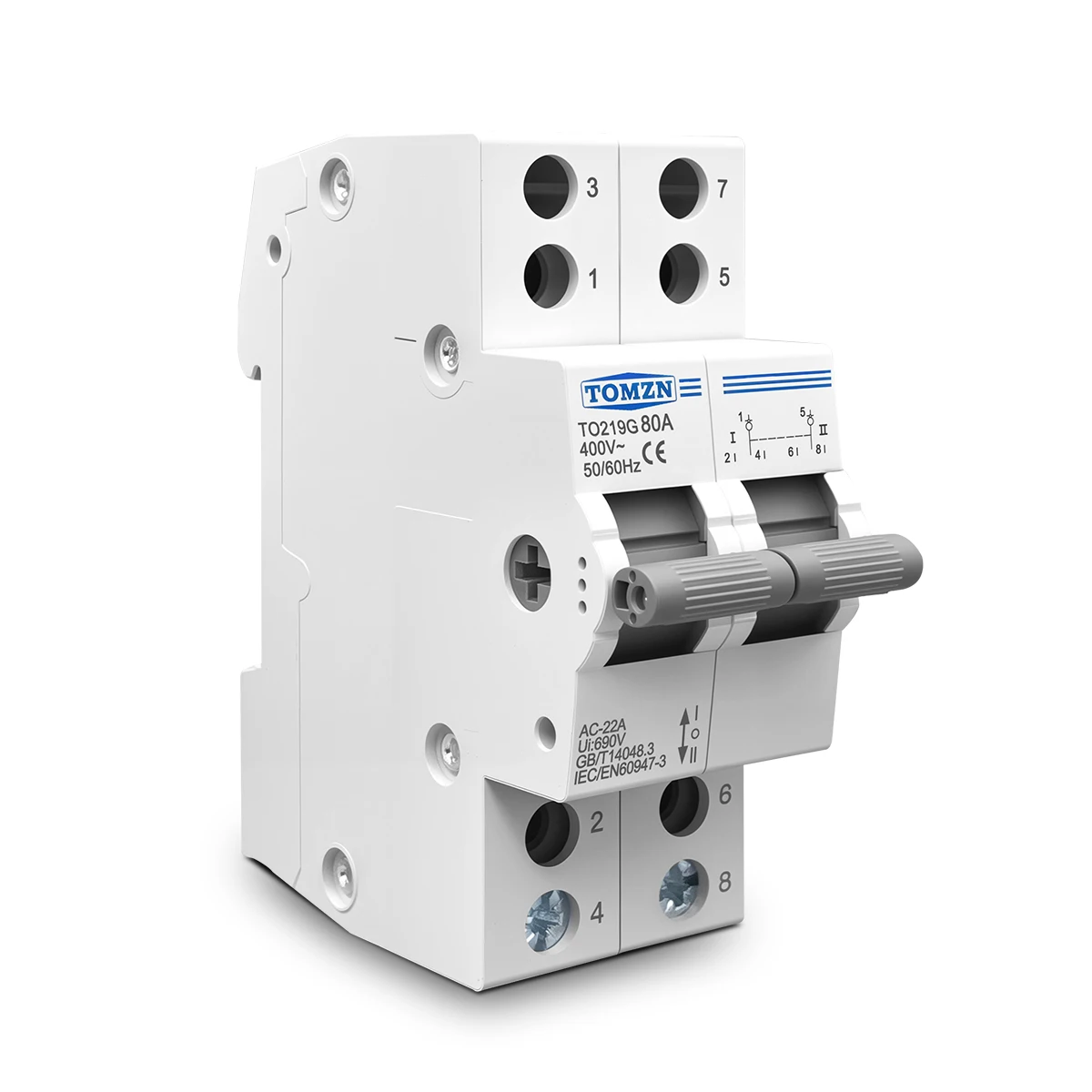

TO219G 2P 80A 400V AC

2P Manual Transfer Switch(MTS)

1.When the handle on the I position:

1 and 2 are connected

5 and 6 are connected.

2.When the handle on the II position:

1 and 4 are connected

5 and 8 are connected.

3.When the handle is in the middle position: both groups are disconnected.

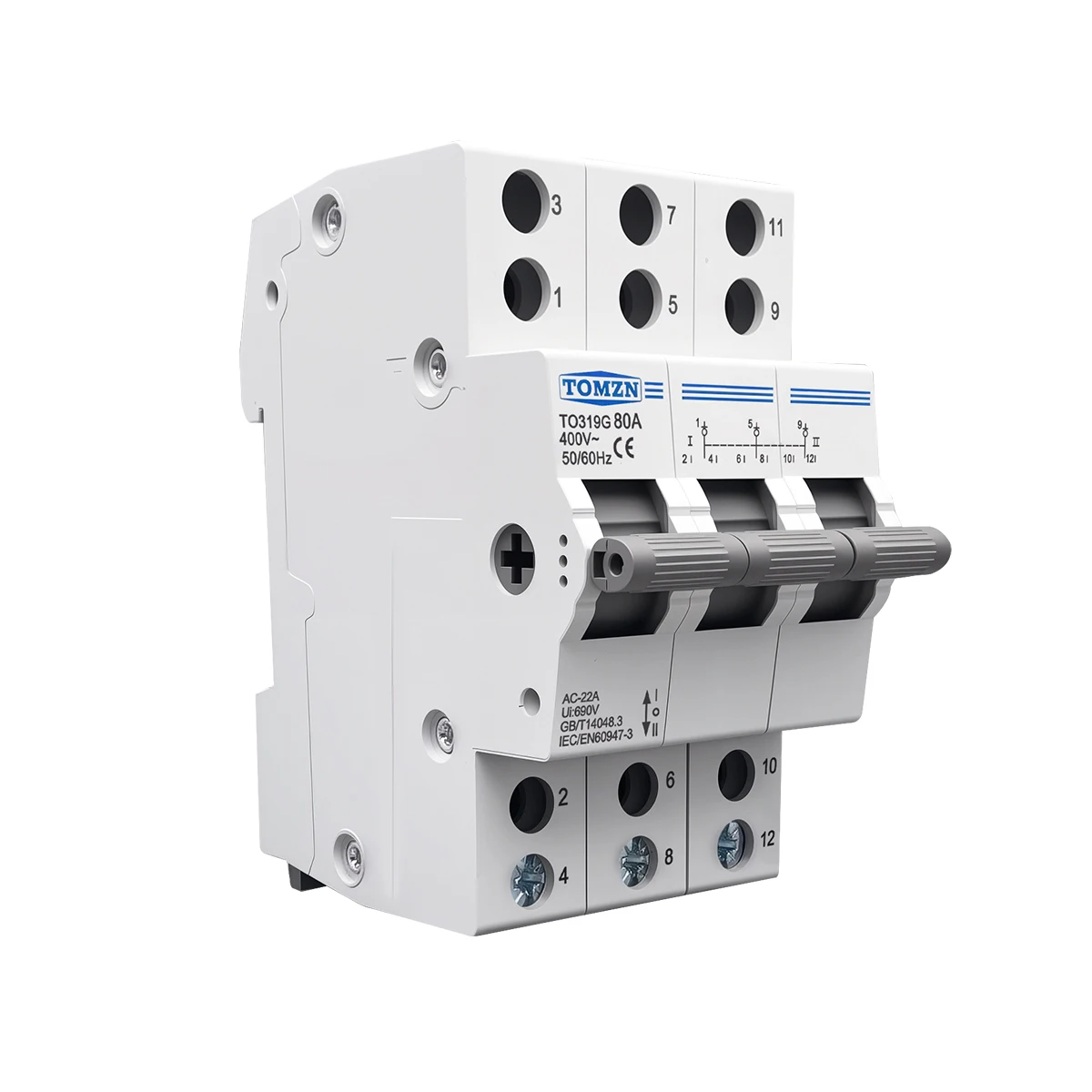

TO319G 3P 80A 400V AC

3P Manual Transfer Switch(MTS)

1.When the handle on the I position:

1 and 2 are connected

5 and 6 are connected.

9 and 10 are connected

2.When the handle on the II position:

1 and 4 are connected

5 and 8 are connected.

9 and 12 are connected

3.When the handle is in the middle position: both groups are disconnected.

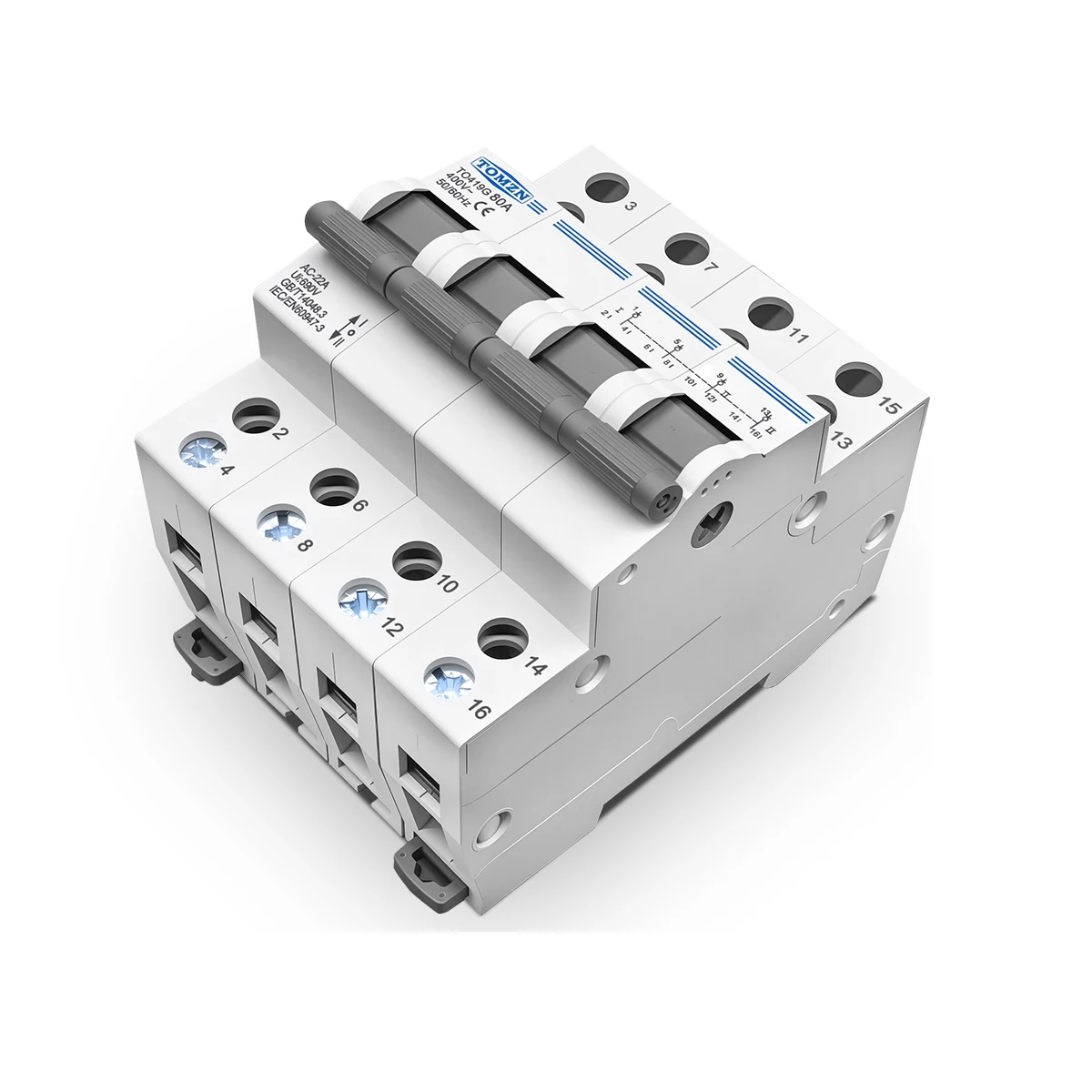

TO419G 4P 80A 400V AC
